NC SW6 Technical specifications

SW6 Site Dumper
MAINTENANCE
INSTRUCTION
MANUAL
NC ENGINEERING (HAMILTONSBAWN) LTD
2 Killyrudden Road, Hamiltonsbawn, Co Armagh, BT61 9S
Tel: [phone] ax: 028 38870362
email: [email protected]om www.nc-engineering.com
REVISION-E
ORGINAL INSTRUCTIONS

2
Dear Customer
Even if you have operated this type of equipment before, it is
very important that your new equipment operations and
instructions are explained to you by a Dealer Representative
following delivery of your equipment.
This will explain the operating controls and enable you to
gain maximum productivity from your new dumper.

3
Foreword
This manual has been produced to provide information on the correct operating and
maintenance procedures for the NC Dumper
The procedures in this publication relate specifically to the NC Dumper
All information, specifications and illustrations used in this manual are correct at the time of
issue. NC reserves the right to make changes in this manual at any time without prior notice.
Copyright © 2010 NC Engineering (Hamiltonsbawn) Ltd
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted in any form or by any other means, electronic, mechanical,
photocopying or otherwise without prior permission of
NC Engineering (Hamiltonsbawn) Ltd

4
Contents
Page No.
De laration of Conformity 5
Noise Level De laration 6
Vibration De laration 7
Te hni al Information 8
Maintenan e De als Des riptions 15
Safety De als and Des riptions 17
6T PST Maintenan e Manual 19
Servi e Re ord 20
Servi e S hedules 21
Torque Settings 24
Fluids and Lubri ants 25
Safety Information 28
Maintenan e 29
Battery 30
Air Cleaner 31
Coolant System 32
Engine Oil Check / Change 33
Gearbox Oil Check / Change 35
Towing Procedure 37
Brake System 38
Park Brake 39
Axle Oil Check / Change 41
Hydraulic System 42
Storage 43
Electrics 46
Fault Finding 49

5
Engineering (Hamiltonsbawn) Ltd.
Manufacturers of Agricultural and Industrial
Equipment
2 Killyrudden Road, Hamiltonsbawn, Tel: [phone]
Richhill, o. Armagh. Fax: [phone]
Northern Ireland. E.mail: info@nc engineering.com
8T619SF www.nc-engineering.com
EC – DECLARATION OF CONFORMITY
Machine description : Site Dumper
Make NC
Type SW6
Manufactured by NC Engineering (Hamiltonsbawn) Ltd
Address: 2 Killyrudden Road, Hamiltonsbawn, Richhill
Co. Armagh. BT61 9S
This machinery has been designed and manufactured in accordance with the following European
Standards: -
2006/42/CE: Ma hinery Dire tive
Measured Sound Power Level: 102 dB LWA
Guaranteed Sound Power Level: 103 dB LWA
Net Installed Power: 74.5kW
A technical construction file for this machine is retained at the above address.
Declaration
Signed: ______________________________________
Name: David Wilson CEng; MSc; MIAgrE
Being the responsible person appointed by the manufacturer (or nominated representative of the manufacturer es-
tablished in the EC) and employed by:
NC Engineering (Hamiltonsbawn) Ltd
This declaration of Conformity complies with Regulation 22 of The Supply of Machinery (Safety) Regulations

6
Noise Level De laration
The noise levels are measured according to ISO6395:1998
The noise level of this machine is
L
WA
103dB ( A )
L
PA
85dB ( A )
L
WA
:- A - Weighted sound power level.
L
PA
:- A - Weighted sound pressure level.

7
Vibration De laration.
The absence of a harmonised test code together with variable conditions under which this
equipment may be used allows only representative figures to be quotes.
Whole Body Vibration Level : a
w
(m/s²) = 0.25
Hand / Arm : a
ha
( m/s² ) ≤ 2.4
The above figures are for reference purposes only. It is the responsibility of the employer to access
vibration exposure based on the actual site conditions and operating practices at the point of use.
Employers should not rely solely on published vibration figures when undertaking risk assessments.
Depending on the site conditions cycle times may need to be adjusted in order to reduce operator
exposure levels.

8
Te hni al Spe ifi ations
Capa ity:
Max. safe load: 6000 kg
Heaped: 3150L
Struck: 2215L
Water: 1645L
Engine:
JCB444T 4 cylinder Turbo
Displacement: 4.4 L
Max. power: 74.5KW/100bhp @ 2200 rpm
Max. torque: 425Nm @ 1300 rpm
Emissions: Euro 2 compliant
Transmission:
Torque converter c/w 4 speed forward and reverse power shuttle
transmission
Permanent 4 wheel drive
Drive hara teristi s:
orward / Reverse 1
st
0-4.5 km/h (0-2.8 mph)
2
nd
0-7.0 km/h (0-4.4 mph)
3
rd
0-14 km/h (0-8.7 mph)
4
th
0-27 km/h (0-16.9 mph)
Steering angle: +/- 36º
Turning circle: 9.8m
Grade-ability: 50%
Tyres: 405/70 R20 (traction Profile)
Steering: Priority load sensing hydrostatic centre pivot
Working brakes: Multi-plate oil immersed discs mounted on
both axles
Park brake: Hand operated, locking on dry disc acting on
gearbox
Noise Levels:
LWA 103dB(A)
LPA 85dB(A)
Tank Capa ities:
uel: 70L
Hydraulic: 70L
Skip:
Hydraulically operated skip tipping to 95º
Skip swivels past 180º for easy placement when driving along
trenches (185º maximum)
Automatic safety lock to hold skip in a central position when
travelling
Heavy duty fully welded skip with 8mm thick steel base, reinforced
around top for greater strength
Operated by a multi axis joystick for increased performance
Ele tri al:
Heavy duty 663 Battery: 12V, 135Ah
Wiring harness in conduit
Reversing alarm
Hydrauli s:
Hydraulic test points fitted as standard
Easy access return oil filter on top of tank
Easy access pressure filter
Seating & Controls:
Adjustable suspension seat accessible from both sides
Clear access across dumper via galvanised steps
Extra wide brake pedal
Super bright warning lights on fully featured display instrument
Steel constructed centre console for extra leg protection
Operator level gear selection lever with integrated clutch button
Column mounted directional control lever
Heater vent at foot level
Anti-slip floor
Horn operable from joystick
Other Features:
olding ROPS as standard
Towing bracket as standard
Servi e A ess:
Easy access for service maintenance
Lockable hinged engine cover
Battery mounted in lockable step compartment
Lockable tool box compartment on step
Separate fuel & hydraulic filler flaps

9
Te hni al Spe ifi ations
Basi Engine Data
Emission compliance Tier 2 / Stage 2
Rated speed 2200rpm
Number of cylinders 4
Nominal bore size 103mm ( 4.055 in )
Stroke 132mm ( 5.16 in )
Cylinder arrangement In line
Combustion cycle 4-stroke
iring order (1 at front {crankshaft pulley} end) 1-3-4-2
Displacement 4.40 litres
Compression ratio 18.6:1
Engine compression see Note (2)
Direction of rotation (viewed from front {crank shaft pulley} end) Clockwise
Valves 4 per cylinder
Valve tip clearances (measured cold):
- inlet 0.19 to 0.27mm (0.007 to 0.011in)
- Exhaust 0.56 to 0.64mm (0.022 to 0.025in)
Lubricating oil pressure(1) 4.6 bar (67lb in²)
Combustion system Direction injection
uel injection pump Rotary mechanical
Note (1): Engine at normal operating temperature and maximum revs.
Note (2): Compression variance between each cylinder should be no greater than 3.5 bar (50 lb in²)

10
Te hni al Spe ifi ations
Torque + Angle Explanation
Insufficient preload of a bolted joint can cause major problems, such as cylinder head warp, leaking gasket
joints etc. There are several methods of achieving an accurate preload of a bolted joint, the two main methods
used on the JCB 444 engine are:
1) Torque Control Tightening
2) Angle Control Tightening
1) Torque Control Tightening
Using a torque meter to control the torque is the most popular means of controlling preload, and in the
majority of instances this method is adequate. It should be noted that with this process, the majority of
the torque is used to overcome friction, therefore slight variations in the frictional conditions can lead to
large changes in the bolt preload.
2) Angle Control Tightening
Where a more precise preload is required, the ‘torque + angle’ tightening method is used. The bolt is
tightened to a predetermined torque (this may be done in stages), and then as a final sequence, the bolt is
tightened to a predetermined angle - this method of tightening the bolts results in a similar variation in
the final preload.
It is critical that the predetermined tightening angle is accurately achieved, failure to tighten accurately
to the specified angle could result in the bolt preload being incorrect - this will lead to eventual failures.
It is good practice to replace all bolts that have been tightened using + angle procedure.
Torque + Angle Tightening Pro edure
The following example explains the recommended torque + angle procedure. A
Torque angle gauge should be used for accuracy, but as a visual check, the bolts can
Be match marked as described below.
1 Tighten the bolt to the specified torque ( specified torque values will be detailed
in relevant sections.)
2 Mark a line across the centre of the bolt, and a second line on the part to be
clamped - the two lines should be aligned, as shown in A
3 Mark a third line at the specified torque angle - in this instance the additional
torque angle is 90°. This line must be marked the specified angle in a clockwise
direction (to further tighten the bolt), as shown in B
4 In some instances, angle torque tightening can be specified in two stages, for
instance in this example, the first angle quoted is 90° (shown at B), and then a
second angle of 180°. The additional 180° angle is from the LAST tightened
positioned - as shown at C.
5 Tighten the bolt so that the line on the bolt aligns with the angle(s) marked on
the item to be clamped - remember, to ensure complete accuracy an angle
gauge should be used.

11

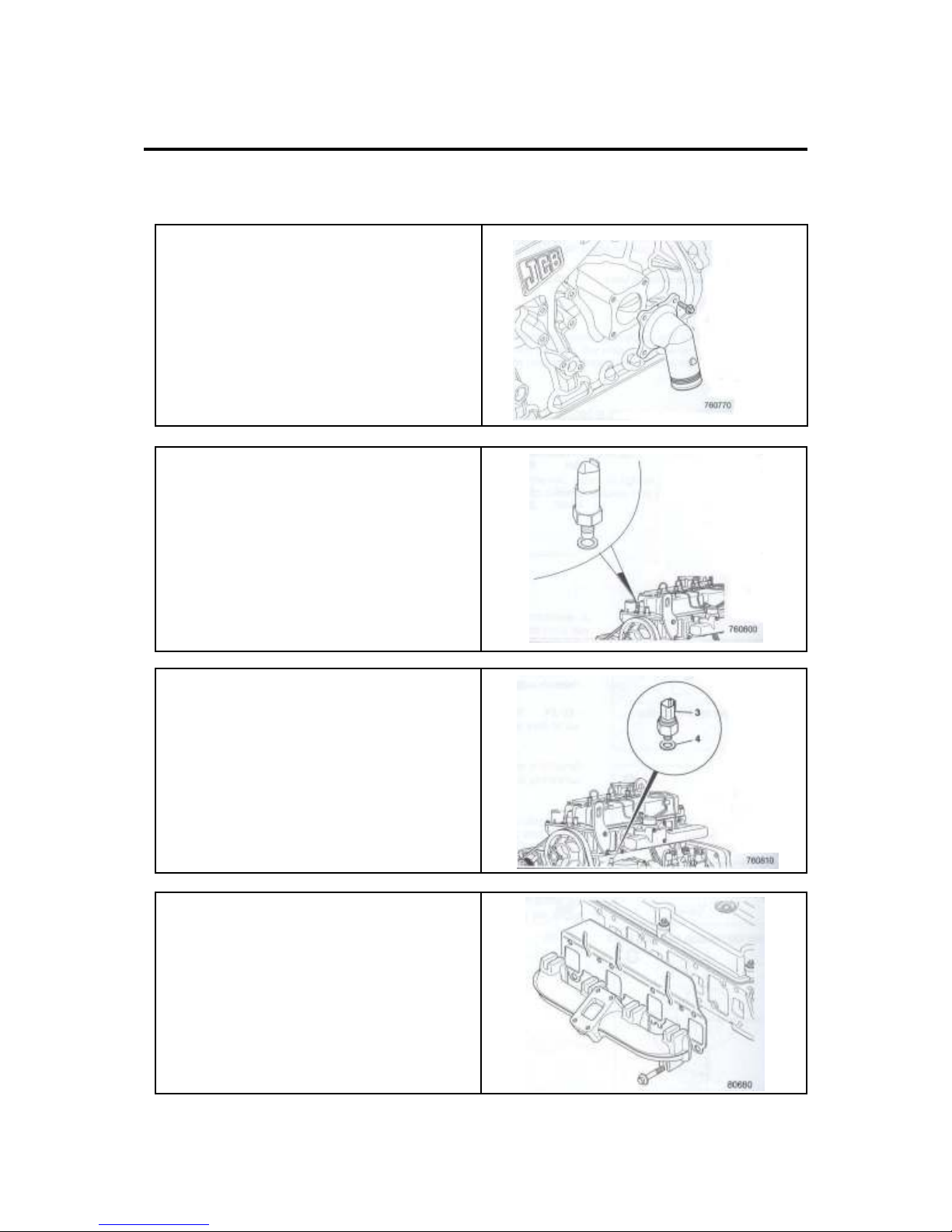

Te hni al Spe ifi ations
Engine Torque Figures
Item Torque Setting Angle
Nm lbf ft
an belt tensioner retaining bolts 22-26 16-19 -
Item Torque Setting Angle
Nm lbf ft
Oil sump retaining bolts A 22-26 16-19 -
Oil sump plug B 40-60 30-44 -
Item Torque Setting Angle
Nm lbf ft
Rocker cover retaining bolts 22-24 16-19 -
Item Torque Setting Angle
Nm lbf ft
Thermostat housing retaining bolts 22-24 16-19 -

12
Te hni al Spe ifi ations
Engine Torque Figures
Item Torque Setting Angle
Nm lbf ft
Water inlet connector retaining 22-26 16-19 -
bolts
Item Torque Setting Angle
Nm lbf ft
Water temperature sender / switch 22-26 16-19 -
Item Torque Setting Angle
Nm lbf ft
Cold start advance switch 22-24 16-19 -
Item Torque Setting Angle
Nm lbf ft
Exhaust manifold retaining bolts
- first stage 25 19 -
- final stage angle torque - - +90°

13
Te hni al Spe ifi ations
Engine Torque Figures
Item Torque Setting Angle
Nm lbf ft
Inlet manifold retaining bolts 22-26 16-19 -
Item Torque Setting Angle
Nm lbf ft
High pressure fuel pipes 25-29 19-22 -
Item Torque Setting Angle
Nm lbf ft
Power take off (PTO) pump bolts
- SAE ‘A’ - M10 bolts 43-51 32-38 -
- SAE ‘B’ - M12 bolts 73-89 54-66 -
Item Torque Setting Angle
Nm lbf ft
Lifting bracket retaining bolts 43-51 32-38 -

14
Te hni al Spe ifi ations
Engine Torque Figures
Item Torque Setting Angle
Nm lbf ft
Starter motor retaining bolts 43-51 32-38 -
Item Torque Setting Angle
Nm lbf ft
Alternator retaining bolts 47 34.7
Item Torque Setting Angle
Nm lbf ft
Oil cooler drain plug 20-25 15-18
Item Torque Setting Angle
Nm lbf ft
uel filter retaining strap bolt 22-26 16-19 -

15
Maintenan e De al Des riptions
The machine is fitted with a maintenance decal. It is important that before using the ma-
chine the decal is understood and all the checks have been carried out. The decal must be
clean and readable at all times. If the decal needs to be replaced it can be obtained from
the NC Spares department.
Ref No. Symbols Description.
1 Engine Oil Level.
2 Engine Coolant Level.
3 uel and Water Sedimentor.
4 Transmission Oil Level.
5 Axle Service Points.
6 Axle Oil Level.
7 Hydraulic Return to Tank ilter.
8 Air ilter Restriction Indicator.
9 Grease Point - Skip Pivot Pins.
10 Grease Point - Slew Ring.
11 Grease Point - Tipping Ram Pins.
12 Grease Point - Slew Rams.
13 Grease Point - Skip Stopper lap.
14 Grease Point - Centre Point Articulation.

16
Maintenan e De al Des riptions
Ref No. Symbols Description.
15 Grease Point - Steering Ram.
16 Grease Point - Drive Shafts.
17 Transfer Box Oil Level.
18 Transmission Oil ilter.
19 Oil Pressure ilter.
20 Axle Oil.
21 Engine Oil ilter.
22 uel ilter.
23 Check Drive Shaft Bolts.
24 Air ilter Element.
25 Transmission Oil.
26 Transfer Box Oil.
27 uel ilter ( Engine Mounted )
28 Engine Coolant.
29 Engine Checks.

17
Safety De als and Des riptions
SAFETY DECALS
The Machine is fitted with a number of safety decals placed in areas to draw the attention
of the users. It is important that before using the machine theses decals are read and un-
derstood. The decals must be clean and readable at all times, if they need to be replaced
they can be obtained from NC spares department.
Part No. Symbol. Descriptions.
DEC~1920-001 Tyre pressure and wheel nut torque.
DEC~1920-002 Hydraulic Oil.
DEC~1920-003 uel.
DEC~1920-004 Stay clear of tipping area.
DEC~1920-005 Skip controls.
DEC~1920-006
Restricted Visibility / No passengers / Towing Loads/ Transport / Read Manual
Before operating machine.
DEC~1920-007 Safe gradients / No tipping down a gradient / Lower skip before driving.
DEC~1920-008 it skip prop before access / Slew ring nut torques.
DEC~1920-009 Sound level.
DEC~1920-010 Ignition.

18
Safety De als and Des riptions
Part No. Symbol. Descriptions.
DEC~1920-011 Gear locations.
DEC~1920-012 Seat belt must be worn.
DEC~1920-013 Don’t operate controls until operators manual has been read.
DEC~1920-014 Recommended brake fluid.
DEC~1920-015 Recommended brake fluid ( Circular )
DEC~1920-016 No repairs to ROPS.
DEC~1920-017 Stay clear of pinch points.
DEC~1920-018 Read manual / Apply handbrake before leaving dumper / Release handbrake
before moving dumper.
DEC~1920-019 Caution moving parts / Do not open when hot.
DEC~1920-020 orward and Reverse.
DEC~1920-021 Maintenance decal.
DEC~1920-031 Battery.

19
6T PST Maintenan e Manual
The following maintenance sections are provided to ensure safe working practices. The
procedures in this booklet should be followed. No attempt should be made to shortcut any of
the steps.
You or others ould be killed or seriously injured if the ma hine is not
orre tly prepared and maintained.
Maintenan e must be arried out by suitably qualified personnel only
To ensure the best performance of the machine ensure the service tasks are carried out at the
correct intervals (see service schedules)
If the machine is working in adverse conditions, then the service intervals should be reduced.
Examples of adverse conditions are:
• Operating with low quality fuel (See Fluids & Lubri ants section for more information)
• Operating in a very dusty environment
• Operating continuously at high engine load
• Operating in an environment with lots of chaff
• Operating in an extremely hot or cold environment
• Operating continuously on slopes
• Operating continuously at high altitude
• Operating in an environment with high humidity

20
Servi e Re ord Sheet
First 50 Hr.
Date…………………….
Hour Reading…………..
First 100 Hr.
Date…………………….
Hour Reading…………..
First 500 Hr.
Date…………………….
Hour Reading…………..
First 1000 Hr.
Date…………………….
Hour Reading…………..
First 1500 Hr.
Date…………………….
Hour Reading…………..
First 2000 Hr.
Date…………………….
Hour Reading…………..
First 2500 Hr.
Date…………………….
Hour Reading…………..
First 3000 Hr.
Date…………………….
Hour Reading…………..
First 3500 Hr.
Date…………………….
Hour Reading…………..
First 4000 Hr.
Date…………………….
Hour Reading…………..
First 4500 Hr.
Date…………………….
Hour Reading…………..
First 5000 Hr.
Date…………………….
Hour Reading…………..
First 6000 Hr.
Date…………………….
Hour Reading…………..
First 6500 Hr.
Date…………………….
Hour Reading…………..
First 7000 Hr.
Date…………………….
Hour Reading…………..
First 7500 Hr.
Date…………………….
Hour Reading…………..
First 8000 Hr.
Date…………………….
Hour Reading…………..
First 8500 Hr.
Date…………………….
Hour Reading…………..
First 9000 Hr.
Date…………………….
Hour Reading…………..
First 9500 Hr.
Date…………………….
Hour Reading…………..
First 10000 Hr.
Date…………………….
Hour Reading…………..
First 5500 Hr.
Date…………………….
Hour Reading…………..
Note: It may be essential to hange the engine Oil and Filter, Air Filter(s) and Fuel Filter(s) more
frequently. Che k ma hine servi e s hedule and appli ations requirements.
