NCE RH550INT User manual

MODEL NO. RH550INT

Model NO. RH550INT

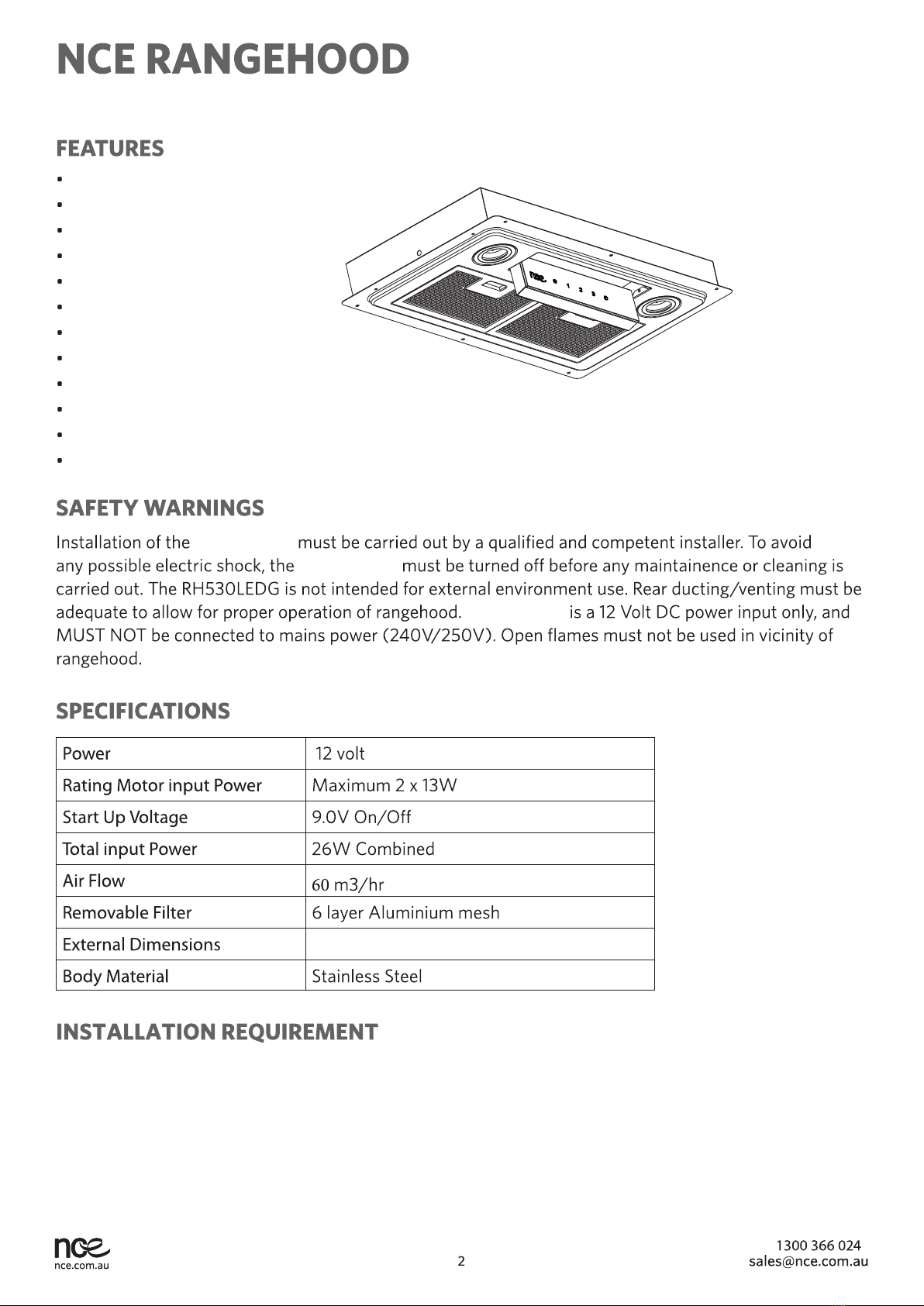

Touch Sensitive Control Panel
Concealed Control Panel
Tempered Glass Front
3 Speed settings
12 Volt DC Power input
2 x Extractor Fans
2 x LED Light fittings
2 x Removable 6-Layer Filters
Stainless Steel Body
Rear Ventilation
Easy to Fit
Dimensions: 566mm(L)x325mm(W)x70mm(H)
RH550INT
RH550INT
RH550INT
566mm(L) x 325mm(W) x 70mm(H)
The minimum height for range hood installations is 650mm in general installations in accordance with
AS/NZS 5601.2 Gas installations Part 1: General installations.
In the case of caravans, this range hood can be installed to the gas appliances recommended height (as per
the appliances installation guide) provided it is certified as a caravan cooker and installed in accordance
with AS/NZS 5601.2 Gas installations Part 2: LPG installations in caravans and boats for non-propulsive
purposes.
Note: This requirement does not apply to the installation of commercial catering equipment.

RH550INT
6
Remove 4 screws on the surface of the panel, and remove the connecting wire connected with
the panel, and remove the panel.
6

Body Housing
Air Flue
Power Assembly w/Box
FAN *2
Micro Switch
Stainless Steel Housing
Filters *2
Switch Assembly Cover
Switch
Switch Holder
Switch Fixing Panel
LED Lamp *2
Control Panel
Protective Box
Door catch
Power Board
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Before use, press the middle part of the control panel, then the control panel pops up.
After use, press the middle part of the control panel to close it.
NOTE:

RH550INT
