1-Bag Bagwell Upgrade
This publication provides procedures for installing a 1-Bag Bagwell to a 7350 NCR
SelfServ™ Checkout.
Kit Contents
Depending on the color variant of the Bagwell, refer to the following sections for
information about kit contents:
•7350–K120 1-Bag Bagging Area (G/11) on the next page.
•7350-K121 1-Bag Bagging Area (Battleship Gray) on page4.
•7350-K122 1-Bag Bagging Area (RAL9001 Cream) on page6.
•7350-K123 1-Bag Bagging Area (Coles Silver) on page8.
•7350-K125 1-Bag Bagging Area (Walmart Blue) on page10.
•7350-K962 1-Bag Bagging Area (RAL 7021 Black) on page12.
•7350-K967 1-Bag Bagging Area (Dark Red) on page14.

1-2 1-Bag Bagwell Upgrade
7350–K120 1-Bag Bagging Area (G/11)
Part Number Description
497-0526230 1-Bag Bagging Area (G/11)
795-0283401 1-Bag Door Assembly (G/11)
795-0137201 1-Bag Backsplash Panel (G/11)
795-0137101 1-Bag Front Panel (G/11)

1-Bag Bagwell Upgrade 1-3
Part Number Description
795-0133301 1-Bag Bagwell Side Panel (G/11)
* 795-0281699 Hole Cover Label (G/11)
497-0466204 Skirt-Mini BOM Package
497-0464170 1-Bagger Frame Assembly with Leveling Feet and Casters
497-0472267 1-Bag Scale Tray with Bag Rack Hardware
497-0467814 Scale Controller and Pods Assembly
497-0457365 1-Bag Backsplash Side Plastic Deflector
497-0457054 Black Nylon Spacer 15mm OD x 10.4mm ID x 10mm L (5pcs)
497-0455519 Core Side Plastic Deflector
497-0518271 1-Bag Upper Bumper
* 497-0445077 Cable: (Black) 4M USB +Power (12V) to 2x4 Latch-N-Lok
009-0005930 Cable Tie-snap in Mounting
006-8612492 Screw - 1/4-20 x 0.750", Phillips Flat Head, 82 Degree, Machine
Thread, Zinc-Plated Steel (5pcs)
006-8612446 Screw - 8-32 x 0.375" Phil Pan, Self Tapping - Type F (7pcs)
006-8616060 Screw - 1/4-20 x 0.75", Pan Head, Phillips, Zinc Plated Steel
(8pcs)
006-8623998 Screw - 1/4-20 x 1-21/64’’, Phillips Flat Head, 82 Degree,
Machine Thread, Zinc-Plated Steel (4pcs)
006-8611505 Nylon Bushing (2pcs)
006-8611143 Nut Keps, 8-32, Steel, Blue Zinc (5pcs)
006-8604541 Screw, 1/4-20x1/2, Pan Head, Phillips (4pcs)
497-0421485 Power Strip, IEC 4-POS, Plastic Case
* 497-0426042 Bag - 2 and 3.5 Bagger, LHC and RHC, Input Belt
* 497-0513382 Multiple Power Sources/ Disconnect Power Caution Label
* 007-9714414 Tiestrap Plain 5.60LG (4pcs)
* 497-0423108 Kit Instructions (Reference Sheet)
* Items marked with an asterisk are not called out on the image.

1-4 1-Bag Bagwell Upgrade

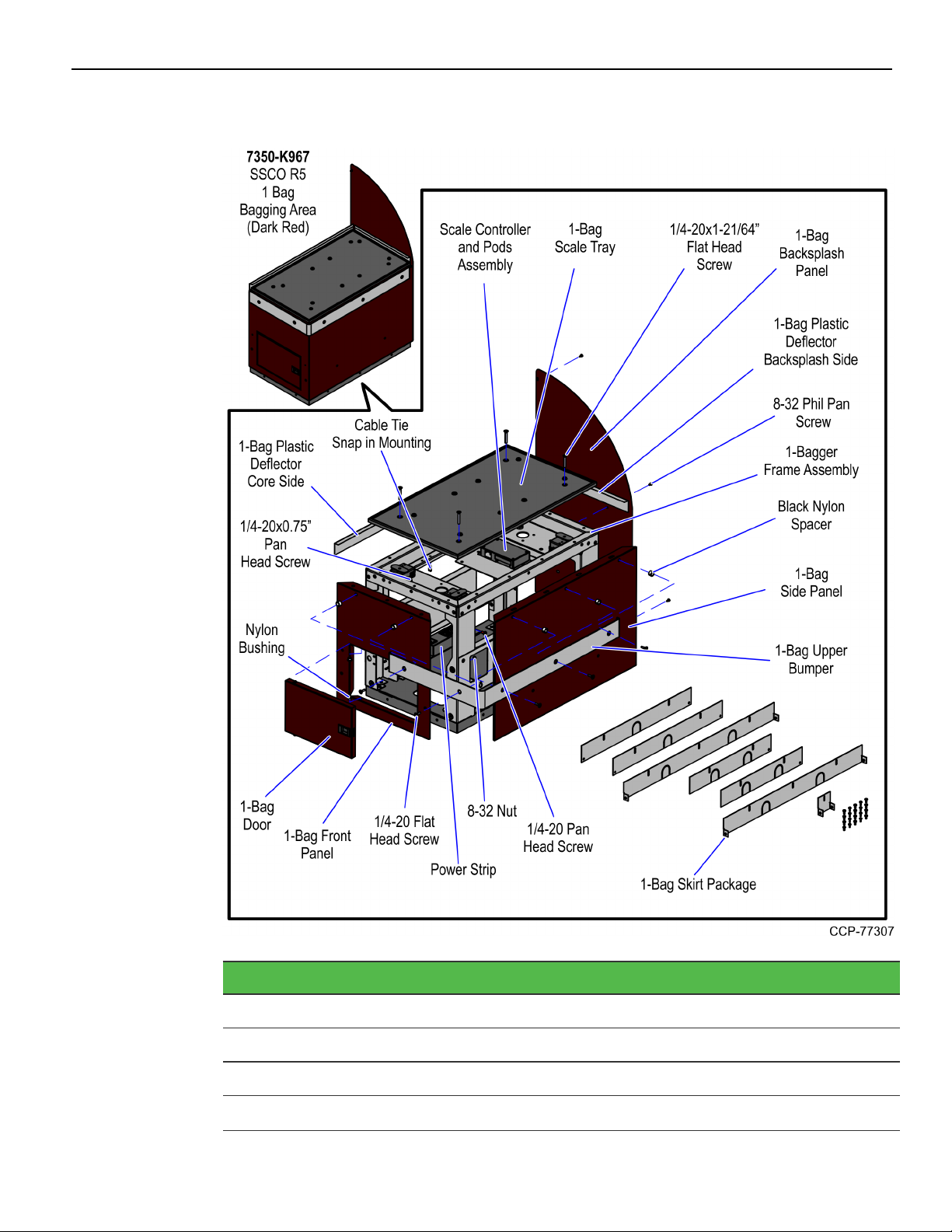

7350-K121 1-Bag Bagging Area (Battleship Gray)
Part Number Description
497-0526234 1-Bag Bagging Area (Battleship Gray)
795-0283416 1-Bag Door Assembly (Battleship Gray)
795-0137216 1-Bag Backsplash Panel (Battleship Gray)
795-0137116 1-Bag Front Panel (Battleship Gray)

1-Bag Bagwell Upgrade 1-5
Part Number Description
795-0133316 1-BagBagwell Side Panel (Battleship Gray)
* 795-0281616 Hole Cover Label (Battleship Gray)
497-0466204 Skirt-Mini BOM Package
497-0464170 1-Bagger Frame Assembly with Leveling Feet and Casters
497-0472267 1-Bag Scale Tray with Bag Rack Hardware
497-0467814 Scale Controller and Pods Assembly
497-0457365 1-Bag Backsplash Side Plastic Deflector
497-0457054 Black Nylon Spacer 15mm OD x 10.4mm ID x 10mm L (10pcs)
497-0455519 Core Side Plastic Deflector
497-0518271 1-Bag Upper Bumper
* 497-0445077 Cable: (Black) 4M USB +Power (12V) to 2x4 Latch-N-Lok
006-8613174 Wire Saddle – Locking Top (2pcs)
006-8612492 Screw - 1/4-20 x 0.750", Phillips Flat Head, 82 Degree, Machine
Thread, Zinc-Plated Steel (10pcs)
006-8612446 Screw - 8-32 x 0.375" Phil Pan, Self Tapping - Type F (7pcs)
006-8616060 Screw - 1/4-20 x 0.75", Pan Head, Phillips, Zinc Plated Steel
(8pcs)
006-8623998 Screw - 1/4-20 x 1-21/64’’, Phillips Flat Head, 82 Degree,
Machine Thread, Zinc-Plated Steel (4pcs)
006-8611505 Nylon Bushing (2pcs)
006-8611143 Nut Keps, 8-32, Steel, Blue Zinc (9pcs)
006-8604541 Screw, 1/4-20x1/2, Pan Head, Phillips (4pcs)
497-0421485 Power Strip, IEC 4-POS, Plastic Case
* 497-0426042 BAG - 2 and 3.5 BAGGER, LHC and RHC, Input Belt
* 497-0513382 Multiple Power Sources/ Disconnect Power Caution Label
* 497-0518274 1-Bag Rear Door Bumper
* 497-0518277 1-Bag Wrap-Around Side Corner Bumper
* 497-0464172 1-Bag Rear Frame Support Bracket
* 497-0423108 Kit Instructions (Reference Sheet)
* Items marked with an asterisk are not called out on the image.

1-6 1-Bag Bagwell Upgrade
7350-K122 1-Bag Bagging Area (RAL9001 Cream)
Part Number Description
497-0526232 1-Bag Bagging Area (RAL9001 Cream)
795-0283409 1-Bag Door Assembly (RAL 9001 Cream)
795-0137209 1-Bag Backsplash Panel (RAL 9001 Cream)
795-0137109 1-Bag Front Panel (RAL 9001 Cream)

1-Bag Bagwell Upgrade 1-7
Part Number Description
795-0133309 1-Bag Bagwell Side Panel (RAL 9001 Cream)
* 795-0281609 Hole Cover Label (RAL 9001 Cream)
497-0466204 Skirt-Mini BOM Package
497-0464170 1-Bagger Frame Assembly with Leveling Feet and Casters
497-0472267 1-Bag Scale Tray with Bag Rack Hardware
497-0467814 Scale Controller and Pods Assembly
497-0457365 1-Bag Backsplash Side Plastic Deflector
497-0457054 Black Nylon Spacer 15mm OD x 10.4mm ID x 10mm L (5pcs)
497-0455519 Core Side Plastic Deflector
497-0518271 1-Bag Upper Bumper
* 497-0445077 Cable: (Black) 4M USB +Power (12V) to 2x4 Latch-N-Lok
009-0005930 Cable Tie-snap in Mounting
006-8612492 Screw - 1/4-20 x 0.750", Phillips Flat Head, 82 Degree, Machine
Thread, Zinc-Plated Steel (5pcs)
006-8612446 Screw - 8-32 x 0.375" Phil Pan, Self Tapping - Type F (7pcs)
006-8616060 Screw - 1/4-20 x 0.75", Pan Head, Phillips, Zinc Plated Steel
(8pcs)
006-8623998 Screw - 1/4-20 x 1-21/64’’, Phillips Flat Head, 82 Degree,
Machine Thread, Zinc-Plated Steel (4pcs)
006-8611505 Nylon Bushing (2pcs)
006-8611143 Nut Keps, 8-32, Steel, Blue Zinc (5pcs)
006-8604541 Screw, 1/4-20x1/2, Pan Head, Phillips (4pcs)
497-0421485 Power Strip, IEC 4-POS, Plastic Case
* 497-0426042 Bag - 2 and 3.5 Bagger, LHC and RHC, Input Belt
* 497-0513382 Multiple Power Sources/ Disconnect Power Caution Label
* 007-9714414 Tiestrap Plain 5.60LG (4pcs)
* 497-0423108 Kit Instructions (Reference Sheet)
* Items marked with an asterisk are not called out on the image.

1-8 1-Bag Bagwell Upgrade

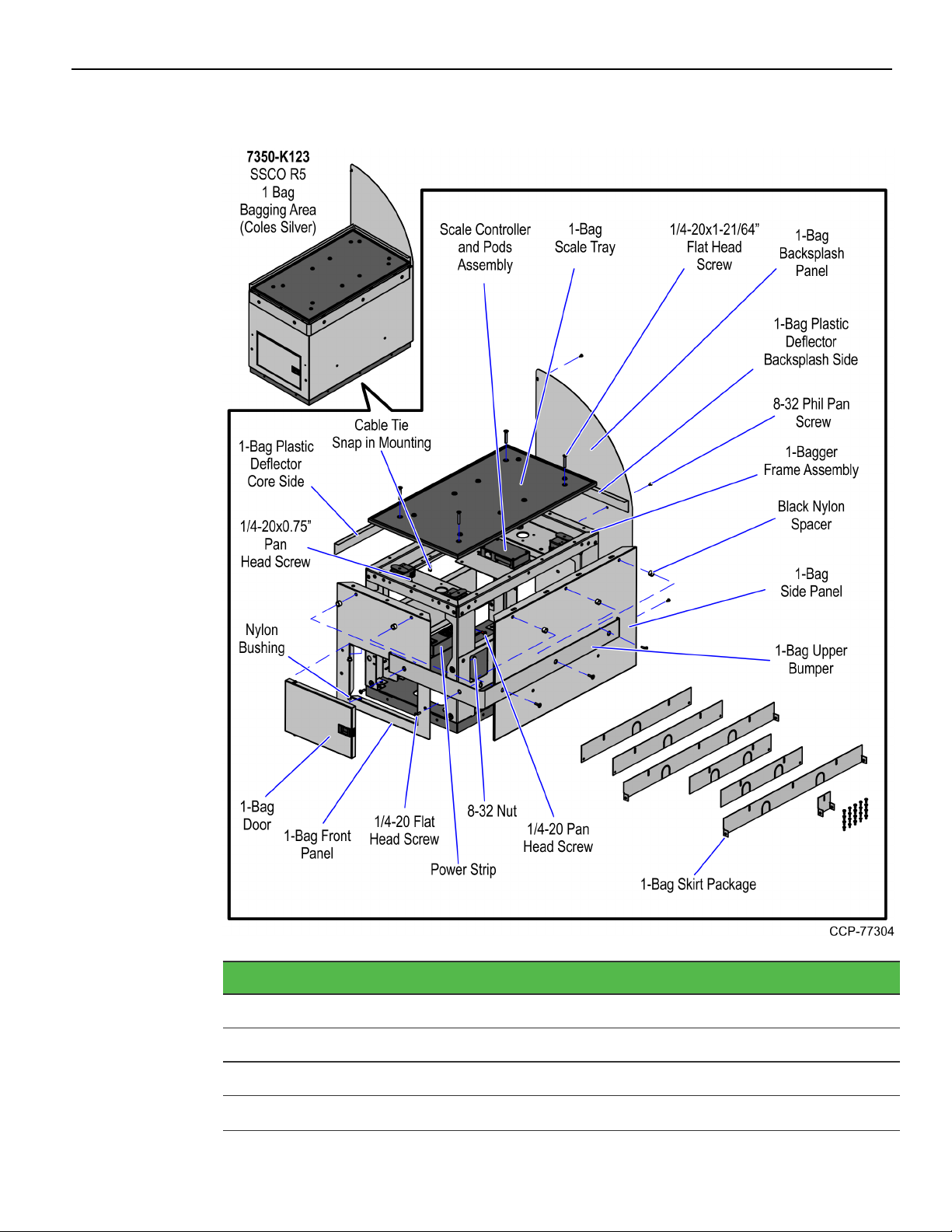

7350-K123 1-Bag Bagging Area (Coles Silver)
Part Number Description
497-0526233 1-Bag Bagging Area (Coles Silver)
795-0283413 1-Bag Door Assembly (Coles Silver)
795-0137213 1-Bag Backsplash Panel (Coles Silver)
795-0137113 1-Bag Front Panel (Coles Silver)

1-Bag Bagwell Upgrade 1-9
Part Number Description
795-0133313 1-Bag Bagwell Side Panel (Coles Silver)
* 795-0281613 Hole Cover Label (Coles Silver)
497-0466204 Skirt - Mini BOM Package
497-0464170 1-Bagger Frame with Leveling Feet and Casters Assembly
497-0472267 1-Bag Scale Tray with Bag Rack Hardware
497-0467814 Scale Controller and Pods Assembly
497-0457365 1-Bag Backsplash Side Plastic Deflector
497-0457054 Black Nylon Spacer 15mm OD x 10.4mm ID x 10mm L (5pcs)
497-0455519 Core side Plastic Deflector
497-0518271 1-Bag Upper Bumper
* 497-0445077 Cable: (Black) 4M USB +Power (12V) to 2x4 Latch-N-Lok
009-0005930 Cable Tie-snap in Mounting
006-8612492 Screw - 1/4-20 x 0.750", Phillips Flat Head, 82 Degree, Machine
Thread, Zinc-Plated Steel (5pcs)
006-8612446 Screw - 8-32 x 0.375" Phil Pan, Self Tapping - Type F (7pcs)
006-8616060 Screw - 1/4-20 x 0.75", Pan Head, Phillips, Zinc Plated Steel
(8pcs)
006-8623998 Screw - 1/4-20 x 1-21/64’’, Phillips Flat Head, 82 Degree,
Machine Thread, Zinc-Plated Steel (4pcs)
006-8611505 Nylon Busing (2pcs)
006-8611143 Nut Keps, 8-32, Steel, Blue Zinc (5pcs)
006-8604541 Screw, 1/4-20x1/2, Pan Head, Phillips (4pcs)
497-0421485 Power Strip, IEC 4-POS, Plastic Case
* 497-0426042 Bag - 2 and 3.5 Bagger, LHC and RHC, Input Belt
* 497-0513382 Multiple Power Sources/ Disconnect Power Caution Label
* 007-9714414 Tiestrap Pain 5.60LG (4pcs)
* 497-0423108 Kit Instructions (Reference Sheet)
* Items marked with an asterisk are not called out on the image.

1-10 1-Bag Bagwell Upgrade

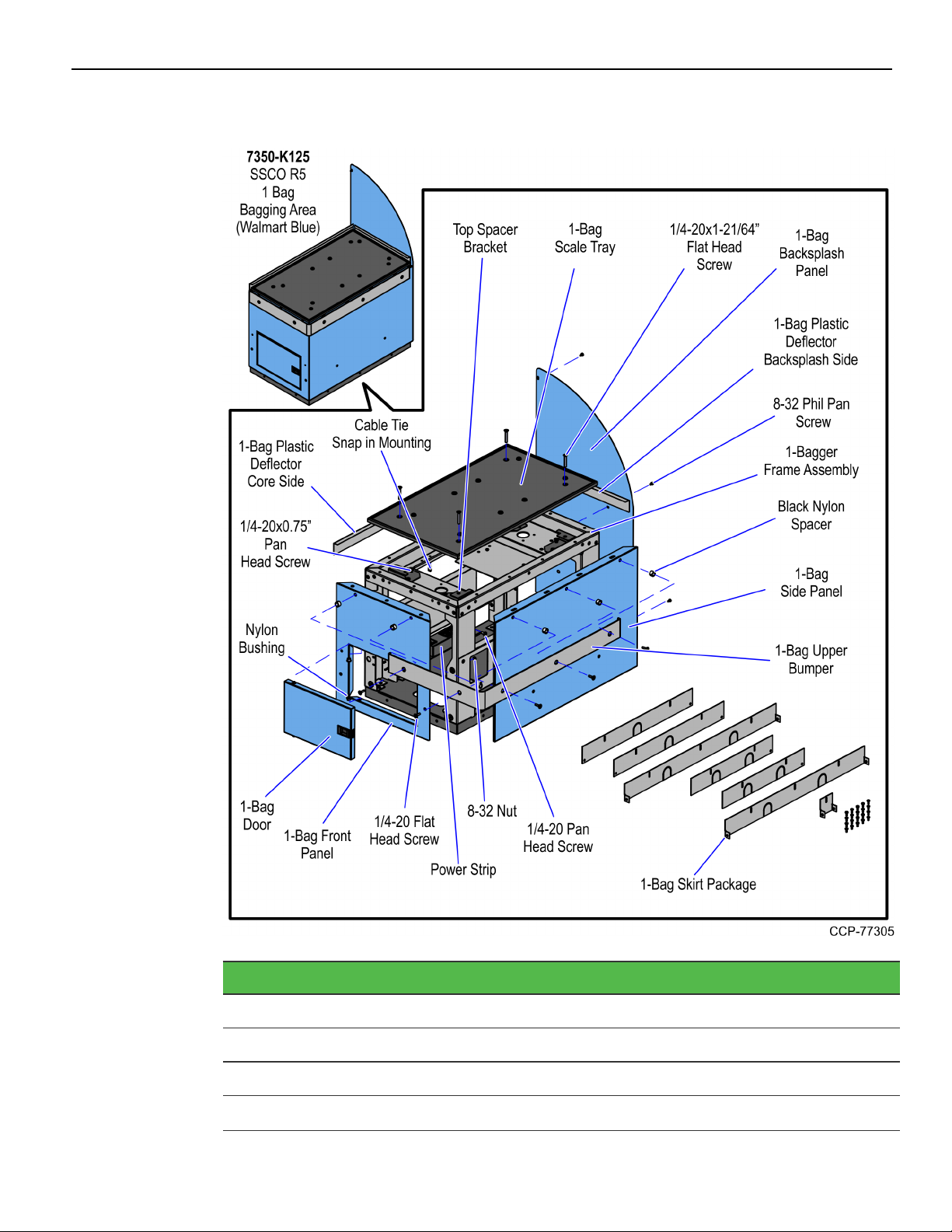

7350-K125 1-Bag Bagging Area (Walmart Blue)
Part Number Description
497-0526495 1-BagBagging Area (Walmart Blue)
795-0283412 1-Bag Door Assembly (Walmart Blue)
795-0137212 1-Bag Backsplash Panel (Walmart Blue)
795-0137112 1-Bag Front Panel (Walmart Blue)

1-Bag Bagwell Upgrade 1-11
Part Number Description
795-0133312 1-Bag Bagwell Side Panel (Walmart Blue)
* 795-0117112 Hole Cover Label (Walmart Blue)
497-0466204 Skirt - Mini BOM Package
497-0464170 1-Bagger Frame with Leveling Feet and Casters Assembly
497-0472267 1-Bag Scale Tray with Bag Rack Hardware
497-0457365 1-Bag Backsplash Side Plastic Deflector
497-0455519 Core Side Plastic Deflector
009-0005930 Cable Tie-snap in Mounting
006-8612446 Screw - 8-32 x 0.375" Phil Pan, Self Tapping - Type F (10pcs)
006-8616060 Screw - 1/4-20 x 0.75", Pan Head, Phillips, Zinc Plated Steel
(8pcs)
006-8623998 Screw - 1/4-20 x 1-21/64’’, Phillips Flat Head, 82 Degree,
Machine Thread, Zinc-Plated Steel (4pcs)
006-8611505 Nylon Bushing (2pcs)
006-8611143 Nut Keps, 8-32, Steel, Blue Zinc (5pcs)
006-8604541 Screw, 1/4-20x1/2, Pan Head, Phillips (4pcs)
497-0421485 Power Strip, IEC 4-POS, Plastic Case
* 497-0426042 Bag - 2 and 3.5 BAGGER, LHC and RHC, Input Belt
* 007-9714414 Tiestrap Plain 5.60LG (4pcs)
* 497-0513382 Multiple Power Sources/ Disconnect Power Caution Label
497-0521432 Top Spacer Bracket (4pcs)
* 497-0423108 Kit Instructions (Reference Sheet)
* Items marked with an asterisk are not called out on the image.

1-12 1-Bag Bagwell Upgrade
7350-K962 1-Bag Bagging Area (RAL 7021 Black)
Part Number Description
497-0526231 1-Bag Bagging Area (RAL 7021 Black)
795-0283407 1-Bag Door Assembly (RAL 7021 Black)
795-0137207 1-Bag Backsplash Panel (RAL 7021 Black)
795-0137107 1-Bag Front Panel (RAL 7021 Black)

1-Bag Bagwell Upgrade 1-13
Part Number Description
795-0133307 1-Bag Bagwell Side Panel (RAL 7021 Black)
* 795-0281607 Hole Cover Label (RAL 7021 Black)
497-0466204 Skirt - Mini BOM Package
497-0464170 1-Bagger Frame Assembly with Leveling Feet and Casters
497-0472267 1-Bag Scale Tray with Bag Rack Hardware
497-0467814 Scale Controller and Pods Assembly
497-0457365 1-Bag Backsplash Side Plastic Deflector
497-0457054 Black Nylon Spacer 15mm OD x 10.4mm ID x 10mm L (5pcs)
497-0455519 Core Side Plastic Deflector
497-0518271 1-BagUpper Bumper
* 497-0445077 Cable: (Black) 4M USB +Power (12V) to 2x4 Latch-N-Lok
009-0005930 Cable Tie-snap in Mounting
006-8612492 Screw - 1/4-20 x 0.750", Phillips Flat Head, 82 Degree, Machine
Thread, Zinc-Plated Steel (5pcs)
006-8612446 Screw - 8-32 x 0.375" Phil Pan, Self Tapping - Type F (7pcs)
006-8616060 Screw - 1/4-20 x 0.75", Pan Head, Phillips, Zinc Plated Steel
(8pcs)
006-8623998 Screw - 1/4-20 x 1-21/64’’, Phillips Flat Head, 82 Degree,
Machine Thread, Zinc-Plated Steel (4pcs)
006-8611505 Nylon Bushing (2pcs)
006-8611143 Nut Keps, 8-32, Steel, Blue Zinc (5pcs)
006-8604541 Screw, 1/4-20x1/2, Pan Head, Phillips (4pcs)
497-0421485 Power Strip, IEC 4-POS, Plastic Case
* 497-0426042 Bag - 2 and 3.5 Bagger, LHC and RHC, Input Belt
* 497-0513382 Multiple Power Sources/ Disconnect Power Caution Label
* 007-9714414 Tiestrap Plain 5.60LG (4pcs)
* 497-0423108 Kit Instructions (Reference Sheet)
* Items marked with an asterisk are not called out on the image.

1-14 1-Bag Bagwell Upgrade
7350-K967 1-Bag Bagging Area (Dark Red)
Part Number Description
497-0526235 1-Bag Bagging Area (Dark Red)
795-0283418 1-Bag Door Assembly (Dark Red)
795-0137218 1-Bag Backsplash Panel (Dark Red)
795-0137118 1-Bag Front Panel (Dark Red)

1-Bag Bagwell Upgrade 1-15
Part Number Description
795-0133318 1-Bag Bagwell Side Panel (Dark Red)
* 795-0281618 Hole Cover Label (Dark Red)
497-0466204 Skirt - Mini BOM Package
497-0464170 1-Bagger Frame with Leveling Feet and Casters Assembly
497-0472267 1-Bag Scale Tray with Bag Rack Hardware
497-0467814 Scale Controller and Pods Assembly
497-0457365 1-Bag Backsplash side Plastic Deflector
497-0457054 Black Nylon Spacer 15mm OD x 10.4mm ID x 10mm L (5pcs)
497-0455519 Core Side Plastic Deflector
497-0518271 1-Bag Upper Bumper
* 497-0445077 Cable: (Black) 4M USB +Power (12V) to 2x4 Latch-N-Lok
009-0005930 Cable Tie-snap in Mounting
006-8612492 Screw - 1/4-20 x 0.750", Phillips Flat Head, 82 Degree, Machine
Thread, Zinc-Plated Steel (5pcs)
006-8612446 Screw - 8-32 x 0.375" Phil Pan, Self Tapping - Type F (7pcs)
006-8616060 Screw - 1/4-20 x 0.75", Pan Head, Phillips, Zinc Plated Steel
(8pcs)
006-8623998 Screw - 1/4-20 x 1-21/64’’, Phillips Flat Head, 82 Degree,
Machine Thread, Zinc-Plated Steel (4pcs)
006-8611505 Nylon Bushing (2pcs)
006-8611143 Nut Keps, 8-32, Steel, Blue Zinc (5pcs)
006-8604541 Screw, 1/4-20x1/2, Pan Head, Phillips (4pcs)
497-0421485 Power Strip, IEC 4-POS, Plastic Case
* 497-0426042 Bag - 2 and 3.5 Bagger, LHC and RHC, Input Belt
* 497-0513382 Multiple Power Sources/ Disconnect Power Caution Label
* 007-9714414 Tiestrap Plain 5.60LG
* 497-0423108 Kit Instructions (Reference Sheet)
* Items marked with an asterisk are not called out on the image.

1-16 1-Bag Bagwell Upgrade
Installation Procedures
Installing the Bagwell upgrade involves the following procedures:
•Removing Existing Bagwell on the facing page.
•Changing Bagwell Orientation on page22.
Note: This procedure may be optional.
•Installing New Bagwell on page28.
•Installing Bagwell Skirt Panels on page35.
•Routing Cables on page37.

1-Bag Bagwell Upgrade 1-17
Removing Existing Bagwell
To remove an existing 1-Bag Bagwell, follow these steps:
Note: To remove a 2-Bag Bagwell refer to 7350-K140/K141/K142/K143/K145/K964 2-Bag
Bagwell Upgrade. To remove a 3-Bag Bagwell refer to 7350-K160/K162/K164/K165/K996
3-Bag Bagwell Upgrade.
1. Detach the Scale Tray from the Bagwell by removing four (4) flat head screws.
Note: Remove bag racks if present.
