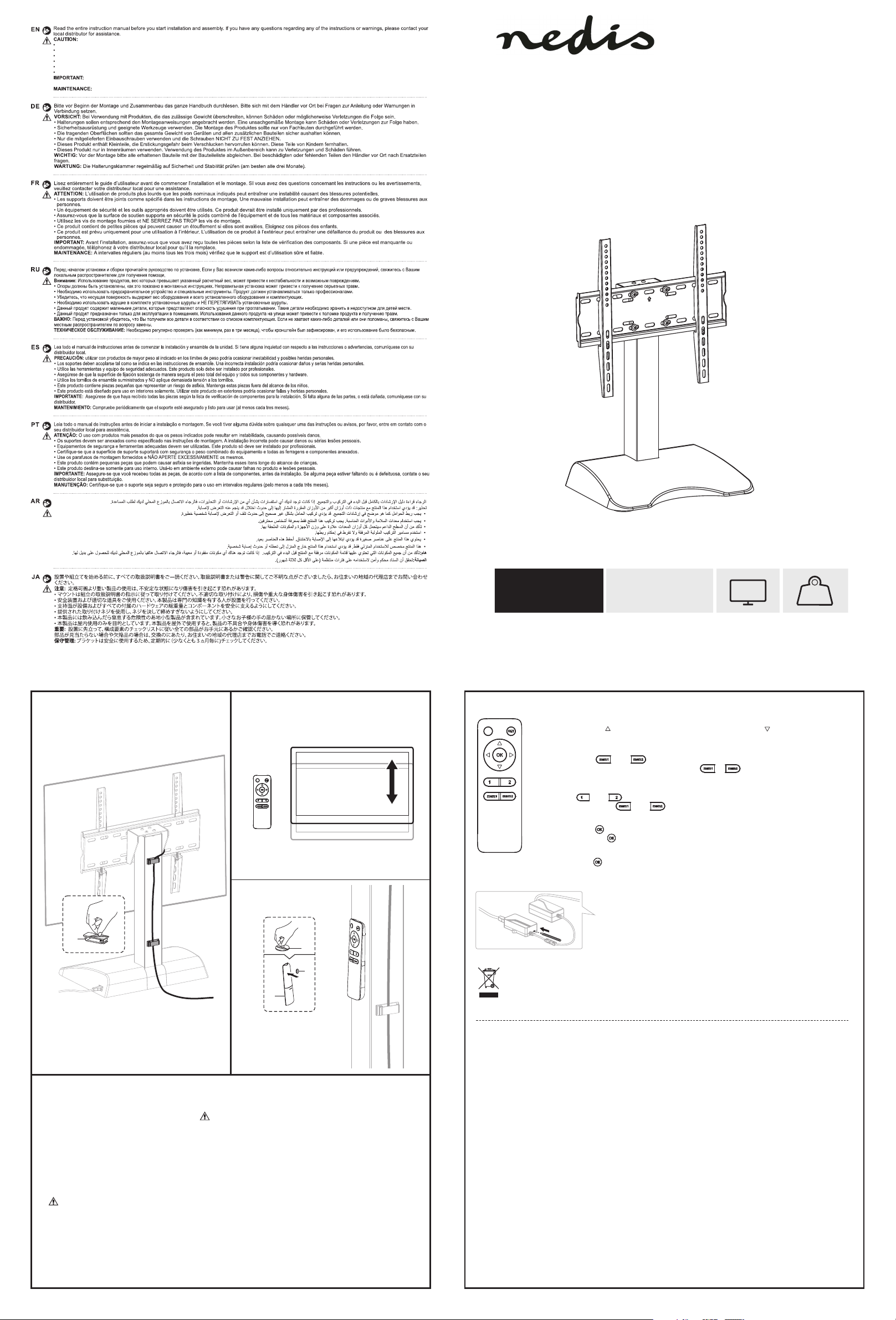

nedis TVSM5831BK User manual

Use with products heavier than the rated weights indicated may result in instability causing possible injury.
Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury.
Safety gear and proper tools must be used. This product should only be installed by professionals.
Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of
purchase for a replacement.
Check that the product is secure and safe to use at regular intervals (at least every three months).
7
TVSM5831BK 50kg
(110lbs)
RATED
VESA Compatible
200x200 300x200 300x300
400x200 400x300 400x400
65"
MAX
HEIGHT ADJUSTABLE
MOTORIZED TV STAND
Instruction Manual
8
M
O
M
J
Warnings
Disposal:
The product with this mark indicates that this product shouldn't be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used
device, please use the local recycle service or contact your point of purchase to withdraw the product.
·
use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
· Persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge must not use the appliance,
unless they're under supervision, understand the hazards involved or they have been thoroughly instructed in the use of the
apparatus by a person who is responsible for the safety of these persons.
· Don't leave the cords or plug unorganized in order to prevent tripping hazards.
· Any attempts to reconstruct the construction aren't allowed.
This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning
The product is powered by electricity. In order to avoid burns, fire and electric shock and make sure the safe and correct use
of the system and maintain the longevity of the overall construction and the built-in electronics, please read the instructions
carefully.
Electrical Safety Instructions
Remote Control User Guide
1. UP/DOWN ARROWS
Press and hold the “ ” button to raise the Mount. Press and hold the“ ” button to lower the Mount.
Note: Remove all surrounding items prior to adjusting the Mount height.
2. Memory Setting
Long press the “ ” or “ ” button for 3 seconds until you hear a beep, indicating that the
current position has been saved to memory. The “ ” “ ” buttons can each store a
different position.
3. Recall Memory
Press the “ ” or “ ” button and the mount will automatically get to the position saved in the
corresponding button “ ” or “ ”.
5. Reset Mode
Long press the “ ” button for 3 seconds until you hear a beep, and the mount starts to move
downwards. Then the mount will move upwards a little bit when reaching the lowest position and
automatically come to a stop. The system resets successfully when the unit emits two beeps.
· The appliance is only to be used with the power supply unit provided with the appliance. Alterations of the given power unit aren't
allowed.
· Never operate the system with a damaged power supply cord or plug. If any parts is damaged, please contact your service agent of
purchase for a replacement.
· Never operate the system if it's in moist environment or its electrical components has contact with liquids.
· Don't clean the product while the power is still connected.
· Don't disassemble or replace components while the power is still connected.
· Unplug the appliance when the system isn't in use, and place the power plug out of children reach.
Troubleshooting Guide
1. Can’t operate
There are 7 possibilities:
·
to properly operate the mount.
· The system of Mount may be error. Check if the unit beeps three times after pressing a button. If so, please reset the system.
· The system may be overheating. Check if the unit beeps four times after pressing a button. If so, allow the unit to cool down
(about 30 minutes).
· The AC/DC end of the power cord may be unplugged/disconnect from the outlet/mount. Check the connection to ensure the
unit is powered.
· The operating distance may be too far and not in range of the mount. Using the remote control within 30 feet (10m) from
the Mounts.
· The batteries in the remote control may be low or dead. Replace the batteries.
· The remote control may be broken. Check to see if the indicator LED found on the remote lights when a button is pressed.
If not, contact your place of purchase for a replacement.
Incorrect operation. Check if the unit beeps once after pressing a button. If so, please follow the instructions found in the manual
2. The TV mount stops moving during operation and emits a long beep.
·
· The weight of TV may exceed the maximum weight limitation of the mounting system.
· The motor wire may be broken. Reset the system. If the problem still exists, contact your place of purchase for replacement.
Remove all surrounding items.
6. To Unpair a Remote Control
Press the small button on the control box with a paper clip or pencil as shown.
With hearing a beep, hold and press the button for 5 seconds until you hear a
beep again. The unpairing process is completed.
3. The TV mount is making an abnormal noise or sound.
·
of purchase for a replacement.
Check all power connections and reset the system. If the unit continues to make an abnormal noise, please contact your place
4. Default Setting
Short press the “ ” button and the mount will automatically retract to the lowest position.
To stop it, press the “ ” button again.
Nedis BV
De Tweeling 28, 5215 MC ’s-Hertogenbosch
The Netherlalands 03/21

E

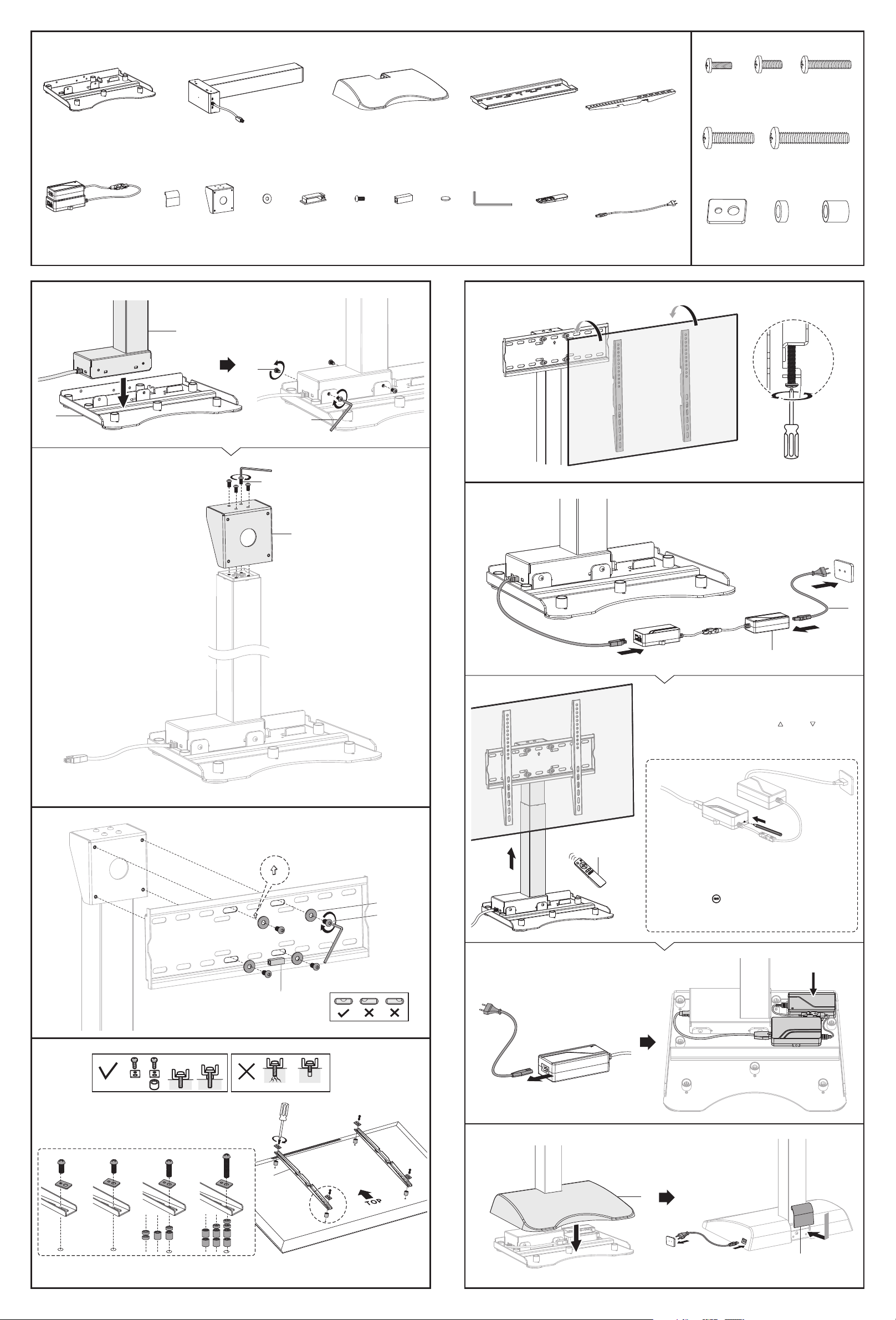

C (x1)B (x1)A (x1) D (x1) E (x2)
F (x1) G (x1) H (x1) I (x4) K (x12)J (x2)
14
5
L (x1) M (x1) N (x1) O (x1) P (x1)
M-D
M8x30
(x4)
M-C
M6x30
(x4)
M-B
M6x14
(x4)
M-A
M5x14
(x4)
M-E
M8x50
(x4)
M-F (x4) M-G (x8) M-H (x8)
A
B
K
K
H
2
3
L
M-F
M-A
M-F
M-B
M-F
M-C
M-D
M-G
M-H
M-F
M-E
M-G
M-H
Too long Too Short
P
F
I
K
N
Attach the mounting plate with the arrow facing up.
6
C
G
Once you have the TV Stand in position,
unplug the power cord and attach the power
adapters to the position on the base as shown
in the illustration at the right.
Unplug
STEP1: When the mount is powered on, press the small button
on the control box with a paper clip or pencil as shown.
The unit will emit a beep, indicating that the control box
is on standby for program coding.
STEP2: Press the “ ”button on the remote control, and you
will hear repeated beeps for approximately 10 seconds
indicating that the remote control is being programmed.
The unit will emit a beep again indicating success.
Note: Insert 2 AAA batteries(not included) into the
controller prior to adjust the TV Stand.
Adjust the height by pressing the " " and " " buttons
on the remote control. If the TV Stand fails to rise or
lower, please match code between TV Stand and the
remote control by following the instruction below
Pairing the Remote to the Mount
O
