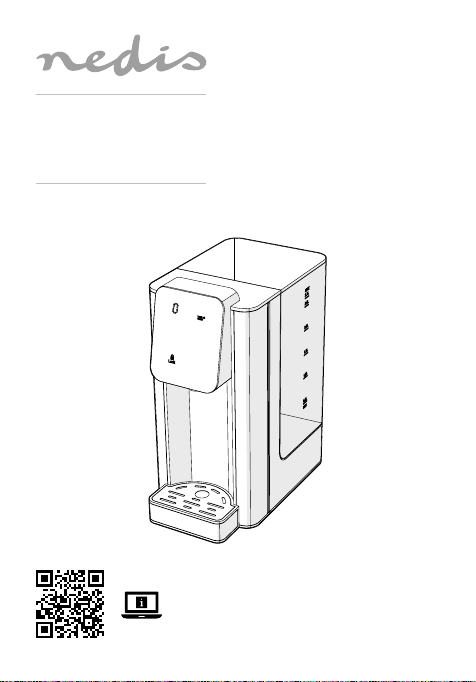

nedis KAWD300FBK User manual

ned.is/kawd300fbk
Hot water dispenser
hot water within 8 seconds
KAWD300FBK
KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 1KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 1 03-06-2020 08:2703-06-2020 08:27

aQuick start guide 4
cKurzanleitung 10
bGuide de démarrage rapide 16
dVerkorte handleiding 22
jGuida rapida all’avvio 28
hGuía de inicio rápido 34
iGuia de iniciação rápida 40
eSnabbstartsguide 46
gPika-aloitusopas 52
fHurtigguide 57
2Vejledning til hurtig start 63
kGyors beüzemelési útmutató 68
nPrzewodnik Szybki start 74
xΟδηγό γρήγορη εκκίνηση 80
1Rýchly návod 86
lRychlý návod 92
yGhid rapid de iniiere 98
KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 2KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 2 03-06-2020 08:2703-06-2020 08:27

9
4
5
3
2
1
7
6
12
13
14
11
10
15
16
17
19
18
22
24
23
20
21
8
A
KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 3KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 3 03-06-2020 08:2703-06-2020 08:27

4
aQuick start guide
Hot Water Dispenser KAWD300FBK
For more information see the extended manual online:
ned.is/kawd300fbk
Intended use
The Nedis KAWD300FBK is a hot water dispenser for instant boiling water.
The product is intended for indoor use only.
The product is not intended for professional use.
Any modication of the product may have consequences for safety, warranty
and proper functioning.
This product is intended for use in household environments for typical
housekeeping functions that may also be used by non-expert users for
typical housekeeping functions, such as: shops, oces other similar working
environments, farm houses, by clients in hotels, motels and other residential
type environments and/or in bed and breakfast type environments.
This product can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the product in a safe way and understand the hazards involved. Children shall
not play with the product. Cleaning and user maintenance shall not be done by
children without supervision.
Specications
Product Hot Water Dispenser
Article number KAWD300FBK
Dimensions (d x w x h) 150 x 250 x 310 mm
Weight 3 kg
Power supply 220 - 240 VAC / 50/60 Hz
Power consumption 2200 - 2600 W
Standby power 0.7 W
Water quantity 0.5 - 2.7 L
KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 4KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 4 03-06-2020 08:2703-06-2020 08:27

5
Main parts (image A)
 Reset hole
 LCD display
 Spout
 Drip plate
 Drip tray
 Top lid
 Water tank
 Water level indicator
 Power cable
 Drainage stopper
 Bottom cover
 Reset key
 Filter (optional)
 Filter box
 Temperature indicator
 Volume indicator
 Water temperature for milk
 Setting the temperature manually
 Touchscreen control lock
 Descale indicator
 Lack of water indicator
 Water temperature for coee or tea
 Custom dispense volume
 On / o button
Safety instructions
-
WARNING
• Ensure you have fully read and understood the instructions in this document
before you install or use the product. Keep this document for future
reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged
or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualied technician for maintenance
to reduce the risk of electric shock.
• Unplug the product from the power source and other equipment if problems
occur.
• Do not use the product to heat anything other than water.
• Do not use the product if the surface is cracked.
• Place the product on a stable and at surface.
• Ensure no water enters the power outlet.
• Connect to a grounded outlet only.
• Do not unplug the charger by pulling on the cable. Always grasp the plug
and pull.
• Do not let the power cable touch hot surfaces.
KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 5KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 5 03-06-2020 08:2703-06-2020 08:27

6
• Do not expose the product to direct sunlight, naked ames or heat.
• Never immerse the product in water or place it in a dishwasher.
• Do not remove the top lid while the brewing cycle is in progress.
• Unplug the product when not in use and before cleaning.
• Unplug the product from the power source before service and when
replacing parts.
• Children of less than 8 years should be kept away unless continuously
supervised.
• Usage by children should be supervised at all times.
• This product is not a toy. Never allow children or pets to play with this
product.
• Do not move the product during operation.
• The temperature of accessible surfaces may be high when the product is
operating.
• Do not touch the hot parts of the product directly.
• Do not ll the water tank below the“min”indicator.
• Do not ll the water tank above the“max”indicator.
Before rst use
1. Clean the product with a damp cloth.
2. Place the product on a stable and at surface.
3. Connect the power cable A9to a power outlet.
-
When you rst use this product, perform two full cycles to clean the inside
of the product.
Filling the water tank
1. Remove the top lid A6from the water tank A7.
2. Fill A7to the“max”on the water level indicator A8.
-
Do not ll the water tank above the“max”on A8.
-
Do not ll the water tank below the“min”on A8.
-
Do not spill any water on the product.
3. Place A6back on A7.
KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 6KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 6 03-06-2020 08:2703-06-2020 08:27

7
Tapping hot water
-
Do not remove A6while hot water is dispensed.
1. Place a glass under the spout A3.
2. Select the preferred temperature and volume settings.
3. Tap the on / o button Ag.
Hot water ows from A3until the set volume has been dispensed.
4. Press Agto manually stop the cycle.
Emptying the drip plate
1. Place one hand on A6to stabilize the product.
2. Lift up the drip tray A5with the other hand.
3. Remove the drip plate A4.
4. Empty A5.
5. Place A4back on A5.
6. Place A5back on the product.
Touchscreen controls
Temperature indicator
AyDisplays the current and the set temperature.
4When the display shows“000”, unheated
water is dispensed.
Volume indicator AuDisplays the current and the set volume.
4When the display shows“000”, the water
ows continuously until Agis pressed.
Water temperature for
milk AiDispense water at 40 °C. This temperature is
especially suited for powdered milk.
Setting the temperature
manually AoTap Aoto set the desired temperature
between 45 and 100 °C and 000.
Touchscreen control lock
Ap4After 10 seconds the LCD display will be
automatically locked.
-Tap and hold Apfor 3 - 5 seconds to unlock
the product.
-Tap Aponce to lock the product.
KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 7KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 7 03-06-2020 08:2703-06-2020 08:27

8
Descale indicator AaDescale the product as soon as possible when
Aalights up.
Lack of water indicator
AsFill A7if Aslights up
Water temperature for
coee or tea AdDispense water at 92 °C. This temperature is
especially suited for tea or instant coee.
Custom dispense volume
AfTap Afto set the desired volume between 100
and 400 ml and 000.
On / o button AgTap Agto start or stop the function setting.
Replacing the lter
1. Remove A6.
2. Take out the lter box Atincluding the lter Ar.
3. Clean the new Aryou want to use
Immerse the lter vertically for 15 minutes.
Rinse the lter under water for 15-20 seconds.
4. Place the new Arinto At.
5. Place Atinto A7on the original lter place of the product.
Recalibrating the volume and temperature
1. Place a water container underneath A3.
2. Tap and hold Aofor 3 seconds.
Ayshows "AUT".
Aushows "000".
3. Tap Ag.
The machine recalibrates the volume and temperature.
During the process water is dispensed through A3. After 4-5 minutes the
machine automatically exits the calibration mode.
Resetting the product
-Place the reset key Aeinto the reset hole A1.
The machine automatically exits the reset mode.
KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 8KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 8 03-06-2020 08:2703-06-2020 08:27

9
Descaling the product
1. Remove A6.
2. Fill A7with 1000 ml of white vinegar.
3. Add water to the max.
4. Place A6back on A7.
5. Tap and hold Affor 3 seconds.
6. Remove A6.
7. Fill A7with clean water to the max.
8. Place 6back on A7.
9. Tap and hold Affor 3 seconds.
10. Repeat step 6 - 9 until the odor of vinegar has been ushed away.
Display error codes
E0 PC board
problem 1. Unplug the product from the power source.
2. Contact a qualied technician for service/
repair.
E4 or E5 Temperature
sensor or water
inlet problem
1. Unplug the product from the power source.
2. Contact a qualied technician for service/
repair.
E7 Lack of water Fill A7.
KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 9KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 9 03-06-2020 08:2703-06-2020 08:27

10
cKurzanleitung
Heißwasserspender KAWD300FBK
Weitere Informationen nden Sie in der erweiterten Anleitung online:
ned.is/kawd300fbk
Bestimmungsgemäße Verwendung
Der Nedis KAWD300FBK ist ein Heißwasserspender zur sofortigen Ausgabe von
kochendem Wasser.
Das Produkt ist nur zur Verwendung innerhalb von Gebäuden gedacht.
Das Produkt ist nicht für den professionellen Einsatz gedacht.
Jegliche Modikation des Produkts kann Folgen für die Sicherheit, Garantie und
ordnungsgemäße Funktionalität haben.
Dieses Produkt ist zur Verwendung in Haushaltsumgebungen für typische
Haushaltsfunktionen gedacht, die auch von nicht fachkundigen Benutzern
ausgeführt werden können, wie z.B. in Geschäften, Büros und ähnlichen
Arbeitsumgebungen, Bauernhäusern, von Kunden in Hotels, Motels und
anderen Unterkünften und/oder in Pensionen.
Kinder ab dem achten Lebensjahr und Personen mit eingeschränkten
körperlichen, sensorischen oder geistigen Fähigkeiten oder ohne ausreichende
Erfahrung und Kenntnis dürfen dieses Produkt nur dann verwenden, wenn sie
beaufsichtigt werden oder in die sichere Benutzung des Produkts eingewiesen
wurden und die bestehenden Gefahren verstehen. Kinder dürfen nicht mit dem
Produkt spielen. Reinigung und Wartung durch den Benutzer dürfen nicht von
unbeaufsichtigten Kindern durchgeführt werden.
Spezikationen
Produkt Heißwasserspender
Artikelnummer KAWD300FBK
Größe (T x B x H) 150 x 250 x 310 mm
Gewicht 3 kg
Stromversorgung 220 - 240 VAC / 50/60 Hz
Stromverbrauch 2200 - 2600 W
KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 10KAWD300FBK_MAN_COMP_0520_print_(20160 1422)_v00.01.indd 10 03-06-2020 08:2703-06-2020 08:27
