NEFF I79MT86N1 User manual

[en] Instructions for installation and use
Extractor hood

en
2
Table of contents
[en]Instructions for installation and use
INSTRUCTION MANUAL.......................................................... 2
8Intended use................................................................... 2
(Important safety information ........................................ 2
7Environmental protection ............................................. 4
ÇOperating modes ........................................................... 4
1Operating the appliance................................................ 5
2Cleaning and maintenance ........................................... 7
3Trouble shooting............................................................ 9
4Customer service ........................................................ 10
INSTALLATION INSTRUCTIONS........................................... 11
(Important safety information ...................................... 11
KGeneral information..................................................... 13
5Installation.................................................................... 14
INSTRUCTION MANUAL
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.neff-international.com and in the online shop
www.neff-eshop.com
8Intended use
Intendeduse Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside. Do
not leave the appliance unattended during
operation. The manufacturer is not liable for
damage which is caused by improper use or
incorrect operation.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 8 years old and are
being supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
This appliance is not intended for operation
with an external clock timer or a remote
control.
(Important safety
information
Importantsafetyinformation :Warning
Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.

Important safety information en
3
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning
Risk of fire!
■Grease deposits in the grease filter may
catch fire.
Clean the grease filter at least every
2 months.
Never operate the appliance without the
grease filter.
Risk of fire!
■Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
Risk of fire!
■Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully
using a lid, fire blanket or something similar.
Risk of fire!
■When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
■Operating several gas burners at the same
time gives rise to a great deal of heat. A
ventilation appliance installed above the
cooker may become damaged or catch fire.
Never operate two gas burners
simultaneously on the highest flame for
longer than 15 minutes. One large burner of
more than 5 kW (wok) is equivalent to the
power of two gas burners.
:Warning
Risk of burns!
The accessible parts become very hot when in
operation. Never touch hot parts. Keep
children at a safe distance.
:Warning
Risk of injury!
■Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of injury!
■The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1). Do not look directly into the
switched on LED lights for longer than 100
seconds.

en Environmental protection
4
:Warning
Risk of electric shock!
■A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the after-
sales service.
Risk of electric shock!
■Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Caution!
Risk of damage due to corrosion. Always
switch on the appliance while cooking to avoid
condensation. Condensate can produce
corrosion damage.
Always replace faulty bulbs to prevent the
remaining bulbs from overloading.
Risk of damage due to ingress of humidity into
the electronic circuitry. Never clean operator
controls with a wet cloth.
Surface damage due to incorrect cleaning.
Clean stainless steel surfaces in the direction
of the grain only. Do not use any stainless
steel cleaners for operator controls.
Surface damage due to strong or abrasive
cleaning agents. Never use strong and
abrasive cleaning agents.
Risk of damage from returning condensate.
Install the exhaust duct in such a way that it
falls away from the appliance slightly (1°
slope).
7Environmental protection
Environmentalprotection Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
ÇOperating modes
Operatingmodes Exhaust air mode
Note: The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms which
contain heat-producing appliances.
■Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
■If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Circulating-air mode
Notes
■To bind odours in circulating-air mode, you must
install an activated carbon filter. The different options
for operating the appliance in circulating-air mode
can be found in the brochure. Alternatively, ask your
dealer. The required accessories are available from
specialist retailers, from customer service or from
the Online Shop.
■For appliances with an additional internal filter, only
the CleanAir recirculation module (see Accessories
for circulating-air mode) can be used.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
The air which is drawn in is cleaned
by the grease filters and conveyed to
the exterior by a pipe system.
The air which is drawn in is cleaned by
the grease filters and an activated
carbon filter and conveyed back into the
kitchen.

Operating the appliance en
5
1Operating the appliance
Operatingtheappliance These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
Note: Switch on the extractor hood when you start
cooking and switch it off again several minutes after you
have finished cooking. This is the most effective way of
removing the kitchen fumes.

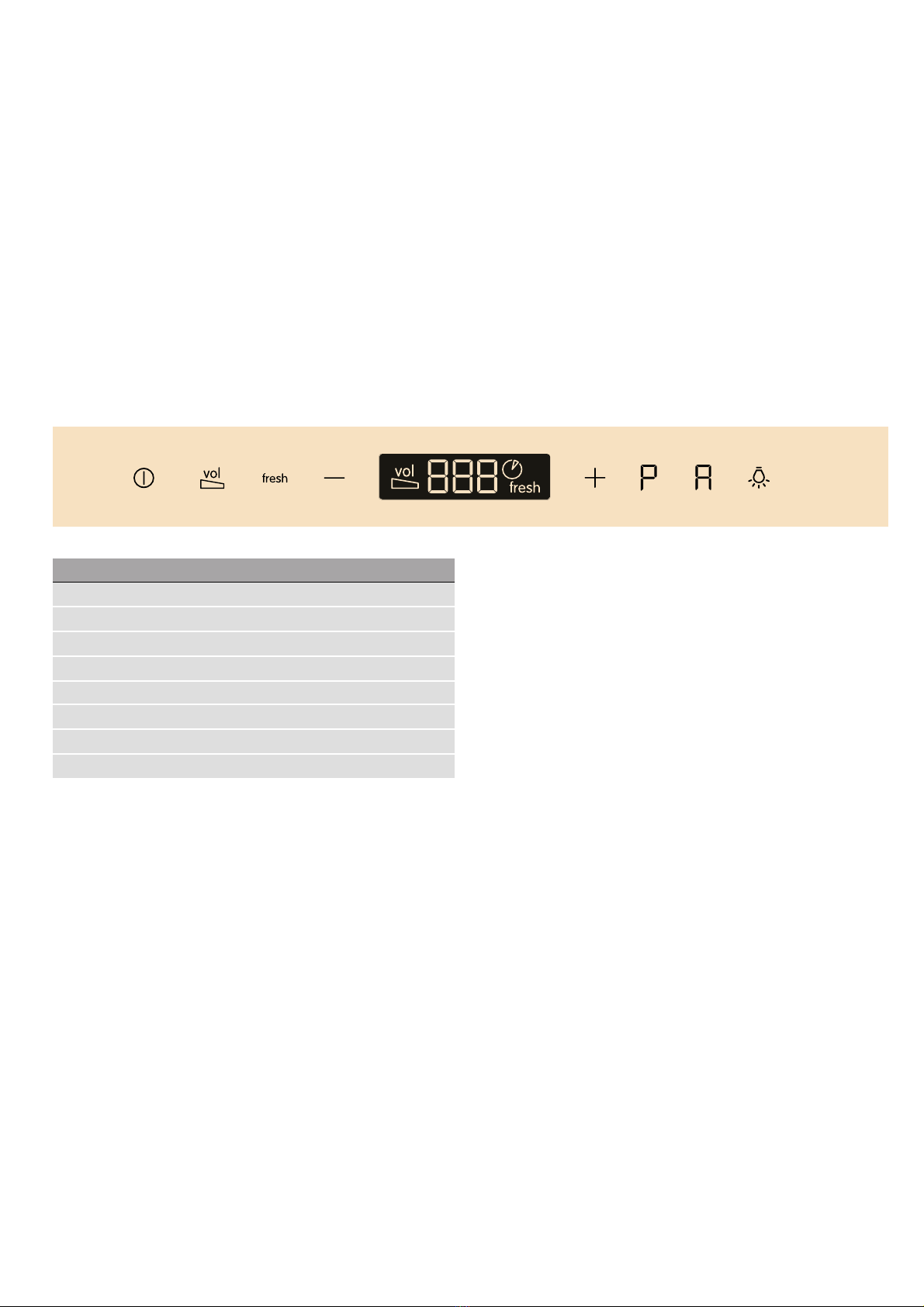

Control panel model 1
Setting the fan
Switching on
■Touch the #symbol.
The fan starts at setting ƒ.
■Touch + or - to alter the fan speed.
Switching off
Touch the #symbol.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Touch the ˜symbol. ˜ƒ appears on the display. Touch
the - symbol to switch back to the ˜‚ intensive setting.
After approximately six minutes, the electronics
automatically reduce the fan to a lower setting . If you
want to end the intensive setting before the preset time
expires, touch the ˜symbol.
Fan run-on time
Touch the 9symbol.
After approximately 10 minutes, the fan switches off
automatically.
AirFresh function
Touch the 3 symbol until the ‚ 3 appears. The
fan runs for approximately five minutes per hour.
Touch the 3symbol if you want to end the AirFresh
function.
Noise reduction function
The noise reduction function reduces the fan noise.
Switching on
Touch the 4symbol.
This function is possible at all fan settings except fan
setting ‚. This function also remains active after the fan
is switched off.
Switching off
Touch the 4symbol.
Lighting
The lighting can be switched on and off independently
of the fan.
Touch the 6symbol.
Setting the brightness
Press and hold the 6symbol until the required
brightness is reached.
Saturation display
When the metal grease filters or the activated charcoal
filter are/is saturated, an audible signal sounds for
approximately four seconds after the fan is switched off.
The following symbols also appear on the display: ”ªª
(metal grease filter) or ’ªª (activated charcoal filter).
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
changed.
For instructions on how to clean the metal grease filters,
please refer to the section: Cleaning and maintenance.
The saturation indicator can be reset while it is flashing.
To do this, touch the - symbol.
Explanation
#Fan on/off
4Noise reduction
3AirFresh function
- Reduces the fan settings
+ Increases the fan settings/intensive setting 1, 2
˜Direct selection of intensive setting 2
9Fan run-on
6Light on/off/dimming

en Operating the appliance
6
Switching over the indicator for circulating-air mode
For circulating-air mode, the electronic control must be
switched over accordingly:
■The extractor hood must be connected and switched
on.
■Touch and hold the #and 9symbols at the same
time, until the ’‹– indicator lights up for the
circulating-air mode "Starter Set". Repeatedly
pressing and holding this button combination
causes the ’–‘ indicator to light up for the
"CleanAir" circulating-air module.
■Repeatedly pressing and holding this button
combination switches the electronic control back
over to ducted operation (”‚– indicator).
Audible signal
Switching on the audible signal
Touch and hold the # and + symbols at the same time
for approximately three seconds when the fan is
switched on. An audible signal sounds as an
acknowledgement.
Switching off the acoustic signal
Repeat the "Switching on the acoustic signal" process.
Control panel model 2
Setting the fan
Switching on
■Touch the #symbol.
The fan starts at setting ƒ.
■Touch + or - to alter the fan speed.
Switching off
Touch the #symbol.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Touch the ˜symbol. ˜ƒ appears on the display. Touch
the - symbol to switch back to the ˜‚ intensive setting.
After approximately six minutes, the electronics
automatically reduce the fan to a lower setting . If you
want to end the intensive setting before the preset time
expires, touch the ˜symbol.
Automatic mode
Switching on
■Touch the #symbol.
The fan starts at setting ƒ.
■Touch the ‘symbol.
The optimum fan setting ‘‚, ‘ƒ or ‘„ is
automatically set via a sensor.
Switching off
Touch the ‘or #symbol to switch automatic mode off.
The fan switches off automatically if the sensor no
longer detects a change in the air quality of the room.
Automatic mode can run for a maximum of four hours.
Sensor control
In automatic mode, a sensor in the extractor hood
detects the intensity of the cooking and roasting
odours. Depending on the sensor setting, the fan
automatically switches to another fan setting.
Default sensitivity setting: †
Lowest sensitivity setting: ‹
Highest sensitivity setting: Š
If the sensor control responds too quickly or too slowly,
it can be changed accordingly:
1. Press and hold the ‘symbol for approximately four
seconds when the fan is switched on. The setting is
displayed.
2. The sensor control setting can be changed by
touching the + or - symbol.
3. To confirm the entry, press and hold the ‘symbol
for approximately four seconds.
Explanation
#Fan on/off
4Noise reduction
3AirFresh function
-Reduces the fan settings
+ Increases the fan settings
˜Intensive setting
‘Automatic function
6Light on/off/dimming

Cleaning and maintenance en
7
Fan run-on time
Touch the - symbol until ‚9appears.
After approximately 10 minutes, the fan switches off
automatically.
AirFresh function
Touch the 3 symbol until the ‚ 3 appears. The
fan runs for approximately five minutes per hour.
Touch the 3symbol if you want to end the AirFresh
function.
Noise reduction function
The noise reduction function reduces the fan noise.
Switching on
Touch the 4symbol.
This function is possible at all fan settings except fan
setting ‚. This function also remains active after the fan
is switched off.
Switching off
Touch the 4symbol.
Lighting
The lighting can be switched on and off independently
of the fan.
Touch the 6symbol.
Setting the brightness
Press and hold the 6symbol until the required
brightness is reached.
Saturation display
When the metal grease filters or the activated charcoal
filter are/is saturated, an audible signal sounds for
approximately four seconds after the fan is switched off.
The following symbols also appear on the display: ”ªª
(metal grease filter) or ’ªª (activated charcoal filter).
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
changed.
For instructions on how to clean the metal grease filters,
please refer to the section: Cleaning and maintenance.
The saturation indicator can be reset while it is flashing.
To do this, touch the - symbol.
Switching over the indicator for circulating-air mode
For circulating-air mode, the electronic control must be
switched over accordingly:
■The extractor hood must be connected and switched
on.
■Touch and hold the #and ‘symbols at the same
time, until the ’‹– indicator lights up for the
circulating-air mode "Starter Set". Repeatedly
pressing and holding this button combination
causes the ’–‘ indicator to light up for the
"CleanAir" circulating-air module.
■Repeatedly pressing and holding this button
combination switches the electronic control back
over to ducted operation (”‚– indicator).
Audible signal
Switching on the audible signal
Touch and hold the # and + symbols at the same time
for approximately three seconds when the fan is
switched on. An audible signal sounds as an
acknowledgement.
Switching off the acoustic signal
Repeat the "Switching on the acoustic signal" process.
2Cleaning and maintenance
Cleaningandmaintenance :Warning
Risk of burns!
The appliance will become hot during operation,
especially near the bulbs. Allow the appliance to cool
down before cleaning.
:Warning
Risk of electric shock!
Penetrating moisture may result in an electric shock.
Clean the appliance using a damp cloth only. Before
cleaning, pull out the mains plug or switch off the circuit
breaker in the fuse box.
:Warning
Risk of electric shock!
Do not use any high-pressure cleaners or steam
cleaners, which can result in an electric shock.
:Warning
Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Cleaning agents
Observe the information in the table to ensure that the
different surfaces are not damaged by using the wrong
type of cleaning agent. Do not use
■harsh or abrasive cleaning agents,
■cleaning agents with a high concentration of alcohol,
■hard scouring pads or sponges,
■high-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the
cleaning agents.

en Cleaning and maintenance
8
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
:Warning
Risk of fire!
Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Notes
■Do not use any aggressive, acidic or alkaline
cleaning agents.
■When cleaning the metal mesh grease filters, also
clean the holder for the metal mesh grease filters in
the appliance using a damp cloth.
■The metal mesh grease filters can be cleaned in the
dishwasher or by hand.
In the dishwasher:
Note: If the metal mesh grease filters are cleaned in the
dishwasher, slight discolouration may occur. This has
no effect on the function of the metal mesh grease
filters.
■Do not clean heavily soiled metal mesh grease filters
together with utensils.
■Place the metal mesh grease filters loosely in the
dishwasher. The metal mesh grease filters must not
be wedged in.
By hand:
Note: You can use a special grease solvent for
stubborn dirt. It can be ordered via the Online Shop.
■Soak the metal mesh grease filters in a hot soapy
solution.
■Clean the filters with a brush and then rinse them
thoroughly.
■Leave the metal mesh grease filters to drain.
Removing metal grease filter
1. Open the lock and fold down the metal grease filter.
While doing this, place the other hand under the
metal grease filter.
2. Take the metal grease filter out of the holder.
For edge extraction filters, pull the metal grease filter
downwards. While doing this, place the other hand
under the metal grease filter.
For additional filters, open the lock and fold down
the metal grease filter. While doing this, place the
other hand under the metal grease filter.
Notes
– Grease can accumulate in the bottom of the
metal grease filter.
– Hold the metal grease filter level, otherwise
grease will drip out.
3. Clean the metal grease filter.
Installing the metal mesh grease filter
1. Insert the metal mesh grease filter.
While doing this, place the other hand under the
metal mesh grease filter.
2. Fold the metal mesh grease filter upwards, locking it
in place.
Area Cleaning agents
Stainless steel Hot soapy water:
Clean with a dish cloth and dry with a soft
cloth.
Clean stainless steel surfaces in the direction
of the grain only.
Special stainless steel cleaning products are
available from our after-sales service or from
specialist retailers. Apply a very thin layer of
the cleaning product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and dry with a
soft cloth/towel.
Do not use any stainless steel cleaners.
Aluminium and plastic Glass cleaner:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a glass
scraper.
Operating controls Hot soapy water:
Clean using a damp dish cloth and dry with a
soft cloth.
Risk of damage to the electronics from pene-
trating moisture. Never clean operator con-
trols with a wet cloth.
Do not use any stainless steel cleaners.

Trouble shooting en
9
3Trouble shooting
Troubleshooting Malfunctions often have simple explanations. Please
read the following notes before calling the after-sales
service.
:Warning
Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be
carried out and damaged power cables replaced by
one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switch off the circuit breaker in the fuse box.
Contact the after-sales service.
Malfunction table
--------
Replacing bulbs
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
:Warning
Risk of electric shock!
When changing the bulbs, the bulb socket contacts are
live. Before changing the bulb, unplug the appliance
from the mains or switch off the circuit breaker in the
fuse box.
Important Only use a bulb of the same type and same
power (see the bulb holder or rating plate inside the
appliance) – to do this, remove the metal mesh grease
filter.
Replacing halogen bulbs
Note: When inserting halogen bulbs, do not touch the
glass tube. Use a clean cloth to insert the halogen
bulbs.
1. Carefully remove the bulb ring using a suitable tool.
2. Pull out the bulb and replace it with a bulb of the
same type.
3. Insert the bulb cover.
4. Insert the mains plug or switch on the fuse again.
LED lights
Defective LED lights may be replaced by the
manufacturer, their customer service or a qualified
technician (electrician) only.
:Warning
Risk of injury!
The light emitted by LED lights is very dazzling, and can
damage the eyes (risk group 1). Do not look directly
into the switched on LED lights for longer than 100
seconds.
Problem Possible cause Solution
The appliance
does not work
The plug is not
plugged in.
Connect the appliance to the
electricity supply
Power cut Check whether other kitchen
appliances are working
Faulty fuse Check in the fuse box to make
sure that the fuse for the
appliance is OK
The lighting does
not work.
The bulbs are
faulty.
For information on changing
the bulbs, see the "Replacing
Bulbs" section.

en Customer service
10
4Customer service
Customerservice When calling us, please give the product number (E
no.) and the production number (FD no.) so that we can
provide you with the correct advice. The rating plate
with these numbers can be found inside the appliance
(remove the metal mesh grease filter to gain access).
You can make a note of the numbers of your appliance
and the telephone number of the after-sales service in
the space below to save time should it be required.
Please be aware that a visit by an after-sales engineer
will be charged if a problem turns out to be the result of
operator error, even during the warranty period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You
can therefore be sure that the repair is carried out by
trained service technicians who carry original spare
parts for your appliances.
Accessories for circulating-air mode
(not included in the delivery)
Notes
■Follow the installation instructions supplied with the
accessories.
■For appliances with an additional internal filter, only
the CleanAir recirculation module can be used.
Basic equipment: Starter set for circulating-air mode -
narrow
Throw-away filter
Basic equipment: Starter set for circulating-air mode -
wide
Throw-away filter
Basic equipment: CleanAir recirculation module -
narrow
Throw-away filter
Basic equipment: CleanAir recirculation module - wide
Throw-away filter
E no. FD no.
After-sales serviceO
GB 0344 892 8989
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak. Off peak 0.0088 €
per minute.
1
2
3
4
5
6
7
8
1 Z5105X5 channel width 260 mm
2 Z5101X1 channel width 260 mm
3 Z5106X5 channel width 345 mm
4 Z5102X1 channel width 345 mm
5 Z5280X0 channel width 260 mm
6 Z5170X1 channel width 260 mm
7 Z5286X0 channel width 345 mm
8 Z5170X1 channel width 345 mm
[[
[[

Important safety information en
11
INSTALLATION INSTRUCTIONS
Installation instructions
■This appliance is fitted to the kitchen ceiling or a
sturdy suspended ceiling.
■Follow the enclosed installation instructions for
additional special accessories (e.g. for circulating-air
mode).
■The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
(Important safety
information
Importantsafetyinformation Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.

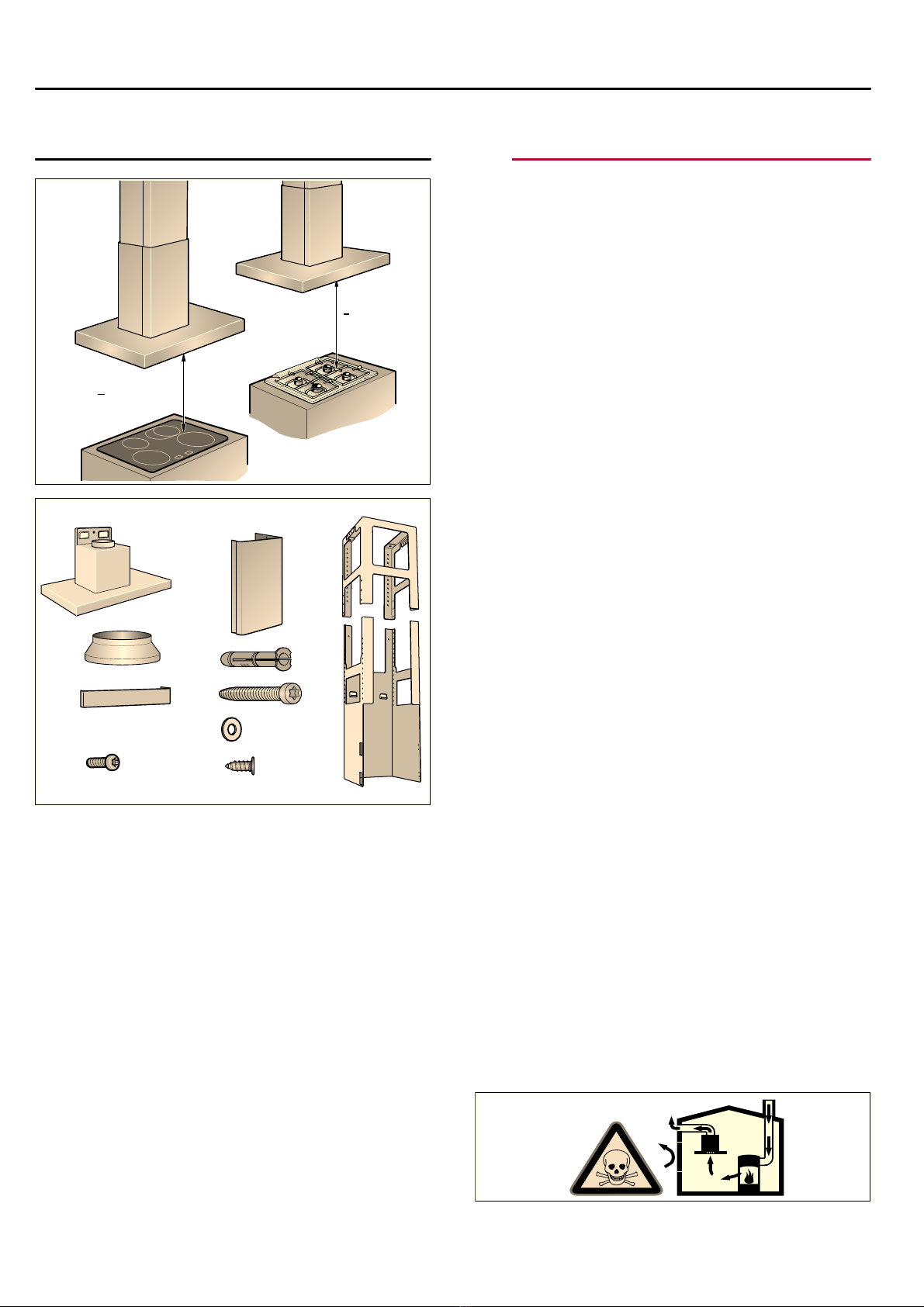

The width of the extractor hood must
correspond at least with the width of the hob.
For the installation, observe the currently valid
building regulations and the regulations of the
local electricity and gas suppliers.
When conveying the exhaust air, official and
legal regulations (e.g. state building
regulations) must be followed.
:Warning
Risk of death!
Risk of poisoning from flue gases that are
drawn back in. The exhaust air must not be
conveyed into a functioning smoke or exhaust
gas flue or into a shaft which is used to
ventilate installation rooms that contain
heating appliances. If the exhaust air is to be
conveyed into a non-functioning smoke or
exhaust gas flue, you must obtain the consent
of the heating engineer responsible.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
PP
HOHFWUR JD]
PP
!
!
[ [
[ [
[
[[
[ [
[

en Important safety information
12
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in. If installing a ventilation system
in a room with a heat-producing appliance
connected to a chimney/flue, the electricity
supply to the hood must be equipped with a
suitable safety switch.
:Warning
Risk of fire!
Grease deposits in the grease filter may catch
fire. The specified safety distances must be
observed in order to prevent an accumulation
of heat. Observe the specifications for your
cooking appliance. If gas and electric hobs
are operated together, the largest specified
distance applies.
Only one side of the appliance may be
installed directly next to a high-sided unit or a
wall. The distance between the appliance and
wall or high-sided unit must be at least 50
mm.
:Warning
Risk of injury!
■Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■The appliance may fall down if it has not
been properly fastened in place. All
fastening components must be fixed firmly
and securely.
Risk of injury!
■The appliance is heavy. To move the
appliance, 2 people are required. Use only
suitable tools and equipment.
:Warning
Risk of electric shock!
Components inside the appliance may have
sharp edges. These may damage the
connecting cable. Do not kink or pinch the
connecting cable during installation.
:Warning
Risk of electric shock!
It must always be possible to disconnect the
appliance from the electricity supply. The
appliance must only be connected to a
protective contact socket which has been
correctly installed. If the plug is no longer
accessible following installation of the
appliance, or a fixed connection is required,
an all-pole isolating switch must be present on
the installation side with a contact gap of at
least 3 mm. The fixed connection must only be
installed by an electrician.
:Warning
Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.

General information en
13
KGeneral information
Generalinformation Exhaust air mode
:Warning
Risk of death!
Risk of poisoning from flue gases that are drawn back
in. The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms that contain
heating appliances. If the exhaust air is to be conveyed
into a non-functioning smoke or exhaust gas flue, you
must obtain the consent of the heating engineer
responsible.
If the exhaust air is conveyed through the outer wall, a
telescopic wall box should be used.
Exhaust duct
Note: The device manufacturer does not assume any
warranty for complaints attributable to the pipe section.
■The device achieves its optimum performance by
means of a short, straight exhaust air pipe and as
large a pipe diameter as possible.
■As a result of long rough exhaust air pipes, many
pipe bends or pipe diameters that are smaller than
150 mm, the optimum extraction performance is not
achieved and fan noise is increased.
■The pipes or hoses for laying the exhaust air line
must consist of non-combustible material.
Round pipes
An inner diameter of 150 mm, but at least 120 mm, is
recommended.
Flat ducts
The inner cross-section must correspond to the
diameter of the round pipes.
dia. 150 mm ca. 177 cm2
dia. 120 mm ca. 113 cm2
■Flat ducts should not have any sharp deflections.
■Use sealing strips for deviating pipe diameters.
Preparing the ceiling
■The ceiling must be flat, horizontal and have
adequate load-bearing capacity.
■The depth of the bore holes must be the same
length as the screws. The wall plugs must have a
secure grip.
■The enclosed screws and wall plugs are suitable for
solid brickwork. Suitable fasteners must be used for
other structures (e.g. plasterboard, porous concrete,
poroton bricks).
■The max. weight of the extractor hood is 50 kg.
Electrical connection
:Warning
Risk of electric shock!
Components inside the appliance may have sharp
edges. These may damage the connecting cable. Do
not kink or pinch the connecting cable during
installation.
The required connection data can be found on the
rating plate inside the appliance; to do this, remove the
metal mesh grease filter.
Length of the cable: approx. 1.30 m
This appliance complies with the EC interference
suppression regulations.
:Warning
Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket which has
been correctly installed. If the plug is no longer
accessible following installation of the appliance, or a
fixed connection is required, an all-pole isolating switch
must be present on the installation side with a contact
gap of at least 3 mm. The fixed connection must only
be installed by an electrician.

en Installation
14
5Installation
Installation Fitting the upper support frame
1. Before fitting, determine the total height of the
support frame and mark the screw holes.
Note: The height of the support frame can be
adjusted in 20 mm intervals.
2. On the ceiling, mark the centre point of the
appliance.
3. Using the enclosed template, mark the positions for
the screws on the ceiling.
4. Drill four 8 mm diameter holes to a depth of 80 mm
for the fasteners and press in the wall plugs flush
with the ceiling.
5. Fasten the upper part of the support frame to the
ceiling with 4 screws.
Note: Ensure that the support frame is in the correct
position. The middle bracket defines the preferred
side and must be facing the hob control elements.
Fitting the lower support frame
Fasten the upper and lower part of the support frame at
the specified total height using 10 screws.
Notes
■Ensure that the lower support frame is in the correct
position. The open side must be facing the hob
control elements.
■The support frame can be subsequently re-
positioned by loosening the securing screws.
[
[
[
([KDXVWDLU
PP
&LUFXODWHGDLU
PP
[

Installation en
15
Fitting the appliance
1. Hook the appliance from below into the support
frame.
Note: Ensure that the mains cable is not trapped.
2. Fasten the appliance to the support frame using 2
securing screws.
3. Hook in the retaining clip and screw tight.
Connecting the pipes
Note: If using an aluminium pipe, smooth the
connection area beforehand.
Exhaust-air pipe Ø 150 mm (recommended size)
Attach the exhaust-air pipe directly to the air-pipe
connector and seal.
Exhaust-air pipe Ø 120 mm
1. Attach the reducing connector directly to the air-pipe
connector.
2. Attach the exhaust air pipe to the reducing
connector.
3. Seal both joints appropriately.

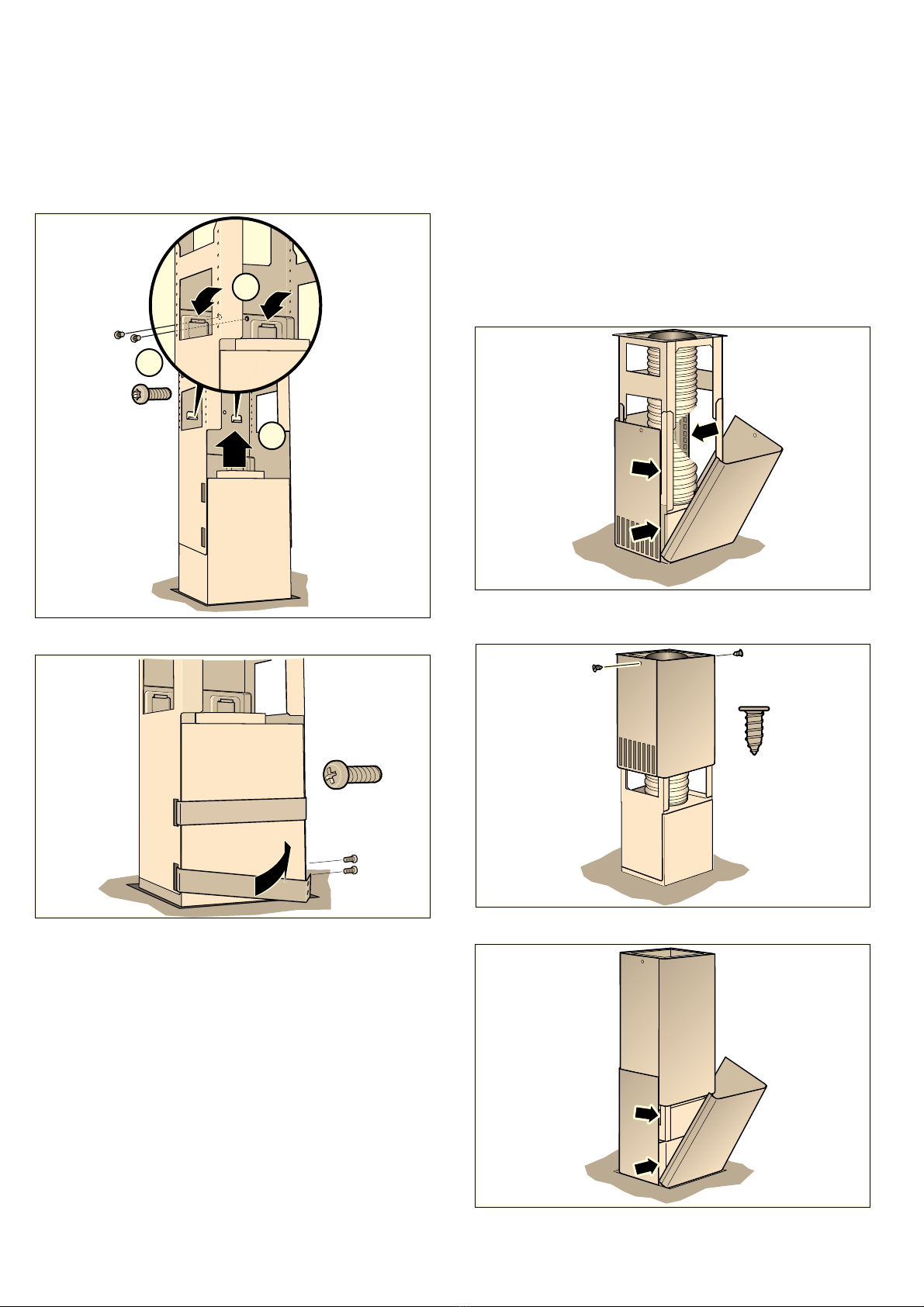

Attaching the flue duct
:Warning
Risk of injury!
From sharp edges during installation. Always wear
protective gloves while installing the appliance.
1. Separate the flue ducts.
To do this, remove the adhesive tape.
2. Remove the protective foil from both sides.
3. Place both parts of the upper flue on the appliance
and push together.
Note: The slots of the upper flue must point
downwards.
4. Push up the upper flue part and secure with 2
screws.
5. Insert both lower parts of the flue and push together.



[
[

www.neff-international.com
*9000955963*
9000955963 950101
Constructa Neff
Vertriebs-GmbH
Carl-Wery-Straße 34
D-81739 München
Register your product online
