Neilsen CT5673 User manual

SOLAR FENCE ENERGISER CT5673
INSTRUCTION MANUAL
WARNING: READ ALL INSTRUCTIONS!
If you suspect that the unit is not working, follow these steps:
1. Disconnect the unit from the fence and check that the indicator light is
flashing.
2. Check the battery connection and voltage.
3. Check that the voltage between the live and ground terminals is greater than
7000 v, using a fence voltage tester.
4. If these tests are OK, you have an installation problem.
Cannon Tools Limited
Address:20 Station Road, Rowley Regis, West Midlands, B65 0JU.UNITED KINGDOM

EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety
and health requirements of the EC Directive based on its design and type, as
brought into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration will
lose its validity.
Product description: SOLAR FENCE ENERGISER
Model: CT5673
Applicable EC Directives:
EC Electromagnetic Compatibility 2014/30/EU
ROHS - Directive 2011/65/EU and its amendment directives (EU) 2015/863.
Harmonized standards:
EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019,
EN 55014-1:2017，EN 55014-2:2015,
IEC 62321-3-1:2013, IEC 62321-5:2013,
IEC 62321-4:2013+AMD1:2017 CSV,
IEC 62321-6:2015, IEC 62321-7-1:2015,
IEC 62321-7-2:2017, IEC 62321-8:2017
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
2021-09-26

1. SPECIFICATIONS
Excellent fence: 48Km/100Acres
Power output : 0.5J @ 500 ohms
Delivered power vacuum: 0.63J
Solar Consumption: 47mA
Voltage Vacuum: 10KV Max
Waterproof Rating: IP66Outdoor Use
Power Source Battery: DC 12V/8AH
Operates Days without Sunlight: up 2 weeks
Polysilicon Solar Panel Voltage Output (Vmp): DC18V
Polysilicon Solar Panel Current Output (Imp): 0.28A
Polysilicon Solar Panel Power Output (Pmax): 5W
Solar Panel Size: 303 x 213mm
Including: 1 AD/DC adapter, 2 alligator clips.
2. IMPORTANT SAFETY INFORMATION
WARNING!
- Do not connect to mains-operated or line-operated equipment.
- Remove the battery from the unit before using an external battery charger to
recharge the battery.
- Switch the unit off before installation or performing any work on the fence.
- Read all the safety considerations carefully.
- Check your installation to ensure that it complies with all local safety
regulations.
- Do not connect simultaneously to a fence and to any other device such as a
cattle trainer or a poultry trainer.Otherwise, lightning striking your fence will be
conducted to all other devices.
NOTES:
- This product has been designed for use with electric animal fences.
- Keep these instructions in a handy location.
SAFE ELECTRIC FENCE CONSTRUCTION
Warning! Read before use.
An electric fence can be hazardous when there is a risk of entrapment or
entanglement, or other hazards exist. Serious injury or death may result.Take all
steps to avoid the risk of entrapment or entanglement.

The adapter and battery cannot be used at the same time，When using
battery ，adapter cannot be inserted, When using adaptor, need to unplug the
battery.
DANGER
-Do not climb through or under an electric fence. If it is necessary to cross an
electric fence use a gate or specially designed crossing point.
-Do not allow young or infirm persons to use this unit without supervision. Do not
allow young children to play with this unit or near an electric fence or electrified
wires.
-Do not electrify barbed wire.
-Do not support off-set electrified wires less than 6" (150 mm) from the vertical
plane of a barbed wire fence.
-Do not electrify any fence construction which could lead to entanglement of
persons or animals. We recommend for instance, that no more than one
electrified off-set wire be supported on either side of a barbed wire or mesh
fence.
-Do not supply an electric fence from two units.
-Do not allow electrified wires from two units on the same or adjacent properties
to be less than 8'(2.5 m) apart.
-Do not place the unit's ground rod within 33' (10 m) of any part of a power supply
ground system or telecommunications ground system.
-Do not run electric fence wires above or close to overhead power or
communication lines.
Cautions:
1. Feature: 2 dew holes at the bottom of the plastic box prevent water from
accumulating.
2. When not use, the battery clip should be removed to prevent power
consumption.
3. When use AC power, disconnect the battery clips to prevent battery from
burning out.
4. When wire clips connect battery, the side with the spring faces up enable
remove easily.
DUTY TO THE PUBLIC
A warning sign shall be fitted to every point where persons may gain ready
access to the conductors.
Where an electric animal fence crosses a public pathway, a non-electrified gate

shall be incorporated in the electric animal fence at that point or a crossing by
means of stiles shall be provided.At any such crossing, the adjacent electrified
wires shall carry warning signs.
Any part of an electric animal fence that is installed along a public road or
pathway shall be identified at frequent intervals by warning signs securely
fastened to the fence posts or firmly clamped to the fence wires.
The size of the warning sign shall be at least 4x8”(100x200 mm).
The background colour of both sides of the warning sign shall be yellow.
The inscription on the sign shall be black and shall be either:
or the substance of “CAUTION: Electric fence”.
The inscription shall be indelible, inscribed on both sides of the warning sign and
have a height of at least 1”(25 mm).
Definition of special terms
Unit/Charger/Energiser - An appliance that is intended to periodically deliver
voltage impulses to a fence connected to it.
Fence - A barrier for animals or for the purpose of security, comprising one or
more conductors such as metal wires, rods or rails.
Electric fence - A barrier which includes one or more electric conductors,
insulated from ground, to which electric pulses are applied by a unit.
Ground rod - Metal structure that is driven into the soil near a unit and
connected electrically to the Fence ground terminal of the unit, and that is
independent of other grounding arrangements.
Connecting lead-An electric conductor, used to connect the unit to the electric
fence or the ground rod.
Requirements for electric animal fences
Electric animal fences and their ancillary equipment shall be installed, operated
and maintained in a manner that minimises danger to persons, animals or their
surroundings.
Warning! Avoid contacting electric fence wires especially with the head, neck or

torso. Do not climb over, through or under a multi-wire electric fence.Use a gate
or a specially designed crossing point.
This unit is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the unit
by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the unit.
Electric animal fence constructions that are likely to lead to the entanglement of
animals or persons shall be avoided.
An electric animal fence shall not be supplied from two separate units or from
independent fence circuits of the same unit.
For any two separate electric animal fences, each supplied from a separate unit
independently timed, the distance between the wires of the two electric animal
fences shall be at least 8'(2.5 m). If this gap is to be closed, this shall be effected
by means of electrically non-conductive material or an isolated metal barrier.
Barbed wire or razor wire shall not be electrified by a unit.
A non-electrified fence incorporating barbed wire or razor wire may be used to
support one or more off-set electrified wires of an electric animal fence. The
supporting devices for the electrified wires shall be constructed so as to ensure
that these wires are positioned at a minimum distance of 150 mm from the
vertical plane of the non-electrified wires. The barbed wire and razor wire shall be
earthed at regular intervals.
Follow the energiser manufacturer’s recommendations regarding earthing.
A distance of at least 10 m (33ft) shall be maintained between the energiser earth
electrode and any other with the earthing system connected parts such as the
power supply system protective earth or the telecommunication system earth.
Connecting leads that are run inside buildings shall be effectively insulated from
the earthed structural parts of the building. This may be achieved by using
insulated high voltage cable.
Connecting leads that are run underground shall be run in conduit of insulating
material or else insulated high voltage cable shall be used. Care must be taken
to avoid damage to the connecting leads due to the effects of animal hooves or
tractor wheels sinking into the ground.
Connecting leads shall not be installed in the same conduit as the mains supply
wiring, communication cables or data cables.
Connecting leads and electric animal fence wires shall not cross above overhead
power or communication lines.
Crossings with overhead power lines shall be avoided wherever possible. If such
a crossing cannot be avoided it shall be made underneath the power line and as
nearly as possible at right angles to it.
If connecting leads and electric animal fence wires are installed near an

overhead power line, the clearances shall not be less than those shown in Table
below.
Minimum clearances from power lines for electrical animal fences
Power line voltage
Clearance
≤ 1000V
3m (10 ft)
> 1000V and ≤ 33000V
4m (13 ft)
> 33000V
8m (27 ft)
If connecting leads and electric animal fence wires are installed near an
overhead power line, their height above the ground shall not exceed
3m(10ft) .This height applies to either side of the orthogonal projection of the
outer most conductors of the power line on the ground surface, for a distance of:
·2m(6.6ft) for power lines operating at a nominal voltage not exceeding1000V.
·15m (50ft) for power lines operating at a nominal voltage exceeding1000V.
Electric animal fences intended for deterring birds,household pet containment or
training animals such as cows need only be supplied from low output units to
obtain satisfactory and safe performance.
In electric animal fences intended for deterring birds from roosting on buildings,
no electric fence wire shall be connected to the unit's ground rod.
Ensure that all line-operated，ancillary equipment connected to the electric
animal fence circuit provides a degree of isolation between the fence circuit and
the supply mains equivalent to that provided by the unit.
Protection from the weather shall be provided for the ancillary equipment unless
this equipment is certified by the manufacturer as being suitable for use
outdoors,and is of a type with a minimum degree of protection IP66.
3. TECHNICAL DESCRIPTION

4. UNPACKING AND CHECKING
Carefully remove the product from the packaging and examine it for any sign of
damage. If any part is damaged or missing, please contact the seller. Do not
attempt to use the product!
Note: Battery is in the battery compartment.
5. BEFORE FIRST USE
Units may be supplied with or without a battery, depending on your region. If a
battery has been supplied, it will be inside the battery compartment with the
positive terminal disconnected.
Before using the unit for the first time, you must:
1 Insert a battery into the battery compartment (if necessary).
2 Connect the battery terminals.
3 Charge the battery by placing the unit in full sunlight for three days with the
solar panel facing true south in the northern hemisphere and true north in
the southern hemisphere.
Inserting a battery and connecting the battery terminals

1. Place the unit on a flat surface (handle downwards as shown). Open the
battery compartment by unscrewing the screws on the back.
2. Insert a battery (if necessary).
3. Connect the positive (red) lead to the positive (+) terminal on the battery.
Connect the negative (black) lead to the negative (-) terminal on the battery
(if necessary).
4. Close the battery compartment, ensuring that the latches are securely
fastened.
Caution! When connecting the battery, be careful not to short-circuit the
supply terminals.
6. INSTALLATION
Positioning the unit
Install the unit:
• adjacent to the electric fence
• preferably in the middle of the electric fence
• where it will receive the most daily sun throughout the season
• where a good ground can be obtained
• away from flooding and out of reach of animals and children (inside a
protective fence, if required)

• with the solar panel facing true south in the northern hemisphere and true north
in the southern hemisphere.
Mounting the unit
The unit may be placed directly onto a flat surface or mounted directly onto a
steel Y-post or T-post using the post-mounting slot.

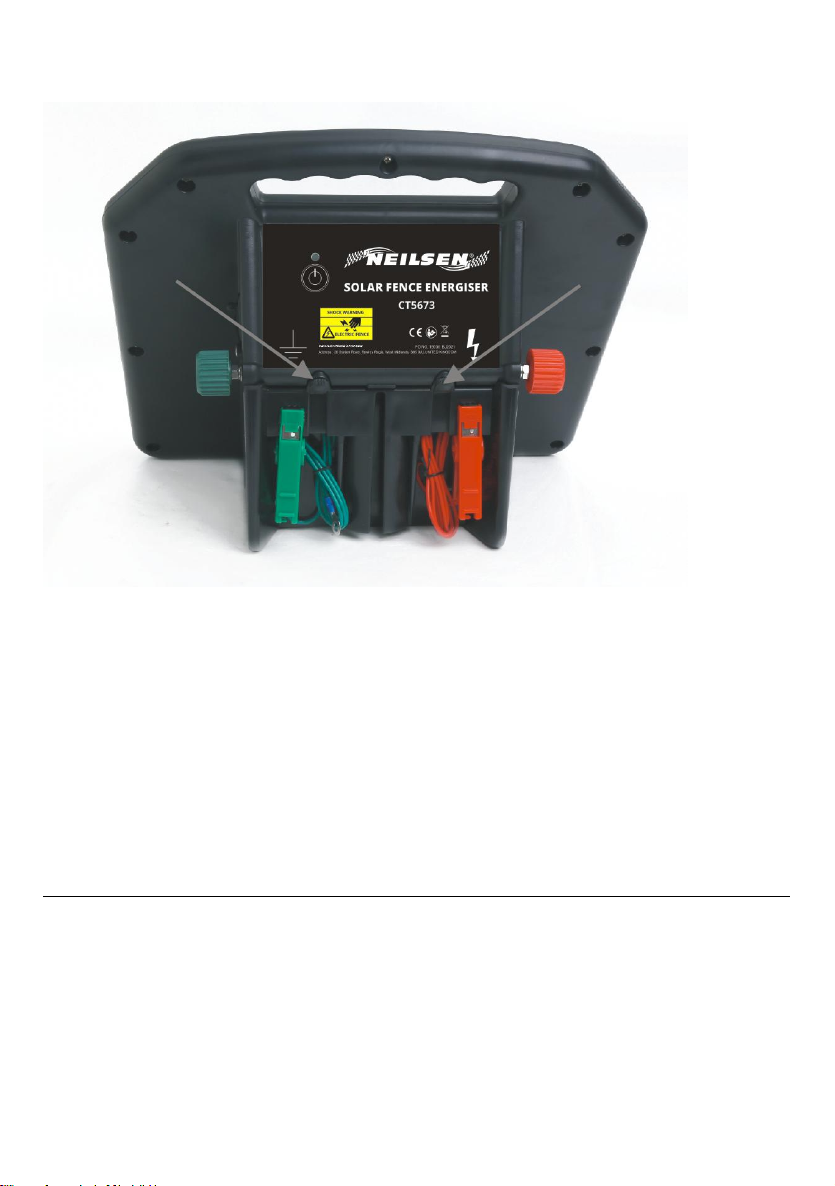

Connecting to an electric fence
1. Push a 1m (3ft) ground rod fully into firm soil.
2. Connect the green lead from the Fence ground terminal on the unit to the
grounding system.
3. Connect the red lead from the Fence output terminal on the unit to the
fence. Make sure there is a good contact.
Caution! Make sure the connecting leads drop downwards from the unit to
prevent water from collecting at the terminals.
7. OPERATION
Switching on and off
1. To switch on, press and hold until the pulse indicator light gives one
long flash (one second).
2. To switch off, press and hold until the pulse indicator light do not

flash( three seconds).
Pulse indicator light
The pulse indicator light indicates the output pulse speed. The pulse speed
varies according to the battery charge level:
Battery charge level Typical pulse speed
Normal A pulse every 1.5 seconds
Low A pulse every 3 seconds
Standby mode
An intelligent battery management feature puts the unit into Standby mode when
battery charge falls below a ‘safe operating level’. When in Standby mode, the
unit is still on, but it will not deliver a pulse to the electric fence.
The unit will resume delivering pulses when the solar panel has charged the
battery so that it is above ‘safe operating level’.
When operation resumes, the battery charge level will still be low, so the unit will
deliver one pulse every 3 seconds. Once the battery reaches normal charge level,
the pulse will revert to one pulse every 1.5 seconds.
8. BATTERY INFORMATION
Battery charging
The solar panel can fully charge a flat battery in two weeks, provided the unit is
switched off and there is adequate sunlight. A battery charger may also be used
to charge the battery. Use a battery charger suitable for charging sealed,
lead-acid
batteries.
Battery charger details
Warning! The battery must be disconnected and removed from the unit before
connecting it to a battery charger.
Model Battery type being charged Battery charger requirements
CT5673 12 V 13.8 V, ≤ 1 A
When fully charged, the battery should be able to power the unit for up to two
weeks with no sunlight.
Replacing the battery
If a replacement battery is required, use a sealed lead-acid battery.

Warning! Do not use a non-rechargeable battery.
Replacement battery details
Model Suitable battery type
CT5763 12V, 8Ah battery
Do not dispose of the battery in a land-fill or in a fire.
In the event of a spill or leakage from a sealed lead-acid battery:
•Contain small spills with dry sand, soil and vermiculite. Do not use combustible
materials. If possible, carefully neutralize spilled electrolyte with soda ash,
sodium bicarbonate, lime, etc.
•Wear acid-resistant clothing, boots, gloves and a face shield.
•Do not let un-neutralised acid get into the sewerage system.
9. MAINTENANCE
Clean the solar panel regularly with a soft cloth using glass cleaner or a mild
solution of detergent and water. This will ensure the solar panel functions
efficiently.
Caution! Do not immerse the unit in water.
When transporting the unit, protect the solar panel to prevent the glass surface
from being damaged.
10. STORAGE
If the unit is stored for extended periods, the battery can discharge and become
damaged.
The unit should be stored inside, next to a window, where sunlight can shine on
the unit each day.
If the unit cannot be stored in a sunny position, it should be kept in a cool place.
The battery should be fully charged and disconnected from the unit. The battery
should be recharged manually every six months using a suitable battery charger.
11. TEMPORARY ELECTRIC FENCING
A temporary fence can be quickly erected and easily moved allowing the farmer
to:
•Make smaller paddocks (fields)

•Keep herds of animals separated
•Ration feed
Note: Use more wires for smaller animals and wild animals. Polytape should be
used when greater visibility is required (e.g. horses).
An example of a temporary fence is shown below.

12. TROUBLESHOOTING
Problem
Action
The pulse indicator light is
flashing, but the electric
shock delivered by the
fence is weak.
Check that all connections in the fence and ground system are
firm and secure. If necessary, clean away any corrosion.
Check that the ground rod is pushed firmly into firm ground.
Check for faults in the fence-line caused by trees or
vegetation. If necessary, remove obstructions and mend the
fence.
Check that the unit (charger) rating is adequate for the length of
the fence. If necessary, reduce the length of the fence or reduce
the number of fence wires. Alternatively, divide the fence-line
into smaller zones, with each zone powered by a separate unit.
The pulse indicator light is
not flashing.
Check that the unit is switched on.
If there has been insufficient sunlight to charge the battery, the
unit may be in Standby mode. Charge the battery by placing the
unit in full sunlight with the solar panel facing true south in the
northern hemisphere and true north in the southern
hemisphere.
Ensure the battery is connected correctly with the positive (red)
lead to the positive (+) terminal on the battery and the negative
(black) lead to the negative (–) terminal on the battery.
Try charging the battery manually using a suitable battery
charger.
Replace the battery with a new battery. Before installing a new
battery, charge it fully using a suitable battery charger.(See
Battery charging chapter)
If the pulse indicator light is still not flashing, please contact the
seller.
The battery needs
Frequent replacement.
Check that the solar panel is clean and is not damaged. (See
Maintenance chapter)
Make sure the unit is positioned to receive maximum sunlight. If
necessary, remove any objects or vegetation that might be
casting a shadow on the unit. (See Positioning the unit chapter),
or for more detailed information on solar installations.
After the unit is switched
on, the pulse indicator
light gives three long
flashes (2 seconds) then
the unit appears to be off.
The unit is in Standby mode because there has been
insufficient sunlight to charge the battery. Charge the
battery by placing the unit in full sunlight with the solar
panel facing true south in the northern hemisphere and true
north in the southern hemisphere.
The pulse indicator light
flashes quickly several
times and then there is a
pause.
There may be a problem with the unit. Return the unit to the
seller.

13. DISPOSAL
At the end of the machine’s working life, or when it can no longer be repaired,
ensure that it is disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
• Do not dispose of power tools with domestic waste.
• Do not incinerate.
• Do not dispose of WEEE* as unsorted municipal waste.
14. SYMBOLS
Fence ground terminal (green). Connect the fence ground terminal to
the ground system.
Fence output terminal (red). Connect the fence output terminal to the
fence.
Risk of electric shock! This unit should be opened or repaired only by
qualified personnel. No user serviceable parts.
Read full instructions before use.
CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in China
