Nematron ePC Series User manual

Document No. DOC-IPC-001,
User Manual ePC-Series & nPC100, Rev C Rel. 7-2010
e
PC Series & nPC100
Embedded Ultra-Thin
Industrial Computers
User’s Guide

2
Revision List
WARRANTY
Nematron warrants to Customer that the Products will be free from defects in material and
workmanship under normal use and service for a period of two years from date of invoice. Customer’s
exclusive remedy for breach of this warranty is that Nematron will either (i) repair or replace, at its option,
any Product which fails during the warranty period because of such defect (if Customer promptly reported
the failure to Nematron in writing) or, (ii) if Nematron is unable to repair or replace, Nematron will refund
the purchase price of the Product upon its return to Nematron. This warranty does not apply to any
Product which has been subjected to misuse, abnormal service or handling, or which has been altered or
modified in design or construction, or which has been serviced by anyone other than Nematron. The
warranty set forth herein is in lieu of, and exclusive of, all other warranties, express or implied.
Document No. DOC-IPC-001, User Manual ePC-Series & nPC100, Rev C Rel. 7-2010
Revision Number Description of Change Release Date
A Initial Release 11-2007
B Revision for Field Wiring Requirements 5-2010
C Added nPC100, –EN units, and –RM option 7-2010
Nematron reserves the right to make changes in specifications described herein at any time without
notice in order to improve design and reliability. Nematron does not assume any responsibility for
the use of any circuitry described; no circuit patent licenses are implied. Nematron assumes no
responsibility for damage caused by misuse or improper use of its products.

3
Chapter 1 - Introduction
The ePC Series products are high performance color TFT embedded ultra-thin industrial
computers specifically designed for harsh industrial environments including Class I & II, Division 2
Hazardous Locations.
The ePC Series offers four versions with 12.1” SVGA (800 x 600), 15” XGA (1024 x 768), 17”
SXGA (1280 x 1024), or 19” SXGA (1280 x 1024) TFT Color LCD panels. A stand alone “node” version
without an integrated display is also available (nPC100). These high-performance embedded industrial
PCs offer processor options up to a state of the art Intel Core Duo Processor and DRAM options up to 2
GB. A fanless version is also available. With a multitude of I/O included on the standard unit many
automation applications are ideally suited for use with this series. The Ultra-Thin panel depth (2.7” to
3.42”) also makes this series ideal for space constrained applications. With Class I and II Division 2
approvals this industrial PC makes installation in Hazardous Locations applications simple.
Features
•Processor Options up to Intel Core Duo 2.0 GHz options
oFanless Intel ATOM N270 (1.6 GHz, 512K cache, 533 MHz bus)
oIntel Celeron M 440 (1.86 GHz, 1M cache, 533 MHz bus)
oIntel Core Duo T2500 (2.0 GHz, 2M cache, 667 MHz bus)
•DRAM Options up to 2 GB
•160 GB (minimum) easily removable SATA hard drive
oSolid State SATA hard drive upgrade options
•Numerous I/O Ports
oTwo Gigabit Ethernet ports
o4 USB 2.0 ports
o2 RS-232 serial port
o1 RS-422/485 Serial port
oPS/2 mouse and keyboard port (requires splitter)
oType I/II CompactFlash Socket with ejector
oAnalog VGA port for dual screen applications
•UL 508 and UL 1604 listed for Hazardous Locations: Class I, Division 2, Groups A, B, C, D and
Class II, Division 2, Groups F and G, Class III when installed in a NEMA Type 1/4/4x/12
enclosure (does not include the optional enclosed (-EN) units)
•NEMA 4/4X/12 front bezel (panel mount versions only)
•Optional Vented back enclosure (-EN option)
oePC1500 and ePC1900 only.
•2-Year warranty
•RoHS compliant
•European CE mark compliant
•Integral 100 -240 VAC power supply
•Simplified installation with no studs
•Ultra-Thin design – less than 3.25” behind front panel
•VESA compliant – all modes up to SXGA, 75Hz (SVGA on 12” and XGA on 15” unit)
•Optional 5-wire resistive touch screen
•Optional 304 stainless steel front bezel
•Optional ePC1900 Rack Mount front bezel (not NEMA sealed)
•Optional 24 VDC input power
•Windows XP Professional (Windows 7 and Windows Vista Business are optional)

4
Specifications
Front Panels
The ePC series has NEMA 4/4X/12 sealed front panels when mounted in an appropriate NEMA
rated enclosure. See Chapter 2 for more details on installation and selection of an appropriate enclosure.
All four sizes have very similar front panels with different dimensions.
Figure 1.0: ePC Series Front Panel Comparison
The standard front panels are powder coated aluminum. The optional Stainless Steel front panel is type
304 and will not contain a logo pocket or logo on the front. The window area is clear polycarbonate when
ordered without a touchscreen. The touchscreen option is chemically strengthened glass covered by a
polyester overlay. The polyester overlay has better resistance to chemicals than the polycarbonate
window. Depending on the chemicals involved in your application consideration should be given to
choosing the proper window material. See Appendix X for a chart of some common chemical
resistances. In addition there is a Rack Mount front panel option for the ePC1900 (19” unit) only. This
front panel is powder coated aluminum and is 9U high with four rack mount spaced counter-bored
mounting holes on each side of the panel. This panel is not NEMA sealed when installed.

5
I/O Panel
All four versions of the ePC series and the nPC100 have a common Input/Output configuration. Figure
2.0 shows the base configuration of the three units.
Figure 2.0: ePC Series I/O configuration
Feature
Description
Video Port
A standard 15-pin analog VGA is provided. This connection allows a second screen
to be easily added to the ePC. In addition the ePC allows this second screen to be
utilized in an extended desktop configuration. See section on configuring the video
for more details on this feature.
Com 1
Com 1 is a standard 9-pin RS-232 serial port.
Com 2 Com 2 utilizes a standard 9-pin serial port. The ePC default configuration for this
port is RS-485. Via a jumper this port can alternately be configured as RS-422. See
section on connector pin-outs and jumpers for more detailed instructions and
information on the configuration of this port.
Com 3
Com 3 is a standard 9-pin RS-232 serial port.
Gigabit Ethernet
Two Ethernet ports are provided that are both capable of 10/100/1000 Base-T
communications.
USB 2.0
Four ports capable of USB 1.1 and USB 2.0 are provided.
PS/2 Port One PS/2 port is provided. This port is capable of being used singularly as a mouse
or keyboard port. If both devices are desired to be utilized simultaneously the
supplied Y-cable cable must be utilized. The keyboard or mouse must be connected
to the appropriately marked cable end.
Input Power
Input power, whether AC or DC, is supplied via a Phoenix connector. See Chapter 2
on Installation for more details on how to wire this connection. This is replaced by an
IEC type power cord connection on the –EN units.
CompactFlash
A Type I/II CompactFlash socket is provided. This socket has an ejector built into it
for easy card removal. The CompactFlash can be utilized like floppies, CDs, or
DVDs. This can be utilized as read only or writable devices.
SATA Hard Drive
An easily removable high speed Serial ATA hard drive is provided. The captive
retention hardware, lack of cumbersome cables, and handle make changing hard
drives an easy task.

6
DISPLAY
ePC1200
ePC1500
ePC1700
ePC1900
Display Diagonal 12.1” (307.34mm) 15.0” (381.0mm) 17.0” (431.8mm) 19.0” (482.6mm)
Display Size
(Active Area
HxV)
9.69” x 7.26”
(246.0mm x
184.5mm)
11.97” x 8.98”
(304.0mm x
228.1mm)
13.30” x 10.64”
(337.8mm x
270.3mm)
14.82” x 11.85”
(376.4mm x
301.0mm)
Native Resolution SVGA, 800 x 600 XGA, 1024 x 768 SXGA, 1280 x
1024 SXGA, 1280 x 1024
Displayable
Colors 262K 16M 16M 16M
Brightness,
Typical 400 Nit 250 Nit 300 Nit 300 Nit
Contrast Ratio,
Typical 500:1 800:1 800:1 1300:1
Horizon/Vertical
View Angle,
CR>5, Typical 130°/110°150°/145°176°/170°178°/178°
Backlight Life,
Typical 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs
TOUCH SCREEN (Optional)
Touch Screen Technology 5- Wire Analog Resistive
Interface Internally via USB
Resolution 4096 x 4096
Positional Accuracy (Maximum Error) 0.18” (0.19” ePC1900)
4.57mm (4.83mm ePC1900)
Positional Accuracy (Standard Deviation of Error) < 0.08” (< 2.0 mm)
Expected Life >35,000,000 Activations

7
PHYSICAL
ePC1200
ePC1500
ePC1700
ePC1900
Over All
Dimensions
(H x W x D)
10.475” x 12.9” x
3.42”
(266.1mm x
327.2mm x
86.75mm)
12.80” x 15.80” x
2.95”
(325.1mm x
401.3mm x
74.9mm)
14.48” x 17.14” x
3.10”
(367.8mm x
442.0mm x
78.7mm)
15.70” x 18.66” x
3.25”
(398.8mm x
474.0mm x
82.6mm)
Panel Mounting
Depth 3.165” (80.4mm) 2.70” (68.6mm) 2.90” (73.7mm) 3.00” (76.2mm)
Cutout
Dimensions
(H x W)
9.68” x 12.10”
(245.9mm x
307.3mm)
12.00” x 15.00”
(305mm x
381mm)
13.70” x 16.35”
(348mm x
415.3mm)
14.90” x 17.75”
(378.5mm x
450.9mm)
Weight 10.45 lbs (4.76kg) 14.0 lbs (6.36kg) 19.0 lbs (8.63kg) 22.5 lbs (10.22kg)
Shipping
Weight 14.0 lbs (6.35kg) 16.5 lbs (7.5kg) 23.5 lbs (10.67kg) 27.5 lbs (12.49kg)
Option Weight
(-SS) +2.5 lbs (1.13kg) +3.5 lbs (1.58kg) +3.75 lbs (1.70kg) +4.0 lbs (1.81kg)
The nPC100 is essentially the rear of the panel mount versions. It is supplied with mounting brackets so
that it can be easily attached to wall or shelf in a NEMA 1 or better enclosure. The nPC100 is not a
standalone device as the –EN units and must be installed in an enclosure to protect operators.
The dimensions of the nPC100 unit are as follows:

8
ELECTRICAL
AC Input Voltage 100 – 240 VAC, 50/60 Hz
AC Input Current 1.0 A Maximum
DC Input Voltage (Optional) 18 – 36 VDC
DC Input Current (Optional) 4.2 A Max @ 24VDC
Input Power nPC100 – 40 W Typical* (20 W fanless option)
ePC1200/ePC1500 - 50 W Typical* (30 W fanless option)
ePC1700 – 60 W Typical* (40 W fanless option)
ePC1900 – 70 W Typical* (50 W fanless option)
* Typical Power is measured without any additional I/O or expansion options. Any additional I/O installed
during application can increase this value.
ENVIROMENTAL
Operating Temperature 0°C to 50°C
Non-Operating Temperature -20°C to 60°C
Operating & Non-Operating Humidity 20% to 80% RH, non-condensing
Operating Shock* 15g peak acceleration, 11msec
Non-Operating Shock 30g peak acceleration 11msec
Operating Vibration (5-2000 Hz) 10.006” peak to peak displacement,
1g maximum acceleration
Non-Operating Vibration (5-2000 Hz) 1
Operating Altitude 2Sea level – 10,000 feet
Non-Operating Altitude 2Sea level – 40,000 feet
1 Shock and Vibration specifications are established using Solid State drives and non-rotating media.
2 Altitude Specification is established by using all internal component specifications.

9
AGENCY
Front Panel NEMA Rating NEMA 4/4X/12, IP65
FCC 47 CFR, Part 15, Class A
EU CE Marking Compliance CE, EN 55022: Class A,
EN 61000-3-
2: Class A,
EN 61000-3-3, EN 61000-6-
2,
Safety Agency Approvals
(panel mount and nPC100
versions only) UL 508 Listed, UL 1604 Listed*, cUL
Listed CSA C22.2, #142, CSA
C22.2, #143*
Safety Agency Approvals
(enclosed ePC1500 and
ePC1900 only) UL 508 Listed, cUL Listed CSA
C22.2
* See appropriate note below for the applicable unit or option being utilized.
NOTE (NPC100 UNITS): SUITABLE FOR USE IN CLASS I, DIVISION 2,
GROUPS A, B, C AND D HAZARDOUS LOCATIONS, OR NONHAZARDOUS
LOCATIONS ONLY
FOR USE ON A FLAT SURFACE OF A TYPE 1
ENCLOSURE WITH
PROVISIONS FOR CLASS I DIVISION 2 WIRING METHODS
TEMPERATURE CODE: T4A
NOTE (PANEL MOUNT VERSIONS):
SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C AND D, CLASS
II DIVISION 2, GROUPS F AND G, CLASS III HAZARDOUS LOCATIONS, OR
NONHAZARDOUS LOCATIONS ONLY
FOR USE ON A FLAT SURFACE OF A TYPE 1, 4, 4X, OR 12 ENCLOSURE
WITH PROVISIONS FOR CLASS I DIVISION 2 WIRING METHODS
TEMPERATURE CODE: T4A

10
WARNING – EXPLOSION HAZARD –
DO NOT DISCONNECT EQUIPMENT
UNLESS THE POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN
TO BE NON-
HAZARDOUS. PS/2 CONNECTOR IS FOR SETUP AND
MAINTENANCE ONLY, USB CONNECTIONS MUST BE SECURED WITH
INCLUDED RETENTION BRACKET – SEE INSTALLATION INSTRUCTIONS
WARNING – EXPLOSION HAZARD –
DO NOT DISCONNECT EQUIPMENT
WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA IS KNOW TO BE FREE
OF IGNITABLE CONCENTRATIONS.
NOTE (RACK MOUNT VERSIONS):
SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C AND D, CLASS
II DIVISION 2, GROUPS F AND G, CLASS III HAZARDOUS LOCATIONS, OR
NONHAZARDOUS LOCATIONS ONLY
FOR RACK MOUNT INSTALLATION ON A TYPE 1 ENCLOSURE WITH
PROVISIONS FOR CLASS I DIVISION 2 WIRING METHODS
TEMPERATURE CODE: T4A
NOTE: (ENCLOSED EPC VERSIONS):
A LISTED VESA STYLE MOUNT SUITABLE WITH A MINIMUM LOAD RATING
OF 40 POUNDS SHALL BE USED IN THE END INSTALLATION
FOR USE IN NONHAZARDOUS LOCATIONS ONLY
TYPE 1 ENCLOSURE
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF COMPONENTS MAY
IMPAIR SUITABILITY FOR CLASS I, DIVISION 2

11
Chapter 2 - Installation of Computer
Panel Mount ePC-Series Unit installation
The panel mount versions of the ePC-Series are intended to be mounted in and used where
NEMA 1, NEMA 4/4x and NEMA 12 type enclosures are employed. Enclosures made of heavier gauge
metal work better because they won’t deform or bend as easily when the monitor’s sealing gasket is
compressed. The monitor meets NEMA 4/12 sealing specifications when properly installed in an
approved NEMA enclosure constructed from 14-gauge or heavier steel. The computer uses “U”-shaped
clips and a special gasket to achieve the proper seal.
When selecting an enclosure remember to allow adequate space around the rear of the computer
for good air flow. Do not block air flow from below or above the monitor. If possible mount the computer in
a vertical orientation. The unit is designed to work in environments up to 50 degrees Centigrade ambient
temperature inside the enclosure. Remember to account for heat dissipated from other equipment that
may be installed inside the same enclosure.
To install the computer, make a cutout according to the diagrams below in one of the walls of
your NEMA enclosure. Next hold the unit in place while you install the mounting clips. Tighten the clips
to the point were the back of the unit’s front bezel just begins to contact the front of the NEMA enclosure.
The use of an adjustable torque driver is recommended. The screws should be tightened to 8 inch-
pounds. Tighten the clips in a cross pattern. This will help to develop an even pressure on the sealing
gasket. DO NOT OVER TIGHTEN AS DAMAGE CAN RESULT IN THE COMPUTER CAUSING LOSS
OF SEALING INTEGRITY.
ePC1200
ePC1500
ePC1700
ePC1900
Cutout
Dimensions
(H x W)
9.68” x 12.10”
(245.9mm x
307.3mm)
12.00” x 15.00”
(305mm x
381mm)
13.70” x 16.35”
(348mm x
415.3mm)
14.90” x 17.75”
(378.5mm x
450.9mm)

12
UPMENU DOWNSELECT POWER
FRONT PANEL
OF NEMA
ENCLOSURE
TIGHTEN TO 8
INCH-POUNDS
COMPRESSABLE NEMA
SEALING GASKET
.25" THICK MONITOR
FRONT BEZEL
MAXIMUN ALLOWABLE
PANEL THICKNESS
CUT AWAY
.325"
FRONT PANEL OF
NEMA ENCLOSURE
MOUNTING CLIP
WITH 10x32 SCREW
Mounting Clip Installation
NOTE: WHEN INSTALLING THE MOUNTING CLIPS TIGHTEN THE SCREWS
TO 8-10 INCH-POUNDS MAXIMUM. OVERTIGHTENING THE SCREWS WILL
RESULT IN A COMPRIMISED NEMA SEAL AND MAY CAUSE TOUCH SCREEN
BREAKAGE.
REAR VIEW OF PANEL
MOUNTED ePC

13
nPC100 Unit Installation
The nPC100 is intended to be mounted on the flat surface on the inside of a NEMA Type 1, 4/4x
or NEMA 12 enclosure. See the specifications section for the dimensions and mounting dimensions
required for mounting this unit.
When selecting an enclosure remember to allow adequate space around the computer for good
air flow. Do not block air flow around the unit except for the mounting surface. The computer can be
mounted on a horizontally or vertically to a wall or shelf within the enclosure. The unit is designed to work
in environments up to 50 degrees Centigrade ambient temperature inside the enclosure. Remember to
account for heat dissipated from other equipment that may be installed inside the same enclosure.
Rack Mount Unit Installation
The ePC1900 with a rack mount front panel is intended to be mounted to a 19.0” wide rack in a
NEMA Type 1 or better enclosure. The unit can be mounted using standard rack mount hardware (not
supplied) via the eight (4 each side) counter-bored holes in the front of the panel. The front panel is
intended to be mounted in a vertical height of 9 U (16.0”) on the rack. This unit is not NEMA sealed when
mounted like the panel mount versions.
When selecting an enclosure remember to allow adequate space around the rear side of the
computer for good air flow. The unit is designed to work in environments up to 50 degrees Centigrade
ambient temperature inside the enclosure. Remember to account for heat dissipated from other
equipment that may be installed inside the same enclosure.
Enclosed Unit Installation
The enclosed ePC-Series products are intended to be stand-alone NEMA Type 1 units. These
are required to be mounted to a VESA style mount with a minimum load rating of 40 pounds. A desktop
stand, wall mount, or articulating arms are examples of VESA style mounts that can be utilized. These
units are vented for air flow and are not dust or water proof. Care should be taken to not utilize these
units in areas where high concentration of particulate matter or moisture are present. If these conditions
do exist then the use of the panel mount versions in an appropriate NEMA 4, 4x, or 12 enclosure should
be considered. The warranty may be voided if high levels of moisture or particulate matter are
determined to be the cause of a failure. The ePC-Series –EN units (except fanless version) have a filter
over the CPU fansink to filter incoming air. This filter should be carefully removed and cleaned
periodically depending on service conditions. In some applications this may need to be checked and
cleaned often.
These units are designed to work in environments up to 50 degrees Centigrade ambient
temperature around the enclosure. Impeding the airflow around this unit or clogged filters will severely
affect the reliability of the unit by raising the internal temperature. Assure that there is adequate airflow
around the unit.
NEMA Type 1 is not sealed against water and/or dust; it is simply provides protection from
operators shocking themselves. It also offers a certain amount of fire containment it the event of a
catastrophic failure inside the unit. As stated previously NEMA 1 is not waterproof or dust proof and is
not intended to be utilized in environments exhibiting high levels of these conditions.

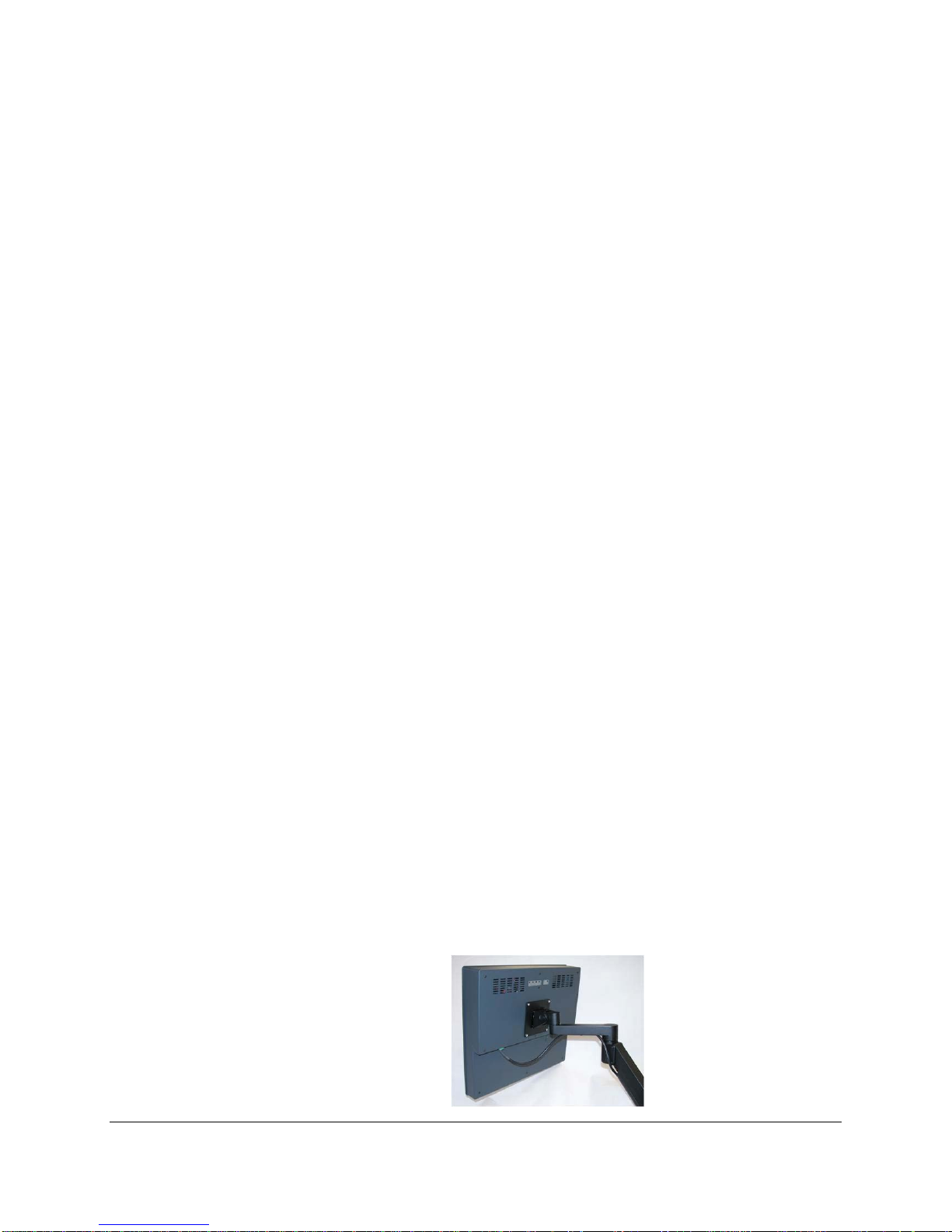

Example of an Enclosed Unit Mounted
To an Articulating Arm

14
321
31 2
TOP VIEW
FRONT VIEW
PHOENIX CONTACT P.N. 1777992
Connecting Power to the ePC-Series
Connecting power to the Panel Mount, Rack Mount, and nPC100 units:
The ePC-Series and nPC100 units are powered from 100-240 VAC, 50/60 Hz or optionally from
24 VDC. Damage will occur if 100-240 VAC power is connected to an ePC-Series unit equipped
with the 24 VDC input power option. ePC-Series equipped units with the 24 VDC option will have a “-
DC” suffix in their model number such as ePC1500-CM440-1GB-XP-DC or ePC1500T-T2500-2GB-XP-
DC.
Because the ePC-Series (not –EN option) is UL 1604 listed for Hazardous Location use, (Class I
Division2, Groups A, B, C, D; Class II Division 2 Groups F and G: Temperature Code T4A), the units do
not have a power switch for switching off supplied power. Consideration should be give to the installation
of an appropriately rated external power switch if the application requires powering off the ePC-Series
unit.
Power is connected to the units through a removable Phoenix Contact plug (Phoenix Contact
P.N. 1777992) that allows for screw termination of field wiring. This plug is included with each unit and is
keyed to prevent installation in a unit with the wrong input voltage rating. When Field Wiring to these
terminals the use of 18 AWG or greater (12 AWG maximum) copper wire with 60ºC or 60/75ºC wire
insulation and the terminal tightening torque of 7.0 lb/in. (0.79 Nm) is required. The terminal screws

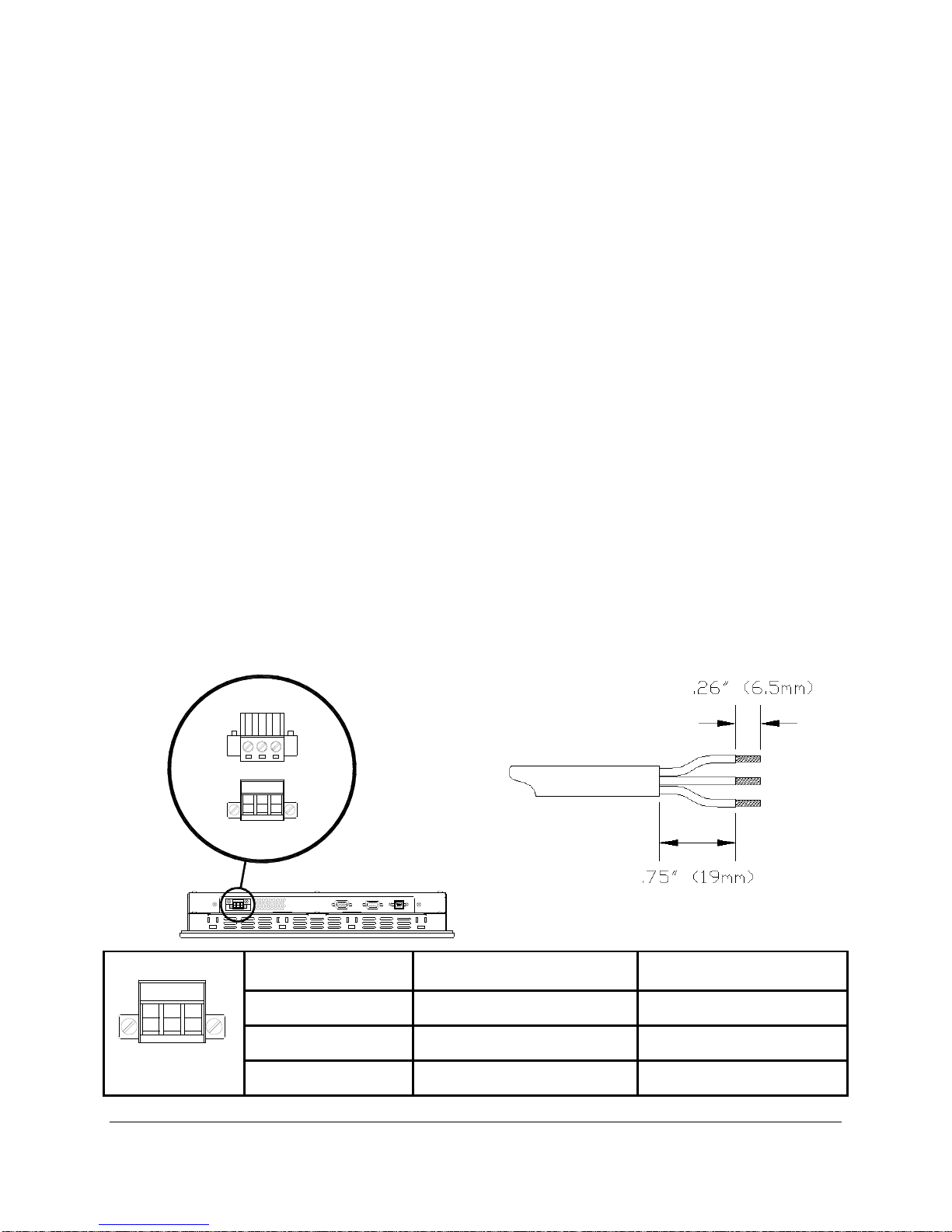

are shown in “Top View” below. Connect the field wiring according to the appropriate voltage in the table
below. Strip the wire insulation back on each conductor 6.5 mm (0.26 in) and assure that the remaining
wire is twisted together, not frayed, and clean. If an outer jacket over each conductor is utilized then strip
the outer jacket back an additional 19.0 mm (0.75 in) as shown in figure below. When installing the
conductors take care that there are not any stray strands of wire that can contact an adjoining connection.
Tinning of each lead can be utilized to prevent frays if desired. Optionally the included protective cover
can be utilized to prevent electrical shocks when handling the power connector and provide strain relief
for each conductor connection (see the following section for installation instructions). After the
connections are made, make sure the plug retention screws (the two screws shown in the “Front View”
below) are securely tightened. This will prevent the plug from pulling out. The use of these screws is
mandatory when the unit is utilized in applications requiring hazardous locations approvals.
FRONT VIEW
PIN NUMBER 100 VAC – 240 VAC INPUT 18 VDC – 36 VDC INPUT
1 AC Line Input + DC Input
2 AC Neutral Return -DC Return
3 Protective Earth Ground Protective Earth Ground
31 2

15
WARNING – EXPLOSION HAZARD –
DO NOT DISCONNECT EQUIPMENT
UNLESS THE POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN
TO BE NON-HAZARDOUS. PS
/2 CONNECTOR IS FOR SETUP AND
MAINTENANCE ONLY, USB CONNECTIONS MUST BE SECURED WITH
INCLUDED RETENTION BRACKET – SEE INSTALLATION INSTRUCTIONS
WARNING – EXPLOSION HAZARD –
DO NOT DISCONNECT EQUIPMENT
WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA IS KNOW TO BE FREE
OF IGNITABLE CONCENTRATIONS.
NOTE: TO PREVENT INADVERTENT DISCONNECTION OF VIDEO AND/OR
SERIAL TOUCHSCREEN CABLES ASSURE THAT THE THUBSCREWS ARE
SUFFICIENTLY TIGHTENED.
NOTE:
WHEN USING USB CONNECTIONS THE USE OF THE USB RETENTION
BRACKET IS REQUIRED FOR HAZARDOUS LOCATIONS AND HIGHLY
RECOMMENDED FOR NONHARDAOUS LOCATIONS.

16
Protective Cover Installation
(Optional if desired)
Step 1: Gather the parts of the protective cover; top shell,
bottom shell, label insert, and wire tie. The
picture shows wire tie (top), label insert (right),
bottom shell (left), and top shell (lower right).
Step 2: Insert your pre-wired connector (with the screws
facing up) into the bottom shell. (See manual
for cable wiring instructions).
Step 3: Insert the wire tie from the bottom shell, loop around
the cable and come back out of the opposite
hole in the bottom shell.
Step 4: Tighten the wire tie around the cable and the
bottom shell.
Step 5: Seat the top shell onto the bottom as shown. Insert
label strip (if desired) in slot on top shell and
bottom shell.
Step 6: Snap the top and bottom shells together.

17
Connecting Power to Enclosed (-EN) units:
The enclosed ePC-Series are powered from 100-240 VAC, 50/60 Hz only. Because these are
stand alone Type 1 devices and do not require an additional NEMA type enclosure, a different type power
connection is required. These units use a more standard IEC type power cord like found on most
computers. There is a retention clip that can be utilized to help retain the cord from falling out. A US
three prong cord is supplied. If another country connection method is required then an appropriate UL
recognized power cord can be chosen locally (not supplied by Nematron). Optionally available is an IEC
type connector that can be directly wired to for field wiring. This can be ordered separately from
Nematron and is part number PWR-AC-EN

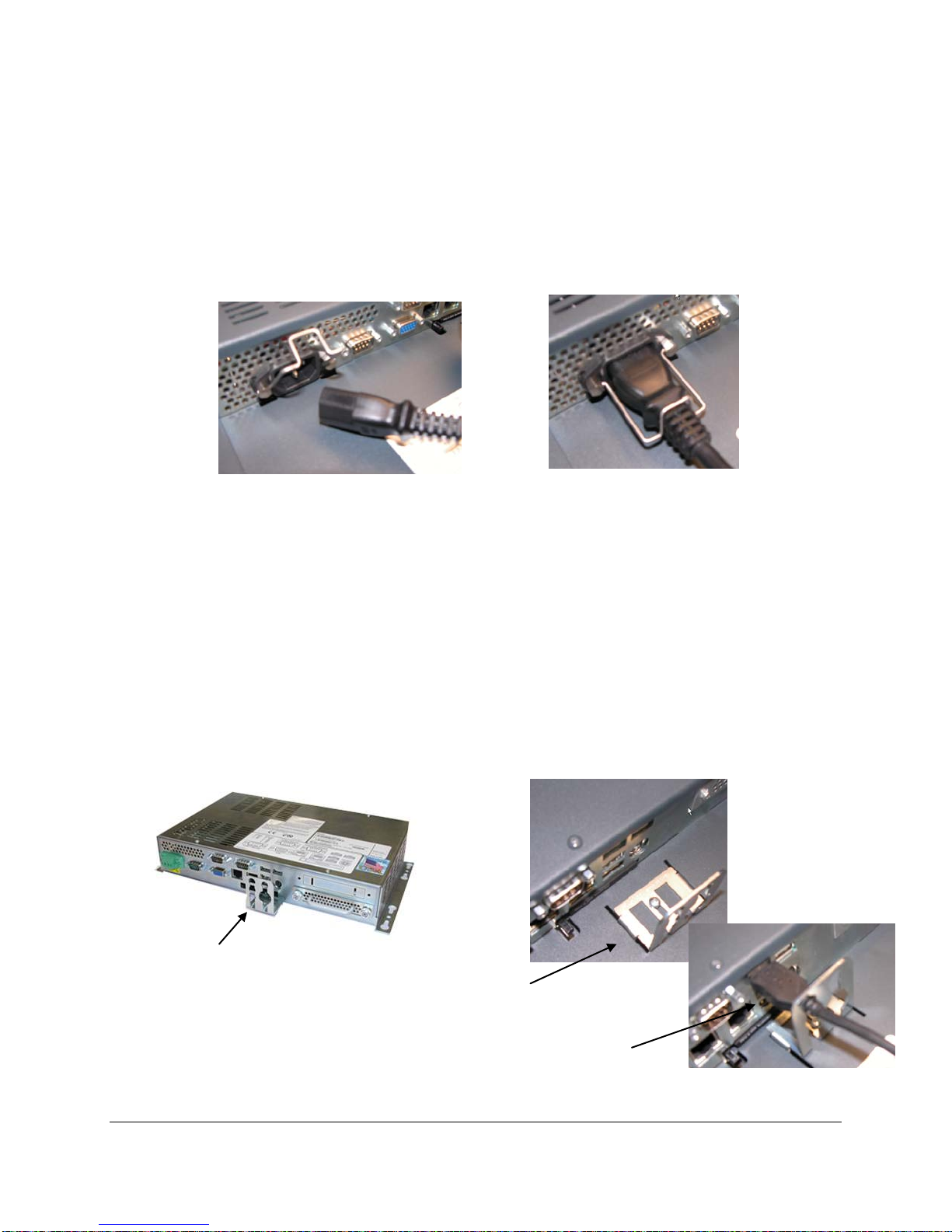

Enclosed ePC-Series IEC Power Cable Power Cable Retention Clip Installed
I/O Cable Management
The ePC-Series units include a retention mechanism for securing USB connections. USB
connections are not secure and can easily fall out. The use of this mechanism is suggested for all
applications and is required for any hazardous locations installations. Simply remove the bracket insert
your USB cables through the bracket. Connect your USB cables to the unit and move the bracket into
position. Snugly push the bracket toward the USB connector and secure with the screw provided.
On the ePC panel mount, Rack Mount, and Enclosed units the USB bracket is a simple L shaped
bracket with cutouts to retain up to four USB cables and a mounting screw. On the nPC100 the bracket is
two pieces; one (flat piece) is secured to the bottom of the unit using two #4-40 screws and then the other
functions the same as the ePC-Series USB retention bracket.
nPC100 USB Retention Bracket
ePC-Series USB Retention Bracket
With USB Cable Installed

18
Video and the Serial connections have jack screws in the connectors that can be utilized to
secure your cable end to the unit. Ethernet connections have a plastic tab that prevents the connection
from falling out. The keyboard/mouse port (splitter provided) is not secured and is intended for setup and
maintenance only when in an area that is known to be nonhazardous.
See the connecting power section for details on securing the power connections. In addition to
the USB Bracket there is an additional cable management bracket at the bottom of the units (N/A on
ePC1200) that can be utilized to strain relief cables. This is a flat bracket attached by 2 screws which can
be utilized to hold down cables or provides an attachment point for a cable tie to be used for securing
cables. Care should be taken to provide an adequate radius for any cable being utilized. Too tight a
radius can damage the conductors. When tightening this securing bar care should be taken not to over
crush cables; this can damage conductors.

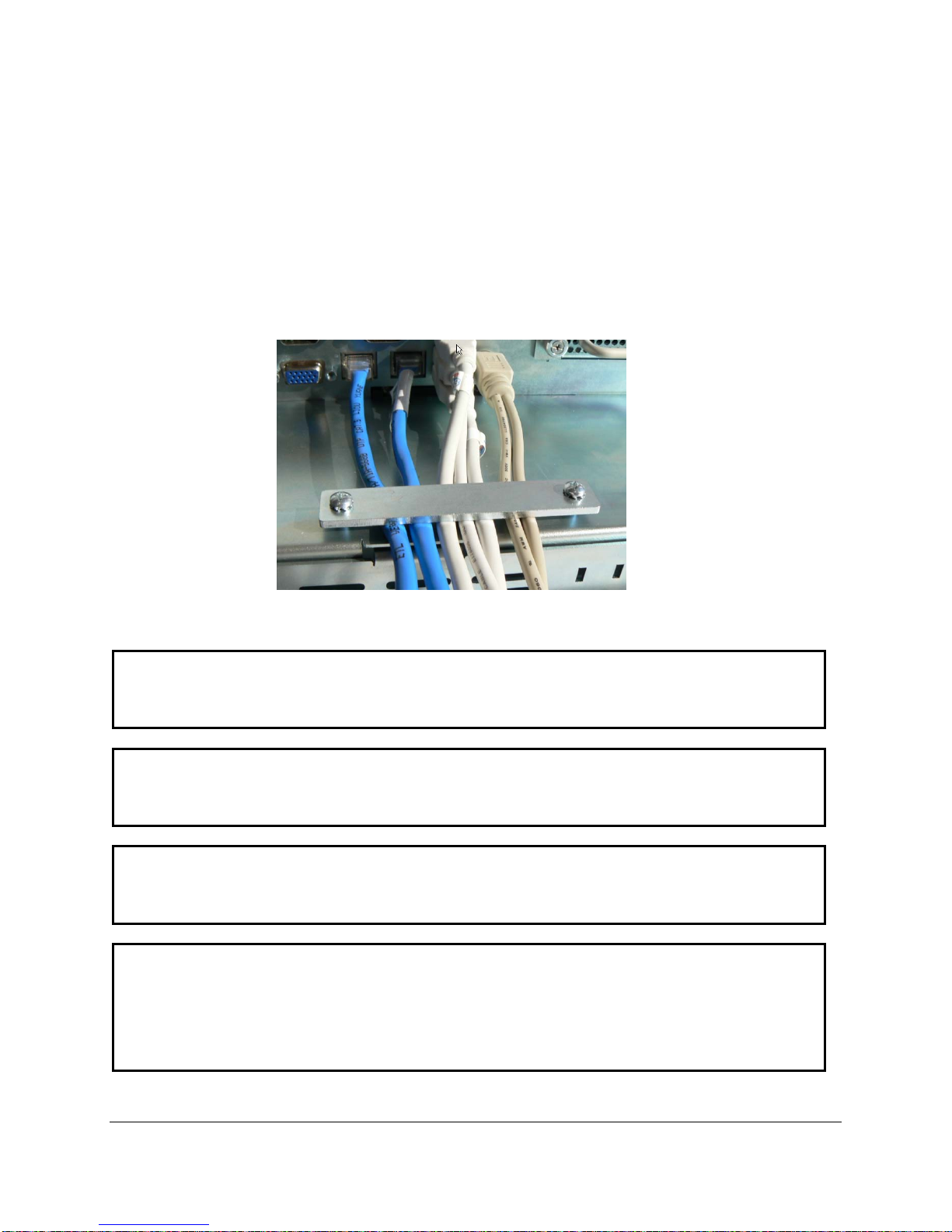

Cable Securing Bar Installed
WARNING – EXPLOSION HAZARD –
DO NOT DISCONNECT EQUIPMENT
UNLESS THE POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN
TO BE NON-
HAZARDOUS. PS/2 CONNECTOR IS FOR SETUP AND
MAINTENANCE ONLY, USB CONNECTIONS MUST BE SECURED WITH
INCLUDED RETENTION BRACKET – SEE INSTALLATION INSTRUCTIONS
WARNING – EXPLOSION HAZARD –
DO NOT DISCONNECT EQUIPMENT
WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA IS KNOW TO BE FREE
OF IGNITABLE CONCENTRATIONS.
NOTE: TO PREVENT INADVERTENT DISCONNECTION OF VIDEO AND/OR
SERIAL TOUCHSCREEN CABLES ASSURE THAT THE THUBSCREWS ARE
SUFFICIENTLY TIGHTENED.
NOTE:
WHEN USING USB CONNECTIONS THE USE OF THE USB RETENTION
BRACKET IS REQUIRED FOR HAZARDOUS LOCATIONS AND HIGHLY
RECOMMENDED FOR NONHARDAOUS LOCATIONS.

19
Hard Drive Removal and Replacement
These products are equipped with an easily removable SATA hard drive. They are designed so
that there is no need to remove the cover on these units to change a hard drive. The only reason to
remove the cover will be to switch the configurable serial port from RS-485 to RS-422. See the
appropriate board manual included on the “Documentation and Driver” disk for procedure on changing
this port. The hard drive is simply removed by loosening the two thumbscrews and pulling the drive out.
Remove all power to the unit before removing the drive.
There are no cables to remove when pulling the drive from the chassis. Once the drive is
removed there are four screws on the back of the bracket that hold the drive. If the drive is being
replaced these screws secure the drive to the plate. To reinstall the drive simply insert the bracket with
hard drive attached into the chassis and slide forward. Completely push the drive in and secure the
thumbscrews before reapplying power to the unit.
Various hard drive options with a mounting bracket pre-installed are available for purchase from
Nematron. If a spare hard drive is required these are recommended. These spare hard drives can be
used with third party software to create complete system backups for your installation.
Hard Drive Removal

20
Installing the Touch Screen Driver Software
If your ePC is ordered with a touchscreen and an operating system the drivers will be pre-
installed. The ePC-Series utilizes a USB connection for the touchscreen, therefore the touchscreen will
only function with operating systems that can recognize and utilize USB connections. The driver
included with these units functions with Windows 2000, XP, VISTA, and Windows 7. If using the nPC100
with a touchscreen monitor the appropriate driver will be included with the monitor.
Operating System Recovery
If for some reason your operating system needs to be reinstalled Nematron provides an
Operating System or Recovery disk. The procedure for this is dependent on the operating system.
Because this series does not have an integrated DVD you will need a USB DVD-ROM drive. In some
cases you will also need the “Documentation and Driver” disk that is included with each unit.
The ePC-Series products are only shipped with Windows XP Professional SP3, Windows Vista
Business Edition, and Windows 7 Professional. Use of other operating systems is not recommended and
not supported.
Windows XP Professional SP3 for Embedded Systems
Standard Windows XP operating system disks are no longer available from Microsoft. In order to
continue shipping Windows XP for Automation applications, Nematron had to switch to a different license
scheme, Windows XP Professional SP3 for Embedded Systems. This is not Embedded XP it is simply a
different license procedure. By switching to this license Nematron had to create a system recovery disk.
This disk is very specific to the platform and options that are included on your unit. Do not attempt to use
a recovery from one type of unit on another, it may not work. This recovery disk installs the factory image
with all drivers installed. On these units you will need an USB DVD-ROM. Follow the instructions on the
recovery DVD for installation. When installing the image from this DVD it will not be “Activated”, unlike
when you received the unit. You may need to set the video resolution after loading the image depending
on the unit you are loading.
Windows Vista and Windows 7
Windows Vista and Windows 7 are supplied with an OEM operating system license and disk. .In
order to reinstall these operating systems the operating system is installed first via the included disk and
then the “Documentation and Driver” disk must be utilized to install the approved drivers for chipset,
video, Ethernet, and touchscreen if not functional during operating system installation. Use of different
drivers than included on the disk are not recommended and not supported.
