Neo-Neon VariFlood Duo User manual

ILDW-7090524-00D-31
1
High Power LED Washer
45-3in1 Plus 45-3W（totaling 90 PCS）
User Manual
Neo-Neon LED Lighting International Ltd.

ILDW-7090524-00D-31
2
INDEX
1. Cover-----------------------------------------------------------------------------------------------------------------------1
2. Index-----------------------------------------------------------------------------------------------------------------------2
3. Introduction---------------------------------------------------------------------------------------------------------------3
Control Mode-------------------------------------------------------------------------------------------------------------3
Menu------------------------------------------------------------------------------------------------------------------------3
Configuration--------------------------------------------------------------------------------------------------------------3
Angle-----------------------------------------------------------------------------------------------------------------------3
4. Technical Specification-------------------------------------------------------------------------------------------------4
5. Safety Warning-----------------------------------------------------------------------------------------------------------4
6. Installation---------------------------------------------------------------------------------------------------------------5-6
7. Operation Instruction----------------------------------------------------------------------------------------------------6
Panel Instruction---------------------------------------------------------------------------------------------------------6
Menu--------------------------------------------------------------------------------------------------------------------6-9
Function-------------------------------------------------------------------------------------------------------------------9
DMX Mode/Linking Mode-----------------------------------------------------------------------------------------9-12
Test Mode----------------------------------------------------------------------------------------------------------------13
Auto Mode------------------------------------------------------------------------------------------------------------14-16
Timing Mode----------------------------------------------------------------------------------------------------------16-17
Temperature protection Mode------------------------------------------------------------------------------------------17
8. Operation Instruction----------------------------------------------------------------------------------------------------17
Troubleshooting----------------------------------------------------------------------------------------------------------17
Clearance and Maintenance-----------------------------------------------------------------------------------------17-18
9. Sketch Map of hand wheel installation--------------------------------------------------------------------------------19

ILDW-7090524-00D-31
3
Ⅰ、Introduction
Welcome to using the high power LED washer from Neo-Neon. The light takes the high power LED
technology, with long lifespan and high IP rating. It has the high power red, matched with the green and
blue balanced. It can make all kinds of vivid illumination effects, along with DMX receiving and auto
mode. If the power supply cable is connected, White light will be turned on. The operation interface is
easy to operate and user-friendly, which is achieved by key and 5*7LED matrix. It is suitable for the
entertainment, decorative, architecture illumination industry.
zMain Functions:
＊R,G,B mixed colors and can make all kinds of colors
＊ Adjust the brightness linearly
＊ The adjustable strobe effect
＊ The prefabricated colors and the “rainbow” effect
＊ Install all kinds of specification by hand
＊ Show the function of 180 degrees overturning
＊ English manual system an the adjustable brightness of the digital displaying tube
＊ The safeguarding function of over-heat
＊ Auto Test Mode
＊ Record the running time of the different colorful LED
＊ Record the total running time of the fixture
＊ Can edit three pieces of programs, 10 acts of each program for maximum
＊ Can edit 36 pieces of time events, each event can randomly install the running start and end time
of the included programs.
＊ All above are the function and setting of RGB light and the white light head will always be on.
zControl Mode
＊ DMX-512
＊ Run alone through installing build-in programs
＊ Install the independent running programs for everyday during one week
＊ Drive 30 pieces of fixtures through the Master/Slave mode
＊ Install the DMX address of the fixture
zConfiguration:
45 PCS 3 IN1 3W LED Plus 45 3W white high power LED，totaling 90 PCS
zAngle:
＊ The adjustable angle for double heads: 0°---120°
＊ The adjustable angle for single head: 0°---90°
＊ The angle of this item ：25°
＊ The angle of the lens Available ：10°,25°,10°+25°, 25°,+40°
Ⅱ、Technical Specification
DMX-512 and 8 pieces of channels
The RGB mixed colors is 255 grades and white light once powered

ILDW-7090524-00D-31
4
The total adjustable brightness: 0-100%
Power：275W
The power input: AC88--265V 50/60Hz
Dimensions: L660XW250XH517MM
Weight: 30 KG (including the connecting line and the accessories)
IP rating: IP65
Ⅲ、Security Warning:
zPlease read the user manual carefully before using and abide by the operation introduction
zThe fixture should be connected with the power supply attached the ground line, and the power
voltage should be matched with the rated voltage
zThe fixture is not attached with any accessory and just can choose the accessory which belongs to
the manufacture
zThe operating temperature should be not above 40℃and not below -20℃
 If there are some problems, please ask the professional for repair

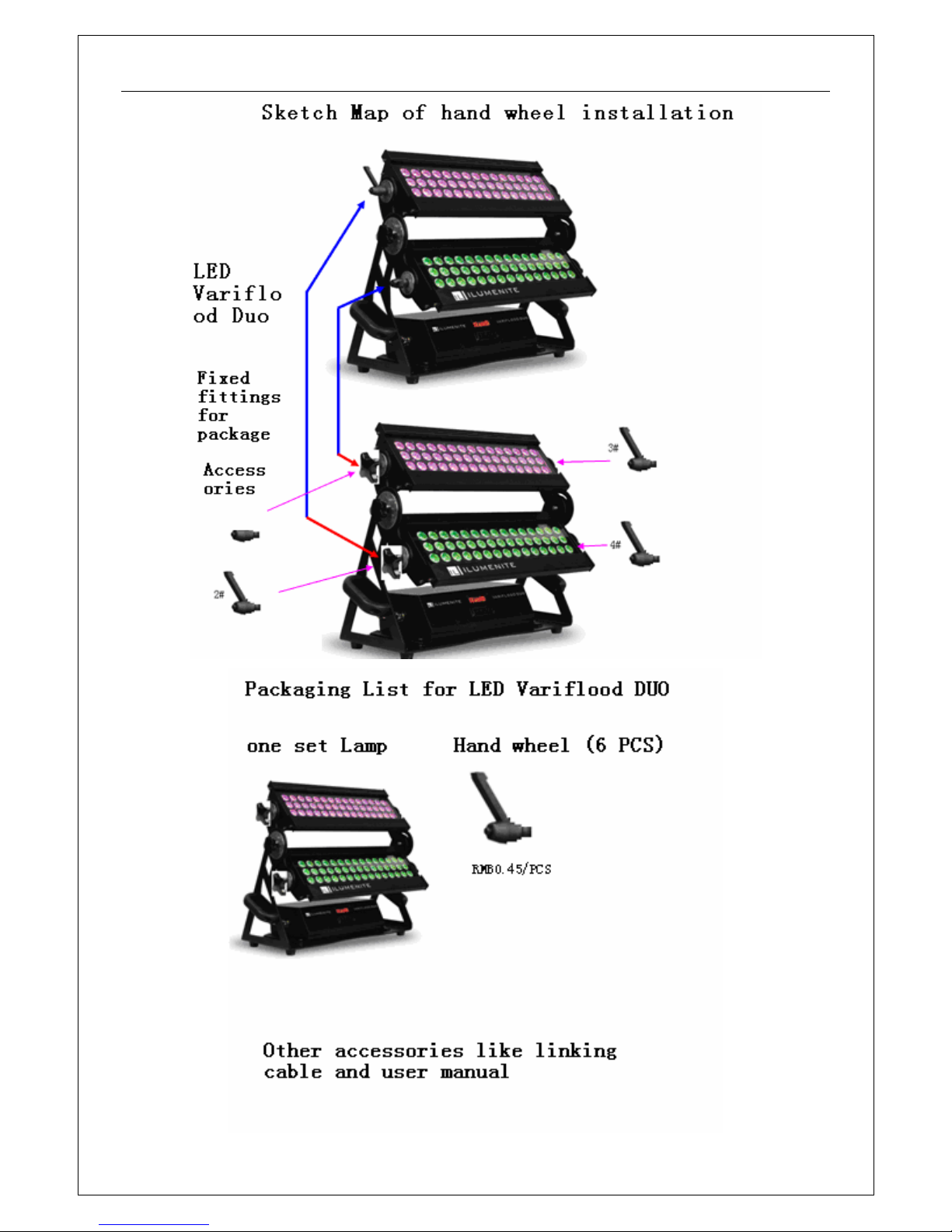

 We change our packaging of four hand wheels used for position into four smaller ones for safety
when packaging and transportation. The six hand wheels will be packaged and complimented away
with the lamp. If the customer needs them, we will change back.
Note:
When the power plug is not connecting the dependency, please connect the housing with the ground to
avoid the damages of the static and charge causing to the product.
Ⅳ、Installation and Setup

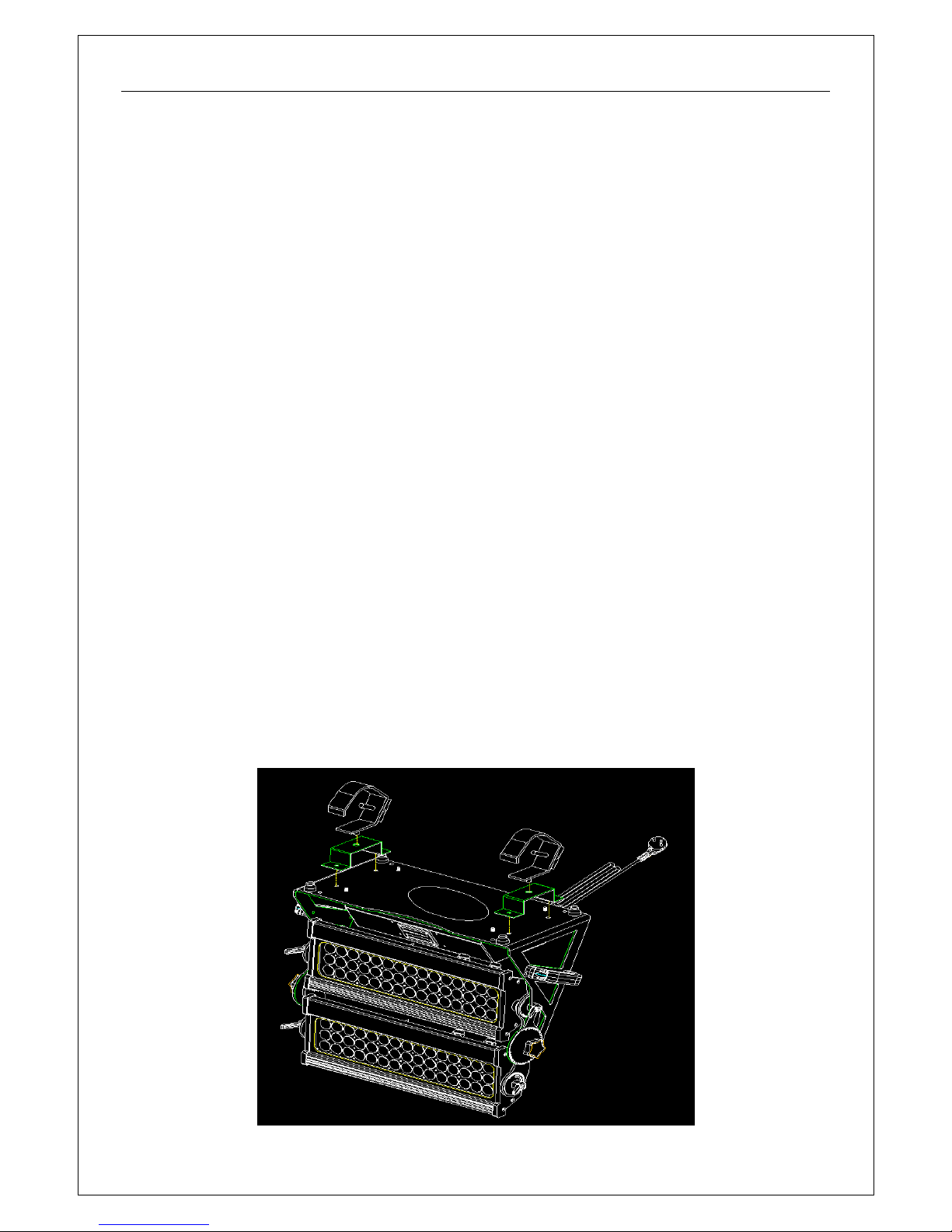

The sketch map of hanging and installingⅰ
The product can be locked on the truss by the lock nip: at first, put the nip into the truss and then screw
down and adjust the screw.

ILDW-7090524-00D-31
5
ⅱ、This product can be laid on the flat ground by the rubber cushion under the bracket of the fixture
shown as below:
ⅲ、You can pull out the screw used for securing the power supply and then take out the power supply
crust. The effect picture is illustrated as below:
ⅳ. When the crust of the power supply is pulled out, there are four isosceles slots under the bracket of
the fixture. You use bolt through isosceles aperture to link and position the object and install the
crust of the power supply. The final effect picture is illustrated as below：

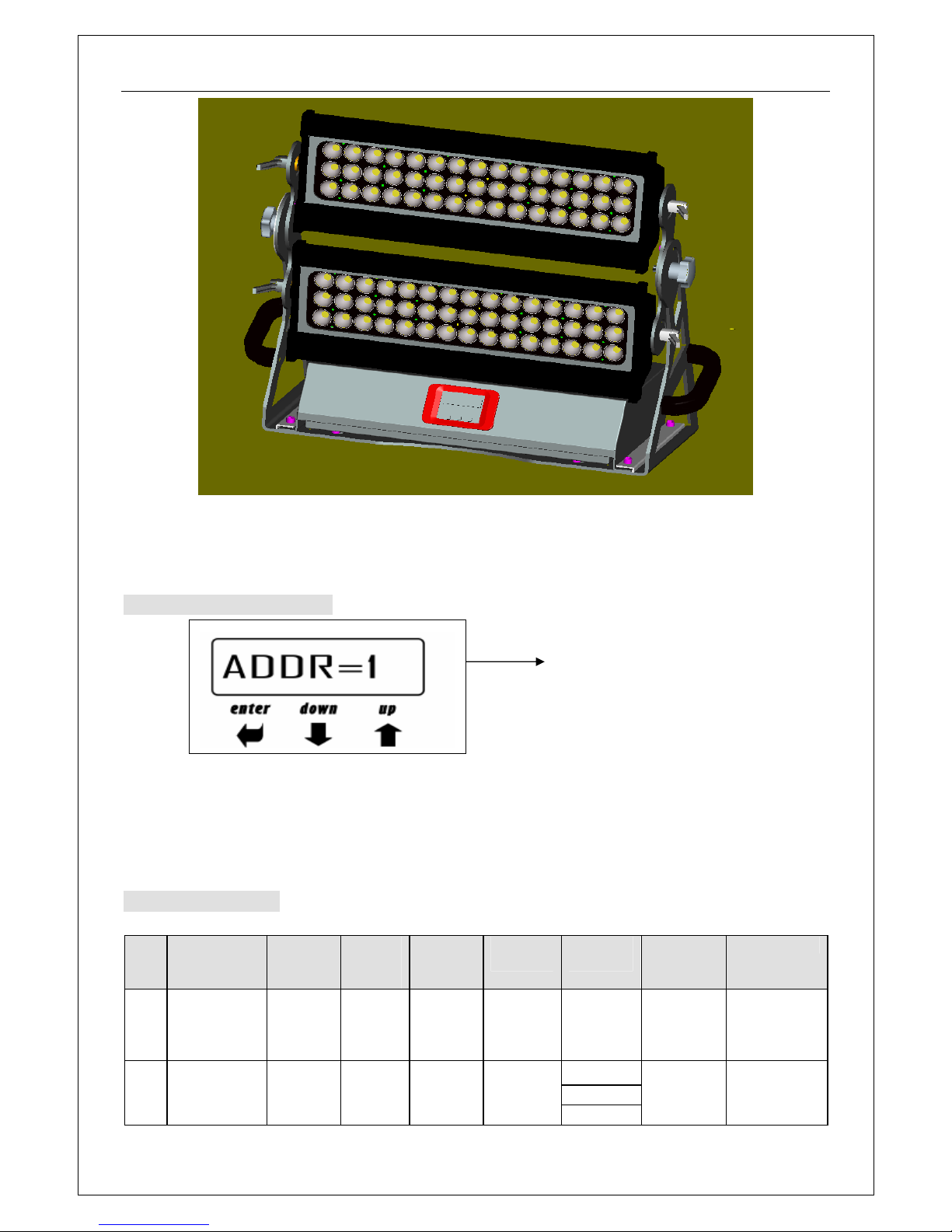

ILDW-7090524-00D-31
6
Ⅴ、The operation instruction
. The panel instructionⅰ
1
2 3 4
1：LED Matrix display 3：Down
2：enter 4：Up
Menu instructionⅱ
No Title Content Content
of main
menu
Change
the
content
Submen
u Submenu options How to enter
submenu
functions
1 Set DMX
signal
channels
A001 Press
enter Press Up/enter
Set up the
DMX
starting
channels
Rblac
Gblac
2 Adjust
White
Balance
balance
√ Bblac
Press
enter for
2-3secon
ds
Set up RGB
parameter

ILDW-7090524-00D-31
7
Enable
3 Boost boost Press
enter OFF Boost off
4 adjustment
for Red
Led
operating
time
R_H Press
enter Press Up/enter
operating
time of Red
led
5 Green Led
Run Hour
adjustment
G_H Press
enter Press Up/enter
The time of
red green
display
6 Blue
Run Hour
adjustment
B_H Press
enter Press Up/enter
The time of
blue display
7 Signal signal Press
enter No Change Choose
DMX
8 Brightness
of screen bright Press
enter Press Up/enter
Adjust the
brightness
of the
screen.
9 Display Flip
Or Not DSPFLI Press
enter Press Up/enter
Adjust the
positive or
opposite
display
10 DMX delay Dmxdl Press
enter Press Up/enter
Set up the
period for
the wash
with no
DMX signal
YEAR
M/D
H:M
11 Time time √
WEEK
Press
enter for
2-3seco
Set up the
inner time of
the wash
12 Factory
Parameters FACT Recover the
parameter
13 Previous
Parameters PREV Recover the
parameter
previously
set up
Red
Green
Bule
CTC
All
shutt
14 Test test √
Dimer
Press
enter for
2-3secon
ds
Test the
color
temperature
of RGB on
the wash
15 Temperatur
e temper Press
enter Press Up/enter
Show the
temperature
on the head
of washer.
16 Master Press
enter Press Up/enter
Set up the
way of
operating
17 Slaver SlavID Press
enter Press Up/enter Set up the
slave

ILDW-7090524-00D-31
8
number
when the
slave
machine
runs
18 Schedule
Enable or
not
Sched Press
enter Press Up/enter
To see
whether it
runs as
scheduled
or not
19 Program
Run Pgrun
Select the
programs
Prog
SCENE
FIXT
shutt
dimer
R
G
B
mac
tm_h
tm_m
tm_s
fd_h
fd_m
fd_s
20 Program
Set Pgset √
SCNRU
Press
enter for
2-3secon
ds
Edit the
programmin
g of the
wash
event
program
day
start
end
21 Schedule Schedu √
enable
Press
enter for
2-3secon
ds
Edit the
timing
ⅲ：Function Instruction:
1. Reset after it is connected to power supply and below are steps to control RGB light.
When it is connected to the power supply, the system is initialized. The reset interface of the display shows as below
drawing. When the display has shown for two seconds, it will enter into the operation mode the last time it has
run.
Init…
HELLO

ILDW-7090524-00D-31
9
1. DMX/Linking Mode：
2.1 DMX Operation Instruction：
Step1：When the display shows HELLO, the dot flick. Then press UP to enter main menu A***.
Then press MODE for a short second when the three value, DMX address, after Aflick. The three value
ranges from 1 to 512. Press UP or DOWN to change the DMX address.
Step2：After press MODE for a short second, the display does not flick. Then press UP or DOWN to
enter main menu MASTER when you press MODE for a short second. The display flicks and press UP
or DOWN until the display shows OFF, namely entering into DMX mode.
2.2 DMX Connector：
DMX male connector:
PIN1 GND ground wire
PIN2 - COLD signal negative
PIN3 + HOT signal positive
2.3 DMX Link Chart：
The distribution under the DMX control
Chann
el
Name Value Function Description
0-3 off
4-6 on
1 Shutter/Strobe
7-59 strobe(20~1Hz)
HELLO
A001
MASTR=OFF
In DMX Out
Fixture 1
DMX Controller
DMX out In DMX Out
Fixture 2
In DMX Out
Fixture 3

ILDW-7090524-00D-31
10
60-69 Visional Strobe on
70-78 Visional Strobe off
79-87 Randomly strove(from fast to slow)
others On
2 Dim0 0-255 Total brightness adjustment
3 R0 0-255
The value of the red brightness
4 G0 0-255
The value of the green brightness
5 B0 0-255 The value of the blue brightness
6 Dim1 0-255 Total brightness adjustment Channel
7 R1 0-255 The value of the red brightness
8 G1 0-255 he value of the green brightness
9 B1 0-255 The value of the blue brightness
0-19 Off
10 CTC
20-255 +2000 k° to -2000 k°
0 - 7 No effect
8 - 15 Rainbow slow mode-5 seconds
16 – 23 Rainbow medium speed mode-5 seconds
24 - 31 Rainbow fast speed mode-5seconds
32 - 39 Rainbow slow speed mode-no time to remain
40 - 47 Rainbow medium speed mode - no time t
o
i
48 - 55 Rainbow fast speed mode - no time to remain
56 - 63 Rainbow very slow mode - no time to remain
64 - 70 Slow speed random colors
71 The installed color function
72 - 79 Medium speed random color
11 MAC
80 - 87 Fast speed random color
0-63 Forbid white balance
64-189 Open the white balance
190-250 Forbid white balance
12 White balance control
251-255
Restore the white balance color
(Set White Balance Control channel in th
e
value of220.Set up RGB channel paramete
r
and reset Macro channel 71，White Balanc
e
Control channel is255 for 4seconds)

ILDW-7090524-00D-31
11
Instruction:
1. When the value of MAC is between 8 and 87, the channel 3, 4, 5, 7, 8, 9 is invalid. The operating value
is installed of red, green and blue. Other channel is valid.
2. When the value of MAC is between 0 and 7 and between 88 and 255, all channels are valid.
3. Method to restore the white balance color: Channel1= 4-6 or 88-255; Channel 2=255,Channel
6=255;Channel 10=0;Channel 11=255,Channel 12=0;Then adjust channel 3,4,5,7,9 and make the two
lamp upward and downward. Finally, set channel 2=220, channel 11=71 and channel 12=255 and keep it
for four seconds.
4. Linking Mode
Firstly turn off the DMX controller then put one of the fixture in master mode and others in slave mode.
Details as below:
1>SLavID menu
Instruction：
Steps：When the display shows HELLO, the dot flicks. Then press
UP/DOWM for a short second until the display switch to the main menu
SLAVID. Then press MODE for a short time. It will show submenu XX
（01-39），flicking. Press UP/DOWN to change the ID of this product. After
selection, press MODE for a short time，the display will return to main
menu SLAVID.
Note：
The setting of main menu SLAVID is valid under auto and
DMX mode. If you want to know more explicitly about it, you can read the
Fix menu setting.
1> Fixt. Menu Instruction:
Steps1: When the display shows HELLO, the display flicks. Then press
UP/DOWN for a short second.
Adjust to PGSET, and then press MODE for a little longer time until the display
shows PRog. .
Steps2：Press UP/DOWM until the display shows Fixt. Then press MODE
for a short second，the display will show ALL, ODD, EVEN, MASTR or
SLV01-SLV29 and the display will flick. Select one of them and press MODE for
a short second to switch to menu Fixt. Then press MODE for a longer time until
the display shows PGSET.
Note：
HELLO
SLAvID
XX(1-39)
HELLO
PGSET
PRog.
Fixt.

ILDW-7090524-00D-31
12
1：When the display of the host computer shows Fixt= ALL. This
indicates that it runs normally.
Whatever the Fixt value is, it will receive the data from master
fixture.
2：When the Fixt value of the master is ODD, the program of the master
will run normally under the condition that the SLAVID value of the
master is odd number. The slave fixture will receive data from the
master under the condition that the SLAVID of the slave is odd.
3：When the Fixt value of the master is EVEN, the program of the
master will run normally under the condition that the SLAVID value
of the master is even number. The slave fixture will receive data
from the master under the condition that the SLAVID of the slave is
even.
4：When the display of the host computer shows Fixt= MASTER. This
indicates that it runs normally.
Whatever the Fixt value of the slave is, it will not receive the data
from master fixture.
5：When the display of the host computer shows Fixt= SLV01（XX=
（01-29）, the master runs normally.
The slave fixture will receive data from the master under the
condition that the Fixt value of the slave fixture is SLV01.
When the display of the host computer shows Fixt= SLV02（XX=
（01-29））, the master runs normally.
The slave fixture will receive data from the master under the
condition that the Fixt value of the slave fixture is SLV02.The rest
will be deduced by analogy.
ⅳ．TSET Mode：
Instruction：
Step1：When the display shows the main menu HELLO, the dot flicks. Then
press UP/DOWN for a short second. It will show TEST. Then press MODE for a
longer time until the display shows submenu RED.
Step2：Press UP for a short time, the display showing RED does not flick.
Then press MODE for a short time until the submenu RED flick when all red LEDs
of the two fixtures begin to be visional. Then press MODE for a short second until
the submenu RED does not flick when all red LEDs are off.
Step3：Press UP for a short time, the display showing GREEN does not flick.
Then press MODE for a short time until the submenu GREEN flick when all green
LEDs of the two fixtures begin to be visional. Then press MODE for a short second
until the submenu Green does not flick when all green LEDs are off.
Step4：Press UP for a short time, the display showing BLUE does not flick.
HELLO
TEST
RED
GREEN
BLUE
ALL
ODD
even
mastR
SLvxx

ILDW-7090524-00D-31
13
Then press MODE for a short time until the submenu BLUE flick when all blue
LEDs of the two fixtures begin to be visional. Then press MODE for a short second
until the submenu BLUE does not flick when all blue LEDs are off.
Step5：Press UP for a short time, the display showing CTC does not flick.
Then press MODE for a short time until the submenu CTC flick when all LEDs of
the two fixtures are on. Then press MODE for a short second until the submenu
CTC does not flick when all LEDs are off.
Step6：Press UP for a short time, the display showing ALL does not flick. Then
press MODE for a short time until the submenu ALL flick when all LEDs of the two
fixtures begin to be visional. Then press MODE for a short second until the
submenu ALL does not flick when all LEDs are off.
Step7：Press UP for a short time, the display showing SHUTT does not flick.
Then press MODE for a short time until the submenu SHUTT flick when all LEDs of
the two fixtures begin to strobe. Then press MODE for a short second until the
submenu ALL does not flick when all LEDs are off.
Step8：Press UP for a short time, the display showing DIMER does not flick.
Then press MODE for a short time until the submenu DIMER flick when all LEDs of
the two fixtures begin to adjust brightness automatically. Then press MODE for a
short second until the submenu DIMER does not flick when all LEDs are off.
Step9：After test, press MODE for a longer time until the display menu shows
submenu Test.
ⅴ．Auto Mode：
HELLO MASTR PGRUN PGSET
PROG. SCENE FIXT. SHUTT
DIM0 R0 G0 B0
MAC TM-H TM-M TM-S
FD-H FD-M FD-S SCRUN
R1 G1 B1 DIM1
CTC
ALL
SHUTT
DIMMER

ILDW-7090524-00D-31
14
Instruction：
Step1：When the display of the main menu shows HELLLO, the dot flicks. Then press UP/DOWN
for a short second until the master is on.
Step2：Press MODE to switch to main menu and then switch to submenu PGRUN (OFF, 1 ,2, 3)
OFF means it does not work，1 represents that it operates in the first program. 2 represents that it
operates in the second program. 3 represents that it operates in the third program.
Step3：Press MODE for a short time and exit to main menu. Switch to PGSET, and then press
MODE for a longer time until the display shows PROG. The value of PROG ranges from 1 to 3. 1 stands
for the program which needs to be edited is program1. 2 stands for the program which needs to be
edited is program2. 3 stands for the program which needs to be edited is program3.Take the PROG=1
as example, every program can used to set 10 scenes the most, 1 the least each of which needs to set
18 parameters。Detailed as below:
Step4：Switch to submenu SCENE (1-10), at first you set 1.
Step5：Switch to submenu FIXT. = ALL，（about the FIXT has been introduced above）.
Step6：Switch to submenu SHUTT（0-255）. You set it to 80.You can set the below value
according to your own demand.
Shutt (0-255): detailed parameter as below
Shutt（0-3）: all leds are off；
Shutt（4-6）: on；
Shutt（7-59）: strobe (20~1Hz) ；
Shutt（60-69）: Visional Strobe on：
Shutt（70-78）: Visional Strobe off
Shutt（79-87）: Randomly strobe (from fast to slow)
Shutt（88-255）: On；
Step7：Switch to submenu DIM0.This value cannot be set 0. The value is 255(the total
brightness of the first lamp).
Step8：Switch to submenu R0.The value ranges from 0 to 255.It is used to adjust the red
brightness of the first fixture. The value is 0 here.
Step9：Switch to submenu G0.The value ranges from 0 to 255.It is used to adjust the green
brightness of the first fixture. The value is 255 here.
Step10：Switch to submenu B0.The value ranges from 0 to 255.It is used to adjust the blue
brightness of the first fixture. The value is 255 here.
Step11：Switch to submenu MAC, the value of which ranges from 0 to 255.When the value of
MAC is between 8 and 87, the setting value of the R0，G0，B0，R1，G1，B1 is valid. Otherwise it
is the value installed.
MAC（0-7）: When the value of MAC is 0-7 and 88-255, all channels are valid.；
MAC（8-15）: Rainbow slow mode-5 seconds
MAC（16-23）: Rainbow medium speed mode-5 seconds
MAC（24-31）: Rainbow fast speed mode-5seconds

ILDW-7090524-00D-31
15
MAC（32-39）: Rainbow slow speed mode-no time to remain
MAC（40-47）: Rainbow medium speed mode - no time to remain
MAC（48-55）: Rainbow fast speed mode - no time to remain
MAC（56-63）: Rainbow very slow mode - no time to remain
MAC（64-70）: Slow speed random colors
MAC（72-79）: Medium speed random color
MAC（80-87）: Fast speed random color
MAC（88-255）: When the value of MAC is between 8 and 87, the channel 3,4,5,7,8,9 is
invalid. The operating value is installed of red, green and blue. Other channel is valid.
Step12：Switch to submenu TM-H（0-23），The start value is 0 here, which is used to record
running hours.
Step13：Switch to submenu TM-M（0-23），The start value is 0 here, which is used to record
running minutes.
Step14：Switch to submenu TM-S（0-23），The start value is 0 here, which is used to record
running seconds.
Note：If you want to make it run, the value of TM-H，TM-M and TM-S can not be 0 at the
same time. Furthermore, if the white balance control is open, the six balanced value of RGB can
not be 0 at the same time.
Step15：Switch to submenu FD-H（0-59），The start value is 0 here, which is used to record
visional running hours.
Step16：Switch to submenu FD-H（0-59），The start value is 0 here, which is used to record
visional running minutes.
Step17：Switch to submenu FD-H（0-59），The start value is 0 here, which is used to record
visional running seconds.
Step18：Switch to submenu SCRUN, when the display shows ON. This indicates that the set can
run. When the display shows OFF, the parameter set is invalid.
Step19：Switch to submenu R1.The value ranges from 0 to 255.It is used to adjust the red
brightness of the second fixture. The value is 255 here.
Step20：Switch to submenu G1.The value ranges from 0 to 255.It is used to adjust the green
brightness of the second fixture. The value is 0 here.
Step21：Switch to submenu B1.The value ranges from 0 to 255.It is used to adjust the blue
brightness of the second fixture. The value is 0 here.
Step22：Switch to submenu DIM1.The value can not be 0.It is 255 now (the total RGB brightness of
the second fixture).
Step23：The first scene of the first program is finished. Then switch to submenu SCENE (1-10). At
first you select scene 2.Follwing the above step 4 to step 22, totaling 18 parameters. You can set the
quantity of scene (maximum: 10 minimum: 0) according to your own requirement.

ILDW-7090524-00D-31
16
ⅵ．Timing operation mode：
Instruction：
Step1：When the display shows HELLO, the dot flicks. Then press UP/DOWM for a short second.
And then switch to main menu and set it ON.
Step2：Press MODE for a short time and back to main menu. Then switch to main menu PGRUN
and set it OFF.
Step3：Press MODE for a short time and back to main menu. Then switch to main menu SCHED
and set it ON.
Step4：Press MODE for a short second and back to main menu. Then switch to main menu
SCHEDI and press MODE for a longer time until the display shows EVENT（1-36）.It can edit 36
pieces of time events for maximum. When the value is 1, edit event1 operating parameter.
Step5：Switch to submenu PROG.（1，2，3）, which indicate that the program event1 run, is
shown, totaling 3, three programs under auto mode. You choose program1 here.
Step6：Switch to submenu DAY to ensure which day this event runs. You can choose from Monday
to Sunday. DAY=MON：indicates that this event can only run on Monday；
DAY=TUE：indicates that this event can only run on Thursday；
DAY=WED：indicates that this event can only run on Wednesday；
DAY=THU：indicates that this event can only run on Thursday；
DAY=FRI：indicates that this event can only run on Friday；
DAY=SAT：indicates that this event can only run on Saturday；
DAY=SUN：indicates that this event can only run on Sunday；
DAY=ALL：indicates that this event can only run from Monday to Sunday.
Step7：Switch to submenu START to ensure when the event starts run. The time is set at 08：00.
Step8：Switch to submenu START to ensure when the event ends. The time is set at 23：00.
Step9：Switch to submenu ENABLE = ON, which represent that the time is valid.
Step10：When you repeat the steps 4 to steps 9, you can make other events run at scheduled time.
(Remark：Set SCRUN of main menu PGSET =ON)
ⅶ．Temperature protection Mode：
When the temperature of the fixture is higher than 50℃，the brightness will decrease
correspondingly. When the temperature of the fixture is higher than 80℃, the fixture will be off
automatically.
HELLO MASTR PGRUN SCHED.
SCHEDI EVENT PROG. DAY
START END ENABLE

ILDW-7090524-00D-31
17
. Daily MaintenanceⅥ
Trouble Shooting
Trouble Reasons Trouble Shooting
No power supply
Check whether the power
supply is turned on and the
power cable is connected
well.
One or many of fixtures
does not work
The power supply is burnt.
Turn of the power supply.
Then change into the same
type of power supply.
If the power supply is burnt
continuously, there may
have some problems with
the power cable. Please ask
professional staff to repair.
The data connecting is
wrong or uncompleted
Check, repair or change the
data cable and check
whether it is connected well
and the signal input of the
first fixture is connected
with the output of the
controller
Whether it is in Master
mode Set it in slave mode under DMX Mode
Wrong address Check the address and set
uniformly
There is a piece of fixture
whose connector can not
work normally
After pulling the input and
output signal cable out of
the fixture and connect
each other directly. Then
check whether there is a
problem with the fixture. If it
works well after connecting,
it proves that there is a
problem with the signal
connector of the fixture.
According to the method---
trouble shooting, then select
the broken fixture and ask
the professional staff to
repair.
The replacement is normal
but the controller can not
work well or there is no
feedback
The signal output of the
controller is not matched with
the connector of the signal
receiving(PINS2—3 is wrong)
Dial the polarity switch of
the controller to “PHASE”,
and exchange the address
of PIN2—3

ILDW-7090524-00D-31
18
1、Cleaning and Maintaining
Although we have already strengthened the credibility of the product in design, we always
continue to keep the high level of quality and try our best to extend the lifetime of the product. We
should maintain the product regularly and confirm the light to show itself under the best situation,
which is necessary.
I、The cleaning of the fixture.
II、The cleaning maintaining of the lens
To ensure the optimum effect of the fixture, please clean each lens or the reflecting configuration.
Please use the soft cotton cloth with little lotion to clean lens and protect the lens from damage.
III、The regular examine of the cables
Check the connecting cable, cloth cable and ground cable to ensure the security of the fixture of
usage.

ILDW-7090524-00D-31
19
Ⅶ. Other type of this item product as below:
VOLTAGE
Beam angle Housing COLOR
220V 110V
ＢＬＡＣＫ ILDW-7090574-00D-11 ILDW-7090573-00D-11
ＧＲＥＹ ILDW-7090574-00D-21 ILDW-7090573-00D-21
10°
ＷＨＩＴＥ ILDW-7090574-00D-31 ILDW-7090573-00D-31
ＢＬＡＣＫ ILDW-7090524-00D-11 ILDW-7090523-00D-11
ＧＲＥＹ ILDW-7090524-00D-21 ILDW-7090523-00D-21
２５°
ＷＨＩＴＥ ILDW-7090524-00D-31 ILDW-7090523-00D-31
ＢＬＡＣＫ ILDW-7090544-00D-11 ILDW-7090543-00D-11
ＧＲＥＹ ILDW-7090544-00D-21 ILDW-7090543-00D-21
４０°
ＷＨＩＴＥ ILDW-7090544-00D-31 ILDW-7090543-00D-31
ＢＬＡＣＫ ILDW-70905D4-00D-11 ILDW-70905D3-00D-11
ＧＲＥＹ ILDW-70905D4-00D-21 ILDW-70905D3-00D-21
１０°＋２５
°
ＷＨＩＴＥ ILDW-70905D4-00D-31 ILDW-70905D3-00D-31
ＢＬＡＣＫ ILDW-70905D4-00D-11 ILDW-70905D3-00D-11
ＧＲＥＹ ILDW-70905D4-00D-21 ILDW-70905D3-00D-21
２５°＋４０
°
ＷＨＩＴＥ ILDW-70905D4-00D-31 ILDW-70905D3-00D-31

ILDW-7090524-00D-31
20
