Home Accents Holiday TY052-1924-1 User manual

OMS THD SKU # 1005 178 609
Model # TY052-1924-1
Thank you!
We appreciate the trust and confidence you have placed in Home Accents
through the purchase of this 106in 210 LED 16 Function Lighted Pumpkin
Arch. We strive to continually create quality products designed to enhance
your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing HomeAccents!
1-877-527-0313
HOMEACCENTSHOLIDAY.COM
ASSEMBLY INSTRUCTIONS
106in 210 LED 16 Function Lighted Pumpkin Arch
USEANDCAREGUIDE
PLANNING ASSEMBLY
Carefully remove all the parts from the box and place them on the ground or a flat
surface. Many parts are connected by the lighting string that runs throughout the
item. Take special care not to pull, cut or damage the lighting string. Read the entire
manual prior to assembly and identify all the parts included in the package against
the parts list. It is recommended to assemble parts of the product while laying flat on
the ground versus standing the item up to assemble the parts. If any parts are
missing or damaged do not attempt assembly but contact our customer service
center or return the product to place of purchase with receipt.
* Assembly of this product may require more than one person.
Pre-Operation
CAUTION:Grasp the plug to insert or remove from the power source.
Do not unplug by pulling on the cord.
CAUTION:The lighting string on this product is rated at 16.2 Watts
(0.135 Amps). Do not overload. Do not connect to another lighting string, decorative
outfit or other electrical products. Before you use or re-use this product inspect it
carefully. Discard or return to place of purchase with purchase receipt if the product
has cuts, damage, frayed wire insulation on cords, cracks in the socket enclosures,
loose connections, exposed copper wire or other obvious damage.
CareandCleaning
a. Carefully remove the product from wherever it is placed. This helps to avoid any
undue strain or stress on the product connections and wires. If the product is placed
somewhere other than the ground it should be well secured and flat.
b. Carefully disassemble the product taking caution not to cut any electrical wires.
c. Wipe the product with a damp cloth and allow to dry before storing.
d. Store the product neatly in a cool, dry location protected from sunlight.
Trouble Shooting
a. Ensure that the floor or surface that the item sits on is flat and level
b. Be sure to plug the item correctly to a wall outlet or a UL Listed Power Cord
c. Ensure all parts are assembled properly per the Instruction Manual
d. If the item does not light check for loose or broken bulbs and connections
e. Do not plug into other electrical items
f. If the item has multiple Light String Cords be sure to plug in all cords
g. Check for Broken or Burned Out Fuse In Plug
Guarantee
What is Covered
The product is intended for residential seasonal use for 90 days per year. This
product is covered by a 90 days limited guarantee due to defects in material and
workmanship. Return the product with purchase receipts to the location of purchase
for refund within 90 days of purchase.
What is Not Covered
This warranty does not cover commercial use, normal wear and tear, products not used in
accordance with directions provided on or with the product, burn out of bulbs or LEDS,
products that have been subjected to unauthorized repair and/or modification and damage
caused by shipping and improper handling, alterations, misuse, in store display models or
accidents. Questions, problems, missing parts? Before returning to the store, call Home
Accents Holiday Customer Service 8 a.m.-6 p.m., EST, Monday-Friday

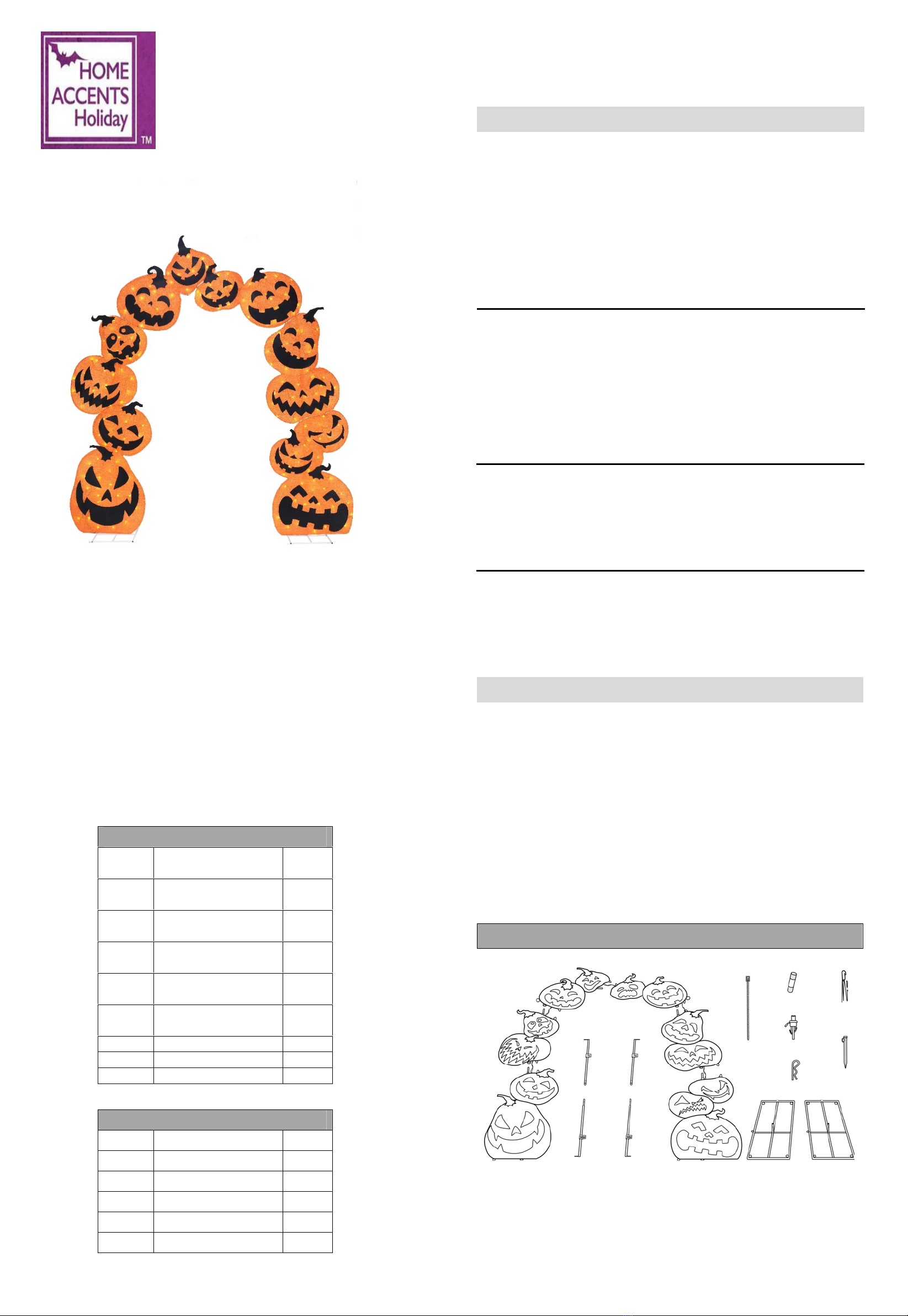

Diagram of Parts
Parts List
A Bottom Right Section of
Arch 1
B Middle Right Section of
Arch 1
C Upper Right Section of
Arch 1
D Upper Left Section of
Arch 1
E Middle Left Section of
Arch 1
F Bottom Left Section of
Arch 1
G Stabilizing Bar 2
H Stabilizing Bar 2
I Base Stand 2
Hardware List
J Plastic Tie
20
K Spare Fuse
2
L Spare Bulb
6
M Cotter Pin 4
N Anchoring Strings 4
O Ground Stake
12
N
O
A
I
B
D
H
G
J
F
E
M
L
K
I
C

A
SSEMBLY
1 Assembling the Pumpkin Arch
NOTES: Place the six (6) sections of the PumpkinArch face down on
the ground. Attach the connecting rods in the connecting holes for
each Pumpkin Section (A,B,C,D,E,F) (per the diagram below and
photo reference on the IM here) and lock with built in locking pin.
2 Securing the Assembled Pumpkin Arch
Align the connecting loops between the sections (per the diagram below)
with each other and fasten the sections of Pumpkin Arch (A,B,C,D,E,F)
together then with the Plastic Ties (J) at the connecting loops.
3 Assembling the Stabilizing Bars
Attach the sections of the Stabilizing Bars (G,H) together and lock with
built in locking pin.
4 Attach the Pumpkin Arch to the Base Stands
With the assembled Pumpkin Arch still laying face down on the ground.
Insert the short connecting rods on the Base Stand (I) into the connecting
tube on the bottom of the PumpkinArch sections (A, F). Then fasten
together at the connecting loops with the Plastic Ties (J).
5 Attach the Stabilizing Bars to the Arch and Base Stands
Insert the connecting rods on the upper Stabilizing Bars (G) into the
matching connecting holes on the back of the Arch Sections (B,E) then
secure with the Cotter Pins (M). Insert the connecting rods on the lower
Stabilizing Bars (H) into the left and right Base Stands (I) then secure
with the Cotter Pins (M).
6 Stand up the Arch
Stand the assembled Pumpkin Arch up to an upright standing position.
7 Attach the Anchoring Strings and Ground Stakes
Insert Ground Stake (O) over the 4 corners of the Left and Right Base Stands then press into the ground. The Arch comes with the Anchoring
Strings (N). Hook the plastic clip end of each Anchoring Strings (N) onto the securing loop located on the Middle Left and Right Sections of
Section of Arch (C,D). Use the remaining Ground Stakes and run the looped end of theAnchoring Strings over the clip on the end of the
Ground Stake. Pull the Anchoring Strings with Ground Stakes away and out from the Arch then press the Ground Stake (O) firmly into the ground.
B
F
C D
A
J
G
H
F
A
J
I
I
E
M
B G H
G
H
M
I I
O
D
N
C
