NEO BETMAKERS GLOBAL TOTE BENCH User manual

NEO PRODUCTS - WORK INSTRUCTION
BETMAKERS GLOBAL TOTE BENCH
NUMBER
ISSUE
CHANGE
DATE
ISSUED BY
15701-GA001
A
Initial Production Release
15/09/2022
MP
DESCRIPTION
B
BETMAKERS GLOBAL
C
TOTE TABLE
D
ASSEMBLY
E
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 1 of 21
ITEMS NEEDED TO PERFORM THIS TASK
HAND TOOLS ONLY
#2 PHILLIPS HEAD SCREWDRIVER
Allen Keys 4mm –Gold Colour (Provided)
Allen Keys 5mm –Black Colour (Provided)
ITEM
#
STOCK CODE
DESCRIPTION
QTY
1
Side of the Table with Slot
1.00
2
Table Side with Logo
1.00
3
Back side of table
1.00
4
White side of the table with a slot
1.00
5
Internal wooden support
1.00
6
Top of the table
1.00
7
Top of side table
1.00
8
Side leg of the table
1.00
9
Support Plank
1.00
10
Metal Plate
1.00
11
Head Rods
33.00
12
Wooden Dowel pins
33.00
13
Cam
32.00
14
Hex Socket Screw (long)
6.00
15
Washer for the long screws
6.00
16
Countersunk Hex Socket Screw
7.00
17
Spring Washers
7.00
18
SCA 10-18PXMZ
SCREW PAN 10AB x 3/4
17.00
19
L-Brackets
4.00
20
Velcro
1.00
21
PAN M6x16 Phillips Head
6.00

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 2 of 21
•Lift the boxes or its contents with care.
•Take care when unpacking the contents and placing on the
ground.

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 3 of 21
STEP
DESCRIPTION
1
This assembly requires contents
from two boxes:
- BOX 1 of 2.
- BOX 2 of 2.
Make sure two boxes are
available before starting the
assembly.
2
Select and open BOX 2 of 2.

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 4 of 21
STEP
DESCRIPTION
3
Open the Hardware pack
contained within BOX 2 of 2:
Hardware pack contains:
- 33x Wooden Dowel Pins (a)
- 33x Head Rods (b)
- 32x Cams (c)
- 7x Countersunk Hex Socket
Screw (d)
- 5x Hex Socket Screw –long
(e)
- 5x Washers (f)
- 6x Spring Washers (g)
- 1x Allen Keys 4mm –Gold
Colour (h)
- 1x Allen Keys 5mm –Black
Colour (j)
Store the Power Supply &
Brackets / Velcro package for
assembly at a later Step.
Store
a
b
h
j
d
e
g
f
c
Power
Brackets/
Velcro

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 5 of 21
STEP
DESCRIPTION

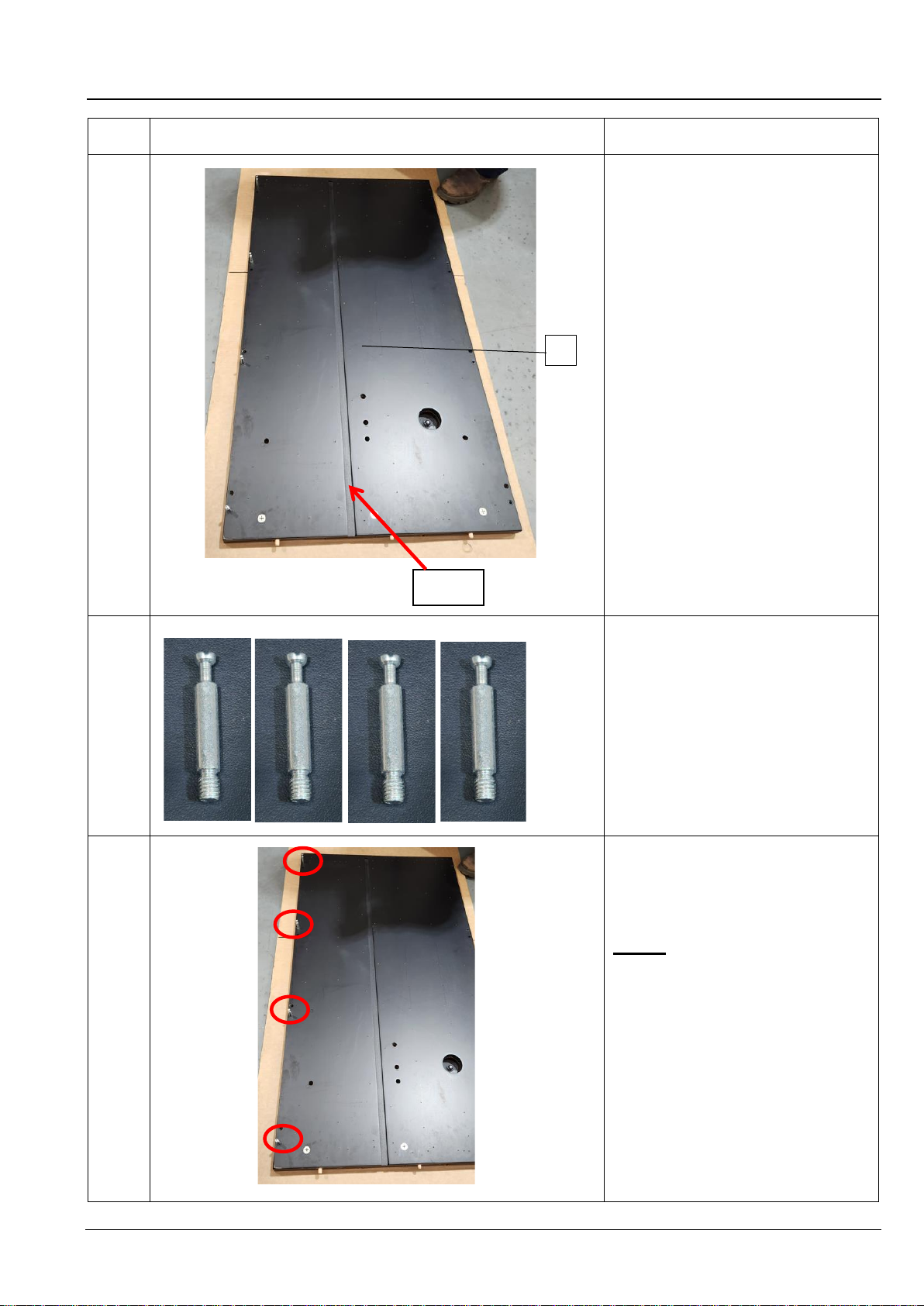

4
Remove the Side of the Table
with Slot (1) from supplier
packaging, BOX 2 of 2.
5
Select 4x Head Rods from
Hardware Pack.
6
Install 4x Head Rods onto Side of
the Table with Slot (1), position
shown.
NOTE: Use this as a base for the
current assembly.
Slot
1

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 6 of 21
STEP
DESCRIPTION

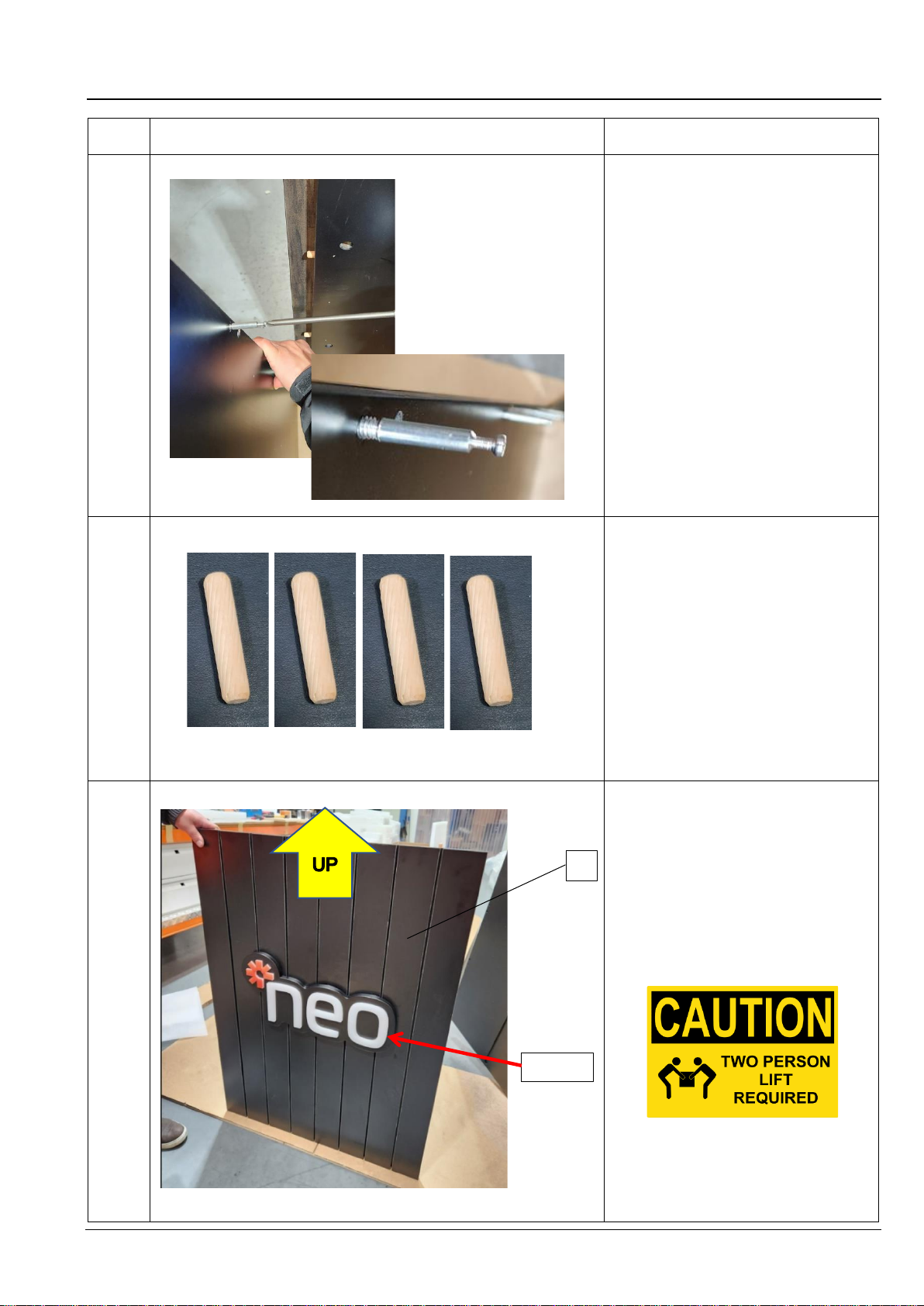

7
Install Thread of Head Rod into
wood.
TFasten the 4x Head Rods using
a #2 Phillips Head Screw Driver.
8
Select 4x Wooden Dowel Pins
from Hardware Pack.
9
Retrieve Table Side with Logo (2)
from supplier packaging, BOX 2
of 2.
2
LOGO

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 7 of 21
STEP
DESCRIPTION
10
Install 4x Wooden Dowel Pins
onto the RIGHT-HAND Side on
Table Side with Logo (2), in hole
positions shown.
11
Push firmly with hand to ensure
correct fitment.
2
LOGO

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 8 of 21
STEP
DESCRIPTION

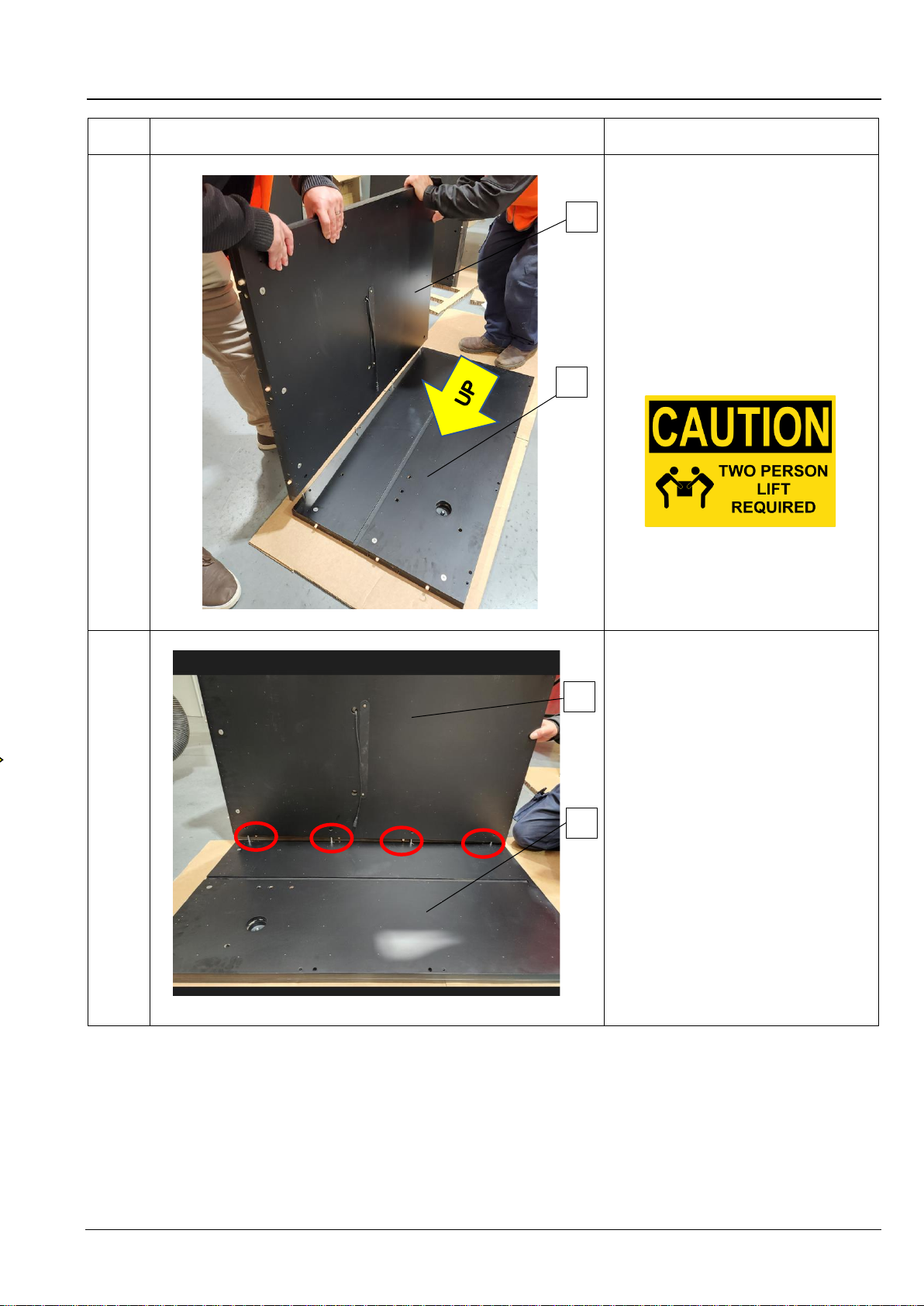

12
Install Table Side with Logo (2)
onto the Side of the Table with
Slot (1).
Note: Ensure the Cam Rods are
all straight and are not bent when
joining the sides.
13
Ensure the Head Rods and the
Wooden Dowel Pins intersect and
fit properly.
2
1
1
2

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 9 of 21
STEP
DESCRIPTION

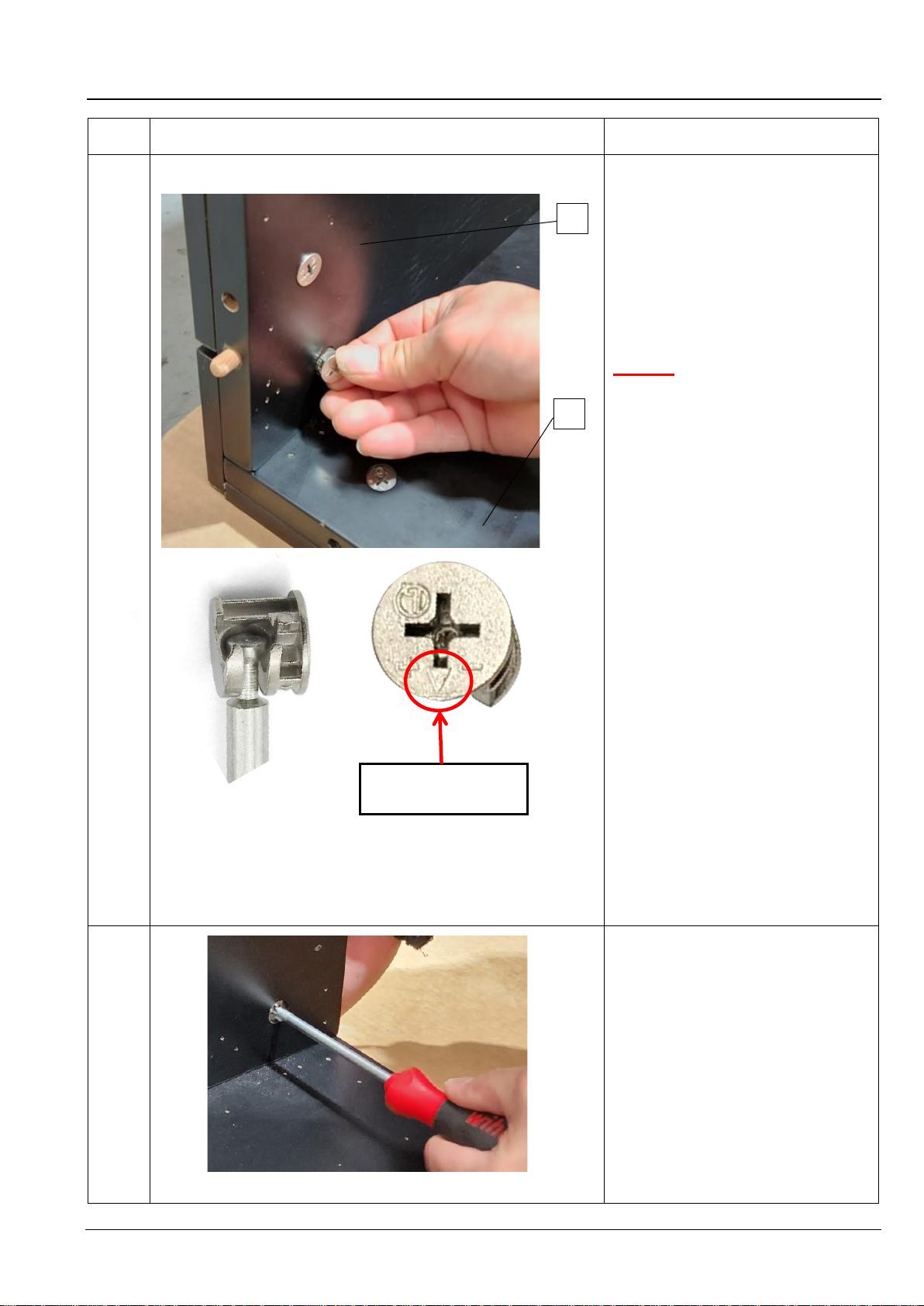

14
Install the Cams into the position
above the Head Rods as shown.
Make sure the arrow on the Cam
points in the direction of the Head
Rod.
Note: If the Head Rod
does not engage with
the Cam during fitment,
complete the following
Steps:
1) Remove the Table
Side with Logo (2) from
the Side of the Table
with Slot (1).
2) Manually adjust the
overall height of the
Head Rod in an anti-
clockwise direction by 1
full turn.
3) Reassemble Table
Side with Logo (2) into
the Side of the Table
with Slot (1).
4) Reinstall Cams &
tighten. Repeat Steps
until full clamp is
achieved.
15
Firmly tighten the Cam using a #2
Phillips Head Screwdriver.
2
1
Head Rod assembly
position

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 10 of 21
STEP
DESCRIPTION
16
Repeat the installation process of
4x Head Rods for the opposite
side of the Side of the Table with
Slot (1).
17
Remove the Back side of table (3)
from the packaging.
Install Wooden Dowel Pins onto
the Back side of table (3).
18
Repeat the process of installation
on to the table side with a slot in it
(1) and install Cams onto the
Back side of table (3).
Make sure the Head Rods are not
bent and the assembly is flush.
Note: If the Head Rod
does not engage with
the Cam during fitment,
refer to Step 14 for
adjustment process.
1
3
1
3
1

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 11 of 21
STEP
DESCRIPTION

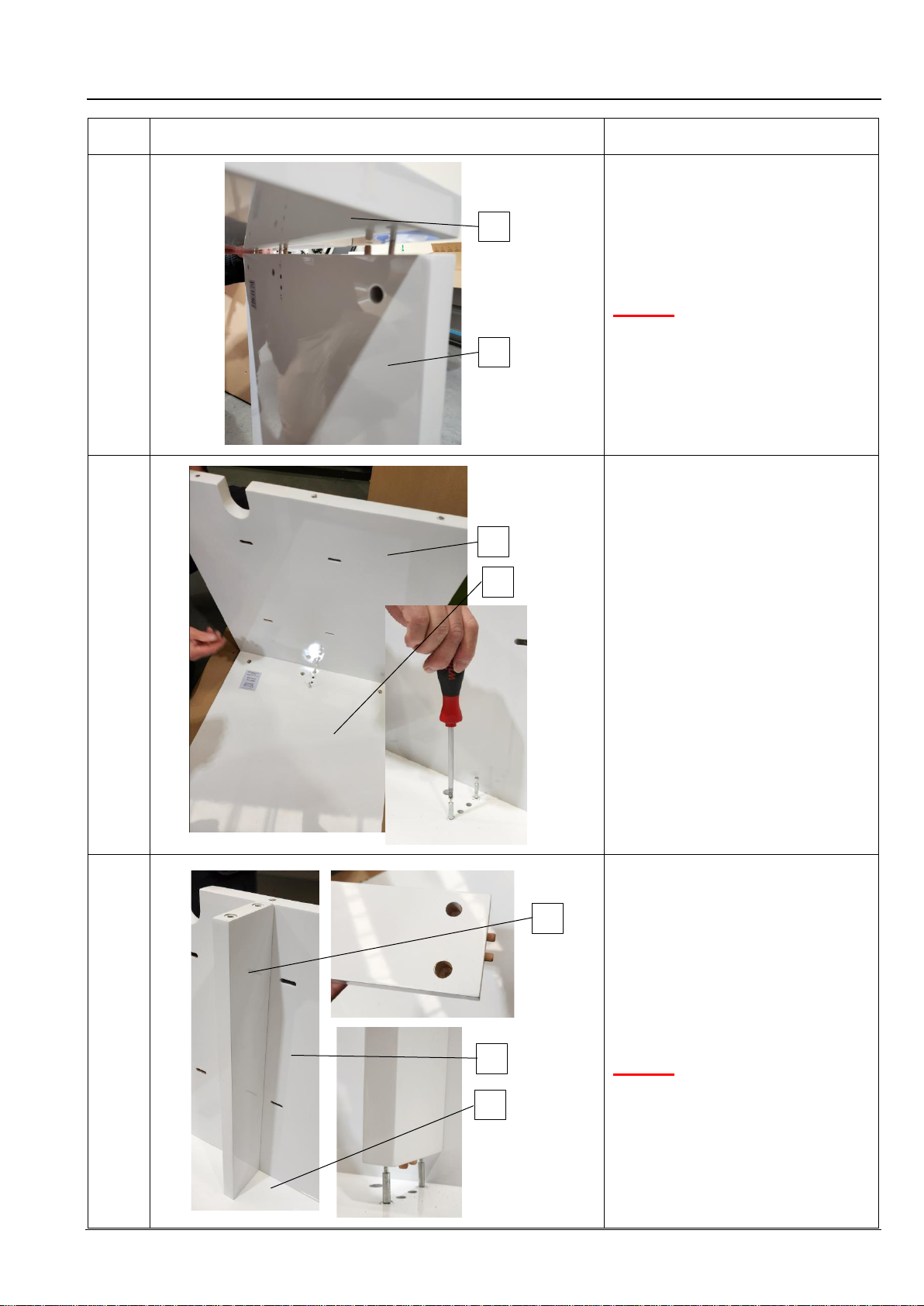

19
Remove White side of the table
with a slot (4) from the supplier
packaging, BOX 1 of 2.
Install 8x Head Rods onto the
white side of the table with a slot
(4) as shown.
20
Install 4x Wooden Dowel pins
onto the Back side of table (3) as
shown.
21
Install the White side of the table
with a slot (4) on to Back side of
table (3) and Table side with a
slot in it (1), by repeating the
process of installing Cams and
aligning Head Rods.
Note: If the Head Rod
does not engage with
the Cam during fitment,
refer to Step 14 for
adjustment process.
4
3

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 12 of 21
STEP
DESCRIPTION
22
Turn the assembly into the
position shown.
Install 11x Wooden Dowel Pins
on the assembly as shown.
23
Once the outside of table is
complete slide in the Internal
wooden support (5) through the
slots on Side of the Table with Slot
(1) and White side of the table
with a slot (4).
Make sure the Internal wooden
support is securely fixed in the
slots and is all the way through.
24
Select the Top of the table (6)
from the supplier packaging.
Install 11x Head Rods onto the
Top of the table (6) as shown.
1
4
5
6

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 13 of 21
STEP
DESCRIPTION
25
Install the Top of the table (6)
onto the table side with a slot in it
(1), Table Side with Logo (2),
Back side of table (3), White side
of the table with a slot (4) and
Internal wooden support (5) by
repeating the process of installing
Cams and tightening them.
Note: If the Head Rod
does not engage with
the Cam during fitment,
refer to Step 14 for
adjustment process.
26
Select the Top of side table (7)
from the supplier packaging from
BOX 1 of 2.
Install the 3x Head Rods as
shown.
27
Select the Side leg of the table (8)
from the supplier packaging.
Install 4x Wooden Dowel Pins
into the slots as shown.
5
6
4
3
2
7
8

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 14 of 21
STEP
DESCRIPTION
28
Assemble Top of side table (7)
and Side leg of the table (8) using
the previous process by installing
Cams and Head Rods.
Note: If the Head Rod
does not engage with
the Cam during fitment,
refer to Step 14 for
adjustment process.
29
Install 2x Head Rods on the Side
leg of the table (8) and fasten
using a #2 Phillips Head
Screwdriver.
30
Select the support plank (9) from
the supplier package.
Install 2x Wooden Dowel Pins
and fix it using cams to the Side
leg of the table (8).
Note: If the Head Rod
does not engage with
the Cam during fitment,
refer to Step 14 for
adjustment process.
8
7
7
8
9
7
8

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 15 of 21
STEP
DESCRIPTION
31
Install the Support Plank’s (9)
plain face of the plank faces away
from the U-shaped cut.
Make sure the support plank (9)
is in line with the edge of the Top

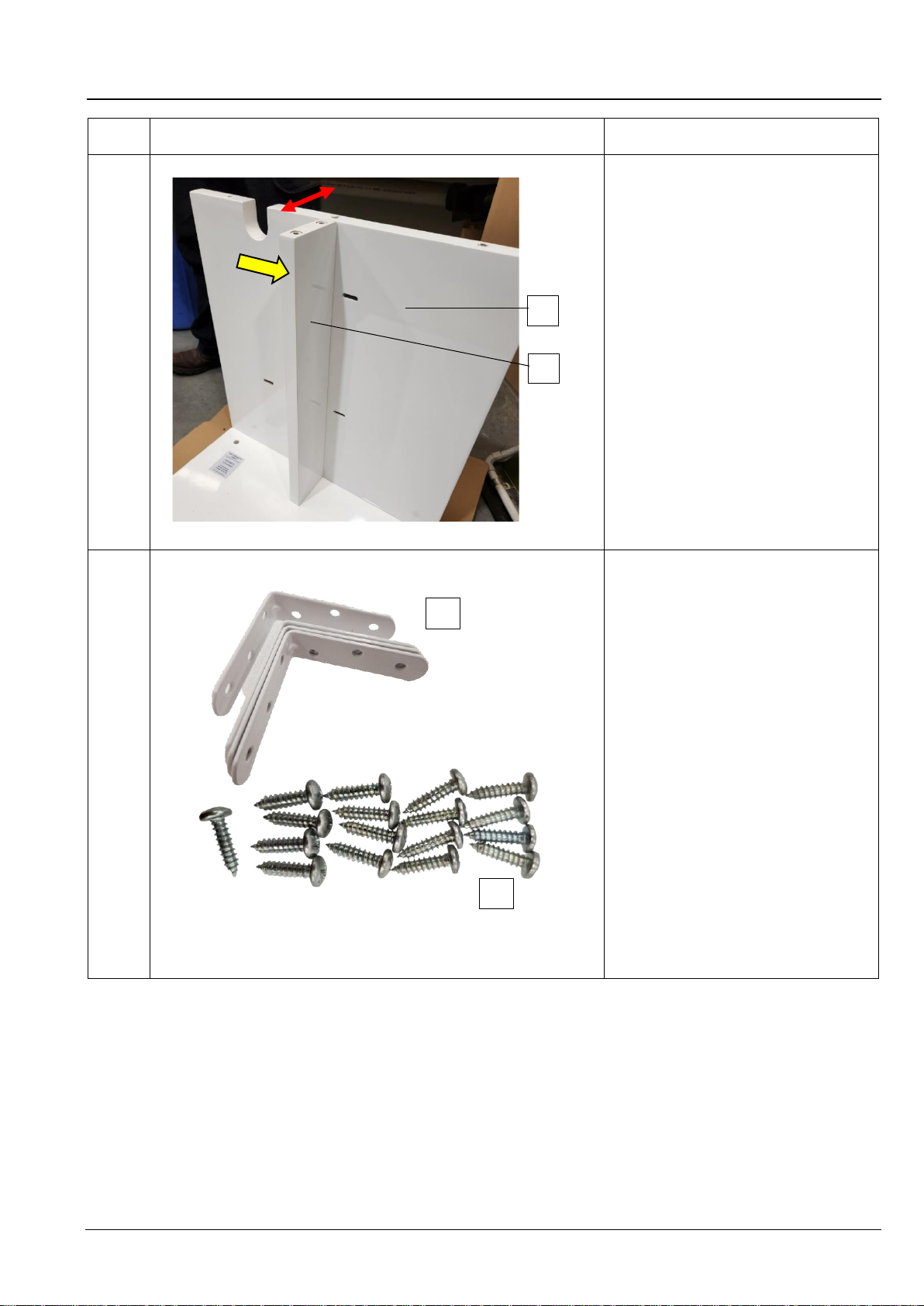

of side table (7).
32
Remove the L-Brackets (k) and
the 17x Self tapered PAN
10ABx3/4 Screws (m) from the
provided kit.
7
9
k
m

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 16 of 21
STEP
DESCRIPTION
33
Place the L-Brackets on the edge
of Top of side table (7) and Side
leg of the table (8) and use 8x
PAN 10AB x 3/4 screws and
fasten using #2 Phillips Head
Screwdriver.
Note: Ensure to maintain
20mm gap between the
L-Bracket and the edge
of the side table as
shown.
34
Repeat the process of installing
the L-Brackets on the other side
of the support plank (9) using 8x
PAN 10AB x 3/4 screws and
fasten using a #2 Phillips Head
Screwdriver.
Note: Ensure to maintain
20mm gap between the
L-Bracket and the edge
of the side table as
shown.
8
7
8
7
9

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 17 of 21
STEP
DESCRIPTION
35
Align the side table assembly to
the table side with a slot in it (1).
36
Select 6x Long Hex Socket Screw
(e) and Washers from packaging.
Fix the side table assembly to the
main table. As shown in this Step
and the following Step.
7
1
1
e

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 18 of 21
STEP
DESCRIPTION
37
Use the Allen Key 5mm
(provided) to tighten these Hex
Socket Screw.
38
Ensure that the side table is firmly
fixed, square & aligned on all floor
contact surface.

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 19 of 21
STEP
DESCRIPTION
39

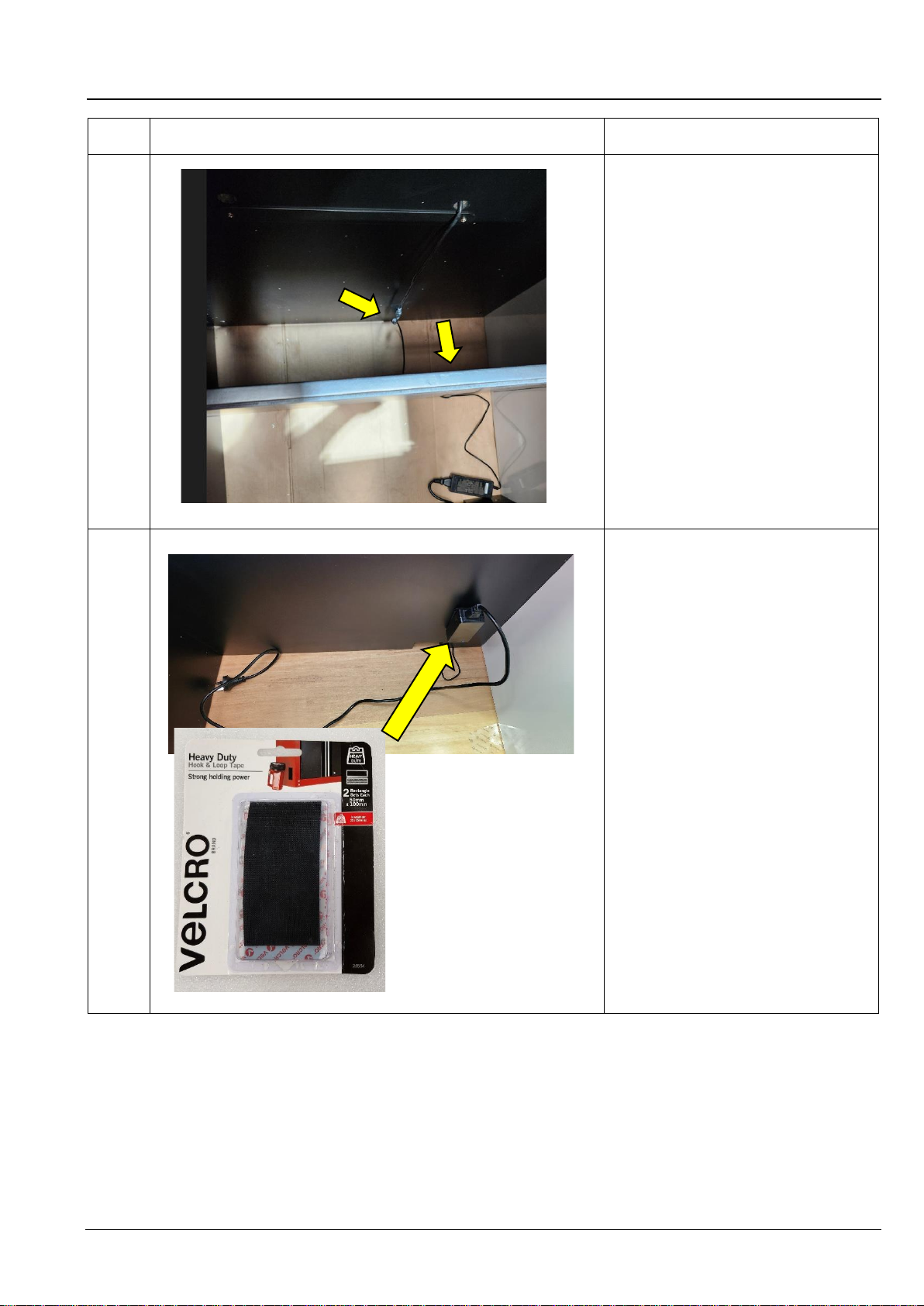

Install the Power Supply to the
LOGO and pull the wire through
the hole provided.
40
Use the Velcro provided to attach
the adapter to the internal
wooden support (5).

15701 BETMAKERS GLOBAL TOT BENCH
WORK INSTRUCTION_BETMAKERS GLOBAL TOT BENCH_Customer Edition_RevA Page 20 of 21
STEP
DESCRIPTION
41
Plug in the adapter and test if the
LED illuminates.
42
Remove the Metal Plate from the
supplier packaging.

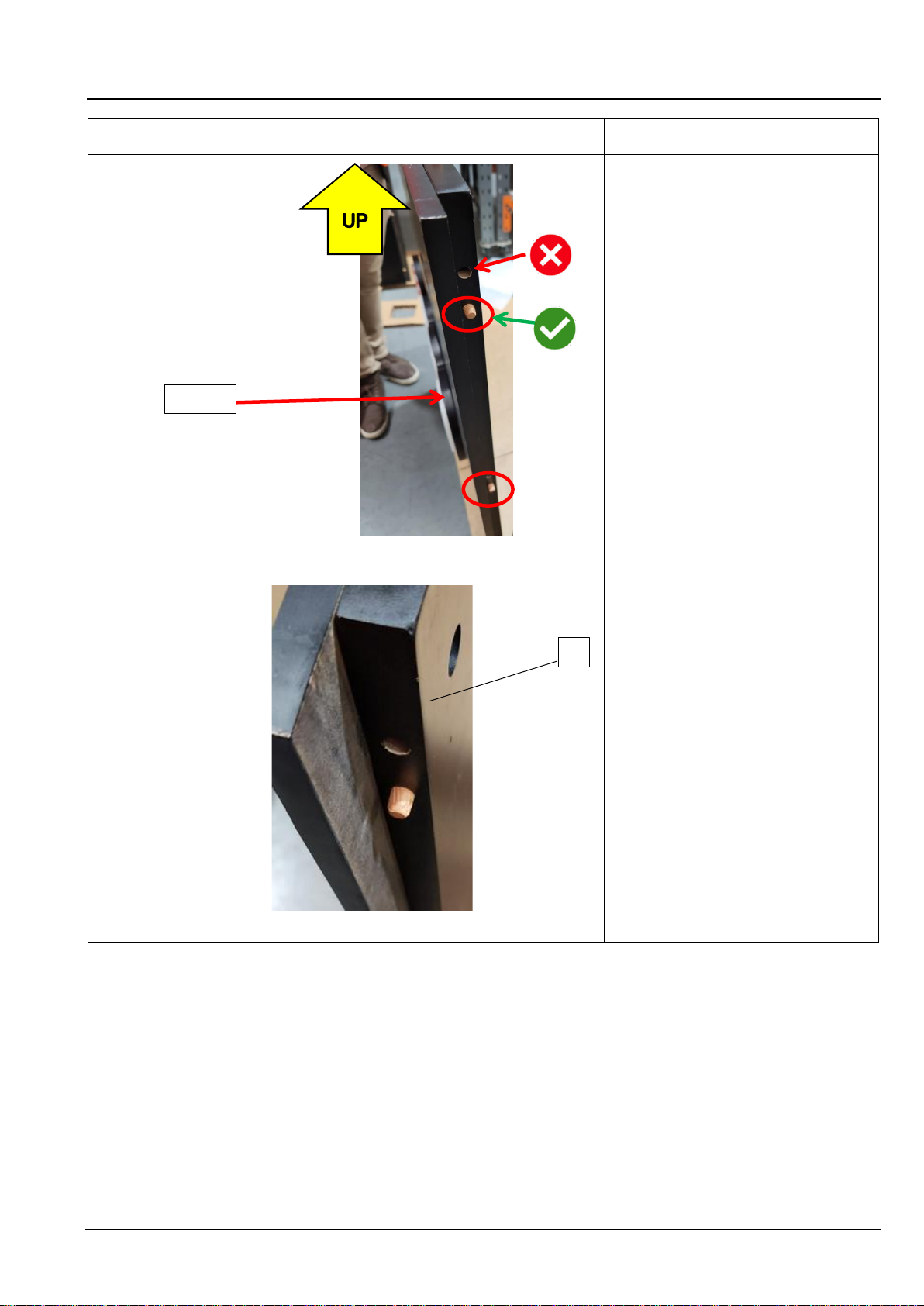

Install the Metal Plate (10) onto
the Internal wooden support (5)
as shown in the image.
10
