Neogen Ideal Prima 332240 User manual

FEED LINE
CLEANING INSTRUCTIONS
REMOTE
DRAW-OFF
SPIKE
1.) LINE CLEANING: Before
disassembling the vaccinator for
cleaning, clean the line. Partially fill a
sink or small container with hot, soapy
water. Hold the remote draw-off spike
underneath the water in one hand while
holding the vaccinator in the other.
Continuously squeeze the vaccinator,
pumping water through it until clean.
To rinse, repeat with clean water.
2.) BARREL REMOVAL: Unscrew the
needle nut (A) from the barrel (B). Next,
unscrew the barrel, turning it by the
barrel flange (C) remove enitre barrel
from vaccinator. Wash the all parts in hot,
soapy water, then rinse. Use the supplied
brush to remove any remaining
contaminants from barrel.
C
B
A
E
D
3.) HANDLE CLEANING: Remove the feedline from the vaccinator. At this
point, the remaining handle assembly(D) should be washed or allowed to soak in
hot soapy water, then rinsed and allowed to dry. Before reinstalling the barrel
assembly, apply 1 or 2 drops of food-grade lubricant to the piston o-ring (E).
Squeeze the handle to move the piston forward, making it more accessable.
4.) REASSEMBLY: Reinstall the needle (A) nut onto the barrel (B) and resintall
barrel onto handle assembly-hand tighten only.
!!CAUTION!! DO NOT OVER TIGHTEN NEEDLE NUT OR BARREL! FINGER
TIGHTEN ONLY! OVERTIGHTENING CAN CAUSE BARREL BREAKAGE!
DO NOT PLACE ANY PART OF THE VACCINATOR IN A MICROWAVE OVEN
OR NEAR A HEAT SOURCE!
*PRIMA TECH
CLEANING KIT
PART# 341013.*
UNI-LOCK ASSEMBLY INSTRUCTIONS
1. Place rubber flat
washer onto spike.
Spike
Rubber flat
washer
2. Place spike
collar onto
bottle.
Spike Collar
4. Attach
spike collar
lock to spike
collar by
rotating
clockwise.
Spike Collar
Lock
3. Insert
spike into
bottle.
5. Insert
tubing
onto spike
hose barb.
Flexible
Tubing
6. Attach syringe to free end of
tubing. The assembly is ready
for use.
Prima Tech instruction form #340887-A
English 1-2019 English 1-2019
SHOOTER
INSTRUCTION MANUAL
Neogen Corporation
944 Nandino Bl vd • Le xington, K Y 40511
800-525-2022 • 859-254-1221
www.neogen.com

INSTRUCTIONS FOR USE
4
5
2
3
1
BARREL
DOSAGE
SETTINGS
PISTON
PISTON
O-RING
PLUNGER
BARB
DOSAGE
ADJUSTER
TO PRIME VACCINATOR:
1. Remove protective cover from needle.
2. Align front of piston with the line of the largest dose setting. *NOTE: SOME VACCINATORS ARE FIXED-DOSE ONLY. THIS
MEANS THAT THE DOSE SETTING CANNOT BE ADJUSTED (EVEN THOUGH THE ADJUSTER WILL TURN). ADJUSTABLE DOSE
VACCINATORS WILL HAVE GRADUATED DOSAGE SETTINGS PRINTED ON THE BARREL AS SHOWN. FIXED, NON-ADJUSTABLE
VACCINATORS WILL HAVE BARRELS PRINTED WITH ONE DOSE SETTING ONLY, WHICH REPRESENTS THE DOSAGE TO WHICH
THE VACCINATOR IS FIXED. IF YOU ARE USING A FIXED-DOSE VACCINATOR SKIP THIS STEP AND GO TO STEP #3.
3. Tip vaccinator up at a slight angle, with the needle pointing up. Top of vaccine bottle must be pointed downwards such
as when hanging in a VAC-PAC carrier.
4. Squeeze vaccinator handle, then release quickly to draw uid into the barrel.
5. Remove any air bubbles from the barrel by repeating step 4 being careful not to waste uid.
TO SET DOSAGE:
Align front of piston with the line of the largest dose setting using the dose adjuster. *NOTE: SOME VACCINATORS ARE
FIXED-DOSE ONLY. THIS MEANS THAT THE DOSE SETTING CANNOT BE ADJUSTED (EVEN THOUGH THE ADJUSTER WILL
TURN). ADJUSTABLE DOSE VACCINATORS WILL HAVE GRADUATED DOSAGE SETTINGS PRINTED ON THE BARREL AS SHOWN.
FIXED, NON-ADJUSTABLE VACCINATORS WILL HAVE BARRELS PRINTED WITH ONE DOSE SETTING ONLY, WHICH REPRESENTS
THE DOSAGE TO WHICH THE VACCINATOR IS FIXED.
LUBRICATION:
If vaccinator becomes sluggish, clean thoroughly using the cleaning instructions on back. You will need to remove the barrel
assembly, clean and apply a couple of drops of Prima Tech lubricant to the piston o-ring. Many times, product failure is due to
insucient cleaning (dried vaccine in valves, bung material caught in draw spike, etc.). For complete cleaning instructions,
please see back panel.
BOTTLE ATTATCHMENT:
* There are 3 sizes of draw-o spikes. There is a draw-o for 100ml bottles (20mm), another for
250ml bottles (30mm) and a third for bottles with a 33mm cap. Attatch one end of the feed line
to the plunger barb. Find the size draw-o spike that ts the bottle you are using and attatch it
to the opposite end of the feed line.
1. TO ATTACH BOTTLE:
A. After piercing rubber stopper, hold bottle at base in one hand. Hold draw-o spike with the
other.
B. Align pierced rubber stopper with draw-o spike and press rmly together making sure that
the hose-armor spring is pulled up to the draw-o spike. *DO NOT TWIST BOTTLE!*
2. TO REMOVE BOTTLE:
A. Using the thumb and forenger of one hand, squeeze the draw-o spike rmly.
B. Using the other hand, grasp the bottle by the bottom and pull rmly out.
REMOTE
DRAW-OFF
SPIKE
HOSE ARMOR
SPRING

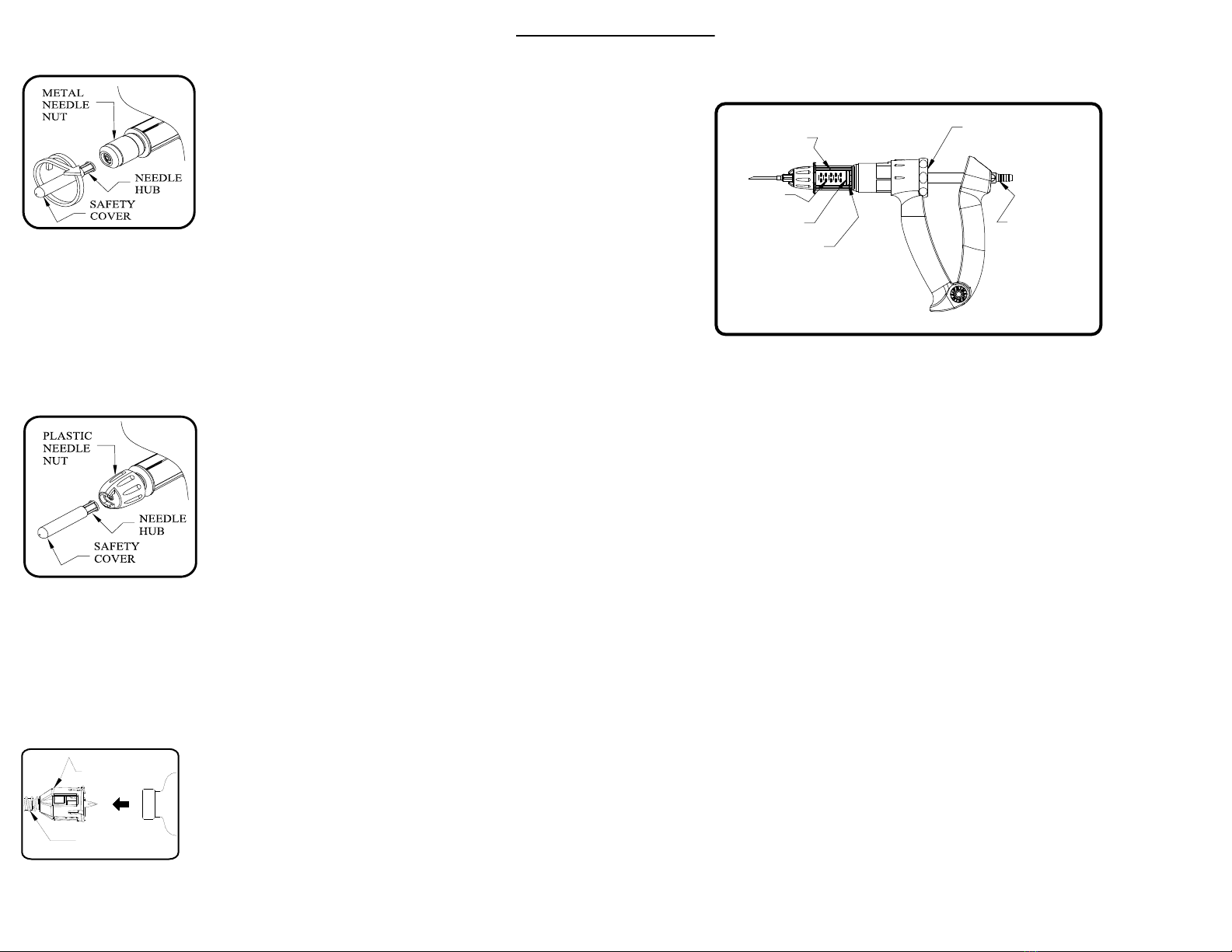

TO FIT NEEDLE WITH METAL LEUR NEEDLE NUT:
*Some units are equipped with a plastic "T"-slot type needle nut. If your vaccinator has this type
of needle nut, please use the instructions under the next section.
1. For safety, leave protective cover on needle until ready to prime vaccinator.
2. Make sure metal needle nut is nger tight. DO NOT TIGHTEN WITH PLIERS OR OTHER TOOLS.
THIS CAN CAUSE BARREL BREAKAGE.
3. Push needle hub into needle nut and twist clockwise until needle locks in place. Remove
safety cover when ready to prime vaccinator by continuing to twist clockwise. The safety cover
will twist o, exposing the needle. (KEEP COVER FOR NEEDLE REMOVAL.)
4. To remove needle. Replace safety cover onto needle and twist counter-clockwise. Needle will
twist out. Discard needle in bio-safe container. DO NOT REMOVE NEEDLE NUT TO REMOVE
NEEDLE. THE NEEDLE NUT WILL STAY IN PLACE.
TO FIT NEEDLE WITH PLASTIC NEEDLE NUT:
1. For safety leave protective cover on needle until ready to prime vaccinator.
2. Loosen plastic needle nut until nib is below cut-out "T"-slot section as shown.
3. Insert needle base into cut-out "T"-slot section and screw needle nut rmly onto barrel.
DO NOT TIGHTEN WITH PLIERS OR OTHER TOOLS. THIS CAN CAUSE BARREL BREAKAGE.
4. Remove safety cover when ready to prime vaccinator by twisting safety cover clockwise.
The safety cover will twist o, exposing the needle.
5. To remove needle. Replace safety cover onto needle. Partially unscrew needle nut until
needle can be removed. Discard needle in bio-safe container.
