Chapter 1 Overview
Copyright © Neoway Technology Co., Ltd
6
1 Overview
N25 Evaluation Board (EVB) is designed to commission and test the N25 module. It provides various
peripheral interfaces, including power supply interface, UART interface, SIM card connector, PWRKEY
button, RESET_N button, PSM_WAKE UP button, antenna interface, and HOST interface. You can
connect it to a power supply and a computer through the USB cable or serial-to-USB cable to
commission the functions of the module.
N25 Evaluation Kits (EVK) provides the following items:
⚫N25 EVB (including the N25 module)
⚫5V power adapter
⚫M5X0-PWR USB-to-Serial cable
⚫Others (antennas)

N25 EVK User Guide
Chapter 2 About N25 EVB
Copyright © Neoway Technology Co., Ltd
7
2 About N25 EVB

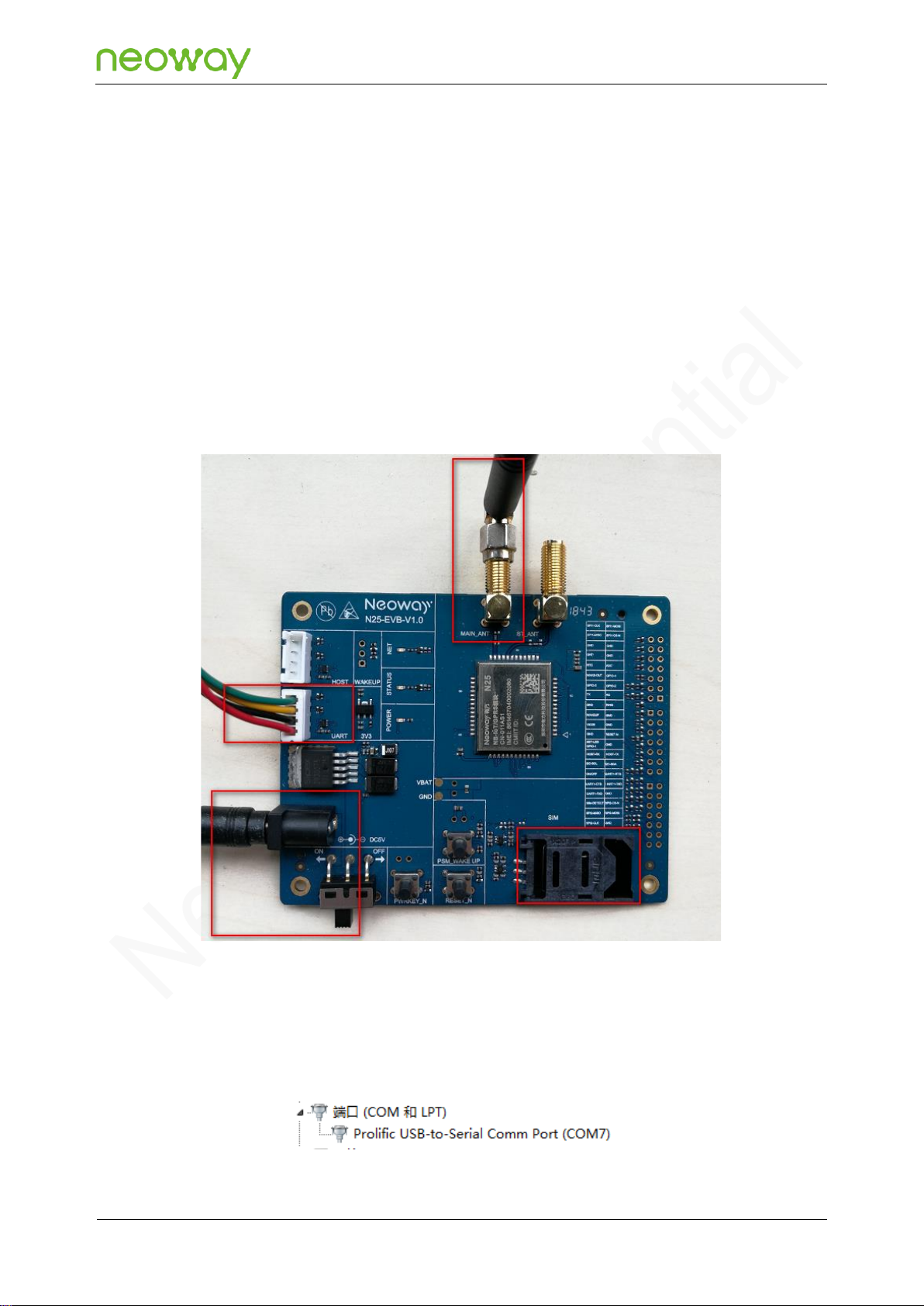

Figure 2-1 N25 EVB
This chapter describes the hardware layout of the N25 EVB.
In Figure 2-1, each interface and key of N25 is marked in red rectangles. Read this user guide carefully
before using N25 EVB. If necessary, please refer to the schematic diagram and PCB file of the board.
Table 2-1 lists each interface or button and their functions.

N25 EVK User Guide
Chapter 2 About N25 EVB
Copyright © Neoway Technology Co., Ltd
8
Table 2-1 Interfaces and buttons of N25 EVB
No.
Interface/Button
Description
1
5V DC power port
The LDO of the EVB transfers the input voltage to 3.8 V to
supply power for the module.
2
N25 module
/
3
UART port
Used to send data and commission the module.
Do NOT use it to supply power to the module.
4
SIM connector
/
5
PWRKEY button
Hold this button for more than 2 seconds to start the module
after supplying power to the module.
Hold this button for more than 2.5 seconds to turn off the
module.
6
RESET_N button
Hold this button for more than 1 second to reset themodule.
7
PSM_WAKE UP button
Hold this button for more than 1 second to wake up from
PSM mode.
8
MAIN_ANT antenna connector
Connect it to an antenna that covers the operating
frequencies of N25 when commissioning the EVB.
9
HOST port
Used for firmware upgrade and logs capturing.

N25 EVK User Guide
Chapter 3 Power and Connection
Copyright © Neoway Technology Co., Ltd
9
3 Power and Connection
3.1 Power Supply
N25 EVB can be supplied power by a 5V DC adapter.
Plug the output end of the adapter into the DC5V connector of the EVB.
Push the power supply switch to the ON side.
The following figure shows a 5V adapter. You can also choose another adapter that supports 5V output
voltage and 1A or larger output current.
Figure 3-1 5V power adapter
3.2 M5X0-PWR Board
The M5X0-PWR board is developed on PL2303 chipset by Neoway and used to convert USB to UART.
You can also choose another USB-to-UART cable/board based on FT2232, CP210X, and other
chipsets.

N25 EVK User Guide
Chapter 3 Power and Connection
Copyright © Neoway Technology Co., Ltd
10

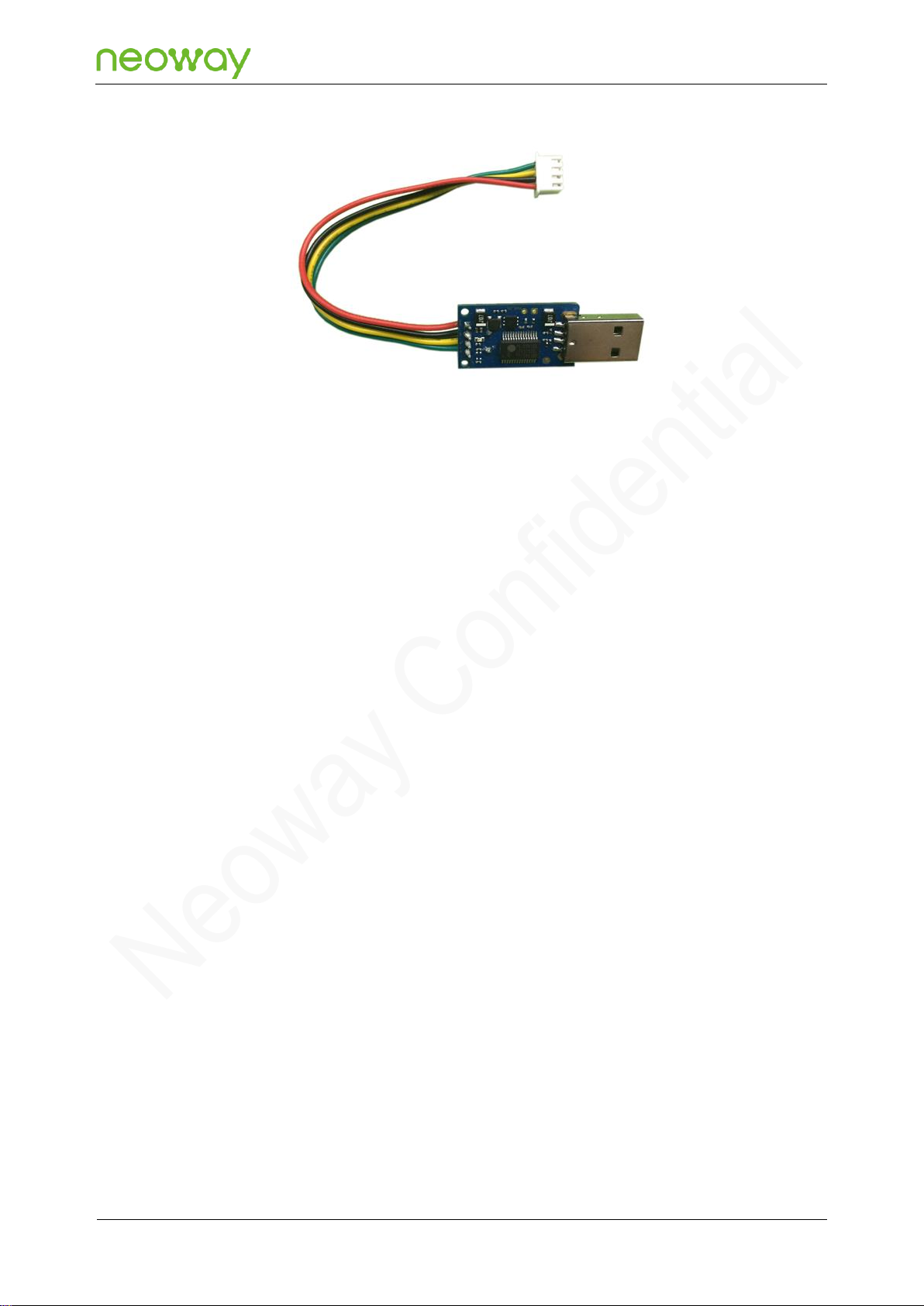

Figure 3-2 M5X0-PWR Board
M5X0-PWR is connected to the N25 EVB through 4-pin cables, which have been soldered to the power
board in a sequence of red, black, yellow, and green at one end and should be inserted into the plug
of the EVB at the other end. Among the 4-pin cables:
⚫Green
Module TXD, outputs 2.85V CMOS level
⚫Yellow
Module RXD, inputs maximum 3.3 V CMOS level
⚫Black
Ground
⚫Red
VBAT, main power input, 3.6V to 4.5V, 3.8 V recommended

N25 EVK User Guide
Chapter 4 Commissioning
Copyright © Neoway Technology Co., Ltd
11
4 Commissioning
This chapter describes how to connect the module and how to implement commissioning through the
UART port.
Step 1: Install an antenna on the EVB and insert a valid SIM card.
Step 2: Use the 5V adapter to supply power, power up the N25 EVB and connect it to the computer
through the M5X0-PWR board.
Hold the PWR_KEY button for 2 seconds, and the module starts up.
Step 3: Install the PL2303 driver.
Obtain the driver package from Neoway FAE or download it from the Internet if you use the
serial-to-USB cable Neoway provided.

N25 EVK User Guide
Chapter 4 Commissioning
Copyright © Neoway Technology Co., Ltd
12
Step 4: Start a serial port tool.
The following figure shows the interface of Neo_COM tool. You should set the baud rate to
57600 or below before sending commands.
Step 5: Send an AT command to detect the baud rate.
The setting is available when value is displayed in the tool interface (indicating data can be
transmitted between the module and the tool properly).

N25 EVK User Guide
Chapter 4 Commissioning
Copyright © Neoway Technology Co., Ltd
13
Due to the low power consumption configuration, the STATUS indicator and the NET indicator are disabled by
default. Send AT+LEDMODE=1 to enable the two indicators after the module starts.
⚫The module is running when the STATUS indicator is on in green.
⚫The module is registered to the network successfully when the NET indicator is on in green.
⚫The PPP connection is activated successfully when the NET indicator flashes in green.
Step 6: Start to test the functions of N25 according to the product documentation Neoway provides.
