Neptune AVD-2WTD70VAH User manual

7-2D003
SUPER WDR/3D DNR
DOME CAMERA
USER’S MANUAL
SUPER WDR 3D DNR DOME
■
■
■
■
■
■
■
■
■
■
■
■
1/3”Color Vertical Double Density CCD
High Resolution 600TV Lines
WDR(Wide Dynamic Range)
3D DNR(Digital Noise Reduction)
Sens-Up Function(x512)
Eclipse Function
RS485 ( PELCO-D) Optional
Heater & Blower Option
35pcs IR LED Vandal Dome Camera or
Non-IR LED Vandal Dome Camera
Flush or Surface Mounting Type
True 3-Axis Easy Ball Type Gimbal Bracket built-in
IP68 rate Waterproof Design

1. Features
SUPER WDR(Wide Dynamic Range)
Wide Dynamic Range to the camera which provides superior images, internally and
externally, even under extreme light and dark contracts. It automatically compensates
the necessary light levels to get detailed information in the dark part of the image
without saturation from the bright part.
600 TVL ULTRA HIGH RESOLUTION
The horizontal resolution is 600 TV Lines in Color mode and 700 TV Lines in Black/
White mode using a high density CCD. It gives a vivid image output with super
high horizontal resolution.
3D DNR(Digital Noise Reduction)
3D-DNR (3-Dimensional Digital Noise Reduction) function using upgraded 3D filtering.
This function is automatically enabled when the camera is being used and provides
clear and superior images in very low light luminance.
D-ZOOM(x1~x10)
Digital zoom magnification to get an enlarged video image. It has remote control technology
for a camera without physical control, by a built-in pan & tilt function on the chip.
ZERO DEFECT
Adaptive Defect Correction delivers clear picture capture in very low light luminance using
two algorithms for defect pixel compensation.
DIS(Digital Image Stabilization)
Digital image stabilisation and anti-shaking compensation against outside influences, such as
wind and vibration. After installation, the camera gives a much more stable video output.
Sens-Up(x512, DSS)
Achieves high quality pictures by supporting a long exposure time - more than 1/50second
- and enables recognition of the shape and color of a suspended object under no light
conditions - in cases where exposure time is greater than 8 seconds (x512).
POLYGONAL PRIVACY MASKING(Polygonal, 8colors)
Ensures privacy protection for private and specific areas on the video signal output using
a polygonal masking function. It allows the size and position of the masking areas to be
controlled very easily, and there are 8 mask areas which are user programmable - color,
brightness and mosaic.
ECLIPSE
If there is a highlight within a limited environment such as car park, It makes it possible
to review vehicle license plates by removing the highlight.
HIGH SENSITIVITY TRUE DAY&NIGHT
The Day & Night function delivers high quality color rendition and converts automatically
into monochrome as luminance levels drop.

2. Components
Vandal Dome Camera(Surface Mount Type)
IR LED Vandal Dome
Non-IR LED Vandal Dome
IR LED Vandal Dome
Non-IR LED Vandal Dome
Vandal Dome Camera(Flush Mount Type)
SCREW
SIDE CAP
Mounting Template
Manual
L-WRENCH
Second Video & External OSD Control Cable
SUPER
WDR/3D DNR
DOME CAMERA
USER’S MANUAL
SUPER WDR 3D DNR
■
■
■
■
■
■
■
■
■
■
■
■
■
Sony1/3” Color VerticalD ouble Density CCD
Sony1/3” SuperHAD II CCD
960HCCD (700TV Lines)
HighResolution 600TV Lines
HighResolution 700TV Lines(960H)
WDR(WideDynamic Range)
3DDNR(Digital Noise Reduction)
Sens-UpFunction(x512)
EclipseFunction
RS485( PELCO-D) Optional
UTPInterface Optional
Heater& Blower Option
35pcsIR LED Vandal Dome Camera or
Non-IRLED Vandal Dome Camera
Flushor Surface Mounting Type
True3-Axis Easy Ball Type Gimbal Bracketbuilt-in
IP67rate Waterproof Design
70.0
109.0
MountingTemplate
Surface Mount
70.0
109.0
MountingTemplate
Surface Mount
SCREW
Mounting Template
Manual
L-WRENCH
Second Video & External OSD Control Cable
SUPER
WDR/3D DNR
DOME CAMERA
USER’S MANUAL
SUPER WDR 3D DNR
■
■
■
■
■
■
■
■
■
■
■
■
■
Sony1/3” Color VerticalD ouble Density CCD
Sony1/3” SuperHAD II CCD
960HCCD (700TV Lines)
HighResolution 600TV Lines
HighResolution 700TV Lines(960H)
WDR(WideDynamic Range)
3DDNR(Digital Noise Reduction)
Sens-UpFunction(x512)
EclipseFunction
RS485( PELCO-D) Optional
UTPInterface Optional
Heater& Blower Option
35pcsIR LED Vandal Dome Camera or
Non-IRLED Vandal Dome Camera
Flushor Surface Mounting Type
True3-Axis Easy Ball Type Gimbal Bracketbuilt-in
IP67rate Waterproof Design

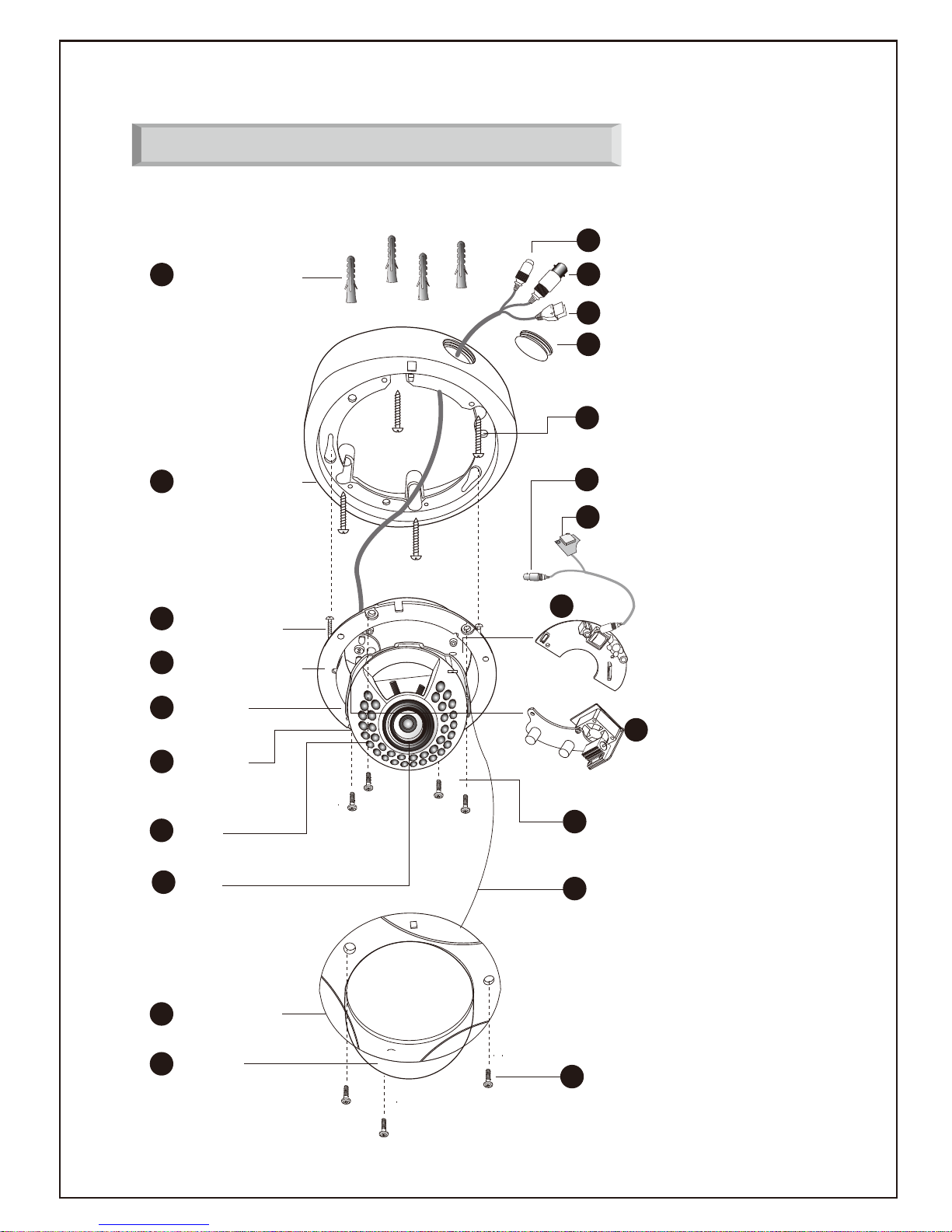

3. Names and Functions of Parts
Surface Mount
POWER
RS-485(Optional)
3/4” Cap (2EA)
BNC
Plastic Anchors
Surface Mounting Screws
M4 x 30
OSD Board
Service Video
10
11
12
13
14
15
16
17
1Bubble
Dome Cover
2
Assembly Torx Screw
M4 X 9(3EA)
22
Flush Mount Base
7
8
9
Heater & Blower Board
(Optional)
Assembly Screw(Surface Mount)
M4 X 10 (4EA)
Lens
3
Bracket
6
Surface Mount
Fix Screw
LEDs
4
Gimbal
5
19
Safety Cable
21
20
18
Control Board

4. Installation & Connection
Surface Mount Installation
UNLOCK LOCK
STEP :
1. Mount the surface mount
plate to a sturdy surface or
wall with the installation
template (mouting screws
M4 x 30).
2. Connect the pre-drilled two
screws in the flush mounting
ring through the locking
hole( ) and turn it
counterwise for the
temporary locking system
before drilling four screws
(M4 x 10) of flush mount ring.
Please check if the symbol
in the surface mount ring and
the square hole ( ) in the
flush mount ring meet in a line
when it is locked.
3. Screw with four screws
(M4 x 10) from flush mount
ring to be mounted with the
surface mount.
1
2
3
1
2
3
Surface Mount Ring (Symbol)
Flush Mount Ring Square Hole
Dome Cover Ring (Symbol)

4. Adjust the lens focus and zoom of camera to monitor the objective.
5. Fit three screws(M4 x 9) from dome cover ring to the flush mount ring
and fix it by (3) screws. When you fit the dome cover ring please fit the
symbols in the line.
Adjusting the 3-Axis GimbalFlush Mount

Power Consumption
Power Supply
Heater
Blower
430mA (Heater) / 40mA(Blower)
Only AC 24V
On : 5
℃ O : 7 ℃
Continuous 24 Hour Operation
Adjusting the Varifocal DC Auto Iris Lens
Heater / Blower Specfications
FOCUS
ZOOM

Camera O.S.D Setup Controls
UP
DOWN RIGHT
LEFT ENTER

DVR
Monitor
Power
(Adaptor Plug)
Adaptor
Video Cable
DC Power Connecting
AC Power Connecting
Monitor
Adaptor
Video Cable
DVR
RS485 +
RS485 -(White)
Power
RS485 +(Orange)
(Option)
RS485 -
PORT2
TX
+
_+ _+ _+ _
RX TX RX
PORT1
DVR
RS485 +
RS485 -(White)
RS485 +(Orange)
(Option)
RS485 -
PORT2
TX
+
_+ _+ _+ _
RX TX RX
PORT1
+

5. Setup Menu Flow
EXPOSURE LENS DC, ELC
E.SHUTTER AUTO, 1/50(PAL),1/60(NTSC),
1/100,000
BLC ON<1~256>, OFF
SUPER WDR OFF
ON
WDR LEVEL<0~10>
AGC OFF,LOW,MID,HIGH
SENS-UP AUTO, OFF, MANUAL (x2 ~ x512)
RETURN
COLOR WB MODE AWC, ATW, MANUAL, PUSH
R-Y GAIN
B-Y GAIN
RETURN
DAY&NIGHT D&N MODE AUTO, DAY, NIGHT, EXT
LEAD TIME <1, 3, 5, 10>
BURST ON, OFF
RETURN
FUNCTION MIRROR ON, OFF, V-FLIP, ROTATE
SHARPNESS <0~40>
GAMMA 0.45, 0.5, 0.6
FREEZE OFF, ON
NEGA OFF, ON
3D DNR OFF, LOW, MID, HIGH
D.ZOOM OFF
ON
ZOOM(x1.0~10)
PAN(-128~127)
TILT(-128~127)
SHOW POS<OFF,ON>
LSC OFF, ON<0~50>
ECLIPSE OFF
ON
SET LEVEL-LOW/MIDDLE/HIGH
HI-INV -ON/OFF
DIS OFF, ON
RETURN

MOTION ALARM OFF, ON
SET WINDOWS
ALL SET
ALL CLEAR
SENSITIV
SHOW OFF, ICON, TRACE
DELAY TIME <1~15>
RETURN
PRIVACY MASK1 OFF
ON
SETWINDOWS
COLOR SET<1~8>
MASK8 OFF
ON
SET WINDOWS
COLOR SET<1~8>
RETURN
SYNC SYNC MODE AUTO, INTER
V-PHASE <0~199>
RETURN
COMMUNICATION ADDRESS <0~254>
BAUDRATE OFF, 2400~38400
PROTOCOL PELCO-D
RETURN
SPECIAL TITLE OFF
ON
EDIT
RESET
POSITION
LANGUAGE ENG
DPC AUTO,OFF
FILTER BLUE, RED
RETURN
EXIT SAVE&EXIT
FACTORY SET
EXIT
RETURN
EXPOSURE LENS DC, ELC
E.SHUTTER AUTO, 1/50(PAL),1/60(NTSC),
1/100,000
BLC ON<1~256>, OFF
SUPER WDR OFF
ON
WDR LEVEL<0~10>
AGC OFF,LOW,MID,HIGH
SENS-UP AUTO, OFF, MANUAL (x2 ~ x512)
RETURN
COLOR WB MODE AWC, ATW, MANUAL, PUSH
R-Y GAIN
B-Y GAIN
RETURN
DAY&NIGHT D&N MODE AUTO, DAY, NIGHT, EXT
LEAD TIME <1, 3, 5, 10>
BURST ON, OFF
RETURN
FUNCTION MIRROR ON, OFF, V-FLIP, ROTATE
SHARPNESS <0~40>
GAMMA 0.45, 0.5, 0.6
FREEZE OFF, ON
NEGA OFF, ON
3D DNR OFF, LOW, MID, HIGH
D.ZOOM OFF
ON
ZOOM(x1.0~10)
PAN(-128~127)
TILT(-128~127)
SHOW POS<OFF,ON>
LSC OFF, ON<0~50>
ECLIPSE OFF
ON
SET LEVEL-LOW/MIDDLE/HIGH
HI-INV -ON/OFF
DIS OFF, ON
RETURN

6. Special Features
MOTION ALARM OFF, ON
SET WINDOWS
ALL SET
ALL CLEAR
SENSITIV
SHOW OFF, ICON, TRACE
DELAY TIME <1~15>
RETURN
PRIVACY MASK1 OFF
ON
SETWINDOWS
COLOR SET<1~8>
MASK8 OFF
ON
SET WINDOWS
COLOR SET<1~8>
RETURN
SYNC SYNC MODE AUTO, INTER
V-PHASE <0~199>
RETURN
COMMUNICATION ADDRESS <0~254>
BAUDRATE OFF, 2400~38400
PROTOCOL PELCO-D
RETURN
SPECIAL TITLE OFF
ON
EDIT
RESET
POSITION
LANGUAGE ENG
DPC AUTO,OFF
FILTER BLUE, RED
RETURN
EXIT SAVE&EXIT
FACTORY SET
EXIT
RETURN
1. SUPER WDR(Wide Dynamic Range)
Wide Dynamic Range is essential for capturing the images at all
light levels.
EXPOSURE
LENS DC
E.SHUTTER 1/60
BLC --------
SUPER WDR ON
AGC HIGH
SENS-UP MANUAL
RETURN
SUPER WDR
WDR LEVEL 0
RETURN
- WDR Low level (0~3) : WDR mode in general or low light condition
- WDR Middle Level (4~7) : WDR mode in middle light condition
- WDR High Level (8~10) : WDR mode in strong light condition
* Factroy default level : O (WDR On mode)
WDR LEVEL
(0~10)
Strong Sunshine Light
(Day Time)
Middle Light
(Day Time)
Low Light
(Day Time)
0 1 2 3 4 5 6 7 8 9 10
* ECLIPSE mode should be off while WDR mode is on.
* ECLIPSE function should be just used for car number plate
in more strong light as like car headlight.

2. 3D DNR(Digital Noise Reduction)
Select 3D DNR ON or OFF.
3D-DNR function reduce the background noise in a low luminance
environment. Upgraded 3D filtering ensures even more clear image.
[DNR Level High : Picture image is more clear but Ghost is more increased.
DNR Level Low : Picture image is not clear but less Ghost.]
3. ECLIPSE
If there is a highlight within a limited environment such as car park,
It makes it possible to review vehicle license plates by removing the
highlight.
[Only used for car license plate in low light condition and the WDR
in OSD menu should be Off mode while Eclipse work as On mode]
FUNCTION
MIRROR
ON/OFF/V-FLIP/ROTATE
SHARPNESS <0~40>
GAMMA 0.45
FREEZE ON/OFF
NEGA ON/OFF
3D DNR MIDDLE
D.ZOOM OFF
LSC OFF
ECLIPSE ON
DIS OFF
RETURN
MAIN MENU
EXPOSURE
COLOR
DAY & NIGHT
MOTION
FUNCTION
PRIVACY MASK
SYNC
COMMUNICATION
SPECIAL
EXIT
FUNCTION
MIRROR
ON/OFF/V-FLIP/ROTATE
SHARPNESS <0~40>
GAMMA 0.45
FREEZE ON/OFF
NEGA ON/OFF
3D DNR MIDDLE
D.ZOOM OFF
LSC OFF
ECLIPSE OFF
DIS OFF
RETURN
MAIN MENU
EXPOSURE
COLOR
DAY & NIGHT
MOTION
FUNCTION
PRIVACY MASK
SYNC
COMMUNICATION
SPECIAL
EXIT

7. Dimensions
Surface MountFlush Mount
109.0
70.0
52.0
115.0
143.2
unit : mm
108.0
70.0
109.0
9.0°
174.7
85.1
91.3
R101.6
R51.6
9.9
4.5
56.7
PF 3/4”
113.0

8. SPECIFICATIONS
Design and specifications are subject to change without notice.
NTSC PAL
H/V 15.734/59.94Hz H/V 15.625/50Hz
H/V 15.750/60Hz H/V 15.625/50Hz
2:1 Interlace
600 TV Lines (Max.) / 700TV Lines(B/W)
0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE) F1.2
0.0002Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE) F1.2
1.0Vp-p/ 75ohm Video 0.714Vp-p
0.45, 0.5, 0.6
LENS,E-SHUTTER, BACKLIGHT, WDR,
More than 52dB(AGC o)
AGC, SENS-UP
WHITE-BALANCE, DAY&NIGHT, MOTION, MIRROR
SHARPNESS, GAMMA, FREEZE, NEGA, DNR, D-ZOOM
LSC, ECLIPSE, DIS, PRIVACY, COMMUNICATION
1/60~1/100,000 1/50~1/100,000
8 Windows(Polygonal, 8 Colors)
AUTO / DAY / NIGHT / EXT
ON / OFF
x1.0 ~x10
AUTO, OFF ~x512
AUTO / INTERNAL / DIGITAL LINE LOCK(Option)
AWC / ATW / MANUAL / PUSH
ON / OFF(WDR LEVEL(0~10), 120dB(WDR Range))
ON / OFF(OFF, LOW, MID, HIGH)
ON / OFF
ON / OFF
ON / OFF
OFF / LOW / MIDDLE / HIGH
ICR (Optional)
-20
℃ ~60 ℃ /30% ~80%
-30
℃ ~60 ℃ /20% ~90%
TV System
Sensor
Synchronization Internal
Line Lock
Scanning System
Horizontal Resolution
Min. Illumination
Sens -Up On
Video Output
γ Correction
S/N
O.S.D
Electrical Shutter
Privacy Masking
Day & Night
Motion Detection
Digital Zoom
Sens-Up(Low Shutter)
SYNC
White Balance
Super WDR
3D-DNR
LSC
DIS
ECLIPSE
A
Day & Night System
IR LEDs 35 pcs
Indoor 35m/Outdoor 25m
IR LED Vandal Dome Camera Vandal Dome Camera
Night View Distance
GC
Operating Temperature/Humidity
Storage Temperature/Humidity
LENS
SYNC, TITLE, LANGUAGE, DPC, FILTER
DC12V AC 24V / DC 12V DC 12V AC24V /DC 12V
Supply Voltage
500mA 250mA/ 550mA 150mA 80mA /240mA
Current
AC Only
[Recommended - Voltage : +/-20%, Current :
Adapter with rated power of 2 times(than real using current ]
1/3” Color Vertical Double Density CCD
AC24V 670mA(LED , Blower , Heater -ON) AC24V 550mA(LED , Blower , Heater -ON)
2.8~12mm DC Iris Varifocal Lens 2.8~12mm DC Iris Varifocal Lens

PRODUCT WARRANTY CARD
1) ITEM # :
2) S/N # :
3) INSTALLATION CONDITION
- Indoor  / Outdoor 
- Power supply SPECIFICATION :
DC12V  / AC24V 
CURRENT __________ mA
4) TROUBLESHOOTING
- No picture 
- Bad image 
- No power 
- Water damage 
- LED ON  / OFF 
- ETC.  :
* Please keep this warranty card with the manual.
* Please fill out this warranty card and send us this warranty card
with the faulty units together.
Following cases can be charged even within the warrany period.
a. When defects are caused by user’s carelessness.
b. When improper or unauthorized repairs are done or when the inside is
modified or damaged.
c. Defects caused by natural disaster or power problem.
d. When the warranty card is not filled out or corrected unconfirmed.
