Nespresso Zenius User manual

ZENIUS/ZN100 PRO
Type 97373
_ZENIUS_UM_ZONE4B.indb 2 10.07.14 17:09

ZENIUS/ZN100 PRO
EN USER MANUAL
Type 97373
_ZENIUS_UM_ZONE4B.indb 3 10.07.14 17:09

2
EN Content EN
First & regular use:
Packaging content 3
Machine overview 4-5
Safety precautions 6
First use 9
Coee preparation 10
Hot water preparation 11
Alarms 12-13
Daily cleaning 14
User menu mode:
Water hardness setting 15
Descaling 16-17
Descaling alarm ON/OFF 18
Energy saving concept 19
New filter 20
Filter OFF 21
Programming the cup
volume 22
Programming the coee
temperature 23
Reset to factory settings 24
Emptying the system 24
Additional information:
Troubleshooting 25-26
Specifications 26
Accessories 27
Recycling 27
Machine connectivity 28
EC declaration of
conformity 28
Ecolaboration 29
Contact Nespresso 29
Please read the
instructions and
safety precautions
(page 6) before
operating the
appliance.
Merci de lire les
instructions et
les consignes de
sécurité (page 7)
avant l‘utilisation de
l‘appareil.
_ZENIUS_UM_ZONE4B.indb 2 10.07.14 17:09

3
EN
EN Packaging content
NESPRESSO, an exclu-
sive system creating
the perfect espres-
so, time after time.
Each parameter has
been calculated with
great precision to ensure
that all the aromas from
each Grand Cru can be
extracted, to give the cof-
fee body and create an
exceptionally thick and
smooth crema.
Packaging content
1 Machine
2 User Manual
3 Hardness test strip
4 Power cord
1234
_ZENIUS_UM_ZONE4B.indb 3 10.07.14 17:09

4

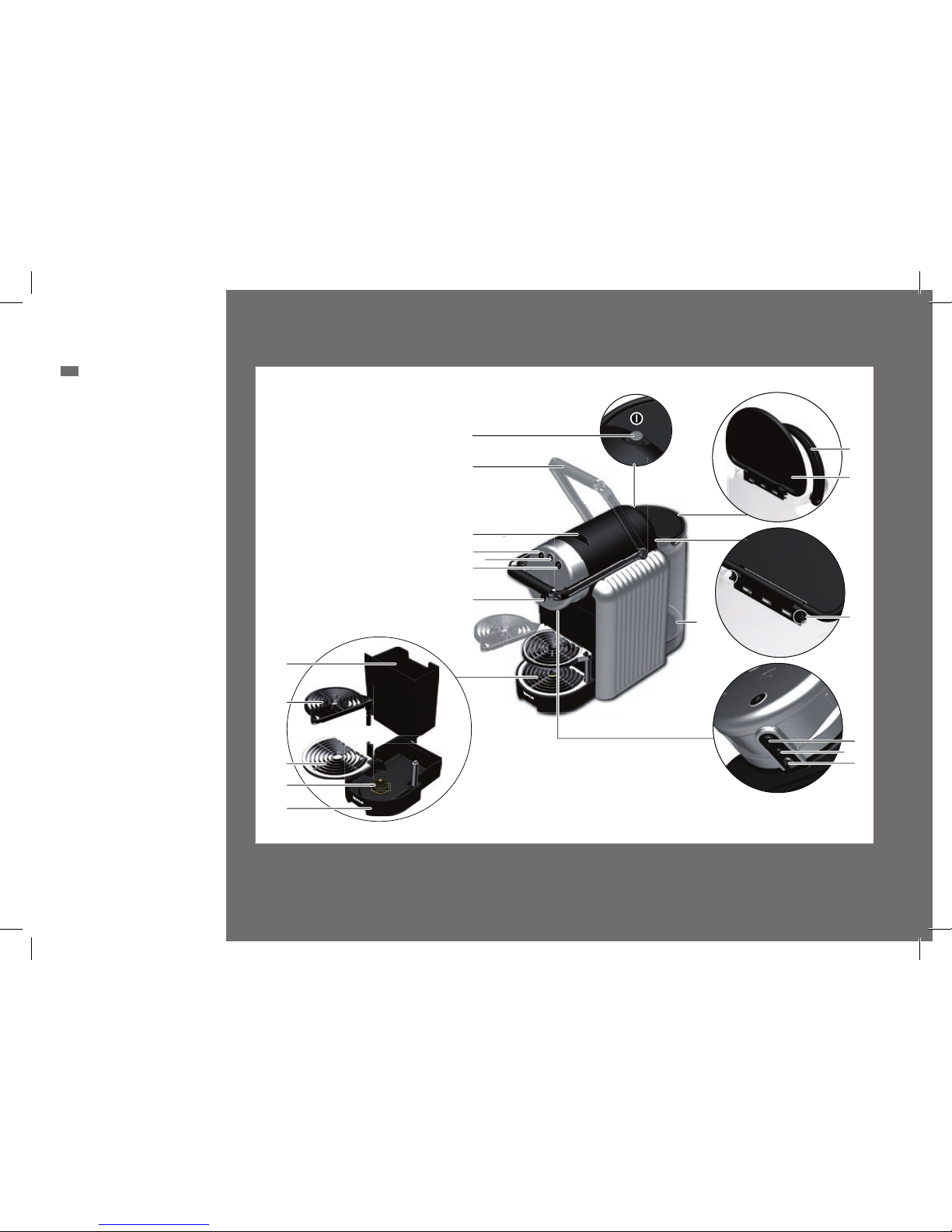

EN Machine overview
5
4
6
3
11
7
12.1
12.2
12
12.3
12.5
2
12.4
1
11.1
11.2
11.3
8
9
10
_ZENIUS_UM_ZONE4B.indb 4 10.07.14 17:09

5
1 ON/OFF button
2 Lever
3 Capsule insertion slot
4 Ristretto button
(factory setting 25 ml.)
5 Espresso button
(factory setting 40 ml.)
6 Lungo button
(factory setting 110 ml.)
7 Hot water button
(factory setting 125 ml.)
8 Coee outlet
9 Hot water outlet
10 Cup lighting function
11 Water tank (for 2 l.)
11.1 Handle
11.2 Lid
11.3 Fixing hooks on lid
12 Maintenance module
12.1 Capsule container for
25 used capsules
12.2 Espresso cup support +
Rotating drip grid
12.3 Recipe Glass or Mug
support + Fixed drip
grid
12.4 Floater
12.5 Drip tray
EN
_ZENIUS_UM_ZONE4B.indb 5 10.07.14 17:09

6
EN Safety precautions
Read these instructions
carefully before using
your new coee
machine for the first
time. Improper use of
the machine releases
Nespresso from any
liability.
Caution – When you see
this sign, please refer to the
safety precautions to avoid
possible harm and damage.
Information – When you
see this sign, please take
note of the advice for the
correct and safe usage of
your coee machine.
1 In case of an emergency:
immediately remove
the plug from the power
socket.
2 Only plug the appliance
into suitable and easily
acessible, earthed main
connections.
3 The use of incorrect
connection voids the
warranty.
4 This appliance can be
used by children aged
from 8 years and above
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way
and if they understand the
hazards involved.
Cleaning and user
maintenance shall not be
made by children unless
they are older than 8 and
supervised.
Keep the appliance and
its cord out of reach of
children aged less than 8
years.
5 Appliances can be used
by persons with reduced
physical, sensory or
mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the appliance in a safe
way and understand the
hazards involved.
Children shall not play
with the appliance.
6Check that the voltage
quoted on the rating plate
is the same as your mains
voltage.
7 Use only the specific
power cord delivered with
the machine, mount it in
the bottom of the machine
as mentioned in the user
manual.
8 Your machine is made for
indoor use only.
9 Do not put the fingers
under the coee or hot
water outlets, risk of
scalding.
10 Always fill the water tank
with potable water.
11Empty water tank if coee
machine will not be used
for an extended time
(holidays etc.).
12 Replace water in water
tank before coee
machine is put into
operation after a weekend
or a similar period of time.
13 Always close the lever
completely and never lift it
_ZENIUS_UM_ZONE4B.indb 6 10.07.14 17:09

7
during operation. Scalding
may occur. Do not put
fingers into the capsule
insertion slot or the capsule
ejection. Danger of injury!
14 If a capsule is blocked into
the capsule compartment,
turn the machine o
and unplug it before any
operation. Call Nespresso
authorized after-sales
centre.
15 To avoid hazardous
damage, never place the
appliance on or beside hot
surfaces such as heating
plate, radiators, stoves,
ovens, gas burners, open
flames, or similar. Always
place it on a flat, stable
and even surface, away
from water splashes. The
surface must be resistant
to heat and fluids, like
water, coee, descaler, or
similar.
16 Place this product 20cm
from the body of the user
or nearby person.
17 Remove the plug from the
mains socket if you will
not be using the machine
for an extended time
(holidays). Before cleaning
and servicing, remove the
plug from the mains socket
and let the machine cool
down. Do not unplug by
pulling the power cord.
18 Do not use the machine if
it is not operating perfectly
or if it shows any sign of
damage. In case of any
malfunction or damage,
call your nearest Nespresso
representative.
19 All operations other than
normal use, cleaning,
and servicing must
be performed by the
Nespresso authorized after-
sales centre.
The warranty does not
apply to any defect
resulting from accident,
negligence, misuse, failure
to follow the product
instructions, calcium
deposits, improper or
inadequate maintenance,
normal wear and tear, use
on current or voltage other
than as marked on the
product, product alteration,
fire, lightening, flood or
external causes.
20 Never immerse the
machine, power cord or
plug in water or any other
liquid.
21 Keep the power cord out of
reach of children.
22 Never leave the power
cord near or in contact with
hot parts of the machine, a
source of heat, or a sharp
edge.
23 When the power cord
or plug is damaged, you
must not use the machine.
In order to avoid danger,
call your Nespresso
representative to have the
defective part repaired or
replaced.
24 For your own safety, you
should use only parts and
accessories from Nespresso
that are made for your
machine.
25 Never use the machine
without the drip tray or the
drip grid.
_ZENIUS_UM_ZONE4B.indb 7 10.07.14 17:09

8
26 All Nespresso machines
must pass stringent
controls. Reliability tests
under practical conditions
are performed randomly
on selected units. This
can show traces of any
previous use.
27 The manufacturer
cannot be held liable
for any damage caused
by not intended use or
inappropriate handling of
the machine.
28 Descaling:
• The descaling solution
can be harmful. Avoid
contact with eyes, skin and
surfaces. We recommend
the Nespresso descaling kit
available from Nespresso
as it is specifically adapted
to your machine. Do not
use other products (such
as vinegar) that would
aect the taste of the
coee. For any additional
questions you may have
regarding descaling, please
contact your Nespresso
representative.
• Preparation: please
read carefully the safety
instructions on the
descaling agent packaging
and follow the instructions
from the descaling manual.
• Descaling: do not use
the machine for any
other purpose during the
descaling process.
• Rinse: rinse the water tank
and clean the machine
to avoid any residual
descaling solution.
Household use
This appliance is intended
to be used in household and
similar applications such as:
• sta kitchen areas in
shops, oces and other
working environments;
• farm houses;
• by clients in hotels, motels
and other residential type
environments;
• bed and breakfast type
environments.
Oce use
Zenius is an Espresso coee
maker (or machine).
This appliance is intented to
be used by expert or trained
users in shops, in light
industry and on farms, or for
oce use by lay persons.
Installation instruction
• Machine must be
disconnected during
installation.
• minimal space (height) for
correct use of the machine:
55 cm.
• in a horizontal position
This machine works only with
Nespresso
®Pro capsules,
available through Nespresso
and its authorised distributors.
SAVE THESE INSTRUCTIONS
Pass them on to any
subsequent user.
This instruction manual is also
available as a PDF at www.
nespresso.com/pro.
_ZENIUS_UM_ZONE4B.indb 8 10.07.14 17:09

9
3x
9

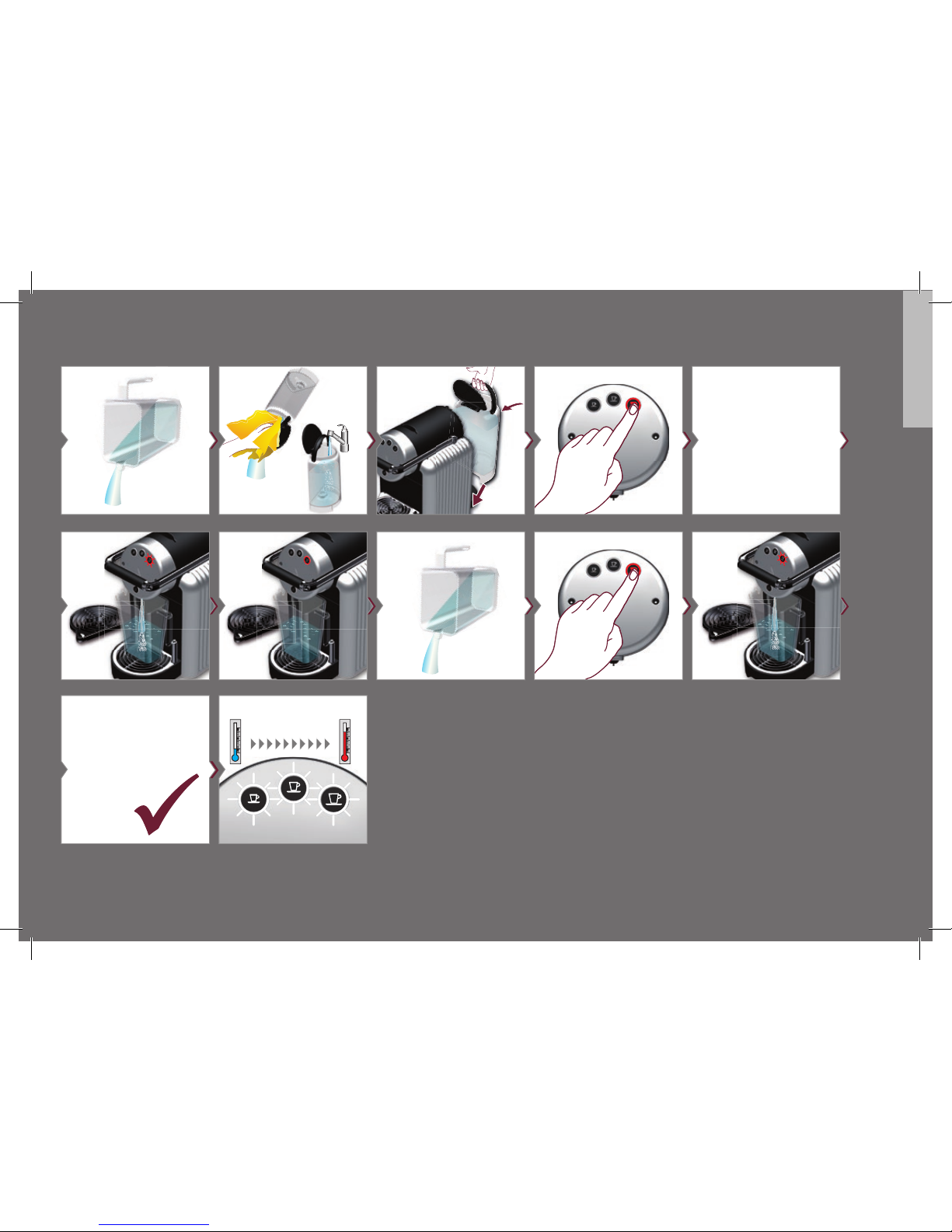

First read the safety
precautions (page 6)
to avoid risks of fatal
electrical shock and
fire.
65
3x
10
87
ON
min. 800ml
~35 sec
EN First use (or after long
period of non-use) 431 2
_ZENIUS_UM_ZONE4B.indb 9 10.07.14 17:09

10

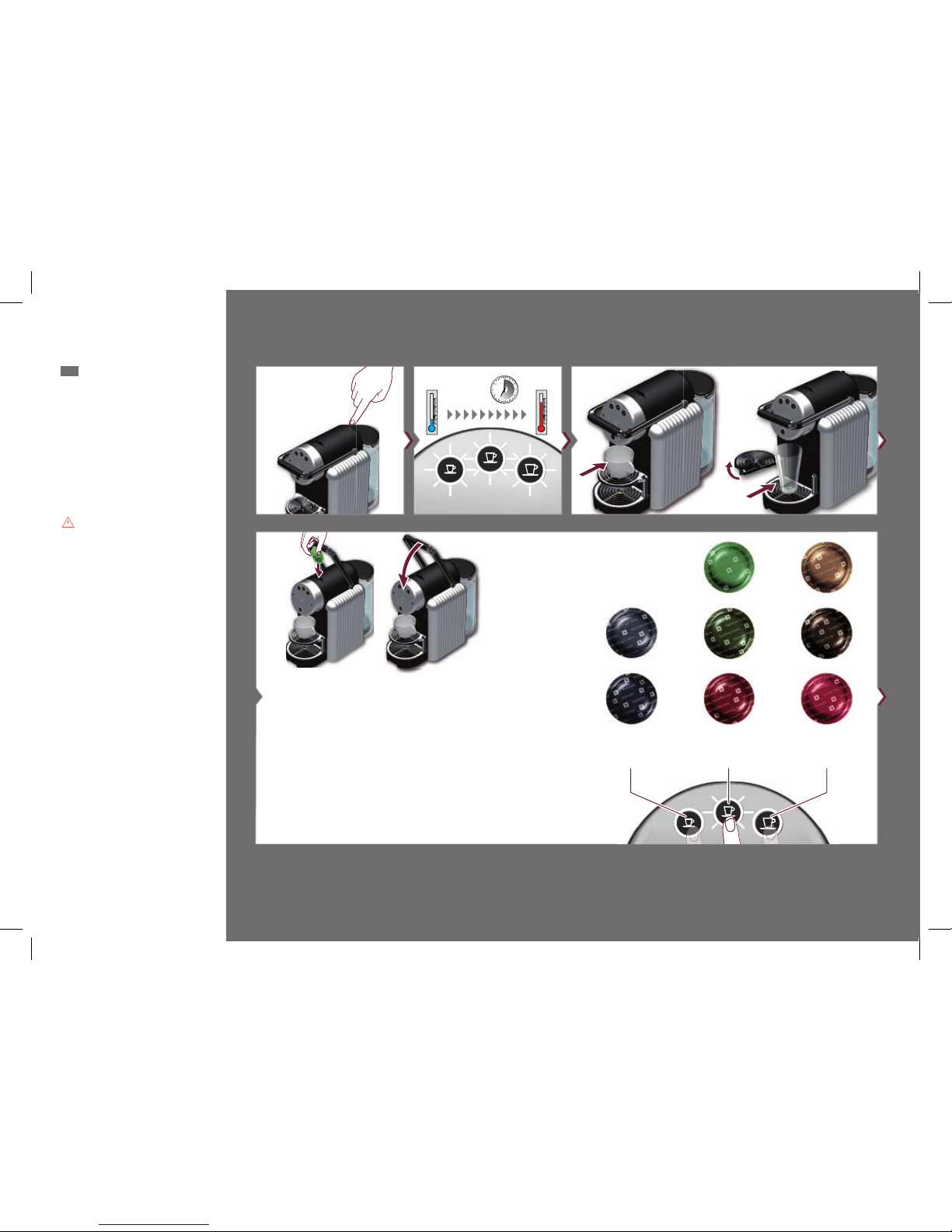

Recommended coee button blinks according to capsule variety
inserted. The other 2 coee buttons are also available. (*) Example
for Espresso Leggero:
3
4
1 2
ON
~35 sec
Do not put fingers
into the capsule
insertion slot or the
capsule ejection.
* This functionality will be
activated at a later stage.
EN Coee preparation
Espresso
40ml/1.35oz
Ristretto
25ml/0.85oz
Lungo
110ml/3.7oz
Ristretto Origin India
Ristretto
Espresso Leggero
Espresso Forte
Espresso Decaffeinato
Lungo Leggero
Lungo Forte
Lungo Decaffeinato
_ZENIUS_UM_ZONE4B.indb 10 10.07.14 17:09

11
3
Preparation will stop automatically. To stop
the hot water flow, press any button.
54
1 2
ON
~35 sec
EN Hot water preparation
75 Preparation will stop automatically. To
stop the coee flow, press any button. 6
Eject coee capsule
before hot water
preparation.
Ejectez la capsule
avant la préparation
d‘eau chaude.
Hot water
125 ml / 4.23 oz
_ZENIUS_UM_ZONE4B.indb 11 10.07.14 17:09

12
15 s
15 s
Descale machine (see page 16-17). The alarm is first displayed when the
machine is switched on and repeated every hour.
Change filter (see page 20). The alarm is first displayed when the machine is
switched on and repeated every hour.
Fill water tank.
Water tank empty or
missing. Machine not
working.
Descaling needed
Change filter
EN Alarms
_ZENIUS_UM_ZONE4B.indb 12 10.07.14 17:09

13

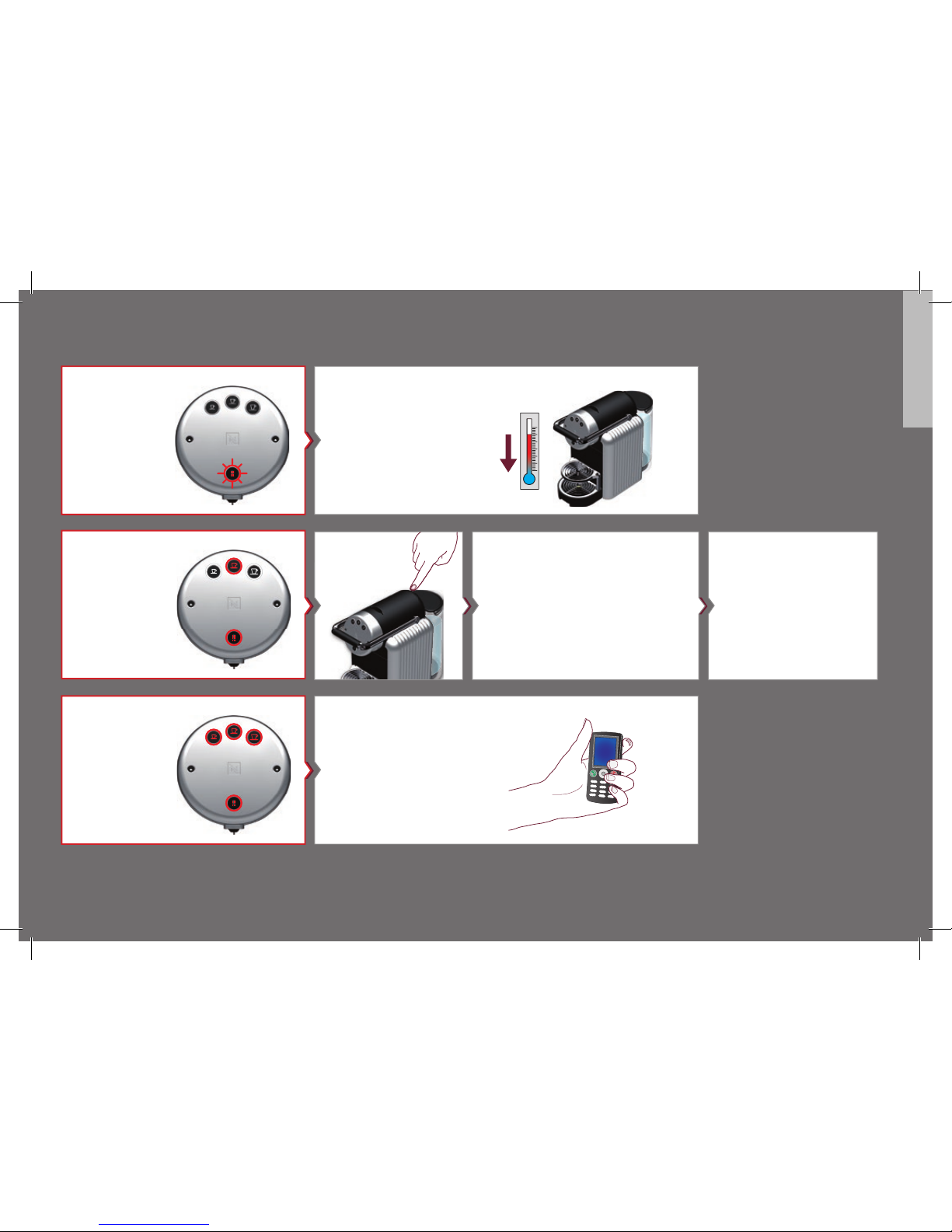

Overheat. Machine
not working.
Machine has to cool down for
approx. 20 minutes. ~20 min
Temporary defect.
Machine not working.
123
456
789
*
0#
?()!
♫■☼
<:>
abc
ghi
@
jkl mno
pors tuv wxyz
def
Hotline
Machine defect. Call Nespresso
authorized after sales centre.
Fatal defect. Machine
not working.
13
2 3
OFF/ON
If alarm is repeated after switch ON/OFF
several times: Descale machine (see page
16-17).
If alarm is repeated after descaling:
Call Nespresso authorized after sales
centre.
_ZENIUS_UM_ZONE4B.indb 13 10.07.14 17:09

14
Do not use any
strong cleaning
agent or solvent
cleaner. Do not put
the appliance or part
of it in a dishwasher.
Never immerse the
appliance or part of
it in water.
N‘utilisez pas
d‘agent ou de
solvant nettoyant
trop fort .
Ne mettez pas
l‘appareil ou une
partie de ce dernier
dans le lave-
vaisselle.
Ne jamais plonger
l‘appareil ou une
partie de ce dernier
dans l‘eau.
65 87
1211
431 2
OFF
109
EN Daily cleaning
ON
1x
_ZENIUS_UM_ZONE4B.indb 14 10.07.14 17:09

15
4
2
1
OFF ON
Press and hold Ristretto and Espresso
buttons while turning on the machine.
soft
medium (factory setting)
hard
very hard

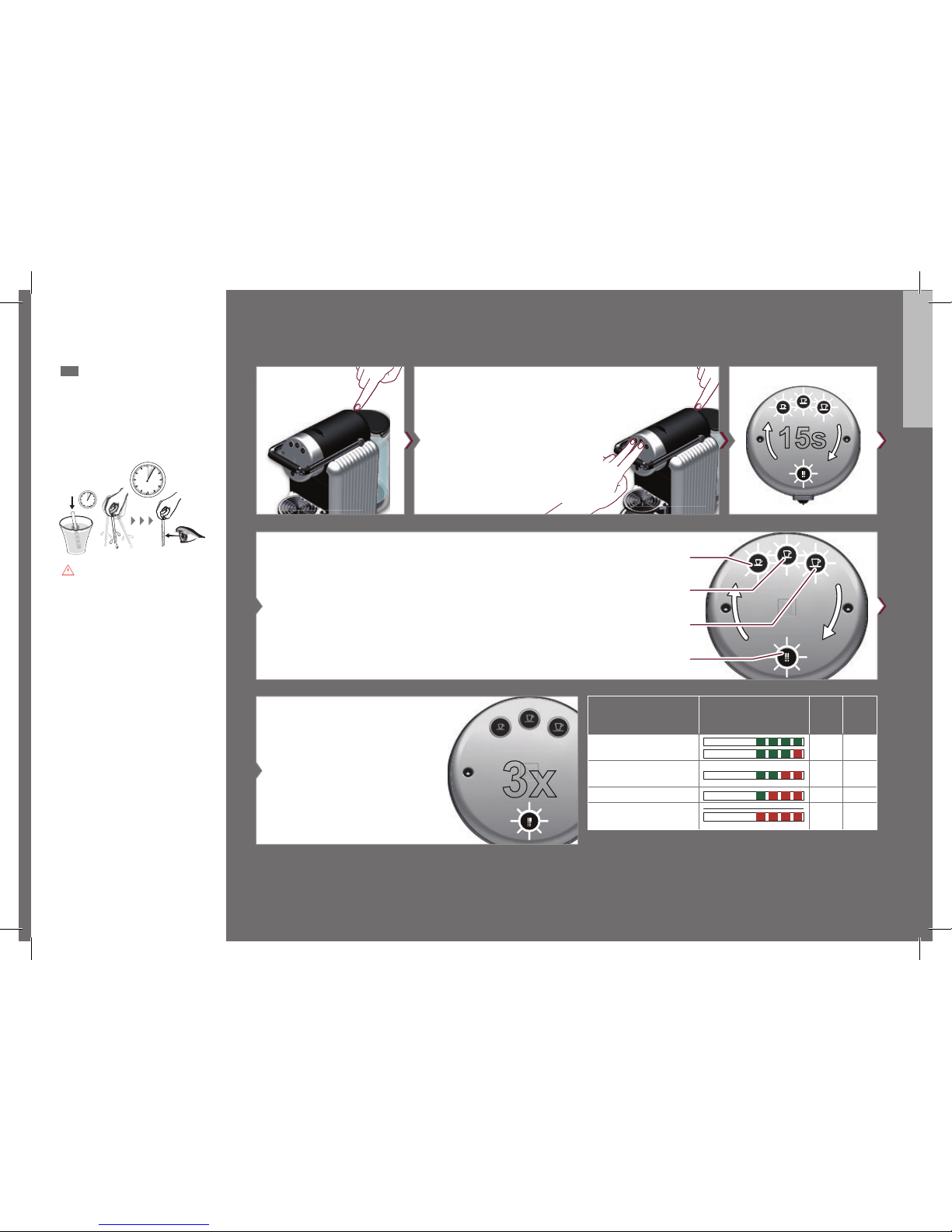

To select water hardness setting, press
during blinking cycle.
Dip test strip briefly
(1 sec) into water.
Shake o excess and
wait 1 min. Reset
water hardness
in your machine
accordingly.
Plongez brièvement
(1 sec) la bande
de test dans l’eau.
Enlevez l’excédent
et attendez une
minute. Réinitialisez
la dureté de l’eau
de votre machine en
fonction du résultat.
EN Water hardness setting
3x
5Confirmation of selection. Example:
water hardness selection "very hard"
15s
3
Water hardness Strip colour code
dH fH
soft / Douce / μαλακό < 7 < 13
medium / Medium /
μεσαίο 7-14 13-25
hard / dure / σκληρό 14-21 25-38
very hard / Très dure /
πολύ σκληρό > 21 > 38
1 Min
1s
_ZENIUS_UM_ZONE4B.indb 15 10.07.14 17:09

16
Duration approx. 15
minutes.
Durée approximative : 15 min
Διάρκεια περίπου 15 λεπτά.
4
3
ON
Press and hold Ristretto button
while turning on the machine.
6
Remove the filter, if
present.
2
10
98
7
Read the safety
precautions on the
descaling package.
OFF
1
1L
5
min. 1.5 L
EN Descaling
Automatic descaling process.
10
_ZENIUS_UM_ZONE4B.indb 16 10.07.14 17:09

17
19
18 20
11 12
2 L
17
16
14
13 15
21 22
Automatic rinsing process.
Descaling finished.
_ZENIUS_UM_ZONE4B.indb 17 10.07.14 17:09

18
4
2
1
OFF ON
Press and hold Ristretto and
Lungo buttons while turning on
the machine.
Alarm ON
Alarm OFF
To select alarm ON or alarm OFF, press
during blinking cycle.
EN Descaling alarm ON/OFF
3x
5
Confirmation of selection.
Example for alarm ON:
15s
3
Factory setting:
• Alarm ON
_ZENIUS_UM_ZONE4B.indb 18 10.07.14 17:09

19
4
2
1
OFF ON
Press and hold Espresso button
while turning on the machine.
To select auto power o setting, press during
blinking cycle.
EN Energy saving concept
Factory setting:
• 30 minutes
6
3x
5
Confirmation of selection. Example for
1h auto power o setting.
15s
3
30 min
1 h
2 h
12 h
_ZENIUS_UM_ZONE4B.indb 19 10.07.14 17:09
