NetComm NP560 User manual

2 NP560-NP562 Installation Guide
YML821 Rev1
Contents
Introduction...................................................................................................................................................4
Package Contents ..........................................................................................................................................5
Installing the NetComm Indoor Wireless Booster (NP560/NP562) ...............................................................6
Electrical Specification ..................................................................................................................................8
Appendix A: Registration and Warranty Information.....................................................................................9

NP560-NP562 Installation Guide 3
YML821 Rev1
ATTENTION:
The use and installation of this WiFi device must comply with the Australian
Spectrum Management legislation which specifies that a WiFi transmitting
station must not have an Effective Radiated Power (ERP) exceeding 4-Watts.
ERP is a radio frequency signal strength field measurement and can be
calculated as: Wireless device output power, less the power lost in the
antenna feed-line (antenna connection cable), plus the power gain of the
antenna itself.
If you are unsure about any of these parameters or how to calculate them,
please consult your installer or dealer. Alternatively you can visit the ACMA
website at www.acma.gov.au
Exceeding such power restriction limits is illegal and may result in
undesirable radio interference which is strictly monitored by the ACMA.

4 NP560-NP562 Installation Guide
YML821 Rev1
Introduction
Thank you for purchasing NetComm’s INDOOR WIRELESS BOOSTER. This product is designed
to dramatically increase your wireless coverage and eliminate non-coverage wireless trouble spots.
The Indoor Wireless Booster will increase the effective range of your 802.11b/g Access Point or
wireless Router.
The Wireless Booster saves wiring costs and supports your wireless infrastructure by driving signals
into those hard-to-reach areas. It is perfect for covering large open plan office areas, warehouse
environments, public spaces and hotspots.

NP560-NP562 Installation Guide 5
YML821 Rev1

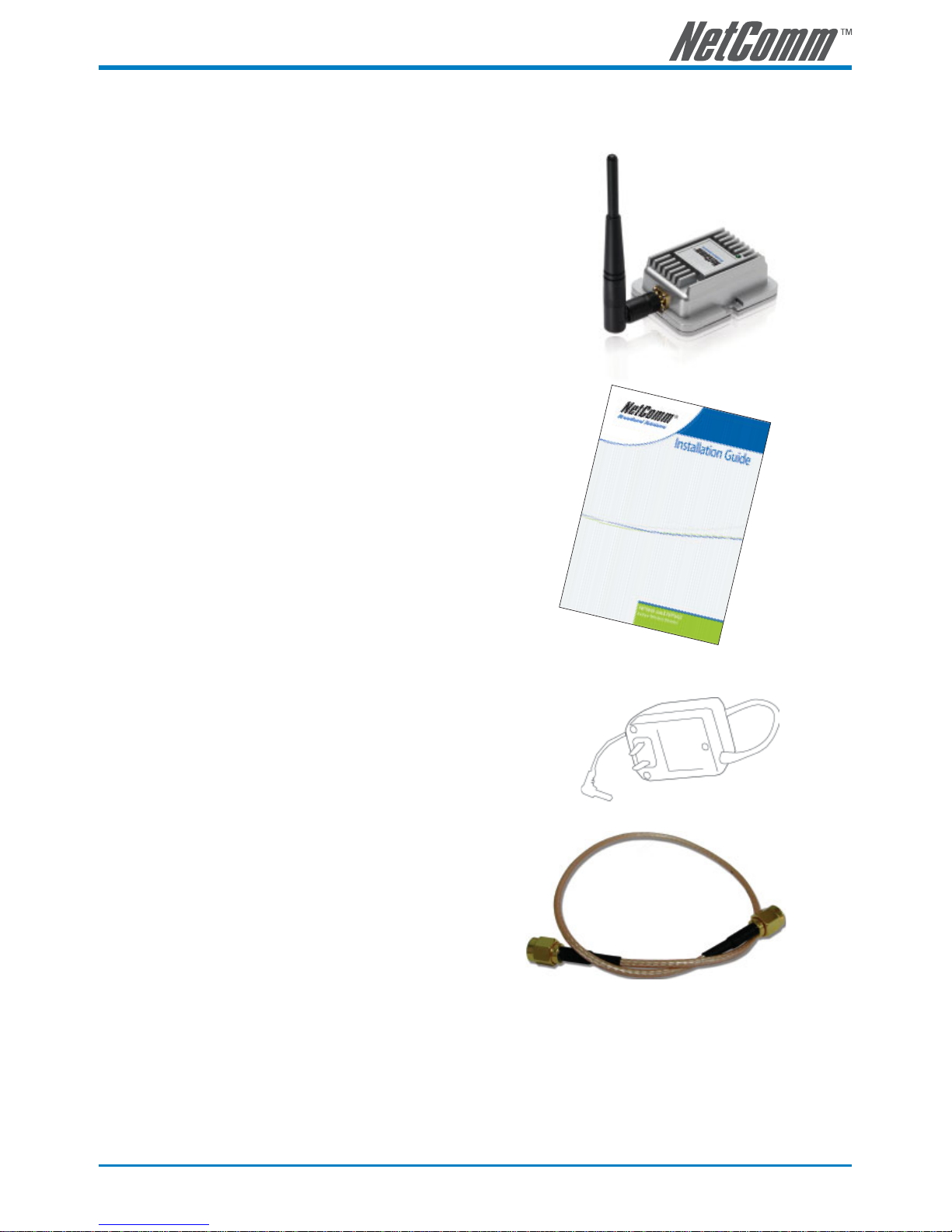

Package Contents
Your NP560/NP562 Indoor Wireless Booster package includes the following items.
• One NP560 or NP562 Indoor Wireless Booster
(Note: Antenna shown is not included in this kit.
You will need to use the detachable antenna from your
Wireless Router or Access Point.)
• One Installation Guide
• One AC Adapter
• One RG 316 Cable
If any of the above items are missing or damaged, please contact NetComm immediately.

6 NP560-NP562 Installation Guide
YML821 Rev1
Installing the NetComm Indoor Wireless Booster (NP560/NP562)
Step1:
Unscrew and remove the existing antenna on your Wireless Router or Access Point.
Note: Your equipment must have a detachable SMA antenna in order to use the
NP560/NP562 NetComm Wireless Booster
Step 2:
The connector cable that comes with the Booster needs to be installed in a specific way.
On the bottom of the Booster you will see one end connects marked “To Radio”. This end
connects to your Router/Access Point. The other end is marked “To Antenna” and this is
where you re-attach your antenna.
The supplied cable is fitted with two different connectors; one designed to attach to your
Router/Access Point and the other designed to attach to the booster. Please ensure you
connect the ends correctly or you may damage the Booster or your Router/Access Point.
The cable connector without
the pin connects to your
router or access point.

NP560-NP562 Installation Guide 7
YML821 Rev1
Step 3:
Screw the antenna from your Router/Access Point to the end of the Booster marked “To
Antenna”
Step 4:
Connect the power to the DC jack on the Booster.
IMPORTANT:
The NP560/NP562 is compatible with 802.11b/g equipment only.
Your router or access point must have a detachable SMA antenna in order to use a
Wireless Booster.
The connector cable uses SMA connectors (adaptors are available from NetComm for
other aerial connector types).
The installation procedure is the same for NP560 (200mW) and NP562 (500mW)
Boosters.
Longer connection cables are available to connect your Router/Access Point to the
Booster, however, these cables need to be made by a cable specialist and will reduce
your signal strength.

8 NP560-NP562 Installation Guide
YML821 Rev1
Electrical Specification
Operating Range 2400~2500GHz
Operation Mode Bi-Directional, half duplex, auto-switching via
carrier sensing
Connector SMA Receptacle
Impedance 50 Ohm
Frequency Response +/- 1dB over operating range
Transmit Input Power Maximum 100mW - Minimum 6mW
Output Power (11g @ 54Mbps)
- NP560: 200mW (23dBm nominal)
- NP562: 500mW (27dBm nominal)
Transmit Gain 12dBm (adjustable)
Receive Gain 14dBm (typical)
Receive Noise Figure 3.5dBm nominalOperating
Operating Temperature -20 to +70o
Operating Humidity up to 95% relative humidity
Power Adapter 6V DC max. current <1A
Booster 7.8 x 5.6 x 2.9 cm
Material Cast Aluminium
DC Adapter < 120g
LED indicator TX LED
Approvals C-Tick N367

NP560-NP562 Installation Guide 9
YML821 Rev1
Appendix A: Registration and Warranty Information
All NetComm Limited (“NetComm”) products have a standard 12 month warranty from date of purchase against defects in
manufacturing and that the products will operate in accordance with the specifications outlined in the User Guide. However
some products have an extended warranty option (please refer to your packaging). To be eligible for the extended warranty
you must supply the requested warranty information to NetComm within 30 days of the original purchase by registering
on-line via the NetComm web site at:
www.netcomm.com.au
Contact Information
If you have any technical difficulties with your product, please do not hesitate to contact NetComm’s Customer Support
Department.
Email: [email protected]
Fax: [phone]
Web: www.netcomm.com.au
Copyright Information
This manual is copyright. Apart from any fair dealing for the purposes of private study, research, criticism or review, as
permitted under the Copyright Act, no part may be reproduced, stored in a retrieval system or transmitted in any form, by
any means, be it electronic, mechanical, recording or otherwise, without the prior written permission of NetComm Limited.
NetComm Limited accepts no liability or responsibility, for consequences arising from the use of this product. Please note
that the images used in this document may vary slightly from those of the actual product. Specifications are accurate at the
time of the preparation of this document but are subject to change without notice.
NetComm Limited reserves the right to change the specifications and operating details of this product without notice.
NetComm is a registered trademark of NetComm Limited. All other trademarks are acknowledged the property of their
respective owners.

10 NP560-NP562 Installation Guide
YML821 Rev1
Customer Information
ACA (Australian Communications Authority) requires you to be aware of the following information and warnings:
(1) This unit shall be connected to the Telecommunication Network through a line cord which meets the require-
ments of the ACA TS008 Standard.
(2) This equipment has been tested and found to comply with the Standards for C-Tick and or A-Tick as set by
the ACA. These standards are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio noise and, if not installed
and used in accordance with the instructions detailed within this manual, may cause interference to radio
communications. However, there is no guarantee that interference will not occur with the installation of this
product in your home or office. If this equipment does cause some degree of interference to radio or televi-
sion reception, which can be determined by turning the equipment off and on, we encourage the user to try
to correct the interference by one or more of the following measures:
• Change the direction or relocate the receiving antenna.
• Increase the separation between this equipment and the receiver.
• Connect the equipment to an alternate power outlet on a different power circuit from that to which the
receiver/TV is connected.
• Consult an experienced radio/TV technician for help.
(3) The power supply that is provided with this unit is only intended for use with this product. Do not use this
power supply with any other product or do not use any other power supply that is not approved for use with
this product by NetComm. Failure to do so may cause damage to this product, fire or result in personal injury.

NP560-NP562 Installation Guide 11
YML821 Rev1
Product Warranty
The warranty is granted on the following conditions:
1. This warranty extends to the original purchaser (you) and is not transferable;
2. This warranty shall not apply to software programs, batteries, power supplies, cables or other accessories
supplied in or with the product;
3. The customer complies with all of the terms of any relevant agreement with NetComm and any other reason-
able requirements of NetComm including producing such evidence of purchase as NetComm may require;
4. The cost of transporting product to and from NetComm’s nominated premises is your responsibility; and,
5. NetComm does not have any liability or responsibility under this warranty where any cost, loss, injury or
damage of any kind, whether direct, indirect, consequential, incidental or otherwise arises out of events
beyond NetComm’s reasonable control. This includes but is not limited to: acts of God, war, riot, embargoes,
acts of civil or military authorities, fire, floods, electricity outages, lightning, power surges, or shortages of
materials or labour.
6. The customer is responsible for the security of their computer and network at all times. Security features
may be disabled within the factory default settings. NetComm recommends that you enable these features to
enhance your security.
The warranty is automatically voided if:
1. You, or someone else, use the product, or attempts to use it, other than as specified by NetComm;
2. The fault or defect in your product is the result of a voltage surge subjected to the product either by the way
of power supply or communication line, whether caused by thunderstorm activity or any other cause(s);
3. The fault is the result of accidental damage or damage in transit, including but not limited to liquid spillage;
4. Your product has been used for any purposes other than that for which it is sold, or in any way other than in
strict accordance with the user manual supplied;
5. Your product has been repaired or modified or attempted to be repaired or modified, other than by a quali-
fied person at a service centre authorised by NetComm; and,
6. The serial number has been defaced or altered in any way or if the serial number plate has been removed.
Limitations of Warranty
The Trade Practices Act 1974 and corresponding State and Territory Fair Trading Acts or legalisation of another Government
(“the relevant acts”) in certain circumstances imply mandatory conditions and warranties which cannot be excluded. This
warranty is in addition to and not in replacement for such conditions and warranties.
To the extent permitted by the Relevant Acts, in relation to your product and any other materials provided with the product
(“the Goods”) the liability of NetComm under the Relevant Acts is limited at the option of NetComm to:
• Replacement of the Goods; or
• Repair of the Goods; or
• Payment of the cost of replacing the Goods; or
• Payment of the cost of having the Goods repaired.
