NETGEAR EX6200 User manual

Do More
Learn more about your EX6200

2
Contents
Experience Next-Generation WiFi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optimize Your WiFi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Share Files Across Your Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Boost Your Video Streaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connect Ethernet-Enabled Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connect a Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Change Your Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FAQ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3

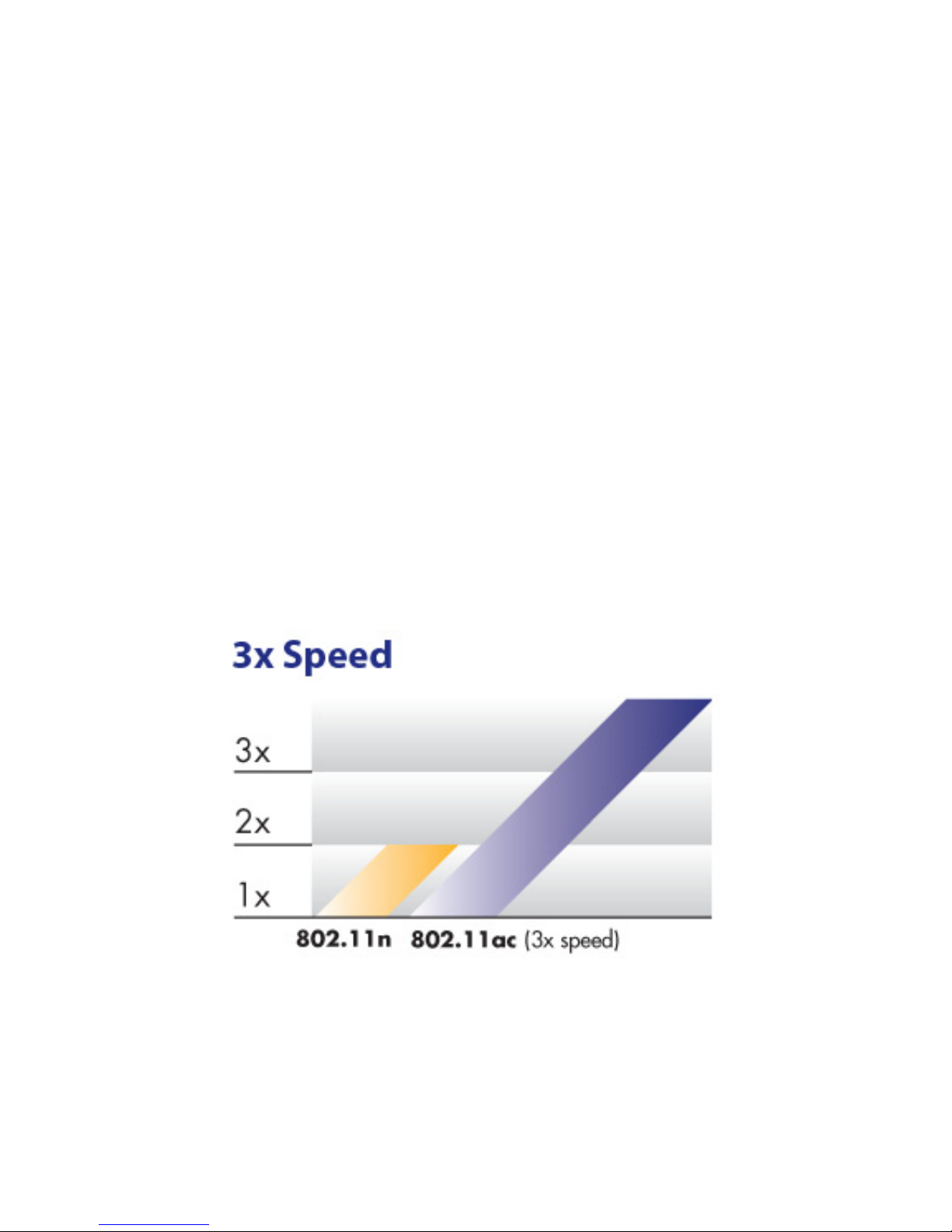

Experience Next-Generation WiFi
Your new WiFi extender supports the 802.11ac networking
standard. This new standard offers better speed, improved
reliability, and more range than older WiFi networking standards.
Your extender is backward compatible with prior WiFi standards.
However, to get the benefits of 802.11ac, your router must
support the 802.11ac WiFi networking standard.
To learn more about the 802.11ac WiFi networking standard, visit
http://www.netgear.com/landing/80211ac/.

4
Optimize Your WiFi
The NETGEAR WiFi Analytics app provides detailed information to
help you optimize your WiFi home network. To install the app, visit
the Google Play store or scan the QR code.
The WiFi Analytics app provides the following:
•Network status. Get an overview of all available WiFi
networks, including signal strength, channel, security protocol,
MAC address, and more.
•Channel interference. Identify crowded and clear WiFi
channels and get channel connection recommendations.
•Signal strength. Determine the data rate available in various
locations in your home.

5
Share Files Across Your Network
You can share data that is stored on most common USB storage
devices across your network with ReadySHARE® USB Storage
Access.

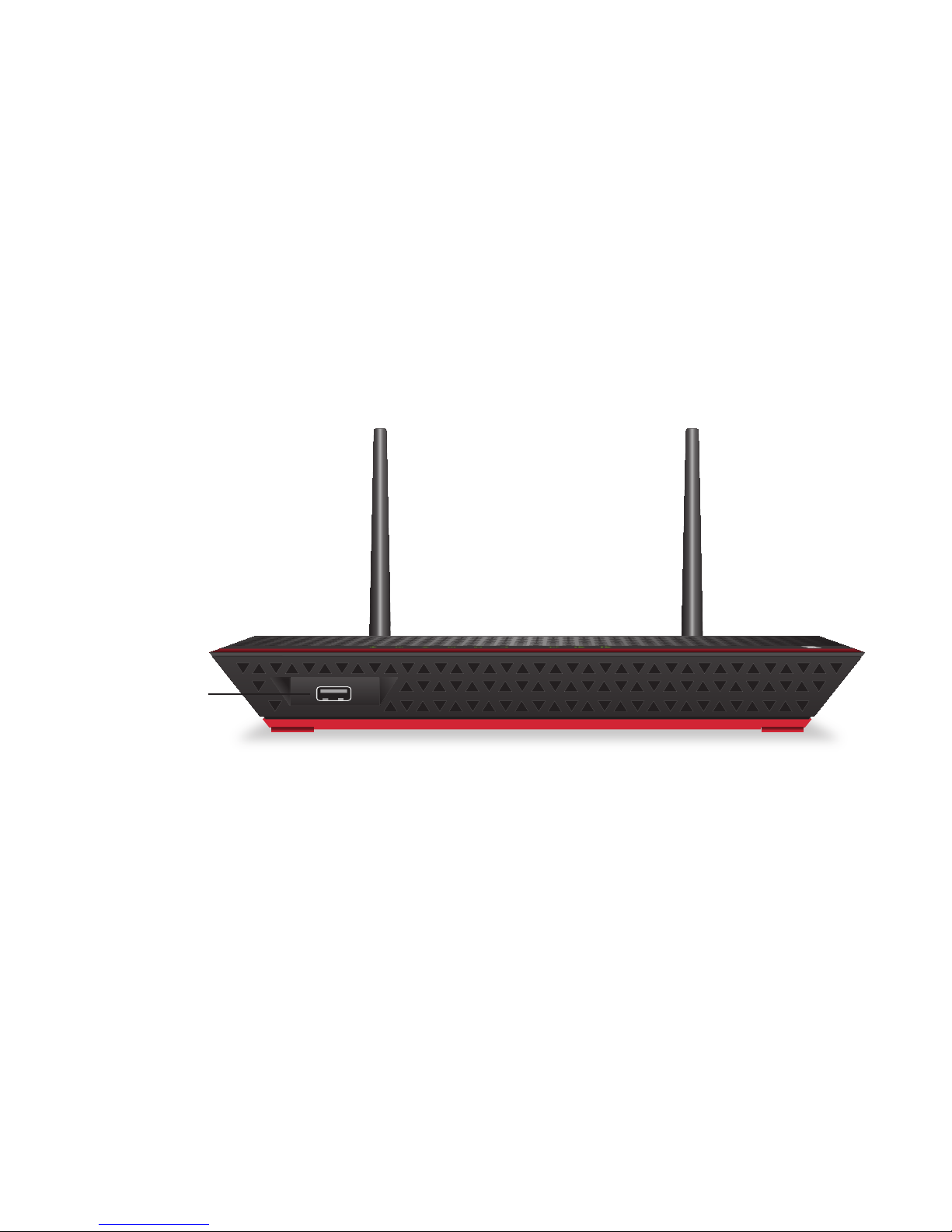

USB 3.0 port

6
To access data from a Windows device:
1. Connect a supported USB storage device to the USB port on
your extender.
2. Select Start > Run, enter \\readyshare in the pop-up window,
and click the OK button.
To access data from a Mac OS X device:
1. Connect a supported USB storage device to the USB port on
your extender.
2. In Finder, select Go > Connect to Server, enter smb:// in the
pop-up window’s Server Address field, and click the Connect
button.

7
To change the ReadySHARE folder name on the extender:
If you have a NETGEAR router that supports ReadySHARE, the
router’s default ReadySHARE folder name is \\readyshare. The
extender’s default ReadySHARE folder name is also
\\readyshare. You can change the extender’s default
ReadySHARE folder name so that you can tell the folders apart.
1. Open a browser on your laptop, tablet, or smartphone and visit
www.mywifiext.net.
2. Log in using the following credentials:
•User name. admin
•Password. password
3. Select USB Storage > Advanced Settings.
The USB Storage (Advanced Settings) screen displays.
4. In the Network/Device Name field, type a new name.
Note: After you change the network/device name, the folder name
also changes.
5. Click on the Apply button.
Your changes are saved.

8
Boost Your Video Streaming
Get the most out of your HD entertainment with FastLane™
Technology. FastLane Technology connects to your router using one
band and connects to your devices using another band. Because a
band is dedicated to each function, performance is enhanced.
To activate FastLane mode:
1. Connect to the extender’s WiFi network.
2. Open a browser on your laptop, tablet, or smartphone and visit
www.mywifiext.net.
3. Log in using the following credentials:
•User name. admin
•Password. password
If you changed the default password, enter the password you
created.

9
4. Select Advanced > Operating Mode.
The Operating Mode screen displays.
5. Select the FastLane Technology radio button.
6. Review the two FastLane Technology options and choose the
band–either 2.4 GHz or 5 GHz–that is compatible with most of
your devices.
If you are not sure which band your devices use, check your user
manuals or search the Internet.
7. Click the Apply button.
Your changes are saved.

10
Connect Ethernet-Enabled Devices
You can use your extender to wirelessly connect as many as five
Ethernet-enabled devices, such as smart TVs, game consoles, and
Blu-ray players, to your WiFi router or access point at gigabit
speeds.
After your set up your extender, plug the Ethernet cable from a
device directly into the extender’s gigabit Ethernet port.
Ethernet ports

11
Connect a Printer
To connect a printer to your extender and enjoy wireless printing
from your laptop and other devices, use your extender’s
ReadySHARE Printer feature.
To set up your printer:
1. See if your computer already has the printer driver software
installed.
A printer driver is the software that enables your computer to
communicate with your printer.
If your computer has printer driver software installed, go to
Step 2.
If your computer does not have printer driver software already
installed, follow these steps:
a. Locate the printer driver software for your computer.
It usually comes on a CD in the box with your printer. You
can also download the latest software from your printer
manufacturer’s website.
b. Insert the CD or launch the download.
The driver guides you through the installation.

12
2. Connect your printer’s USB cable to the extender’s USB port.
3. Visit www.netgear.com/readyshare and download the ReadySHARE
Printer utility for Windows or Mac.
4. Install the ReadySHARE Printer utility.
After you install it, the utility displays as NETGEAR USB Control
Center on your computer.
5. Launch the NETGEAR USB Control Center.
A list of available printers displays. If this is the first time you are
running the utility, you are asked to select a default printer.
6. Select a printer and click the Connect button.
Whenever you want to print, open the NETGEAR USB Control
Center and make sure your printer status says available. To print
from other devices, repeat this setup process for each of them.

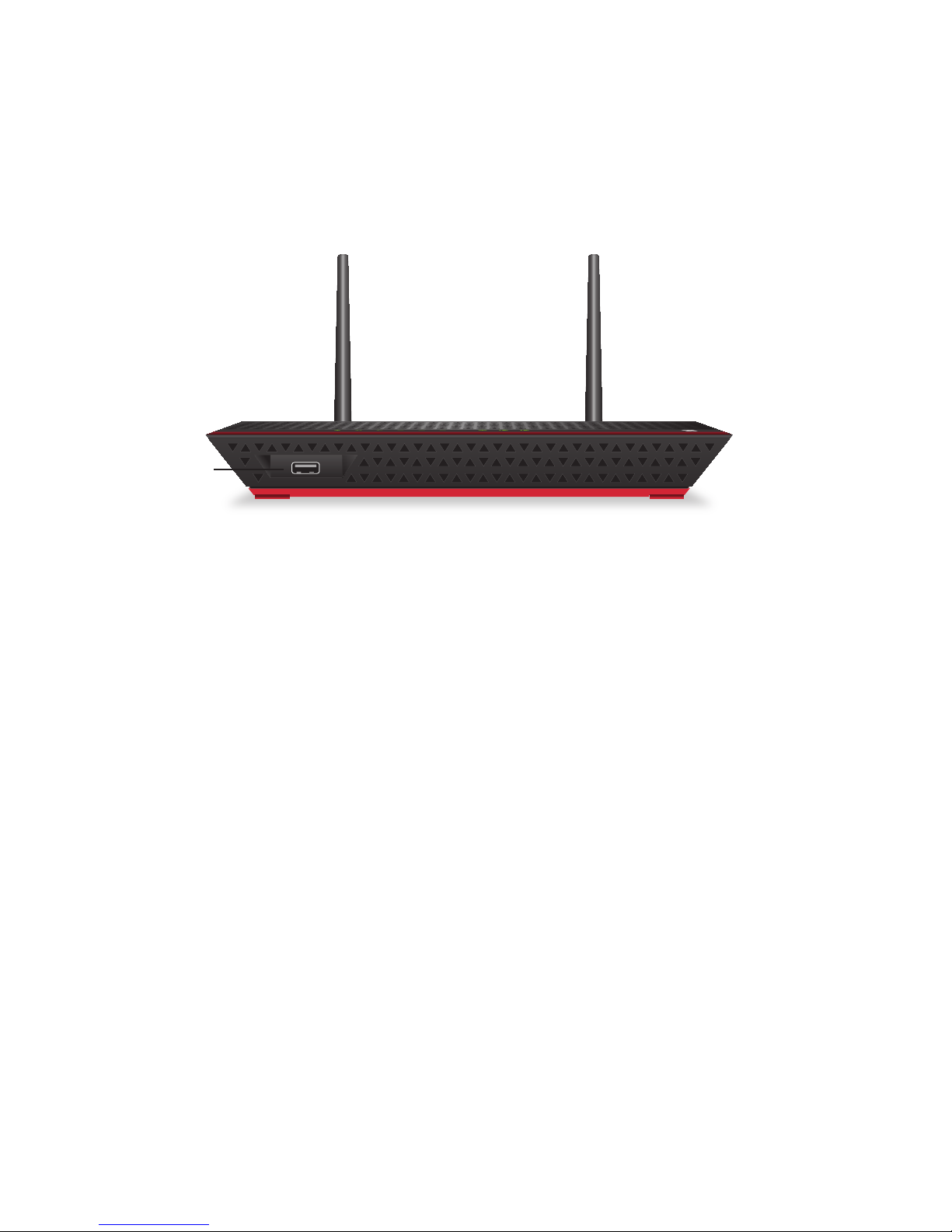

USB 3.0 port

13
If you have problems printing, follow these troubleshooting tips:
• Some firewall software blocks the ReadySHARE Print utility
from accessing the printer. If you do not see the printer listed in
the NETGEAR USB Control Center utility, disable the firewall
temporarily to allow the utility to work.
• The NETGEAR USB Control Center utility must be running in the
background for printer sharing to work. If you exit the utility,
you cannot access the printer on your WiFi network.
• If the printer status is manually connected or otherwise
unavailable, it means the printer is in use. It becomes available
after the current job is finished or the connection times out. The
default time-out is 30 seconds. You can change the default
time-out setting in the NETGEAR USB Control Center by
selecting Tools > Configuration.

14
Change Your Settings
To change your password or other settings:
1. Connect to the extender’s WiFi network.
2. Open a browser on your laptop, tablet, or smartphone and visit
www.mywifiext.net.
3. Log in using the following credentials:
•User name. admin
•Password. password
If you changed the default password, enter the password you
created.
4. Make any needed changes.

15
FAQ
Here is where you can find answers for difficulties you might
experience.
NETGEAR genie keeps asking me for my WiFi password and I
am sure I entered the correct password. What can I do?
It is likely that your extender is placed at the borderline of the signal
range covered by your main WiFi router.
To improve your signal strength, move your extender closer to your
router and make sure that the 2.4 GHz or 5 GHz Link Rate LED
lights solid amber or green.

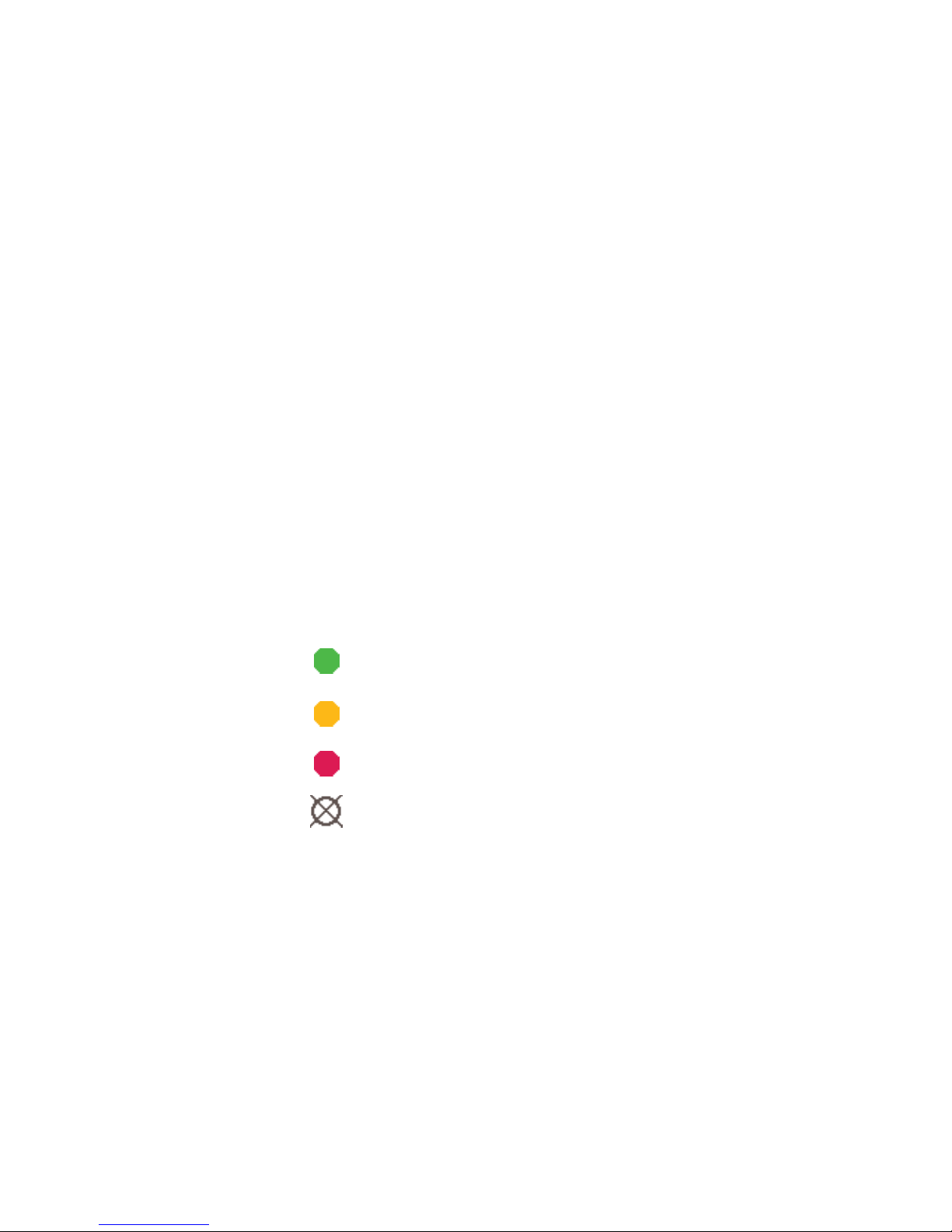

Best Connection
Good Connection
Poor Connection
No Connection

16
What are the default user name and password to log in to the
extender?
If you are online at http://www.mywifiext.net, you can use the
following to log in:
•User name. admin
•Password. password
My router security is WEP, and I entered the wrong
passphrase or security key on the extender. I cannot access
the extender anymore. What can I do?
The extender cannot check to see if the WEP passphrase is correct.
If you entered the wrong passphrase, your wireless device is not
able to get the IP address from the extender. You must reset the
extender to the factory defaults to get the IP address back.
Will the extender work if I connect it to my main WiFi router
with an Ethernet cable?
No, your extender is designed only to connect wirelessly to the
router.

17
I am connected to NETGEAR_EXT and launched a browser.
Why am I unable to see NETGEAR genie?
Try these troubleshooting steps:
• Make sure that your computer is set up to use DHCP (most
are).
• Make sure that the Client Link LED is green and that you have a
valid IP address.
• Relaunch the web browser and type www.mywifiext.net or
www.mywifiext.com in the address field of the web browser.
Enter admin for the user name and password for the password.

18
I enabled a wireless MAC filter (wireless access control or
ACL) on my router. What should I do when installing the
extender?
When the wireless device connects through the WiFi booster to
your router, the MAC address of the wireless device shown on the
router is translated to another MAC address. If your router's MAC
filter is enabled, the wireless device connects to the WiFi booster
but cannot get an IP address from the WiFi booster and cannot
access the Internet. To allow the wireless device to receive an IP
address from the WiFi booster and access the Internet, you must
provide the translated MAC address to the router.
To get the translated MAC address:
1. Disable the MAC filter on your router.
2. Power on the extender and connect all of your wireless devices to
the extender.
3. Make sure that the Link Rate LED remains lit.
4. Log in to your router and check the attached devices on the
Attached Devices screen.
5. Add any MAC addresses that begin with 02:0F:B5 to your router’s
MAC filter table.

19
I completed the NETGEAR genie smart setup, but my wireless
devices cannot get the IP address from the extender. What
should I do?
Make sure that the passphrase you entered on your wireless device
is correct, and power cycle the extender and your router. If your
device is still not able to get the IP address, try these tips:
• Move the extender closer to your router and move your
wireless device closer to the extender.
• Disable the wireless interface and enable it again to see if your
wireless device can get the IP address.
• If your router has a MAC filter (wireless access control), follow
the instructions on page 18.

December 2013
NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134, USA
Technical Support
Thank you for selecting NETGEAR products. After installing your device, locate the serial
number on the label of your product and use it to register your product at
https://my.netgear.com. You must register your product before you can use NETGEAR
telephone support. NETGEAR recommends registering your product through the
NETGEAR website.
To contact NETGEAR for support, go to http://support.netgear.com/general/contact
or call (US only) 1-888-NETGEAR. In other countries, visit
http://support.netgear.com/general/contact/default.aspx for phone numbers.
For product updates and web support, visit http://support.netgear.com.
NETGEAR recommends that you use only the official NETGEAR support resources.
You can get the user manual online at
http://downloadcenter.netgear.com or through a link in the product’s user interface.
Trademarks
NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or
registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/
or other countries. Information is subject to change without notice. © NETGEAR, Inc. All
rights reserved.
Compliance
For the current EU Declaration of Conformity, visit
http://support.netgear.com/app/answers/detail/a_id/11621/.
For regulatory compliance information, visit
http://www.netgear.com/about/regulatory/. See the regulatory compliance document
before connecting the power supply.
