NETGEAR RND4000 - ReadyNAS NV+ NAS Server User manual

202-10320-01
v1.0
October 2007
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA
NETGEAR ReadyNAS
User Guide

ii
v1.0, October 2007
© 2007 by NETGEAR, Inc. All rights reserved.
Technical Support
Registration on the website or over the phone is required before you can use our telephone support service. The phone
numbers for worldwide regional customer support centers are on the Warranty and Support Information card that came
with your product.
Go to http://kbserver.netgear.com for product updates and Web support.
Trademarks
NETGEAR, the NETGEAR logo, ReadyNAS, X-RAID, FrontView, RAIDar, RAIDiator, Network Storage Processor,
and NSP are trademarks or registered trademarks of NETGEAR, Inc. Microsoft, Windows, Windows NT and Vista are
registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks
of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
Certificate of the Manufacturer/Importer
It is hereby certified that the ReadyNAS Network Attached Storage has been suppressed in accordance with the
conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example,
test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the
notes in the operating instructions.
The Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market
and has been granted the right to test the series for compliance with the regulations.
Bestätigung des Herstellers/Importeurs
Es wird hiermit bestätigt, daß dasReadyNAS Network Attached Storage gemäß der im BMPT-AmtsblVfg 243/1991 und
Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender)
kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung.
Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt
gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.
Voluntary Control Council for Interference (VCCI) Statement
This equipment is in the Class B category (information equipment to be used in a residential area or an adjacent area
thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing
Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used
near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling.

v1.0, October 2007
iii
Product and Publication Details
Model Number:
Publication Date: October 2007
Product Family: Network Storage
Product Name: ReadyNAS Network Attached Storage
Home or Business Product: Business
Language: English
Publication Part Number: 202-10320-01
Publication Version Number: 1.0

v1.0, October 2007
iv

v
v1.0, October 2007
Contents
NETGEAR ReadyNAS User Guide
About This Manual
Conventions, Formats, and Scope ....................................................................................x
How to Use This Manual .................................................................................................. xi
How to Print This Manual ................................................................................................. xi
Revision History ................................................................................................................xii
Chapter 1
Configuring Your ReadyNAS

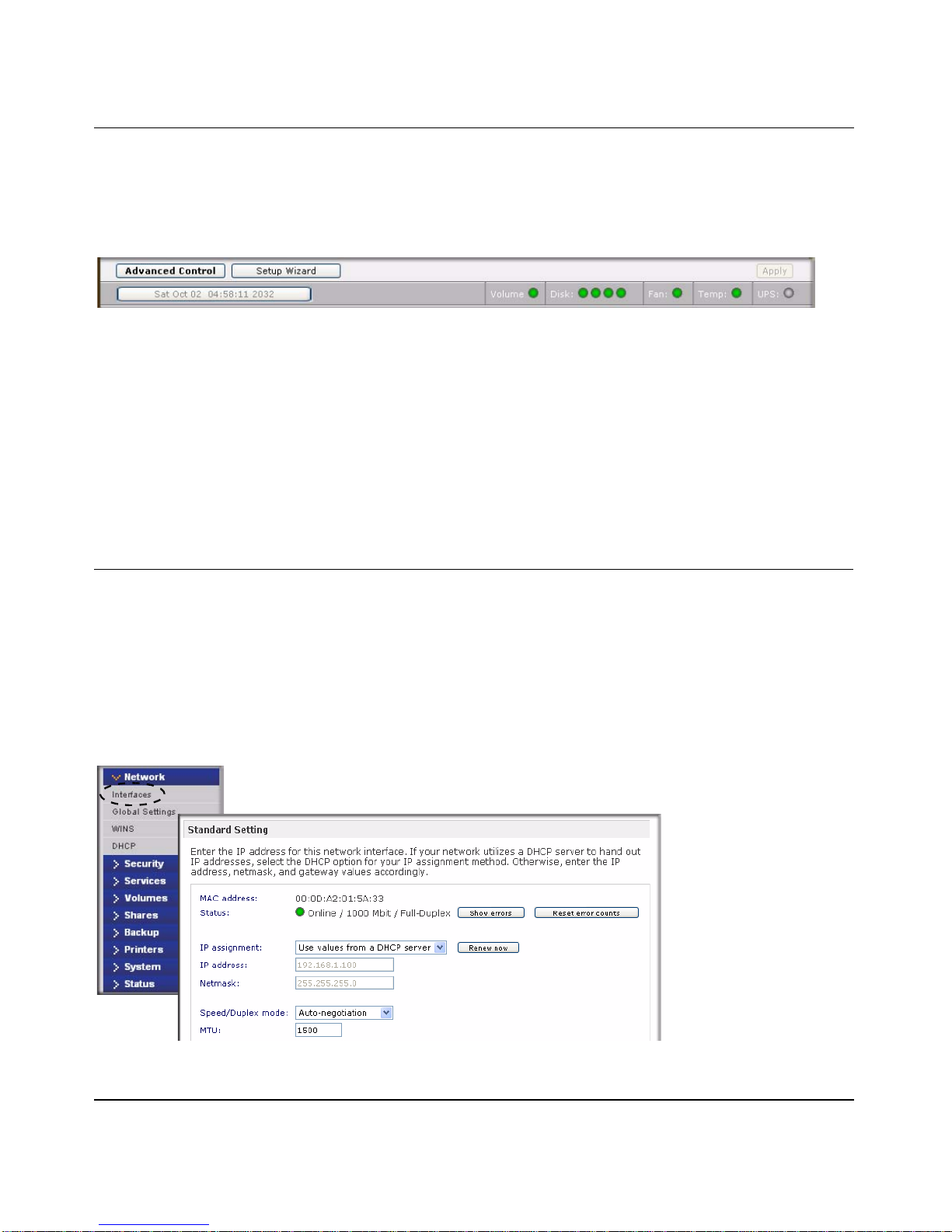

Specifying Your Ethernet Connection Settings ...............................................................1-2
Global Network Settings ...........................................................................................1-5
WINS ........................................................................................................................1-6
DHCP .......................................................................................................................1-7
Setting Up Security .........................................................................................................1-7
Admin Password ......................................................................................................1-7
Security Mode ..........................................................................................................1-8
Setting Up User and Group Accounts ....................................................................1-13
Selecting Services for Share Access ............................................................................1-17
Standard File Protocols ..........................................................................................1-18
Streaming Services ................................................................................................1-19
Discovery Services .................................................................................................1-21
Understanding Volume Management ...........................................................................1-21
Volume Management for Flex-RAID ......................................................................1-22
Volume Management for X-RAID ...........................................................................1-26
Changing between X-RAID and Flex-RAID Modes ................................................1-28
Snapshots ..............................................................................................................1-28
USB Storage ..........................................................................................................1-31
Managing Your Shares .................................................................................................1-33
Adding Shares ........................................................................................................1-34
Managing Shares ...................................................................................................1-35

vi Contents
v1.0, October 2007
USB Shares ...........................................................................................................1-41
Configuring Backup Jobs ..............................................................................................1-42
Adding a New Backup Job .....................................................................................1-43
Viewing the Backup Schedule ................................................................................1-48
Programming the Backup Button ...........................................................................1-49
Viewing the Backup Log .........................................................................................1-49
Editing a Backup Job .............................................................................................1-50
Setting Up Printers .......................................................................................................1-50
Print Shares over CIFS/SMB .................................................................................1-50
IPP Printing ............................................................................................................1-51
Managing Print Queues .........................................................................................1-51
Managing Your ReadyNAS System ..............................................................................1-52
Clock ......................................................................................................................1-52
Alerts ......................................................................................................................1-53
Performance ...........................................................................................................1-56
Language ...............................................................................................................1-59
Updating ReadyNAS ..............................................................................................1-60
Power Management ...............................................................................................1-62
Shutdown ...............................................................................................................1-64
Chapter 2
Accessing Shares from Your Operating System
Windows .........................................................................................................................2-1
MAC OS X ......................................................................................................................2-2
AFP over Bonjour .....................................................................................................2-3
AFP over AppleTalk ..................................................................................................2-4
MAC OS 9 ......................................................................................................................2-6
Linux/Unix .......................................................................................................................2-7
Web Browser ..................................................................................................................2-8
FTP/FTPS .....................................................................................................................2-11
Rsync ............................................................................................................................2-12
Networked DVD Players and UPnP AV Media Adapters ..............................................2-13
Chapter 3
Maintenance and Administration
Viewing System Status ...................................................................................................3-1
Health .......................................................................................................................3-1

Contents vii
v1.0, October 2007
Logs .........................................................................................................................3-2
Replacing a Failed Disk ..................................................................................................3-3
Ordering a Replacement Disk ..................................................................................3-3
Replacing a Failed Disk on the ReadyNAS NV+ .....................................................3-3
Replacing the Failed Disk on the ReadyNAS 1100 ..................................................3-4
Replacing the Failed Disk on the ReadyNAS 600/X6 ..............................................3-5
Resynchronizing the Volume ..........................................................................................3-6
Resetting Your System (System Switch) ........................................................................3-6
Configuring RAID on the ReadyNAS 1100 and NV+ ......................................................3-7
Backing Up the ReadyNAS to a USB Drive ....................................................................3-9
ReadyNAS1100 Backup .........................................................................................3-10
ReadyNAS NV+ Backup ........................................................................................3-10
Removing the System Module from the ReadyNAS 1100 ............................................3-11
Changing User Passwords ...........................................................................................3-11
Appendix A
RAID Levels Simplified
RAID Level 0 ................................................................................................................. A-1
RAID Level 1 ................................................................................................................. A-1
RAID Level 5 ................................................................................................................. A-2
RAID Level X (X-RAID) ................................................................................................. A-2
Appendix B
Input Field Format
Appendix C
Glossary
Index

viii Contents
v1.0, October 2007

ix
v1.0, October 2007
About This Manual
Congratulations on your purchase of a ReadyNAS Network Attached Storage system from
NETGEAR, Inc. If you have not already done so, please read the printed Installation Guide
provided with your product and the ReadyNAS Setup Manual on the Installation CD.
The ReadyNAS Setup Manual takes you step-by-step through the FrontView Setup Wizard and
quickly prepares the ReadyNAS for your network. The NETGEAR® ReadyNAS User Guide
explains each of the available options in detail, including many of the advanced options not
described during the Setup Wizard process. The manual includes:
Chapter 1, “Configuring Your ReadyNAS,” describes all the menus and tabs available in the
FrontView Advanced Control mode.
Chapter 2, “Accessing Shares from Your Operating System.” If you have already configured the
ReadyNAS and you need help in accessing the shares on the ReadyNAS, skip to this chapter.
Chapter 3, “Maintenance and Administration”:
• If a disk fails, learn about the proper procedure for replacing the failed disk in “Replacing a
Failed Disk.”
• If you need to reinstall the firmware or reset the system back to the factory default
configuration, see “Resetting Your System (System Switch)” for an explanation of both.
•“Changing User Passwords” covers users other than administrators can access FrontView to
change their password.
Appendix A, “RAID Levels Simplified,” explains the RAID levels that the ReadyNAS supports.
Appendix B, “Input Field Format,” covers questions on what constitutes a valid input for
hostname, workgroup, or password.
Appendix C, “Glossary,” provides definitions for some of the technical terminologies used in this
document.

NETGEAR ReadyNAS User Guide
xAbout This Manual
v1.0, October 2007
Conventions, Formats, and Scope
The conventions, formats, and scope of this manual are described in the following paragraphs:
•Typographical Conventions. This manual uses the following typographical conventions:
•Formats. This manual uses the following formats to highlight special messages:
•Scope. This manual is written for the ReadyNAS according to these specifications:
Italic Emphasis, books, CDs, file and server names, extensions
Bold User input, IP addresses, GUI screen text
Fixed Command prompts, CLI text, code
italic URL links
Note: This format is used to highlight information of importance or special interest.
Tip: This format is used to highlight a procedure that will save time or resources.
Warning: Ignoring this type of note might result in a malfunction or damage to the
equipment.
Danger: This is a safety warning. Failure to take heed of this notice might result in
personal injury or death.
Product Version 1.0
Manual Publication Date October 2007

NETGEAR ReadyNAS User Guide
About This Manual xi
v1.0, October 2007
How to Use This Manual
The HTML version of this manual includes the following:
• Buttons, and , for browsing forward or backward through the manual one page
at a time.
• A button that displays the table of contents and a button that displays an index.
Double-click on a link in the table of contents or index to navigate directly to where the topic
is described in the manual.
• A button to access the full NETGEAR, Inc. online knowledge base for the product
model.
• Links to PDF versions of the full manual and individual chapters.
How to Print This Manual
To print this manual, you can choose one of the following options, according to your needs.
•Printing a page from HTML. Each page in the HTML version of the manual is dedicated to
a major topic. Select File > Print from the browser menu to print the page contents.
•Printing from PDF. Your computer must have the free Adobe Acrobat Reader installed for
you to view and print PDF files. The Acrobat Reader is available on the Adobe website at
http://www.adobe.com.
– Printing a PDF chapter. Use the PDF of This Chapter link at the top left of any page.
• Click the PDF of This Chapter link at the top left of any page in the chapter you want
to print. The PDF version of the chapter you were viewing opens in a browser
window.
• Click the print icon in the upper left corner of your browser window.
–Printing a PDF version of the complete manual. Use the Complete PDF Manual link
at the top left of any page.
• Click the Complete PDF Manual link at the top left of any page in the manual. The
PDF version of the complete manual opens in a browser window.

NETGEAR ReadyNAS User Guide
xii About This Manual
v1.0, October 2007
• Click the print icon in the upper left corner of your browser window.
Revision History
Tip: If your printer supports printing two pages on a single sheet of paper, you can
save paper and printer ink by selecting this feature.
Part Number Version
Number Date Description
202-10320-01 1.0 Oct. 2007 First publication

1-1
v1.0, October 2007
Chapter 1
Configuring Your ReadyNAS
The FrontView Advanced Control mode shows all of the settings available in the Setup Wizard
plus some more advanced features. The basic network settings and other, optional, more advanced
features are included in this chapter.

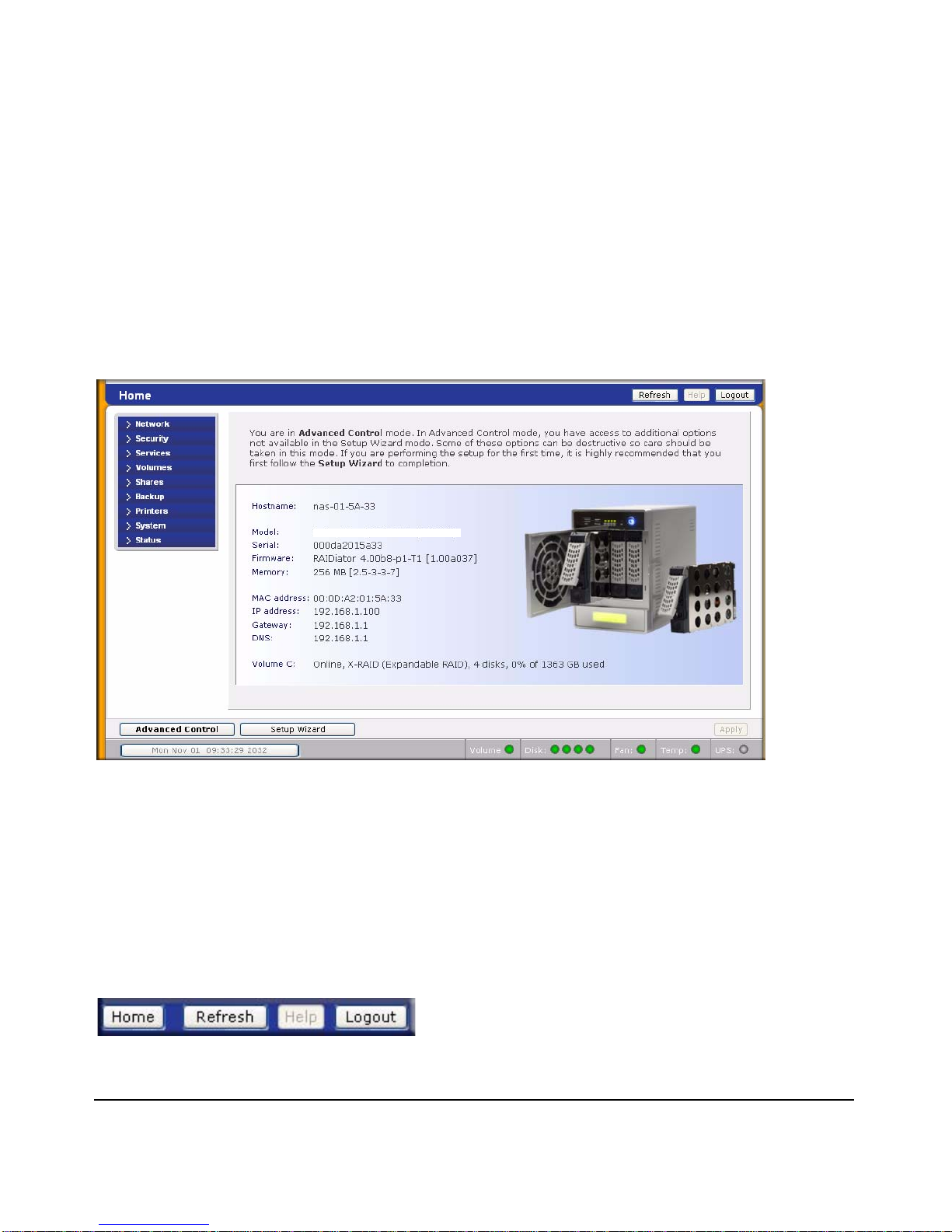

When you first switch to this mode, you see the menus on the left that allow you to quickly jump to
the screen you want.
As you click the menu buttons, you notice a similar theme across all screens. At the top right
corner is the command bar that typically provides options to return to the Home screen, refresh the
browser window, display Help where available, or to log out of this session. For security reasons,
Logout acts only as a reminder to close the current browser session, which is necessary to securely
log out.
,.
Figure 1-1
Figure 1-2
NETGEAR ReadyNAS NV+ [X-RAID]

NETGEAR ReadyNAS User Guide
1-2 Configuring Your ReadyNAS
v1.0, October 2007
Toward the bottom left, there are two buttons that allow you to switch back and forth between the
Setup Wizard mode and the Advanced Control mode. At the bottom of the screen is the status bar
including the date button on the left which, which clicked, links you to the Clock screen. The
status lights to the right give a quick glimpse of the system device status.
Move the mouse pointer over the status light to display device information, or click a status light to
display the status in more detail. Above the Status Lights is the Apply button. Use this to save any
changes on the current screen.
You can access your Network settings by selecting Network from the main menu. From the
Network menu, you can then navigate to your basic network settings screens such as Interfaces,
Global Settings, WINS and DHCP.
Specifying Your Ethernet Connection Settings
Select Network > Interfaces, and then select the Ethernet tab to specify network interface-specific
settings for Standard Settings, VLAN Settings and Performance Settings.
In the Standard Setting section, you can specify the IP address, network mask, speed/duplex
mode, and MTU settings. In most networks where a DHCP server is enabled, you can simply
specify the Use values from a DHCP server option to automatically set the IP address and
network mask.
Figure 1-3
Figure 1-4

NETGEAR ReadyNAS User Guide
Configuring Your ReadyNAS 1-3
v1.0, October 2007
• IP Assignment. Select either Use values from a DHCP server or Use values below.
– If you elect to assign the IP address using Use values from a DHCP server, NETGEAR
advises that you set the lease time on the DHCP server/router to a value of at least a day.
Otherwise, you might notice that the ReadyNAS IP address changes even when
ReadyNAS has been powered down for only a few minutes. Most DHCP servers allow
you to assign a static IP address for specified MAC addresses. If you have this option, this
would be a good way to ensure your ReadyNAS maintains the same IP address even in
DHCP mode.
– If you assign a static IP address by selecting Use values below, be aware that the browser
will lose connection to the ReadyNAS device after the IP address has been changed. To
reconnect after assigning a static IP address, open RAIDar and click Rescan to locate the
device, and then reconnect.
•Speed/Duplex Mode. If you have a managed switch that works best if the devices are forced
to a particular speed or duplex mode, you can select the setting you want. NETGEAR advises
that you keep the setting in an Auto-negotiation mode otherwise.
•MTU. In some network environments, changing the default MTU value can fix throughput
problems. NETGEAR advises that you leave the default setting otherwise.
In the VLAN Settings (Virtual Local Area Network) area, you can specify whether to allow
devices residing on different segments of a LAN to appear in the same segment or, conversely, to
allow devices on the same switch to behave as through they belong to a different LAN.
Figure 1-5
Figure 1-6
Figure 1-7

NETGEAR ReadyNAS User Guide
1-4 Configuring Your ReadyNAS
v1.0, October 2007
If you wish to use the ReadyNAS in a VLAN environment, select the Enable VLAN support
check box, and enter a numeric VLAN tag. You need to reboot the ReadyNAS for the VLAN
function to take effect.
In the Performance Setting area, the Enable jumbo frames option allows you to optimize the
ReadyNAS for large data transfers such as multiple streams of video playback. Select this option if
your NIC and your gigabit switch support jumbo frames.
If your ReadyNAS device comes with multiple Ethernet interfaces, you will see a separate
configuration tab for each interface.
Warning: Do not enable VLAN support unless you are sure that your clients also
support VLAN. Otherwise, you can lose network access to the ReadyNAS,
and you might need to reinstall the firmware to disable the VLAN setting.
Note: The ReadyNAS supports a 7936 byte frame size, so for optimal performance, a
switch capable of this frame size or larger should also be used.
Figure 1-8

NETGEAR ReadyNAS User Guide
Configuring Your ReadyNAS 1-5
v1.0, October 2007
Global Network Settings
Hostname
The Hostname you specify is used to advertise the ReadyNAS on your network. You can use the
hostname to address the ReadyNAS in place of the IP address when accessing the ReadyNAS from
Windows, or over OS X using SMB. This is also the name that appears in the RAIDar scan list.
The default hostname is nas- followed by the last three bytes of your primary MAC address.
Default Gateway
The Default Gateway specifies the IP address of the system where your network traffic is routed if
the destination is outside your subnet. In most homes and smaller offices, this is the IP address of
the router connected to the cable modem or your DSL service.
If you selected the DHCP option in the Ethernet or Wireless tab, the Default Gateway field is
automatically populated with the setting from your DHCP server. If you selected the Static option,
you can manually specify the IP addresses of the default gateway server here.
Figure 1-9

NETGEAR ReadyNAS User Guide
1-6 Configuring Your ReadyNAS
v1.0, October 2007
DNS Settings
The DNS area allows you to specify up to three Domain Name Service servers for hostname
resolution. The DNS service translates host names into IP addresses.
If you selected the DHCP option in the Ethernet or Wireless tab, the Domain Name Server fields
are automatically populated with the DNS settings from your DHCP server. If you selected the
Static option, you can manually specify the IP addresses of the DNS servers and the domain name
here.
WINS
The WINS option allows you to specify the IP address of the WINS (Windows Internet Naming
Service) server. A WINS server is typically a Windows server on the network that allows the
ReadyNAS or other devices on the network to be browsed from other subnets.
If you do not have an existing WINS server, you can designate the ReadyNAS to be one. Simply
select the Become a WINS server check box, and configure your Windows PC to specify the
ReadyNAS IP address as the WINS server. This can be useful if you wish to browse by hostname
across multiple subnets (for example, over VPN).
Figure 1-10

NETGEAR ReadyNAS User Guide
Configuring Your ReadyNAS 1-7
v1.0, October 2007
DHCP
The DHCP tab allows you to specify this device as a DHCP (Dynamic Host Configuration
Protocol) server. DHCP service simplifies management of a network by dynamically assigning IP
addresses to new clients on the network.
Select the Enable DHCP service check box if you want the ReadyNAS device to act as a DHCP
server. This is convenient in networks where DHCP service is not already available.
Setting Up Security
The Security tab allows you to set the administrator password, administer security, and set up the
password recovery feature on the ReadyNAS.
Admin Password
The Admin Password tab allows you to change the administrator user password. The administrator
user is the only user that can access FrontView, and this user has administrative privileges when
accessing shares. Be sure to set a password different from the default password, and make sure that
Figure 1-11
Note: These options are available only if this device is not already using a DHCP address.
Enabling DHCP service on a network already utilizing another DHCP server will
result in conflicts. If you wish to use this device as a DHCP server, make sure to
specify static addresses in the Ethernet and DNS tabs.

NETGEAR ReadyNAS User Guide
1-8 Configuring Your ReadyNAS
v1.0, October 2007
this password is kept in a safe place. Anyone who obtains this password can effectively change or
erase the data on the ReadyNAS.
As a safeguard, you are requested to enter a password recovery question, the expected answer, and
an e-mail address. If, in the future, you forget the password, you can go to
https://<ReadyNAS ip_address>/password_recovery. Successfully answering the questions there
resets the Admin Password, and that new password is sent to the e-mail address you enter on this
screen.
Security Mode
The ReadyNAS device offers three security options for your network environment. Select the most
appropriate option based on the required level of security and your current network authentication
scheme.
Figure 1-12
Note: In User or Domain security mode, you can use the admin account to log in to a
Windows share, and perform maintenance on any file or folder in that share. The
admin user also has permission to access all user private home shares to perform
backups.
Figure 1-13
