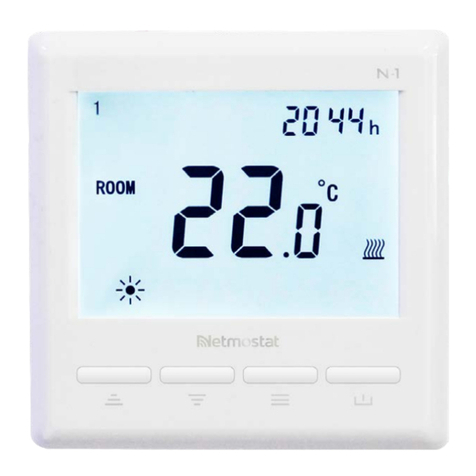

Netmostat N-1 User manual

netmostat.com
Long press button for 5 seconds,
1. press and to adjust the clock (min-hour-weekday), each press of will go into next time setting
2. after clock adjustment, press to 5+1+1 mode setting. By pressing and you can set the desired time and temperature of each
period. (Weekday- period- time- temp.) Each press of button will go into next item setting.
smart thermostat
Day Indicator
Comfort Mode
Clock
Temp. display
Heating icon
Period Icons
Energy-saving Mode
PRG Mode
Increase temperature
Decrease temperature Modes & Parameter
Power On / Off
SETTING COMFORT MODE AND ENERGY-SAVING MODE
Switch between modes using the button.
1. Choosing the Comfort Mode you may assing temperature using or buttons.
2. Choosing the Energy-saving Mode you may assing temperature using or buttons.
WIFI CONNECTION
Please scan the QR code for detailed instruction
or visit netmostat.com/connnection
CLOCK & 5+1+1 PRG SETTING
PRG function allows you to set different temperatures throughout the day. For example, you may want the home warm in the morning, cooler
when you leave your home for the day, and then warmer in the evening when you return home. The thermostat offers 5+1+1 programming option,
four different temperature levels for each day. Default comfort levels are pre-programmed; still you can change them easily with the following
method:
DEFAULT VALUES
Period Wake up Leave Home Return Home Sleep
Time Temp. Time Temp. Time Temp. Time Temp.
1-5 (Mon.-Fri.) 7:00 22°C 8:30 19°C 17:00 22°C 22:00 19°C
6 (Sat.) 8:00 22°C 8:30 22°C 17:00 22°C 22:00 19°C
7 (Sun.) 8:00 22°C 8:30 22°C 17:00 22°C 22:00 19°C
netmostat.com

netmostat.com
PARAMETER SETTINGS
Under power o mode, to access or modify parameter settings , please long press and buttons simultaneously for ~8 seconds until
the MENU appear showing 01 which is menu 1. Each press of the button will go to the next MENU.
Menu Description Range Default
01 Temp. Offset -8°C ~ 8°C 0
02 Set Point Max. 5°C ~ 80°C 35°C
03 Set Point Min. 5°C ~ 80°C 5°C
04 Sensor Select
ROOM
FLOOR
ROOM + FLOOR
05 Frost Protection Temp. 5°C ~15°C 5°C
06 Surface Temp. Display Read Only
07 High Temp. Protection 20°C ~
80°C 32°C
11 Reset rE (Yes)
12 Key lock 0 - off, 1 - on 0
14 OWD function ON/OFF select 0 - off, 1 - on 0
15 OWD Detect Time Select 2 ~ 30 mins 15 mins
16 OWD Drop temp. select (within detect time) 2 / 3 / 4°C 2°C
17 OWD Delay time select (Return to previous working
status) 10 ~ 60 mins 30 mins
18 The temp. diff to exit high protection mode 1°C ~ 3°C 1°C
19 External sensor temp. offset -8°C ~ 8°C 0
20 Energy optimisation 1: electric radiator 3: ceiling heating
2: heating panel 4: oor heating 1
22 Software version
WIRING DIAGRAM
MOUNTING
SPECIFICATION
Operating voltage: 230V AC, 50/60 Hz
Capacity: 3600W/16A
Standby consumption: 0.5W
Display: LCD White backlight
External Sensor: NTC 10kΩ @ 25°C
IP protection rating: IP 30
Housing: White ABS to UL94-5 re standard
Temperature settings: 5°C–80°C, 0.5°C
Accuracy: ± 0.5°C
PRG options: 5+1+1, four cycles each day
Housing dimensions: 86 mm × 88 mm × 18 mm
Relay inst. dimensions: Ø 65 mm diameter, standard
KEY-LOCK FUNCTION
In order to avoid unauthorised access (hotels, public areas, child room) you can activate the key lock function from parameter settings page 12. To
unlock your device long press the and buttons for ~5 seconds.
Electrical box recessed
into the wall
(65x 55mm) horizontal
screw locations
3600W / 16A
(heating)
external
sensor
230V / AC
