netta M0E-19ET-410 User manual

20V Pole Hedge
Trimmer
---------------------------------------------------------
EN USER INSTRUCTION & OPERATION MANUAL
ES MANUAL DE INSTRUCCIONES Y OPERACIONES PARA EL
USUARIO
DE BENUTZERANLEITUNG & BETRIEBSANLEITUNG
FR MANUEL D'UTILISATION ET D'UTILISATION
IT ISTRUZIONI PER L'USO E MANUALE OPERATIVO
BATTERY
TYPE
Lithium-ion
RATED
POWER
20V
CHARGE TIME
1-hour approx.
NO-LOAD
SPEED
1200/min
EN

Thank you for purchasing this NETTA product.
Please read the user manual carefully before operating this appliance.
We will update our instruction manuals if necessary.
For the most up-to-date user manual, please visit our official website:
www.nettadirect.com.
You can download a copy of up to date user manuals at any time in
electronic format. We do not supply you with a paper-based user
manual after each revision.
Require a larger version of this
Instruction Manual?
Please download electronically from
our website and use PDF reader on
your device to enlarge the text if
needed.
www.nettadirect.com

SAFETY & WARNINGS
INTENDED USE
NETTA Design is for domestic and indoor
use only. This product is not intended for
use by people who have lack of experience
and knowledge or have reduced ability, or
sensory and metal capabilities. Keep
supervised when groups of people use this
item.
REGULAR CHECKUPS
•Check cables every time
before plugging into a
socket, make sure power
cables are not burst or
snapped and that the power-
plug has no damage.
•Check all the knobs are
functioning correctly.
GENERAL CAUTIONS
•Always follow this instruction manual and go through all the safety
checks.
•This is not toy - do not let children play with it.
•DO NOT modify this product in any way.
•Keep work areas clean and well lit.
•Do not operate tools in explosive atmospheres.
•Before using an electric powered appliance, check the rating label and
voltage information on this manual, or the rating label on back of the
machine.
•Always connect the device to a socket with Residual Current Device
(RCD) fitted with your home circuits.
•If you are unsure, please seek a certified election for advice.
•The appliance must not be immersed in liquid.
•Do not use power tools in wet or damp conditions.
•Do not overload your power tools. Match each tool to the task.
•Do not use any power tool if the on/off switch is damaged.
•Check that the moving parts of your tool operate smoothly and are not
cracked or damaged.

RISK OF PERSONAL INJURY
.
•DO NOT use the appliance other than for the intended use.
•Use personal protective equipment. Always use eye protection.
•Use ear protection.
•Do not wrap the device in a cloth or other material to suppress
noise. This will hinder the proper ventilation of the device. This
could ignite a fire and cause burns.
•Wear soft gloves when using this tool to prevent discomfort.
•Hold the power tool firmly to reduce the vibration levels.
•Ensure the switch is in the off position before connecting to a power
source, picking up or carrying the tool.
•Remove any adjusting keys or wrenches before turning the tool on.
•Do not overreach. Keep proper balance at all times.
•Do not wear loose clothing or jewellery.
•Take a break if you feel vibration-related discomfort.
•DO NOT operate any appliance with a damaged cord or plug or
after the appliance malfunctions or is dropped or damaged in any
manner. Return appliance to the nearest authorized service facility
for examination, repair or electrical or mechanical adjustment.
•If the supply cord is damaged it must be replaced by the
manufacturer or an authorized service agent or a qualified
technician in order to avoid a hazard.
•The use of accessories is not recommended by the manufacturer
as they may cause injuries to persons.
•Do not let the cord hang over the edge of a table or counter or
touch a hot surface.
•Do not place on or near a hot gas or electric burner or in a heated
oven.
•Unplug from outlet when not in use and before cleaning.

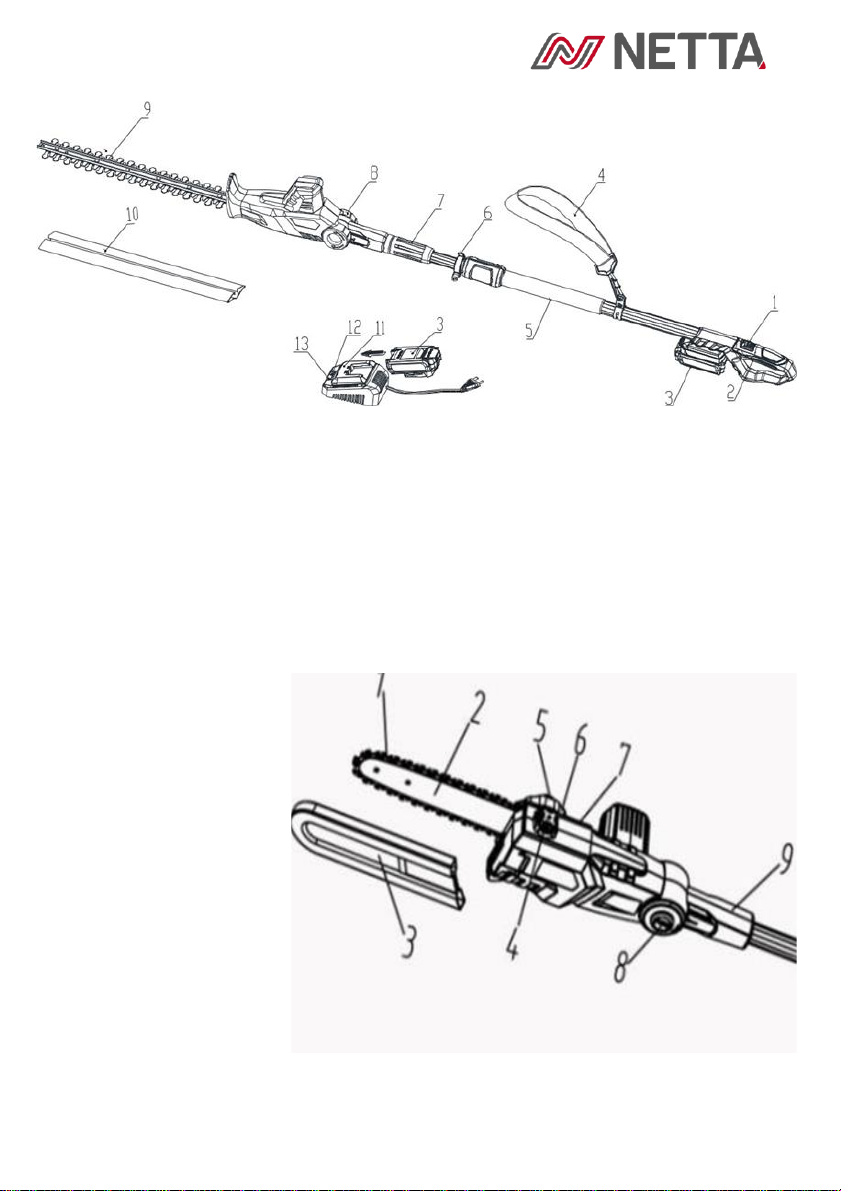

1. Saw Chain
2. Guide Bar
3. Scabbard
4. Cap
5. Tension Wheel
6. Adjusting
Wheel
7. Sprocket
Cover
8. Button
9. Connecting
Rod
1. Lock-off Button 2. Main Switch Handle 3. Battery Pack
4. Strap Guard 5. Sponge 6. Locker 7. Lock Nut
8. Lock Button 9. Blade 10. Blade Sheath 11. Switch Trigger
12. Battery Pack 13. Battery Charger

OPERATING THE PRODUCT
Removing or Installing Battery Pack

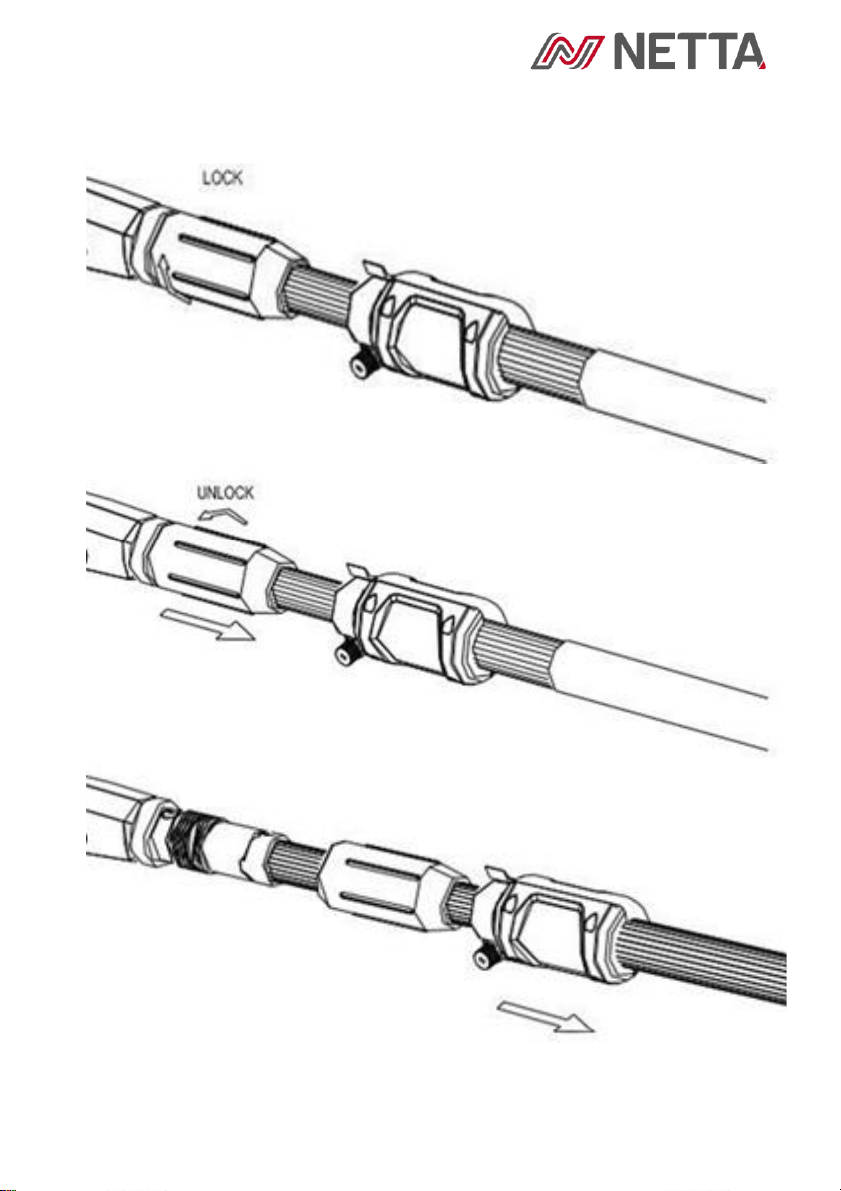

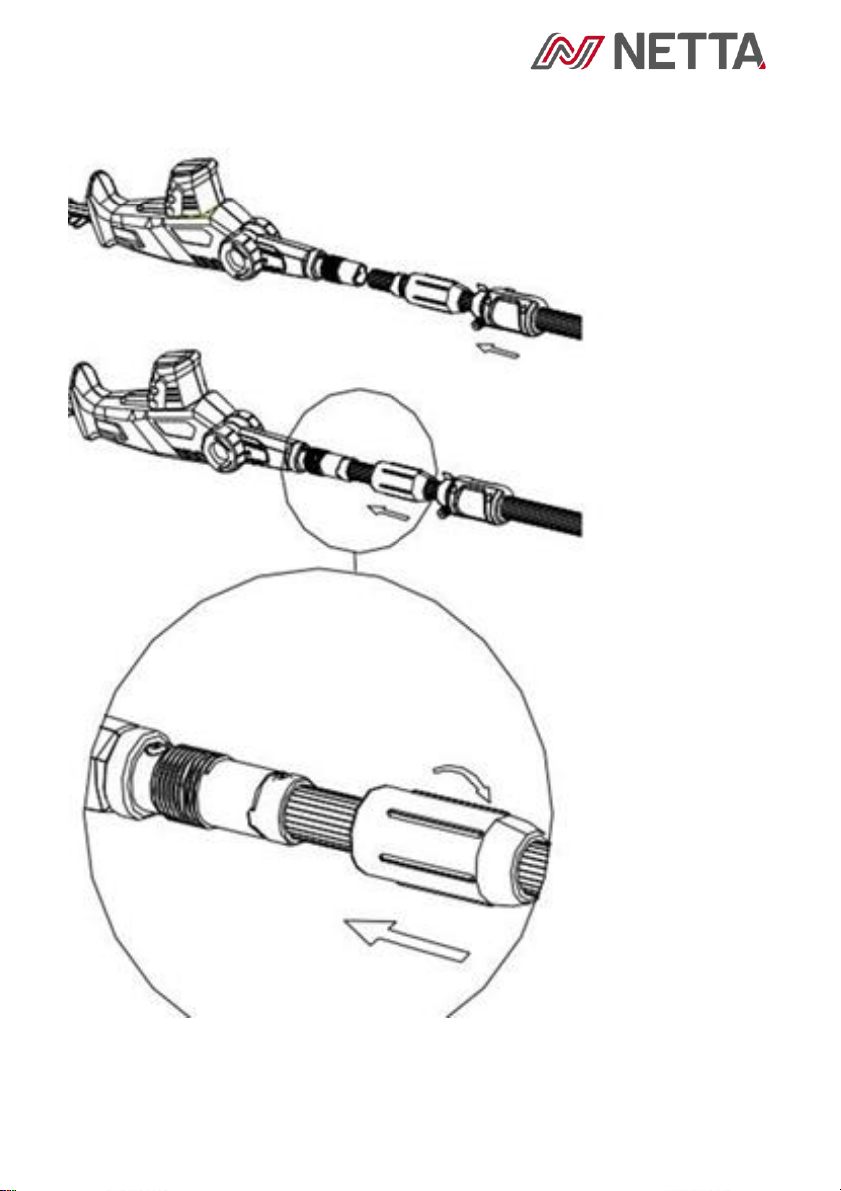

Extending the Pole

Extending the Pole

Extending the Pole

Proper Use
This tool has been designed for cutting lawns, small areas of grass,
bushes, and small hedges in private gardens.
This tool is not suitable for use in public facilities, parks, sports centres,
along roads, on farms or in the forestry sector.
Initial Operation
▪Insert battery pack into the bottom of the handle (until click)
▪Remove the battery pack by pressing the release buttons on the
battery pack at the same time by pulling the battery pack out.
To Change the Battery
▪Remove the battery pack from the tool.
▪Check that your mains voltage is the same as marked on the
rating plate of the battery charger.
▪Insert the charger pole to the battery charging hole.
▪Connect the charger plug to the house socket.
▪The temperature of the battery may rise slightly during the
charging operation. This is normal.
▪Timely recharging of the NC battery will help it serve you well for
a long time. Recharging is always necessary when you notice a
drop in the tool’s performance.
▪Never allow the battery to become fully discharged as this may
result in a defective battery.
▪Only use the battery charger in dry rooms.

Adjusting the Cutting Length
▪Lift the knob on the coupler
▪Pull the lower shaft until it is in a comfortable position.
▪Tighten the knob securely.
▪If the button does not release completely in the positioning hole,
the shafts are not locked into place. Slightly rotate from side to
side until the button is locked into place.
▪Be certain the knob is fully tightened before operating equipment,
check it periodically for tightness during use to avoid serious
personal injury.
Starting and Stopping the Pruner
▪To start the tool, press the lock button and press the trigger.
Release the lock button once the motor has started.
▪To stop the pruner, release the trigger.
▪To remove the battery, push the battery lock button.

FAULT
CAUSE
TROUBLE-
SHOOTING
The pruner runs
but is not cutting
The chain is fitted in
reverse on the
guide bar
Refer to the
assembly of guide
bar and chain
The pruner will cut
only if the speed is
high, result is only
chips with several
larger parts
The chain is blunt
Refer to the saw
chain sharpening
The motor runs but
the chain will not
Faulty sprocket
wheel.
Contact
[email protected]
No oil is supplied to
the change
1. Guide bar oil
tank plugged
2. Oil too thick
1. Remove the
guide bar and
clean the oil tank
2. Use the right oil
The chain gets
loose from the
guide bar
1. Chain
Slackened
2. Guide bar and
chain
misassembled
1. Tighten the
chain. See chain
tension set-up
2. See guide bar
and chain
installation.
The unit is smoking
The unit is faulty.
Do not use it.
Contact
[e-mail]
Oil leaking from the
unit
Oil tank cover not
closed
Tighten the oil tank
cover. Empty the oil
tank while the unit is
out of use.

SPARE PARTS/REPAIR
We hope our products will last as long as possible to reduce the build-up of
electrical waste in the world.
If any consumable parts need replacing, please check our website for stock
availability and purchase.
If our website does not have the parts listed, but you still need consumable
parts, please contact our customer support to check availability and process
your order.
To order replacement parts, please go to www.nettadirect.com/parts.
You will need PDC information from your product, user manual or carton box.
Alternatively, go to our website and use search bar to find the parts available.
You can also find this code on the back of this User Manual.
For our Repair Service, please contact our customer support with email on
[email protected] they will provide with more details of repair service
with NETTA.
DISPOSAL OF PRODUCT
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF
THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE
2002/96/EC.
DISPOSAL:
Please dispose of this product responsibly. This item
cannot be disposed of with general waste. Please contact
your local council authority for more information on how to
dispose this product. If this product is disposed of with
general waste, it will end up in a landfill and will leak
hazardous substances into the groundwater –effecting
our food chain.

YOUR WARRANTY
If you purchased with NETTADIRECT, or one of our authorised resellers, you
will automatically enrol your warranty for 1 (ONE) year. You do not need to
register again for your warranty. All warranties will be carry out our terms and
conditions include warranty conditions you will find out from our website at
www.nettadirect.com.
PLEASE NOTE: Consumable parts will not be covered by warranty. If a
consumable part needs replacing, you need purchase separately from our
website.
Please quote with your original proof of purchase (invoice) and name or
delivery address, postcode, so we can locate you when you contact us for
warranty.
NOTES:
You may need fill following details after your purchase.
I purchased this product with ____________________
(Name of Authorised Reseller/Distributor)
Purchase Date: ______/_______/_______
The order number from Authorised Reseller is:
Initial order delivery address is:
_________________________________
_________________________________
_________________________________

COPYRIGHTS
NETTA and its logo including images and contents in this manual and website
is copyrighted. All intellectual property rights belong to NETTA owner
CONSUMABLE DIRECT LIMITED.
ANY UNAUTHORISED USE, MODIFICATION or DISTRIBUTION of the
NETTA logo, website image, and its contents (from website, manuals) will
violate worldwide copyright, trademark, and associated laws.
We reserve the right to proceed with lawsuits to anyone who is found
breaching our copyrights policy. For more details, please check our website
copyright policy for more information.
PRODUCT DEPENDENCY CODE (PDC)
Your PDC is below:
NETTA is a registered trademark of CONSUMABLE DIRECT LIMITED.
Product Produced for CONSUMABLE DIRECT LIMITED M32 0JT U.K.
Printed in China
PDC:
M0E-19ET-410/460/510
SKU: 103398
