NetUP HDMI Encoder 8x User manual


NetUP HDMI Encoder 8x
User’s manual

NMS Version: 2.2.5
SW: 0.17F
HW: 0.8
August 10, 2015

CONTENTS
Chapter 1 Product Introduction ............................................................................................................. 1
1.1 Outline ................................................................................................................................................ 1
1.2 Main Features ................................................................................................................................... 1
1.3 Specifications .................................................................................................................................... 2
1.4 Principle Chart................................................................................................................................... 3
1.5 Appearance and Illustration ............................................................................................................ 3
Chapter 2 Installation Guide .................................................................................................................. 5
2.1 Acquisition Check ............................................................................................................................. 5
2.2 Installation Preparation .................................................................................................................... 5
2.3 Wire’s Connection ............................................................................................................................ 7
2.4 Signal Cable Connection................................................................................................................. 8
Chapter 3 Operation ............................................................................................................................. 11
3.1 Initializing ......................................................................................................................................... 11
3.2 General Setting ............................................................................................................................... 11
Chapter 4 SNMP Operation............................................................................................................... 21
4.1 Installation........................................................................................................................................ 22
4.2 Software Operation ........................................................................................................................ 22
4.3 NetUP HDMI Encoder 8x Operation............................................................................................ 28
4.4 Other Settings ................................................................................................................................. 37
Chapter 5 Troubleshooting .................................................................................................................. 41
Chapter 6 Packing list........................................................................................................................... 42

NetUP HDMI Encoder 8x User’s Manual
1/ 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
Chapter 1 Product Introduction
1.1 Outline
The NetUP HDMI Encoder 8x is our newest professional HD audio & video encoding and
multiplexing device with powerful functionality. It is equipped with 8 HDMI inputs
supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format and
1 ASI input. It can multiplex the ASI input TS and the 8 encoded SPTS to generate an
MPTS output with the inserted PSI/SI information. In conclusion, its high integrity and
cost-effective design, make this device widely used in variety of digital distribution
systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
1.2 Main Features
8 HDMI & 1 ASI inputs
H.264/AVC high profile level 4.0 video encoding
MPEG1 Layer 2 (HE-AAC (V2) or LC-AAC optional) audio encoding
PSI/SI editing and inserting
VBR or CBR video bitrate mode
720P, 1080I, 1080P HD video format
ASI output MPTS or 8 SPTS
IP Output MPTS and 8 SPTS
IP null packet filter
PID filter and transparent transport
Real-time output bit-rate monitoring
Update device through NMS port
LCD / keyboard operating, and network management (SNMP)

NetUP HDMI Encoder 8x User’s Manual
2/ 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
1.3 Specifications
Input 8 HDMI inputs
1 ASI input, BNC interface
Video
Resolution
1920×1080_60P, 1920×1080_50P
1920×1080_60i, 1920×1080_50i
1280×720_60P, 1280×720 _50P
720x576_50i, 720x480_59.95i
Encoding MPEG-4 AVC/H.264 high profile level 4.0
Bit-rate 0.8Mbps~19Mbps (each channel)
Rate Control CBR/VBR
GOP Structure IBBP
Advanced
Pretreatment De-interlacing, Noise Reduction, Sharpening
Audio
Encoding MPEG-1 Layer II, HE-AAC (V2), LC-AAC
Sampling rate 48KHz
Resolution 24 bit
Bit-rate 64Kbps~384Kbps each channel
Multiplexing 1 ASI input multiplexed with local 8 channels of TS
Stream output
2*ASI output, BNC interface
MPTS and 8 SPTS over UDP, 1000 Base-T Ethernet
interface (UDP unicast / multicast)
System function
LCD/keyboard operating, NMS supporting
Chinese-English control interface
Ethernet software & hardware upgrade
Miscellaneous
Dimension (W× L× H) 440mm×410mm×44.5mm
Approx weight 4kg
Temperature 0~45℃(work), -20~80℃（Storage）
Power AC 100V-220V±10%, 50/60Hz
Consumption 25W

NetUP HDMI Encoder 8x User’s Manual
3/ 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]

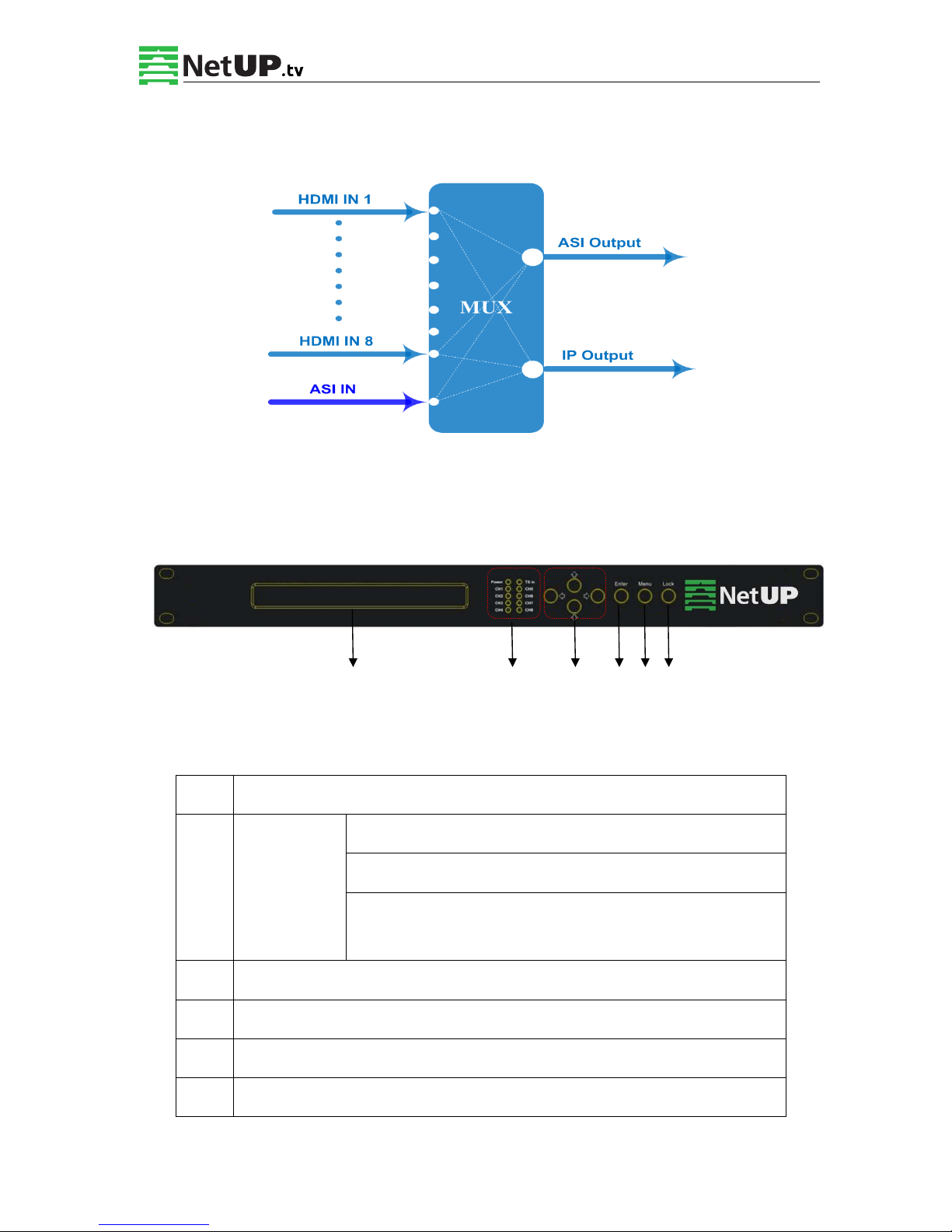

1.4 Principle Chart
1.5 Appearance and Illustration
Front Panel Illustration:
1 2 3 4 5 6
Indicate area: All indicators will light on when the device is on the current working state.
1 LCD Screen
2 Indicators
Power Indicator
TS In: Input Lock Indicator
CH1-CH8: When the program has been multiplexed, the
indicator will be on.
3 UP/ DOWN, LEFT/RIGHT Keys
4 Enter Key
5 Menu Key
6 Lock Key

NetUP HDMI Encoder 8x User’s Manual
4/ 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
Rear Panel Illustration:
1 2 3 4 5 6 7
1 8 * HDMI Input Ports
2 ASI Input Port
3 2 * ASI Output Ports
4 Data Port (for IP Signal Output)
5 NMS (Network Management Port)
6 Power Switch and socket
7 Grounding Pole

NetUP HDMI Encoder 8x User’s Manual
5/ 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
Chapter 2 Installation Guide
2.1 Acquisition Check
When opening the package, it is necessary to check the items according to the packing list.
Normally it should contain the following items:
NetUP HDMI Encoder 8x
User’s Manual
HDMI Cable
ASI Cable
Power Cord
If any item is missing or mismatching with the list above, please contact your local dealer.
2.2 Installation Preparation
When installing the device, please follow the steps below. The details of the installation process
will be described later in this chapter. One can also use the rear panel chart during the
installation.
This chapter describes:
Checking the possible device loss or damage during the transportation
Preparing relevant environment for installation
Installing the NetUP HDMI Encoder 8x
Connecting signal cables
Connecting communication port (if it is necessary)

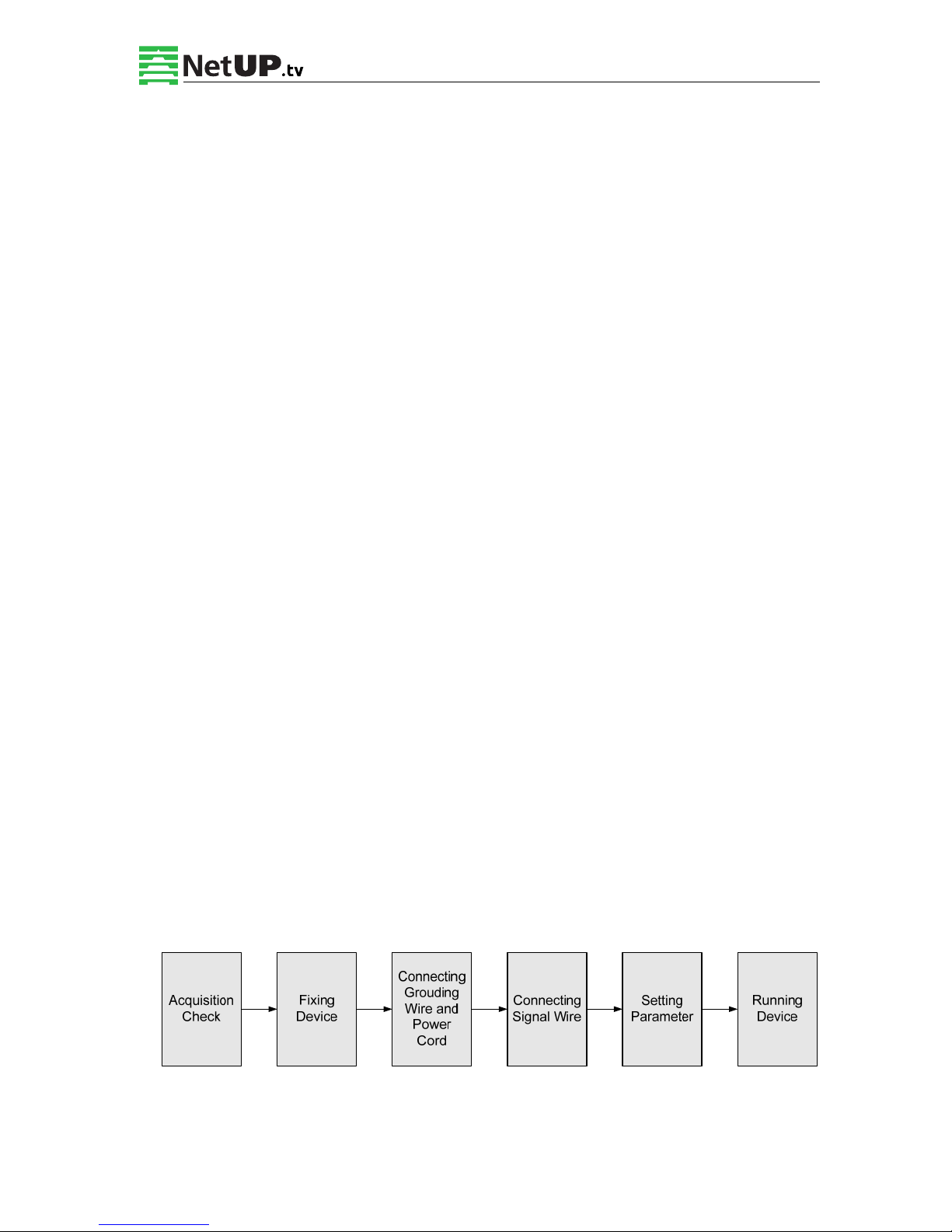

2.2.1 Device’s Installation Flow Chart：

NetUP HDMI Encoder 8x User’s Manual
6/ 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
2.2.2 Environment Requirements
Item Requirement
Machine Hall Space
When installing a machine frame array in one machine hall, the
distance between 2 rows of machine frames should be 1.2~1.5m
and the distance against wall should be no less than 0.8m.
Machine Hall Floor
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:
1X107~1X1010，Grounding current limiting resistance: 1M
(Floor bearing should be greater than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Humidity 20%~80% sustainable 10%~90% short time
Pressure 86~105KPa
Doors & Windows Install rubber strip for sealing door-gaps and dual level glasses
for window
Walls May be covered with wallpaper, or dark paint.
Fire Protection Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and lighting
power are independent to each other. Device power requires AC
power 220V 50Hz. Please carefully check before running.
2.2.3 Grounding Requirement
All function modules’ good grounding designs are the basis of reliability and stability of
electronic devices. It is the most important guarantee of surge protection and interference
rejection. Therefore, the system must be grounded.
Coaxial cable’s outer conductor and isolation layer should keep proper electric conducting
with the metal housing of device.
Grounding conductor must adopt copper conductor in order to reduce high frequency
impedance, and the grounding wire must be as thick and short as possible.
Make sure the 2 ends of grounding wire conduct electricity and are not rusty.
It is prohibited to use any other devices as a part of grounding electric circuit
The area of the conduction between grounding wire and device’s frame should be no less

NetUP HDMI Encoder 8x User’s Manual
7/ 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
than 25mm2.
2.2.4 Frame Grounding
All the machine frames should be connected with protective copper strip. The grounding wire
should be as short as possible and should avoid circling. The area of the conduction between
grounding wire and grounding strip should be no less than 25mm2.
2.2.5 Device Grounding
Connect the device’s grounding rod to frame’s grounding pole with copper wire.
2.3 Wire’s Connection
The grounding wire conductive screw is located at the right of the rear panel, and the power
switch, fuse, power supply socket are just beside ,whose order goes like this, power switch is
on the left ,power supply socket is on the right and the fuse is just between them.
Connecting the Power Cord:
Connect one end to the power supply socket, and the other end to the AC power.
Connecting Grounding Wire:
When the device solely connects to protective ground, it should adopt independent way,
say, share the same ground with other devices. When the device adopts united way, the
grounding resistance should be smaller than 1Ω.
Caution:
Before connecting power cord to the NetUP HDMI Encoder 8x, set the power
switch to “OFF” position.

NetUP HDMI Encoder 8x User’s Manual
8/ 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
2.4 Signal Cable Connection
The signal connections include the connection of input signal cable and the connection of
output signal cable. The details are as follows:

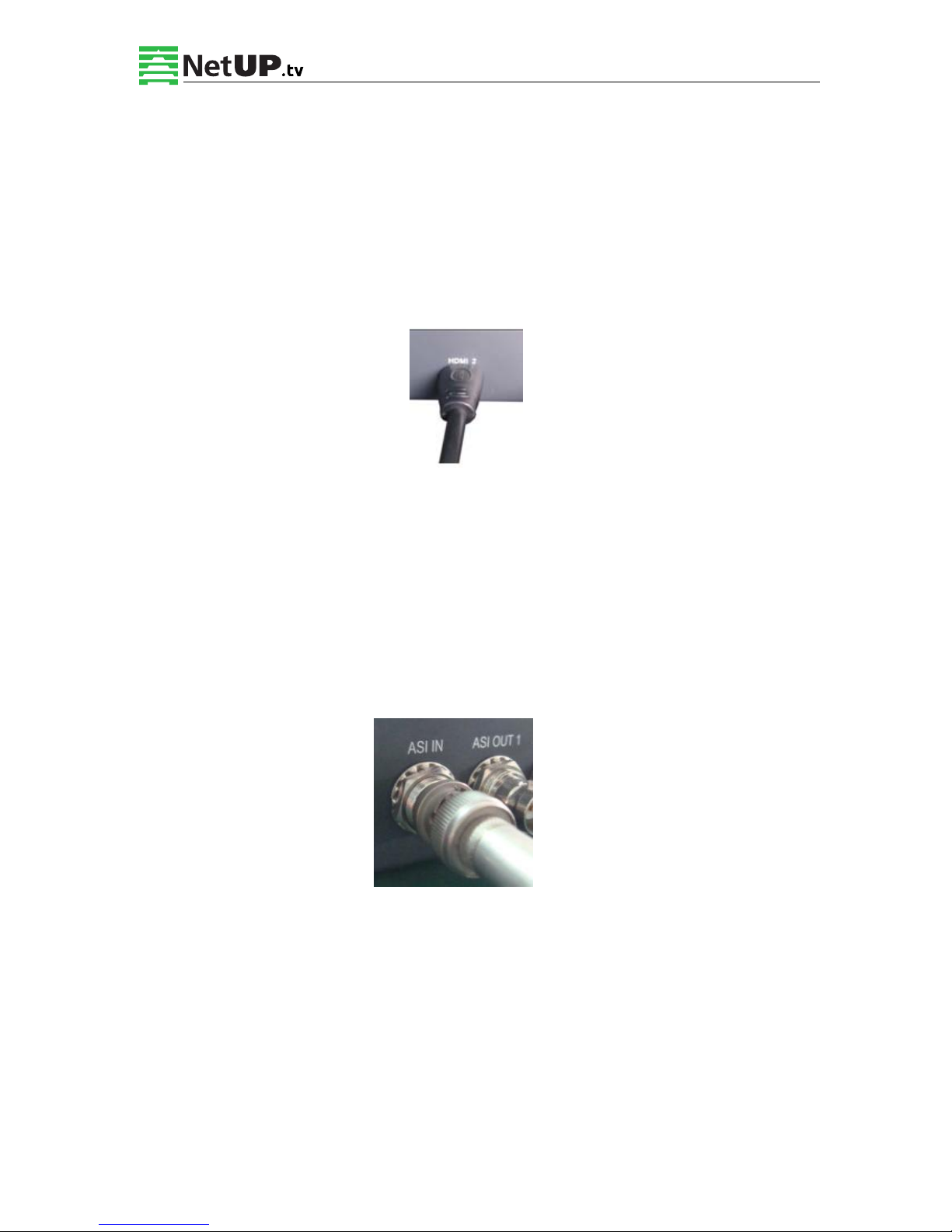

2.4.1 HDMI input cable illustration:
2.4.2 ASI output cable illustration:

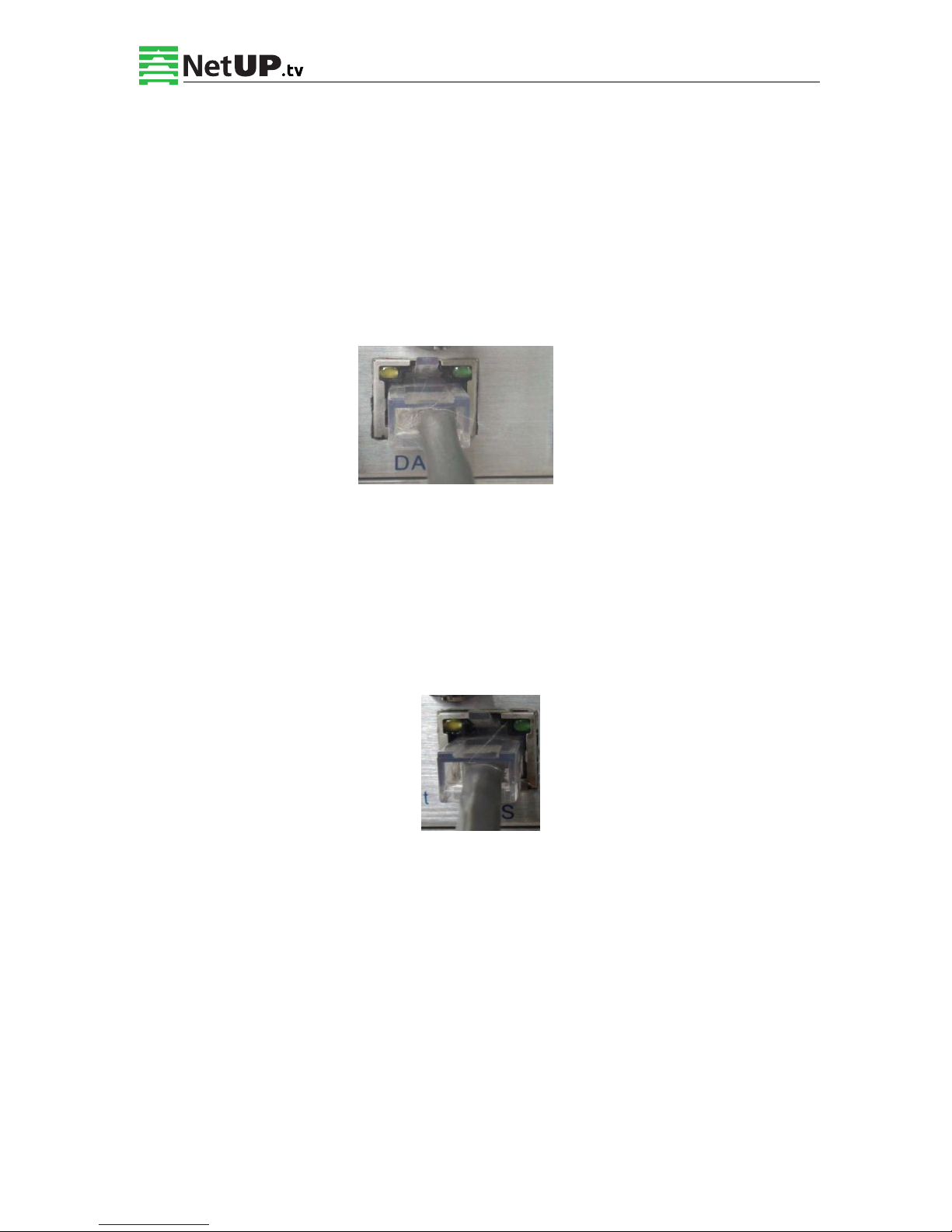

2.4.3 Network Cable illustration (CAT5):

NetUP HDMI Encoder 8x User’s Manual
9/ 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
2.4.4 HDMI input interface connection
Find the HDMI interface on the device according to the connector mark described on the rear
panel illustration, and then connect the HDMI cable (in the accessories). One end is connected
to the head-end equipment while the other end to the encoder’s HDMI input port. The
encoder’s HDMI input port (HDMI1…HDMI8) and an HDMI cable connected to it, illustrated
as follows:
2.4.5 ASI output interface connection
Find the ASI output interface on the device according to the connector mark described on the
rear panel illustration, and then connect the ASI cable (in the accessories). Connect one end to
the encoder’s ASI out connector (ASI1, ASI2) and the other end to the TS stream multiplexer or
modulator’s ASI input port. The encoder’s ASI output interface and a cable, connected to it,
illustrated as follows:

NetUP HDMI Encoder 8x User’s Manual
10 / 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
2.4.6 IP Output Interface connection
Find the DATA interface on the device according to the connector mark described on the rear
panel illustration, and then connect the network cable (CAT5). Connect one end of the network
cable to the encoder’s DATA output connector, and the other end to the TS stream multiplexer
IP input port or other device which can input IP signal (the IP input should support at least 1
Gb/s transmission rate). The encoder’s DATA interface connection is illustrated as follows:
2.4.7 NMS Connection
Find the NMS interface on the device according to the connector mark described on the rear
panel illustration, and then connect the network cable (CAT5). Connect one end of the network
cable to the encoder’s NMS connecter, and the other end to your PC. The encoder’s NMS
connection is illustrated as follows:

NetUP HDMI Encoder 8x User’s Manual
11 / 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
Chapter 3 Operation
NetUP HDMI Encoder 8x’s front panel has the user interface. Before operating, user can decide
whether directly use the default setting or customize the input and output parameters setting.
Here is a detailed description of these operations:
Keyboard Functions Description:
ENTER: Activates the parameters that need to be modified, or confirms the changes after
modification.
MENU: Cancels unsaved changes to currently selected value, resets to previous settings and
returns to previous menu.
LEFT/RIGHT: Moves the “►” to choose or set the parameters.
UP/DOWN: Modify activated parameter or page up/down when a parameter is not activated.
LOCK: Locks the screen / cancels the locked state. After pressing lock key, the system will ask
if you want to save the current changes. If not, the LCD will display the current configuration
state.
At the “Factory Configuration” page, press “ENTER” key to restore the factory default
configuration.
3.1 Initializing

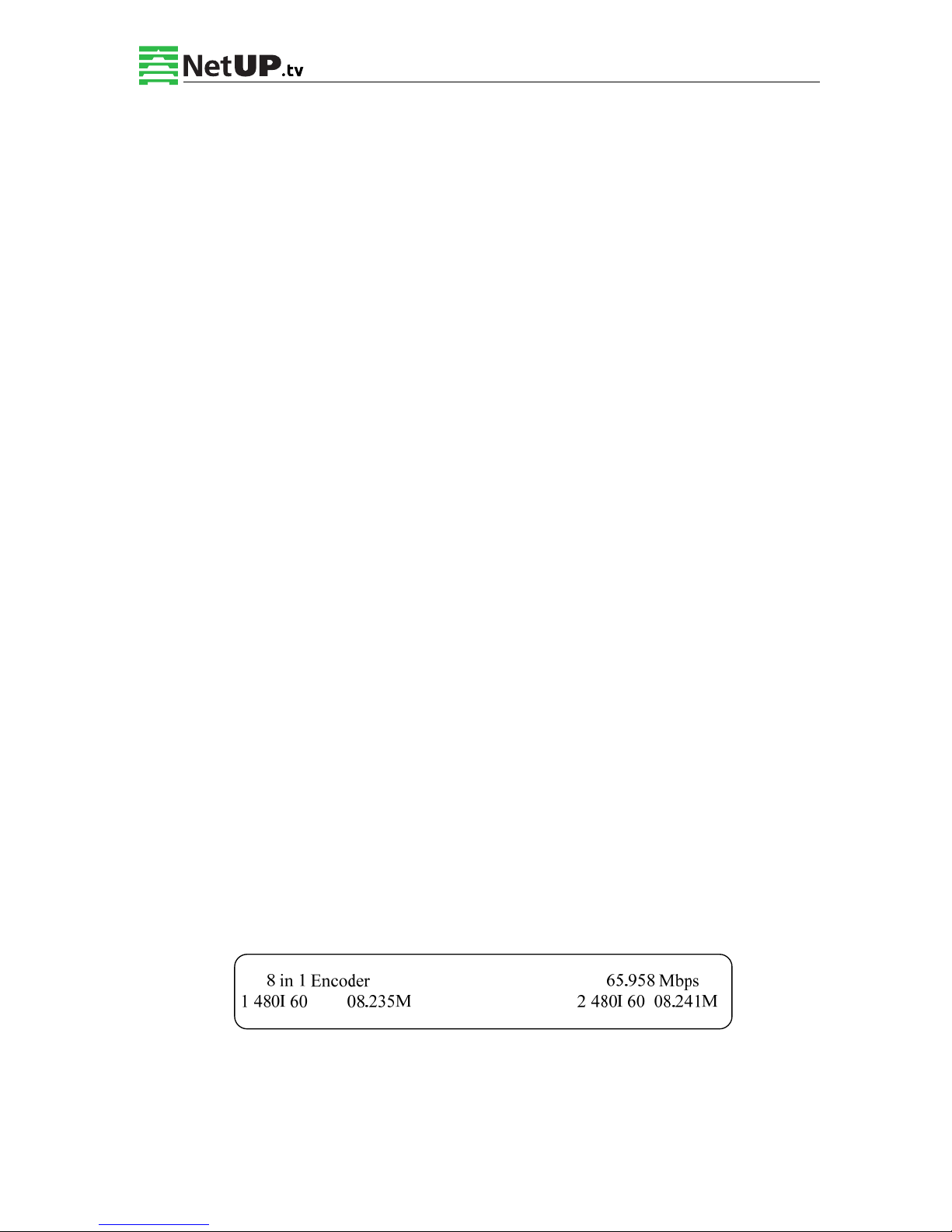

After powering on the device，it will take a few seconds to initialize the system, and then the
LCD will show the device’s name and output real-time bit-rate in the first row, while the 8
channels’ respective input video resolution, frame rate and real-time encoding bit-rate in the
second row in turn. It shows as below:
3.2 General Setting
By pressing LOCK key, one can enter the main menu and set the input and output parameters in

NetUP HDMI Encoder 8x User’s Manual
12 / 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
the following editing interfaces, the LCD will display the following pages:
The option with “►” is the current selection, press the ENTER key to enter the specified
submenu to modify the device parameters.
3.2.1 Input Setting
Under this menu, users can enter the corresponding encoding channel to set the relevant audio
and video input parameters, and select programs to multiplex. The LCD will display 8
submenus from Encoding Channel 1 to Encoding Channel 8. The setting principle is the same
for Encoding Channel 1-8, so here this manual takes one channel as an example. After pressing
the enter key, the LCD will display the following pages:
Once you enter a submenu, the screen will show the following pages, and then one can enter
the corresponding interface to modify its parameters.
3.2.1.1 Video Setting
Bitrate

NetUP HDMI Encoder 8x User’s Manual
13 / 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
Press Enter to modify relevant parameter of encoding rate (adjustable range: 0.8M~19M), the
specific steps are displayed as follows:
Bitrate Mode
Choose CBR & VBR in this menu. CBR (Constant Bit-rate) means that the bit-rate will be a
constant value. VBR (Variable Bit-rate) means that the bit-rate will change along with the video
scene changing.
Profile
Select the configuration of the H.264 profile at this menu. There are H.264 High Profile code
format and main Profile code format.
Level
Select the H.264 level at this menu. The option in brackets is the current choice.
3.2.1.2 Audio Setting
1.1.1.1 Bitrate
8.000Mbps
1.1.1.2 BitrateMod 01/01
[CBR] VBR
1.1.1.3 Profile 01/01
[HIGH] MAIN
1.1.1.4 Level 01/03
[1.2] 1.3 2.0 2.1
1.1.1.4 Level 02/03
[2.2] 3.0 3.1 3.2
1.1.1.4 Level 03/03
[4.0] 4.1 4.2

NetUP HDMI Encoder 8x User’s Manual
14 / 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]

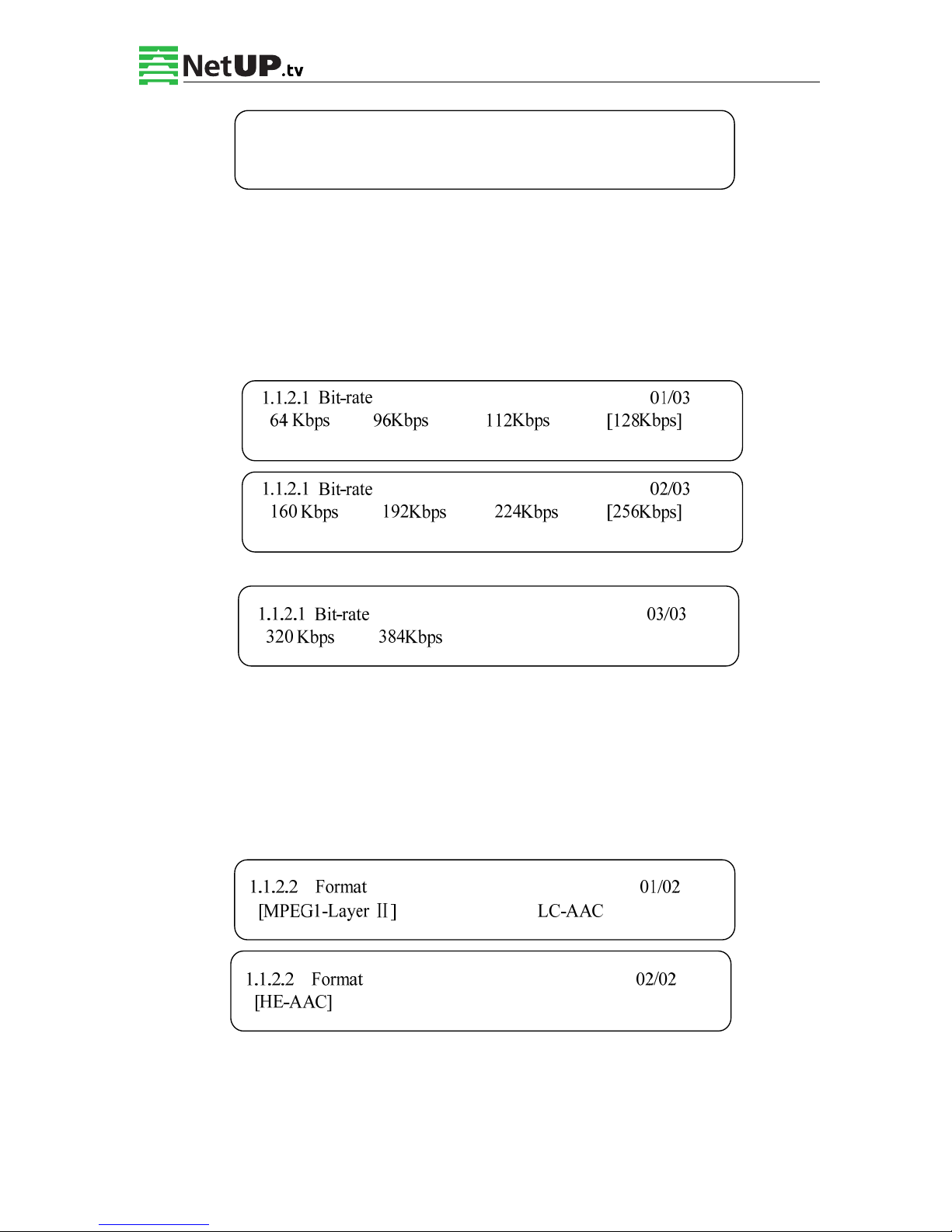

Audio Bit Rate Setting
Set the input audio bit-rate by pressing Enter to enter the main editing screen. And there are:
64Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256 Kbps, 320Kbps, and
384Kbps options. After modification, press Enter again to apply changes. The LCD will display
the following pages:
Audio Format Setting
AAC: Advanced Audio Coding
Set the input audio format on this screen, and the 3 options are MPEG1 Layer Ⅱ, LC-AAC,
and HE-AAC. When you enter the main editing menu, the LCD will display the following
page:
1.1.2.1 Bit Rate 1.1.2.2 Format

NetUP HDMI Encoder 8x User’s Manual
15 / 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
3.2.1.3 System Settings
On this screen, one can set the corresponding system parameters, after setting those parameters,
press Enter to apply the changes.
Program Number Setting
Set the program number by pressing Enter to enter this submenu. The LCD will display the
following:
Video/Audio/PMT/PCR PID Settings
Set these parameters by pressing Enter to enter these submenus. The LCD will display the
following pages, and the maximum PID number cannot exceed 0x1fff.
►1.1.3.1 Prog Number 1.1.3.2 Video PID
1.1.3.3 Audio PID 1.1.3.4 PMT PID
►1.1.3.5 PCR PID 1.1.3.6 IP Enable
1.1.3.7 Out Address 1.1.3.8 Out Port
►1.1.3.9 Null PKT
1.1.3.1 Program Number
0x0101

NetUP HDMI Encoder 8x User’s Manual
16 / 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
IP Enable
Out Address/Out Port Setting
Modify the out address and out port:
Null Packet
Choose YES (filter the null packet) or NO (don’t filter the null packet).
3.2.1.4 Program Mux Setting
Decide whether to open the multiplexing function of the device.
Channel Mux
Under this interface, you can decide whether to multiplex the channel encoding stream. YES
means that the device multiplexes the encoding stream into the MPTS, while NO means that the
output program is SPTS. The LCD will display the following pages after pressing Enter.
1.1.3.6 IP Enable 01/01
YES [NO]
1.1.3.7 Out Address
224.002.002.002
1.1.3.8 Out Port
1002
1.1.3.9 Null Packet 01/01
YES [NO]

NetUP HDMI Encoder 8x User’s Manual
17 / 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]
3.2.2 ASI Setting
Check the number of ASI input programs on this screen, the LCD will display the following
page. Prog: 006 means that the number of input programs is 6 and Out:003 means that 3 of
those 6 programs are multiplexed.
3.2.3 Output Setting
Press Enter in the main editing screen, to set the device output parameters. The LCD will
display the following page:
3.2.3.1 IP Out Enable
This is a new function of this encoder, user can decide whether to open the IP output function
by pressing Enter in this menu, and the LCD will show the following page:

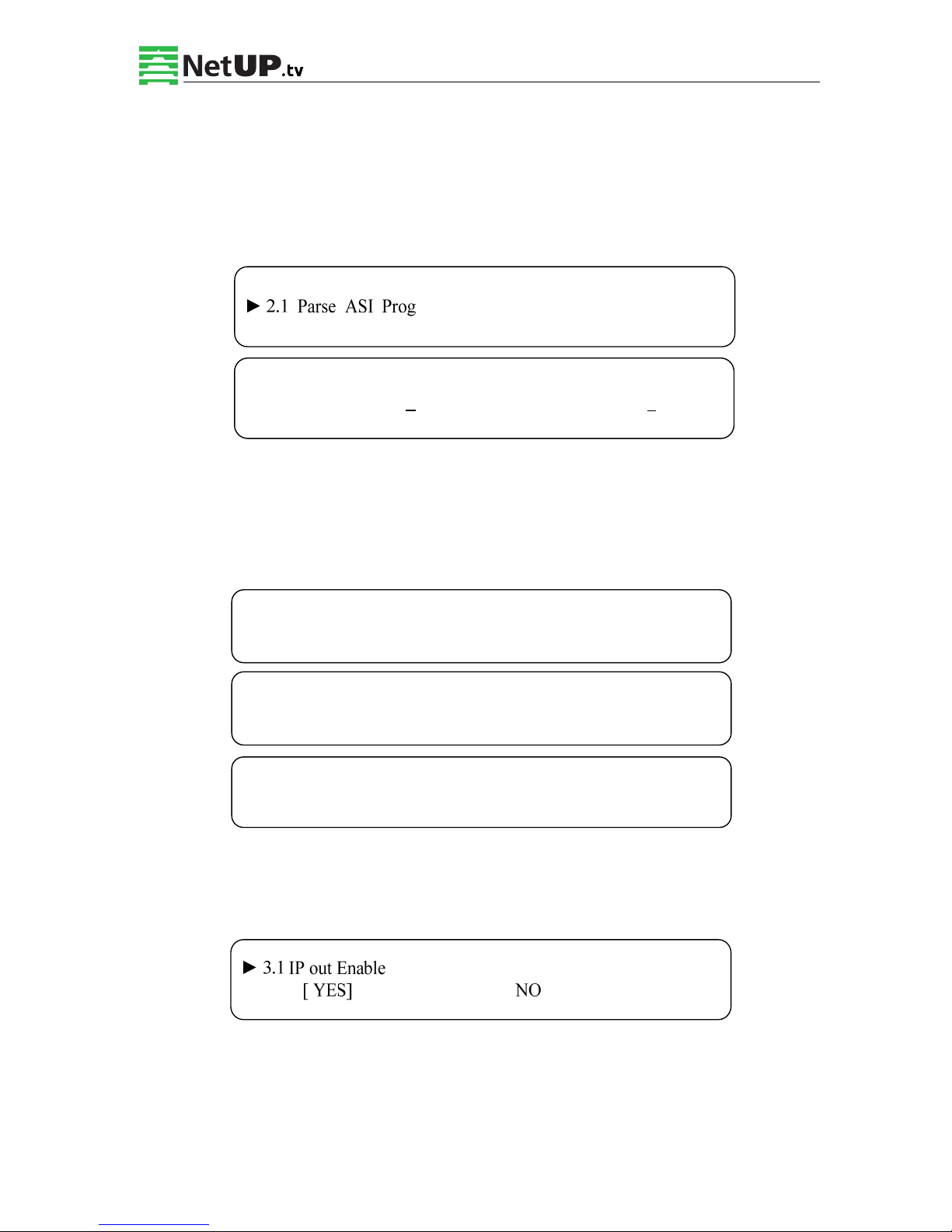

2.1 Parse ASI Prog Prog: 006 Out: 003
►001 HK1 √002 HK2 X
►3.1 IP Out Enable 3.2 IP Out Address
3.3 IP Out Port 3.4 Trans Stream ID
►3.5 Output Stream 3.6 ASI Output
3.7 UTC Time Config 3.8 Null PKT
►3.9 TS Package Num

NetUP HDMI Encoder 8x User’s Manual
18 / 44
Addr: 119311, Russia, Moscow, Ulofa Palme bldg.1, sect 7 Web: http://netup.tv
Phone: [phone] E-mail: [email protected]

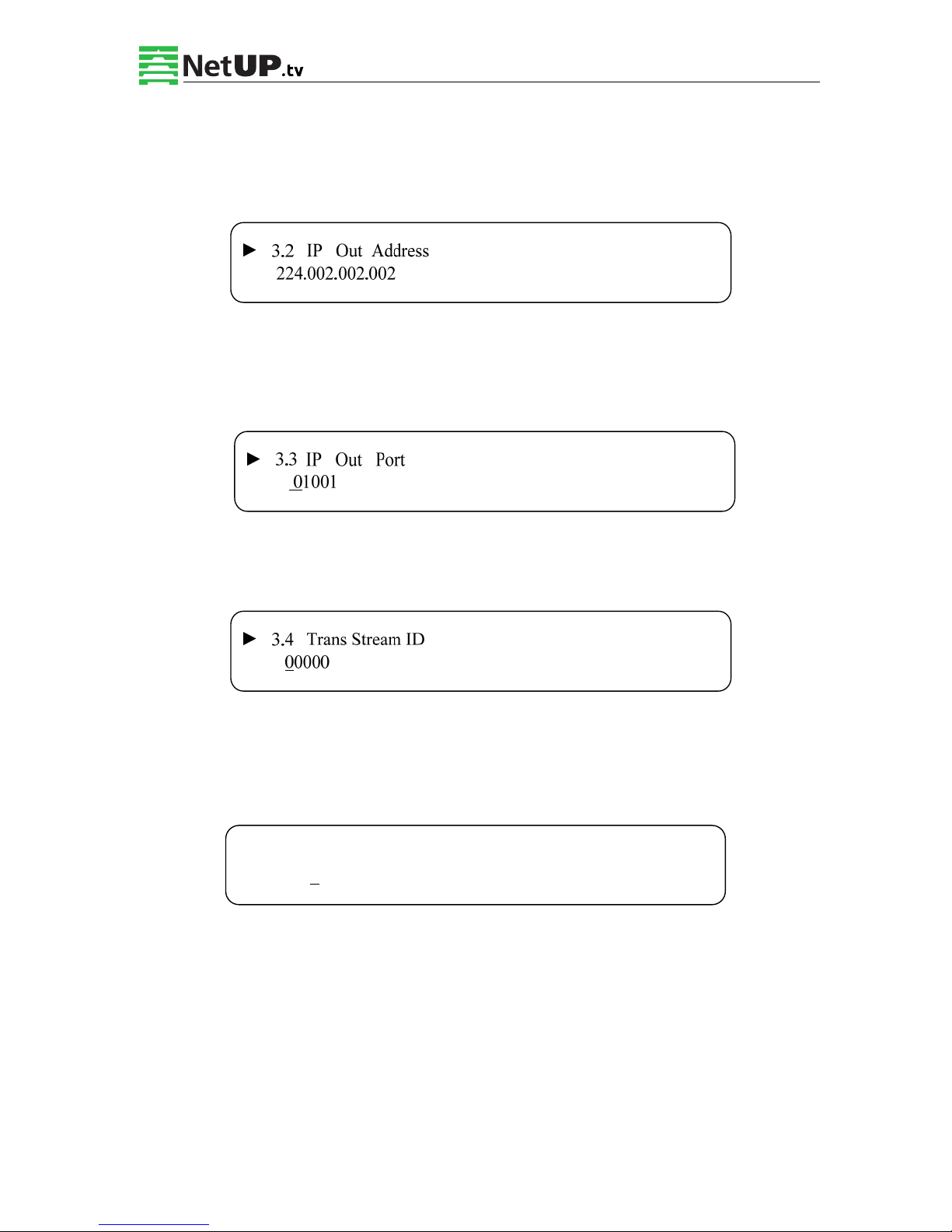

3.2.3.2 IP Out Address
If you enable the IP output function, then you can setup the device’s IP address in the following
screen. After you press the Enter, the LCD will display the following page:
3.2.3.3 IP Out Port
In this menu set the encoder IP output port number by pressing the Enter to enter the main
editing screen:
3.2.3.4 Trans Stream ID
Set the device TS ID in this screen after pressing the Enter to enter the main editing page.
3.2.3.5 Output Stream
You can modify the bit rate of the output stream in this screen after pressing Enter to enter the
main editing page:
3.5 Output Stream
040.000 Mbps
