NEUTRIK opticalCON Breakoutbox User manual

HANDLING INSTRUCTION
opticalCON
®Breakoutbox
Fiber Optic Connection System
Page 1BDA 432
A. Breakoutbox - Cleaning the chassis (front side)
Tools: ?Cleaning fluid FOCD-CF or 99% isopropyl alcohol (IPA)
?Lint free dry wipes FOCD-DW for fiber cleaning
?DRY-Cleaner FOCD-DC125 for opticalCON DUO & QUAD
®
?DRY-Cleaner FOCD-DCM for opticalCON MTP
The primary concern with using IPA is that it be removed completely from the LC connector.
If the alcohol is allowed to evaporate slowly of the ferrule, it can leave residual material on the fiber
core or cladding.
Open the breakout box and clean the surface
with a lint free wipe FOCD-DW.
Remove dust cap and insert the tip of the dry
cleaner FOCD-DCM.
Guide the tip of the dry cleaner into the chassis
housing.
Rotate the plastic wheel to start the cleaning
procedure. An endless lint free tape removes
dust particle on the ferrule surface of the MTP
connector on the rear of the chassis.
After cleaning procedure, remove dry cleaner
and cover the tip with the dust cap.
1.
2.
3.
4.
5.
®
1.
®
Dry cleaning frontside of DUO & QUAD or MTP
1.
2.
3.
4.
5.
6.
Open the breakout box and clean the surface
with a lint free wipe FOCD-DW.
Remove dust cap. Insert the stick of the
cleaning device FOCD-DC125.
Make sure that the insertion position is on
the bottom of the LC connector hole in order
to hit the sealing shutter release bar.
Push the outer shell to start cleaning the LC
connector end face.
A “pop” sound indicates end of cleaning
process.
Remove cleaning device and put dust cap on
the stick.
NEUTRIK
3. 2.
4. “pop”
NEUTRIK
2.
3.
3.
3.
Plastic wheel
R
FOCD-DCM
FOCD-DC125
Breakout Box
(Example: NO4SBB4D-PM-A)

www.neutrik.com
NEUTRIK AG LI T: +423 /237 24 24 F: +423 /232 53 93
NEUTRIK USA Inc. USA T: +1 704 /972 3050 F: +1 704 /438 9202
( )
NEUTRIK UK Ltd. UK T: +44 1983 /811 441 F: +44 1983/811 439
NEUTRIK Vertriebs GmbH DE /NL /AT/DK T: +49 8131 /280 890 F: +49 8131/280 830
NEUTRIK France FR T: +33 1/4131 6750 F: +33 1/4131 0511
NEUTRIK Tokyo Ltd. JP T: +81 3/3663 4733 F: +81 3/3663 4796
NEUTRIK Hong Kong Ltd. HK T: +852 /2687 6055 F: +852 /2687 6052
NEUTRIK India Pvt. Ltd. IND T: +91/982 05 43 424 F: +91/22 26163 540
R
Draft. Nr.: BDA 432 Update: 13.04.2015
I I Data subject to change without prior notice. 2015 NEUTRIK . ALL RIGHTS RESERVED. NEUTRIK are registered trademark.
® ®
©
CLEANING INSTRUCTION I opticalCON Breakoutbox
R

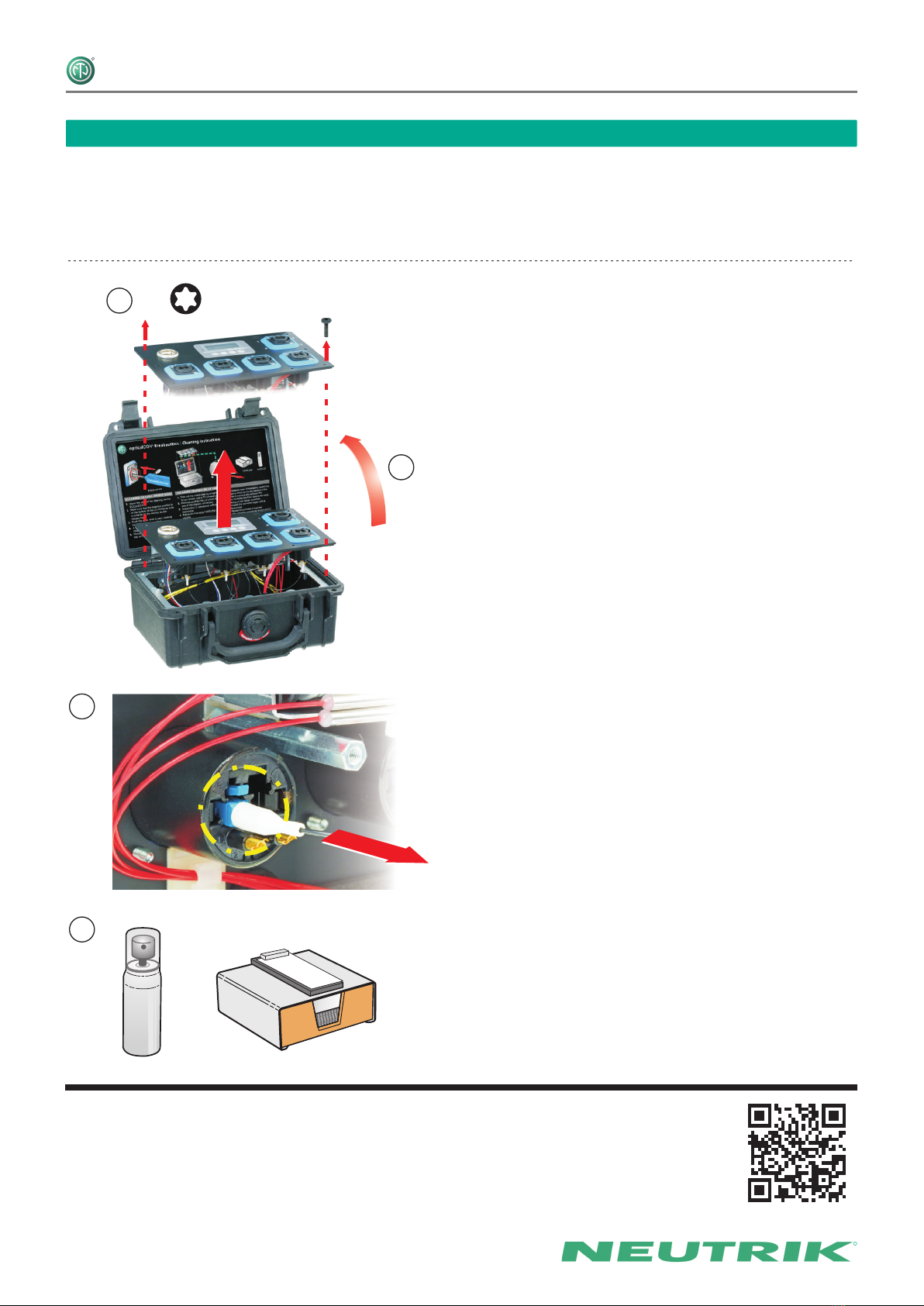

B. Cleaning the chassis (rear side)
cleaning fluid
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Open the breakout box and clean the surface
with a lint free wipe FOCD-DW
While using a hex key open the 12 allen screws
and remove the plate with the connectors.
Remove carefully the LC's from the rear side
of the chassis connectors separately to avoid any
possibly of concisions.
Inspect the LC connectors with a fiberscope.
Fold a lint-free wipe FOCD-DW into a square.
Moisten on section of the wipe with one drop of
isopropyl alcohol (IPA).
Be sure that a protion of the wipe remains dry.
Whipe lightly with a ferrule tip in the alcohol
moistened portion of the wipe.
Immediately repeat this wiping action on the dry
section of the wipe to remove any residual IPA.
Do not scrub the fiber against the wipe, doing so
can cause scratches.
Dispose the wipe, .
Inspect the connector again with a fiberscope.
Repeat the process if requidred.
After cleaning procedure the LC connector
re-connect into the opticalCON.
Position the plate into the box again and screw it.
NEVER REUSE A WIPE
1.
2. 12 x Allen screws
3.
5.
Tools: ?Hex key No. 2
?Cleaning fluid FOCD-CF or 99% isopropyl alcohol (IPA)
?Lint free dry wipes FOCD-DW for fiber cleaning
?Fiberscope for inspect the connector (CAS-FOCD)
FOCD-CF FOCD-DW
