Neve 1073 OPX User manual

1
1073OPX
8-channel Microphone, Line & Instrument Preamplifier
User Manual
Issue 2

2
Health & Safety Notice
FOR YOUR OWN SAFETY AND FOR THE PROTECTION OF OTHERS
PLEASE OBSERVE THE FOLLOWING HEALTH AND SAFETY INSTRUCTIONS
•READ THESE INSTRUCTIONS AND KEEP THEM HANDY
•HEED ALL SAFETY WARNINGS
•DO NOT USE NEAR WATER
•CLEAN ONLY WITH A DRY CLOTH
•DO NOT INSTALL NEAR HEAT SOURCES
•DO NOT BLOCK VENTILATION OPENINGS
•PROTECT THE POWER CORD
•USE ONLY ACCESSORIES SPECIFIED BY THE MANUFACTURER
•UNPLUG WHEN UNUSED FOR LONG PERIODS OF TIME
•OPTIONAL CARDS SHOULD NOT BE INSERTED OR REMOVED WITH THE
POWER ON
•REFER ALL SERVICING TO QUALIFIED PERSONNEL ONLY
•NO USER SERVICEABLE PARTS INSIDE
FAILURE TO OBSERVE THESE PROCEDURES AND RECOMMENDATIONS
WILL INVALIDATE THE MANUFACTURER’S WARRANTY

3
Avertissements de Santé & Sécurité
POUR VOTRE SECURITE ET CELLE DES AUTRES MERCI DE RESPECTER LES
INSTRUCTIONS DE SANTE ET SECURITE SUIVANTES
•LISEZ CES INSTRUCTIONS ET GARDEZ-LES À PORTÉE DE MAIN
•TENEZ COMPTE DE TOUS LES AVERTISSEMENTS DE SÉCURITÉ
•NE PAS UTILISER PRÈS D’UNE SOURCE D’EAU
•NETTOYER UNIQUEMENT AVEC UN CHIFFON SEC
•NE PAS INSTALLER PRÈS D’UNE SOURCE DE CHALEUR
•NE PAS BLOQUER LES BOUCHES D’AÉRATION
•PROTÉGER LE CORDON D’ALIMENTATION
•N’UTILISER QUE LES ACCESSOIRES SPÉCIFIÉS PAR LE FABRICANT
•DÉBRANCHER PENDANT DE LONGUES PÉRIODES D’INACTIVITÉ
•NE PAS INSÉRER OU RETIRER D’EVENTUELLES CARTES OPTIONNELLES ALORS QUE
L’APPAREIL EST SOUS TENSION
•CONFIER TOUTES LES OPÉRATIONS DE MAINTENANCE À DU PERSONNEL QUALIFIÉ
UNIQUEMENT
•AUCUNE PIÈCE INTERNE N’EST RÉPARABLE PAR L'UTILISATEUR
LE NON-RESPECT DE CES PROCÉDURES ET RECOMMANDATIONS INVALIDERA LA
GARANTIE DU FABRICANT

4
Important Safety Instructions
For your own safety and for the protection of others, please observe the following safety
precautions:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture
6) Clean only with dry cloth.
7) Do not block any ventilation openings.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
10) Unplug this apparatus during lightning storms or when unused for long periods of time.
11) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as when liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
WARNING:
THIS APPARATUS HAS CLASS I CONSTRUCTION AND SHALL BE CONNECTED TO THE
EXTERNAL PSU MAINS SOCKET OUTLET WITH A PROTECTIVE EARTHING
CONNECTION.
WARNING:
WHERE THE MAINS PLUG OR AN APPLIANCE COUPLER IS USED AS THE DISCONNECT
DEVICE, THE DISCONNECT DEVICE SHALL REMAIN READILY OPERABLE.
Head Office:
AMS Neve
AMS Technology Park
Billington Road
Burnley
Lancashire
England
BB11 5UB
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.ams-neve.com
© ® 2005 - 2022 AMS Neve Ltd own the copyright of all information and figures contained in this manual which are not to be copied or reproduced by any means
or disclosed in part or whole to any third party without written permission. As part of our policy of continual product improvement, we reserve the right to alter
specifications without notice but with due regard to all current legislation.
Disclaimer: The information in this manual has been carefully checked and is believed to be accurate at the time of publication. However, no responsibility is taken
by AMS-Neve for inaccuracies, errors or omissions nor any liability assumed for any loss or damage resulting either directly or indirectly from use of the information
contained within.
Trademarks: Neve®, 1073® and Marinair® are registered trademarks. AMS Neve Limited pursues a policy of continual improvement therefore all specifications
are subject to change without notice. All trademarks are property of their respective owners E & O E ©2022 AMS Neve Ltd.
.

5
Instructions Importantes sur la Sécurité:
Pour votre sécurite et celle des autres merci de respecter les instructions de santé et sécurité
suivantes :
1) Lisez ces instructions.
2) Gardez ces instructions.
3) Tenez compte de tous les avertissements.
4) Suivez toutes les instructions.
5) ATTENTION: afin de réduire les risques d'incendie ou de choc électrique, n'exposez pas cet
appareil à la pluie ou à l'humidité
6) Nettoyez uniquement avec un chiffon sec
7) Ne pas bloquer les bouches d’aération
8) Ne pas installer à proximité d’une source de chaleur telle qu’un radiateur, une bouche d’air
chaud, des plaques de cuisson (ou cuisinière), ou n’importe quel autre appareil producteur de
chaleur (y compris un amplificateur)
9) Protégez le cordon d’alimentation afin d’éviter les piétinements et pincements, et plus
particulièrement à proximité des prises de courant ou tout autre élément de branchement, ainsi
qu’au point de sortie de l’appareil)
10) Débranchez cet appareil pendant les orages ou de longues périodes d’inactivité.
11) Confiez toutes les opérations de maintenance à un technicien qualifié. Un entretien est
nécessaire lorsque l'appareil a été endommagé de quelque manière que ce soit, comme par exemple
si le cordon d'alimentation ou la fiche sont endommagés, du liquide a été renversé ou des objets
sont tombés dans l'appareil, si l'appareil a été exposé à la pluie ou à l'humidité, s’il ne fonctionne
pas correctement ou a subi une chute de hauteur.
ATTENTION:
AFIN DE RÉDUIRE LES RISQUES D'INCENDIE OU DE CHOC ÉLECTRIQUE, N'EXPOSEZ PAS
CET APPAREIL À LA PLUIE OU À L'HUMIDITÉ.
ATTENTION:
CET APPAREIL CORRESPOND A UNE CONSTRUCTION DE CLASSE I ET DOIT ÊTRE
RACCORDÉ À UNE PRISE SECTEUR DOTÉE D'UNE PROTECTION PAR MISE À LA TERRE.
ATTENTION:
LORSQU'UNE PRISE SECTEUR OU UN PROLONGATEUR EST UTILISÉ COMME DISPOSITIF
DE DÉBRANCHEMENT, CELUI-CI DOIT RESTER FACILEMENT ACCESSIBLE.

6
Table of Contents
Health & Safety notice (English)..................................................................................2
Health & Safety notice (French) ..................................................................................3
Important safety Instructions (English) .......................................................................4
Important safety Instructions (French) .........................................................................5
1073OPX Introduction ..............................................................................................7
Rack Mount Instructions (English) ...............................................................................8
Rack Mount Instructions (French) ................................................................................8
Configuring the 1073OPX ..........................................................................................9
Front Panel ............................................................................................................10

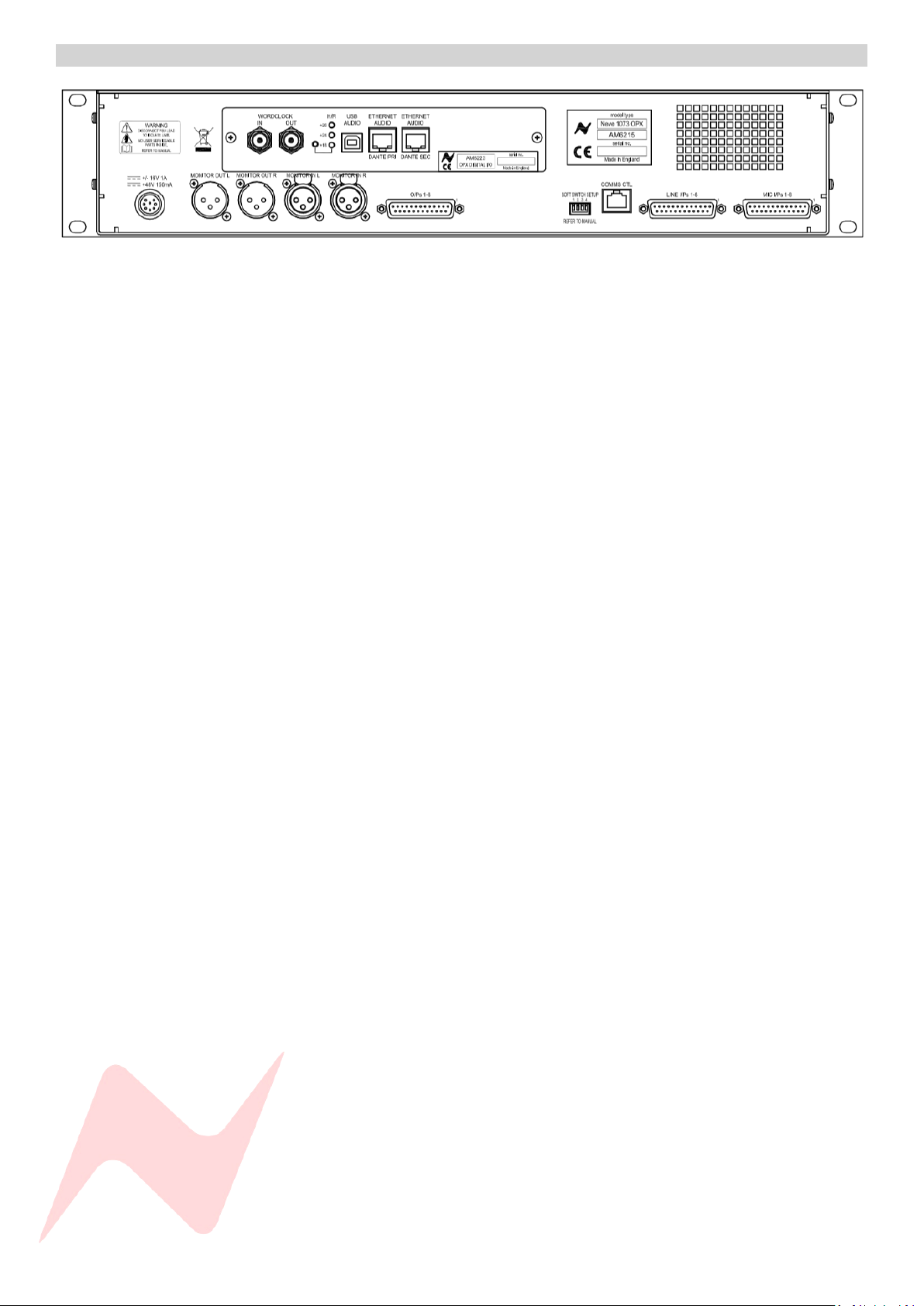

Rear Panel ............................................................................................................12
A/D D/A USB/Dante card (optional) ..........................................................................13
Monitoring ............................................................................................................14
Latency Free Monitoring ..........................................................................................15
Summing ..............................................................................................................17
1073OPX Remote Control Software............................................................................18
IP address setup ....................................................................................................19
Setup Menu ...........................................................................................................22
Using the Remote-Control Software ...........................................................................24
USB Audio Interface mode .......................................................................................26
Dante Networked Audio Mode ..................................................................................29
1073OPX and Dante Controller .................................................................................30
Dante Network Connections .....................................................................................32
Wordclock Sync .....................................................................................................33
Firmware Update Software .......................................................................................34
Troubleshooting .....................................................................................................36
Dimensions & Power Requirements ...........................................................................37
Audio Specification..................................................................................................37
AD/DA Card Specification .........................................................................................38
Unit connection Tables ............................................................................................39
Line/XLR input/output Tables ...................................................................................39
25-Way D-Type Pin outs ..........................................................................................40
Neve®, 1073® and Marinair® are registered trademarks. AMS Neve Limited pursues a policy of continual
improvement therefore all specifications are subject to change without notice. All trademarks are
property of their respective owners E & O E ©2022 AMS Neve Ltd.

7
1073OPX Introduction 1
The 1073OPX is an eight-channel Microphone, Line, and Instrument preamplifier
featuring Marinair® transformer-coupled microphone preamplifiers. Housed in a
2 unit 19’’ rackmount enclosure with an optional digital interface, the 1073OPX is the
ideal preamp for any studio setup, allowing engineers, producers, and artists to
expand their recording capabilities, and access the legendary Neve sound.
The 1073OPX DI Input is a transformer-less Class-A design offering +30 to +60dB of
gain and accessed through front-mounted XLR/TRS combi inputs for fast, high-quality
instrument recording.
This digitally controlled preamplifier has Total Recall™capability via the proprietary
1073OPX remote control software. Every control and setting can be adjusted
remotely via the Neve® Remote-Control software which can be installed onto any
compatible MAC or PC computer. This software provides a simple and elegant
remote-control system for users of digital audio workstations, production suites, or
live sound reinforcement systems.
Up to eight 1073OPX units can be connected and controlled remotely, giving up to 64
Mic Preamplifiers, Line Level, or DI inputs, all managed from a single computer. The
unit always powers up with all settings, levels and states as they were at power-down.
Two optional Digital Cards provide AD/DA conversion for all eight preamps and digital
monitor returns over three available formats –Dante/USB/ADAT. The USB/DANTE
card allows the 1073OPX to be used as a Dante enabled Audio-over-IP preamplifier
with both Primary and Secondary network capability and the USB port enables the
1073OPX to function as a primary standalone audio interface for any DAW enabled
computer. The USB/ADAT card provides the same USB functionality with added ADAT
connectivity, allowing the 1073OPX to operate as an expansion preamp for ADAT-
enabled audio interfaces.
A unique feature of the 1073OPX is its analogue and digital monitor return path. This
feature allows the device to be used as an analogue monitoring system feeding studio
loudspeakers, cue mix systems as a primary audio interface with complete I/O for any
MAC/PC DAW enabled computer.

8
Rack Mount Instructions 1
Elevated Operating Ambient- If installed in a closed or multi-unit
rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient. Therefore,
consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature
(30°C) specified by the manufacturer.
Reduced Air Flow - Installation of the equipment in a rack should be
such that the amount of air flow required for safe operation of the
equipment is not compromised.
Mechanical Loading - Mounting of the equipment in the rack should
be such that a hazardous condition is not created by improper or
uneven mechanical loading.
Reliable Earthing - Reliable earthing of rack-mounted equipment
should be maintained. Particular attention should be given to
supply connections other than direct connections to the branch
circuit (e.g. use of power strips).
Installation en Baie (rack) 1
Température en service élevée – si l’installation est effectuée dans
un endroit clos et/ou multi-rack, il se peut que la température
localisée soit plus élevée que la température ambiante. Dans ce cas,
il faudra faire attention à ce que l’environnement soit compatible
avec la température ambiante maximale (30°) spécifiée par le
fabricant.
Aération réduite –l’installation de l’appareil dans une baie devra être
réalisée afin de permettre une circulation d’air suffisante pour que le
fonctionnement de celui-ci ne soit pas compromis.
Installation mécanique – l’installation de l’appareil dans un rack
devra être réalisée afin d'éviter une position qui s'avèrerait
dangereuse dans le cas d'une installation instable.
Mise à la terre convenable – la mise à la terre dans le cas d’une
installation en baie/rack doit être maintenue. Une attention
particulière devra être portée pour toute connection indirecte (par
exemple utilisation d’une multiprise)

9
Configuring the 1073OPX 1
To operate the 1073OPX, configure as follows:
Ensure the unit is switched off.
Connect the PSU to the mains supply.
Connect the supplied power adaptor (PS12221) to the rear 5-pin DIN
input.
Connect your mic/line or DI input source/s to the front of the unit. Separate
mic/line inputs MIC I/Ps 1-8 and LINE I/Ps 1-8 are available on the rear of the
unit on D-sub connectors. These inputs follow the DB-25 standard pin
configuration. Monitor inputs MONITOR IN L and MONITOR IN R are available
on the rear XLRs of the unit. On the front of the unit, Mic inputs use the XLR
combo connectors; Line and DI inputs both use the 6.35mm jack on the combo
connectors.
Connect the line output/s O/Ps 1-8 into your system. The outputs are
available on the rear D-sub connector. This uses the DB-25 standard pin
configuration.
Connect monitor outs if required via XLR cables at the rear of the unit
labelled MONITOR OUT L and MONITOR OUT R
Connect headphones to the front ¼’’ jack connector at the front of the
unit.
Switch on the unit. it will default to the last-used setting. Set front panel
controls as required.
Select front or rear input source by pressing the FNT button.
Select Input MIC/LINE/DI by pressing the IP button.
Set the phantom power +48v, 80Hz high pass filter, -25dB PAD and LoZ
impedance as required for each preamplifier.
Set phase by pressing and holding the IP button, it will illuminate red to
indicate 180° phase flip.
The DI circuit within the 1073OPX is a transformer-less class-A design. This uses an
FET transistor to increase the impedance to 650Kohms, perfect for guitars, basses
and keyboards. When connecting an instrument directly to the unit using the DI,
set the level at +40db gain and adjust gain levels from this point. If the signal is
distorted at 40dB then use the -25dB pad to reduce the incoming signal and then
add preamplifier gain to get the desired tone and level.

10
Front Panel 1
POWER: Switches the unit on or off. The button will light when the unit is
ON
HP LEVEL: Controls the volume of the headphones and rear monitor outputs
and attenuates from -35 to 0dB. Pressing the HP LEVEL control knob will cycle
through the monitor sources indicated by the adjacent LEDs:
Off/cut; No LED illuminated.
Channel-1 only; mono by default unless the MONO button is deselected; 1/2
LED RED
Channel-2 only; mono by default unless the MONO button is deselected; 1/2
LED GREEN
Channels 1 (left) and 2 (right); stereo by default unless the MONO button is
selected; 1/2 LED YELLOW
[this sequence repeats for channels 3/4 5/6 7/8]
MON - Monitor input; stereo by default unless the MONO button is selected,
routes the stereo Monitor input at the rear of the unit to the stereo monitor
output and to the headphone output Post-HP level control.
DMON –The Digital Monitor input is only available when the optional digital
monitor card has been inserted into the unit; once installed this option will
become available on the front panel. DMON is stereo by default unless the
MONO button is selected. DMON routes the digital stereo monitor signal from
the connected DAW/Computer through the D/A converter and to the stereo
monitor XLR outputs and headphone output post-HP level control.
Monitor source select is reflected in both the headphone output and the
monitor output at the rear of the unit.
MONO: Toggles between mono or stereo monitoring. The button will light
when mono is selected.
GAIN: Adjusts the sensitivity (gain) of the selected input in 1dB increments.
The sensitivity is indicated on the dual 7-segment display.
+48V: Applies 48V phantom power to the microphone input (front or rear,
whichever is selected). The button will light when phantom power is active.
This button is only available when mic input source is selected. Selecting a
different input source will automatically switch off phantom power.

11
-25: Provides 25dB of attenuation to the input (applies to mic/line/DI,
whichever is selected). The button will light when the pad is applied.
LoZ: The default microphone input impedance is 1.3kΩ. Pressing the LoZ
button will reconfigure the input for 300Ω input impedance. The button will
light when LoZ is selected. This button is only available when mic input source
is selected. Selecting a different input source will automatically cancel LoZ.
XLR/Jack combo input: Use the XLR input for microphone sources and the
6.35mm jack input for line or DI sources.
IP: Press this button quickly to cycle through mic, line, or DI input source. The
selected source is indicated by the three adjacent LEDs.
Ø: press and hold the IP button to flip the phase of the incoming preamplifier
signal. The button will illuminate red to indicate 180° Phase flip.
FNT: Switches the audio input from the rear D-sub connector/s to the front
combo connector (applies to mic/line. When DI is selected FNT is activated
automatically). The button will light when the front input is selected.
⁄80: Switches the 80Hz high-pass filter into the signal path (applies to
mic/line/DI, whichever is selected). The button will light when the filter is
selected.
SIG: Lights green when a low-level signal is detected in the signal path; lights
red when one point in the signal path is close to clipping; lights orange when
the analogue-to-digital converter is close to clipping.

12
Rear Panel 1
DC POWER: Connects the accompanying DC power supply to
the unit.
MONITOR OUT L&R: Stereo, balanced monitor XLR outputs.
MONITOR IN L&R: Stereo, balanced monitor XLR inputs.
O/P’s 1-8: Balanced line outputs (DB-25 standard).
SOFT SWITCHES: out of use until future product updates.
COMMS CTL: Ethernet Cat5e/Cat6 for remote control connection.
LINE I/Ps 1-8: Balanced line inputs (DB-25 standard).
MIC I/Ps 1-8: Balanced Microphone inputs (DB-25 standard).
DIGITAL OPTION PANEL: Optional Digital module is fitted here.

13
AD/DA USB/Dante card (Optional) 1
The 1073OPX USB/DANTE card provides a digital interface for the 1073OPX
and has 8 A/D preamplifier converters and 2 D/A monitor converters. By
default, the post-gain amplified signal from the Mic/Line input is routed to
the A/D inputs. If this digital board is not fitted, then the Sample Rate and
Sync Source LEDs on the front of the unit will not light or function.
Word Clock In: The BNC connector provides an input to the internal sample
rate clock for synchronisation to external devices.
Word Clock Out: The BNC connector provides an output from the internal
sample rate clock for synchronising external devices to the 1073OPX internal
clock.
H/R: The digital headroom selector toggles the DMON stereo digital input
and Preamplifier 1 to 8 digital outputs headroom from +18dBu, +24dBu or
+26dBu.
USB AUDIO: Provides USB B connection for MAC or PC enabling use of the
1073OPX as a primary audio interface.
DANTE PRI/ DANTE SEC: Primary and secondary Dante audio-over-iP
connections to connect the 1073OPX as a Dante-enabled device.

14
Monitoring 1
The 1073OPX rear panel has two female XLR connectors labelled MONITOR
IN L and MONITOR IN R. These can be used to feed a monitor path from
your audio interface into the 1073OPX unit. The Signal is fed into the units
MON audio path and can be attenuated by -35dB via the HP LEVEL control.
This signal is then fed to both the headphone output on the front of the unit
and to the MONITOR OUT L and MONITOR OUT R outputs on the rear of
the unit. This signal path can be used to feed a monitor Loudspeaker set in
the control room or a performer cue mix system in the live room.

15
Latency Free Monitoring 1
The 1073OPX monitor path can be fed from a combination of preamplifier
output and monitor input signal sources. This enables latency free
monitoring of preamp signals, allowing operators to record overdubs by
listening to the input source directly pre-DAW. Users can blend the mic, line
or DI preamplifier signals directly with the monitor or digital monitor signal
for quick latency-free monitoring.
When the unit is powered down, the monitor input selection is
remembered for the next time the unit is powered up.
The Diagram to the left shows the connections of each individual
preamplifier output into the monitor path. The outputs are connected as
stereo pairs with 1, 3, 5, 7 connected to the LEFT MON/DMON path and 2,
4, 6, 8 connected to the RIGHT MON/DMON path. This configuration allows
for accurate latency-free stereo imaging at the signal source. If a mono
signal is required when monitoring either a single preamplifier output or
combination of signals, simply press the MONO button.
Activating MONO will convert all monitor path signals into mono, including
MON and DMON
Pressing and holding the HP LEVEL control (for more than 1 second) and
then pressing any channel gain encoder will add the selected preamplifier
channel into the units monitor MON or DMON signal path. Multiple
preamplifier inputs can be selected at any time to form stereo pairs or mono
signals monitored in the left or right monitor path. The signals being fed into
the HP Monitor path are indicated by LEDs on the HP LEVEL control section.
MONO can be activated at any time.
To add preamplifier signals into the monitor path-
Press and hold the HP Level control (for more than 1 second)
Then press GAIN POT of the preamplifier channel you wish to monitor.
Add additional signals by repeating the process.
Multiple monitor indicator LEDs will display which signals are being fed
to the monitor path.
When mono is selected manually, the incoming MON (Monitor) or DMON
(Digital Monitor) signal will also become mono.

16
Example 1 1
MON is selected and channel 1 gain encoder has been pressed. This
activates channel 1 preamplifier output into the left monitor path. However,
since the MONO button has also been pressed, both preamplifier output 1
and the monitor (MON) signal is sent as MONO to the headphone left and
right and monitor (MONITOR OUT L & MONITOR OUT R) outputs.
Example 2 1
MON is selected and preamplifier gain 1 and 2 encoders have been pressed.
Since these signals can now form a stereo pair of preamplifier inputs, they
have been added into the monitor path as
Channel 1 - Left
Channel 2 - Right
Both signals can now be monitored in the headphone and monitor outputs
in stereo.
Example 3 1
DMON is selected (fed from digital USB or DANTE) and preamplifier channel
1&2, 3, 7&8 are selected. In this example two stereo pairs of preamplifier
inputs (1 & 2 and 7 & 8) and one mono preamplifier 3 have been added into
the monitor path. Since we now have two stereo pairs and one mono
source, channel 3 signal will monitor through the LEFT HP LEVEL output and
MONITOR OUT L only. MONO can be selected at any time, but all stereo
signals will be converted to MONO through the 1073 OPX Headphone and
Monitor outputs.

17
Summing 1
The Monitor output XLR connectors at the rear of the unit follow the front
HP LEVEL monitor signal selection. This function gives users the ability to use
the unit as a 4x stereo input analogue summing mixer. Users can pass audio
signals through the 1073 line-level preamplifiers, combining them into the
monitor path through the Left and Right Monitor output XLRs on the rear of
the unit. This stereo signal can then be fed into the DAW and recorded back
as a summed stereo track.
Due to the hard wiring of the unit, odd numbers are fed to the Left monitor
output and Even numbers are fed to the Right monitor output.
Preamplifier Outputs 1, 3, 5, 7 > MONITOR OUT L
Preamplifier Outputs 2, 4, 6, 8 > MONITOR OUT R
Any combination of up to 4 stereo pairs of input signals can be summed
together by using this technique.
Individual mono signals will appear in either the left or the right only.
MONO can be activated by the user which will sum both left and right
output signals together to be sent equally to both Left and Right XLR
outputs.

18
1073OPX Remote Control Software 1
The 1073OPX proprietary Remote-control software application can be run
on Mac or PC and allows users to access and operate the 1073OPX control
features remotely. The unit’s front panel controls including gain level, Input
selection, phantom power, etc can be controlled remotely from any
connected computer.
Installation 1
Download the 1073OPX Remote Software installer from www.neve.coom
and follow the on-screen instructions.
Choose ‘Full Installation’
Click ‘Create a desktop shortcut’if required
Tick ‘launch Neve 1073OPX’
Click ‘Finish’
Connecting Comms 1
The 1073OPX can be connected directly to the control computer or through
a network switch.
When making a direct ethernet connection from the computer to the
1073OPX, a Manual IP address must be assigned. See page 17.
To connect the 1073OPX directly to the computer, a connection via ethernet
CAT5e/CAT6 cable must be made from the computer ethernet port to the
COMMS CTL port on the rear of the unit.
Multiple units can be connected to the computer by connecting through a
network switch. DHCP protocol will assign each unit its own unique IP
address which will be recognised by the control computer and seen by the
remote software.
The Comms connector light on the unit front panel indicates two-way
communication between the software plugin and the 1073OPX unit.
Up to 8 1073OPX racks can be connected to the remote computer. When
using multiple OPX units, each rack must be selected by clicking the rack
name at the top of the screen, the plugin interface window will update to
display and control the settings of the chosen hardware unit.

19
IP address setup 1
To access IP Config mode 1
Press and hold preamplifier Gain Controller 1
Press preamplifier Gain Controller 8 at the same time
Press and hold both together
Preamplifier gain indicators 1 & 2 will now display DHCP, indicating an
automatic IP address assignment. This mode is used when connecting
through a Network switch.
To view the manual address menu and set a manual IP Address, press the
Preamplifier Channel 1 +48v button.
Once pressed, the preamplifier channels will change to display the unit’s
manually assigned IP address across the front panel gain indicators.
Follow the steps on page 17 and 18 to configure the computer and
1073OPX manual IP addresses.

20
Manual IP address setup - Windows PC 1
Open control panel>Network&Internet>Network and Sharing Centre
Click Change Adapter Settings
Highlight the Ethernet connection and click Properties
Click Internet Protocol version 4 (TCP/IPv4)
Click Properties
Click use the following IP address
Enter a manual IP address - 10.10.251.254
Enter Subnet Mask 255.0.0.0
Alternative address - 192.168.99.254
Alternative Subnet Mask 255.255.255.0
