Nevir NVR-CB5PH User manual

NVR-CB5PH
90X60 Gas cooker and oven withbottle compartment
90X60 cocina y horno de gas conportabombonas
H10-20-180-148 Rev 006
PO
GBUSER MANUAL
MANUAL DO UTILIZADOR

2
Dear user,
Our objective is to make this product provide you with the best output
which is manufactured in our modern facilities in a careful working
environment, in compliance with total quality concept.
Therefore, we suggest you to read the user manual carefully before
using the product and, keep it permanently at your disposal.
Note: This user manual is prepared for more than one model. Some of
the features specified in the manual may not be available in your
appliance.
All our appliances are only for domestic use, not for commercial use.
Products marked with (*) are optional.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE
REGULATIONS FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ
THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE”
“Conforms with the WEEE Regulations."
GB

3
Contents
Important warnings 4
Electrical connection 15
Gas connection 16
Introduction of the appliance 21
Accessories 22
Technical features of your oven 23
Installation of your oven 26
Chain lashing illustration 28
Control panel 28
Using oven section 29
Using the grill 30
Using the chicken roasting 30
Using cooker section 31
Program types 33
Cooking time table 34
Maintenance and cleaning 35
Installation of the oven door 36
Cleaning and maintenance of the
Oven’s front door glass 37
Catalytic walls 37
Rack positions 38
Changing the oven lamp 38
Using the grill deector sheet 39
Troubleshooting 40
Handling rules 42
Recommendations for energy saving 42
Environmentally-friendly disposal 43
Package information 43

4
IMPORTANT WARNINGS
1. Installation and repair should always be performed
by “AUTHORIZED SERVICE”. Manufacturer shall not be
held responsible for operations performed by unauthorized
persons.
2. Please read this operating instructions carefully.
Only by this way you can use the appliance safely and
in a correct manner.
3. The oven should be used according to operating
instructions.
4. Keep children below the age of 8 and pets away
when operating.
5. WARNING: The accessible parts may be hot while using
the grill. Keep away from children.
6. WARNING: Fire hazard; do not store the materials on
the cooking surface.
7. WARNING: The appliance and its accessible parts are
hot during operation.
8. Setting conditions of this device are specied on
the label. (Or on the data plate)
9. The accessible parts may be hot when the grill is
used. Small children should be kept away.
10. WARNING: This appliance is intended for cooking. It
should not be used for other purposes like heating a room.
11. To clean the appliance, do not use steam cleaners.
12. Ensure that the oven door is completely closed
after putting food inside the oven.
GB

5
13. NEVER try to put out the re with water. Only shut
down the device circuit and then cover the ame with
a cover or a re blanket.
14. Children under 8 years of age should be kept away,
if they cannot be monitored continuously.
15. Touching the heating elements should be avoided.
16. CAUTION: Cooking process shall be supervised.
Cooking process shall always be supervised.
17. This device can be used by children over 8 years
of age, people with physical, hearing or mental challenges
or people with lack of experience or knowledge; as long
as control is ensured or information is provided regarding
the dangers.
18. This device has been designed for household use
only.
19. Children must not play with the appliance. Cleaning
or user maintenance of the appliance shall not be
performed by children unless they are older than 8
years and supervised by adults.
20. Keep the appliance and its power cord away from
children less than 8 years old.
21. Put curtains, tulles, paper or any ammable (ignitable)
material away from the appliance before starting to use
the appliance. Do not put ignitable or ammable materials
on or in the appliance.
22. Keep the ventilation channels open.

6
23. The appliance is not suitable for use with an external
timer or a separate remote control system.
24. Do not heat closed cans and glass jars. The pressure
may lead jars to explode.
25. Oven handle is not a towel drier. Do not hang towels,
etc. on the oven handle.
26. Do not place the oven trays, plates or aluminium
foils directly on the oven base. The accumulated heat
may damage the base of the oven.
27. While placing food to or removing food from the
oven, etc., always use heat resistant oven gloves.
28. Do not use the product in states like medicated
and/or under inuence of alcohol which may affect your
ability of judgement.
29. Be careful when using alcohol in your foods. Alcohol
will evaporate at high temperatures and may catch re to
cause a re if it comes in contact with hot surfaces.
30. After each use, check if the unit is turned off.
31. If the appliance is faulty or has a visible damage,
do not operate the appliance.
32. Do not touch the plug with wet hands. Do not pull
the cord to plug off, always hold the plug.
33. Do not use the appliance with its front door glass
removed or broken.
34. Place the baking paper together with the food into
a pre-heated oven by putting it inside a cooker or on an
oven accessory (tray, wire grill etc.).
GB

7
35. Do not put objects that children may reach on the
appliance.
36. It is important to place the wire grill and tray properly
on the wire racks and/or correctly place the tray on the
rack. Place the grill or tray between two rails and make
sure it is balanced before putting food on it.
37. Against the risk of touching the oven heater elements,
remove excess parts of the baking paper that hang over
from the accessory or container.
38. Never use it at higher oven temperatures than the
maximum usage temperature indicated on your baking
paper. Do not place the baking paper on the base of the
oven.
39. When the door is open, do not place any heavy
object on the door or allow children to sit on it. You
may cause the oven to overturn or the door hinges to be
damaged.
40. The packaging materials are dangerous for children.
Keep packaging materials away from the reach of children.
41. Do not use abrasive cleaners or sharp metal scrapers
to clean the glass as the scratches that may occur on
the surface of the door glass may cause the glass to
break.
42. Do not place the appliance on a surface covered
with carpets. Electric parts gets overheated since there
will be no ventilation from below. This will cause failure
of the appliance.

8
43. Do not hit glass surfaces of vitro-ceramic cookers
with a hard metal, resistance can get damaged. It may
cause an electric shock.
44. User should not handle the oven by himself.
45. Use shall be careful when cleaning gas burners.
It may cause personal injuries.
46. Food can spill when foot of oven is dismantled or
gets broken, be careful. It may cause personal injuries.
47. During usage, the internal and external surfaces
of the oven get hot. As you open the oven door, step
back to avoid the hot vapour coming out from the interior.
There is risk of burning.
48. Upper cover of the oven can be closed for a reason,
than cookware can trip over. Step back to avoid the hot
food coming on you. There is risk of burning.
49. Do not place heavy objects when oven door is open,
risk of toppling.
50. User should not dislocate the resistance during
cleaning. It may cause an electric shock.
51. Do not remove ignition switches from the appliance.
Otherwise, live electric cables can be accessed. It may
cause an electric shock.
52. Oven supply can be disconnected during any
construction work at home. After completing the work,
re-connecting the oven shall be done by authorized service.
53. Do not place metal utensils such as knife, fork, spoon
on the surface of the appliance, since they will get hot.
GB

9
54. To prevent overheating, the appliance should not
be installed behind of a decorative cover.
55. Turn off the appliance before removing the
safeguards. After cleaning, install the safeguards
according to instructions.
56. Cable xing point shall be protected.
57. WARNING: Don’t use oven and grill burners at same
time.
58. Please don’t cook the food directly on the tray /
grid. Please put the food into or on appropriate tools
before putting them in the oven.
59. Hot surface, leave for cooling before closing the
cover.
Electrical Safety
1. Plug the appliance in a grounded socket protected by
a fuse conforming to the values specied in the technical
specications chart.
2. Have an authorized electrician set grounding equipment.
Our company shall not be responsible for the damages
that shall be incurred due to using the product without
grounding according to local regulations.
3. The circuit breaker switches of the oven shall be
placed so that end user can reach them when the oven
is installed.
4. The power supply cord (the cord with plug) shall
not contact the hot parts of the appliance.

10
5. If the power supply cord (the cord with plug) is
damaged, this cord shall be replaced by the manufacturer
or its service agent or an equally qualied personnel to
prevent a hazardous situation.
6. Never wash the product by spraying or pouring water
on it! There is a risk of electrocution.
7. WARNING: To avoid electric shock, ensure that the
device circuit is open before changing the lamp.
8. WARNING: Cut off all supply circuit connections before
accessing the terminals.
9. WARNING: If the surface is cracked, turn off the appliance
to avoid risk of electric shock.
10. Do not use cut or damaged cords or extension
cords other than the original cord.
11. Make sure that there is no liquid or humidity in
the outlet where the product plug is installed.
12. The rear surface of the oven also heats up when
the oven is operated. Electrical connections shall not
touch the rear surface, otherwise the connections may
be damaged.
13. Do not tighten the connecting cables to the oven
door and do not run them over hot surfaces. If the cord
melts, this may cause the oven to short circuit and
even a re.
14. Unplug the unit during installation, maintenance,
cleaning and repair.
GB

11
15. If the power supply cable is damaged, it must be
replaced by its manufacturer or authorized technical
service or any other personnel qualied at the same
level, in order to avoid any dangerous situation.
16. Make sure the plug is inserted rmly into wall
socket to avoid sparks.
17. Do not use steam cleaners for cleaning the appliance,
otherwise electric shock may occur.
18. An omnipolar switch capable to disconnect
power supply is required for installation. Disconnection
from power supply shall be provided with a switch or
an integrated fuse installed on xed power supply
according to building code.
19. Appliance is equipped with a type ‘’Y’’ cord cable.
20. Fixed connections shall be connected to a power
supply enabling omnipolar disconnection. For appliances
with over voltage category below III, disconnection device
shall be connected to xed power supply according to
wiring code.

12
Gas Safety
1. This appliance is not connected to burning products
evacuation apparatus.This appliance must be connected
and installed according to the installation regulations in
force. Conditions regarding ventilation must be considered.
2. When a gas cooking appliance is used; humidity,
heat and burning products are generated in the room.
First of all, make sure the kitchen is well ventilated
when operating the appliance and maintain natural
ventilation openings or install a mechanical ventilation
equipment.
3. After using the appliance heavily for en extended
period of time, additional ventilation may be required.
For example open a window or adjust a higher speed for
mechanical ventilation, if any.
4. This appliance must be used only in well ventilated
locations in accordance with the regulations in force.
Please read the manual before installing or using this
product.
5. Before positioning the appliance, make sure local
network conditions (gas type and gas pressure) meets
appliance requirements.
6. The mechanism cannot be run for longer than 15
seconds. If the burner is not on after 15 seconds, stop
the mechanism and wait for at least one minute before
trying to ignite the burner again.
GB

13
7. All kinds of operations to be performed on gas
installation must be performed by authorized and
competent people.
8. This appliance is adjusted for natural gas (NG). If
you have to use your product with a different gas type,
you have to apply to authorized service for the conversion.
9. For proper operation, hood, gas pipe and clamp
should be replaced periodically accordint to manufacturer
recommendations and when required.
10. Gas should burn well in gas products. Well
burning gas can be understood from blue ame and
continuous burning. If gas does not burn sufciently,
carbon monoxide (CO) can be generated. Carbon monoxide
is a colourless, odourless and very toxic gas; even small
amounts have lethal effect.
11. Ask your local gas supplies about the phone numbers
for emergencies related to gas and the measures to be
taken upon gas odour is detected.
What To Do When Gas Odour Is Detected
1. Do not use naked ame, and do not smoke.
2. Do not operate any electrical switch.
(For example: lamp switch or doorbell)
3. Do not use telephone or mobile phone.
4. Open the doors and windows.
5. Close all valves on the appliances that utilize gas
and the gas counters.

14
6. Call re brigade from a telephone outside the home.
7. Check all hoses and their connections against leaks.
If you still smell gas, leave the house and warn your
neighbours.
8. Do not enter into the house until authorities clarify
it is safe.
Intended Use
1. This product is designed for home use. Commercial
use of the appliance is not permitted.
2. This appliance may only be used for cooking purposes.
It shall not be used for other purposes like heating a room.
3. This appliance shall not be used to heat plates under
the grill, drying clothes or towels by hanging them on
the handle or for heating purposes.
4. The manufacturer assumes no responsibility for any
damage due to misuse or mishandling.
5. Oven part of the unit may be used for thawing,
roasting, frying and grilling food.
6. Operational life of the product you have purchased
is 10 years. This is the period for which the spare parts
required for the operation of this product as dened is
provided by the manufacturer.
GB

15
Electrical Connection
1. Your oven requires 16 or 32 Ampere fuse according to the appliance’s
power. If necessary, installation by a qualied electrician is recommended.
2. Your oven is adjusted in compliance with 220-240V AC/380-415V
AC 50/60Hz.electric supply. If the mains are different from this specied
value, contact your authorized service.
3. Electrical connection of the oven should only be made by the sockets
with earth system installed in compliance with the regulations. If there
is no proper socket with earth system in the place where the oven will be
placed, immediately contact a qualed electrician. Manufacturer shall
never be responsible from the damages that will arise because of the
sockets connected to the appliance with no earth system. If the ends of
the electrical connection cable are open, according to the appliance type,
make a proper switch installed in the mains by which all ends can be
disconnected in case of connecting / disconnecting from / to the mains.
4. If your electric supply cable gets defective, it should denitely be
replaced by the authorized service or qualed electricians in order to
avoid from the dangers.
5. Electrical cable should not touch the hot parts of the appliance.
6. Please operate your oven in dry atmosphere.
Electrical connection scheme
220-240V~50/60Hz 220-240V~50/60Hz
400V 3N~50/60Hz 400V 2N~50/60Hz
Earth
Terre
Erdung
Earth
Terre
Erdung
Earth
Terre
Erdung
Earth
Terre
Erdung
L3
L2
L1
L2
L1
L1
Live
Phase
Neutral
Neutre Neutral Neutre Neutral Neutre
H05 VV-F 3G 4mm² H05 VV-F 5G 1.5mm² H05 VV-F 4G 1.5mm² H05 VV-F 3G 1.5mm²
Neutral
Neutre
380-415V 3N~50/60Hz 380-415V 2N~50/60Hz
220-240V~50/60Hz 220-240V~50/60Hz
H05 VV-F 3G 4 mm² H05 VV-F 5G 1.5 mm² H05 VV-F 4G 1.5 mm² H05 VV-F 3G 1.5 mm²

16
Gas Connection
WARNING: Before starting any work related with gas installation, turn off
gas supply. Risk of explosion.
Please operate your oven in dry atmosphere.
1. Fit the clamp to the hose. Push one of the hose until it goes to the
end of the pipe.
2. For the sealing control; ensure that the buttons in the control panel are
closed, but the gas cylinder is open. Apply some soap bubbles to the
connection. If there is gas leakage, there will be foaming in the soaped area.
3. The oven should be using a well ventilation place and should be
install on at ground.
4. Re-inspect the gas connection.
5. When placing your oven to its location, ensure that it is at the counter
level. Bring it to the counter level by adjusting the feet if necessary.
6. Do not make gas hose and electrical cable of your oven go through theheated
areas, especially through the rear side of the oven. Do not move gas connected
oven. Since the forcing shall loosen the hose, gas leakage may occur.
7. Please use exible hose for gas connection.
For LPG connection;
For LPG (cylinder) connection, afx metal
clamp on the hose coming from LPG
cylinder. Afx an edge of the hose on hose
inlet connector behind the appliance by
pushing to end through heating the hose
in boiled water. Afterward, bring the clamp
towards end section of the hose and tighten
it with screwdriver. The gasket and hose inlet
connector required for connection is as the

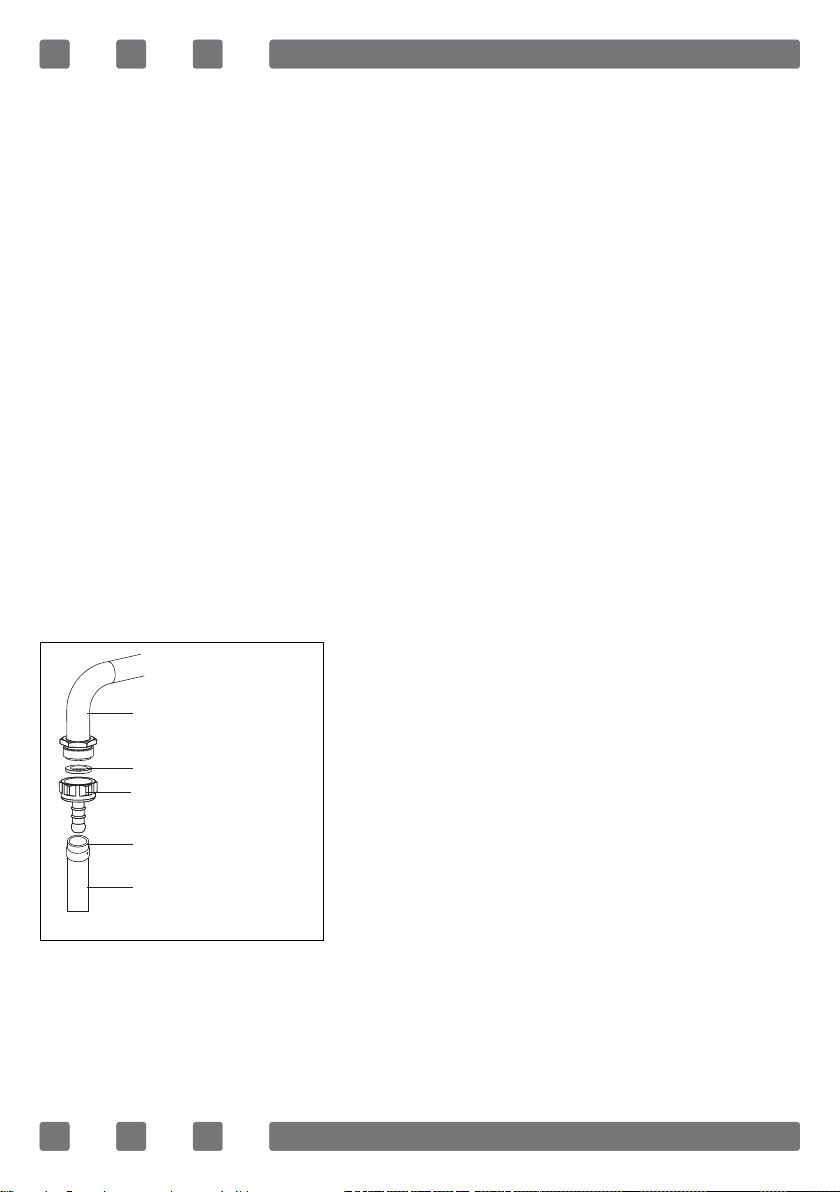

picture shown below.
NOTE: The regulator to be afxed on LPG cylinder should have 300
mmSS feature.
Main Gas Pipe
Gasket
Hose Inlet Connector
Metal Clamp
Lpg Connection Hose
GB

17
For natural gas connection;
WARNING: Natural gas connection should
be done by authorized service.
For natural gas connection, place gasket
in the nut at the edge of natural gas connection
hose. To install the hose on main gas pipe,
turn the nut. Complete the connection by
making gas leakage control.
Gas hose passage way
Connect the appliance to the gas piping tap
in shortest possible route and in a way that
ensure no gas leakage will occur.
In order to carry on a tightness and sealing
safety check ensure that the knobs on the
control panel are closed and the gas cylindir is
open.
WARNING: While performing a gas leakage
check, never use any kind of lighter, match,
cigarette or similar burning substance.
Apply soap bubble on the connection points.
If there is any kind of leakage then it will
cause bubbling.
While inserting the appliance in place ensure
that it is on the same level with the worktop.
If required adjust the legs inorder the make
level with the worktop.
Use the appliance on a level surface and in a
well ventilated environment.
WARNING: Before placint the appliance, check that the local distribution
conditions (gas type and pressure) conform to the product settings.
Main Gas Pipe
Gasket
Nut
Natural Gas
Connection Hose
Figure 1
Figure 2

18
Nozzle change operation
1. Please use driver with special head for removed and install nozzle as.
(gure 3)
2. Please remove nozzle (gure 4) from burner with special nozzle driver
and install new nozzle. (gure 5)
Ventilation of room
The air needed for burning is received from room air and the gases emitted
are given directly in room. For safe operation of your product, good room
ventilation is a precondition. If no window or room to be utilized for room
ventilation is available, additional ventilation should be installed. However,
room has a door opening outside, it is no needed to vent holes.
Room size Ventilating opening
Smaller than 5 m³ min. 100 cm²
Between 5 m³ - 10 m³ min. 50 cm²
Bigger than 10 m³ no need
In basement or cellar min. 65 cm²
Figure 3 Figure 4 Figure 5
GB

19
Reduced gas ow rate setting for hob taps
1. Ignite the burner that is to be adjustment and turn the knob to the
reduced position.
2. Remove the knob from the gas tap.
3. Use an appropriately sized screwdriver to adjust the ow rate adjustment
screw. For LPG (butane-pro pane) turn the screw clockwise. For the
naturel gas, you should turn the screw counter- clockwise once.
“The normal length of a straight ame in the reduced position should
be 6-7 mm.“
4. If the ame is higher then the desired position, turn the screw clockwise.
If it is smaller turn anticolockwise.
5. For the last control, bring the burner both to higt-ame and reduced
positions and check whether the ame is on or off.
Depending on the type of gas tap used in your appliance the adjustment
screw position may vary.
To adjust your oven acc. to the gas type, make the adjustment for
reduced ame carefully by turning with a small screwdriver as shown
below on the screw in the middle of the gas cocks as well as nozzle
changes. (gure 6 and 7)
Figure 6 Figure 7

20
Removal of the lower and upper burner and installation of the injector to the
gas oven
Removal of the upper burner:
With the help of a screw driver, remove the screw as shown in gure 8.
As shown in gure 9, remove the burner from its place by pulling it to
yourself. As shown in gure 10, remove the injector in the bearing with a
socket wrench. In order to re-place the burner, apply the removal process
reversely.
Removal of the lower burner:
The lower burner door has been xed with two screws. As shown in
gure 11, remove it with the help of a screw driver. Remove the door by
pulling upwards as shown in gure 12. Remove the burner from its place
by pulling it to yourself as shown in gure 13. As shown in gure 14, remove
the injector in the bearing with a socket wrench. In order to replace the
burner, apply the removal process reversely.
Figure 10
Figure 8 Figure 9
Figure 13 Figure 14
Figure 11 Figure 12
GB
