New Air NCH1K5BK00 User manual

Manual v1.2
1500 Count Cigar Humidor
Humidor À Cigares 1500 Unités
Humidificador para 1500 Puros
NCH1K5BK00
OWNER’S MANUAL
Manuel de L'utilisateour
Manual del Propietario

www.newair.com 2
LANGUAGE INDEX
English Manual..........................................................................................3
Manuel en Français.................................................................................27
Manual en Español..................................................................................52

EN
www.newair.com 3
A Name You Can Trust
Trust should be earned and we will earn yours. Customer happiness is the focus
of our business.
From the factory to the warehouse, from the sales floor to your home, the
whole Newair family promises to provide you with innovative products,
exceptional service, and support when you need it the most.
Count on Newair
As a proud Newair owner, welcome to our family. There are no robots here,
real people shipped your product and real people are here to help you.
Contact Us
Please reach out to our customer service team before making a return to your
store of purchase. We are happy to help with any questions or concerns!
Mon-Fri from 8-4 PST at:
Call:
1-855-963-9247
Email:
Online:
www.newair.com
A team member will respond to you within 24 hours.
Follow Us
Facebook.com/newairusa
Instagram.com/newairusa
YouTube.com/newairusa
Twitter.com/newairusa

EN
www.newair.com 4
READ AND SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
Specifications....................................................................................................... 5
Register Your Product Online............................................................................... 6
Safety Information & Warnings ...........................................................................7
Parts List...............................................................................................................9
Circuit Board…………………………………………………………………………………………..10
Assembly & Installation ..................................................................................... 11
Installing Your Cigar Humidor ....................................................................12
Factory Odor Removal…………………………………………………………………………….13
Operating Instructions.......................................................................................14
Seasoning Your Cigar Humidior……………………………………………………………… 14
Turning On Your Cigar Humidor.................................................................15
Control Panel Instructions .........................................................................16
Temperature Settings ................................................................................ 17
Cigar Storage Guide………………………………………………………………………………..17
Humidification System............................................................................... 18
Automatic Defrosting System .................................................................... 20
How to Remove the Cedar Drawer............................................................21
How to Install the Door Handle .................................................................21
Cleaning & Maintenance....................................................................................22
Cleaning Your Cigar Cabinet.......................................................................22
How to Dispose of Your Humidor ..............................................................22
Troubleshooting.................................................................................................23
Operation Malfunctions.............................................................................23
Power Failures ...........................................................................................23
Common Usage Problems.......................................................................... 24
Limited Manufacturer’s Warranty ..................................................................... 26

EN
www.newair.com 5
SPECIFICATIONS
MODEL NO.
NCH1K5BK00
CAPACITY:
4.84 Cu. Ft.
VOLTAGE:
110-120V
CURRENT:
1.4 A
FREQUENCY:
60Hz
TEMPERATURE RANGE:
54 - 72°F
NET WEIGHT:
100lbs.
DIMENSIONS:
23.81" W x 23.62" D x 34.25" H
REFRIGERANT:
R600a
HUMIDITY CONTROL SYSTEM:
Ultrasonic
WATER TANK CAPACITY:
50.7 Fl. Oz.

EN
www.newair.com 6
REGISTER YOUR PRODUCT ONLINE
Register Your Newair Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for Newair promotions and offers
Registering your product information online is safe & secure and takes less than
2 minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, located on the manufacturer’s nameplate on
the rear of the unit. You will need this information if it becomes necessary to
contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
newair.com/register

EN
www.newair.com 7
SAFETY INFORMATION & WARNINGS
Before use, please read and follow all safety rules and operating instructions in
this manual.
WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY
PRECAUTIONS SHOULD BE FOLLOWED TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, AND HARM TO THE USER AND/OR
PROPERTY.
•Read all instructions before using this cigar humidor cabinet.
•Never allow children to operate or play with this appliance.
•Never clean appliance parts with flammable fluids. The fumes can create a
fire hazard or explosion.
•Do not store or use any flammable vapors and liquids in the vicinity of this
appliance. The fumes can create a fire hazard or explosion.
•This appliance is not intended for food storage.
•This appliance is not intended for use by people (including children) with
reduced physical, sensory or mental capabilities, lack of experience or
knowledge of its operation, unless well instructed or under supervision of a
person responsible for their safety.
Risk of child entrapment!
Keep children away from cigar humidors in use. Lock the door to your appliance
and warn children not to play inside of it.
Childproof old humidors and other appliances you plan to discard or leave in
storage by removing the door completely with a screwdriver.
R600a WARNINGS
For your safety observe the following recommendations:
•This appliance contains a small quantity of R600a refrigerant which is
environmentally friendly, but flammable. It does not damage the ozone
layer, nor does it increase the greenhouse effect.
•During transportation and installation, ensure that the tubing of the
refrigerant circuit is not damaged.
•Avoid using sharp objects near the appliance.
•Leaking refrigerant can ignite.

EN
www.newair.com 8
•In the event any damage does occur, avoid exposure to open fires and any
device which creates a spark, disconnect the appliance from the main
power, thoroughly ventilate the room in which the appliance is located for
several minutes, and notify Customer Service for necessary action and
advice.
•The symbol is a warning and indicates the refrigerant and insulation
blowing gas are flammable.
•Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
•When positioning the appliance, ensure the supply cord is not trapped or
damaged.
•Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.
•The refrigerant and insulation blowing gas are flammable. When disposing of
the appliance, do so only at an authorized waste disposal center.
WARNING: It is hazardous for anyone other than an Authorized Service
Person to carry out servicing or repairs to this appliance.
•The appliance is designed for freestanding or built-in installation. For
freestanding installation, leave 5 inches (127mm) of space around the back
and sides of the unit to allow proper air circulation to cool the compressor.
•Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
•Do not tamper with the refrigerant circuit.
•Do not use extension cords or ungrounded (two prong) adapters.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or a similar qualified person in order to avoid a hazard.

EN
www.newair.com 9
PARTS LIST

EN
www.newair.com 10
CIRCUT BOARD

EN
www.newair.com 11
ASSEMBLY & INSTALLATION
Allow 24 hours before switching on the cigar humidor. During this
time, we recommend that you leave the door open to clear any
residual odors.
Recommendations
The location you have selected for your cigar humidor should:
•Be well ventilated.
•Be away from any heat source and direct sunlight.
•Be in a mostly dry environment (avoid places like laundry rooms, bathrooms,
etc.).
•Be on a level surface.
•Be connected to a standard and reliable electricity supply. It is NOT
recommended to use a multi-socket or extension cord.
•Be connected to a standard 120V electrical outlet.
•Placed away from the microwave oven. Certain microwave ovens do not
have a wave interference shield. When placed within 3 feet vicinity of a
microwave over, the cigar humidor’s operation may be affected.
Grounding Instructions
The cigar humidor must be grounded in case of wire leakage. Grounding
reduces the risk of electrical shock. The cigar humidor is equipped with a power
cord having a grounding wire and plug. The cigar humidor plug must be
plugged into a properly affixed and grounded electrical outlet.
Improper use of the grounding plug can result in the risk of electric shock.
Consult a qualified electrician or service person if the grounding instructions
are not completely understood.
If the supply cord is damaged, it must be replaced by a qualified person in
order to avoid electrical hazard.

EN
www.newair.com 12
INSTALLING YOUR CIGAR HUMIDOR
Unpack and remove all the protection and adhesive strips from the packaging
around and inside the cigar humidor.
The cigar humidor must be positioned such that the plug is accessible. The cigar
humidor should be installed in a suitable place where the compressor will not
be subject to physical contact.
Leveling Your Cigar Humidor
The cigar humidor must be leveled BEFORE loading your cigars.
Your cigar humidor is equipped with 4 adjustable feet to facilitate easy leveling.
It is recommended that you tighten the back feet to the maximum and adjust
the front feet to level the cigar humidor.

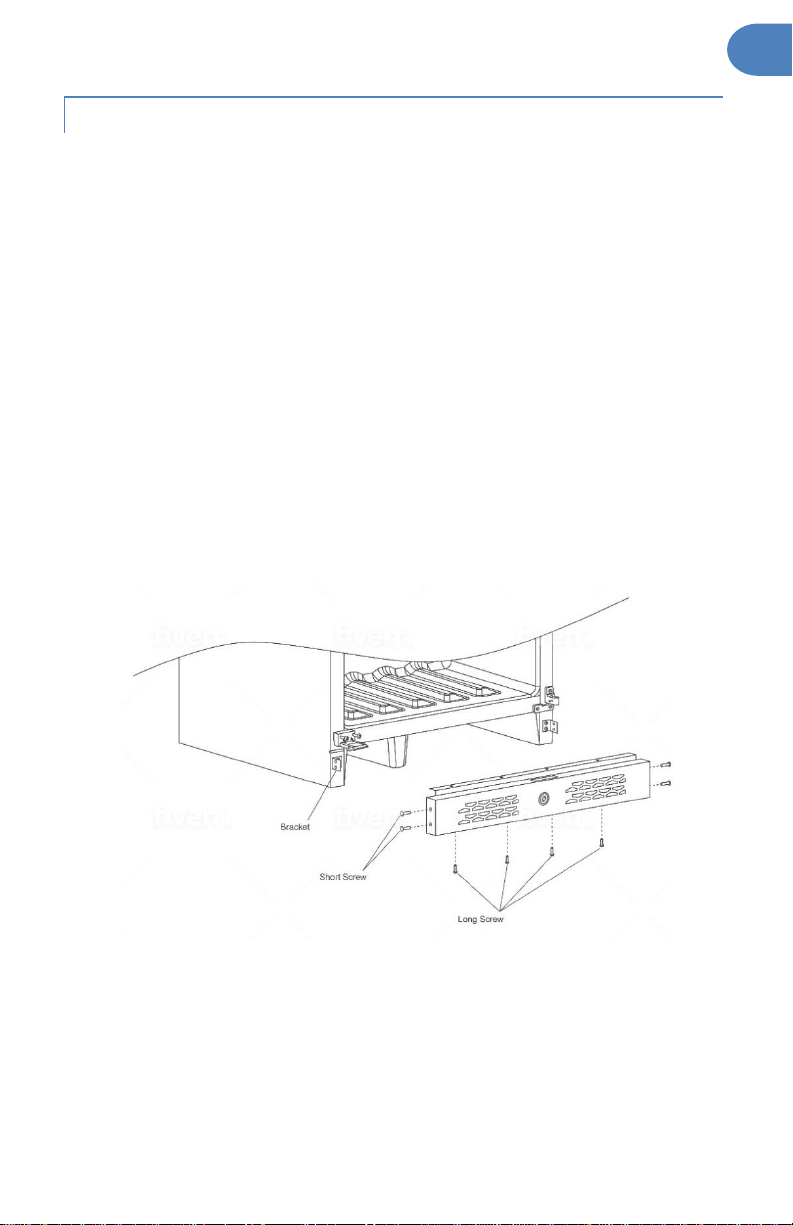

Installing the Front Grill
The front grill must be installed before you build your cigar humidor into a
cabinet.
1. Remove the front grill from the cabinet and position it in the open space at
the bottom of the humidor.
2. Align the holes on the side of the front grill with the holes on the bracket.
3. Screw the front grill onto the bracket with the short screws (4) provided.

EN
www.newair.com 13
FACTORY ODOR REMOVAL
Wash the interior of the humidor with a mild detergent and warm water. Make
sure to not get the wood wet. Leave the door open and allow it to air dry
thoroughly. If a “plastic” smell persists, place a dish of baking soda in the unit
or stuff the humidor with newspapers overnight. When finished, let the unit
run a full day to complete the airing out process.
If the supply cord is damaged, it must be replaced by a qualified person in
order to avoid electrical hazard.

EN
www.newair.com 14
OPERATING INSTRUCTIONS
It is recommended that you setup the cigar cabinet in a place where the
ambient temperature is between 50 - 77°F. If the ambient temperature is
above or below recommended temperatures, the performance of the unit may
be affected. For example, placing in extreme cold or hot conditions may cause
the interior temperature to fluctuate or not reach the appliance’s range.
The temperature may fluctuate depending on whether the interior light is on or
off or how cigars are placed on the upper, middle, or lower section.
SEASONING YOUR CIGAR HUMIDOR
It is best to season your wood shelves and drawers before adding your cigars so
that the wood is at an ideal relative humidity (RH) and does not absorb
humidity from your cigars. To season your new cigar humidor:
1. Add distilled water to the included moisture container or add a sponge
that is damp with distilled water. Make sure that the water is not touching
the wood directly or this may damage the wood.
2. Allow the moisture container, or other humidity-adding device, to sit in the
humidor until it reaches a relative humidity of 5% higher than your
preferred level. This process may take as long as 3 days but is the best way
to ensure your cigars stay optimal.
3. Once the humidor reaches this mark, you can begin to add cigars. You may
add a few at a time in order to monitor the RH and make sure it stays at a
level you want it at. If it drops too much, you can use the same seasoning
method to bring it back up.
NOTE: During this entire process, it is recommended to not open the door
unnecessarily, as this lets moisture escape and can delay the process.

EN
www.newair.com 15
TURNING ON YOUR CIGAR HUMIDOR
Plug in and switch on the appliance by pressing on the power button for 3
seconds.
When you use the cigar humidor for the first time (or restart the cigar humidor
after having it shut off for a long time), there will be a few degrees variance
between the temperature you have selected and the one indicated on the LED
readout. This is normal and it is due to the length of the activation time. Once
the cigar humidor is running for a few hours everything will stabilize.
IMPORTANT: If the unit is unplugged, power is lost or turned off, wait 3 to 5
minutes before restarting the unit. The cigar humidor will not start if you
attempt to restart before this time delay.
Operating Noises
To reach the desired temperature settings, our cigar humidor, like all cigar
humidors operating with compressors and fans, may produce the following
types of noises. These noises are normal and may occur as follows:
•Gurgling sound - caused by the refrigerant flowing through the appliance’s
coils.
•Cracking/popping sounds - resulting from the contraction and expansion of
the refrigerant gas to produce cold.
•Fan operating sound - to circulate the air within the cigar humidor.

EN
www.newair.com 16
CONTROL PANEL INSTRUCTIONS
MODE button:
Press the MODE button to switch the control function from adjusting
the temperature to adjusting the humidity.
ON/OFF button:
Press the button ON/OFF button for 3 seconds to turn the unit on.
Press the ON/OFF button for 3 seconds to turn the unit off. When you
turn off the unit, all other functions will turn off except for the LED
light. Press again (without delay) and the power turns on again.
LED LIGHT button:
Press the LED LIGHT button and the light turns on. Press the button
again and the light turns off.
TEMPERATURE display window:
Displays internal temperature.
HUMIDITY display window:
Displays internal humidity level.
UP button:
Press the UP button to increase the temperature or humidity by 1
degree Celsius/Fahrenheit or by 1%, depending on which mode the
humidor is set to.
DOWN button:
Press the UP button to decrease the temperature or humidity by 1
degree Celsius/Fahrenheit or by 1%, depending on which mode the
humidor is set to.
CELSIUS/FAHRENHEIT button:
Change between Celsius and Fahrenheit.

EN
www.newair.com 17
TEMPERATURE SETTINGS
•When you turn on your cigar humidor for the first time, the LED temperature
control panel displays the actual internal air temperature by default.
•This cigar humidor comes with a memory function. In the event of a power
interruption, all previous temperature settings are automatically reinstated,
and it will revert to a preset temperature setting.
•There is a difference between the air temperature inside the cigar humidor
and the actual temperature of the cigar: You will need to wait approximately
12 hours before noticing the effects of temperature adjustment due to the
critical mass within a full cigar humidor.
•Once the temperature is set, it is strongly advised not to adjust it frequently.
The thermostat will maintain the temperature inside the cigar humidor
within a +/- 2.5 ºF range, but the actual temperature of the cigar will only
fluctuate 0.5ºF to 1ºF.
CIGAR STORAGE GUIDE
•The ideal temperature for storing cigars is between 65° and 73°F.
•The ideal relative humidity (RH) for storing cigars is between 65% and 75%
RH. To properly maintain RH in this unit, you will need to include a method
of adding humidity. For your convenience, a moisture container is included.
•To add humidity to the unit using the included moisture container, simply fill
the container with distilled water or a damp sponge wet with distilled water
and place it back in the unit. Please note this water should be changed after
reaching the desired humidity and refilled when used again.
•Keep cigars out of direct sunlight to avoid exposure to damaging UV rays.
•It is recommended to keep cigars in their original boxes and packaging as
long as possible. Keep unwrapped cigars separate in your humidor to avoid
unwanted mingling of flavors.
•Check cigars regularly for signs of tobacco beetles and mold, and take
preventative measures if necessary.
Properly stored cigars can improve with age for as long as 5-10 years, and can
be kept even longer in ideal conditions

EN
www.newair.com 18
HUMIDIFICATION SYSTEM
The cigar humidor has an automatic humidification system that is located at
the bottom of the cabinet and the water- filling box is in the lower left side of
the humidor. Open the plastic cover of the drawer to add water as shown
below.
Notes:
•Avoid opening or removing any parts of the humidification system without
technical assistance.
•Avoid filling with unfiltered water since it may cause harm to cigar quality or
taste.
•Check the water-filling box often if you live in an arid climate.
•It is normal to experience a +/-5% fluctuation in the set humidity level. It is
suggested to monitor the humidity level to assess if the cigar humidor levels
need to be adjusted.

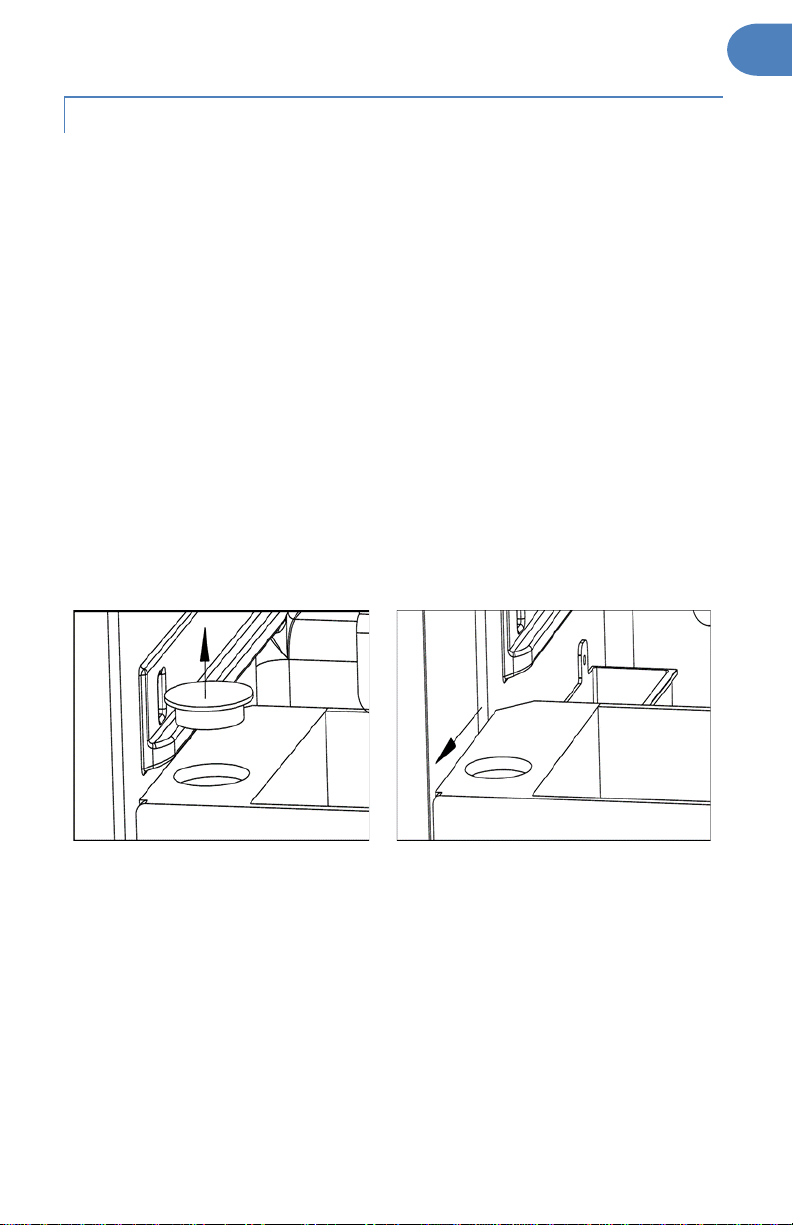

1. Open the plastic cover on the
bottom drawer following the
direction of the arrow;
2. Pull out the bottom drawer in the
direction of the arrow;
3. Add water in the opening of the bottom drawer;

EN
www.newair.com 19
4. Make sure the added water does not exceed the fill line A shown in the
figure below.

EN
www.newair.com 20
AUTOMATIC DEFROSTING SYSTEM
Your cigar humidor comes with an auto-cycle defrost system. This system will
only self-activate if the internal temperature of the humidor falls lower than
53F for extend periods of time.
If frost build up occurs, the defrost function will melt the frost and collect it in a
tray located at the back of the cigar humidor next to the compressor where the
compressor’s heat will evaporate the water and recycle it into the humidor’s
humidification system.
This system, when self-activated, helps maintain the humidity level inside your
cigar humidor by adding moisture back into the cigar cabinet.
NOTE: This cigar humidor is equipped with a double-glazed glass door that has
a third internal acrylic layer to minimize condensation on the glass door.
Table of contents
Languages:
Other New Air Humidifier manuals
Popular Humidifier manuals by other brands

scoole
scoole SC HR UL 02 FL manual

CIGAR OASIS
CIGAR OASIS ULTRA 2.0 Assembly and user instructions

Timberk
Timberk THU UL 28 W instruction manual

Aircare
Aircare AURORA MINI Use and care guide

Neptronic
Neptronic SKS4-100-SLP Installation instructions and user manual

Scarlett
Scarlett SC-AH986E14 instruction manual
