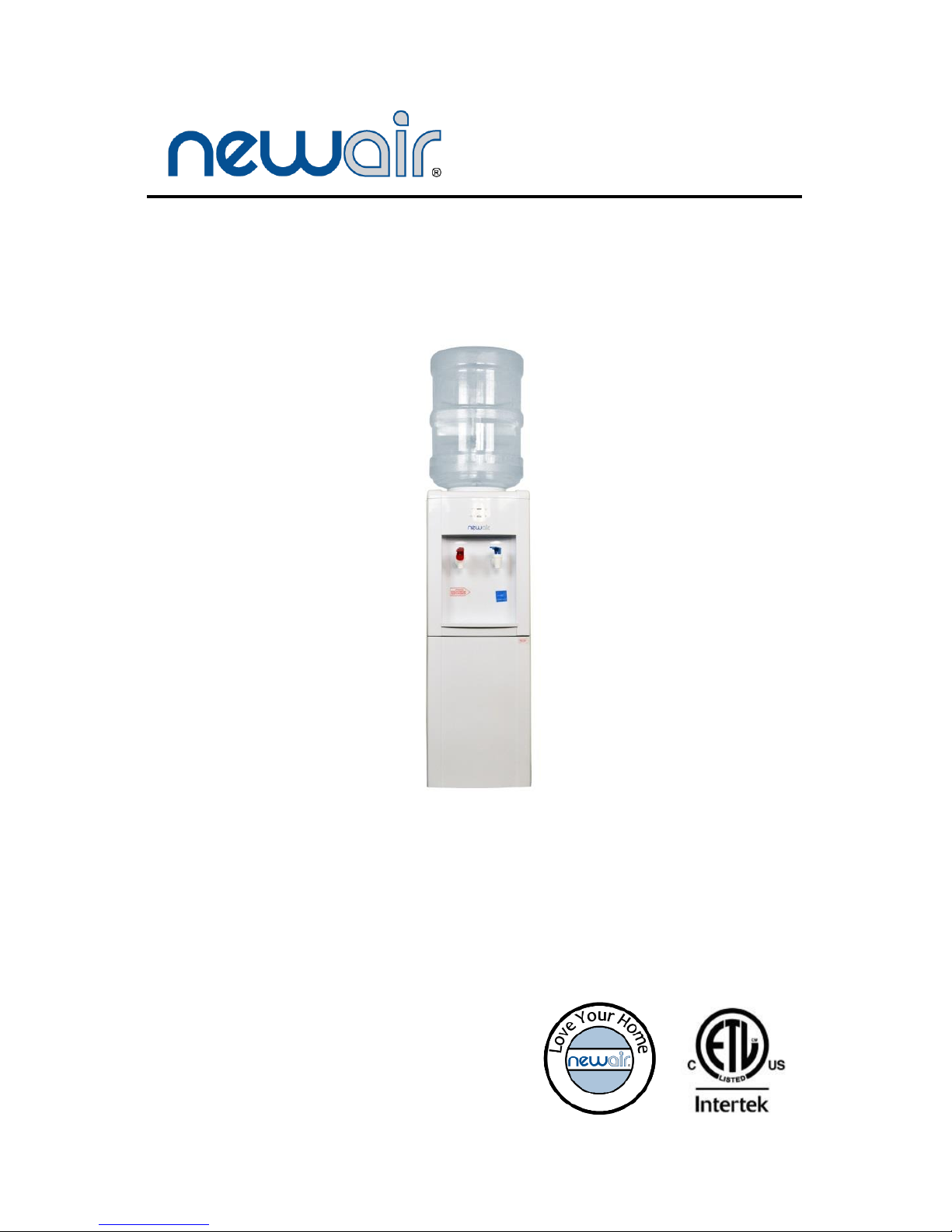

New Air WCD-200W User manual

Water Dispenser
WCD-200W
OWNERS MANUAL
Read and save these instructions.
.

2
http://www.NewAir.com
A Name You Can Trust
Trust has to be earned and we will earn yours. Customer happiness is
the focus of our business.
From the factory to the warehouse, from the sales floor to your home,
the whole NewAir family promises to provide you with innovative
products, exceptional service, and support when you need it the most.
Count on NewAir.
As a proud NewAir owner, welcome to our family. There are no robots
here, real people shipped your product and real people are here to help
you.
Thank you for your purchase and remember NewAir, A Name You Can
Trust.
Call us today at 855-963-9247
Or email [email protected]
For future reference, we recommend you attach a copy of your sales receipt
here and record the following information. You will need this information if it
becomes necessary to contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________
Serial Number: ___________________________________
Model Number: ___________________________________
Connect with us online.

3
A Name You Can Trust
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Specifications ............................................................................................... 3
Safety Information & Warnings ........................................................................... 4
Safe Operation Guidelines ........................................................................... 4
Disposal Guidelines ...................................................................................... 5
Parts List............................................................................................................... 6
Parts Diagram............................................................................................... 6
Installation & Setup ............................................................................................. 6
Initial Setup .................................................................................................. 7
Cleaning & Maintenance...................................................................................... 8
Troubleshooting................................................................................................... 9
Limited Manufacturer’s Warranty ..................................................................... 10
SPECIFICATIONS
MODEL NO.
WCD-200W
VOLTAGE:
115V
FREQUENCY:
60 Hz
TOTAL POWER:
580W
HEATING POWER:
500W
TOTAL CURRENT:
5.6A
COOLING CURRENT:
1.3A
REFRIGERANT CODE
NAME/QUANTITY:
R134a/31g
HOT WATER TEMPERATURE:
176°F - 203°F
COLD WATER TEMPERATURE:
43°F - 50°F
All NewAir water dispensers are ETL listed, have been tested to meet
CEC Energy Standards as well as compliance with AB1953 / Proposition
#65 NO LEAD LAW.

4
http://www.NewAir.com
SAFETY INFORMATION & WARNINGS
SAFE OPERATION GUIDELINES
To reduce the risk of fire, electrical shock and/or injury to persons or property
please follow basic safety precautions. Be sure to read all instructions before
using this appliance and observe the following safety tips:
ALWAYS DO THIS:
Always transport your water
dispenser in a vertical position
and stand on a stable, level
surface during use.
Keep the water dispenser out of
direct sunlight.
Keep a distance of at least 6” (15
cm) from walls on all sides of the
water dispenser.
If the water dispenser is knocked
over during use, turn off the unit
and unplug it from the power
supply immediately.
Keep ventilation openings clear
of obstruction.
NEVER DO THIS:
oNever use this appliance if it is not
working properly, or if it has been
dropped or damaged.
oDo not use hazardous chemicals
to clean or allow them to come
into come into contact with the
unit. Do not use the unit in the
presence of flammable
substances or vapor such as
alcohol, insecticides, gasoline, etc.
oDo not allow children to operate
the unit unsupervised.
oDo not use liquids other than
water in this unit.
oDo not plug in unit until water
bottle is installed (see installation
instructions below).
Shock Hazard –Electrical Grounding
Required
This appliance is for indoor use only.
Never attempt to repair or perform maintenance on the unit until the
electricity has been disconnected.
Never remove the round grounding prong from the plug and never use a
two-prong grounding adaptor. Use of an extension cord is not
recommended.
Do not pull or place strain on the power cord when moving the appliance.

5
A Name You Can Trust
Altering or cutting of power cord, removal of power cord, removal of power
plug, or direct wiring can cause serious injury, fire, or loss of property and/or
life, and will void the warranty. If the power cord is damaged, it must be
replaced by an electrician or specialized technician authorized by the
manufacturer in order to prevent fire.
Do not operate with an external switching device, such as a timer, or
connect to a circuit that is regularly switched on and off by the utility.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Household use only.
Do not store explosive substances such as aerosol cans with flammable
propellant in this appliance.
WARNING---- Do not damage the refrigerant circuit.
WARNING---Do not use electrical appliances inside the food storage
compartments of appliance, unless they are of the type recommended by
the manufacturer.
DISPOSAL GUIDELINES
It is prohibited to dispose of this appliance in domestic household waste.
Disposing of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the
food chain. For disposal, the following options may be available:
The municipality may have established collection systems, where
electronic waste can be disposed of free of charge to the user.
When buying a new product the retailer may take back the old product
free of charge.
As old products contain valuable resources, they can be sold to scrap
metal dealers.

6
http://www.NewAir.com
PARTS LIST
PARTS DIAGRAM
INSTALLATION & SETUP
Before connecting the appliance to a power source, let it stand
upright for approximately 2 hours. This will reduce the possibility
of a malfunction in the cooling system from handling during
transportation.
LOCATION
The water dispenser should be placed on a firm, even foundation
to minimize noise and vibration.
Do not place the dispenser in direct sunlight or near other heat
producing appliances.
To avoid accidental water damage, locate it away from furniture
or other appliances.
1. top cover
2. heating indicator
3. cooling indicator
4. cold water faucet
5. hot water faucet
6. storage compartment
7. condenser
8. drain valve
9. heating switch
10.cooling switch
11.power supply cord

7
A Name You Can Trust
The unit must be placed within reach of a properly-rated grounded socket.
Never place any obstacles around the air inlet or outlet of the unit.
Allow a minimum 6-inch clearance on all sides for efficient operation.
INITIAL SETUP
IMPORTANT: Do not plug in the unit before installing a
water bottle. Operating the unit with an empty hot water
tank can cause physical damage to the water dispenser.
WATER BOTTLE INSTALLATION
This unit is designed to work with 2-gallon, 3-gallon or 5-gallon bottles of
drinking water. To install the water bottle:
1. Remove the label from the cap of the bottle.
2. Use a clean cloth to wipe the cap and neck of the bottle.
3. Lift and invert the bottle, and insert the bottle neck into the water guard.
4. Allow bottle to fill the internal tank and wait for bubbles to stop rising from
the bottom of the bottle.
5. Turn on the Red (hot) tap until water flows from it.
6. Plug the unit into an appropriate wall outlet.
7. Turn on the switches on the rear of the unit one at a time (do not turn on
the switches at the same time). The heating lamp and the cooling lamp will
light up.
INITIAL CLEANING
This unit has been cleaned and sanitized prior to shipping. However, to remove
dust accumulated during shipping, we recommend rinsing the water lines and
tank upon initial operation:
1. Allow the unit to run with the water bottle in place for 30 minutes.
2. After 30 minutes, turn the unit off, unplug it, and remove the water bottle.
3. Run all taps until they are empty, then open the drain plug on the back of
the unit and drain remaining water from the dispenser into a bucket or
other container.
4. Once the unit has been completely flushed, you can replace the bottle and
restart the unit according to the instructions above.

8
http://www.NewAir.com
5. CAUTION: To avoid burns, avoid direct contact with
the hot water. Never allow children to dispense hot water
without supervision.
CLEANING & MAINTENANCE
Unplug the unit from the electric outlet before performing any maintenance or
servicing the product.
CLEANING THE HOUSING
Use a soft, damp cloth to wipe the body clean. Clean the drip tray and
storage cabinet as needed.
Remove dust from the condenser coils on the back of the unit to improve
efficiency.
Never use strong chemicals, gasoline, detergents, chemically-treated
cloths, or any other cleaning solutions to clean the water dispenser, as
these can all potentially damage the unit.
Never use detergent or chemicals harmful to health when cleaning.
Do not directly spray water on the surface of the product.
CLEANING THE WATER TANKS
To periodically clean the water tanks, follow the procedure described for
“Initial Cleaning” on page 6 of this manual. Hard water may cause mineral
deposits to build up on the interior of the hot water tank, resulting in a
decrease in heating capacity. To remove deposits, fill the hot water tank with
an aqueous solution of 2% citric acid and leave for two hours. Flush system
completely as described above. If the problem persists, contact your dealer or
Customer Service for assistance.
If power supply cord on this device is damaged, it must be replaced with a
special power supply cord that is obtainable at the Service Center of our
company.
If the water dispenser will go unused for more than a few days, it is
recommended that you unplug the unit, remove the water bottle, and
drain the unit completely.

9
A Name You Can Trust
TROUBLESHOOTING
Problem
Possible Causes
Solution
No water from
the faucets.
Air entrance has
been blocked
Take down the bottle
and reassemble it.
Does not
provide hot or
cold water.
Too much water
has been used in a
short time.
Wait for a while and try
again.
Electric connection
is loose.
Make sure the switch is
ON and the plug is in the
socket.
Electrical
leakage.
The connection is
not good.
Make sure the plug is
properly grounded.
Loud noise.
Uneven footing.
Place the unit on a flat,
even surface.
Water leakage.
The bottle is
broken.
Replace the bottle.
NEVER TRY TO REPAIR OR DISMANTLE THE UNIT YOURSELF.
UNAUTHORIZED REPAIRS CAN VOID THE WARRANTY AND
ENDANGER THE UNIT.

10
http://www.NewAir.com
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
Power failure
Damage in transit or when moving the appliance
Improper power supply such as low voltage, defective household
wiring or inadequate fuses
Accident, alteration, misuse or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures)
Use in commercial or industrial applications
Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
Use of force or damage caused by external influences
Partially or completely dismantled appliances
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
purchase date available. Once confirmed that your appliance is eligible for
warranty service, all repairs will be performed by a NewAir™ authorized repair
facility. The purchaser will be responsible for any removal or transportation
costs. Replacement parts and/or units will be new, re-manufactured or
refurbished and is subject to the manufacturer’s discretion. For technical
support and warranty service, please email [e-mail]
