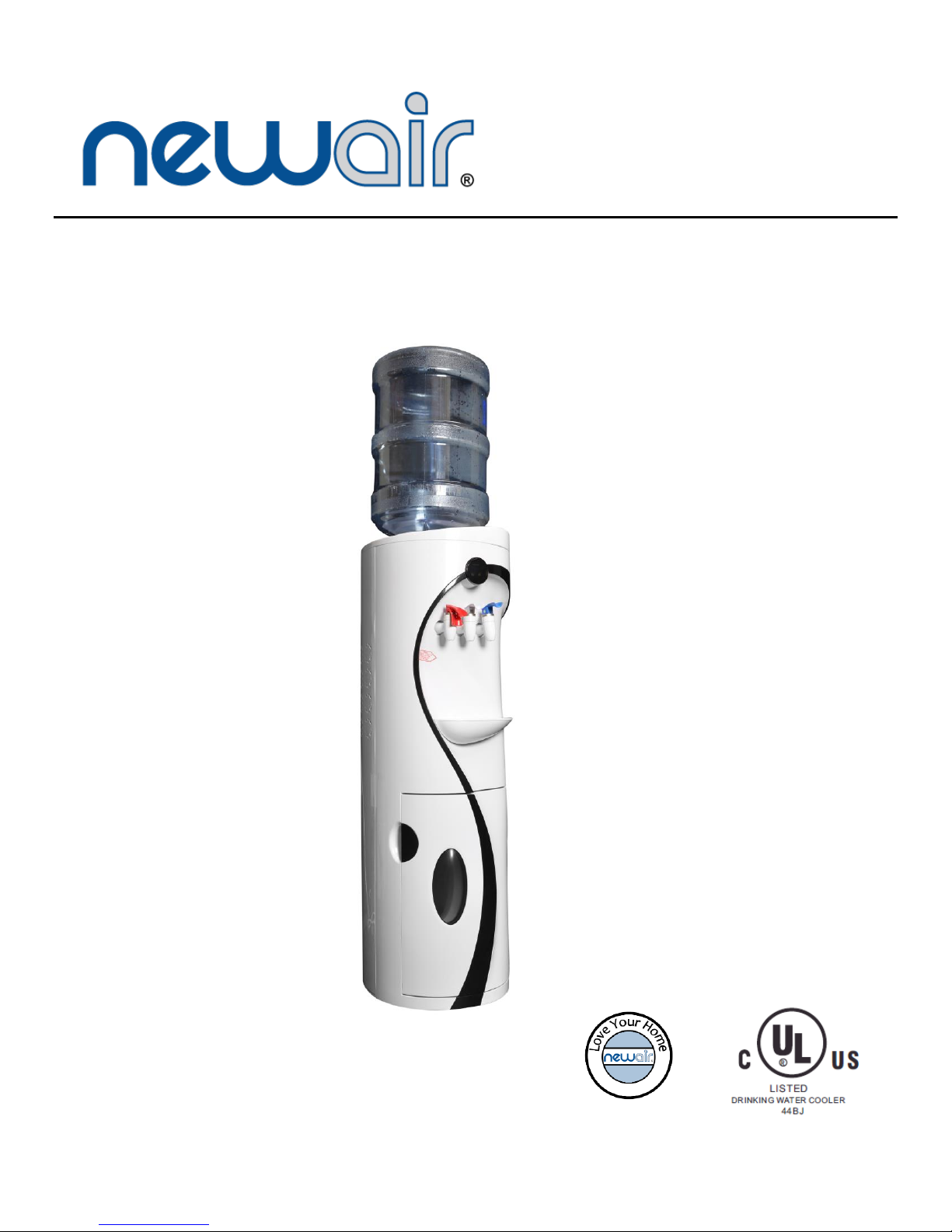

New Air WCD-100W User manual

Hot and Cold Designer Water Dispenser
WCD-100W
OWNERS MANUAL
Read and save these instructions.
.

2
http://www.NewAir.com
A Name You Can Trust
Trust has to be earned and we will earn yours. Customer happiness is the focus of
our business.
From the factory to the warehouse, from the sales floor to your home, the whole
NewAir family promises to provide you with innovative products, exceptional
service, and support when you need it the most.
Count on NewAir.
As a proud NewAir owner, welcome to our family. There are no robots here, real
people shipped your product and real people are here to help you.
Thank you for your purchase and remember NewAir, A Name You Can Trust.
Call us today at 855-963-9247
Or email [e-mail]
For future reference, we recommend you attach a copy of your sales
receipt here and record the following information. You will need this
information if it becomes necessary to contact the manufacturer for
service inquiries.
Date of Purchase: ___________________________________
Serial Number: ___________________________________
Model Number: ___________________________________
Connect with us online.

3
A Name You Can Trust
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Safety Information & Warnings ................................................................................4
Safe Operation Guidelines ...................................................................................4
Disposal Guidelines..............................................................................................4
Parts List ...................................................................................................................5
Parts Diagram ......................................................................................................5
Installation & Setup ..................................................................................................5
Initial Setup..........................................................................................................6
Cleaning & Maintenance ..........................................................................................7
Troubleshooting........................................................................................................7
Limited Manufacturer’s Warranty ............................................................................8
SPECIFICATIONS
MODEL NO.
WCD-100W
VOLTAGE:
115V
FREQUENCY:
60 Hz
TOTAL POWER:
580W
HEATING POWER:
500W
TOTAL CURRENT:
5.26A
REFRIGERATING CURRENT:
1.5A
REFRIGERANT CODE NAME/QUANTITY:
R134a/36g
HOT WATER TEMPERATURE:
176°F - 203°F
COLD WATER TEMPERATURE:
41°F - 50°F

4
http://www.NewAir.com
SAFETY INFORMATION & WARNINGS
SAFE OPERATION GUIDELINES
To reduce the risk of fire, electrical shock and/or injury to persons or property please follow basic safety
precautions. Be sure to read all instructions before using this appliance and observe the following safety tips:
ALWAYS DO THIS:
Always transport your water dispenser in a
vertical position and stand on a stable, level
surface during use.
Keep the water dispenser out of direct sunlight.
Keep a distance of at least 6” (15 cm) from walls
on all sides of the water dispenser.
If the water dispenser is knocked over during use,
turn off the unit and unplug it from the power
supply immediately.
Keep ventilation openings clear of obstruction.
NEVER DO THIS:
oNever use this appliance if it is not working
properly, or if it has been dropped or damaged.
oDo not use hazardous chemicals to clean or come
into come into contact with the unit. Do not use
the unit in the presence of flammable substances
or vapor such as alcohol, insecticides, gasoline,
etc.
oDo not allow children to operate the unit
unsupervised.
oDo not use liquids other than water in this unit.
oDo not plug in unit until water bottle is installed
(see installation instructions below).
Shock Hazard –Electrical Grounding Required
This appliance is for indoor use only.
Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.
Never remove the round grounding prong from the plug and never use a two-prong grounding adaptor. Use
of an extension cord is not recommended.
Do not pull or place strain on the power cord when moving the appliance.
Altering or cutting of power cord, removal of power cord, removal of power plug, or direct wiring can cause
serious injury, fire, and loss of property and/or life, and will void the warranty. If the power cord is
damaged, it must be replaced by an electrician or specialized technician authorized by the manufacturer in
order to prevent fire.
Do not operate with an external switching device, such as a timer, or connect to a circuit that is regularly
switched on and off by the utility.
DISPOSAL GUIDELINES
It is prohibited to dispose of this appliance in domestic household waste. Disposing of waste in forests and
landscapes endangers your health when hazardous substances leak into the ground-water and find their way
into the food chain. For disposal, the following options may be available:
The municipality may have established collection systems, where electronic waste can be disposed of free
of charge to the user.
When buying a new product the retailer may take back the old product free of charge.
As old products contain valuable resources, they can be sold to scrap metal dealers.

5
A Name You Can Trust
PARTS LIST
PARTS DIAGRAM
INSTALLATION & SETUP
Before connecting the water dispenser to a power source, let it stand upright for approximately
2 hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
LOCATION
The water dispenser should be placed on a firm, even foundation to minimize
noise and vibration.
Do not place the dispenser in direct sunlight or near other heat producing
appliances.
To avoid accidental water damage, locate it away from furniture or other
appliances.
The unit must be placed within reach of a properly rated grounded socket.
Never place any obstacles around the air inlet or outlet of the unit.
Allow a minimum 6-inch clearance on all sides for efficient operation.
1. Water guard
2. Cold tap (blue)
3. Warm tap (white)
4. Hot tap (red)
5. Drip tray
6. Storage cabinet
7. Cold switch (green)
8. Hot switch (red)
9. Refrigerating controller
10. Radiator
11. Drain plug
12. Power cord sets

6
http://www.NewAir.com
INITIAL SETUP
IMPORTANT: Do not plug in the unit before installing a water bottle. Operating the
unit with an empty hot water tank can cause physical damage to the water
dispenser.
WATER BOTTLE INSTALLATION
This unit is designed to work with 2-gallon, 3-gallon or 5-gallon bottles of drinking water. To install the water
bottle:
1. Remove the label from the cap of the bottle. Do not remove the plastic cap.
2. Use a clean cloth to wipe the cap and neck of the bottle.
3. Lift and invert the bottle, and insert the bottle neck into the water guard.
4. Turn on the Red (hot) tap until water flows from it.
5. Plug the unit into an appropriate wall outlet.
6. Turn on the switches on the rear of the unit one at a time (do not turn on the switches at the same time).
The heating lamp and the cooling lamp will light up.
INITIAL CLEANING
This unit has been cleaned and sanitized prior to shipping, however to remove dust accumulated during
shipping, we recommend rinsing the water lines and tank upon initial operation:
1. Allow the unit to run with the water bottle in place for 30 minutes.
2. After 30 minutes, turn the unit off, unplug it, and remove the water bottle.
3. Run all taps until they are empty, then open the drain plug on the back of the unit and drain remaining
water from the dispenser into a bucket or other container.
4. Once the unit has been completely flushed, you can replace the bottle and restart the unit according to
the instructions above.
CAUTION: To avoid burns, avoid direct contact with the hot water. Never allow children to
dispense hot water without supervision.

7
A Name You Can Trust
CLEANING & MAINTENANCE
CLEANING THE HOUSING
Use a soft, damp cloth to wipe the body clean. Clean the drip tray and storage cabinet as needed.
Remove dust from the condenser coils on the back of the unit to improve efficiency.
Never use strong chemicals, gasoline, detergents, chemically-treated cloths, or any other cleaning
solutions to clean the water dispenser, as these can all potentially damage the unit.
If the water dispenser will go unused for more than a few days, it is recommended that you unplug the unit,
remove the water bottle, and drain the unit completely.
TROUBLESHOOTING
Problem
Possible Causes
Solution
No water from the
faucets.
Air entrance has been blocked
Take down the bottle and reassemble it.
Does not provide hot or
cold water.
Too much water has been used
in a short time.
Wait for a while and try again.
Electric connection is loose.
Make sure the switch is ON and the plug is
in the socket.
Electrical leakage.
The connection is not good.
Make sure the plug is properly grounded.
Loud noise.
Uneven footing.
Place the unit on a flat, even surface.
Water leakage.
The bottle is broken.
Replace the bottle.
NEVER TRY TO REPAIR OR DISMANTLE THE UNIT YOURSELF.
UNAUTHORIZED REPAIRS CAN VOID THE WARRANTY AND ENDANGER THE UNIT.

8
http://www.NewAir.com
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year from the original date of
purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in
materials and workmanship, provided the appliance has been used under normal operating conditions as
intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective due to materials or workmanship
will be repaired or replaced, at the manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
Power failure
Damage in transit or when moving the appliance
Improper power supply such as low voltage, defective household wiring or inadequate fuses
Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories,
inadequate air circulation in the room or abnormal operating conditions (extreme temperatures)
Use in commercial or industrial applications
Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes, floods, etc.
Use of force or damage caused by external influences
Partially or completely dismantled appliances
Excess wear and tear by the user
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with purchase date available. Once
confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™
authorized repair facility. The purchaser will be responsible for any removal or transportation costs.
Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the
manufacturer’s discretion. For technical support and warranty service, please email suppor[email protected].
