New Air NWC056BKD0 User manual

Manual v1.0
Newair Wine Coolers
Newair Refroidisseurs À Vin
Newair Enfriador De Vino
OWNER’S MANUAL
Manuel de L'utilisateour
Manual del Propietario
NWC056BKD0
NWC062BK00

www.newair.com 2
LANGUAGE INDEX
English Manual..................................................................................................... 3
Manuel en Français............................................................................................ 18
Manual en Español............................................................................................. 33

EN
www.newair.com 3
A Name You Can Trust
Trust should be earned and we will earn yours. Customer happiness is the focus
of our business.
From the factory to the warehouse, from the sales floor to your home, the
whole Newair family promises to provide you with innovative products,
exceptional service, and support when you need it the most.
Count on Newair
As a proud Newair owner, welcome to our family. There are no robots here,
real people shipped your product and real people are here to help you.
Contact Us
Please reach out to our customer service team before making a return to your
store of purchase. We are happy to help with any questions or concerns!
Mon-Fri from 8-4 PST at:
Call:
1-855-963-9247
Email:
[email protected]
Online:
www.newair.com
A team member will respond to you within 24 hours.
Follow Us
Facebook.com/newairusa
Instagram.com/newairusa
YouTube.com/newairusa
Twitter.com/newairusa

EN
www.newair.com 4
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Specifications ....................................................................................................... 5
Register Your Product Online............................................................................... 6
Safety Information & Warnings ...........................................................................7
Parts List............................................................................................................. 10
Your Wine Cooler Features ................................................................................ 11
Operating Instructions ....................................................................................... 12
Control Panel .....................................................................................................12
Defrosting Your Wine Cooler .............................................................................14
Recommended Temperature.............................................................................14
Cleaning & Maintenance....................................................................................15
Cleaning Your Wine Cooler ................................................................................ 15
Troubleshooting.................................................................................................16
Limited Manufacturer’s Warranty ..................................................................... 17

EN
www.newair.com 5
SPECIFICATIONS
MODEL NO.
NWC056BKD0
POWER SUPPLY:
110-120V 60Hz
RATED POWER:
100W
BOTTLE CAPACITY:
56 bottles
NOISE LEVEL:
42dB
NET WEIGHT:
104.5 lbs.
TEMPERATURE RANGE:
41°F -64°F
UNIT DIMENSIONS (W X DX H):
16.9 X 24.0 X 49.3 in
REFRIGERANT:
R600a
MODEL NO.
NWC062BK00
POWER SUPPLY:
110-120V 60HZ
RATED POWER:
100W
BOTTLE CAPACITY:
62 bottles
NOISE LEVEL:
42dB
NET WEIGHT:
102.5 lbs.
TEMPERATURE RANGE:
41 -64°F (5-18°C)
UNIT DIMENSIONS (W XDXH):
16.9 X 24.0 X 49.3 in
REFRIGERANT:
R600a

EN
www.newair.com 6
REGISTER YOUR PRODUCT ONLINE
Register Your Newair Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for Newair promotions and offers
Registering your product information online is safe & secure and takes less than
2 minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, located on the manufacturer’s nameplate on
the rear of the unit. You will need this information if it becomes necessary to
contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
newair.com/register

EN
www.newair.com 7
SAFETY INFORMATION & WARNINGS
Your safety and the safety of others are very important to us.
We have provided many important safety messages in this manual
and on your appliance. Always read and obey all safety messages.
WARNING:
•Read all instructions carefully before attempting to operate your wine fridge.
Improper usage could result in injury or a reduction in efficacy.
•Remove all packaging before using this device. Please keep all packaging
materials out of reach of children and pets.
•Properly dispose of all packing materials immediately after unpacking
product, as the bags used for packaging could present a suffocation or
choking hazard.
•This product contains small parts that can be a choking hazard for children
under the age of 3 years old. Please keep children away from the wine fridge
during the installation process and do not let children near the wine fridge
unsupervised.
•Never allow children to operate, play with, or crawl inside the wine fridge.
•This wine fridge is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
•Do not attempt to repair or replace any parts or service this unit unless
specifically recommended in this User Guide. If the supply cord is damaged,
it must be replaced by the manufacturer, a service agent or a similarly
qualified person in order to avoid a hazard.
•When positioning your wine fridge, make sure the supply cord is not
obstructed by other objects, tangled or damaged. If you suspect damage to
the supply cord, please contact the manufacturer immediately and do not
try and fix yourself.
•Use only with a properly grounded, standard 115V 60Hz electrical outlet to
avoid the risk of electrical shock. Do not use with an extension cord.
•Leave a space of at least 5" (127 mm) in the back of the unit and on both
sides to make sure the wine fridge has enough ventilation to avoid
overheating.
•Do not use mechanical or electrical tools to accelerate the defrosting
process, other than those recommended by the manufacturer.
•Do not damage the refrigerant circuit.

EN
www.newair.com 8
•Do not store explosive substances such as aerosol cans with a flammable
propellant in this wine fridge.
•This wine fridge is intended to be used in your home, however it can also be
used in the following applications:
ostaff kitchen areas in shops, offices and other work environments;
ofarmhouses and by clients in hotels, motels and other commercial
environments;
obed and breakfast type environments;
ocatering and similar non-retail applications.
•Follow these proper storage techniques:
oKeep the door closed. Opening the door for long periods can
cause a significant increase of the temperature in the wine fridge.
oClean the interior and exterior surfaces regularly.
oFollow this protocol if your wine fridge has been left on and
empty for an extended period of time: switch off, defrost, clean,
dry, and leave the door open to prevent mold from developing
within the wine fridge.
•This wine fridge contains flammable refrigerant R600a and foaming agent
cyclopentane. Please note the following:
oPlease avoid any contact with fire when transporting or using the
wine fridge.
oPlease ask a professional to service the wine fridge when it needs
fixing.
oPlease send the wine fridge to your local appointed disposal
station if it needs discarding.
IMPORTANT SETUP NOTES
•Before plugging in your Wine Cooler, allow to stand upright for 24 hours.
•Place only on a level surface that will support the full weight once Wine
Cooler has been fully loaded. You can ensure the unit is level by placing a
small ball on top and checking to make sure it does not roll in any direction.
•Position in a dry, well-ventilated space with temperatures between 50°F –
100°F (10°C –38°C).
•Leave a space of at least 5" (127 mm) in the back of the unit and on both
sides.
•Do not place any objects on top of the unit.
•Do not use without feet: the unit requires ground clearance.
WARNING: Risk of child entrapment. Before you throw away your old wine
fridge, please follow these steps:
oTake off the doors.

EN
www.newair.com 9
oLeave the shelves in place so that children may not easily climb
inside.
oMake sure to leave at least 50mm of space on the back and each
side.

EN
www.newair.com 10

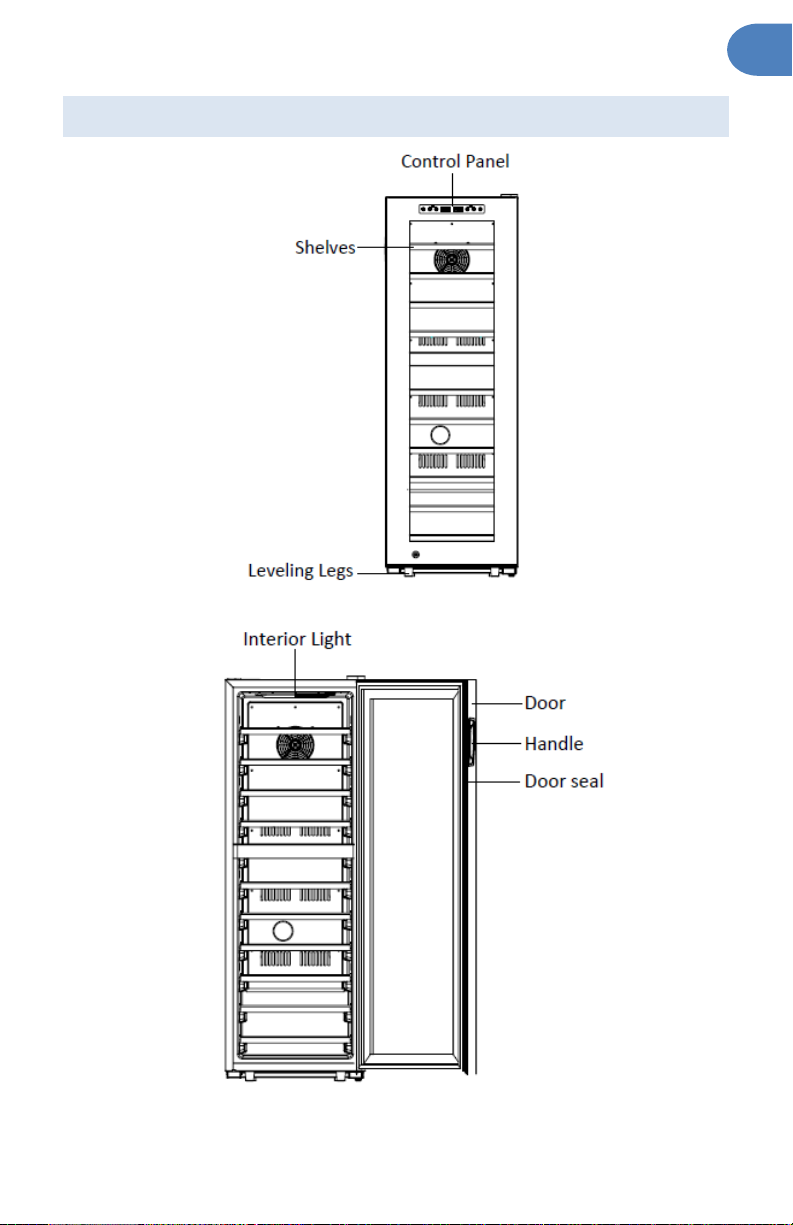

PARTS LIST

EN
www.newair.com 11
YOUR WINE COOLER FEATURES
•Keeps red and/or white wines at their proper temperature
•One-touch controls and LCD display
•Interior lighting with independent on/off control
•Celsius or Fahrenheit, adjustable by one-degree increments
•Wire shelving with wood trim are easy to pull out
•Automatic panel lock
•Tempered smoked glass door protects wines from UV rays
•Black metal exterior
•Door lock and key

EN
www.newair.com 12
OPERATING INSTRUCTIONS
CONTROL PANEL
SINGLE ZONE MODEL
NWC062BK00
1. Press button for 3 seconds to turn on or turn off the appliance.
2. Press button to turn on or turn off the light.
3. Press button to change temperature display from Celsius to
Fahrenheit.
4. All the controls will be locked after no operation for 20 seconds. Press
temperature control buttons and together for 5 seconds to unlock
it.
5. Set the desired temperature in 1 degree increments by pressing or
buttons.
DUAL ZONE MODEL
NWC056BKD0
1. Press button for 3 seconds to turn on or turn off the appliance.
2. Press button to turn on or turn off the light.
3. Press lower zone temperature buttons together for 5 seconds to
change temperature display from Celsius to Fahrenheit.

EN
www.newair.com 13
4. All the controls will be locked after no operation for 20 seconds. Press
upper zone temperature buttons together for 5 seconds to unlock
it.
5. Set the desired temperature in 1 degree increments by pressing or
buttons for the appropriate zone.

EN
www.newair.com 14
DEFROSTING YOUR WINE COOLER
The unit’s Auto Defrost feature should prevent ice accumulation from
occurring.
However, should ice accumulation occur, do the following:
•Unplug the wine cooler
•Wait for all ice to melt
•Once the ice is completely melted, clean the water from the wine cooler
with a dry cloth
•Plug in and restart the wine cooler
RECOMMENDED TEMPERATURE
Optimum Storage Temperature
Fahrenheit
Celsius
Red Wines
57° - 64°
14° - 18°
White Wines, Champagnes and Sparkling
Wines, and Dry Varietals
49° - 58°
9° - 14°
Rosé Wines
51° - 53°
10° - 11°
Serving Temperatures
Fahrenheit
Celsius
Red Wines
55 - 64°
13 - 18°
White Wines, Champagnes and Sparkling
Wines, and Dry Varietals
41 - 55°
5 - 13°
Rosé Wines
50 - 55°
10 - 13°

EN
www.newair.com 15
CLEANING & MAINTENANCE
CLEANING YOUR WINE COOLER
TO CLEAN THE EXTERIOR:
•Unplug the wine cooler before cleaning.
•Do not use abrasive cleaning products.
•Wash the cabinet exterior only with mild soap and water and rinse
thoroughly.
•Clean the glass door with glass cleaner or mild soap and water and a soft
cloth.
•Wipe the control panel with a damp cloth and dry thoroughly. To avoid
damaging the panel, do not use cleaning sprays or over-saturate it with
water.
TO CLEAN THE INTERIOR:
•Unplug before cleaning.
•Do not use abrasive cleaning products.
•Cleaning the door gasket:
oUse mild soap or baking soda solution
oRinse well
oApply a thin layer of petroleum jelly to the gasket at the hinge side to
prevent it from sticking
•Use a warm water and baking soda solution inside the unit (about one
tablespoon of baking soda to one quart of water) to clean and neutralize
odors.

EN
www.newair.com 16
TROUBLESHOOTING
Problem
Possible Cause and Solution
If the unit doesn’t
work:
Check to make sure the power supply has the correct
voltage. Also check to make sure there isn't a circuit
breaker that has been tripped or a blown fuse.
If the unit isn’t
getting cold enough:
Make sure the temperature settings are adjusted
correctly. If so, the room in which the unit is operating
might be too hot. Also check whether the door has
been opened too frequently or has not been
completely closed. Check the seal on the door to
make sure it is intact. Make sure the unit has sufficient
clearance on all sides.
If the unit vibrates
or makes excessive
noise:
Make sure the unit has been placed on a level, stable
surface. Also check to make sure the fan is working
properly.
If the LED display is
not working or
shows an error
message:
Check to see if the unit is plugged in properly. If so,
there may be a problem with the main circuit board
that requires professional servicing.
If the buttons don’t
work:
The Control Panel may be damaged.

EN
www.newair.com 17
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
•Power failure
•Damage in transit or when moving the appliance
•Improper power supply such as low voltage, defective household
wiring or inadequate fuses
•Accident, alteration, misuse or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures)
•Use in commercial or industrial applications
•Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
•Use of force or damage caused by external influences
•Partially or completely dismantled appliances
•Excess wear and tear by the user
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
the purchase date available. Once confirmed that your appliance is eligible for
warranty service, all repairs will be performed by a Newair™authorized repair
facility. The purchaser will be responsible for any removal or transportation
costs. Replacement parts and/or units will be new, re-manufactured or
refurbished and is subject to the manufacturer’s discretion. For technical
support and warranty service, please email [e-mail].

FR
www.newair.com 18
Un nom de confiance
La confiance doit être gagnée et nous allons mériter la vôtre. La satisfaction du
client est notre priorité.
De l’usine à l’entrepôt et de la surface de vente à votre domicile, les fabricants
des produits Newair font la promesse de vous fournir des produits novateurs,
un service exceptionnel et un soutien au moment où vous en avez le plus
besoin.
Vous pouvez compter sur Newair
En votre qualité de fier propriétaire d’un produit Newair, nous vous souhaitons
la bienvenue dans notre famille. Notre entreprise n’utilise aucun robot,
uniquement de véritables personnes pour vous livrer votre produit et de
véritables personnes pour vous aider.
Contactez-nous
Veuillez contacter notre équipe du service client avant de faire un retour dans
votre magasin d'achat. Nous sommes heureux de répondre à toutes vos
questions ou préoccupations!
Contactez-nous du lundi au vendredi de 8h à 4h HNP au:
Téléphone :
1 855 963-9247
Courriel :
[email protected]
En ligne :
www.newair.com
Un membre de l'équipe vous répondra dans les 24 heures.
Suivez-nous :
Facebook.com/newairusa
Instagram.com/newairusa
YouTube.com/newairusa
Twitter.com/newairusa

FR
www.newair.com 19
LISEZ ET CONSERVEZ CES INSTRUCTIONS.
TABLE DES MATIÈRES
Caractéristiques ................................................................................................. 20
Enregistrer Votre Produit En Ligne .................................................................... 21
Consignes De Sécurité Et Mises En Garde.......................................................... 22
Liste Des Pièces..................................................................................................25
Caractéristiques De Votre Refroidisseur De Vin ................................................26
Mode D’emploi ..................................................................................................27
Panneau De Commande .................................................................................... 27
Dégivrage De Votre Refroidisseur À Vin ............................................................ 29
Température Recommandée............................................................................. 29
Nettoyage Et Entretien ...................................................................................... 30
Nettoyagede Votre Refroidisseur À Vin............................................................. 30
Dépannage.........................................................................................................31
Garantie Limitée Du Fabricant ...........................................................................32

FR
www.newair.com 20
CARACTÉRISTIQUES
NUMÉRO DE MODÈLE:
NWC056BKD0
ALIMENTATION:
115V 60Hz
PUISSANCE NOMINALE:
100W
CAPACITÉ DE LA BOUTEILLE:
56 bouteilles
NIVEAU DE BRUIT:
42dB
PLAGE DE TEMPÉRATURE :
41 - 64°F (5-18°C)
POIDS NET:
104.5 lbs.
DIMENSIONS DE L'UNITÉ
(L X P X H):
16,9 X 24,0 X 49,3 pouces
REFRIGÉRANT:
R600a
NUMÉRO DE MODÈLE:
NWC062BK00
ALIMENTATION:
115V 60Hz
PUISSANCE NOMINALE:
100W
CAPACITÉ DE LA BOUTEILLE:
62 bouteilles
NIVEAU DE BRUIT:
42dB
POIDS NET:
102.5 lbs.
PLAGE DE TEMPÉRATURE :
41 -64°F (5-18°C)
DIMENSIONS DE L'UNITÉ
(L X P X H):
16,9 X 24,0 X 49,3 pouces
REFRIGÉRANT:
R600a
