Grand Cru GC100D User manual

INST
R
U
C
TION
M
AN
U
AL
.
1
by
FOR MODEL NUMBERS
GC100D
GC220D
T his man u al c ontains imp or tant information including sa fet y a nd
installation instructions for your appliance. Please read it carefully before use
and follow all safety information & instructions. It is recommended to keep this
manual for easy reference so that you can be familiar with the operation of your
appliance.

INST
R
U
C
TION
M
AN
U
AL
.
2
--CONTENTS--
IMPORT ANT SAFETY INFORMA TION ........................................................................ 3
STRUCTURE AND DESCRIPTION ............................................................................... 4
INSTALLATION DIAGRAM ........................................................................................ 5
ACCESSORY INST ALLA TION BEFORE OPERA TING ....................................................... 6
 UNPACKING AND CLEANING THE WINE COOLER ...................................................... 6
 LOCKING & UNLOCKING THE DOOR .......................................................................... 6
OPERA TING THE WINE COOLER ............................................................................... 6
 WORKING CLIMATE ................................................................................................... 6
 WINE STORAGE ......................................................................................................... 7
 CONTROL PANEL ........................................................................................................ 8
 POWER ON/OFF CONTROL ....................................................................................... 8
 UNLOCKING THE CONTROL PANEL ............................................................................ 9
 INTERIOR LIGHTING - ON/OFF CONTROL .................................................................. 9
 TEMPERATURE SETTING ............................................................................................ 9
 SELECTING FAHRENHEIT( F) OR CELSIUS ( C) DISPLAY ........................................... 10
CARE AND MAINTENANCE ..................................................................................... 11
 CLEANING THE WINE COOLER ................................................................................. 11
 POWER FAILURE ...................................................................................................... 11
 MOVING THE WINE COOLER ................................................................................... 11
 ENERGY SAVING TIPS ............................................................................................... 11
TROUBLESHOOTING .............................................................................................. 12
REVERSING THE DOOR ........................................................................................... 13
WARRANTY……………………………………………………………………………………………………………….15

INST
R
U
C
TION
M
AN
U
AL
.
3
IMPORTANT SAFETY INFORMATION
Before using the appliance, please properly position and install it as described in this
manual. To avoid the risk of fire, electrical shock, or injury when using the appliance,
follow these basic precautions:
•
The appliance is intended to be used exclusively for the storage of wine.
•
Make sure the voltage/current marked on the rating label corresponds with your
supply voltage. Plug into a 3-pin outlet and avoid the use of an adaptor or extension
lead if possible.
•
It is recommended that a separate circuit, serving only your appliance be provided.
•
Never clean the appliance parts with flammable fluids which may create a fire hazard
or explosion. o not store or use gasoline or other flammable vapours and li uids in
the vicinity of the applianc e.
•
Do not connect or disconnect the electric plug when your hands are wet.
•
Unplug the appliance or disconnect power before cleaning, maintenance or
servicing. Failure to do so can result in electrical shock .
•
o not attempt to repair or replace any part of the appliance. All servicing should
be referred to a qualified Clever Home Products technician.
•
It is recommended that 2 people move the appliance to avoid any damage to the
appliance or personal injury .
•
To ensure proper ventilation for the appliance, the front of the unit must be
completely unobstructed. Locate the unit away from direct sunlight and sources of
heat (stove, heater, radiator, etc.).
•
It is important for the appliance to be leveled in order to work properly. You may
adjust the appliance’s feet to level it.
•
This appliance intended for use by persons with sufficient experience and knowledge
of electrical appliances. Any other persons (including children) should be supervised
or given instruction concerning use of the appliance by a person responsible for their
safety.
•
Children should be supervised to ensure that they do not play with the appliance.
•
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners
may damage or discolor the interior.
•
Do not use this appliance for other than its intended purpose.
•
The use of attachments is not recommended by the manufacturer and may be
hazardous.
•
When you dispose of the appliance, take off the door and leave the shelves in place
so that children may not easily climb inside. Make sure the coolant circuit,
particularly
the
heat exchanger at the back/bottom of the unit is not damaged. The symbol
on the product or its packaging indicates that this product is not to be handled
as normal household waste and it is to be taken to a recycling collection point for
electrical and electronic goods.

.
4
.
INSTRUCTION MANUAL
STRUCTSTRUCTURE
GC100D
GC220D
Leveling F
oot
L
ock
Outside Cabinet
Door
Upper
R
ig
h
t Hinge
D
ee
p
helf
Touch
-
Key
Control Panel
& Digital
hallow helf
Fr
o
n
t
L
ou
v
er
Handle
Outside Cabinet
Handle
Leveling Foot
Upper
R
ig
h
t Hinge
Fixed trong
helf
Touch
-
Key
Control Panel
& Digital
hallow helf
L
ock
Fr
o
n
t
L
ou
v
er

.
5
.
INST
R
U
C
TION
M
AN
U
AL
INSTALLATION DIAGRAM
The Appliance can be installed in a free-standing position or built in to a kitchen cabinet.
Below is the dimension for installation.
For Item : GC100D
For Item : GC220D

.
6
.
INST
R
U
C
TION
M
AN
U
AL
ACCESSORY INSTALLATION BEFORE OPERATING
 UNPACKING AND CLEANING THE WINE COOLER
•
Remove the exterior and interior packing materials.
•
Let the appliance stand upright for approximately 24 hours before connecting
it to the power source. This helps to reduce the possibility of a cooling-system
malfunction from handling during transportation.
•
Use a soft cloth to clean the interior surface with lukewarm water.
•

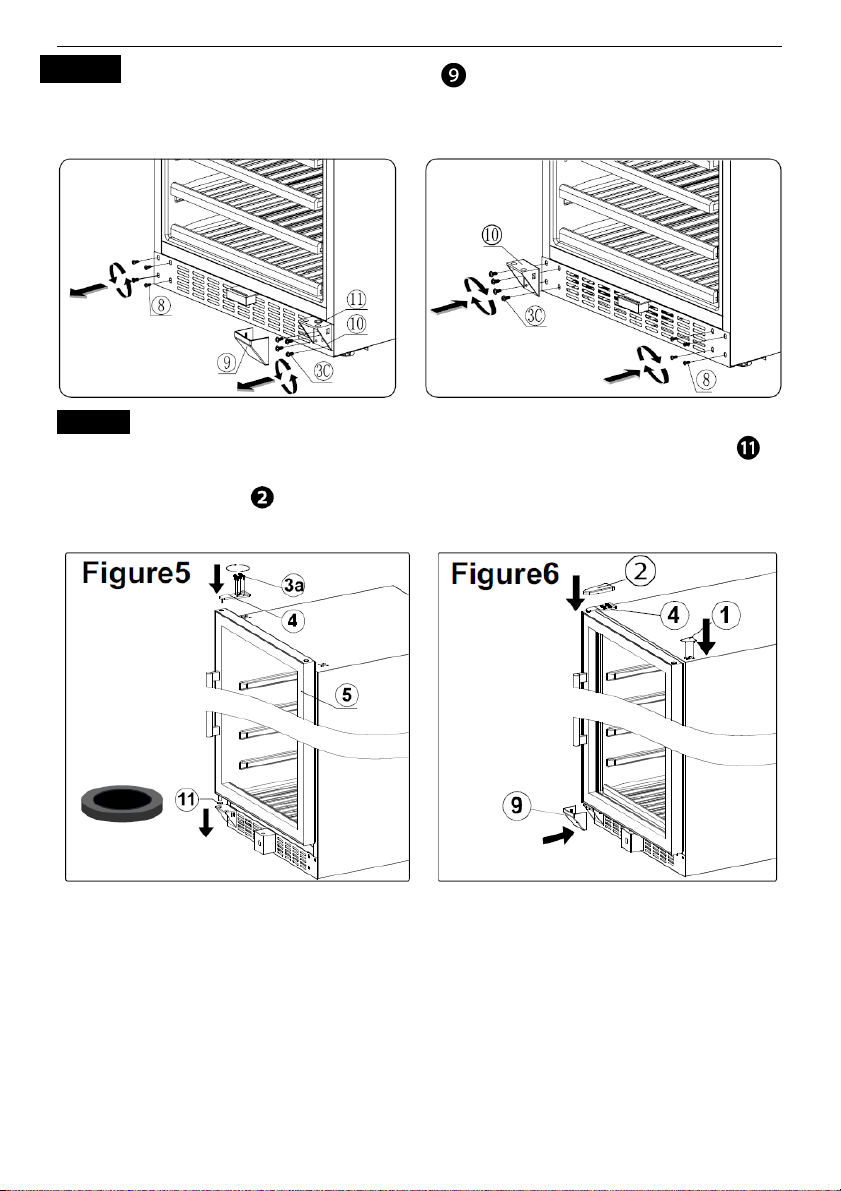

For Stainless Steel Frame version, install the door handle provided with the appliance
by following these steps:
1st Step -Remove the gasket on the internal
door to expose the two screw
holes.
2nd Step -Install the handle with the
screws and washers provided.
3rd Step -Reinstall the gasket.
 LOCK & UNLOCK THE DOOR
● Lock is an optional function. If your wine cooler has such function, a key should be
attached inside the packing of this manual.
● Insert the key into the lock and turn it count er - clock wise to unlock the door. To lock
it, turn clockwise. Please save the key.
OPERATING THE WINE COOLER
 WORKING CLIMATE
•
It is recommended to maintain an ambient temperature of around 22-25°C which
helps your wine cooler work at optimum efficiency.
•
I f the ambient temperature is above or below the recommended ambient
temperature, the performance of the unit may be affected. For example, the
appliance operating in
e xtreme cold or hot conditions may cause interior
temperatures to fluctuate, and the temperature set between 5-22°C may not be
always reached.
Flat Washer
Screw
S
c
r
ew
G
asket
Handle
D
oor
F
r
ame

.
7
.
INST
R
U
C
TION
M
AN
U
AL
 WINE STORAGE
•
The standard shelves are designed perfectly for Bordeaux bottle storage. The
maximum loaded bottles may vary subject to the different size or dimension wine
bottles you store.
•
The shelves can pull out for easy access to the wine storage. There are two kinds of
shelves in one unit:
1. The bottom shallow shelves are without telescopic rails, but with a plastic
topper on each sides of the inside cabinet to prevent the shelf from falling.
2. All the deep shelves are with Telescopic Rails which has stoppers by themselves.
•
To prevent damaging the door gasket, make sure to have the door opened by
140
o
all the way before pulling the shelves out.
•
Please store wine in sealed bottles.
•
o not cover the shelves with aluminum foil or any other shelf material which may
prevent air circulation.
•
Should the appliance be left empty for long periods it is suggested that the
appliance is unplugged, and after careful cleaning, leave the door ajar to allow air
to circulate inside the cabinet in order to avoid possible formation of condensation,
mould or odours.
•
Recommended temperatures for chilling/storing your wines.
Wine Type Recommended Temp.
R
ed
W
ines
15
-
18ºC
Dry White Wines 9 - 14ºC
Rose Wines 10 - 11ºC
Sparkling Wines 5 - 8ºC

.
8
.
INST
R
U
C
TION
M
AN
U
AL

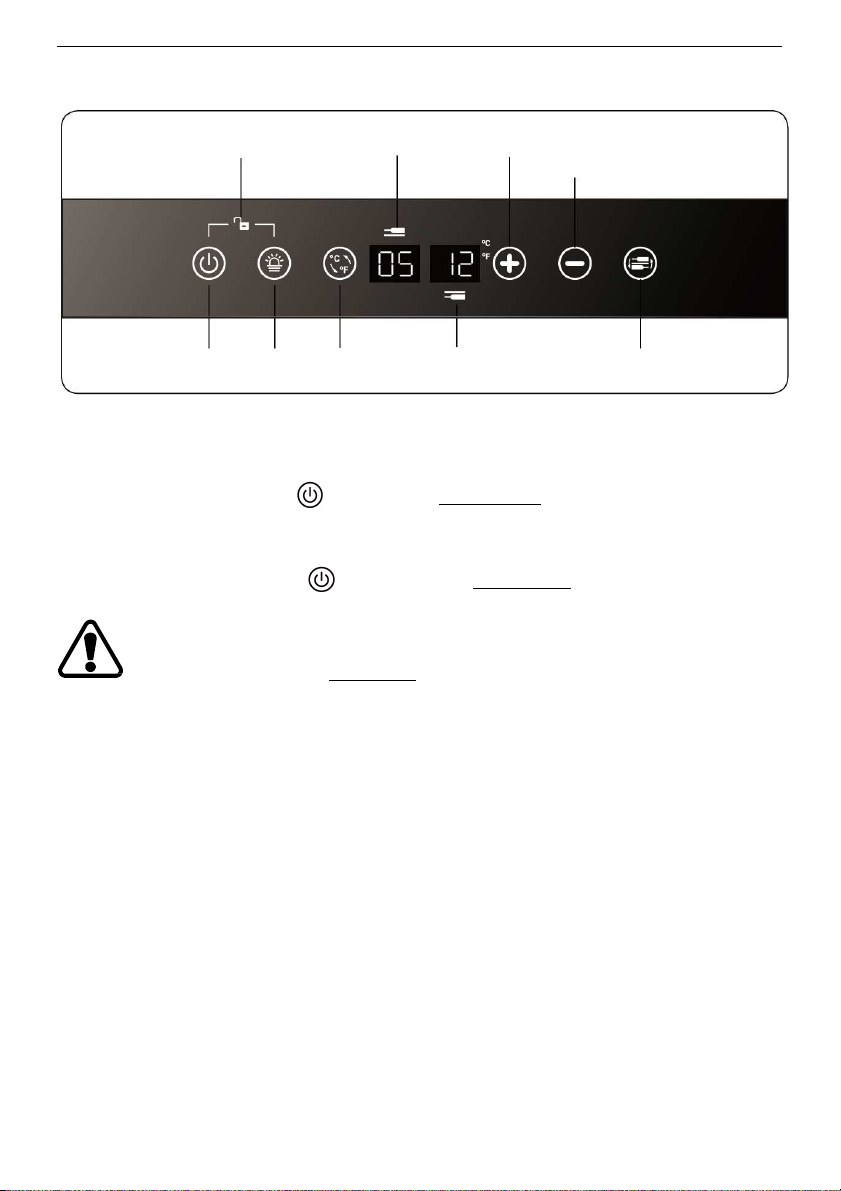

 CONTROL PANEL
Lock /
Unlock
Upper Zone
Display Window
Temp.Up
Temp.Down
Power Lighting ºC/ºF Bottom Zone Zone Select
Interchange Display Window
 POWER ON/OFF CONTROL
•
When the appliance is plugged in to a power outlet, it powers on automatically.
•
Touch the power button and hold for 10 seconds to turn off (or turn on) the
appliance.
•
Whether the control panel is locked or unlocked, you can turn off the appliance by
touching the power button and holding for
10 seconds.
Warning: To avoid damaging the compressor, please do not turn on the
appliance again within 5 minutes after you turn it off.

.
9
.
INST
R
U
C
TION
M
AN
U
AL
 UNLOCKING THE CONTROL PANEL
•
Under unlock situation, touch the power button and lighting button
with 2 fingers at the same time and hold for 3 seconds . The appliance will beep
when unlocked.
•
The control panel will automatically lock and beep after 10 seconds without being
touched.
•
When the appliance is locked, the control panel will not respond.
 INTERIOR LIGHTING ON/OFF CONTROL
•
The appliance must be unlocked, touch the lighting button to turn on (or turn off )
the interior cool LED lighting.
•
The light will stay on unless it is manually turned off.
 TEMPERATURE SETTING
•
The temperature setting ranges are 5-12 ºC for the upper zone and
12-22 ºC for the bottom zone.
•
You need to select the set zone by touching the button before touching the
button or to set the desired temperature. The zone temperature will flash
when it is available to be set.
•
The first touch on or will recall the previous set temperature displayed in
the digital window. If the appliance runs after a power failure (or unplugging), the
previous set temperature does not exist and is replaced by the default temperature at
10ºC for the upper zone and 16 ºC for the bottom zone.
•
Touch the to increase the set temperature by 1ºC, or touch the to decrease
the set temperature by 1ºC.

.
10
.
INST
R
U
C
TION
M
AN
U
AL
•
The digital temperature readout will change to display the real temperature of the
inside cabinet after 10 seconds without being touched.
Note:
The first time you use the appliance or after restarting the appliance after it has been
shut off for several hours, you may find a few degrees variance between the set
temperature and the displayed temperature. It is normal and the temperature will
stabilise after a few hours running
 SELECTING FAHRENHEIT(ºF) OR CELSIUS (ºC) DISPLAY
Touch the to change the Fahrenheit and Celsius display for both zones at the
same time.
Warning:
The appliance is designed with a defrosting pipe rounding at the front part of
the outside cabinet to avoid any condensing water appearing on the cabinet
frame. If the compressor keeps running for a long time, the heat transmitted
from the defrosting pipe to the front part of the outside cabinet may reach up
to 50 ºC . This may happen when you turn on the appliance for the first time
or when you open the door for quite a long time.

.
11
.
INST
R
U
C
TION
M
AN
U
AL
CARE AND MAINTENANCE
 CLEANING THE WINE COOLER
•
Turn off the power, unplug the appliance, and remove all items including shelves.
•
Wipe the inside surfaces with a sponge and baking soda solution. The solution
should be 2 tablespoons of baking soda to 1 litre of warm water.
•
Wash the shelves with a mild detergent solution. Allow wooden shelves to dry
before placing back into the wine cooler.
•
Wring excess water out of the sponge or cloth when cleaning area of the controls, or
any electrical parts.
•
Wipe the outside cabinet with warm water and mild liquid detergent. Wipe dry with
a clean soft cloth.
•
o not use a steel wool or steel brush on the stainless steel. These will scratch
the stainless steel and rusting may occur.
 POWER FAILURE
Most power failures are corrected within a few hours and should not affect the
temperature of your appliance, if you minimize the number of door openings. If the
power is going to be off for a longer period of time, you need to take the proper steps
to protect your wine.
 MOVING THE WINE COOLER
•
Remove all items.
•
Securely tape down all loose items (shelves) inside your appliance.
•
Turn the adjustable leg up to the base to avoid damage.
•
Tape the door shut.
•
Be sure the appliance stays secure in the upright position during transportation.
Also protect outside of appliance with a blanket, or similar item.
 ENERGY SAVING TIPS
•
The appliance should be located away from heat producing appliances, and away
from direct sunlight.
•
Ensure that the unit is ade uately ventilated. Never cover air vents.
•
Only open the door when necessary. Avoid leaving the door open for long periods or
opening and closing the door frequently.

.
12
.
INST
R
U
C
TION
M
AN
U
AL
TROUBLESHOOTING
If you feel the appliance is not working properly, follow these instructions to try to see
if you can solve the problem simply by yourself before calling for service.
No. PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE
1 The wine cooler does not operate
Not plugged in.
The appliance is turned off.
The circuit breaker has tripped or a blown fuse.
2 The wine cooler is not cold enough
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too frequently.
The door is not closed completely.
The door gasket does not seal properly.
3
Automatically turn-on and
turn-off frequently
The room temperature is hotter than normal.
A large amount of contents has been added to the
wine
cooler.
The door is opened too frequently.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
4 The lighting does not work
Not plugged in.
The circuit breaker has tripped or a blown
fuse. The lighting is turned off.
Too much vibration
Check to assure that the appliance is level.
Check to assure no parts inside the cabinet or in
the
compressor chamber are loose.
6
The wine cooler seems to make
too much noise
The rattling noise may come from the flow of
the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds
caused by the flow of refrigerant.
Contraction and expansion of the inside walls ma
y
cause popping and crackling noises.
The appliance is not level.
7 The door will not close properly.
The wine cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
8
The display window is shown with “ ”
or “LL ” instead of a digital figure,
and/or with continuous buzz sound.
The temperature probe is out of order.

.
13
.
INST
R
U
C
TION
M
AN
U
AL
REVERSING THE DOOR
Remarks:
● The following instruction is based on a unit with right door hinge installed already
(the handle on the left side).
● All removed parts must be saved for the door r einstallation
1st step
- Pry up the hinge screw holes cover and hinge cover with a straight
scr ew dr iv er  Take out the upper hinge by loosening the screws, and lift
up the whole door. See Figure 1.
Figure 1
2nd step
- T he Support Rod (at the bottom of the door) with the hinge holes
Protecting Screws and Bush (at the top of the door). Move the Door
Lock Hole Cover from the bottom side of the door frame to the topside.
See
Figure 2 & 3.
Figure 2 Figure 3

.
14
.
INST
R
U
C
TION
M
AN
U
AL
3rd step
- Pull out the bottom hinge cover and take out the bottom hinge by
loosening the scr ew s . Loosen the 4 screws on the bottom left side. Install the bottom
hinge to the left side while screw the holes on the right side. See
Figure 4.
Figure 4
4th step
-
Turn the door 180
o
(upside down) to
reinstall the door to the opposite side.
Insert the door support rod to the
bottom hinge through a washer ,
and screw the upper hinge which is connected to the door. Finally, cover
the hinges as well as the hinge
screw holes. See
Figure 5 & 6.

.
15
--END
--
