New Air AWR-520SB User manual

52 Bottle Built-In
Compressor
Wine Cooler
AWR-520SB
OWNERS MANUAL
Read and save these instructions.

2
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
READ AND SAVE THESE INSTRUCTIONS
Thank you for choosing this NewAir wine cooler. At NewAir, we’re
dedicated to providing comfortable and convenient solutions for your
home and office needs. This guide contains important information
about the care and operation of your new wine cooler. Please take the
time to read through this material thoroughly. With proper care and
maintenance, this appliance will provide you with many years of
trouble-free use.
QUESTIONS?
NewAir is here to help. As an independent, family run business, we
understand you don’t have time to spare dealing with unresponsive,
unhelpful customer service. Our Customer Service team has years of
experience answering questions about appliances and can help you
solve your problem quickly and effortlessly. Contact us today!
NewAir USA
855-963-9247
[email protected]
http://www.NewAir.com
For future reference, we recommend you attach a copy of your sales receipt
here and record the following information, located on the manufacturer’s
nameplate on the rear of the unit. You will need this information if it
becomes necessary to contact for service inquiries.
Date of Purchase: _______________________________________________
Serial Number: ________________________________________________
Model Number: ________________________________________________
Attach receipt here.

3
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
TABLE OF CONTENTS
Safety Information & Warnings ........................................................................... 3
Safe Operation Guidelines ........................................................................... 3
Specifications ............................................................................................... 4
Parts List............................................................................................................... 5
Parts Diagram............................................................................................... 5
Assembly & Installation ....................................................................................... 6
Handle Assembly.......................................................................................... 6
Installation ................................................................................................... 6
Reversing the Door Swing ............................................................................ 7
Operating Instructions ......................................................................................... 7
How to use the Buttons on the Display Panel.............................................. 7
The Display Screen ....................................................................................... 8
Cleaning & Maintenance...................................................................................... 9
Cleaning Your Cooler.................................................................................... 9
Moving Your Cooler ..................................................................................... 9
Troubleshooting................................................................................................... 9
Limited Manufacturer’s Warranty ..................................................................... 12
SAFETY INFORMATION & WARNINGS
SAFE OPERATION GUIDELINES
When using any electrical appliance, basic safety precautions
must be followed in order to reduce the risk of fire, electrical
shock and/or injury to persons or property. Be sure to read all
instructions before using this appliance and observe the following
safety tips:
Attention: Child Entrapment Risk!
To prevent the risk of child entrapment, do not allow children to operate,
play with, or crawl inside the unit. If the unit will not be used for an extended
period of time, remove the door and leave the shelves in place so that children
cannot crawl inside. Also remove the door when disposing of the unit.

4
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
Shock Hazard –Electrical Grounding Required
Never attempt to repair or perform maintenance on the unit until the
electricity has been disconnected.
Never remove the round grounding prong from the plug and never use
a two-prong grounding adaptor.
Altering or cutting of power cord, removal of power cord, removal of
power plug, or direct wiring can cause serious injury, fire, and loss of
property and/or life, and will void the warranty.
Never use an extension cord to connect power to the unit.
Always keep your working area dry.
Important Precautions:
Do not lift unit by door handle.
Never install or operate the unit behind closed doors.
Be sure front grille is free of obstruction. Obstructing free airflow can
cause the unit to malfunction and will void the warranty.
Failure to clean the condenser every six months can cause the unit to
malfunction.
Allow unit to temperature to stabilize for 24 hours before use.
Do not block any internal fans.
Use only genuine supplier’s replacement parts. Imitation parts can
damage the unit, affect its operation or performance, and may void
the warranty.
SPECIFICATIONS
MODEL NO.
AWR-520DB
VOLTAGE:
110~120V
CURRENT:
1.0A
FREQUENCY:
60Hz
POWER CONSUMPTION:
140W
STORAGE CAPACITY:
5.3 Cu. Ft.
TEMPERATURE RANGE:
40°F - 65°F
CLIMATE CLASS:
T/ST/N/SN
UNIT SIZE (W XDXH)
23.4” x 22.4” x 33.0”

5
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
PARTS LIST
When you receive your unit, carefully remove the exterior and interior
packaging. It is recommended that you retain the packaging for future use.
Check to make sure the following parts are included:
5 Shelves
Door handle and 2 screws
1 instruction manual
PARTS DIAGRAM

6
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
1. NTC point
2. Light switch
3. Temperature
display
4. Light
5. Temperature
switch
6. Temperature
setting
7. Fan
8. Exhaust
window
9. Shelf
10. Body
11. Exhaust
window
12. Foot
13. Glass
14. Door seal
15. Handle
16. Lower hinge
ASSEMBLY & INSTALLATION
HANDLE ASSEMBLY
Tools Required for Assembly: Phillips screwdriver (not included)
Estimated Assembly Time: 5 minutes
Before installation, attach the handle to the front of the unit with the included
screws. It may be necessary to push aside the rubber seal on the inside of the
door to reveal the screw holes.
Caution: Avoid over-tightening the screws, or you may cause damage to the
unit.
INSTALLATION
Before connecting the appliance to a power source, let it stand upright
for approximately 2 hours. This will reduce the possibility of a
malfunction in the cooling system from handling during transportation.
This appliance can either stand alone or be built in. Front grille must be
unobstructed.
Before operating your wine cooler for the first time, follow these steps:
Clean the interior surface of the unit with lukewarm water and a soft
cloth.

7
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
Place the refrigerator on a level surface that will be strong enough to
support the unit when it is fully loaded. To level your appliance, adjust
the front feet located at the bottom of the unit.
Install the appliance away from direct sunlight and heat sources such
as stoves, heaters, or radiators. Direct sunlight may affect the unit’s
acrylic coating, and nearby heat sources can increase electrical
consumption. Extreme cold or hot ambient temperatures may also
prevent proper performance.
REVERSING THE DOOR SWING
As you received your wine cellar, the door swings open at the left. If you wish
to reverse the swing so that the door opens from the right, it is important to
have at least one other person to help. It is very dangerous to try to reverse the
door swing by yourself.
1. Unscrew the upper door hinge while the second person supports the
door.
2. Remove the upper hinge and carefully lift the door off the bottom
hinge.
3. Unscrew the bottom hinge and install it on the left side of the unit.
4. Flip the door around so that the handle is on the right side and slip the
door over the bottom hinge.
5. Reattach the door by screwing the top hinge into the holes provided
on the upper left surface of the unit. Make adjustments as necessary
to be sure the door is aligned properly.
OPERATING INSTRUCTIONS
HOW TO USE THE BUTTONS ON THE DISPLAY PANEL

8
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
Select Centigrade or
Fahrenheit temperature
scale.
Raise the desired
temperatures.*
Turn the light on and off.
Lower the desired
temperature. *
* The interior temperature of the cooler can be adjusted in increments of 1
degree between 40°F and 65°F (5° - 18°C).

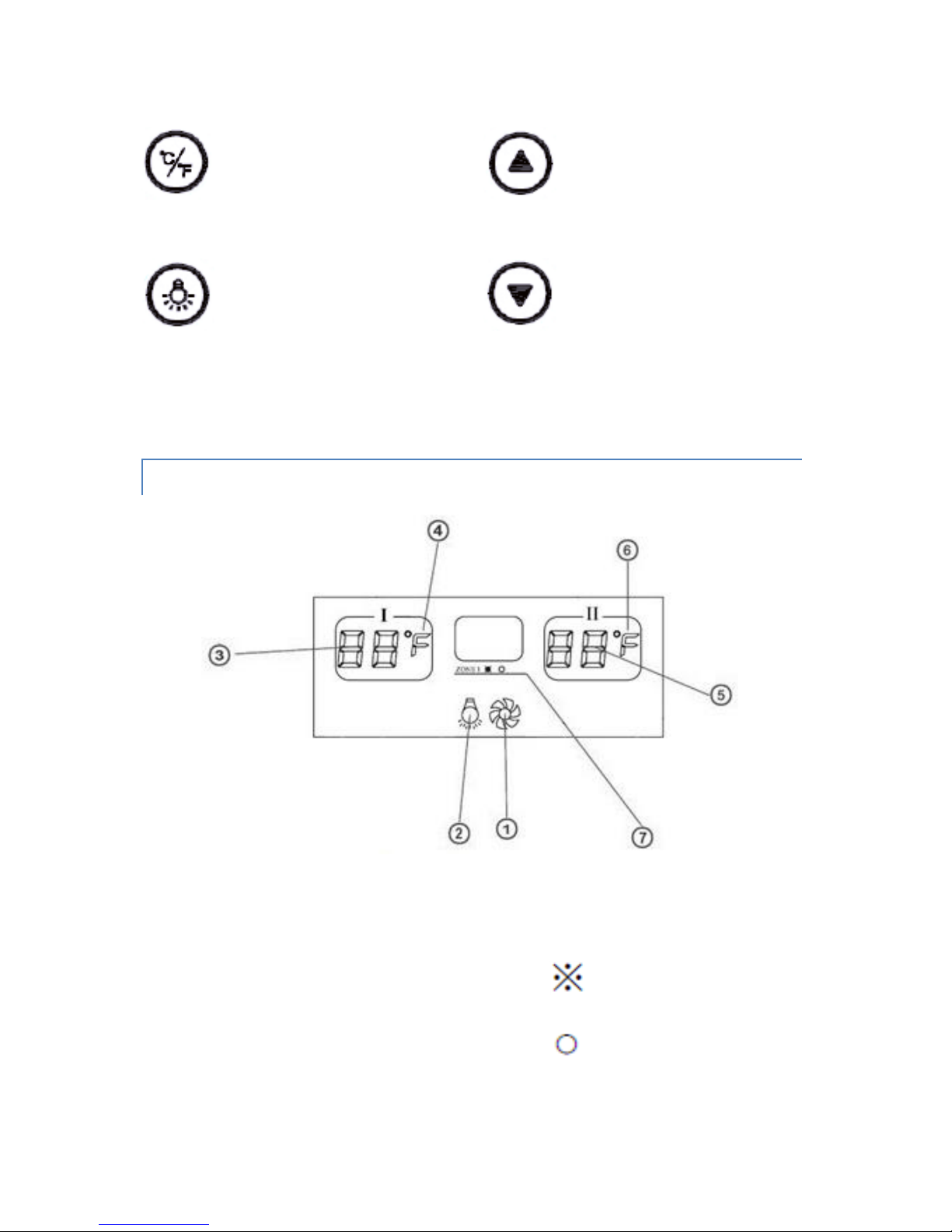

THE DISPLAY SCREEN
1. Indicates the unit’s working
2. Indicates light on oroff
3. Your set temperature
4. Celsius or Fahrenheit degrees
5. The actual interior temperature
6. Celsius or Fahrenheit degrees
7. Whether the unit is cooling or
maintaining the current temperature.
Working Status Icons:
Cooling
Maintaining current
temperature

9
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
CLEANING & MAINTENANCE
CLEANING YOUR COOLER
To clean your cooler:
Unplug the cooler and remove anything inside.
Wash the inside of the unit with a solution made of warm water
and baking soda solution (2 tablespoons of baking soda to one
quart of water).
Unscrew the water reservoir at the bottom of the unit and rinse
with water.
To clean the outside of the unit, use a mild detergent and warm
water.
MOVING YOUR COOLER
To move your cooler:
Remove anything stored inside.
Securely tape down all loose parts located inside the unit.
Turn the leveling feet up to the base in order to avoid damage.
Tape the door shut.
Be sure the cooler stays in an upright position during transportation.
TROUBLESHOOTING
Problem
Possible Causes
Solution
Wine cellar does not
operate.
The unit may be plugged
in using a different
voltage.
Check if using the wrong
voltage.
The circuit breaker may
be tripped or there is a
blown fuse.
Reset the circuit breaker
or check for a broken
fuse

10
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
Problem
Possible Causes
Solution
Wine cellar is not cold
enough.
The external
environment may
require a higher setting.
Lower the temperature
of the cooler.
The door may be
opened too frequently.
Open the door less
frequently.
The door is not closed
completely.
Make sure the door is
closed securely.
The door seal does not
seal properly.
Replace the seal on the
door. Replacements can
be acquired from the
manufacturer.
The front grille is
obstructed.
Make sure nothing is
blocking the front grille.
The light does not
work.
There may be a problem
with the display board.
Contact the
manufacturer.
The cooler vibrates
while operating.
The unit is not sitting on
a level floor, or the
unit’s feet are not
correctly installed.
Make sure the unit’s feet
are in the proper position
and tightened securely.
The cooler produces a
lot of noise.
The unit is not leveled.
See above.
Check the fan
Check the fan to make
sure there is no debris or
obstruction. If not,
contact the
manufacturer.
The door will not close
properly.
The unit is not leveled.
See above.
The door is not properly
installed.
Check the door hinges to
make sure they are
properly installed.
The seal is weak.
Replace the seal on the
door.
Replacements can be
acquired from the
manufacturer.
The shelves are out of
position.
Make sure the shelves
slide all the way into the
unit.

11
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
Problem
Possible Causes
Solution
The LED display does
not work.
There may be a problem
with the main control
board.
Contact the
manufacturer.
There is a problem with
the plug.
Contact the
manufacturer.
There is an LED display
error, or the LED
displays “LO”.
The cooling kit is no
longer working properly.
Contact the
manufacturer.
The PC Board is faulty.
Contact the
manufacturer.
The buttons do not
function.
The temperature control
panel may be damaged.
Contact the
manufacturer.

12
NEWAIR AWR-520SB 52 BOTTLE BUILT IN COMPRESSOR WINE COOLER
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
Power failure
Damage in transit or when moving the appliance
Improper power supply such as low voltage, defective household
wiring or inadequate fuses
Accident, alteration, misuse or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures)
Use in commercial or industrial applications
Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
Use of force or damage caused by external influences
Partially or completely dismantled appliances
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
purchase date available. Once confirmed that your appliance is eligible for
warranty service, all repairs will be performed by a NewAir™ authorized repair
facility. The purchaser will be responsible for any removal or transportation
costs. Replacement parts and/or units will be new, re-manufactured or
refurbished and is subject to the manufacturer’s discretion. For technical
support and warranty service, please email [email protected].
