Avalon Bay AB-WINE12S User manual

Avalon Bay AB-WINE12S
Thermoelectric Wine Cooler
OWNER’S MANUAL
Read and save these instructions.

2
www.avalon-bay.com
Discover the Difference with Avalon Bay
When value matters, Avalon Bay is ready to deliver. As a family-run
business, we haven’t lost sight of what really matters to our customers.
Our exclusive line of home appliances is both stylish and affordable, so
you can create the homescape you desire without having to empty your
wallet. Products you can rely on –that’s what value means to us.
Please read this manual thoroughly and follow all instructions and
safety guidelines. With proper care and maintenance, this appliance will
provide you with many years of trouble-free use.
When you need help, our expert team of customer service
representatives is here to offer support, answer questions, and quickly
resolve any problems. Contact us today at:
1-844-528-2566
[e-mail]
For future reference, we recommend you attach a copy of your sales
receipt below and record the following information, which is located on
the manufacturer’s nameplate on the rear of the unit. You will need this
information if it becomes necessary to contact the manufacturer for
service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________

3
www.avalon-bay.com
Contents
SPECIFICATIONS .……………………………………………………………………………………4
SPECIFICATIONS ............................................................................................ 4
IMPORTANT SAFETY INSTRUCTIONS.........................................................4
ELECTRICAL WARNINGS ................................................................................. 5
ELECTRICAL DIAGRAM.................................................................................... 5
IMPORTANT SAFETY INSTRUCTIONS.........................................................6
ADDITIONAL SAFETY TIPS ............................................................................... 6
GETTING TO KNOW YOUR WINE COOLER .................................................7
FEATURES .................................................................................................... 7
LIST OF MAIN PARTS ..................................................................................... 8
ASSEMBLY & INSTALLATION .....................................................................9
OPERATING INSTRUCTIONS ....................................................................10
HOW TO SET THE TEMPERATURE ................................................................... 10
CLEANING & MAINTENANCE...................................................................11
CLEANING YOUR WINE COOLER...................................................................... 11
MOVING YOUR WINE COOLER ....................................................................... 11
DISPOSAL .................................................................................................. 11
DETAILED PARTS DIAGRAM ....................................................................12
TROUBLESHOOTING ...............................................................................13
LIMITED MANUFACTURER’S WARRANTY ................................................14

4
www.avalon-bay.com
Specifications
MODEL NO.
AB-WINE12S
RATED VOLTAGE:
100-127V / 60Hz
CURRENT:
0.9 A (77°F/25°C)
POWER CONSUMPTION:
70 watts
STORAGE CAPACITY:
12 bottles
TEMPERATURE RANGE:
51 - 64°F (11 - 18°C)
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important. We
have provided many important safety messages in this
manual regarding your appliance. Please read and obey all
safety messages. Serious injury or even death can occur if
these instructions are not carefully followed.
DANGER: Risk of Child Entrapment
Junked or abandoned appliances are dangerous. Before you throw away
your old wine refrigerator, take off the door, but leave the shelves in
place so that children may not easily climb inside. Never allow children
to operate, play with, or crawl inside the appliance.

5
www.avalon-bay.com
Electrical Warnings
Improper use of the grounded plug can result in electrical
shock. If the power cord is damaged, please contact
customer service.
This unit should be properly grounded for your safety. The power
cord of this appliance is equipped with a three-prong plug, which is
compatible with standard three prong wall outlets to minimize the
possibility of electric shock.
This appliance requires a standard 100-127 volt, 60Hz electrical
outlet with a three-prong ground.
Plug the wine cooler into a dedicated, grounded wall outlet. Do not,
under any circumstances, remove the third (grounded) prong from
the power cord. Direct any questions concerning power and/or
grounding to a certified electrician.

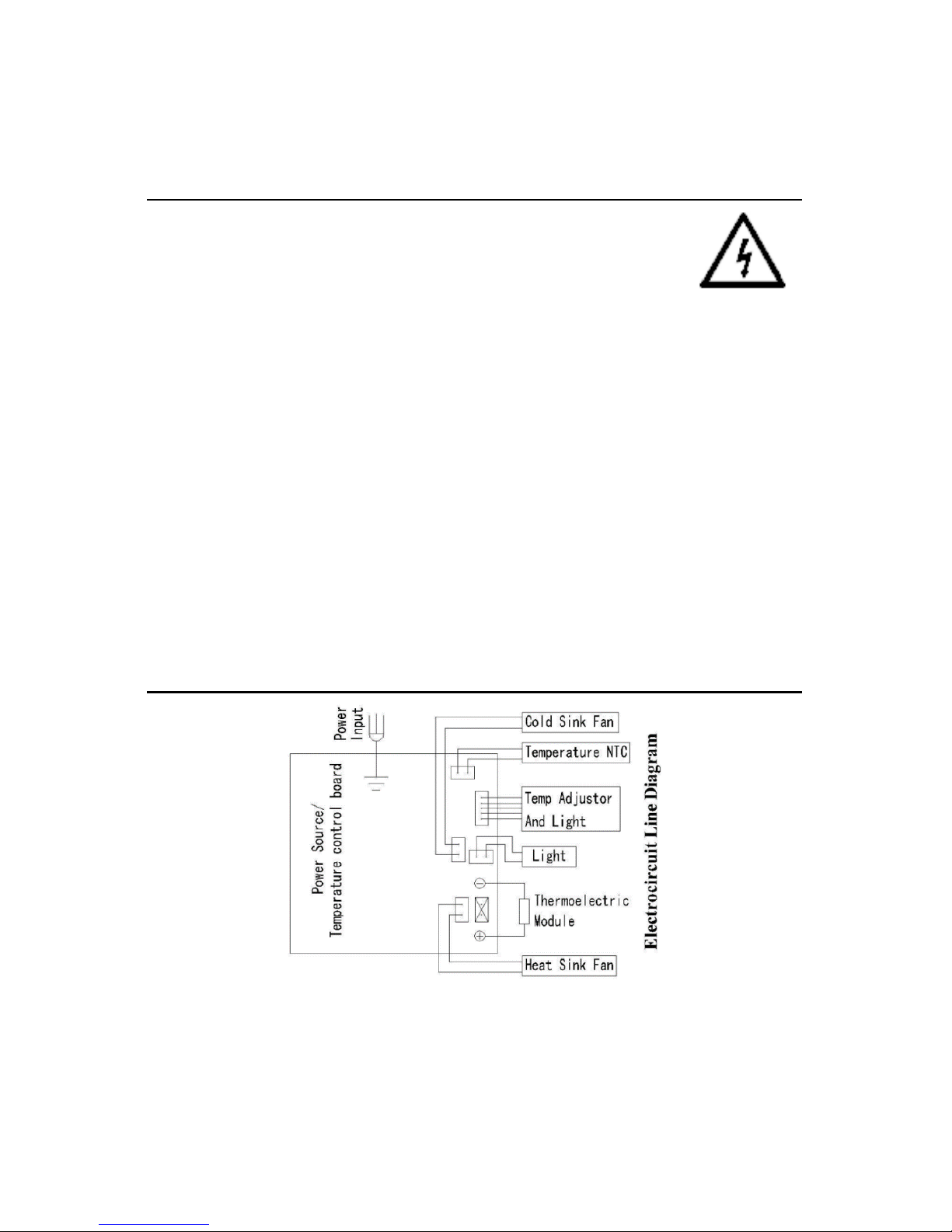

Electrical Diagram

6
www.avalon-bay.com
IMPORTANT SAFETY INSTRUCTIONS
Do not operate this appliance if it has a damaged cord.
If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard.
Only connect the wine cooler to a properly polarized outlet. No
other appliance should be plugged into the same outlet. Make sure
the plug is fully inserted into the receptacle.
Do not run the power cord over carpeting or heat insulators. Do not
cover the cord. Keep the cord away from high traffic areas and
never submerge it in water.
Additional Safety Tips
Never clean appliance parts with flammable fluids. The fumes can
create a fire hazard or explosion.
Do not store or use gasoline or any other flammable vapors and
liquids in the vicinity of this or any other appliance. The fumes can
create a fire hazard or explosion.
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Do not store food in this wine refrigerator, as the interior
temperature may not get cold enough to prevent spoilage.
This appliance is not intended for use by persons (including
children) with reduced physical sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.

7
www.avalon-bay.com
GETTING TO KNOW YOUR WINE COOLER
Features
Holds up to 12 bottles of wine.
Can age favorite vintages at ideal storage temperatures.
External LED display and digital control panel provide easy
monitoring.
Set interior temperatures between 51° and 64°F for perfect storage
or serving temperatures.
Thermoelectric cooling system is quiet and vibration free.
Shelves slide in and out for easy access, or can be removed to
accommodate larger bottles.
The attractive design complements most home and bar décor.
This appliance is intended to be used in household and similar
applications such as:
Staff kitchen areas in shops, offices and other working
environments.
Farm houses and by clients in hotels, motels and other residential
type environments.
Bed and breakfast type environments.
Catering and similar non-retail applications.

8
www.avalon-bay.com

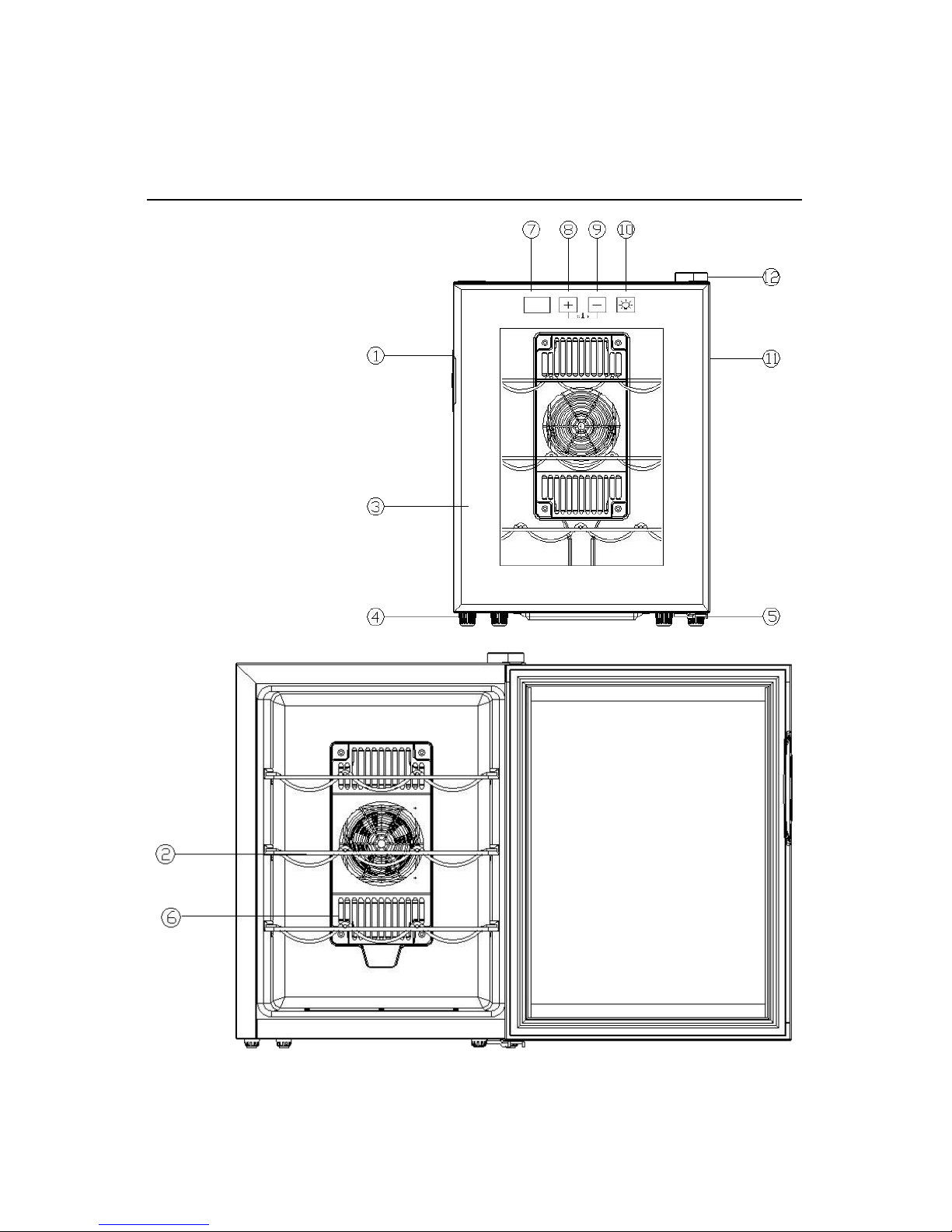

List of Main Parts
1. HANDLE
2. SHELF
3. GLASS
4. FOOT
5. LOWER DOOR HINGE
6. FAN MASK
7. LED DISPLAY
8. TEMPERATURE UP
BUTTON
9. TEMPERATURE DOWN
BUTTON
10. LIGHT
11. DOOR FRAME
12. HINGE COVER

9
www.avalon-bay.com
ASSEMBLY &INSTALLATION
1. Remove the exterior and interior packaging. Check that 3
shelves are included. If any parts are missing, please contact the
dealer where you purchased the unit or Avalon Bay customer
service.
2. Clean the interior surface with lukewarm water, using a soft
cloth.
3. Place your wine cooler on a surface that is strong enough to
support the appliance when it is fully loaded. To level your
cooler, adjust the front legs at the bottom of the appliance.
4. For proper ventilation, allow at least 2 inch clearance between
the back of the unit and any adjacent walls.
5. For best results, install away from direct sunlight and sources of
heat (stove, heater, radiator, etc.). Direct sunlight may affect
the acrylic coating and heat sources may increase electrical
consumption. Extreme cold or hot ambient temperatures may
also cause the cooler not to perform properly.
6. This cooler is not designed for placement in attic or basement.
The appliance is for indoor use only.

10
www.avalon-bay.com
OPERATING INSTRUCTIONS
It is recommended that you install the wine cooler in a place where the
ambient temperature is between 50- 80°F (10-26°C). If the ambient
temperature is above or below the recommended temperatures, the
performance of the unit may be affected. For example, placing this wine
cooler in extreme cold or hot conditions may cause interior
temperature to fluctuate. The desired range of 51-64°F (11-18°C) may
not be reached.
The temperature may fluctuate depending on whether or not the
interior light is on or off or whether the bottles are located on the
upper, middle or lower section.
How to Set the Temperature
There are three touch-buttons on the control panel:
Increase set temperature by 1°F
Decrease set temperature by 1°F
Turns on or off the interior light
This product will provide maximum cooling of 14 degrees below the
external temperature. When the external temperature is at 77°F (25°C)
or less, this unit can maintain an interior temperature range between
51-64°F (11-18°C).

11
www.avalon-bay.com
CLEANING &MAINTENANCE
Cleaning your wine cooler
1. Unplug the wine cooler and remove the bottles.
2. Wash the inside with a solution of warm water and baking soda.
The solution should be about 2 tablespoons of baking soda to a
quart of water.
3. The outside of the wine cooler should be cleaned with mild
detergent and warm water.
4. Pull out the condensation tray at the bottom of the unit and
wash it.
Moving your wine cooler
1. Remove all the bottles.
2. Securely tape down all loose items inside your wine cooler.
3. Turn the leveling legs up to the base to avoid damage.
4. Tape the door closed.
5. Be sure the wine cooler stays in the upright position during
transportation.
Disposal
Do not dispose of this product as unsorted municipal waste. Such waste
is collected separately for special treatment. Take the cabinet to a
recycling plant.
Please remove the door before you dispose of your refrigerator.

12
www.avalon-bay.com
DETAILED PARTS DIAGRAM
1. Door
2. Temperature
control board
3. Shelf
4. Cooling fan mask
5. Lamp cover
6. Light
7. Upper door hinge
8. Upper door hinge
cover
9. Hinge hardware
10. Foaming cabinet
11. Plastic screw
12. Power control
board
13. Exhaust fan
14. Rear panel
15. Power cord
16. Exhaust fan
bracket
17. Cooling system
18. Power cord clip
19. Feet
20. Condensation tray
21. Lower door hinge
22. Cooling fan
23. Handle

13
www.avalon-bay.com
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SOLUTION
Cooler does not
operate.
The circuit breaker has been
tripped or a fuse has blown.
Reset the circuit breaker or
check for a broken fuse.
Wine cooler is
not cold enough.
The ambient temperature is
too warm.
Lower the cooler’s
temperature setting.
The door is open too often.
Open the door less.
The door is left ajar.
Make sure the door gets
closed all the way.
The door gasket is worn and
no longer seals the door
properly.
Replace the gasket on the
door. Replacements are
available from the
manufacturer.
The cooler does not have
the correct clearance for
proper ventilation.
Make sure there are at
least 2 inches between the
back of the unit and any
adjacent walls.
The light does
not work.
There may be a problem with
the display board.
Contact the manufacturer.
The cooler vibrates
while operating.
The cooler is not sitting on a
level floor.
Make sure the cooler is
installed on a flat surface.
The unit’s feet are not
correctly installed.
Check the feet to make
sure they are installed
correctly on the bottom of
the unit.
The wine cooler
seems to make
The wine refrigerator is not
level.
See above.

14
www.avalon-bay.com
PROBLEM
POSSIBLE CAUSE
SOLUTION
too much noise
Something is blocking the fan
blades.
Check the fan to make sure
there is no debris or
obstruction. If not, contact
the manufacturer.
The door will
not close
properly.
The wine refrigerator is not
level.
See above.
The door is not properly
installed.
Check the door hinges to
make sure they are
properly aligned.
The gasket sealing the door is
dirty or worn out.
Clean the gasket with
warm, soapy water. If
necessary, replace the
gasket on the door.
The shelves are out of
position.
Make sure the shelves
slide all the way into the
unit.
LED display does
not work, or it
shows an error.
There may be a problem with
the main control board.
Contact the manufacturer.
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.

15
www.avalon-bay.com
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
Power failure.
Damage in transit or when moving the appliance.
Improper power supply such as low voltage, defective household
wiring or inadequate fuses.
Accident, alteration, misuse or abuse of the appliance such as
using non-approved accessories, inadequate air circulation in the
room or abnormal operating conditions (extreme temperatures).
Use in commercial or industrial applications.
Fire, water damage, theft, war, riot, hostility or acts of God etc.
Use of force or damage caused by external influences.
Partially or completely dismantled appliances.
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
the purchase date available. Once it has been confirmed that your appliance is
eligible for warranty service, all repairs will be performed by an Avalon Bay
authorized repair facility. The purchaser will be responsible for any removal or
transportation costs. Replacement parts and/or units will be new, re-
manufactured or refurbished and are subject to the manufacturer’s discretion.
For technical support and warranty service, please email support@avalon-
bay.com.
