New Air AWB-360DB User manual

Wine & Beverage Cooler
AWB-360DB
OWNERS MANUAL
Read and save these instructions.
.

2
http://www.NewAir.com
A Name You Can Trust
Trust has to be earned and we will earn yours. Customer happiness is
the focus of our business.
From the factory to the warehouse, from the sales floor to your home,
the whole NewAir family promises to provide you with innovative
products, exceptional service, and support when you need it the most.
Count on NewAir.
As a proud NewAir owner, welcome to our family. There are no robots
here, real people shipped your product and real people are here to help
you.
Thank you for your purchase and remember NewAir, A Name You Can
Trust.
Call us today at 855-963-9247
Or email [email protected]om
For future reference, we recommend you attach a copy of your sales receipt here
and record the following information. You will need this information if it
becomes necessary to contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________
Serial Number: ___________________________________
Model Number: ___________________________________
Connect with us online.

3
A Name You Can Count On
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Safety Information & Warnings ........................................................................... 4
Parts List............................................................................................................... 5
Electrical Diagram ................................................................................................ 5
Assembly Instructions .......................................................................................... 6
Initial Setup .................................................................................................. 6
Installation Of Your Appliance ..................................................................... 6
Positioning Your Wine and Beverage Cooler ............................................... 7
Handle Installation ....................................................................................... 7
Operating Instructions ......................................................................................... 8
Setting The Temperature ............................................................................. 9
Storing Wine ................................................................................................ 9
Door Lock ................................................................................................... 10
Shelves ....................................................................................................... 10
Cleaning & Maintenance.................................................................................... 11
Troubleshooting................................................................................................. 11
Limited Manufacturer’s Warranty ..................................................................... 13
SPECIFICATIONS
MODEL NO.
AWB-360DB
VOLTAGE:
120 Volts
CURRENT:
2.0 Amps
FREQUENCY:
60Hz
POWER CONSUMPTION:
100 Watts
STORAGE CAPACITY:
18 Bottles & 58 Cans
TEMPERATURE RANGE:
36-72° F

4
http://www.NewAir.com
SAFETY INFORMATION & WARNINGS
Before Using Your Wine And Beverage Cooler for the First Time:
Carefully read all instructions before using this wine and beverage cooler for
the first time. Also make sure the wine and beverage cooler stays in an upright
position during transportation. After removing the appliance from its
packaging, make sure it is in good condition. If there are any issues with the
wine and beverage cooler, please contact us immediately.
Place the appliance on a level floor surface that will be strong enough
to support it when it is at full capacity. To level the wine and beverage
cooler adjust the leveling feet located at the bottom of the appliance.
Do not use this wine and beverage cooler in applications for which it is
not intended. Damage that occurs from improper use or from
unauthorized repairs will void the warranty.
For proper air circulation, please maintain a 2-inch minimum clearance
in between the back of the wine and beverage cooler and the wall.
Do not operate this wine and beverage cooler in excessively moist or
humid environments.
Keep the wine and beverage cooler away from direct sunlight.
Keep the wine and beverage cooler away from hazardous materials or
combustible/flammable substances.
★CAUTION:
This wine and beverage cooler is designed for built-in or freestanding
applications.
DANGER: RISK OF CHILD ENTRAPMENT: An empty wine and beverage
cooler can be dangerous to children. Remove any latches, lids, locks,
and/or doors from unused or discarded appliances to prevent child
entrapment and suffocation. Never allow children to operate, play
with or crawl inside this appliance.

5
A Name You Can Count On
PARTS LIST
ELECTRICAL DIAGRAM

6
http://www.NewAir.com
ASSEMBLY INSTRUCTIONS
INITIAL SETUP
Remove exterior and interior packing materials and connect the wine and
beverage cooler to a power supply. Once it is plugged in, let it run for at least
30 minutes. Do not change the temperature or adjust any settings at this time.
INSTALLATION OF YOUR APPLIANCE
Use two or more people to move and install the appliance. Failure to do so
can result in back or other injury.
Place your appliance on a floor that is strong enough to support it when it
is fully loaded.
Choose a well-ventilated area with temperatures above 60℉and below
90℉.
This appliance is designed for built-in, recessed or free standing
installation.
For built-in installation, leave a 1/4” (6.35mm) space on each side and at
the top of the appliance to ensure proper air circulation to cool the
compressor and condenser.
For freestanding installation, leave the proper clearance around the
appliance. Below are the recommended clearances:
Side: 3/4” (19mm); Top: 4” (100mm); Back: 2” (50mm)
Even for built-in installation, you must keep space on each side and at the
top. If you plan to use the unit for a built-in application please follow the
requirements shown below.
Cabinet Opening Dimensions (minimum)
Width
24”
Depth
25”
Height
35”

7
A Name You Can Count On
The appliance must be installed with all electrical, water and drain
connections in accordance with state and local codes.
Make certain that the pipes are not pinched, kinked or damaged during
installation. Check for leaks after connection.
NOTE: Designed for indoor, home use only. The appliance should not be
located next to sources of high heat or in direct sunlight. Do not store or
install the appliance outdoors, in a garage, basement or in moist areas.
Don’t install in a location where the temperature will fall below 60℉. For
best performance and to ensure proper ventilation, do not install the
appliance behind a cabinet door or block the base grille.
POSITIONING YOUR WINE AND BEVERAGE COOLER
It is important for the appliance to be leveled in order to work properly.
You may need to make several adjustments to level it.
To level your appliance, adjust the front legs at the bottom of the
appliance.
When positioning the appliance, ensure that there is at least a 1/4 inch
clearance at the sides and a 1 inch clearance at the back of the cooler as
this is the main outlet for heat. This will allow for adequate ventilation.
HANDLE INSTALLATION

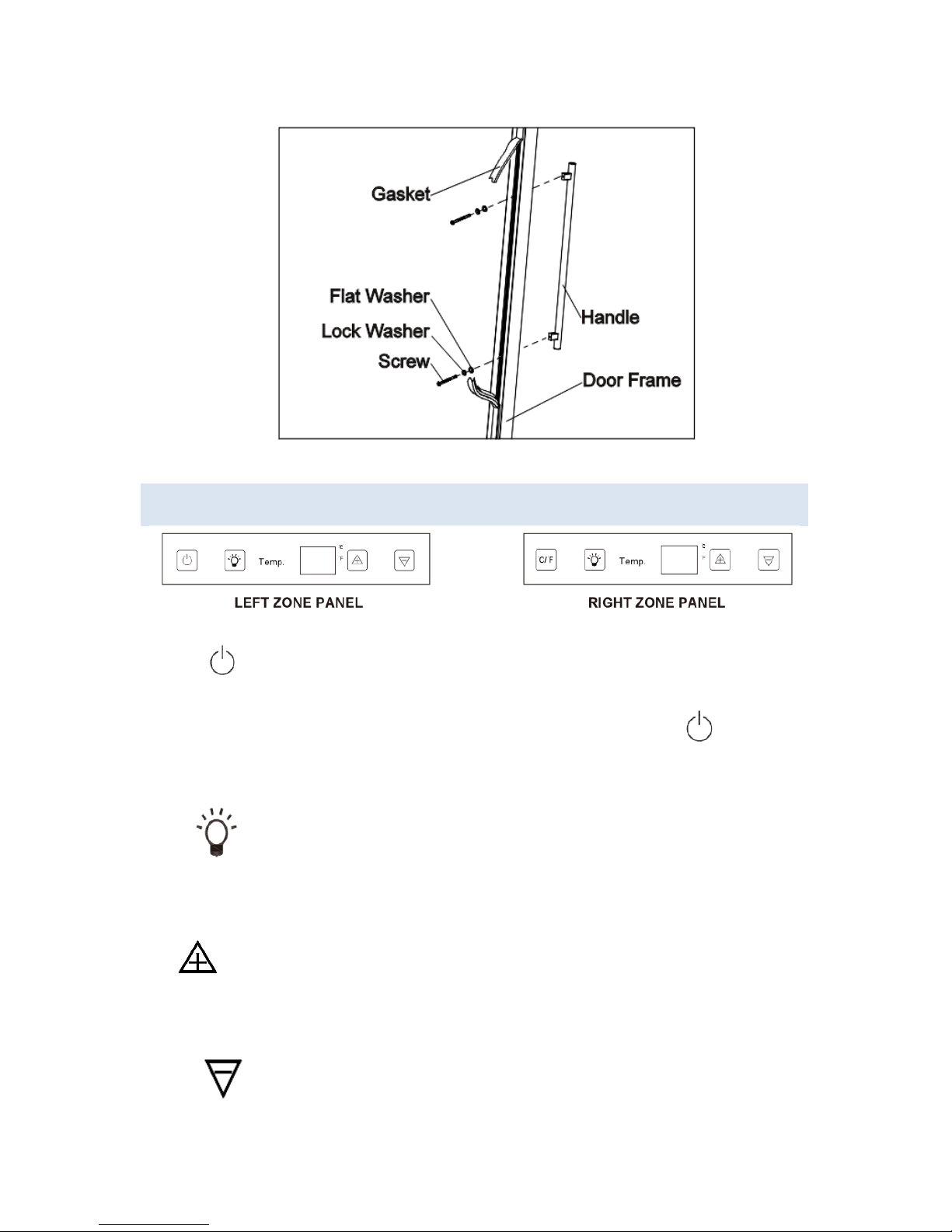

Pull away the door gasket in the area where the handle is to be installed.
The gasket is easily removed by hand, no tools are necessary.
Insert the two (2) Phillips head screws with the lock washers and flat
washers through the gasket side of the door frame until the screws pass
through the door frame. Follow the sequence shown in the figure.
Align the handle with the screws installed in the above step. Tighten the
screws using a Phillips head screwdriver until the handles secure tightly
against the door frame. (Do NOT over tighten as this will cause damage to
the handle assembly).
Replace the door gasket to its original position.

8
http://www.NewAir.com
OPERATING INSTRUCTIONS
Power
Powers on/off the appliance. To turn off the appliance, touch the mark and
hold 5 seconds.
Light
To control the interior light to turn on/off.
Up
Used to increase the corresponding zone set temperature by 1℃or 1℉.
Down

9
A Name You Can Count On
Used to decrease the corresponding zone set temperature by 1℃or 1℉.
℃/℉Selector
Selects the temperature display setting to display in Fahrenheit or Celsius.
SETTING THE TEMPERATURE
The left zone temperature can be set between 36°and 72℉, and the right
zone temperature can be set between 36°and 72℉.
The temperature will increase by 1℃or 1℉if you touch UP once, or
the temperature will decrease by 1℃or 1℉you touch DOWN once.
To view the set temperature at any time, touch the UP or DOWN marks.
The set temperature will temporarily flash in the LED display for 5 seconds.
The internal storage temperature will appear in blue on the temperature
display window.
NOTE: If the unit is unplugged, turned off, or power is lost, you must wait 3
to 5 minutes before restarting the unit. If you attempt to restart before this
time delay the unit will not start. When you use the unit for the first time or
restart the unit after having been shut off for a long time, there could be a
few degrees variance between the temperature you select and the one
indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the unit is running for a few hours everything will
normalize.
STORING WINE
Many bottles may differ in size and dimensions. The actual number of bottles
you are able to store may vary. You can place 18 standard bottles in each zone
(or 58 12oz-cans in the beverage zone). Bottle capacities are approximate
maximums when storing traditional Bordeaux 750ML bottles and include bulk
storage.

10
http://www.NewAir.com
DOOR LOCK
Your unit is provided with a lock and key combination. The keys are located
inside the plastic bag that contains the owner’s manual. Insert the key into the
lock and turn it counter clockwise to unlock the door. To lock the door, do the
reverse operation while making sure the metal pin is engaged completely.
Remove the key and place it in a secure place for safekeeping.
SHELVES
To prevent damaging the door gasket, make sure to have the door completely
opened when pulling the shelves out of the rail compartment.
For easy access to the storage content, you must pull the shelf out of the
rail compartment; however this unit was designed with a plastic post on
each side of the shelf track to prevent bottles from falling.
When removing the shelf out of the inner rail, make sure to remove all
items first. Then move the shelf to the position where the notch of the
shelf is exactly under the plastic post and lift the shelf. In order to replace
the shelf, repeat these directions in reverse.
To ensure maximum performance and efficiency, be sure to place your
wine and beverage cooler in an area where there is proper air circulation.
Also make sure the plumbing and electrical connections are correct.
For proper internal air circulation, do not overfill your wine and beverage

11
A Name You Can Count On
cooler.
Do not place the unit in direct sunlight.
Do not place heated beverages in your wine and beverage cooler.
Do not store perishable food in your wine and beverage cooler. The unit’s
interior temperature may not be low enough to prevent spoilage.
Do not place heavy objects on top of the wine and beverage cooler.
CLEANING & MAINTENANCE
Shut off the power supply before cleaning the unit’s cabinet.
Remove all cans and storage shelves.
Clean the unit’s interior with a warm water and neutral detergent solution.
Thoroughly dry all surfaces.
Please Note:
a. Do not use abrasive cleaners to clean the wine and beverage cooler.
b. Use mild, soapy water to clean the unit’s door seal.
c. To ensure efficient operation, also thoroughly clean the back and
bottom of the wine and beverage cooler.
TROUBLESHOOTING
Problem
Possible Causes
Solution
The wine and
beverage cooler
does not cool.
The unit may be
plugged in using a
different voltage.
Check if using the wrong
voltage.
The circuit breaker may
be tripped or there is a
blown fuse.
Reset the circuit breaker or
check for a broken fuse.
The wine and
beverage cooler
does not get cold
enough.
The unit may be placed
too close to a heat
source.
Keep the unit away from
direct sunlight or other heat
sources.
There is insufficient
ventilation.
Place the unit in an area
with proper ventilation and
clearances.

12
http://www.NewAir.com
Problem
Possible Causes
Solution
The door is not
completely closed or
the door seal is not
working properly.
Close the door tightly. Do
not open the door
frequently or keep the door
open for extended periods.
The wine and
beverage cooler
seems to make
too much noise.
The unit is not leveled
or positioned properly.
Adjust the unit’s feet and
ensure the product is level.
There is insufficient
ventilation.
Allow sufficient clearance
around the unit.
The unit is too close to
a wall or other surface.
Allow sufficient clearance
around the unit.
An interior red
light is flashing.
The set temperature is
too low.
Adjust the set temperature
so that it is higher than the
unit’s interior temperature
The automatic defrost
function is working.
Normal function. No repair
needed.
Frost is building
up in the unit.
There is excess
humidity or the interior
temperature is too low.
Turn the unit off, unplug it
and remove the frost
manually. Reconnect once
the ice has thawed.

13
A Name You Can Count On
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
Power failure
Damage in transit or when moving the appliance
Improper power supply such as low voltage, defective household
wiring or inadequate fuses
Accident, alteration, misuse or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures)
Use in commercial or industrial applications
Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
Use of force or damage caused by external influences
Partially or completely dismantled appliances
Excess wear and tear by the user
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
purchase date available. Once confirmed that your appliance is eligible for
warranty service, all repairs will be performed by a NewAir™ authorized repair
facility. The purchaser will be responsible for any removal or transportation
costs. Replacement parts and/or units will be new, re-manufactured or
refurbished and is subject to the manufacturer’s discretion. For technical
support and warranty service, please email [e-mail].
