New Buck Corporation 34 User manual

MODEL 34 MANHATTAN
MAY BE INSTALLED IN A SOLID FUEL BURNING FIREPLACE, AS A ZERO
CLEARANCE FIREPLACE OR WITH AN OPTIONAL SURROUND.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
 Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbor’s phone. Follow gas supplier’s instruc-
tions.
 If you cannot reach your gas supplier, call fire department.
 Installation and service must be performed by a qualified installer, service agency or gas
supplier.
This is an unvented gas-fire heater. It uses air (oxygen) from room in which it is installed. Pro-
visions for adequate combustion and ventilation air must be provided. Refer to section Produc-
ing Adequate Air For Combustion And Ventilation, page 35.
This appliance may be installed in an aftermarket, permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with type of gas indicated on rating plate. This appliance is not
convertible for use with other gases.
INSTALLER: Leave this manual with appliance.
CONSUMER: Retain this manual for future reference.
MANUFACTURED BY:
NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE
PO BOX 69
SPRUCE PINE, N.C. 28777
www.buckstove.com
This appliance is intended for supplemental heating.
April 2013

TABLE OF CONTENTS MODEL 34 MANHATTEN
SECTION I: Safety Information.................................................................................................... 3
SECTION II: Fireplace Preparation/Solid Fuel Burning Fireplace (FP)....................................... 6
Fireplace Clearances(FP) ................................................................................................................ 7
Gas Connection............................................................................................................................... 7
Placement of Logs........................................................................................................................... 8
Gas Pressure Check......................................................................................................................... 9
Lighting Instructions - SIT Millivolt Valve.................................................................................. 10
Flame Check.................................................................................................................................. 14
SECTION III: Solid Fuel Burning Fireplace Installation (FP)..................................................... 15
SECTION IV: Wooden Surround Installation (WS) ................................................................... 17
SECTION V: Zero Clearance (ZC).............................................................................................. 18
SECTION VI: Installation-After Market Mobile Home.............................................................. 22
SECTION VII: Producing Adequate Air For Combustion And Ventilation............................... 23
Air For Combustion And Ventilation Inside Building.................................................................. 25
Air For Combustion And Ventilation Outdoors............................................................................ 26
Important Safeguards.................................................................................................................... 27
Cleaning ........................................................................................................................................ 27
Wiring Diagram ............................................................................................................................ 28
Maintenance.................................................................................................................................. 30
Trouble Shooting........................................................................................................................... 31
Service and Repair Parts ............................................................................................................... 35
Replacement Parts......................................................................................................................... 36
Warranty/Owner Registration....................................................................................................... 38

Page 2
SECTION I
SAFETY INFORMATION WARNINGS
IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY
BEFORE TRYING TO ASSEMBLE, OPERATE, OR SERVICE APPLIANCE. IMPROPER
USE OF THESE LOGS CAN CAUSE SERIOUS INJURY OR DEATH FROM BURNS, FIRE,
EXPLOSION AND CARBON MONOXIDE POISONING.
NOTE: When burning any unit or appliance that combusts fuel for heat, such as coal, oil,
wood or natural and (L.P.) liquid petroleum gas, we highly recommend use of smoke and
carbon monoxide detectors in your home.
Early signs of carbon monoxide poisoning resemble flu, with headaches, dizziness and/or
nausea. If you have these signs, heater may not be working properly. Get fresh air at once!
Have heater serviced.
Some people-pregnant women, persons with heart or lung disease, anemia, those under
influence of alcohol and those at high altitudes-are more affected by carbon monoxide than
others.
CAUTION: Strong drafts, such as a ceiling fan placed directly in front of heater
(pulling from either direction) may create sooting. Sooting will discolor
walls.
1. The installation must conform with local codes or in the absence of local codes, with
National Fuel Gas Code, ANSI Z223.1/NFPA54.
2. This appliance may be installed in an After-Market* Manufactured (Mobile) Home,
where not prohibited by state or local codes.
* (After-Market: Completion of sale, not for purpose of resale from manufacturer.)
This appliance is only for use with the type of gas indicated on rating plate.
This appliance is not convertible for use with other gases.
NOTE: See Section VII, “Producing Adequate Air For Combustion And Ventilation” page 24.
IMPORTANT: VENT-FREE HEATERS ADD MOISTURE TO AIR. ALTHOUGH THIS IS
BENEFICIAL, INSTALLING HEATER IN ROOMS WITHOUT ADEQUATE
VENTILATION MAY CAUSE MILDEW TO FORM FROM TOO MUCH MOISTURE.
3. Never install this heater:
 In a recreational vehicle, bathroom, bedroom or any other sleeping quarters.
 Where curtains, furniture, clothing or other flammable objects are less than 42" from
front of heater
 In high traffic areas or in windy areas
4. Two models are available. One specific model for propane (LP) and one for natural gas.
Use the correct type gas for your home. Do not convert from one gas type to another.
NOTE: This appliance complies with ANSI Z21.11.2b-2010 Unvented Room Heater.
WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.

Page 3
5. If this heater is used with propane gas, do not place propane supply tank(s) inside any structure.
6. What To Do IF You Smell Gas:
- Shut off gas supply.
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone. Follow gas supplier’s instructions.
- If you cannot reach your gas supplier, call fire department.
7. When operated for first time, logs may emit a “paper burning” smell. This smell will gradually
diminish and will be totally eliminated after first few hours of operation. Run gas logs with flue
damper open during this time. Do not use blower at this time.
8. This heater shall not be installed in unusually tight construction unless provisions are provided for
adequate combustion and ventilation air. See Producing Adequate Air For Combustion And Venti-
lation, Page 24.
9. Surface of gas logs becomes very hot when operating. Keep children and adults away from hot
surface. Gas logs will remain hot for sometime after shutdown. Allow surface to cool before
touching.
10. Do not place clothing or other flammable material on or near appliance.
11. If equipped, fresh air damper must be closed.
12. Keep appliance area clean and free from combustible materials, gasoline and other flammable
vapors and liquids.
13. If burner shuts off, do not relight until you provide fresh outside air. If burner continues to shut off,
have unit serviced.
14. Do not use this heater if any part has been under water. Immediately call a qualified service techni-
cian to inspect room heater and to replace any part of control system and any gas control which
has been under water.
15. Turn off heater and let cool before servicing.
16. These logs are made of bonded fiber. When removing logs and base, do not damage the bonded
material. If material is damaged extensively, loose fiber dust could be emitted into air.
17. Any safety screen or guard removed for servicing an appliance must be replaced prior to operating
heater.
18. This appliance is intended for supplemental heating.
19. WARNING: Any change to this heater or its controls can be dangerous.
20. Installation and repairs should be performed by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that
control compartments, burners and circulating air passageways of appliance be kept clean.

Page 4
21. All heater screens must be kept closed when operating gas logs.
22. WARNING: Failure to keep primary air opening (s) of the burner (s) clean may result in soot and
property damage.
23. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage or any
other material on top of logs or into the flames.
24. Do not install or operate this heater in areas where impurities in air exist (such as tobacco smoke
or heavy cooking grease). Particles from impurities may discolor walls.
25. Due to high temperatures, appliance should be located out of traffic and away from furniture and
draperies.
26. Children and adults should be alerted to hazards of high surface temperature and should stay away
to avoid burns or clothing ignition.
27. Young children should be carefully supervised when they are in same room with appliance.
28. An unvented room heater having an input rating of more than 10,000 Btu per hour shall not be in-
stalled in a bedroom or bathroom.
29. The appliance and its appliance main gas valve must be disconnected from gas supply piping sys-
tem during any pressure testing of that system at test pressure in excess of 1/2 psi (3.5 kPa).
30. The appliance must be isolated from gas supply piping system by closing its equipment shut-off
valve during any pressure testing of gas supply piping system at test pressures equal to or less than
1/2 psi (3.5 kPa).
31. WARNING: Do not allow fans to blow directly into fireplace. Avoid any drafts that alter burner
flame patterns.
32. WARNING: Do not use a blower insert, heat exchanger insert or other accessory not approved for
use with this heater.
33. A fireplace screen must be in place when appliance is operating and unless other provisions for
combustion air are provided, screen shall have an opening (s) for introduction of combustion air.

Page 5
SECTION II
FIREPLACE PREPARATION
The fireplace needs to be prepared before installing heater.
A. Turn off the gas supply to fireplace.
WARNING: BEFORE INSTALLING IN A SOLID-FUEL BURNING
FIREPLACE, CHIMNEY FLUE AND FIREBOX MUST BE CLEANED OF
SOOT, CREOSOTE, ASHES AND LOOSE PAINT BY A QUALIFIED
CHIMNEY CLEANER.
WARNING: DO NOT ALLOW FANS TO BLOW DIRECTLY INTO
FIREPLACE. AVOID DRAFTS THAT ALTER BURNER FLAME
PATTERNS.
WARNING: DO NOT USE A BLOWER INSERT, HEAT EXCHANGER
INSERT OR OTHER ACCESSORIES NOT APPROVED FOR USE WITH
THIS HEATER.
WARNING: ANY OUTSIDE AIR DUCTS AND/OR ASH DUMPS IN
FIREPLACE SHALL BE PERMANENTLY CLOSED AT TIME OF
APPLIANCE INSTALLATION.
B. Read the following sections before installing your unit; Section III, page 15
Installation In A Solid-Fuel Burning Fireplace and Section VII, page 24
Producing Adequate Air For Combustion And Ventilation.
WARNING: CUTTING ANY SHEET-METAL PARTS OF SOLID-FUEL
BURNING FIREPLACE OR LISTED VENTLESS FIREBOX ENCLOSURE
IN WHICH UNVENTED FIREPLACE INSERT IS TO BE INSTALLED IS
PROHIBITED.
NOTE: If factory built fireplace has no gas access holes provided, an access hole of
1.5 inch (37.5mm) diameter or less may be drilled through lower sides or bottom off
firebox in a proper workmanlike manner. This access hole must be plugged with
noncombustible insulation after gas supply line has been installed.
Refractory, glass doors, screen rails, screen mesh and solid fuel log grates (if
applicable) can be removed from fireplace before installing unvented fireplace insert.

Page 6
INSTALLATION AND CLEARANCES
To ensure a safe installation into a masonry or factory built fireplace, following instructions must be
carefully followed:

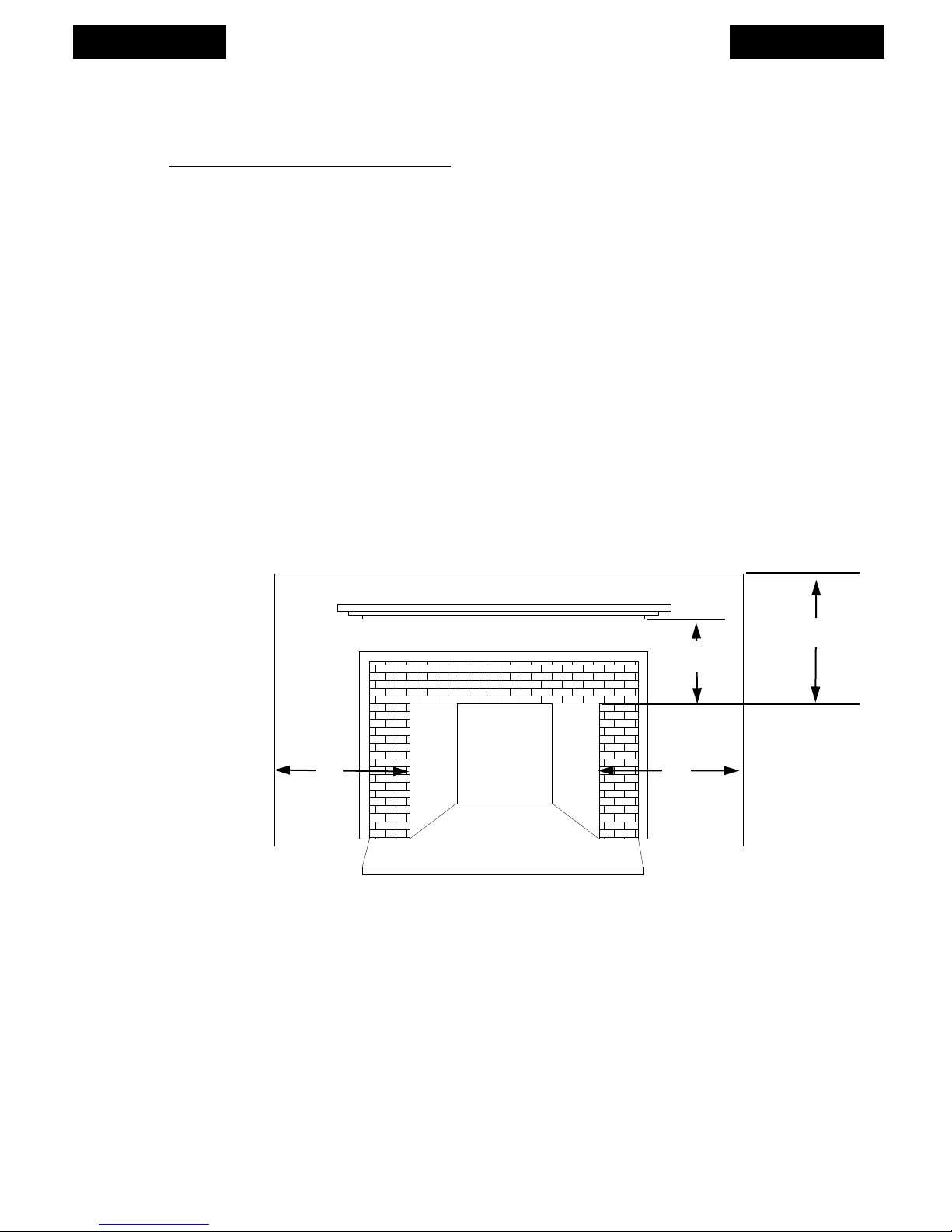

(1) Sidewall Clearances:
Clearance from side of fireplace opening to any adjacent combustible wall should not be
less than: right side 7", left side 7".
(2) Ceiling Clearances:
The ceiling height should not be less than 24" from top of fireplace opening.
(3) Mantel Clearances:
Clearances from top of heater to mantel or mantel supports should not be less than 20".
NOTE: See following sections for installation options: Section III, page 15, Installation In A Solid-Fuel
Burning Fireplace and Section IV, page 17, Installation With Optional Wooden Mantel and Section V,
page 19, Zero Clearance Installation.
WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.
GAS CONNECTION
Check gas type. Use only type of gas indicated on valve rating plate. If type of gas listed on plate is not
your type of gas supply, DO NOT INSTALL. Contact your dealer for proper model.
Always use an external regulator for all LP heaters to reduce supply tank pressure to a maximum of 13"
W.C. This is in addition to regulator furnished with heater.
WARNING: CONNECTION DIRECTLY TO AN UNREGULATED LP TANK CAN
CAUSE AN EXPLOSION.

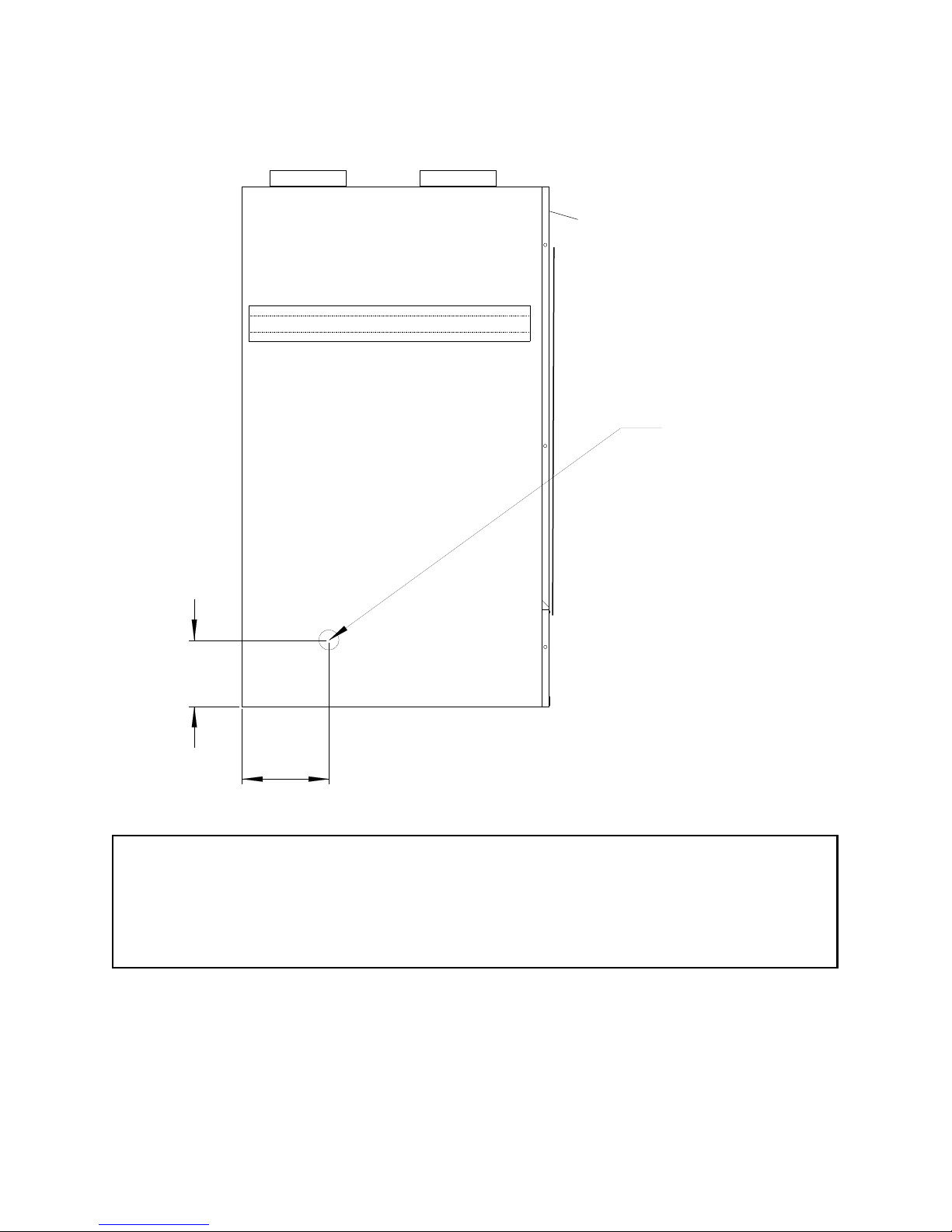

Normal gas connection is 3/8” N.P.T. made at left side of appliance (facing front of appliance). If a
right side connection is desired, connecting pipe may be led under rear of burner base to terminate at
right side for connection to inlet of valve.
NOTE: The connecting pipe must be internally tinned copper tubing for use with natural gas. Test for
leaks using a solution of soap and water after completing the connection. DO NOT USE OPEN
FLAME
WARNING: Installation and repairs should be performed by a qualified service person.
Appliance should be inspected before use and at least annually by a professional service
person. More frequent cleaning may be required due to excessive lint from carpeting, bedding
material, etc. It is imperative that control compartments, burners and circulating air
passageways of appliance be kept clean.

Page 7
1
2
3 4
5 6
7
E.S.B. LOG SET PLACEMENT FOR MODEL 34 MANHATTAN
“MILLIVOLT ONLY”
WARNING: Failure to position parts in accordance with these diagrams or failure to use only parts
specifically approved with this heater may result in property damage or personal injury.
WARNING: POSITIONING OF LOGS IS VERY CRITICAL (SEE DIAGRAM ABOVE).
MODEL E.S.B: (1) Rear Log, (2) Middle Log, (3) Left Top Middle Log, (4) Right Top
Middle Log (5), Left Front Log (6), Right Front Log (7), Glowing Embers in front of 5 & 6
logs.
1) Place back log #1 on rear log supports. The log has alignment notches on each back corner.
2) Place Middle log #2 in front of back burner tube and then move log forward. The log should
seat just behind brass knob (s), located in middle section of base between back burner tube and
front burner pan.
3) Place Left Top Middle log #3 on pins located on left top section of Middle log #2.
4) Place Right Top Middle log #4 on pin located on right top section of Middle log #2 and align
notch on right side #4 with side shield on right.
5) Place Left Front log #5 on locator pins located on left middle section of front burner pan.
6) Place Right Front log #6 on locator pins located on right middle section of front burner pan.
7) Provided with your log set is a package of Glowing Embers (rock wool). Open package and tear
off small pieces of wool material and place it over small holes (ports) located on front burner pan
in front of logs #5 and #6. Cover entire section of holes (ports).
*Replacement of loose (Glowing Embers) must be purchased from the original
manufacturer and application of excess loose material may adversely affect performance of
heater.
NOTE: Wash your hands immediately after coming in contact with wool material. The wool
can cause slight itching or burning, avoid any contact with eyes.
WARNING: All previously applied loose material must be removed prior to replacement.

Page 8
GAS PRESSURE CHECK
Check inlet pressure to burner to ensure that it is as shown in table below. NOTE:The pressure
check point is located on the right side of valve facing burner, for SIT Millivolt, and left side for
SIT Modulating.
Appliance and its appliance main gas valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
Appliance must be isolated from gas supply piping system by closing its equipment shut-off
valve during any pressure testing of gas supply piping system at test pressures equal to or less
than 1/2 psi (3.5 kPa).
VALVE (MILLIVOLT)
MODEL: FP34 FP34
GAS TYPE Natural Propane
Maximum Heat Input 33,000 33,000
Minimum Heat Input 23,000 23,000
Gas Inlet Pressure
Maximum 10.5ins.W.C. 13ins.W.C.
Minimum *5.0ins.W.C. *11ins.W.C.
Manifold Pressure
Maximum 3.5ins.W.C. 9.0ins.W.C.
Minimum 3.0ins.W.C. 8.2ins.W.C.
NOTE: On initial installation it may be necessary to bleed out air in the gas lines. Do this by
holding the control knob and turning the knob to the “PILOT” position for about 30 seconds.
To check the regulator pressure, remove the pressure tag plug at the left side of the regulator
facing the heater. The pressure should be checked with the heater burning and the control set on
high. After measuring the pressure, replace the pressure tap plug, ensuring that there are no
leaks.
 For the purpose of minimum input adjustment.
WARNING
This appliance is equipped for (natural or propane) gas. Field conversion is not permitted.
Solid fuels shall not be burned in the same fireplace where an unvented room heater has
been installed.
NOTE: The following label has been provided with this appliance and must be read and
then attached to floor of the fireplace or firebox area beneath the appliance. The
label is a peel and stick label. Make sure the area is cleaned before attaching label
to it.
WARNING: This solid-fuel burning fireplace or listed vent less enclosure has been
converted for use with an unvented fireplace insert only. A solid-fuel burning
fireplace cannot be used for burning wood or solid fuels unless all original parts
have been replaced and fireplace re-approved by the authority having
jurisdiction. A vent less firebox enclosure cannot be used with an unvented gas log
unless all original parts have been replaced and vent less firebox enclosure re-
approved by authority having jurisdiction.

Page 9
LIGHTING INSTRUCTIONS
SIT-MILLIVOLT VALVE
FOR YOUR SAFETY READ BEFORE LIGHTING
OPERATING INSTRUCTIONS
Before operating this appliance, proceed through following checklist.
1. Read and understand these instructions before operating this appliance.
2. Check that there are no gas leaks. If you smell gas do not attempt to light this appliance.
3. Verify that log placement is correct.
WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.
WARNING: If you do not follow these instructions exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lit by hand. When lighting pilot follow these
instructions exactly. If piezo fails, then light pilot using matches. Refer to match lighting
instructions.
B. BEFORE LIGHTING smell all around appliance area for gas. Be sure to smell next to
floor because some gas is heavier than air and will settle to floor.
WHAT TO DO IF YOU SMELL GAS:
 Do not try to light any appliance.
 Do not touch any electric switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbor’s phone. Follow gas supplier’s
instructions.
 If you cannot reach your gas supplier, call fire department.
C. Use only your hand to push in or turn gas knob. Never use tools. If knob will not push in or
turn by hand, don’t try to repair it. Call a qualified service technician. Force or attempted
repair may result in a fire or explosion.
D. Do not use this appliance if any or part of it has been under water. Immediately call a
qualified service technician to inspect the appliance and to replace any part of the control
system and any gas control which has been under water.

Page 10
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information on reverse side of this label (page 19).
2. Make sure manual shutoff valve is fully closed. If equipped with thermostat, set to lowest
setting.
3. Turn off all electrical power to appliance.
4. Open access door located at bottom of front of appliance.
5. Push in gas control knob slightly and turn clockwise to full “OFF” position.
NOTE: Knob cannot be turned from “PILOT” to “OFF” unless knob is pushed in slightly. Do
not force.
6. Wait (5) five minutes to clear out any gas. Then smell for gas, including near the floor. If
you smell gas, STOP! Follow “B” in the safety information on the reverse side of this label.
If you don’t smell gas, go to the next step.
7. Find Pilot: The pilot is located in front of back log and burner on right hand side of
appliance. Fully open manual shutoff valve.
8. Press in and turn knob on gas control counterclockwise to “PILOT” and continue
pressing in knob for (15) fifteen seconds.
9. With control knob pressed in push down (in) and release igniter button (igniter button is
located on front left hand side of appliance). This will light pilot. If needed, keep repeating
this step until pilot lights.
10. Keep control knob pressed in for (1) one minute after lighting pilot. After (1) minute, release
control knob and it will pop back up. Pilot should remain lit. If pilot goes out, repeat steps 1
through 9.
 If knob does not pop up when released, stop and immediately call your service technician or
gas supplier.
 If pilot will not stay lit after several tries, turn the gas control knob to “OFF” and call your
services technician or gas supplier.

Page 11
11. Turn control knob counterclockwise to “ON”.
12. If using unit without wall thermostat place Auto/Off/Manual switch to manual position. If
using wall thermostat place Auto/Off /Manual switch to auto position and place thermostat
to a setting higher than room temperature.
13. Close access cover door.
14. Turn on all electrical power to appliance.
15. Your heater is equipped with a HI & LO control. Turn clockwise for Low and
counterclockwise for High.
CAUTION
DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL SHUTOFF VALVE.
TO TURN OFF GAS TO
APPLIANCE
SHUTTING OFF UNIT
1. Open access cover door.
2. If equipped with thermostat set to lowest setting.
3. Turn control knob clockwise to full “OFF”.
4. Turn off all electric power to appliance if service is to be performed.
5. Close access cover door.
SHUTTING OFF BURNER ONLY (Pilot stays lit.)
Turn control knob clockwise to “PILOT” position.
CAUTION: Hot while in operation. Do Not Touch. Keep children, clothing, furniture,
gasoline and other liquids having flammable vapors away.
CAUTION: DO NOT TRY TO ADJUST HEATING LEVELS BY USING MANUAL
SHUTOFF VALVE.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, personal injury or loss of life. Refer to owner’s information manual
provided with this appliance. Installation and service must be performed by a qualified installer,
service agency or gas supplier.
IMPORTANT: Always operate appliance at completely “ON” or completely “OFF”
positions. Never use heater at a setting between these positions as this can result in improper
combustion and excessive carbon monoxide emissions.

Page 12
MANUAL LIGHTING PROCEDURE 1
1. If pilot cannot be lit with piezo, it can be manually lit with the use of a paper match and a
lighter rod.
2. Open access panel door located at bottom front of appliance.
3. Place match in holder and light. With left hand, turn control knob counterclockwise
to “PILOT”position. Press in gas control knob for fifteen (15) seconds.
4. Use rod to light match and ignite pilot. Pilot is located in front of back log and burner on
right hand side of appliance.
5. Continue to hold the control knob for an additional one (1) minute to ensure pilot is lit.
6. Turn control knob counterclockwise to “ON” position. Push “ON/ OFF” toggle
switch to “ON” position. Main burner should light.
7. Close access panel door.
8. Turn on all electrical power to appliance.
NOTE: This unit may be used with an optional Wall Thermostat. If so, Wall Thermostat needs
to be set at a higher temperature than the room temperature.

Page 13

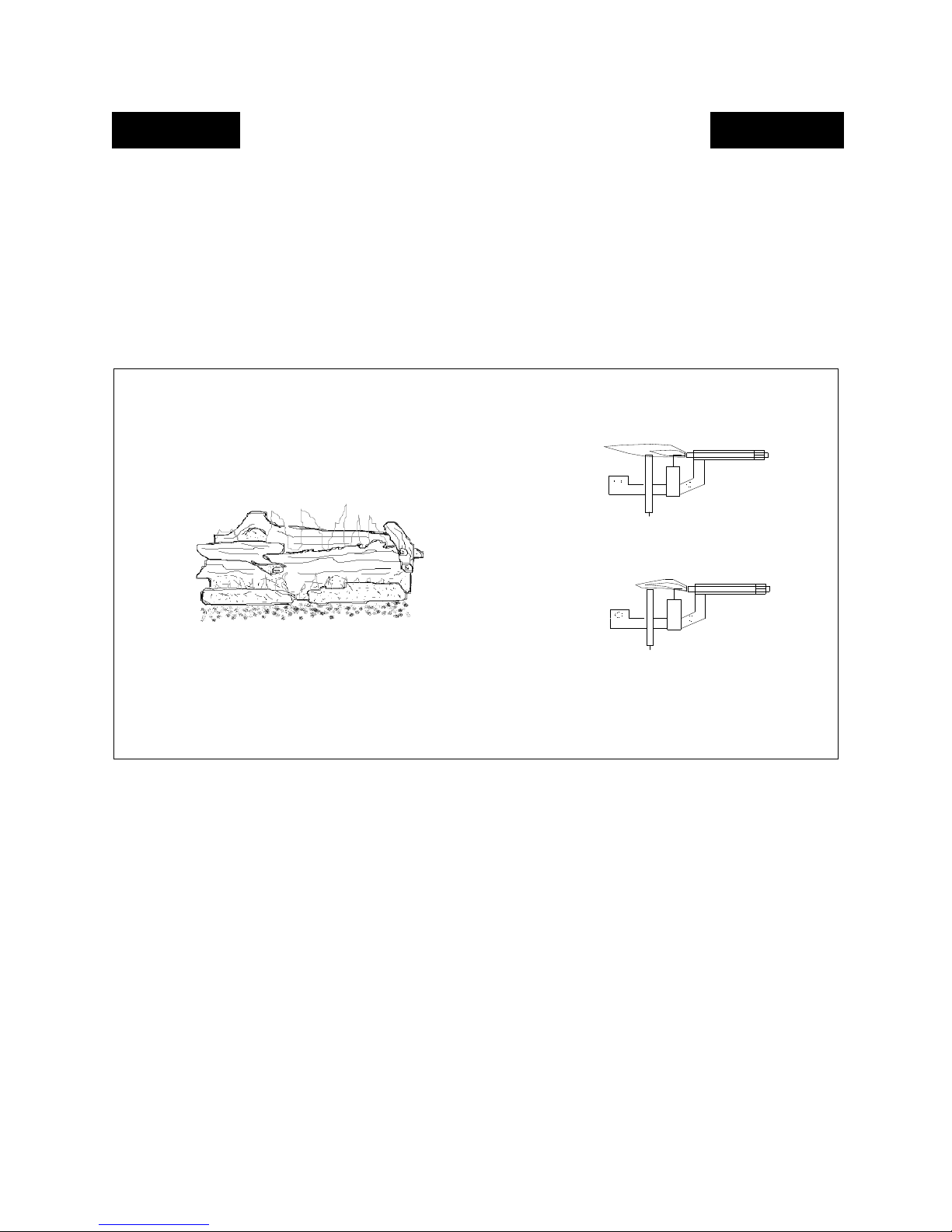

FLAME CHECK
A periodic check of the flames should be made. The pilot flame should always be present when
gas logs are in operation. See Figure 4.
Back Flames: The flames at back or at either side of top log should be very similar, yellow in
color, and should be about 3" to 4" above large back log for natural gas logs and
about 6" for propane (LP) gas log sets.
Front Flame: The flame should be 1-1/2" to 2" high and touch the back of front log. This will
produce a red glow on this log.
When used as a ventless heater, flue damper of a solid-fuel burning non-combustible fireplace
must always be closed.
NOTE: The Vent-Free fireplace may be installed where permitted buy local, state and city
codes.
In the absence of local codes, the latest edition of the National Fuel Gas Code (ANSI Z223.1)
must be met.
Natural
Propane
PILOT
PILOT
Figure 4
E.S.B. LOG SET

Page 14

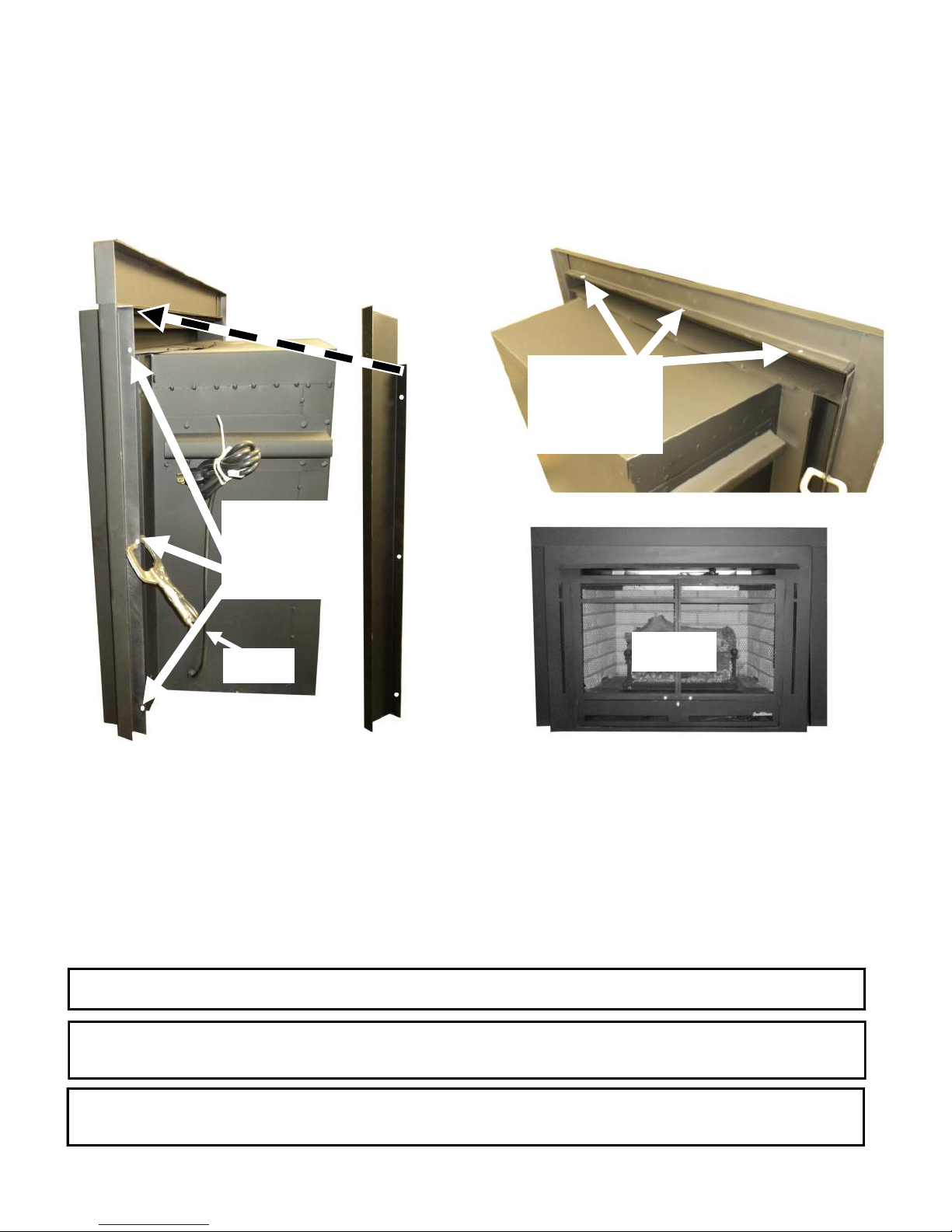

SECTION III 1
INSTALLATION MODEL 34 MANHATTAN
IN SOLID FUEL BURNING FIREPLACES
(1) Model 34 Manhattan may be installed in a masonry fireplace. The minimum fireplace dimension
must be 24" high, 29-1/2" wide, and 12" deep.
(2) For minimum dimensions for the sidewall and mantel, see Figure 5.
(3) Center heater in fireplace opening.
NOTE: See “Producing Adequate Air for Combustion And Ventilation” page 24.
NOTE: Installer of this appliance must mechanically (peel and stick) attach marking supplied with this
unvented appliance before installing to inside of firebox of solid-fuel burning fireplace or listed vent less
firebox enclosure into which unvented fireplace insert is installed. See example of marking on page 10 of
this manual.
CAUTION: Cutting any sheet metal parts of solid fuel burning fireplace or listed vent less enclosure in
which unvented fireplace is to be installed is prohibited.
NOTE: If factory-built fireplace has no gas access hole(s) provided, an access hole of 1.5 inch (37.5)
diameter or less may be drilled through lower sides or bottom of firebox in a proper workmanlike manner.
This access hole must be plugged with non-combustible insulation after the gas supply line has been
installed.
Refractory, glass doors, screen rails, screen mesh and solid-fuel log grates (if applicable) can be removed
from fireplace before installing unvented fireplace insert.
20" 24"
7"
7"
RIGHT
SIDE
LEFT
SIDE
Figure 5
CEILING
1. Place a side panel with holes against side front of unit, with notch of panel up and facing side of stove,
back edge of panel should be even with back edge of front side and flush with bottom edge of front.
Hold in place, you may want to use clamp to help hold panel. Mark the holes through side panel onto
side of front. Set panel aside. Drill three (3) holes with supplied self drilling screws through the marks.
Repeat for other side.(See Page 16, Figure 6)
2. Place right panel with holes facing unit onto right front side of unit with notch of panel up and install
with three (3) self drilling screws provided. Repeat for the left side.
(See Page 16, Figure 6)
INSTALLING TRIM PANELS
NOTE: If used in installation trim panels or surrounds shall not seal ventilation openings in fireplace.
Also provide adequate clearances around air openings

Page 15
WARNING: Solid-Fuels shall not be burned in a fireplace in which an unvented room heater is installed.
CAUTION: Any outside air ducts and/or ash dumps in the fireplace shall be permanently closed at time
of appliance installation.
WARNING: Before installing in a solid-fuel burning fireplace, the chimney flue and firebox must be
cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner.
NOTE: You need to make sure supply gas line is hooked up at this time. Be sure to check for leaks at
connection using soap and water. DO NOT USE OPEN FLAME TEST FOR LEAKS
6. After hooking up gas line, for gas hook-up and pressure tap test, see instruction in Section II.
7. After checking for leaks and mounting trim panels slide heater into fireplace.
8. Place logs on burner base as shown on Page 8.
.
3. Place top panel onto front top of unit and over ends of side panels, top panel should be flat against side
panels. Hold in place and mark holes through holes in top panel onto top of front of unit. Set panel aside.
Drill three (3) holes with supplied self drilling screws through marks. (See Figure 7)
4 Place top panel onto front top of unit and over ends of side panels, install top panel with three (3) self
drilling screws provided. (See Figure 6)
5. The panels should look flat from front of the unit. (See Figure 8)
Figure 7
Figure 8
LEFT
PANEL
TOP PANEL
RIGHT
PANEL
Figure 6
DRILL HOLES
WITH SELF
DRILLING
SCREWS
NOTCH
AT TOP
CLAMP
DRILL HOLES
WITH SELF
DRILLING
SCREWS

Page 16
SECTION IV
INSTALLATION OF MODEL 34 MANHATTAN (WS)
OPTIONALWOODEN SURROUND (KIT#PAKDFP34MAN)
(1) When choosing right location for your heater and surround (mantel) keep the following in
mind:
NOTE: Due to high temperatures, this heater should be located out of traffic areas and
away from furniture and draperies.
CAUTION: INSTALLATION MUST CONFORM TO LOCAL CODES. IN THE
ABSENCE OF LOCAL CODES, INSTALLATION MUST CONFORM WITH
NATIONAL GAS CODES.
NOTE: See Section II for “Gas Hookup and Pressure Check”.
NOTE: See “Producing Adequate Ventilation” page 23.
WARNING:CHILDREN AND ADULTS SHOULD BE ALERTED TO HAZARDS
OF HIGH SURFACE TEMPERATURES AND SHOULD STAY AWAY TO AVOID
BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN THEY ARE IN SAME ROOM WITH
APPLIANCE
WARNING:DO NOT PLACE CLOTHING OR OTHER FLAMMABLE
MATERIAL ON OR NEAR APPLIANCE.
(2) Place a cloth or blanket over front portions of surround (mantel) as not to scar wooden part
of surround.
(3) Slide unit into front opening of surround so back side of heater trim panels meet flush with
the surround front.
(4) Remove cloth or blanket from underneath stove.
(5) Take two metal “ell” brackets with screws provided and anchor back of fireplace to
surround

Page 17
ROOMDIVIDER
PARTIALROOMPROJECTION
FULLROOM PROJECTION
FLUSH
CORNER
SECTION V
MODEL 34 MANHATTAN (ZC) ZERO CLEARANCE INSTALLATION
The installation must conform with local codes or in the absence of local codes,
with National Fuel Gas Code, ANSI Z223.1/NFPA54.
This appliance may be installed in an After-Market* Manufactured
(Mobile) Home, where not prohibited by state or local codes.
* (After Market: Completion of sale, not for purpose of resale from manufacturer).
This appliance is only for use with the type of gas indicated on trating plate. This appliance is
not convertible for use with other gases.
NOTE: See “Producing Adequate Air For Combustion And Ventilation” page 23.
CHOOSING THE LOCATION FOR YOUR FIREPLACE:
The figure below shows some of many ways your fireplace may be installed. Consider traffic
pattern in your room and location of doors and windows. Moving air from ceiling fans, open
doors and hot air grills may cause flames to soot. If a disturbance is found that affects flames, it
must be eliminated by turning off ceiling fan, closing door or closing or moving hot air register.
A corner location may be best where space is limited.
Your fireplace weighs no more than some of your fine furniture. If fireplace is located near a
load bearing wall, additional supports to foundation will not be necessary. Heavy facings, such
as brick, stone, etc., may require additional foundation support.
NOTE: If this appliance is installed directly on carpeting, tile or other combustible mate-
rial, other than wood flooring, appliance shall be installed on a metal or wood
panel extending full width and depth of appliance.
GAS LINE
Gas supply line and electrical supply must be
installed before framing in the fireplace by a
licensed installer.
DRAFTS
Do not locate the fireplace in high traffic
areas or areas exposed to high drafts and
winds. Locate the fireplace away from
furniture and draperies.

Page 18
3-1/4"
4-1/4"
GAS LINE
WARNING: Installation and repairs should be performed by a qualified service
person. The appliance should be inspected before use and at least annually by a
professional service person. More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etc. It is imperative that control compartments,
burners and circulating air passageways of appliance be kept clean.
