New Buck Corporation DV1000 User manual

DV1000
ZERO CLEARANCE DIRECT VENT GAS FIREPLACE
WITH L.P. (Liquid Propane) or Natural Gas/ Millivolt System
This appliance is not convertible for use with other gases, unless a certified kit is used.
Approved By:
WARNING: If the information in these instructions are not followed exactly, a fire
or explosion may result causing property damage, personal injury or loss of life.
⎯ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
⎯ WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas suppli-
ers instructions.
• If you cannot reach your gas supplier, call the fire department.
⎯ Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
This appliance may be installed in an aftermarket, permanently located, manufactured
home (USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases, unless a certified kit is used.
New Buck Corporation
P.O. Box 69
8000 South 226 Highway
Spruce Pine, NC 28777
JULY 2006
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

TABLE OF CONTENTS
Introduction..........................................................................................................................2
Firebox Cover Door Removal……………………………………………………………..3
Specifications……………………………………………………………………………...5
Minimum Framing Dimensions……………………………………………………………6
Vent Terminal Clearance…………………………………………………………………..7
Determining The Location…………………………………………………………………8
Minimum Clearances To Combustible Material…………………………………………..8
Direct Vent Termination Installation Instruction………………………………………….9
Pre Installation Instructions………………………………………………………………10
Pipe Installation…………………………………………………………………………...10
Connecting The Venting System To The DV1000……………………………………….11
Optional Rear Horizontal Vent Termination Fireplace Installation…………….………...12
Standard Horizontal Termination Installation…………………………………………….13
Standard Vertical Chase Termination Installation………………………………………..14
Removable Inner Bottom Instructions……………………………………………………15
Gas Supply Connection……………………………………………………………….…..16
Log Placement…………………………………………………………………………….18
Lighting Instructions……………………………………………………………………...20
Wire Diagram (Optional Blower)………………………………………………………...23
Repair Parts/ Manufacturers Address…………………………………………………….24
Cleaning And Maintenance……………………………………………………………….25
Trouble Shooting………………………………………………………………………….27
Replacement Parts………………………………………………………………….30 & 32
Parts Identification………………………………………………………………………..31
Warranty………………………………………………………………………………….33

DANGER: Carbon monoxide poisoning may lead to death!
This appliance is a vented product. This appliance will not produce any gas leakage into
your home if properly installed. This appliance must be properly installed by a qualified ser-
vice person. The glass door must be properly seated and sealed. If this unit is not properly
installed by a qualified service person with glass door properly seated and sealed, gas leak-
age can occur.
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble the flu,
with headaches, dizziness, or nausea. If you have any of these signs, the cast stove with
burner system may not have been installed properly. Get fresh air at once! Have this appli-
ance and venting system inspected and serviced by a qualified service person. Some people
are more affected by carbon monoxide than others. These include pregnant women, people
with heart or lung disease or anemia, those under influence of alcohol, and those at high alti-
tudes.
Propane/LP gas and natural gas are both odorless. An odor-making agent is added to each of
these gases. The odor helps you detect a gas leak. However, the odor added to these gases
can fade. Gas may be present even though no odor exists.
Make certain you read and understand all warnings. Keep this manual for reference. It is
your guide to safe and proper operation of this cast stove and burner system.
The Model DV1000 Direct Vent Fireplace must be vented using only Magnaflex venting
system (Type: DV4-F.
NOTE: If you have a standard ON/OFF Remote Control or an Optional Thermostat
Remote Control System follow the installation instructions provided with the individ-
ual package.
A manufactured home (USA only) or mobile home OEM installation must confirm
with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part
3280, or, when such a standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1, or Standard for Gas Equipped Recreational Ve-
hicles and Mobile Housing, CSA Z240.4.
Page 1

INTRODUCTION AND SAFETY FOR
INSTALLATION AND OPERATION
This instruction manual will help you obtain a safe, efficient, dependable installation for your appliance
and vent system. Please read and understand these instructions before beginning your installation.
The model DV1000 is a sealed combustion, air circulating gas appliance designed for residential and
mobile home applications. The appliance must be installed with Magnaflex DV4-F vent system that is
routed to outside atmosphere. It is also listed for bedroom installations.
This appliance is designed to operate on natural or propane gas. A millivolt gas control valve with piezo
ignition system provides safe, efficient operation. No external electrical power is required to operate the
gas valve and burner. 115V AC is required to operate the room air fan.
This appliance complies with National Safety Standards and is tested and listed to ANSI Z21.88-2005
and CSA 2.33-2005.
Installation must conform to local codes. In the absence of local codes, installation must comply with
the current National Fuel Gas Code, ANSI Z223.1/NFPA54, or the National gas and Propane
Installation Code, CSA b149.1...
“WARNING”: Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage.
SPECIFICATIONS - MODEL DV1000
RATE: NAT. L.P.
MAX. 25,000 BTU 24,000 BTU
MIN. 20,000 BTU 20,000 BTU
GAS SUPPLY PRESSURE: NAT. L.P.
MAX. INPUT 10.5" W.C. 13.0" W.C.
MIN. INPUT *4.0" W.C. 11." W.C.
MANIFOLD PRESSURE: NAT. L.P.
3.5" W.C. 10.0" W.C.
EFFICIENCY:(With Blower “ON”)
NATURAL GAS 88%
L.P. GAS 88%
FLUE VENT 4" INNER, 7" OUTER; Magnaflex
SAFETY CSA CERTIFIED PILOT GENERATOR, MILLIVOLT
SYSTEM ACTIVATED WITH SWITCH OR THERMOSTAT.
“WARNING”: This appliance must not be connected to a chimney flue serving a separate
solid-fuel burning appliance.
“Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system
and any gas control which has been under water.”
NOTE: the appliance are be kept clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
The flow of combustible and ventilation air not be obstructed.
Page 2

NOTE: Installation and repair should be performed by a qualified service person. The
appliance should be inspected before use and at least annually by a professional service
person. More frequent cleaning may be required due to excessive lint from carpeting,
bedding material, et cetera. It is imperative that control compartments, burners and
circulating air passageways of the appliance be kept clean.
When choosing a location for your DV1000 in your home be sure to provide the following:
Adequate accessibility clearances for servicing and proper operation.
Children and adults should be alerted to the hazards of high surface temperature and
should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance.
Clothing or other flammable material should not be placed on or near the appliance.
“WA R N I N G : Do not operate appliance with the glass front removed, cracked or
broken. Replacement of the glass should be done by a licensed or qualified service
person.”
“WARNING: Only Logs and Embers supplied with this appliance may be used. No
substitute materials may be used at any time.”
“WARNING: Do not use abrasive cleaners on this appliance. Abrasive
cleaners can damage the painted and glass surfaces of the appliance.”
DV1000 FIREBOX COVER DOOR
REMOVAL INSTRUCTIONS
Glass Care: This appliance has a large cover door bolted to the front area of the firebox. This
cover door must be in place at all times when the appliance is in operation. For the most visual
performance with your appliance it is good to maintain a clean glass on the cover door. To
clean the glass first make sure the glass is cool (not hot), trying to clean the glass when it is hot
can cause personal injury, or damage your cleaning device and the glass. With the glass at room
temperature and the door attached to the appliance, spray the glass are with household glass
cleaner and wipe clean with a lint-free towel. If the inside of the glass needs cleaning follow the
directions on page 4 for removing the cover door, and then clean as you did the front side of the
glass.
“WARNING: Do not abuse the glass cover door such as striking or slamming
shut. The glass can break and cause personal injury.”
CAUTION: If the glass in your appliance becomes broken or cracked,
remove the glass with caution. Wear safety glasses, gloves, shoes and other
protective clothing as needed. See your dealer or the manufacturer for re-
placement glass cover door.
Page 3

1. The top louver assembly must be removed first. To remove the top louver assembly you must
place your hands one at the bottom left corner and the other at the bottom right corner of the lou-
ver assembly. Then with both hands lift up and outwards to release the louver clips from the
stove body. After removing the louver assembly place it in a safe place until time to reinstall.
2. The bottom louver assembly must be in the open position to access the firebox cover door fas-
teners. The bottom louver assembly is hinged to the bottom of the stove. Place one hand on the
center of the top louver and pull slowly out and downward to open.
3. Before removing the firebox cover door you must remove the six (6) 1/4-20 nuts located across
the top of the door and the bottom of the door. After removing the nuts you must slowly pull the
door outward and completely off the studs. Place the door in a safe place until time to reinstall,
the glass is breakable.
NOTE: The Firebox Cover Door must be removed to access the pilot assembly located in the right
rear corner of the firebox area, and to access the burner pan located in the bottom center of the
firebox area. The door must also be removed when placing the logs and embers.
4. To replace the cover door, reverse steps 3 thru 2.
#1 SIDE VIEW OF
LOUVER ASSEMBLY
AND CLIP.
WARNING: “Do not operate
appliance with the glass front
removed, cracked or broken.
Replacement of the glass should be
done by a licensed or qualified
service person.”
1/4-20 NUTS
SLOT IN STOVE BODY FRONT FOR LOU-
VER ASSEMBLY CLIP TO SECURE TO
STOVE BODY.
#1
#2
#3
1. TOP LOUVER ASSEMBLY
2. BOTTOM LOUVER ASSEMBLY
3. FIREBOX COVER DOOR
LEFT SIDE RIGHT SIDE
FRONT
FIGURE 1
Replace the entire cover door assembly if glass
becomes defective with part # PO COVDOR1.
Page 4

38-1/8”
33-1/2”
16-15/16”
27-1/8”
15-1/8”
16-1/2”
13-9/16”
10-5/32”
36”
2-1/2”
6”

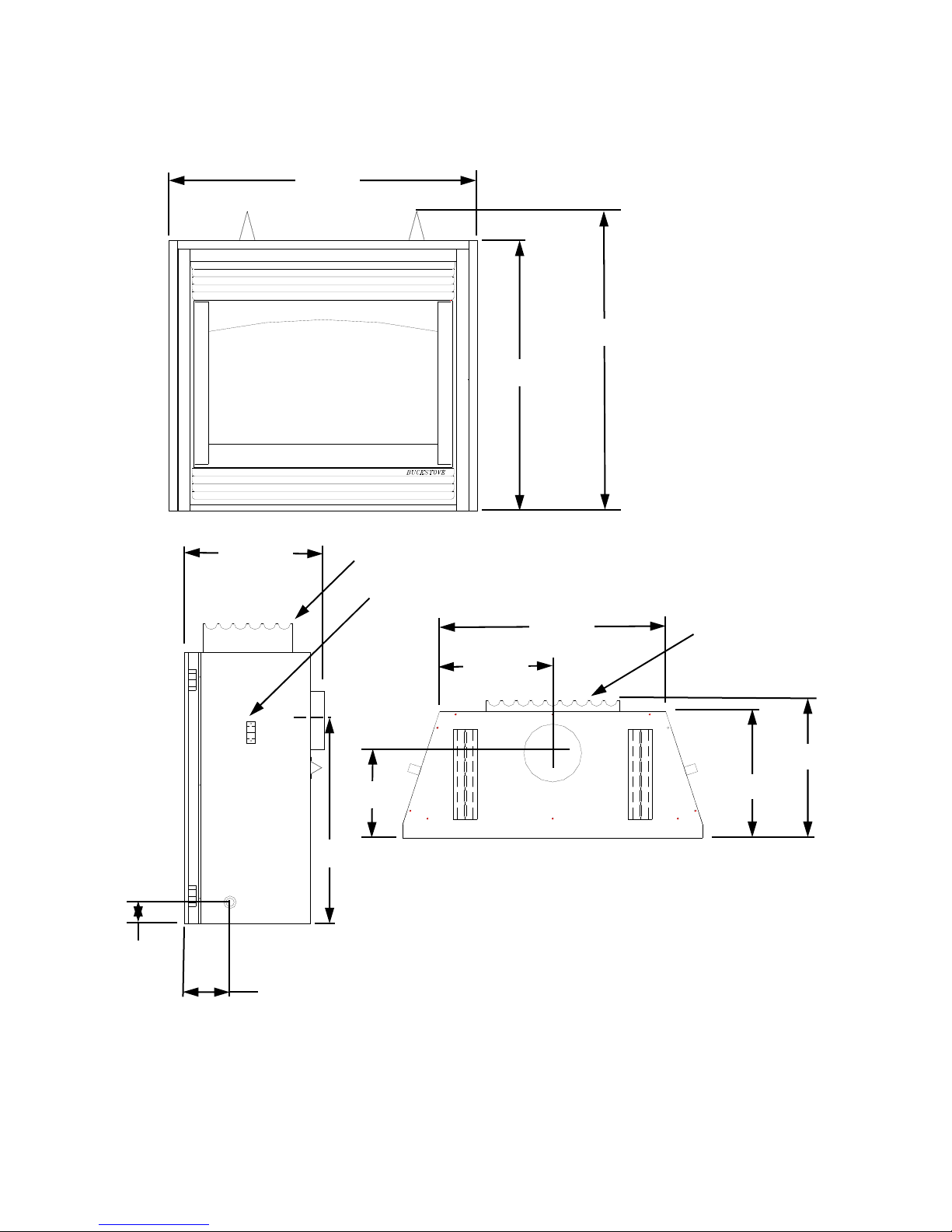

DV1000 SPECIFICATIONS
24-1/4”
FIGURE 2
TOP STANDOFF(S)
REAR STANDOFF
SIDE STANDOFF(S)
NOTE: When the appliance is installed directly on carpeting, tile or
other combustible material other than wood flooring, the appliance
shall be installed on a metal or wood panel extending the full width
and depth of the appliance.
Page 5

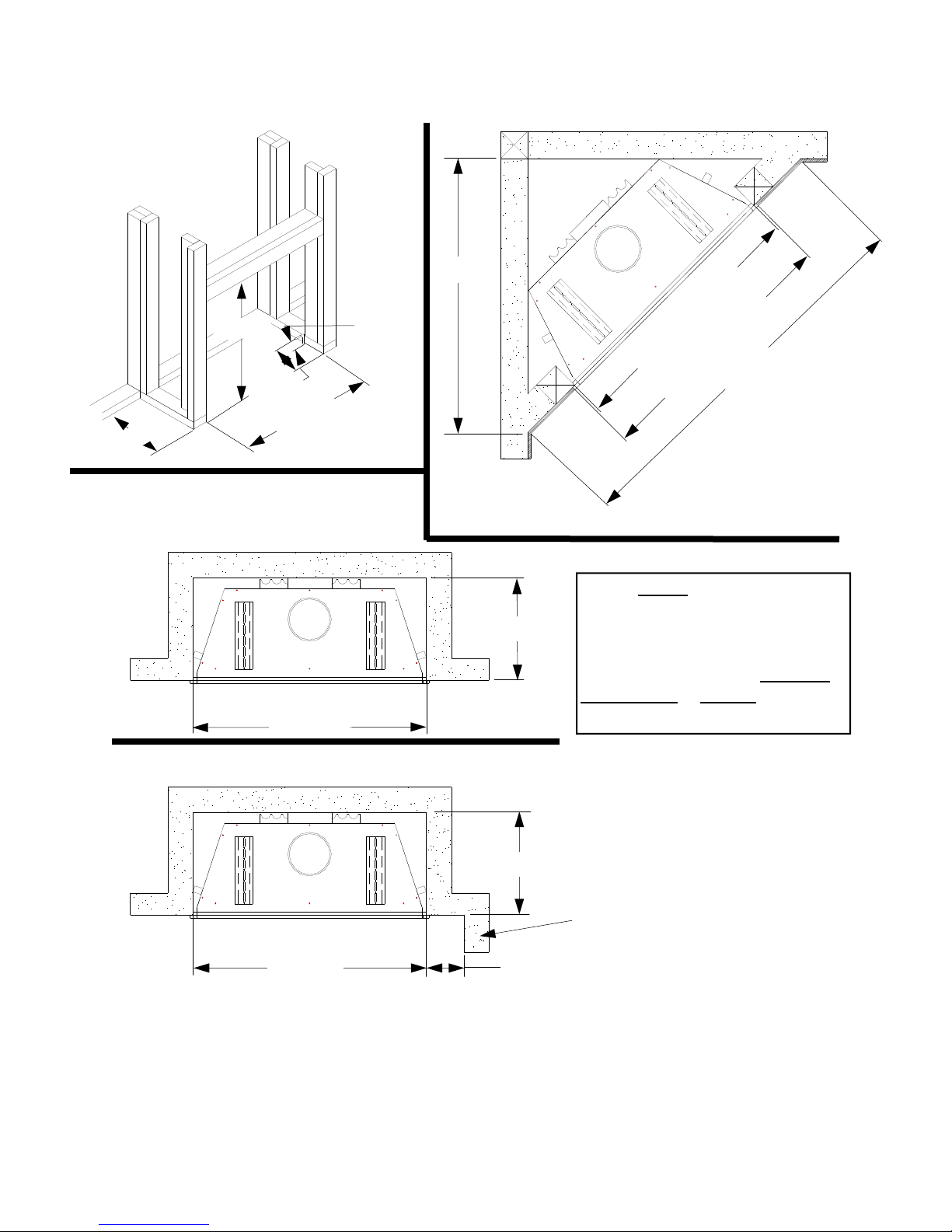

MINIMUM FRAMING DIMENSIONS
40-1/8”
37-7/16” (Framing*)
38-1/8” (Finished) *
56-3/4”
37-7/16”
17”
36-1/8”
6-1/2”
2-1/2”
37-7/16” *
17” *
37-7/16”* 6”
17” *
Combustible Adjacent
Side Wall.
FRONT *
RIGHT
SIDE *
LEFT
SIDE *
FIGURE 3
Note: “Only trim kit(s) supplied by the manufacturer shall be used in the installation of
this appliance.”
Note: “Front side and top stand-
off (s) are permanently attached
to the front trim panels. The
front trim panels are attached by
the manufacturer and must not
be removed or altered in anyway
for any reason.”
Page 6

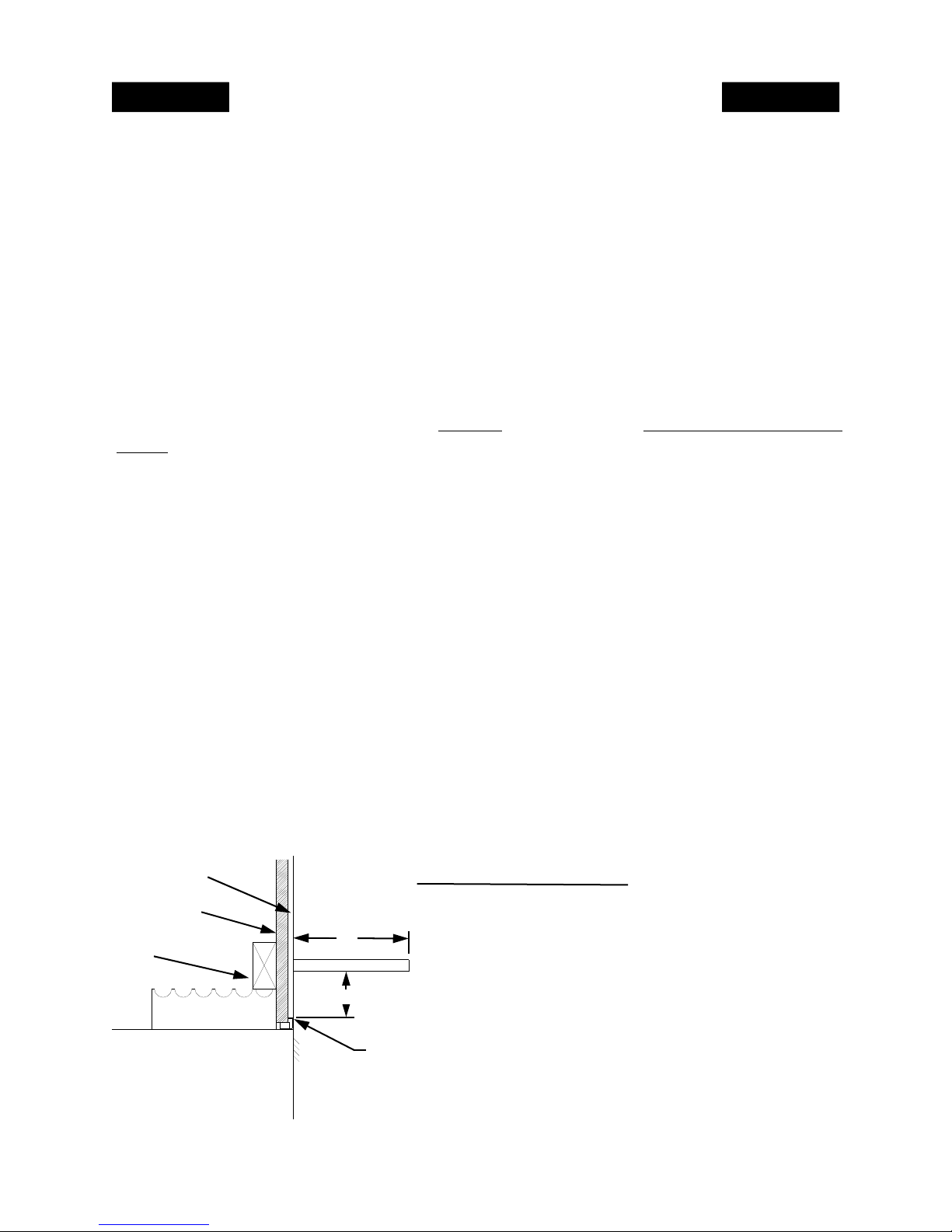

VENT TERMINAL CLEARANCES
FIGURE 4
Page 7

DETERMINING THE LOCATION FOR DV1000
Note: The installation must conform with local codes or, in the absence of local codes, with
the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Instal-
lation Code, CSA B149.1.
This appliance may be installed in an aftermarket, permanently located, manufactured
home (USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appli-
ance is not convertible for use with other gases, unless a certified kit is used.
Due to high temperatures, the appliance should be located out of traffic and away from fur-
niture and draperies.
The appliance, when installed, must be electrically grounded in accordance with local codes
or, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the
Canadian Electrical Code CSA C22.1.
The Model DV1000 Direct Vent Fireplace must be vented using only Magnaflex DV4-F venting
system. All warranties will be voided and tech service suspended and serious fire, health or
safety hazards may result from using any other venting system than the tested and approved
Magnaflex DV4-F system with this appliance.
You must check the Vent Termination Clearance requirements from decks, windows, soffits, gas
regulators, air supply inlets, and public walkways, etc. as shown in these instructions and speci-
fied by local building codes (see figure 4, page 7). This gas appliance must be vented directly to
the outside of the building. This gas appliance must not be connected to a chimney flue serving a
separate solid-fuel burning appliance. Preparation for electrical connection and gas supply must
be made before the appliance is located. (see figure 3, page 6 for framing dimensions)
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIAL FROM FIREPLACE AND
VENT SURFACES:
Sides, Back, Bottom and Top of appliance (standoffs) 0 inch
Recessed depth to back of front trim 17 inches
Recessed depth to front of front trim 17-1/2 inches
Diameter of vent pipe 2 inches
Top of appliance to ceiling 54 inches
MANTEL CLEARANCES……
STANDOFF
DV1000
STUD
WALL BOARD
DRYWALL
H
TOP EDGE OF
UNITS TRIM
W
W=Width (@) H=Height
3/4” ——————–2”
2”———————–2”
4”———————–10”
6”———————–12”
8”———————–14”
10”———————16”
12”———————18”
FIGURE 5
NOTE: Adequate clear-
ances around air openings
into the combustion cham-
ber. Do Not cover any of
the louvered areas on this
appliance front, or the glass
cover door.
Page 8

DV1000
DIRECT VENT TERMINATION
INSTALLATION INSTRUCTIONS
(MAGNAFLEX)
Read the instructions in this manual completely before installing the DV1000 appliance with
the Magnaflex vent system. Magnaflex Venting systems are packaged with installation instruc-
tions, the instructions must be followed exactly for your safety and to prevent voiding the war-
ranty of your appliance and venting system.
The DV1000 will operate safely when installed in accordance with this instruction manual.
Read all instructions before starting installation, then follow these instructions carefully to
maximize fireplace performance and safety. Report damaged parts to your dealer.
Any common venting of the gas appliance using DV vent kit with other gas appliances is not
allowed. Do not connect this appliance to a chimney flue serving a separate solid fuel-burning
appliance.
WA R N I N G : Always maintain minimum clearances around vent systems. The minimum
clearance to combustibles for horizontal vent pipe is 3 inches at the top and 1 inch at the
bottom of the vent system until the flue penetrates the nearest vertical wall.
FOR WALL FIRESTOPS AND VERTICAL RUNS ONLY, maintain a 1 inch minimum
clearance from all sides of the vent. Do not pack the open air spaces around the fireplace
or flue with insulation or other materials. Any horizontal run must have a 1/4” rise for
every one (1) foot of run towards the vent termination. Never install the vent level or
downward.
WA R N I N G : Contact your Local Building and Fire Officials about restrictions and in-
stallation inspections in your area.
IMPORTANT SAFETY INFORMATION
∗ The termination cap MUST be vented directly to the outside. The termination kit MUST
NEVER be connected to a chimney flue(s) servicing a separate solid-fuel burning appliance
or any other appliance.
∗ Termination cap MUST NOT be recessed into a wall or siding.
∗ The flexible vent pipe cannot be intermingled with any of the rigid vent pipe section. DO
NOT connect two sections of flexible vent pipe together to achieve a longer length without
approved connectors.
∗ Horizontal runs must be supported every 3 feet using wall straps. Vertical runs must be sup-
ported every 8 feet using wall straps. Slip wall straps loosely on to pipe. Attach straps to
framing members using nails or screws. Tighten nut/bolt to secure pipe.
∗ The fireplace and venting system should be inspected before initial use and at least annually
by a qualified field service person. Inspect external vent cap on a regular basis to make sure
that no debris is interfering with the airflow. Inspect entire venting system to ensure proper
function.
∗ Vent connections should overlap a minimum of 1” for proper sealing.
∗ Always stretch and secure venting with metal strapping secured with nails (nails and strap-
ping not supplied) to ensure that the horizontal runs remain true.
Page 9

∗ The termination cap must be positioned so that the embossed arrow is pointed up.
∗ Ensure that the venting system exits the structure through a sidewall or similar structure and
does not terminate less than 12 inches (305mm) above the ground.
∗ Ensure that the venting system is located above the snow line in geographical areas where snow
accumulates.
PRE-INSTALLATION INFORMATION:
Items Required For Installation:
Tools Building Supplies
Phillips Screwdriver Measuring Tape Framing Materials
Hammer Electric Drill and Bits Wall Finishing Materials
Saw and/or saber saw Pliers Caulking Material (Noncombustible)
Level Square Silicone Sealant (High Temp.)
PIPE INSTALLATION:
Note: If you haven’t read pages 1 thru 9 completely “STOP”, and read them “NOW”.
1. Unpack vent components and check all items for shipping damage.
2. Locate Magnaflex DV4-F Installation Instructions and follow them exactly.
3. If Wall Straps are needed for your installation, determine the number of straps needed and ob-
tain them before beginning the installation process.
4. The pipe assembly consist of (2) two pipes. The enter pipe is the 4” flue pipe, and the outer pipe
is the 7” vent pipe. The (2) two pipes are separated by spacer springs, if any of the spacer
springs should come off while installing the pipe you must replace the before continuing (see
figure 6).
5. Follow the vent manufactures instruction for placing the Spacer Springs onto the 4” flue pipe.
6. The flexible vent pipe cannot be intermingled with any rigid vent pipe section. DO NOT con-
nect two sections of flexible vent pipe together to achieve a longer length without approved
connectors.
7. Use the 4” Clamps provided with your kit to attach the flue pipe to the appliance and to the ter-
mination cap. Also use the 7” Clamps provided with your kit to attach the vent pipe to the adap-
tor collar after it has been attach to the appliance and to the termination cap also. (see page 11,
figure 7)
SPACER
SPRING
4” FLEX FLUE
PIPE
7” FLEX
OUTER VENT
PIPE
CLAMP
CLAMP
FIGURE 6
Page 10

8. Plan your installation. Set the appliance in place and survey how best to vent the appliance. Se-
lect the appropriate termination kit for the installation. Read the vent pipe manufacturers in-
structions and the appliance manufacturers instruction manual before either. After vent configu-
ration has been decided, stretch the flex components out, then trim off what will not be needed.
A temporary fit up will determine this. Once the vent length has been determined and the neces-
sary parts are obtained for the installation you can begin installing the venting system.
• Follow the Installation Instructions provided with the Magnaflex DV4-F venting kit.
CONNECTING OR RECONNECTING THE VENTING SYSTEM TO THE Model DV1000
∗ After following the venting manufactures instructions, and you have installed the piping up
to the area of the appliance. Continue with the installation using the vent manufactures instruc-
tions and the instructions and illustrations in this manual.
FIGURE 7
OUTER 7” VENT PIPE
INNER 4” FLUE PIPE
SELF TAPPING SCREWS
FLEX ADAPTER COLLAR WITH
GASKET (Gasket may come attach
to the collar from the manufacturer)
NOTE: TOP VENT INSTALLATION SHOWN ABOVE. FOL-
LOW THE SAME INSTRUCTIONS FOR OPTIONAL REAR
VENT INSTALLATION.
A. Add High temperature
sealant (caulk) to the
inside (inner) edge of
the 4” flexible flue
pipe.
B. Place the 4” flexible
flue pipe through the
center of the flex
adapter collar w/
gasket , leaving the
adapter collar unat-
tached to the appliance
and pulled up the pipe
out of the way. With
the 4” clamp also over
the 4” flex flue and
loose, push the 4” flex
flue pipe onto (over)
the 4” flue adapter col-
lar until it is properly
seated (about 1” to 1-
1/4”).
APPLIANCE 4” FLUE ADAPTOR
COLLAR (FLUE EXIT). PRE-
INSTALLED BY THE APPLIANCE
MANUFACTURER.
C. Place the 4” clamp over the section of 4” flex flue
pipe that is pushed onto the flue adapter and
tighten the clamp.
D. Seat the flex flue adapter collar with gasket on to
the appliance centering around the flue adapter
and secure it to the appliance using (4) four of the
self tapping screws provided with the venting kit.
E. Next place the 7” clamp over the end of the 7” flex
vent pipe and leave it loose for now.
F. With both hands pull the 7” flex vent pipe onto
(over) the flex flue adapter and push it onward
until it is properly seated.
G. Place the 7” clamp over the section of 7” flex vent
pipe you just seated and tighten.
Page 11

DV1000
* 24-1/4”
* 8”
* 20” “From the rear
of the unit to the out-
side wall.” 3/4” WALL BOARD

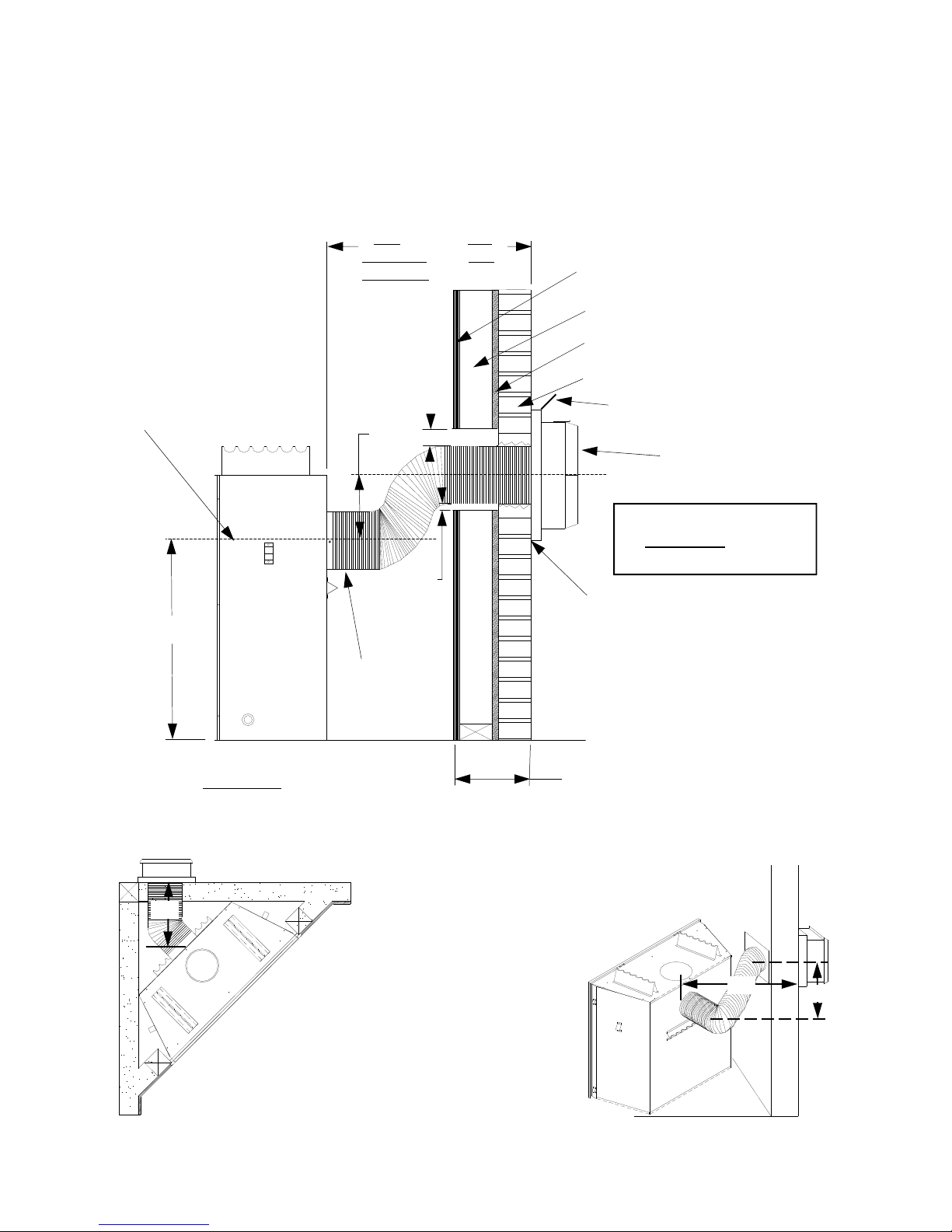

FIGURE 8/ OPTIONAL REAR VENT TER-
MINATION EXAMPLE.
2” x 4” WALL STUD
3/4” BLACK EXTERIOR WALL BOARD
2” x 4” x 8” BRICK EXTERIOR SURFACE
HORIZONTAL
TERMINATION CAP
9-1/2” WALL
NOTE: This is only an example.
Walls may vary in materials and
construction type.
*“DIMENSION(S) MUST
BE EXACTLY AS SHOWN
IN THIS EXAMPLE.”
Flex Pipe
This appliance has a rear vent termination option. (you must purchase a DV1000 with this op-
tion from your dealer) Use termination kit #PP-DVVK-4F-1 only. This installation option can
only be used exactly as shown in figure 5. Follow the direction provided with the termination
kit. (see Horizontal Air Termination Installation page )
CORNER TERMINATION WITH OPTIONAL REAR VENT
20”
20”
The maximum length for a
corner installation is 20”,
with a minimum 8” rise.
8”
OPTIONAL DV1000 REAR HORIZONTAL VENT TERMINATION FIREPLACE
3” min.
1” min.
FILL ANY CRACKS OR GAPS
WITH HIGH TEMPERATURE
CAULK
FIGURE 9
DEFLECTOR SHIELD
Page 12

DV1000 STANDARD HORIZONTAL TERMINATION INSTALLATIONS
12”
10-1/2” From Rear
Standoff To Outside
Wall.
45-1/2”
FIGURE 10
MINIMUM INSTALLATION
MAXIMUM INSTALLATION
53” Max. & 11” Min.
From Rear Standoff To
Outside Wall.
56”Max. & 49-1/2” Min. *16”
NOTE: Horizontal pipe installations must be
supported with Wall Straps every 3 feet.
WALL STRAPS
HORIZONTAL
TERMINATION CAP
ASSEMBLY
Page 13

DV1000 STANDARD VERTICAL CHASE TERMINATION
INSTALLATIONS

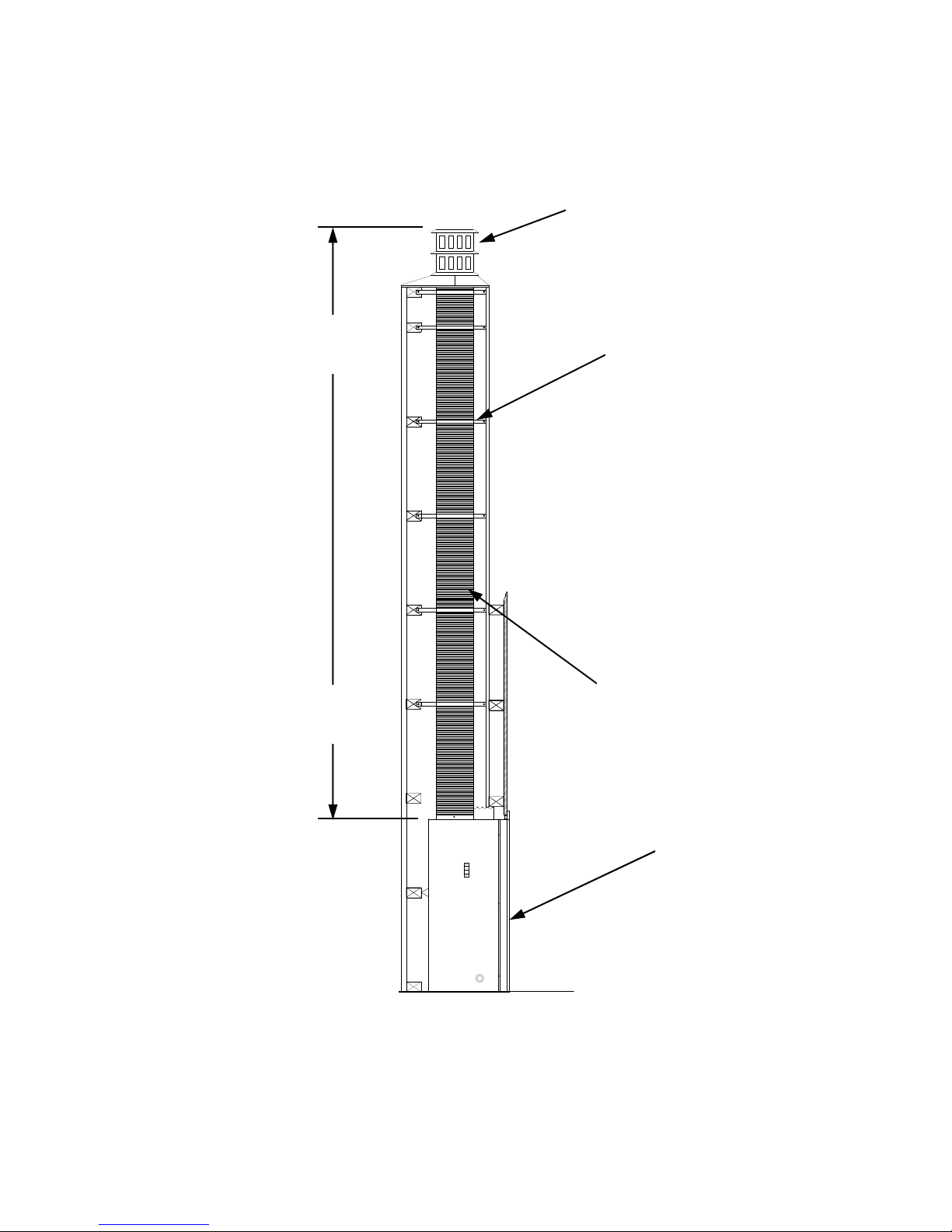

FIGURE 11
30 FT.
MAX.
3 FT.
MIN.
FLEX PIPE (ONLY)
WALL STRAPS
VERTICAL TERMINATION CAP
ASSEMBLY
DV1000 FRONT
NOTE: Vertical pipe installations must
be supported with Wall Straps every
8 feet.
Page 14

DATE
REV
.
DAT
E
REMOVABLE INNER BOTTOM PAN ASSEMBLY
The DV1000 is equip with a removable Inner Bottom Pan Assembly for service purposes only. The burner
control assembly should only be accessed by this procedure by a qualified service technician, or by the
manufacturer. Follow the instructions and diagrams below.
1. Turn gas OFF at equipment shut OFF
valve, and disconnect union located at
Right side of control valve. Remove
Cover Door, see pages 3 & 4.
2. Remove the 4 screws located on top of
the Burner Pan area which attach the
Burner Pan to the Firebox Deck.
3. Remove the 4 screws located at the
back of the Firebox area which attach
the Firebox Deck to the back of the
Firebox.
4. Lift the Firebox Deck upward and out-
wards. And then gently lift the Burner
and Ventura assembly upward from
top of the Orifice assembly.
5. Next locate the 26 screws pattern
around the edge of the Inner Bottom
Pan Assembly and remove them.
6. Push upward from the bottom of the
Inner Bottom Pan ( do not
2
3
4
push on the gas valve control or any of the other components).
7. A gasket is located on the bottom edges of the Inner Bottom
Pan assembly. If this gasket is damaged during this process it
must be replaced with a gasket from the manufacture and
resealed with high-temperature caulk weather damaged or
5
6
7
FIGURE 12
Page 15

GAS SUPPLY CONNECTION
CHECK GAS TYPE
Use proper gas type for the burner system you are installing. If you have conflicting gas types, do
not install burner system. See dealer where you purchased the stove and burner system for proper
burner system according to your gas type.
INSTALLING GAS PIPING TO APPLIANCE
Installation Items Needed
Before installing the appliance make sure you have the items listed below.
• External regulator (supplied by installer)
• Piping (check local codes)
• Sealant (resistant to propane/LP gas)
• Equipment shutoff valve *
• Test gauge connection *
• Sediment trap
• Tee joint
• Pipe wrench
∗ An CSA design-certified equipment shutoff valve with 1/8" NPT tap is an acceptable alternative
to test gauge connection. Purchase the CSA design-certified equipment shutoff valve from your
dealer.
Warning: A qualified installer or
service person must connect burner
system to gas supply. Follow all local
codes.
CAUTION: For propane/LP units, never connect burner system directly to the propane/LP
supply. This burner system requires an external regulator (not supplied). Install the external
regulator between the burner system and propane/LP supply.
For propane/LP connections only, the installer must supply an external regulator. The external
regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between
11 and 14 inches of water. If you do not reduce incoming gas pressure, burner system regulator
damage could occur. Install external regulator with the vent pointing down as shown in. Pointing
the vent down protects it from freezing rain or sleet.
Installation must include an equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up. NPT tap must be upstream from burner system.
IMPORTANT: Install main gas valve (equipment shutoff valve) in an accessible location. The
main gas valve is for turning on or shutting off the gas to the appliance.
CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be
used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow
proper gas volume to burner system. If pipe is too small, undue loss of pressure will occur.
Check your building codes for any special requirements for locating equipment shutoff valve to
stoves.
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant from going into
pipe. Excess sealant in pipe could result in clogged burner system valves.
We recommend that you install a sediment trap/drip leg in supply line. Locate sediment trap/drip
leg where it is within reach for cleaning. Install in piping system between fuel supply and burner
system. Locate sediment trap/drip leg where trapped matter is not likely to freeze. A sediment trap
traps moisture and contaminants. This keeps them from going into burner system gas controls. If
sediment trap/drip leg is not installed or is installed wrong, burner system may not run properly.
Page 16

Pressure Testing Gas Supply Piping System
Note: The appliance and its appliance main valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi. (3.5 kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff
valve during any pressure testing of the gas supply piping system at test pressures equal to or less
than 1/2 psi. (3.5 kPa).
Test Pressures In Excess of 1/2 PSIG (3.5 kPa)
1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff
valve from gas supply piping systems. Pressures in excess of 1/2 psig (3.5 kPa) will damage
burner system gas regulator.
2. Cap off open end of gas pipe where equipment shutoff valve was connected.
3. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP
gas burner system or opening main gas valve located on or near gas meter for natural gas burner
system, or using compressed air.
4. Check all joints of gas supply piping system. Apply commercial leak test solution to all gas
joints. Bubbles forming show a leak. Correct all leaks at once.
5. Reconnect burner system and equipment shutoff valve to gas supply. Check reconnected fittings
for leaks.
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve.
2. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP
gas burner system or opening main gas valve located on or near gas meter for natural gas burner
system, or using compressed air.
3. Check all joints from propane/LP supply tank or gas meter to equipment shutoff valve (see
Figure 34, page 17 for propane/LP or Figure 35, page 17 for natural). Apply commercial leak test
solution to all gas joints. Bubbles forming show a leak. Correct all leaks at once.
OPEN
CLOSED
EQUIPMENT
SHUTOFF
VALVE
EQUIPMENT SHUTOFF VALVE
Warning: Test all gas piping and
connections for leaks after
installing or servicing. Correct all
leaks at once.
WARNING: Never use an open
flame to check for a leak. Apply
commercial leak test solution to all
gas joints. Bubbles forming show a
leak. Correct all leaks at once.
NOTE: The minimum inlet gas supply
pressure for the purpose of input adjust-
ment.
NOTE: The maximum inlet gas supply
pressure.
LP NATURAL
PRESSURE: 10.0" W.C. 3.5" W.C.
*MIN. INLET 11.0" W.C. 4" W.C.
MAX. INLET 13.0" W.C. 10.5" W.C.
Gas Control
CSA/AGA Design-
Certified Equipment
Shutoff Valve With
1/8" NPT Tap
Union
FIGURE 13
Page 17
