FIREPLACE INSERT & FREESTANDING
MODEL 74
NON-CATALYTIC UNIT
FEATURES
PREPARATIONS INSTALLATION
OPERATION MAINTENANCE SAFETY
SAFETY NOTICE
IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT.
FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
CONTACT THE AUTHORITY HAVE JURISDICTION ( SUCH AS MUNICIPAL
BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTION BUREAU,
ect.) SHOULD BE CONSULTED BEFORE INSTALLATION TO DETERMINE THE
NEED TO OBTAIN A PERMIT. KEEP THESE INSTRUCTIONS FOR FUTURE USE.
TESTED AND LISTED BY: ITS/WARNOCK HERSEY, MIDDLETON, WI
MANUFACTURED BY NEW BUCK CORPORATION - SPRUCE PINE, NC 28777
Revised January 2010
Buck Stove

TABLE OF CONTENTS
Important Instructions......................................................................................................... 2
SECTION I: Introduction ................................................................................................... 3
Type of wood and loading procedures …………………………………….. ……………..3
SECTION II: Masonry Insert Installation........................................................................... 4
Installation Preparation-Fireplace....................................................................................... 5
Mounting the Trim Panels .................................................................................................. 7
SECTION III: Pre-Fab Insert Installation......................................................................... 10
SECTION IV: Residential Freestanding Installation........................................................ 11
Clearances To Combustibles Freestanding Without Close Clearance
Shields and Using Single Wall Pipe……………………………………………………..19
Residential / Mobile Home Double Wall or Shielded Single Wall
Connector With Close Clearance Shields……………………….……………………….20
Residential / Mobile Home Double Wall or Shielded Single Wall
Connector Without Close Clearance Shields……………………….…………………....21
Installation of Close Clearance Shields (Optional)........................................................... 22
Alcove Installation Double or Shielded Single Wall Connector With Close
Clearance Shields ............................................................................................................. 23
SECTION V: Freestanding Mobile Home Installation..................................................... 24
SECTION VI: Wood Heater Safety.................................................................................. 30
SECTION VII: Operation ................................................................................................. 31
SECTION VIII: Troubleshooting ..................................................................................... 32
Warranty………………………………………………………………………………… 34

INSTALLATION, OPERATION, AND
MAINTENANCE INSTRUCTIONS
MODEL 74
BEFORE INSTALLING YOUR NEW BUCK STOVE,
READ THE ENTIRE INSTRUCTION MANUAL
IMPORTANT INSTRUCTIONS
WARNING
THESE UNITS GENERATE A LOT OF HEAT, SO TREAT THEM WITH CARE. HOT
WHILE IN OPERATION! KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.”DO NOT USE CHEMICALS OR FLUIDS TO
START THE FIRE.” “DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS.” DO NOT
CONNECT TO ANY DISTRIBUTION DUCT OR SYSTEM. READ ALL INSTRUCTIONS
BEFORE INSTALLING AND USING THE APPLIANCE. FAILURE TO FOLLOW
INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR
EVEN DEATH. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCES.
 The New Buck Corp. non-catalytic Model 74 has been tested by ITS, Warnock Hersey to
ANSI/UL Standards 1482.
 Install and operate your unit according to instructions provided in this manual. Local
building codes may apply; therefore, contact your local building inspector or fire marshal
for necessary installation requirements and permits which may go beyond these
instructions. Contact your insurance company for coverage and installation inspection.
 If MODEL 74 is installed in a mobile home:
“DO NOT INSTALL IN SLEEPING ROOMS.”
 NOTE: When burning any unit or appliance that combust fuel for heat, such as
coal, oil, wood or natural and (L.P.) liquid petroleum gas. We highly recommend
the use of smoke and carbon monoxide detectors in your home.
 The Model 74 is approved for use in specified Zero Clearance fireplaces (ZCF’s).
 Examine the masonry fireplace and chimney prior to installation of the fireplace accessory
to determine that the construction meets the minimum fireplace construction requirements
illustrated in the instructions, that it is free from cracks, loose mortar, creosote deposits
and other blockage, or other signs of deterioration.
CAUTION
DO NOT USE MORE THAN ONE STOVE TO A CHIMNEY. DO NOT USE A FLUE
INTENDED FOR A GAS APPLIANCE.
Page 2

CAUTION
YOUR CHIMNEY MUST BE CORRECTLY SIZED. A CHIMNEY THAT IS TOO SMALL
OR LARGE IN DIAMETER, OR TOO SHORT, CAN CAUSE YOUR STOVE TO SPILL
SMOKE WHEN THE DOOR IS OPENED.
SECTION I
INTRODUCTION
Your new MODEL 74 is a non-catalytic unit designed to meet the most stringent emissions
standards without the use of a catalytic combustor. This effect is achieved through the use of
secondary air which is mixed with primary air in the unit’s firebox.
For peak performance, we suggest the use of natural seasoned hard wood, loading wood
length way from front to rear.
NOTE: Soft woods such as pine, create more creosote, clogging of chimney, and produce a less
efficient burn performance.
You should not burn trash or garbage, artificial or paper logs, gift wrapping, treated or
painted wood or any type of coal, or flammable fluids.
The primary air, which is controlled by the user, burns the wood. Secondary air is admitted into
the firebox through the secondary air tubes at the top of the firebox. This secondary air burns
the impurities in the smoke released from the initial wood burning. The temperature necessary
for this combustion is maintained through the firebrick refractory. If any more technical
information is necessary, contact your local dealer.
Under specific test conditions this heater has been shown to deliver heat at rates ranging from
approximately 11,800 to 40,900 BTU/HR.
This unit may also be used with optional room air blower. To order optional motor assembly
you must specify the stove model number and give the following part number:
*Model 74: Motor Assembly—MA 5126715
For operation and use of this electrical assembly, see instructions provided with the motor
assembly kit.
Page 3

SECTION II
MASONRY INSERT INSTALLATION
The Model 74 may be installed using an all masonry fireplace built in accordance with the
Uniform Building Code and National Fire Protection Association (NFPA). The first step in
this type of installation is to determine the acceptability of the fireplace and chimney for use
with a woodstove. Both the construction and condition of the fireplace are important consid-
erations when installing a woodstove. The chimney should extend at least 3' above the roof
and at least 2' above any point of the roof within 10'.
CAUTION
REMEMBER TO HAVE YOUR CHIMNEY INSPECTED FOR LEAKS AND BLOCKAGE
BEFORE YOU INSTALL YOUR STOVE. ”DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER APPLIANCE.”

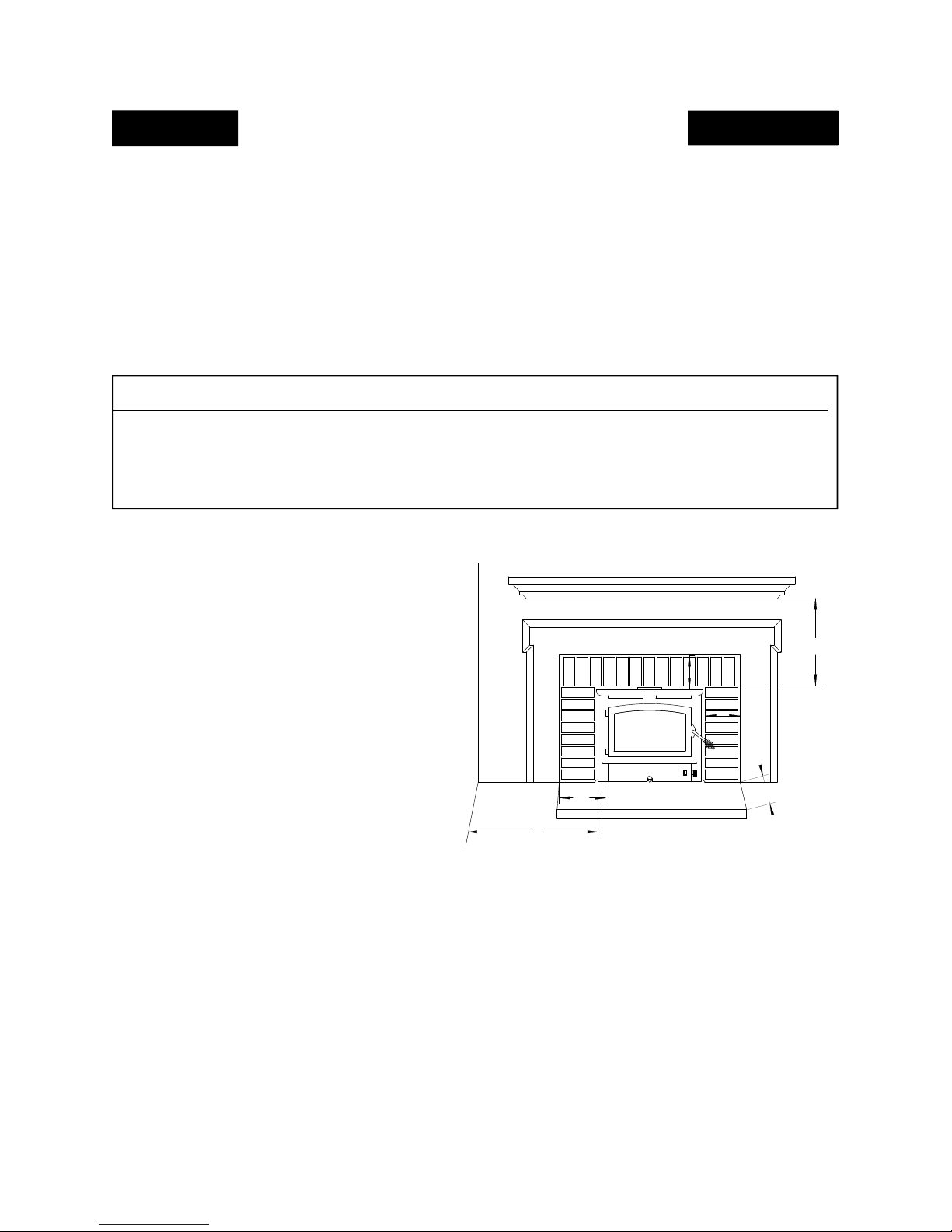

MINIMUM CLEARANCE MASONRY INSERT
A. Side Wall Combustible
B. Front Floor Protector
C. Side Floor Protector
D. Side Wood Trim
E. Top Wood Trim
F. Mantel or Brackets
16"
20"
8"
10"
10"
24"
MODEL 74
1. The hearth must be of masonry construction and must extend a minimum of 20" in front of
the firebox opening and a minimum of 8" to either side of the firebox opening.
2. If there is not minimum hearth protection from the front of the firebox opening and the
front of the masonry hearth, a floor protector must be used in front of the hearth to
protect combustible materials. The floor protector must be 3/8" minimum thickness non-
combustible material or equivalent.(See Page 12,13.)
F
B
A
E
C
D
Page 4

POSSIBLE TOOLS NEEDED FOR INSTALLATION
If you decide to install your own stove, there are several hand tools you may need to do the job.
If you do not already have them, they are readily available at most hardware stores.
Caulking gun
Large adjustable wrench (may not be needed)
Drop cloths or newspapers
Vacuum cleaner or whisk broom
Flashlight
1 tube of RTV silicone, Code 103 or 106, or high temperature rubber cement rated between
450oF- 600o F
7/32" drill bit and drill
Socket/Rachet Set
INSTALLATION PREPARATION
Fireplace:
1. Locate furniture and other materials away from the front of the fireplace to allow free access
to the fireplace.
2. Cover the hearth and adjacent floor areas with a drop cloths to protect from soiling or
marring the surface.
3. Remove the existing fireplace damper plate.
4. Thoroughly clean the fireplace of ashes and soot.
5. Check the chimney and smoke chamber for excessive buildup of creosote or soot. Also,
check for obstructions, such as bird’s nests. If the chimney is excessively dirty, clean it, or
have someone clean it professionally BEFORE installing or using the room heater.
6. If the fireplace has an ash dump or outside air provision, these must be sealed off with metal
or tightly packed non-combustible insulation to prevent cold air from entering the fireplace
chamber.
MASONRY INSERT INSTALLATION
INSTALLATION OPTIONS
This unit (appliance) may be installed into an all masonry fireplace, built in accordance with the
Uniform Building Code and the National Fire Protection Association (NFPA 211).
NOTE: Check with local building officials for any permits required for installation of this unit
and notify your insurance company before proceeding with installation
In some cases such as improperly drawing fireplaces , oversize flue liners, or to meet codes in
certain areas it is recommended that one of the flowing procedures be followed.
A. A Chimney Connector be installed from the appliance flue exit through the damper and
a air-tight face seal. See option (A) page 6.
B. A listed Direct Connect be installed from the appliance flue exit through the damper
into the first section of the flue liner with air-tight seal. See option (B) page 6.
C. A Positive Connect be installed from the appliance flue exit continuing up through
the entire chimney and exiting at the top of the chimney. See option (C) page 6.
Page 5

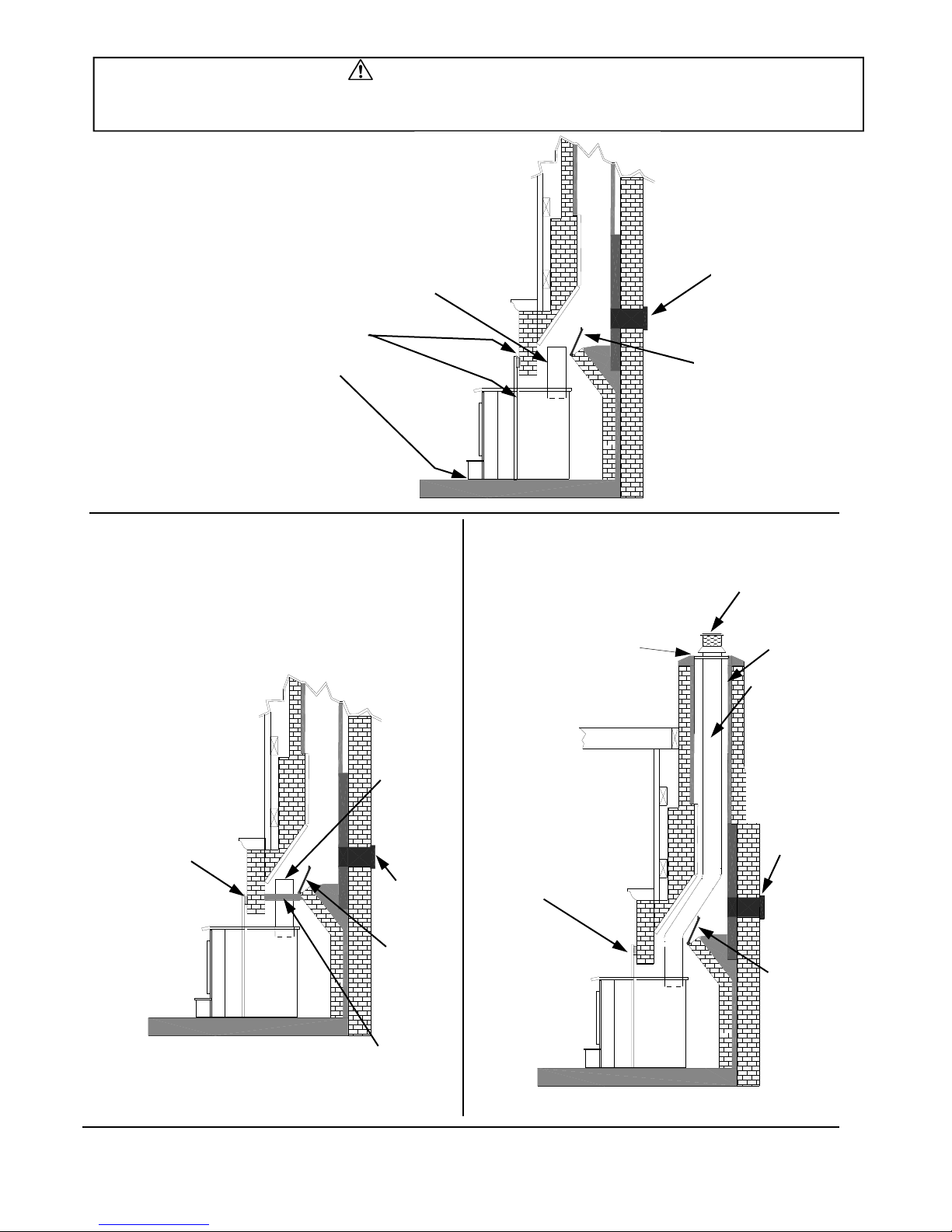

OPTION (B)
REMOVE
DAMPER
OR WIRE IT
OPEN
AIRTIGHT
INSULATED
CLEAN-
BLOCK-OFF PLATE
OR DAMPER
ADAPTER
SEAL TRIM PANELS
WITH INSULATION
OR HIGH
TEMPERATURE
CAULK
STAINLESS
STEEL
CHIMNEY
CONNEC-
TOR MUST
EXTEND 1’
PAST THE
BLOCK-OFF
PLATE OR
TO THE
FLUE LINER
NOTE: Follow installation instruction
with Direct Connection Kit.
(Kit sold separately)
SAFETY NOTICE
If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions.
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
STARTER PIPE
SEAL TRIM PANELS AND UNDER
FRONT OF STOVE UNIT WITH
INSULATION OR HIGH
TEMPERATURE CAULK
OPTION (A)
REMOVE
DAMPER
OR WIRE
IT OPEN
AIRTIGHT INSU-
LATED CLEAN-
OUT
NOTE: New Buck Corporation grants no
warranty, implied or stated, for the installation
or maintenance of your appliance, and assumes
no responsibility of any consequential damage
OPTION (C)
NOTE: Follow installation
instruction with Positive
Connection Kit.
(Kit sold separately)
TRIM PANELS
CAP(PREVENTS
WATER FROM
ENTERING)
FLUE
LINER
THE LINER MUST
BE STAINLESS
STEEL CONNEC-
TOR OR FLEXIBLE
VENT. FOLLOW
THE LINER MANU-
FACTURE’S IN-
STRUCTIONS FOR
INSTALLATION
AND SUPPORT.
AIRTIGHT
INSULATED
CLEAN-OUT
REMOVE
DAMPER
OR WIRE
IT OPEN
INSTALL A NON-COMBUSTIBLE
COVER PLATE TO PREVENT
WATER FROM ENTERING THE
CHIMNEY
Page 6

INSTALLATION PROCEDURE
(Use a chimney connector or a Listed Direct or Positive Connect) (See Page 6.)

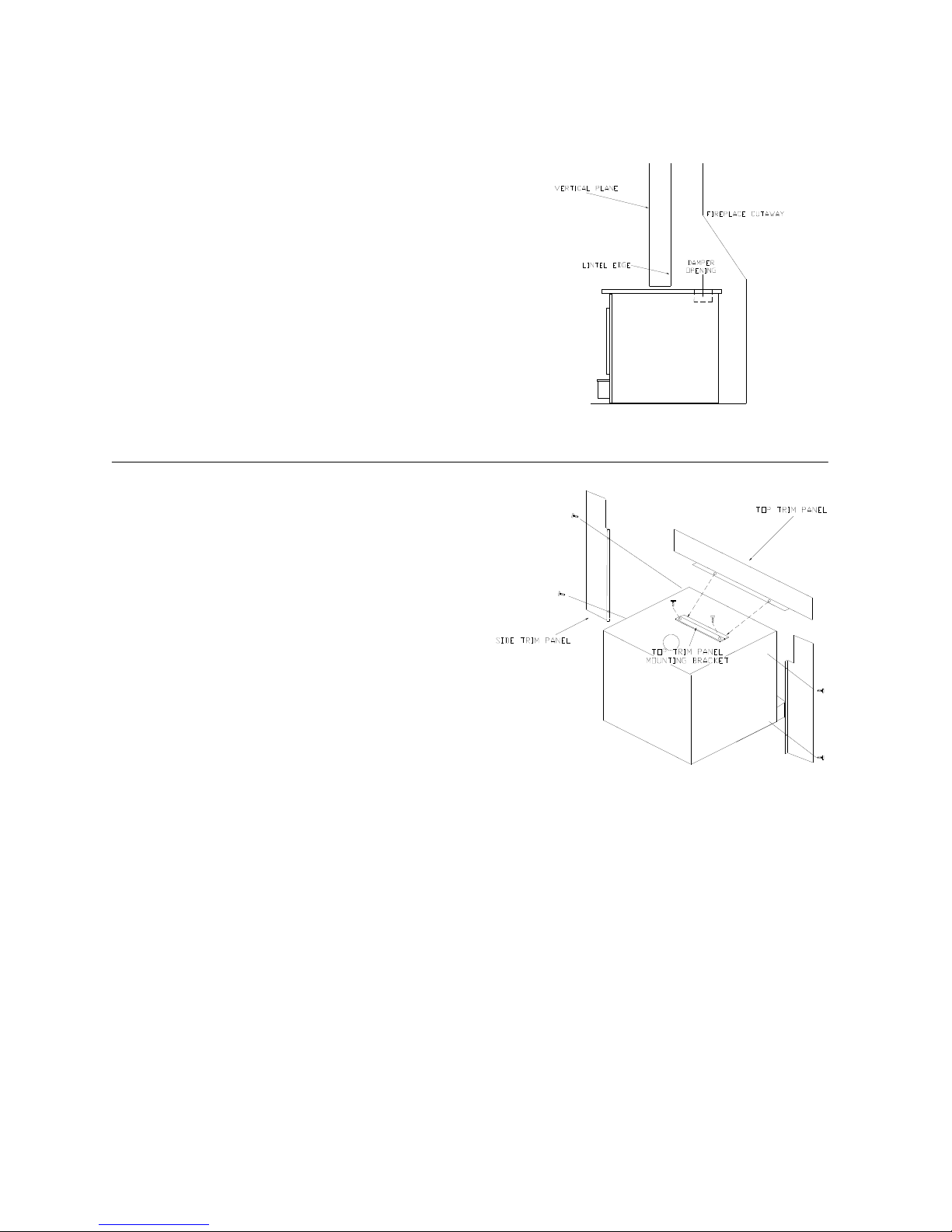

POSITIONING THE HEATER
When positioning the heater, the following conditions
MUST be met! (See Figure 2.)
1. The front of the damper opening must be positioned
BEHIND the rear edge of the lintel to ensure proper
draft. (See Figure 2.)
2. Center the heater in the fireplace opening.
MOUNTING THE TRIM PANELS
After the unit is positioned, mark the mounting position
of the trim panels as follows:
1. Set the side trim panels in place, flat against the
face of the fireplace. Mark down the front edge of
the trim panel with a pencil to make a vertical
reference line. (See Figure 3.)
2. Set the top (long) trim panel in place on top
of the unit. The panel should be flat against the
outside face of the fireplace, and standing vertically.
Mark along the lower edge of the trim panel with a
pencil to make a reference line for mounting.
3. Slide the unit out of the fireplace far enough to work
behind the trim panel reference lines.
FIGURE 3 MOUNTING TRIM PANELS
FIGURE 2 POSITIONING
4. Mount the side trim panels. (See Figure 3.)
a. Position the trim panel on the reference line.
b. Drill mounting holes in center of trim panel mounting brackets to allow for adjustment in
and out if necessary.
c. Mount the trim panel using the self-tapping screws provided.
5. Place top panel back on reference mark. Take top trim panel mounting bracket supplied with unit. Position
bracket so it overlaps rear lip of top trim panel. Drill mounting holes in top of stove using holes in bracket as
guide. Tighten down screws.
6. Now, follow the installation procedures in the listed direct connect or positive connect kit you are using and
install the heater and connect kit in the fireplace. If not using one of the installation methods shown on
(Page 6.) continue.
7. Slide the unit back into the fireplace. Check to be sure that the trim panels are properly positioned and lie flat
against the front of the fireplace. If one or more of the panels is out of position, slide the unit out and reset by
loosening the mounting screws and repositioning in the slot.
reinstall the top trim panel by sliding the rear lip of the top trim panel underneath the front lip of the mounting
bracket already secured to top of unit.
Page 7

Page 8
NOTE: Mount the top trim panel so that it sits in front of the top of the side trim panels..
9. Obtain the brass trim kit provided with insert kit and slip over the top and sides of trim panels. (Top ends of
brass may need to be trimmed to fit.)
10. Using insulation provided, peel and stick to back of panels overlapping fireplace dimensions by 1" on each
side and top. (See Figure 4.)
11. Next using high heat silicone or furnace cement run heavy bead of caulking around where panels meet the
stove. (See Figure 4.)
12. Slide the unit back into the fireplace. Check to be sure that the trim panels (and brass) are properly positioned
and lie flat against the front of the fireplace. If panels are out of position, slide the unit out and reset by loos
ening the mounting screws and repositioning in the slot. With bar lift stove up in front. Place insulation
across front and the surface of hearth or bottom of fireplace to make complete seal.
13. To check seal of panels, use candle flame and go around the entire area sealed by silicone and insulation. If
flame leans toward inside of fireplace, add additional insulation. This ensures an airtight seal.
FINAL CHECK
1. Recheck the specified clearances.
2. Remove all foreign material from the firebox area.
3. Open the primary air draft.
4. Plug the power cord into a 115V AC outlet if optional motor is being used. “Do not run power cord under unit
or in high traffic areas.
5. Place rumpled pieces of newspaper in the stove. Light it and close the door. Ensure that the
stove draws properly through the primary draft.
NOTE: “Do not use grate or elevate fire. Build wood fire directly on hearth.”
6. Check for smoke leaks around the door.
7. Open the door and check for smoke escaping from the front of the stove. Smoking usually indicates
a defective or poorly positioned chimney. Some chimneys with a marginal draft can be pre-
heated by lighting newspaper and holding it near the open damper with a poker or fire tong. Once the
chimney heats up, a proper draft can usually be obtained.
If a thorough review of the Troubleshooting Guide in the rear of the manual does not reveal the problem, contact
your dealer for assistance.

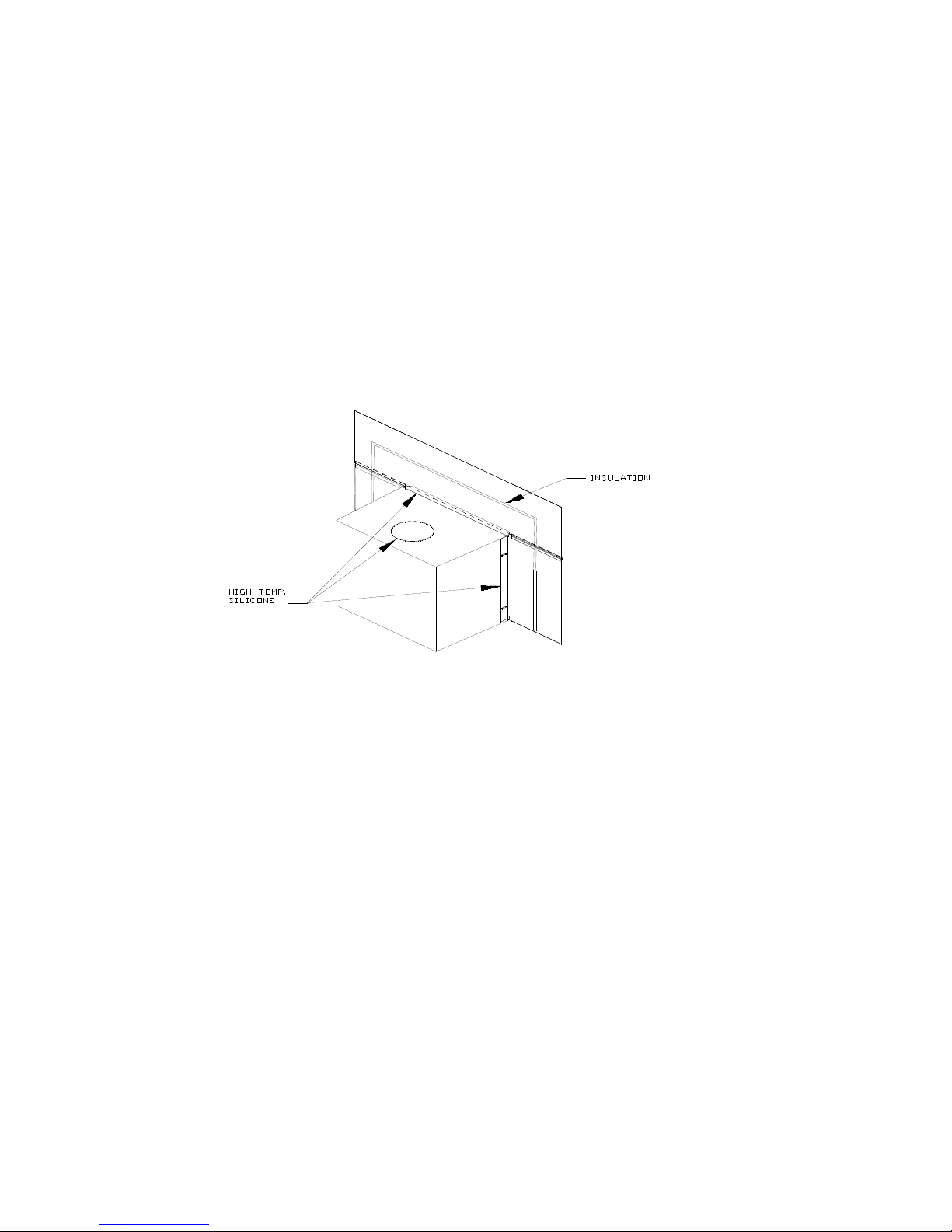

FIGURE 4

CAUTION
THE UNIT IS PAINTED WITH A SPECIALLY FORMULATED
HIGH TEMPERATURE PAINT THAT CURES DURING THE FIRST TWO OR
THREE FIRINGS. YOU MAY NOTICE A SLIGHT SMOKING EFFECT AND AN
ODOR OF BURNING PAINT WHEN YOU BUILD THE FIRST FIRES. THIS IS
NORMAL AND IS NOT A CAUSE FOR ALARM. IN SOME CASES, THESE FUMES
WILL ACTIVATE A SMOKE ALARM. OPENING A WINDOW NEAR THE UNIT
WILL ALLOW THESE FUMES TO ESCAPE. DO NOT BUILD A LARGE, ROARING
FIRE UNTIL THIS CURING IS COMPLETE OR THE HEATER FINISH MAY BE
DAMAGED.
The connector and/or chimney should be inspected at least once a month during the heating
season to determine if a creosote buildup has occurred.
CAUTION
NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE,
CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR "FRESHEN
UP" A FIRE IN THE HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM
THE STOVE WHEN IT IS IN USE. ALL FLUIDS OF THIS TYPE GIVE OFF
VOLATILE FUMES AND CAN AND WILL EXPLODE!! DON'T TAKE A CHANCE
WITH THE SAFETY OF YOUR HOME AND FAMILY.
Page 9

SECTION III
PRE-FAB INSERT INSTALLATION
The Model 74 has been tested with the following UL listed manufactured Pre-Fab Fireplaces:
Heatilator Security
Tempco Preway
Marco FMI
Woodside Majestic
The Model 74 will fit any of the models that are large enough to accept them.
NOTE: A full chimney liner is required in a Zero Clearance or pre-fab fireplace.
NOTE: The ash lip, smoke baffle, and smoke shelf may be removed if necessary to provide
room for these models. Any other alteration to the unit will void ALL NBC manufacturer's
responsibility and liability. The warning label below must be attached to the back of the fire -
place.
Except for the “NOTES” above, please follow the instructions for Masonry Insert Installation
including Minimum Clearances for stove and floor protector in Section II.
WARNING: This fireplace must be
restored to its original condition for safe use, if
the fireplace insert is removed.
Page 10

SECTION IV
RESIDENTIAL FREESTANDING
INSTALLATION
Select an installation location that will give the best airflow from the front of the
heater to the remainder of the home.
PREPARING THE STOVE FOR INSTALLATION
1. Inspect the unit for any obvious physical damage.
2. Plug the power cord into a 115V AC outlet to test the motor and fan when optional motor is
being used. “Do not run power cord under unit or in high traffic areas”.
3. Check the primary air draft control to ensure that it slides freely.
4. Remove any items from within the firebox. Spread a dropcloth on the floor behind the
heater. Next, tilt the heater so that the back is on the drop cloth.
5. If leg kit is to be used follow steps 1-4.
6. Then obtain four legs, attach the legs to holes in bottom of unit with bolts and washers
supplied with the leg kit. (See Figure 4.)
7. If pedestal kit is being used,(and out side air is required See Page 25) open the
corresponding freestanding kit and obtain the stand. Place the stand against the bottom of
the heater (angle side to heater).Center stand front to rear ,and also center the stand left
and right ,and mark screw locations on bottom of the stove through outer holes of stand
mounting angles. Set stand aside and drill four 7/32" holes in heater bottom.Then mount
stand to bottom of heater with screws provided. (See Figure 4A.)
8. Obtain four (4) 3/16" self-tapping screws and secure the stand to the heater.
9. Reposition the heater to the upright position.

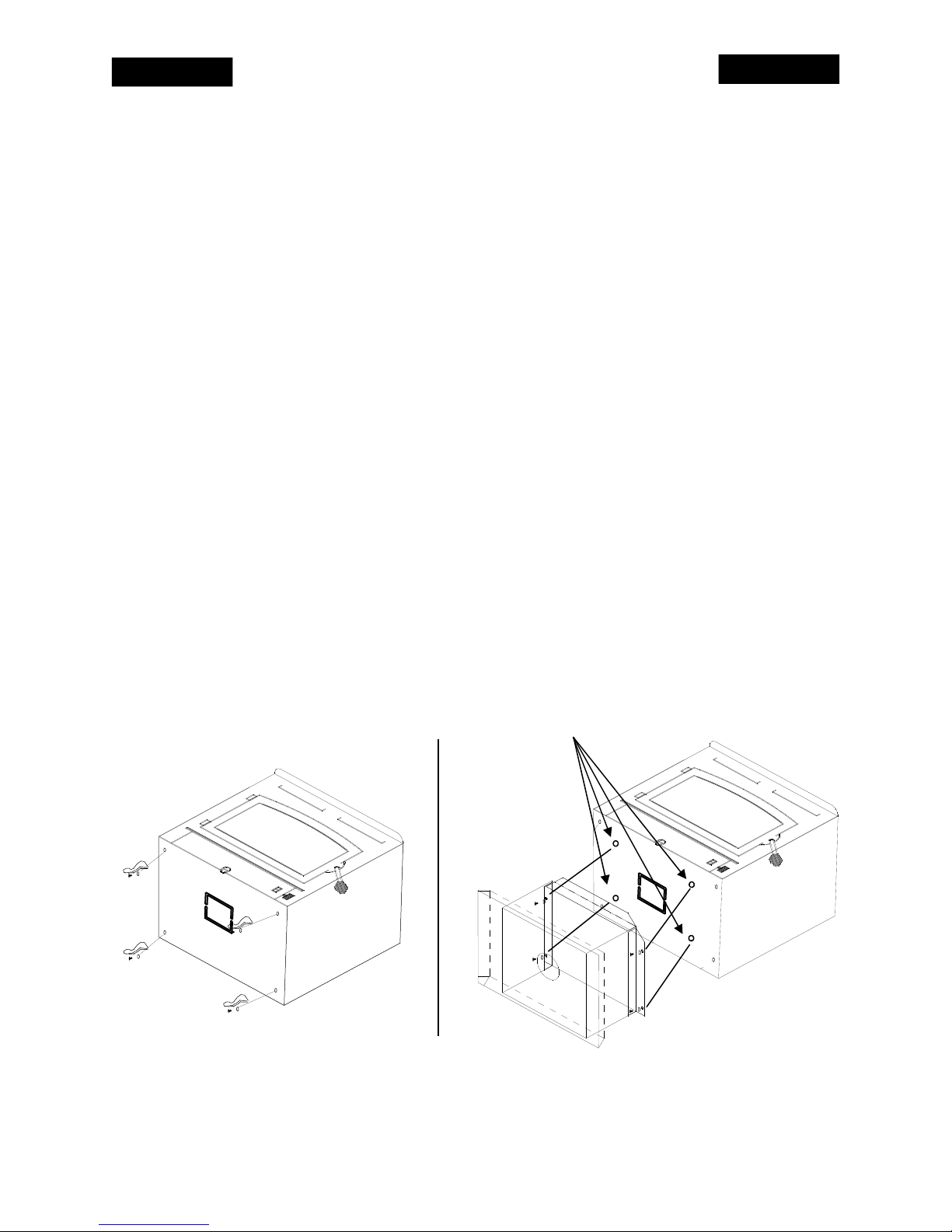

Figure 4 Figure 4A
FOUR NEW HOLES
Page 11

Chimney
This model is designed for connection to any listed 2100º UL103 HT chimneys and parts.
Follow chimneys manufacturer's instructions carefully.
This room heater must be converted to (1) a chimney complying with the requirements for
Type HT chimneys in the Standard for chimneys, Factory-Built, Residential, Type and
Building Heating Appliance, UL 103, or (2) a code approved masonry chimney with a flue
liner.
Floor Protection:
Floor protection must be 3/8” minimum thickness non-combustible material or equivalent.
How to use alternate materials and how to calculate equivalent thickness.
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K– factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine the R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If the overall R-value of the system is grater than the R-value of the specified floor
protector, the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Page 12

Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25
=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W = (Btu)
(hr)(ft²)(°f) (m)(°K) (hr)(tf)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W
Install in accordance with 24 CFR, Part 3280 (HUD).
CAUTION
SPECIAL METHODS ARE REQUIRED WHEN PASSING THROUGH A
WALL OR CEILING. SEE INSTRUCTIONS AND BUILDING CODES.
“DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING
ANOTHER APPLIANCE.”
DETERMINING THE CHIMNEY LOCATION
A. CEILING EXIT (USING SINGLE WALL (minimum 24ga.) pipe and 2100°UL 103 HT type
chimney system listed with manufacturer in this section of manual.) (See Page 12.)
1. Suspend a plumb bob from the ceiling above the unit so that the weight is hanging in
the center of the flue exit. (A small weight on a string will serve as a plumb bob.)
Mark the ceiling where the string is suspended to locate the center of the chimney.
2. After locating the center of the hole, install the ceiling support box, chimney flashing
and rain cap per the chimney manufacturer’s instructions.
Now connect the stove and ceiling support box using #24 ga. minimum blue or black steel
connector pipe (DO NOT USE GALVANIZED PIPE). Connect each section so the
crimped end faces downward, and secure each section to each other using at least
three (3) sheet metal screws or rivets. Also use three (3) sheet metal screws to fasten pipe to
collar on heater. (See Figure 5. Page 14.)
Page 13

B. Wall Exit Into Metal Tee-Box
1. Mark the plumb line on the wall directly behind the center of the heater. (See Figure 6.)
NOTE: When using 24# ga. minimum blue or black steel pipe, maintain 18" between pipe
and ceiling.
NOTE: Floor protector must be under horizontal pipe exit (See Figure 9. Page 19. )
2. Place the vertical portion of the heater pipe and the elbow in position and project a
point onto the plumb line level with the center of the elbow.
Figure 6
ATTIC
CEILING
"TEE" BOX ASSEM.
CENTER LINE
OF ELBOW
MARK PLUMB LINE
WALL
WALL PASS-THROUGH CONNECTOR
18" MIN.
TEE BOX ASSEM.
CLEAN OUT ACCESS
FLOOR PROTECTOR
3 SHEET METAL SCREWS OR RIVETS
CEILING
ROOF
Figure 5
COLLAR
3 SHEET METAL SCREWS
Figure 5
COLLAR
3 SHEET METAL SCREWS
Page 14

3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe,
maintaining clearances to the ceiling as noted in (Figure 6 Page 14.) This will give you the
center of the hole for the chimney penetration.
4. After locating the center of the penetration, install the tee-box and chimney as per the
chimney manufacturer's specifications.
5. Connect the chimney connector to the tee-box using #24 ga. minimum blue or black steel
connector pipe. DO NOT use galvanized pipe. Connect each section so the crimped end
faces downward, and secure each section to each other using three (3) sheet metal screws or
rivets. (See Figure 7.)

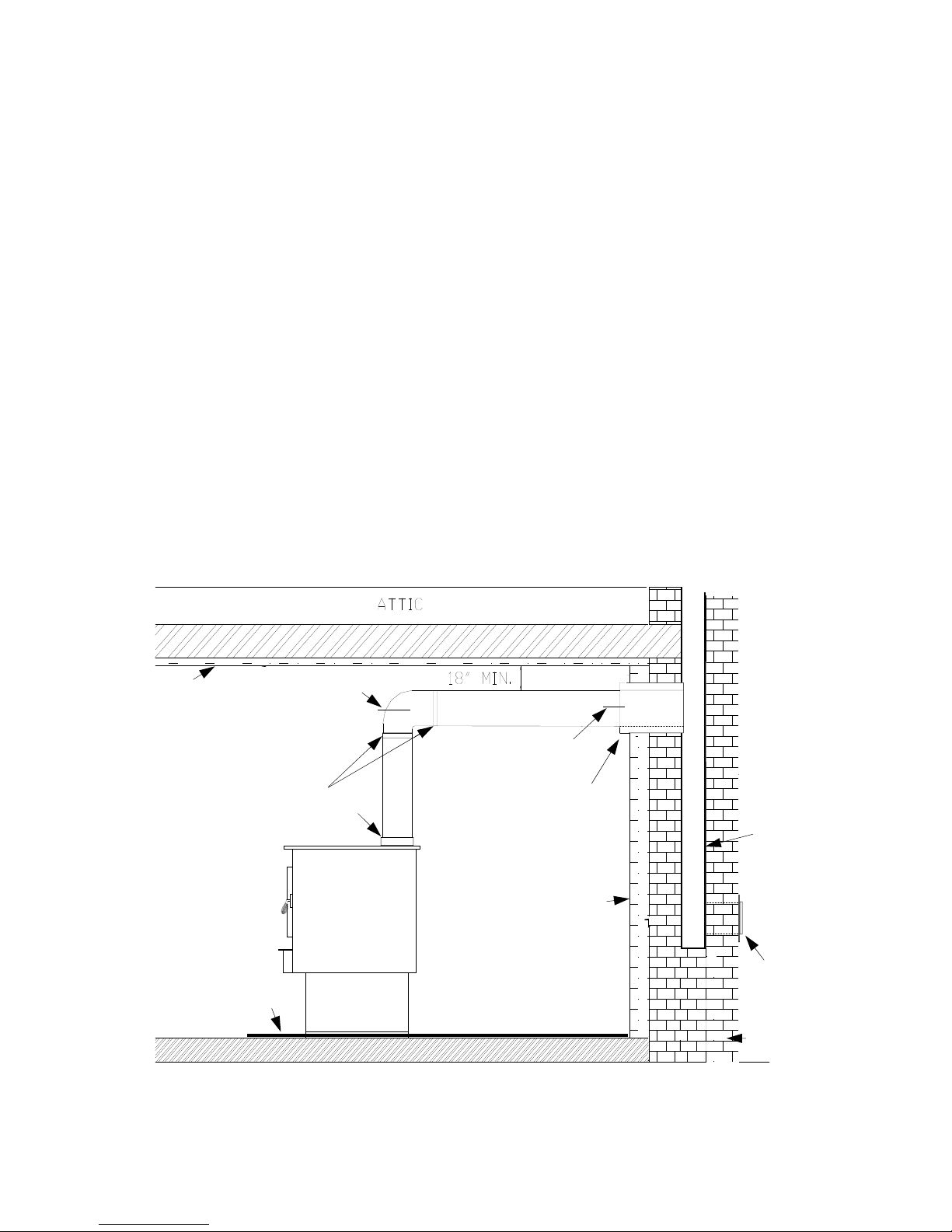

C. Wall Exit Into Masonry Flue (Using Single Wall Pipe.)
1. Before connecting these units to a masonry chimney, determine that the masonry flue pass
-through connector thimble meets the NFPA-211 Code and local building codes and is
a minimum of 18" from the ceiling. If the connector thimble does not meet these codes,
the pass-through connector must be modified.
Figure 7
CEILING CENTER LINE
OF ELBOW
SECURE WITH (3)
SHEET METAL SCREWS
1/4” RISE PER FT’
MASONRY CHIMNEY
FLOOR PROTECTOR
See Figure 9. Page 19.
CLEAN OUT
DOOR
MASONRY
FLUE
LINERS
MARK PLUM LINE
SEAL AROUND PIPE TO
THIMBLE OR PASS-
THROUGH CONNECTOR
WITH NON-COMBUSTIBLE
MATERIAL
WALL
Page 15

Connectors may pass through walls or partitions constructed of combustible material if the
connector is:
(a) Either listed for wall pass-through or is routed through a device listed for wall pass-
through and is installed in accordance with the conditions of the listing.
(b) Selected or fabricated in accordance with the conditions and clearances as stated in
the NFPA-211 Code. Any unexposed metal that is used as part of a wall pass-through
system and is exposed to flue gases shall be constructed of stainless steel or other
equivalent material that will resist corrosion, softening, or cracking from flue gases at
temperatures up to 1800oF.
In addition, a connector to a masonry chimney shall extend through the wall to the inner
face or liner but not beyond, and shall be firmly cemented to masonry.
EXCEPTION: A thimble may be used to facilitate removal of the chimney connector for
cleaning, in which case the thimble shall be permanently cemented in place
with high-temperature cement.
2. Once the through-the-wall thimble codes are met, simply connect the chimney collar to
the wall pass-through connector using #24 ga. minimum, blue or black steel
connector pipe as follows:
(a) Maintain 1/4" rise per foot (horizontal length) from the appliance to the chimney.
(b) Connect each section so the crimped end faces downward.
(c) Secure each section to each other using at least three (3) sheet metal screws or rivets.
(d) Use three (3) sheet metal screws to fasten pipe to connector collar on heater.
D. Ceiling Exit-Close Clearance
1. Suspend a plumb bob from the ceiling above the unit so that the weight is hanging in the
center of the flue exit (A small weight on a string will serve as a plumb bob). Mark the
ceiling where the string is suspended to locate the center of the chimney hole.
2. After locating the center of the hole, install the ceiling support box, chimney flashing
and rain cap.
3. Install Double Wall Connector and close clearance chimney systems per manufacturer’s
written instructions. See stove manufacturer's list of tested pipes in this manual.
(See Page 17.)
Page 16
