New World NWMID53GS User manual

USER MANUAL
Gas Twin Cavity
Freestanding Oven
NWMID53GW
NWMID53GB
NWMID53GS

2
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH
THE REGULATIONS ENFORCE AND ONLY USED IN A WELL
VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING
OR USING THIS APPLIANCE”
You’ll soon be enjoying your new Freestanding Gas
Cooker
It all begins here, with your instructions. Don’t worry,
there’s nothing too technical coming up. Just
simple, step-by-step guidance to get you up and
running quickly. Sound good? Then let’s get started.

3
4
16
17
20
27
28
29
32
34
35
36
37
38
39
40
41
42
44
44
45
Contents
Important warnings
Electrical connection
Installation
Chain lashing instructions
Introduction of the appliance
Accessories
Technical features of your oven
Control panel
Using oven section
Using the grill
Using the hob
Pot recommendation
Cooking time table
Maintenance and cleaning
Cleaning and maintenance of the oven's door
Rack positions
Changing the oven lamp
Using the grill deflector sheet
Troubleshooting
Handling rules
Recommendations for energy saving
Help and Assistance
Environmentally-friendly disposal
Declaration of conformance
Guarantee
46
31
33
46
47

4
IMPORTANT WARNINGS
1. Installation and repair should always be performed
by “AUTHORISED SERVICE”. Manufacturer shall not
be held responsible for operations performed by
unauthorised persons.
2. Please read the operating instructions carefully.
3. The oven should be used according to operating
instructions.
4. Keep children below the age of 8 and pets away
when operating.
5. WARNING: The accessible parts may be hot while using
the grill. Keep away from children.
6. WARNING: Fire hazard; do not store the materials on
the cooking surface.
7. WARNING: The appliance and its accessible parts are
hot during operation.
8. Setting conditions of this device are specied on
the label. (Or on the data plate)
9. The accessible parts may be hot when the grill is
used. Small children should be kept away.
10. WARNING: This appliance is intended for cooking. It
should not be used for other purposes like heating a room.
11. To clean the appliance, do not use steam cleaners.
12. Ensure that the oven door is completely closed
after putting food inside the oven.

5
13. NEVER try to put out the re with water. Only shut
down the device circuit and then cover the ame with
a cover or a re blanket.
14. Children under 8 years of age should be kept away,
if they cannot be monitored continuously.
15. Touching the heating elements should be avoided.
16. CAUTION: Cooking process shall be supervised.
Cooking process shall always be supervised.
17. This device can be used by children over 8 years
of age, people with physical, hearing or mental challenges
or people with lack of experience or knowledge; as long
as control is ensured or information is provided regarding
the dangers.
18. This device has been designed for household use
only.
19. Children must not play with the appliance. Cleaning
or user maintenance of the appliance shall not be
performed by children unless they are older than 8
years and supervised by adults.
20. Keep the appliance and its power cord away from
children less than 8 years old.
21. Put curtains, tulles, paper or any ammable (ignitable)
material away from the appliance before starting to use
the appliance. Do not put ignitable or ammable materials
on or in the appliance.
22. Keep the ventilation channels open.

6
23. The appliance is not suitable for use with an external
timer or a separate remote control system.
24. Do not heat closed cans and glass jars. The pressure
may lead jars to explode.
25. Oven handle is not a towel drier. Do not hang towels,
etc. on the oven handle.
26. Do not place the oven trays, plates or aluminium
foils directly on the oven base. The accumulated heat
may damage the base of the oven.
27. While placing food to or removing food from the
oven, etc., always use heat resistant oven gloves.
28. Do not use the product in states like medicated
and/or under inuence of alcohol which may affect your
ability of judgement.
29. Be careful when using alcohol in your foods. Alcohol
will evaporate at high temperatures and may catch re to
cause a re if it comes in contact with hot surfaces.
30. After each use, check if the unit is turned off.
31. If the appliance is faulty or has a visible damage,
do not operate the appliance.
32. Do not touch the plug with wet hands. Do not pull
the cord to plug off, always hold the plug.
33. Do not use the appliance with its front door glass
removed or broken.
34. Place the baking paper together with the food into
a pre-heated oven by putting it inside a cooker or on an
oven accessory (tray, wire grill etc.).

7
35. Do not put objects that children may reach on the
appliance.
36. It is important to place the wire grill and tray properly
on the wire racks and/or correctly place the tray on the
rack. Place the grill or tray between two rails and make
sure it is balanced before putting food on it.
37. Against the risk of touching the oven heater elements,
remove excess parts of the baking paper that hang over
from the accessory or container.
38. Never use it at higher oven temperatures than the
maximum usage temperature indicated on your baking
paper. Do not place the baking paper on the base of the
oven.
39. When the door is open, do not place any heavy
object on the door or allow children to sit on it. You
may cause the oven to overturn or the door hinges to be
damaged.
40. The packaging materials are dangerous for children.
Keep packaging materials away from the reach of children.
41. Do not use abrasive cleaners or sharp metal scrapers
to clean the glass as the scratches that may occur on
the surface of the door glass may cause the glass to
break.
42. Do not place the appliance on a surface covered
with carpets. Electric parts gets overheated since there
will be no ventilation from below. This will cause failure
of the appliance.

8
43. Do not hit glass surfaces of vitro-ceramic cookers
with a hard metal, resistance can get damaged. It may
cause an electric shock.
44. User should not handle the oven by himself.
45. Use shall be careful when cleaning gas burners.
It may cause personal injuries.
46. Food can spill when foot of oven is dismantled or
gets broken, be careful. It may cause personal injuries.
47. During usage, the internal and external surfaces
of the oven get hot. As you open the oven door, step
back to avoid the hot vapour coming out from the interior.
There is risk of burning.
48. Upper cover of the oven can be closed for a reason,
than cookware can trip over. Step back to avoid the hot
food coming on you. There is risk of burning.
49. Do not place heavy objects when oven door is open,
risk of toppling.
50. User should not dislocate the resistance during
cleaning. It may cause an electric shock.
51. Do not remove ignition switches from the appliance.
Otherwise, live electric cables can be accessed. It may
cause an electric shock.
52. Oven supply can be disconnected during any
construction work at home. After completing the work,
re-connecting the oven shall be done by authorised service.
53. Do not place metal utensils such as knife, fork, spoon
on the surface of the appliance, since they will get hot.

9
54. To prevent overheating, the appliance should not
be installed behind of a decorative cover.
55. Turn off the appliance before removing the
safeguards. After cleaning, install the safeguards
according to instructions.
56. Cable xing point shall be protected.
57. WARNING: Don’t use oven and grill burners at same
time.
58. Please don’t cook the food directly on the tray /
grid. Please put the food into or on appropriate tools
before putting them in the oven.
59. Hot surface, leave for cooling before closing the
cover.

10
Electrical Safety
1. Plug the appliance in a grounded socket protected by
a fuse conforming to the values specied in the technical
specifications chart.
2. Have an authorised electrician set grounding equipment.
Our company shall not be responsible for the damages
that shall be incurred due to using the product without
grounding according to local regulations.
3. The circuit breaker switches of the oven shall be
placed so that end user can reach them when the oven
is installed.
4. The power supply cord (the cord with plug) shall
not contact the hot parts of the appliance.
5. If the power supply cord (the cord with plug) is
damaged, this cord shall be replaced by the manufacturer
or its service agent or an equally qualied personnel to
prevent a hazardous situation.
6. Never wash the product by spraying or pouring water
on it! There is a risk of electrocution.
7. WARNING: To avoid electric shock, ensure that the
device circuit is open before changing the lamp.
8. WARNING: Cut off all supply circuit connections before
accessing the terminals.
9. WARNING: If the surface is cracked, turn off the appliance
to avoid risk of electric shock.
10. Do not use cut or damaged cords or extension
cords other than the original cord.

11
11. Make sure that there is no liquid or humidity in
the outlet where the product plug is installed.
12. The rear surface of the oven also heats up when
the oven is operated. Electrical connections shall not
touch the rear surface, otherwise the connections may
be damaged.
13. Do not tighten the connecting cables to the oven
door and do not run them over hot surfaces. If the cord
melts, this may cause the oven to short circuit and
even a re.
14. Unplug the unit during installation, maintenance,
cleaning and repair.
15. If the power supply cable is damaged, it must be
replaced by its manufacturer or authorised technical
service or any other personnel qualified at the same
level, in order to avoid any dangerous situation.
16. Make sure the plug is inserted rmly i nto wall
socket to avoid sparks.
17. Do not use steam cleaners for cleaning the appliance,
otherwise electric shock may occur.
18. An omnipolar switch capable to disconnect
power supply is required for installation. Disconnection
from power supply shall be provided with a switch or
an integrated fuse installed on xed power supply
according to building code.
19. Appliance is equipped with a type ‘’Y’’ cord cable.

12
20. Fixed connections shall be connected to a power
supply enabling omnipolar disconnection. For appliances
with over voltage category below III, disconnection device
shall be connected to xed power supply according to
wiring code.
Gas Safety
1. This appliance is not connected to burning products
evacuation apparatus.This appliance must be connected
and installed according to the installation regulations in
force. Conditions regarding ventilation must be considered.
2. When a gas cooking appliance is used; humidity,
heat and burning products are generated in the room.
First of all, make sure the kitchen is well ventilated
when operating the appliance and maintain natural
ventilation openings or install a mechanical ventilation
equipment.
3. After using the appliance heavily for en extended
period of time, additional ventilation may be required.
For example open a window or adjust a higher speed for
mechanical ventilation, if any.
4. This appliance must be used only in well ventilated
locations in accordance with the regulations in force.
Please read the manual before installing or using this
product.
5. Before positioning the appliance, make sure local
network conditions (gas type and gas pressure) meets
appliance requirements.

13
6. The mechanism cannot be run for longer than 15
seconds. If the burner is not on after 15 seconds, stop
the mechanism and wait for at least one minute before
trying to ignite the burner again.
7. All kinds of operations to be performed on gas
installation must be performed by authorised and
competent people.
8. This appliance is adjusted for natural gas (NG). If
you have to use your product with a different gas type,
you have to apply to authorised service for the conversion.
9. For proper operation, hood, gas pipe and clamp
should be replaced periodically accordingto manufacturer
recommendations and when required.
10. Gas should burn well in gas products. Well
burning gas can be understood from blue ame and
continuous burning. If gas does not burn sufciently,
carbon monoxide (CO) can be generated. Carbon monoxide
is a colourless, odourless and very toxic gas; even small
amounts have lethal effect.
11. Ask your local gas supplies about the phone numbers
for emergencies related to gas and the measures to be
taken upon gas odour is detected.

14
What To Do When Gas Odour Is Detected
1. Do not use naked ame, and do not smoke.
2. Do not operate any electrical switch.
(For example: lamp switch or doorbell)
3. Do not use telephone or mobile phone.
4. Open the doors and windows.
5. Close all valves on the appliances that utilize gas
and the gas counters.
6. Call re brigade from a telephone outside the home.
7. Check all hoses and their connections against leaks.
If you still smell gas, leave the house and warn your
neighbours.
8. Do not enter into the house until authorities clarify
it is safe.

15
Intended Use
1. This product is designed for home use. Commercial
use of the appliance is not permitted.
2. This appliance may only be used for cooking purposes.
It shall not be used for other purposes like heating a room.
3. This appliance shall not be used to heat plates under
the grill, drying clothes or towels by hanging them on
the handle or for heating purposes.
4. The manufacturer assumes no responsibility for any
damage due to misuse or mishandling.
5. Oven part of the unit may be used for thawing,
roasting, frying and grilling food.
6. Operational life of the product you have purchased
is 10 years. This is the period for which the spare parts
required for the operation of this product as dened is
provided by the manufacturer.

16
Electrical Connection
Provision for Ventilation
The appliance housing used must provide adequate ventilation.
For built-in installation, a minimum ventilation space of 45mm must
exist between the rear of the appliance and the back of the housing or
an adjacent wall.
If a tall housing is to be installed flush with the ceiling, a 20cm²
ventilation cut-out must be provided at the top of the housing.
Electrical Connection
This appliance must be installed by a qualified electrician to comply
with the relevant Institution of Engineering and Technology (I.E.T.)
regulations and also the local electricity supply company requirements.
This appliance must not be connected to an ordinary domestic power
point.
This product comes fitted with a BS plug and cord.
Ensure the cable route avoids the risk of trapping or touching hot
surfaces.

17
Dear Installer
Before you start your installation, please complete the details
below.
Should your customer have a problem relating to your installation they will be able
to contact you easily.
You must be aware of the following safety requirements & regulations:
Before installing, make sure that the local distribution conditions (nature of the gas
and gas pressure) and the adjustment of the appliance are compatible.
This appliance must be installed in accordance with the regulations in force and
only in a well-ventilated space. Read the instructions before installing or using this
appliance.
The regulations and standards are as follows:
ArtNo.050-0011 - Installer information table
Installer’s Name
Appliance Serial Number
Installer’s Telephone Number
Installer’s Company
Installation

18
In the UK:
In your own interest and that of safety, it is law that
all gas appliances be installed by competent persons. CORGI registered installers
undertake to work to safe and satisfactory standards. Failure to install the appliance
correctly could invalidate any warranty or liability claims and lead to prosecution.
 This appliance should not be installed in a boat or caravan.
The hob must be installed in accordance with:
•All relevant British Standards / Codes of Practice, in particular BS 5440 Part 2
•For Natural Gas – BS 6172 and BS 6891
•For LP Gas – BS 5482-1 (when the installation is in a permanent dwelling)
•The Gas Safety (Installation and Use) regulations
•The relevant Building / IET regulations
Provision of Ventilation
This appliance is not connected to a combustion products evacuation device.
Particular attention shall be given to the relevant requirements regarding ventilation.
In the UK:
The room containing the hob should have an air supply in accordance with BS 5440
Part 2. All rooms require an openable window or equivalent, while some rooms
require a permanent vent in addition to the openable window. The hob should not
be installed in a bedsitting room with volume less than 20m³. If it is installed in a
room of volume less than 5m³ an air vent of effective area 100cm² is required; if it is
installed in a room of volume between 5m³ and 10m³, an air vent of effective area
50cm² is required; while if the volume exceeds 11m³, no air vent is required.
If there are other fuel burning appliances in the same room, BS5440 Part 2 should be
consulted to determine the requisite air vent requirements.

19
INSTALLATION OF YOUR OVEN
Check if the electrical installation is proper to bring the appliance in
operating condition. If electricity installation is not suitable, call an
electrician and plumber to arrange the utilities as necessary. Manufacturer
shall not be held responsible for damages caused by operations
performed by unauthorized persons.
WARNING: It is customer's responsibility to prepare the location the
product shall be placed on and also to have the electrical installation
prepared.
WARNING: The rules in local standards about electrical installations
shall be followed during product installation.
WARNING: Check for any damage on the appliance before installing it.
Do not have the product installed if it is damaged. Damaged products
cause a risk for your safety.
Right Place for Installation and Important Warnings
Appliance feet should not stay on soft surfaces such as carpets. The
kitchen floor shall be durable to carry the unit weight and any other
kitchenware that may be used on the oven.
Appliance should installed with a minimum clearance of 400mm
from the upper side of hob surfaces to the under side of an over head
cupboard and 6.5mm from the side surfaces of the kitchen furniture.
The appliance is suitable for use on both side walls, without any support,
or without being installed in a cabinet. If a hood or aspirator will
be installed above the cooker, follow the instructions of the manufacturer
for height of mounting. (min. 650 mm)

20
WARNING: The kitchen furniture near the appliance must be heat
resistant.
WARNING: Do not install the appliance beside refrigerators or coolers.
Heat radiated by the appliance increases the energy consumption of
cooling devices.
WARNING: Do not use the door and/or handle to carry or move the appliance.
650mm min.
6.5mm min. 6.5mm min.
400 mm min.

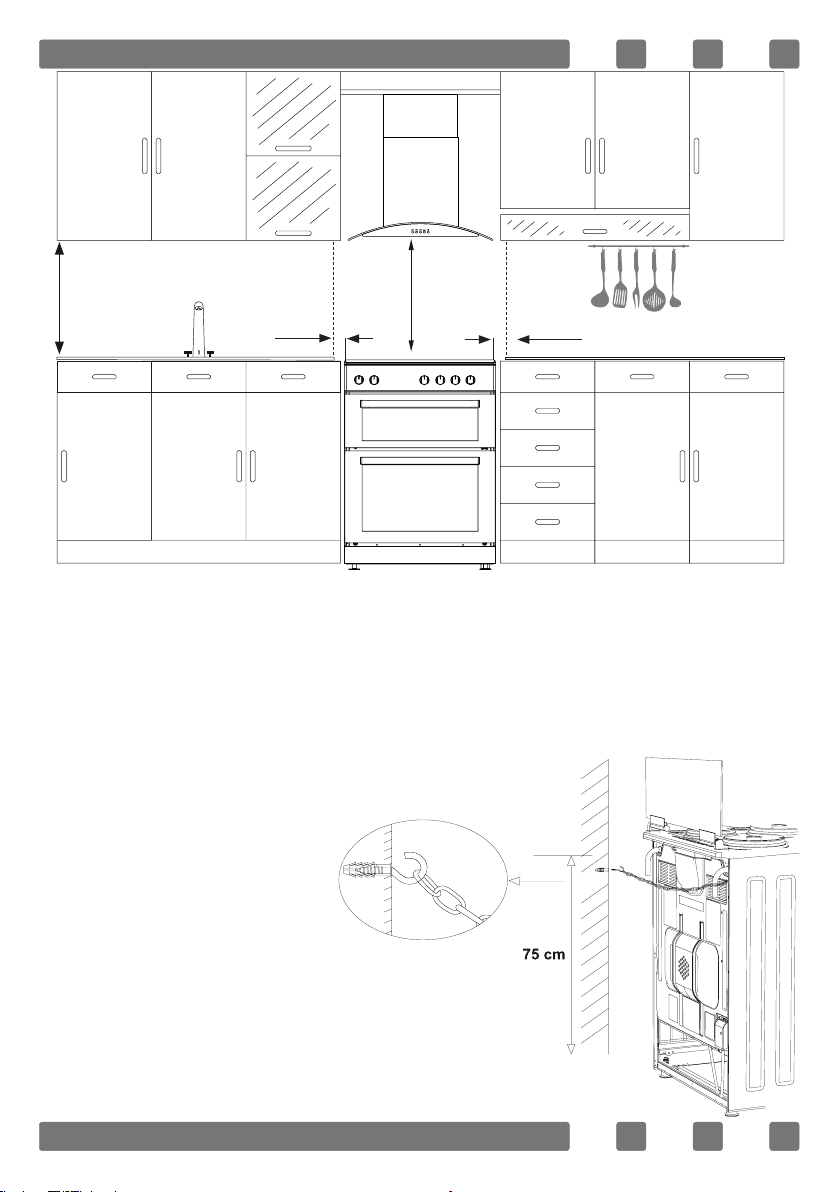

Chain Lashing Illustration
Before using the appliance, in order to ensure
safe use, be sure to x the appliance to the wall
using thechain and hooked screw supplied.
Ensure that the hook is screwed into the wall
securely.
