Newland NL-81 User manual

Router User Manual
Model: NL-81

Packing List
Router x1 Power adapterx1 Network cablex1
Installation Instructions

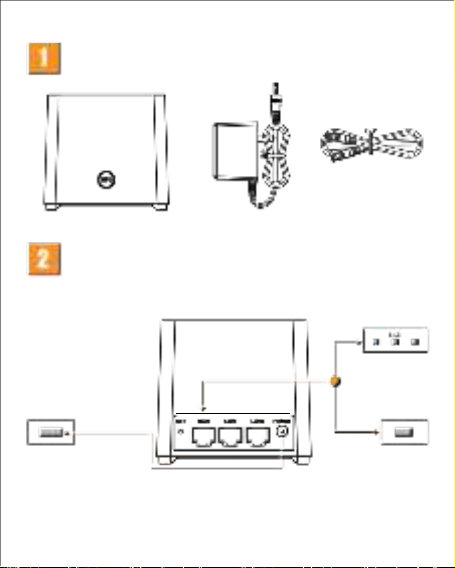

Connect the router to the power and connect the WAN port
to the broadband network.
Optical modem/
Broadband modem
or
Power supply socket Wall network socket
*The first network port on the right side of the power hole is the WAN port, and the second, third
network port is LAN port.
If the router LED indicator is red and the network is not connected, please refer to "Configuring
the Router".
When the router LED indicator turns white, the router has been successfully installed.

Configuring the Router
3.1 Configure using APP (recommended)
1、Download and install"Router WiFi" APP and
register to login to the home page;
* This APP can manage routers such as remote control, smart
connection, open Wi-Fi timer, open guest Wi-Fi, etc.
2、Open the mobile phone WLAN settings
page, select and connect the
CLARO_WIFIXX
Wi-Fi network (Wi-Fi name and
password to view the bottom label of
the router);
*If the mobile phone system isIOS, please
connect WiFi according to the IOS interface
prompts.
Router WiFi

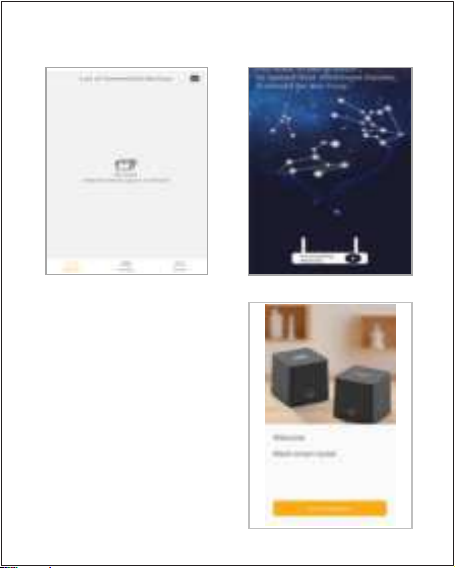

3、Click the “+ ”and click the “Connecting Device”
4、Click "start Configuration" will
automatically detect the Internet
access method;

4.1 、When the automatic detection is
successful, the Wi-Fi settings
are automatically entered.
4.2 、When the automatic detection fails,
you can reconnect.
(This step may be skipped due to
different internet access methods.)

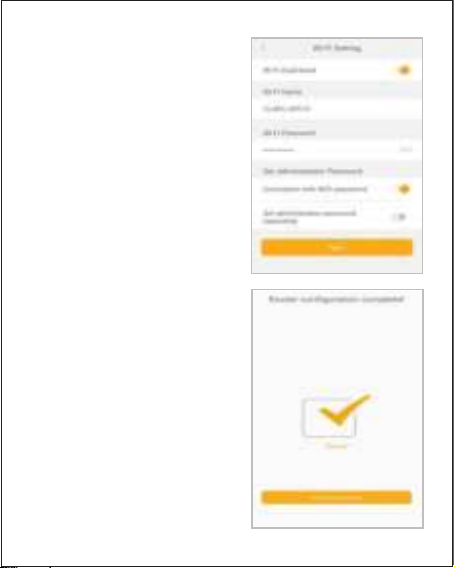

5、Set the router's new Wi-Fi
and administrator password.
It is recommended to set the Wi-Fi
password as the administrator
password.
6、The configuration is successful.
* The router LED indicator white long bright
indicates that the network connection is
successful, and can access the Internet

* If the network match is abnormal, you can press RET botton for more than
3 seconds to resume the factory settings and start again.
3.2 * Other (optional reading):
How to add multiple sub-routers to extend Wi-Fi network?
Method 1: Use network cable to add sub-router
Connect the power supply, insert the two ends of a network cable between
the router's network ports (the WAN port of the sub-router connect the LAN
port of the main router), automatically obtain the configuration and connect
successfully.

Method 2: UseAPP to add sub-router
1、The sub-router is close to the main router and connected to the power
supply.

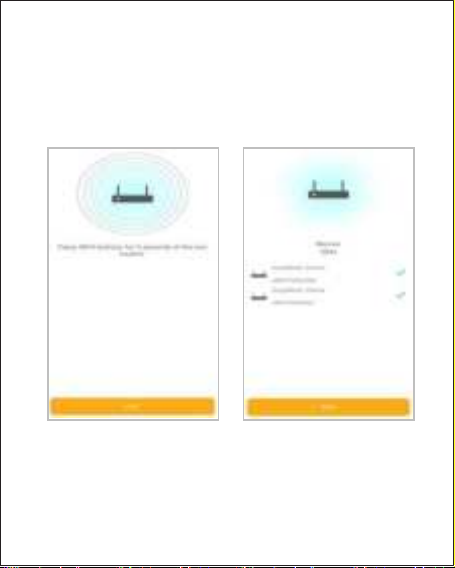

2、Open the “+”enter the Search Router page

3、Press the WPS button of the sub-router about 3 seconds. After the LED
indicator flashes, release it and start the network configuration. If the LED
indicator turns
white and bright, the network is successful (usually about 1 minutes).
After successful networking, the APP interface displays the connected
sub-routers.

4 Product Specification
Parameter Name
Parameter Description
Equipment Power
Consumption
<9W（Not include power adapter）
Power Input
12VDC，1A
Environment
Temperature
Working temperature: -10℃~50℃
Storage temperature: -20℃~70℃
Ambient Humidity
10%~95%（Non-condensing）
Dimension
90mm（L）x90mm（W）x84mm（H）
Weight
About 135g
Environmental protection labeling:
The environmental protection service life shall be labeled in
accordance with SJ/Z 11388-2009 General Rules for the
Environmental Protection Service Life of Electronic Information
Products. The signs identified on the product ontology indicate
that the use period of environmental protection is 20 years.
The environmental protection service life of electronic and
electrical products refers to the period when the toxic and
harmful substances or elements contained in the electronic
and electrical products will not leak to the outside, and the
users of the electronic and electrical products will not cause
pollution to the environment or damage to the human body and
property when using the electronic and electrical products.
Please use this product according to the instruction manual
during the period of environmental protection.
