AeroVent®Standard
Product Manual

AeroVent®Standard
ALWAYS wear appropriate personal protective equipment when operating the unit!
January 2, 2018
Attn:
Purchaser’s of the Newstripe,
AeroVent 1X, 3X or Standard
Aerosol Can Recycling units Respirator Required Decal
Dear Customer:
We thank you for your purchase of the AeroVent aerosol can recycling unit and apologize for the
inconvenience that may be caused concerning the RESPIRATOR REQUIRED decal on the unit.
Obviously, many companies have comprehensive safety programs in place that would supersede this
decal and it would not be necessary. Unfortunately, many of our customers do not. So, in the interest of
safety, we have chosen to err on the side of caution with regards to those that may not have programs
in place.
For example, the AeroVent X as designed is intended to puncture mostly empty cans, (those exhausted
through normal discharge). However, some users have chosen to puncture and drain cans that are close
to full. This quickly exhausts the effectiveness of the carbon filter requiring more frequent filter changes
that may or may not be done. Others have located the unit on a shop floor that is merely ‘open
atmosphere’ with no fans or HIVAC for additional air movement. These are two examples of when a
respirator should absolutely be worn.
On the other hand, a respirator would not be mandatory if the unit is operated outdoors or in a well
ventilated area and the operator is ‘upwind’ of the exhaust port during puncturing or when opening the
lid to insert or remove cans.
We appreciate your understanding of our position and please let us know if we may assist in satisfying
your requirements.
Sincerely,
Ray Krebs
General Manager

AeroVent®Standard
ALWAYS wear appropriate personal protective equipment when operating the unit!
TABLE OF CONTENTS
Precautionary Warning .............Page 1
Assembly...................................Page 2
Operation...................................Page 3
Maintenance ..............................Page 4
Parts List....................................Page 4
Cobalt Point Replacement.........Page 5
Safe2VentReplacement..........Page 5
Warranty....................................Page 6
Thank you and congratulations on
your purchase of the AeroVent®
Standard aerosol can disposal system.
The AeroVent® Standard has been
designed to puncture and drain
aerosol cans that have been used and
are mostly empty. It is not intended to
continuously process full cans.
Please read over the instructions and
make sure you understand operating
procedures before using the unit
.

AeroVent®Standard
ALWAYS wear appropriate personal protective equipment when operating the unit!
AeroVent® Standard Manual / 4840.1117
A respirator is required if the unit is NOT operated outdoors or in a well-ventilated area.
Always consult your facility safety manager for particular safety protocols
prior to operating this equipment.
This unit is not intended for use with spray adhesives or expanding foam sealant products.
PRECAUTIONARY WARNING!
Please read and understand all operating instructions as detailed in
this manual. Failure to follow specified instructions may result in
equipment damage or serious injury to personnel, including death.
Always refer to the current Product SDS for specific chemical
handling and safety instructions prior to deflating aerosol cans.
Liquids collected into drums and accompanying vapors may be
highly flammable. Keep all waste collection containers away from
heat, spark and flame –No Smoking near the unit or waste
collection containers!
Avoid static discharge. Ensure that the unit grounding cable is
attached to a suitable grounding source such as metal water pipe or
grounding rod prior to operation.
Keep the collection container closed when not in use and kept in a
cool, well-ventilated area away from ignition sources.
Only operate unit out-of-doors or in a well ventilated area.
Wear appropriate personal protective equipment and eye
protection; avoid direct contact with aerosol can contents.
CAUTION: Use of filters not specifically designed for the
AeroVent®, aerosol can disposal systems may result in dangerous
back pressure inside the recovery drum, resulting in equipment
damage or serious injury to personnel, including death.
ALWAYS refer to the Product SDS to check compatibility when
multiple aerosols are co-mingled in the same collection drum.
Caustics, Pesticides, Insecticides and White Metals should never
be collected into a drum with other liquids and should be
segregated into properly labeled, designated containers. Contact
your waste handler or Facility Safety Manager for more
information.

AeroVent®Standard
ALWAYS wear appropriate personal protective equipment when operating the unit!
AeroVent® Standard Manual / 4840.1117

ASSEMBLY
1) Install front support foot that was removed for shipping. Screw all the way in
2) Remove the 2” bung-fitting cap from an empty 30 or 55 gallon recovery
drum. Insert the threaded nipple of the AeroVent® into the opening and
turn the unit until hand tight. One adjusting foot should be located just
inside the chime. The other should rest on top of the chime.
3) Turn the adjustable rear support foot clockwise until snug to the top of
the drum. Adjust front support foot tight to chime after adjusting rear
foot.
4) Open lid and let it rest against back stop. Remove 2 screws from lid
handle. Position handle on top of lid and install 2 screws from underside
and tighten screws.
5) Place the operating handle on the mounting post. Insert one 5/16-18 x 1”
bolt through each handle and mounting post hole. Secure with one
5/16-18 locking nut and washer on each bolt and snug nuts at this time. (Pic 1)
6) Place one of the Plunger Blocks into the hole on the closed lid assembly.
Lower the handle and adjust the swivel foot so that it is centered in the
plunger block.
Completely tighten all nuts and bolts of the handle assembly to the
mounting post at this time. (Pic 2)
7) Install can stop in slots at front of can tray.
8) Remove the 3/4” bung fitting cap from top of the recovery drum and
thread the Safe2Filter filter housing into place. Hand-tighten only!
9) Attach the clamp end of the grounding cable to a suitable grounding
source, such as a metal water pipe or grounding rod.
Box should include these parts:
AeroVent®unit with ground cable
#3-Operating Handle
#14-Safe2Filter
5/16-18 x 3/4” Bolt (4)
¼” Flat Washers (4)
5/16-18 Locking Nuts (4)
#7-Plunger Block Kit (3)
Can Stop
#5-Lid Handle
Owner’s Manual
Pic 1
Operating
Handle #3
Plunger
Block Kit #7
Can Stop
5/16-18 x 3/4” Bolt (4)
¼” Flat Washers (4)
5/16-18 Locking Nuts (4)
Lid Handle
#5
Safe2Filter
#14
FIGURE 2
FIGURE 1
Front Support
Foot

AeroVent®Standard
ALWAYS wear appropriate personal protective equipment when operating the unit!
AeroVent® Standard Manual / 4840.1117
OPERATION
1) Using the can guide on the side of the unit, select the matching plunger block (2”, 2.5” or 3”)
2) Lift the operating handle to release clamp, and open the AeroVent® lid.
3) Can stop should be in slots at front of the trough liner.
4) Insert 1 aerosol can with the bottom of the can pointing toward the clamp, and up against the forward stop.
5) Close the lid. Operate by pushing down on the operating handle. (The clamp will engage the lid and push the lid
down).
6) Push down until the operating clamp “locks” into place (“Puncture & Drain position”). The aerosol can has now
been punctured. Wait 15-30 seconds to allow can to drain. You may now lift the handle to the “unload” position
and open the lid to remove the can.
Note: If aerosol cans are mostly full, leave the handle in the locked position for 45-60 seconds to allow can to
drain completely.
PRECAUTIONARY WARNING!
Do not use the AeroVent®for draining expanding foam
sealant aerosol products or spray adhesive products.
Always use the correct plunger block for the diameter of the
can that you are draining.
The clamp must remain locked until the can drains.
To insure that the can is drained, wait 15-30 seconds before
un-locking the clamp and opening the lid.
If a can is full when punctured, wait at least 1 minute before
opening the unit. Full cans take longer to empty and may
discharge fumes or liquids if the unit is opened too soon.
We recommend changing the Safe2Filter™ every 60 days or
600 cans. If cans contain larger amounts of remaining liquids,
change the filter more often. Also, we do not recommend
allowing the drum to become more than 70% (2/3) full. An
air space is needed in the drum to allow for draining and
venting of fumes.

AeroVent®Standard
ALWAYS wear appropriate personal protective equipment when operating the unit!
AeroVent® Standard Manual / 4840.1117
MAINTENANCE
ITEM
CHECK
*REPLACE
Lid Gasket 10004249
Before each use
As Necessary
Safe2Filter 10004898 (2 pack)
Monthly
Every 60 days or 600 cans, more
often for full cans
Cobalt Points 10003377
Before Each use
As Necessary
Bellow 10003791
Every 180 days
As Necessary
Operating Clamp 10004208
Before each use
Lubricate regularly with light oil.
(3-in-1, WD-40 etc.)
PARTS LIST
Item Part
Number Description Number
Item Part
Number Description Number
1 Main Base Plate 10004285
2 Support Foot (2 req) 10004262
3 Operating Handle 10004208
4 Swivel Foot 10004294
5 Lid Handle 10004195
6 Lid Grommet 10002410
For plunger block
7 Plunger Block Kit 10004248
(2”, 2.5” and 3”)
8 Trough Liner w/can stop 10003970
9 Trough Liner Grommet 10001874
10 Lid Gasket 10004249
11 Trough Bellow 10003791
12 Trough Spring 10004257
13 Cobalt Point 10003377
14 Safe2Filter Filter Element 10004841
15 Safe2Filter Filter replacement
Package of 2 10004898
16 Grounding Cable w/clamp 10003914
17 Left Shroud 10004286
18 Right Shroud 10004287
19 Bellows Clamp (2 req) 10003794
20 Set Screw 10-32 x 5/8” 10004167
Swivel Foot
#4
Operating
Handle #3
Safe2Filter
Filter #14
Support Foot
#2
Lid gasket
#10
Right Shroud
#18
Left Shroud
#17
Trough liner w/
can stop #8
Trough Liner
Grommet #9

AeroVent®Standard
ALWAYS wear appropriate personal protective equipment when operating the unit!
AeroVent® Standard Manual / 4840.1117

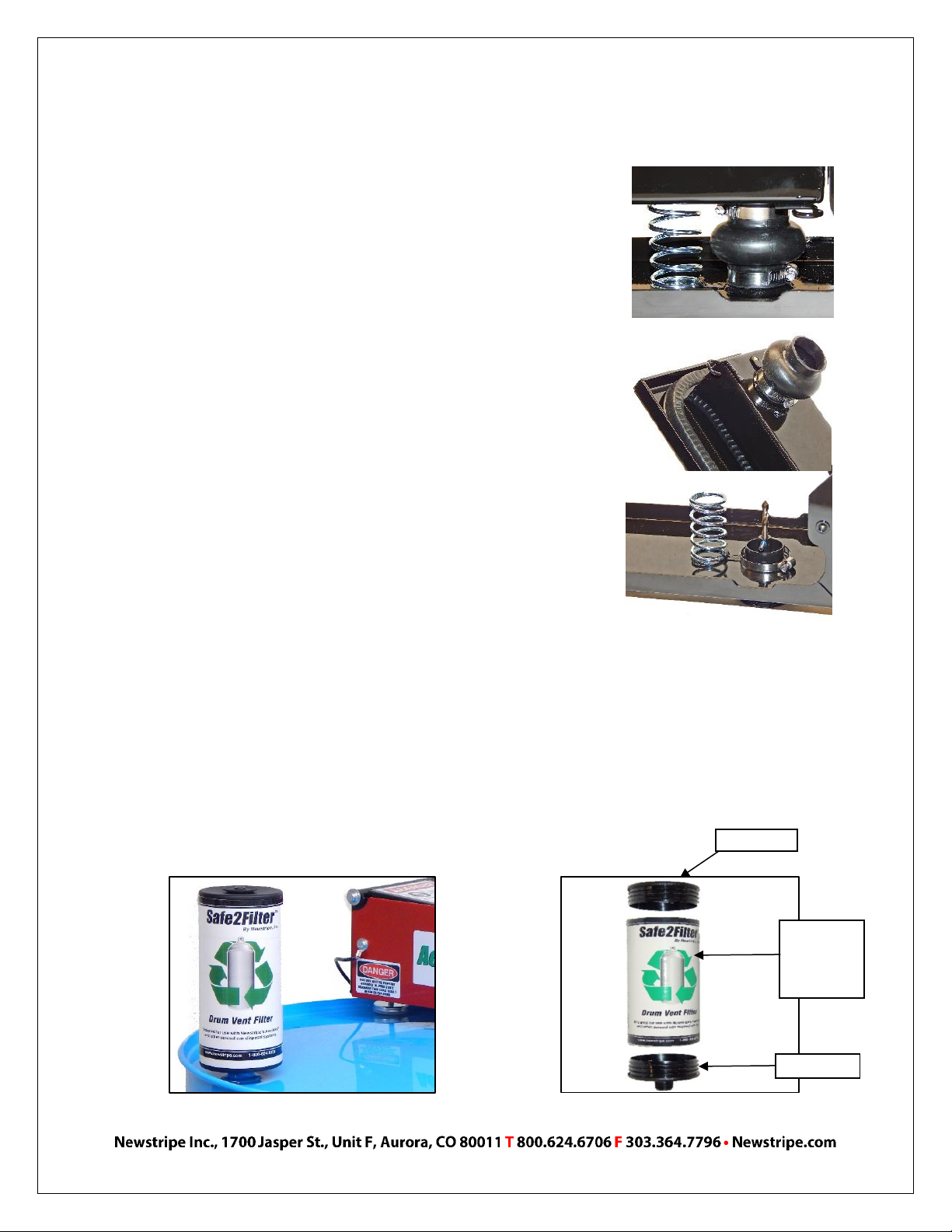

COBALT POINT REPLACEMENT
HELPFUL HINT: Leave the unit mounted on the drum to replace cobalt points.
1. Open the lid and remove the left and right shrouds.
2. Loosen the bottom clamp on the bellows. There is no need to
loosen the top bellows clamp, unless the bellows are damaged and
need replaced.
3. Remove the trough liner can stop. Bellows may have to be
gently pried off of lower bushings to rotate assembly up. Rotate
the trough assembly upward and allow it to rest against the lid.
4. Loosen the setscrew with a 3/32” hex key and then replace the
point. Tighten the setscrew against the new point. Do not use
locktight on this setscrew.
5. Re-assemble the unit in reverse order.
SAFE2FILTER REPLACEMENT
1) Remove the filter lid from the element by grabbing the edge and pulling upwards (you can pull on the check
valve to expose the edge.)
2) Lift off the filter element from the base.
3) Install the new element onto the filter base.
4) Replace the filter lid by pressing it into the top of the element.
5) Dispose of the used filter element appropriately.
Retain lid
Retain base
Change
filter
element

AeroVent®Standard
ALWAYS wear appropriate personal protective equipment when operating the unit!
AeroVent® Standard Manual / 4840.1117
THE NEWSTRIPE WARRANTY –18 MONTH
NEWSTRIPE, INC., WARRANTS TO THE ORIGINAL PURCHASER, FOR 18 (EIGHTEEN) MONTHS AFTER
DATE OF PURCHASE, THAT THE EQUIPMENT* HEREBY SOLD SHALL BE FREE OF DEFECTS IN
MATERIALS AND WORKMANSHIP. THIS WARRANTY DOES NOT EXTEND TO ANY DAMAGE OR
MALFUNCTION RESULTING FROM MISUSE, NEGLECT, ACCIDENT, IMPROPER OPERATION, OR NORMAL
WEAR AND TEAR.
Damage incurred in shipment from Newstripe, Inc. to the customer is the total responsibility of the carrier. The
CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc.
will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by
placing his signature on the documents.
The Newstripe, Inc. obligation under this warranty and any implied warranties is limited to replacement or repair of
defective parts of its manufacture without charge for 18 (Eighteen) months from date of purchase. For service under this
warranty, buyer shall ship the defective part or parts of the equipment, transportation prepaid, to Newstripe, Inc. together
with a written description of any claimed defect and proof of purchase date of the materials being returned. Prior to
retuning any part or machine, the CUSTOMER must obtain a Return Materials Authorization number. Call 1-
800-624-6706. To review the complete guidelines for warranty and returns, please visit
www.newstripe.com/guidlinesforwarrantyandreturn.
*Gasoline engines, compressors, pumps (including airless) and Transaxles are furnished with their respective
manufacturer's warranties only. Such components are not covered by any warranty of Newstripe, Inc. Where
Newstripe elects to extend manufacturers’ warranties, the warranty shall be pro-rated as to cover 100% of the cost
to replace or repair materials and parts for the first 12 months of ownership and 60% for the remaining 6 month
period.
The responsibilities described above are the only responsibilities of Newstripe, Inc. under this written warranty or any
implied warranty, and may be exercised only within 18 (Eighteen) months from the date of purchase. In no event shall
Newstripe, Inc. be liable for incidental or consequential damages and no person had any authority to bind it to any
representation or warranty, not be responsible for work done, materials furnished or repairs made by others without its'
specific written authorization.
THIS WARRANTY SHALL BE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND
THERE IS NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND WITH RESPECT TO THE GOODS
SOLD HEREBY EXCEPT AS SET FORTH HEREIN. IT IS EXPRESSLY AGREED THAT THIS WARRANTY
SHALL BE LIMITED TO THE ADJUSTMENT, REPAIR OR REPLACEMENT OF PARTS AND THE LABOR AND
SERVICES REQUIRED THEREBY. IN NO EVENT, INCLUDING ANY CLAIM FOR NEGLIGENCE, SHALL
NEWSTRIPE, INC. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Sincerely,
Newstripe, Inc
