How to use this guide
This manual is written to help you use Peak 602VL. It describes how to arrange various settings on the
Pentium CPU board to meet your requirements. It is briefed as follows:
Chapter 1, “Introduction” gives an overview of the product‘s specifications. It also tells you what are
included in the product package.
Chapter 2, “Switches and Connectors” describes the definitions and positions of Jumpers and Connectors
that you may easily configure and set up per your requirement.
Chapter 3, “Capability Expanding” describes how to change or expand the CPU Board by changing the
system memory and CPU to get more power out from the CPU board.
Chapter 4, “Award BIOS Setup” describes how to use the advanced PCI/Green BIOS to control almost
every feature of the Peak 602VL.
The Appendix A describes how to set up the Watch Dog Timer (WDT) and gives an example to program the
WDT.

Peak 602VL User's Guide Rev. B0 Dec. 2000
Content
Contents
CHAPTER 1 INTRODUCTION ........................................................................................ 1-1
1-1 SPECIFICATIONS.................................................................................................................................1-2
1-2 What you will have from this package...............................................................................................1-5
CHAPTER 2 SWITCHES AND CONNECTORS..............................................................2-1
2-1 MAIN BOARD LAYOUT.........................................................................................................................2-1
2-2 ..........2-2
CHAPTER 3 CAPABILITY EXPANDING......................................................................... 3-1
3-1 SYSTEM MEMORY ..............................................................................................................................3-1
3-2 CHANGE CPU....................................................................................................................................3-2
CHAPTER 4 AWARD BIOS SETUP................................................................................ 4-1
4-1 BIOS SETUP......................................................................................................................................4-1
Entering Setup.........................................................................................................................................4-1
Control Keys............................................................................................................................................4-2
Getting Help.............................................................................................................................................4-3
The Main Menu........................................................................................................................................4-4
Standard CMOS Features.......................................................................................................................4-6
Advanced BIOS Features Setup Menu ...................................................................................................4-9
Advanced Chipset Features Setup Menu..............................................................................................4-13
Integrated Peripherals ...........................................................................................................................4-17
Power Management Setup....................................................................................................................4-21
PnP/PCI Configuration ..........................................................................................................................4-25
PC Health Status...................................................................................................................................4-27
Frequency/Voltage Control....................................................................................................................4-28
Supervisor/User Password Setting........................................................................................................4-29
Power-On Boot......................................................................................................................................4-30
4-2 BIOS REFERENCE - POST MESSAGE ..............................................................................................4-31
POST Beep ...........................................................................................................................................4-31
Error Messages.....................................................................................................................................4-31
4-3 BIOS REFERENCE - POST CODES ..................................................................................................4-35
APPENDIX ..................................................................................................................... 43
APPENDIX AWATCH DOG TIMER..............................................................................................................43
Watch Dog Timer Working Procedure .....................................................................................................43
Jumpers Switchs and Connectors ..........................................................................................

Peak 602VL User's Guide Rev. B0 Dec. 2000
Content
Watch Dog Timer character and function.................................................................................................43
Watch Dog Timer Control Register ..........................................................................................................44
Watch Dog Timer Programming Procedure.............................................................................................45

Peak 602VL User's Guide Rev. B0 Dec. 2000
Introduction 1-1
Chapter 1 Introduction
Welcome to the PEAK 602VL the most powerful Intel 815E based single board computer.
The PEAK 602VL Series featured the high performance Intel Celeron / Pentium III CPU and 815E chipset, is
a power packed Half-sized Single Board Computer. The PEAK 602VL Series provides 100/133 MHz FSB
support for Pentium® III processors up to 1GHz. The Intel 815E chipset is equipped with internal graphics,
LAN, and support for 2 USB ports, Ultra DMA66/100 IDE interface.
The major features of PEAK 602VL Series are as follows:
1. Intel Pentium III FC-PGA support, 100/ 133 MHz FSB, up to 1+ GHz CPU clock.
2. PC133 SDRAM support up to 256 MB max.
3. On chip 2X AGP VGA with Intel Dynamic Video Memory Technology
4. On chip Ethernet 10/ 100 Mbps, all Intel solutions. Upgradeable to Dual LAN.
5. On Chip enhanced IDE x 1, support Ultra DMA/66/100
6. On Chip 1 USB controllers double the bandwidth to 24Mbps across 2 ports
7. Hardware Monitor for system Voltage, Temperature and FAN speed.
8. Reserved Power header beside IDE connector to support DOM ( DiskOnModule )
9. NEXCOM proprietary PCI connector for various upgrade modules like:
 EBK SCSI 2: Support Ultra 2 SCSI
 EBK SCSI 160D: Support dual Channel Ultra 160
 EBK 160SL : Support one Channel Ultra 160 SCSI and one Intel 82559 LAN.
Not only for the standard SBC application, the PEAK 602VL Series include the on board Power Input
connector, which can also be run as independent system without the backplane installed. Considering the
placement of PCI extension controller on the SBC under the space limit, we design the on board NEXCOM
proprietary PCI Interface that allows the upgrade module to be mounted. The optional EBK SCSI 2 / EBK
SCSI 160D / EBK 160SL module designed with Adaptec AIC-7890 Ultra 2 SCSI / AIC-7899 Dual Channel
SCSI 160 / AIC-7892 SCSI 160 + Intel 82559 LAN controller, enhances PEAK 602VL Series a featured-rich
single board computer.
The PEAK 602VL Series series is suitable for the standard Half-Size SBC application with ISAMAX up to 20
ISA devices and embedded system and special applications required the small size Form Factor and
supports for the Linux, Windows 2000, Windows NT Operation system.

Peak 602VL User's Guide Rev. B0 Dec. 2000
Introduction 1-2
1-1 Specifications
Specification
 System Architecture
 Half size SBC with ISA Golden finger
 Intel Socket 370 Celeron/Pentium III with 66/100/133MHz FSB
 CPU Support
 Intel Brand New Socket 370 FC-PGA Celeron / Pentium III CPU with 128/256K cache on die,
Processor Max. speed up to 1GHZ+by running at 66/100/133MHz FSB
 Support streaming SIMD instruction
 Main Memory
 Support SDRAM up to 256MB (Max.)
 168 pin DIMM socket ×1
 Support 100/133MHz SDRAM interface
 BIOS
 Award System BIOS
 Plug & Play support
 Advanced Power Management support
 Advanced Configuration & Power Interface support
 Jumper less for CPU FSB
 4M bits flash ROM
 Chip Set
 Intel 815E chipsets
82815 ×1 Graphics and Memory Controller Hub (GMCH)
82801 ×1 I/O Controller Hub (ICH2)
82802 ×1 Firmware Hub (FWH)
 On Board VGA
 Intel 82815 (GMCH) chipset integrated with Graphics controller
 Hardware motion compensation assist for software MPEG/DVD decode
 15 pin CRT connector ×1
 On Board LAN
 Signal Channel Ethernet support
 Intel 82801 (ICH2) chipset integrated LAN controller
 Intel 82562EM (PLC) Platform LAN Connect

Peak 602VL User's Guide Rev. B0 Dec. 2000
Introduction 1-3
 Support Remote monitoring (alerting)
 10 Base T and 100 Base TX support, full duplex
 Complied with PCI V2.1, IEEE802.3, IEEE 802.3U
 Intel® SingleDriver™ technology (10/100Mbps support), that are certified and validated support for
most common operating systems
 RJ45 connector ×1
 On Board Nexcom proprietary PCI interface
 Reserved 32bit PCI interface for EBK SCSI 2 / EBK SCSI 160D / EBK 160SL module
 On Board I/O
 Winbond 83627 HF Enhanced Super I/O on board
 SIO×2, with 2x16C550 UARTs, 10 pin header ×1, 9 pin COM Port x1
 PIO×1, bi-directional, EPP/ECP support, 26 pin connector ×1
 Floppy Disk controller：34 pin connector ×1
 On chip enhanced IDE x 1Ultra DMA/66/100 support, 40 pin connector ×1
 On chip Keyboard, mouse controller, 5 pin connector x 1(for other keyboard)；6 pin mini DIN
connector ×1, for PS/2 keyboard/mouse
 On board USB port ×2 (6pin header ×1)
 On Board buzzer ×1
 On board 2 pin header for I2C
 On board 5 pin header for IrDA
 On Board 2 pin header for reset SW, 4 pin for speaker, 5 pin for keylock, 2 pin power SW
 One 3 pins power header for 3 pins Power Cable connect to Backplane Board to support
ATX Power On function.
 On Board 6 Pin AT Power Input
 ACPI Function
 Soft Power off
 Wake On LAN
 Wake On Keyboard
 Wake On Ring
 RTC alarm wake up
 DOM ( Disk On Module ) Support
 Power header beside IDE connector to support DOM
 System Monitor
 Derived from Super IO Winbond 83627 to support system monitor.
 7 voltage (For +3.3V, +5V, -5V , +12V, −12V, Vcore and Vtt)

Peak 602VL User's Guide Rev. B0 Dec. 2000
Introduction 1-4
 One Fan speed (For CPU)
 Two temperature
 Drivers support：Windows 95/98, Windows NT4.0/2000
 Bracket Connector
 PS/2 connector ×1 (for Keyboard/Mouse)
 RJ45 connector ×1 (for LAN)
 15 pin D-type connector ×1 (for VGA)
 COM Port x 1 (for Serial Port)
 ISAMAX Support
 Maximize ISA signals to support ISA cards up to 20
 Watchdog Timer
 1,2,4…64 seconds time-out intervals
 Dimensions
 185 x 122 mm
 Power Requirements
 +5V @10A
 +12V @ 1A
 +5VSB @ 1A
 Environments
 Operating temperatures：0°C to 60°C
 Storage temperatures：-20°C to 80°C
 Relative humidity：10% to 90% (Non-condensing)
 Certification
 CE Class A
 FCC Class A
 Model Available
 PEAK 602VL -- Half-size Socket 370 Celeron/Pentium III CPU card w/VGA/LAN
 PEAK 602A – PEAK 602VL + EBK SCSI 2
 PEAK 602AD – PEAK 602VL + EBK SCSI 160D

Peak 602VL User's Guide Rev. B0 Dec. 2000
Introduction 1-5
In addition to this manual, the PEAK 602VL package includes the following items
Items PEAK 602VL PEAK 602A PEAK 602AD
PEAK 602VL Board 1 1 1
Cable Set, include UDMA66 IDE Cable x 1; FDD
Cable x1 ; Internal Keyboard Connector x1 ;
COM and LPT Cable w/Bracket 1 1 1
Y CABLE PS/2 1 TO 2 KEYBOARD/MOUSE 1 1 1
ATX Power Cable connect SBC and BackPlane 1 1 1
Driver CD 1 1 1
PEAK 602VL Quick Reference Guide 1 1 1
If any of these items is missed or damaged, please contact your vendor for what you want
Note:
the SCSI Cables for Ultra SCSI II and Ultra SCSI 160 is the optional items., If need the cables, please
contact : [e-mail] or [e-mail] or [e-mail]

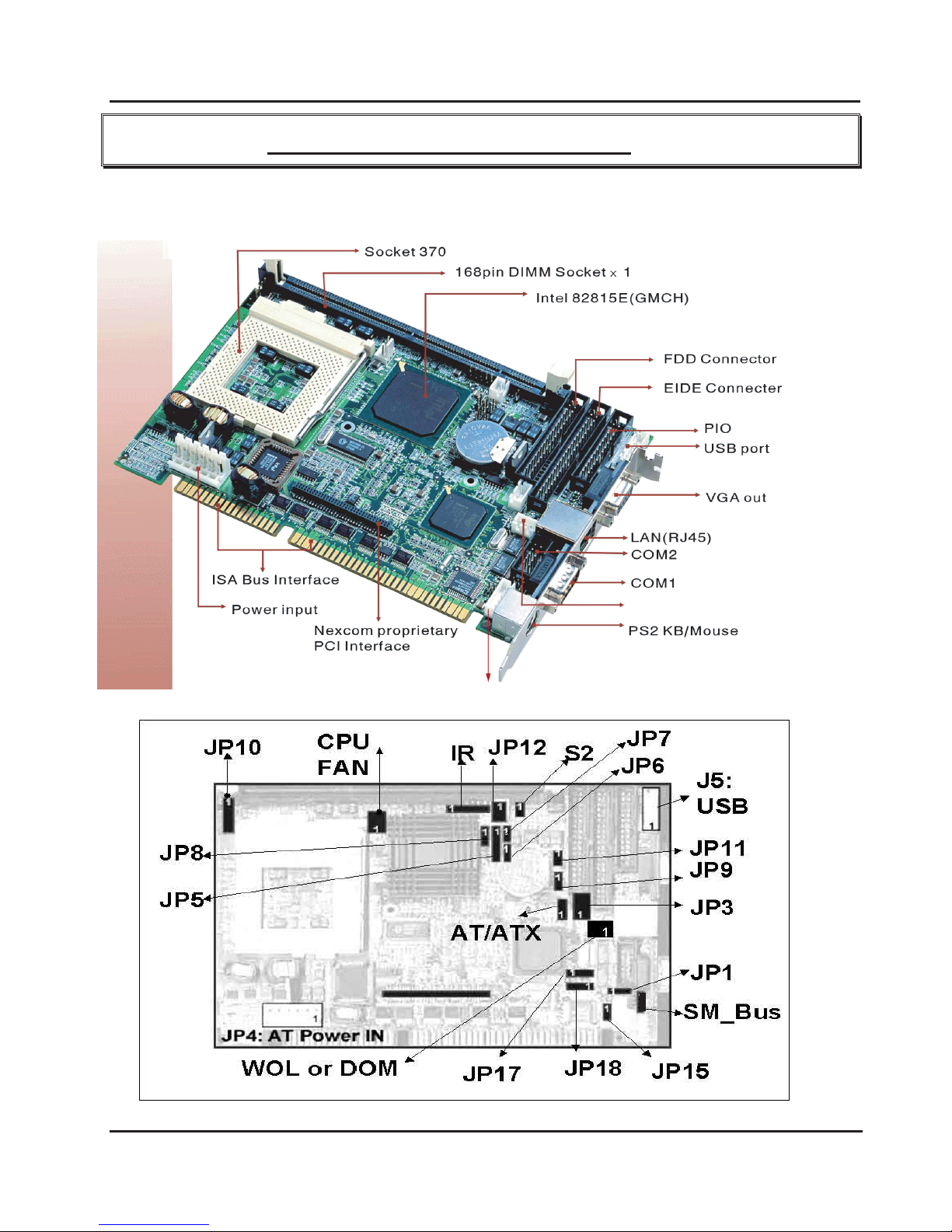

JP10 CPU FAN IR
1
JP12
1
JP8
JP5
JP7
JP6
S2
JP11
JP9
AT /
ATX
JP17
JP18
JP15
JP1
SM
Bus
11 1
1
1
1
1
1
11
1
1
1
JP2
1
1
S2:  CASEOPEN
PIN 1 GND
PIN 2 CASEOPEN
SM-BUS CONNECTOR
PIN 1 SM BUS CLOCK
PIN 2 NC
PIN 3 GND
PIN 4 SM BUS DATA
PIN 5 VCC
IR:
PIN 1 VCC
PIN 2 CIRR
PIN 3 IRRX
PIN 4 GND
PIN 5 IRTX
JP3:
ATX Power Connector:
( 3 Pin signals
connect to Backplane )
PIN 1 5VSB
PIN 2 GND
PIN 3 Wake Up Signal
AT/ATX
Power Select Jumper:
1-2 AT POWER
2-3 ATX POWER
JP18: LAN LINK/ACT LED CONNECTOR
PIN 1 LINK Signal
PIN 2 Active Signal
JP17: LAN SPEED LED CONNECTOR
PIN 1 3.3V Power
PIN 2 LAN Speed Signal
JP15: LAN ISOLATOR
ON LAN ISOLATOR
OFF NORMAL
JP12: TEMPERATURE
CONNECTOR
PIN 1 RESISTOR INPUT
PIN 2 RESISTOR INPUT
JP11:
SUSPEND LED
CONNECTOR
PIN 1 GND
PIN 2 SUSLED
JP10: SPEAKER CONNECTOR
PIN 1 VCC
PIN 2 GND
PIN 3 GND
PIN 4 SPEAKER
JP9:
RESET CONNECTOR
PIN 1 GND
PIN 2 HW RESET
JP8: EXTEND SMI CONNECTOR
PIN 1 GND
PIN 2 EXTEND SMI INPUT
JP7: POWER ON/OFF SWITCH
PIN 1 POWER ON/OFF
PIN 2 GND
JP6: HDD LED
PIN 1 VCC
PIN 2 IDE ACT
JP5: KEYBOARD LOCK
PIN 1 VCC
PIN 2 NC
PIN 3 GND
PIN 4 KEYBOARD LOCK
PIN 5 GND
JP1: RTC RESET
1-2 Short NORMAL
2-3 Short RTC RESET
JP3
PEAK 602VL Jumper Setting Quick Reference
Peak 602VL User's Guide Rev. B0 Dec. 2000Peak 602VL User's Guide Rev. B0 Dec. 2000
Jumpers Switch and Connectors 2-0

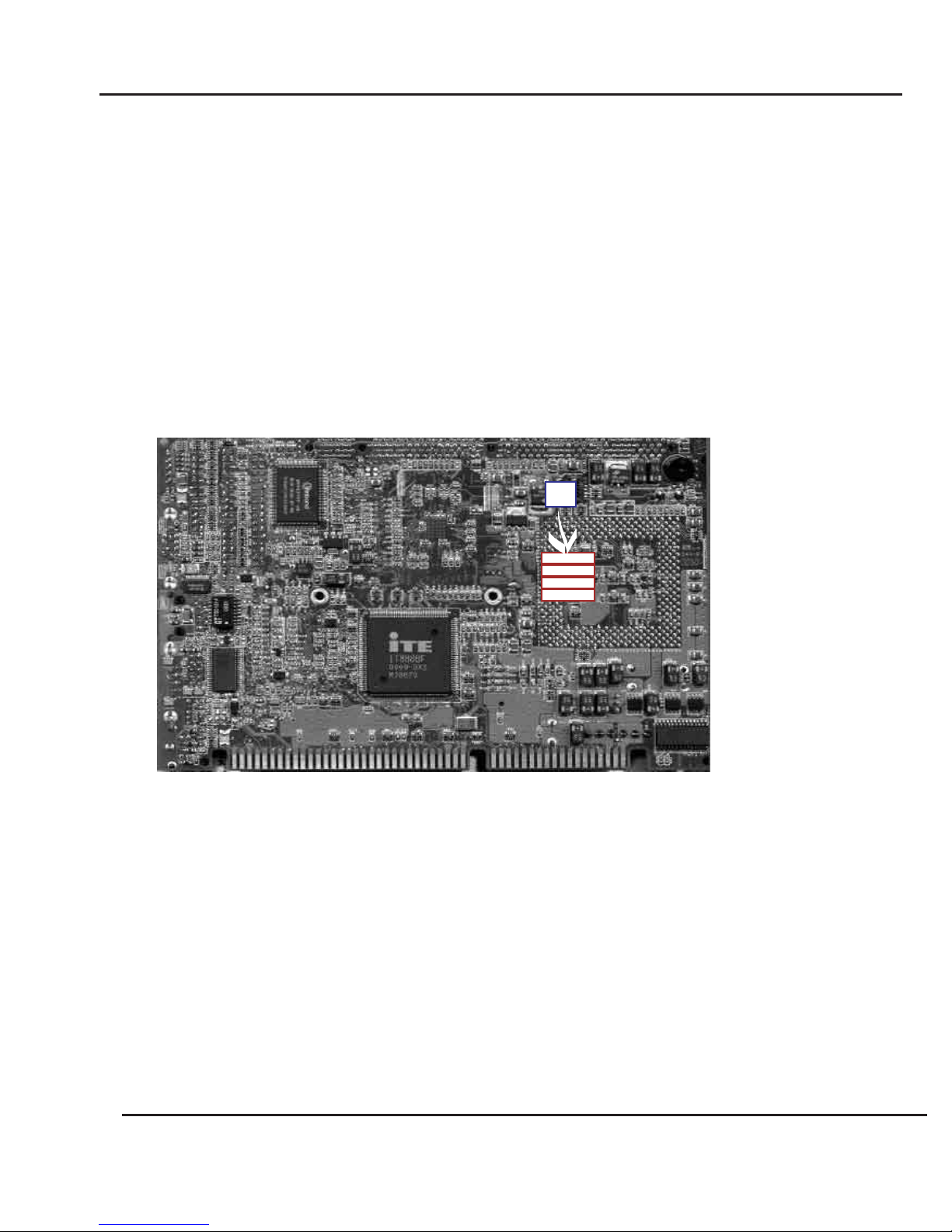

1

SW3
1
2
3
4
ON
OFF
SW3:FSB /System Memory
12 3 4
ON ON OFF OFF CPU Default
OFF OFF ON ON 66 MHZ / PC100
OFF OFF ON OFF 133 MHZ / PC133 or PC100 depending on SDRAM
OFF OFF OFF ON 100 MHZ / PC100
OFF OFF OFF OFF 133 MHZ / PC133
The BIOS CPU Host / PCI Clock item Must set to [Default]
then the SW3 can control the CPU Speed
PEAK 602VL Jumper Setting Quick Reference
Peak 602VL User's Guide Rev. B0 Dec. 2000Peak 602VL User's Guide Rev. B0 Dec. 2000
Jumpers Switch and Connectors 2-0

Peak 602VL User's Guide Rev. B0 Dec. 2000
Jumpers Switch and Connectors 2-1
Chapter 2 Jumpers Switches and Connectors

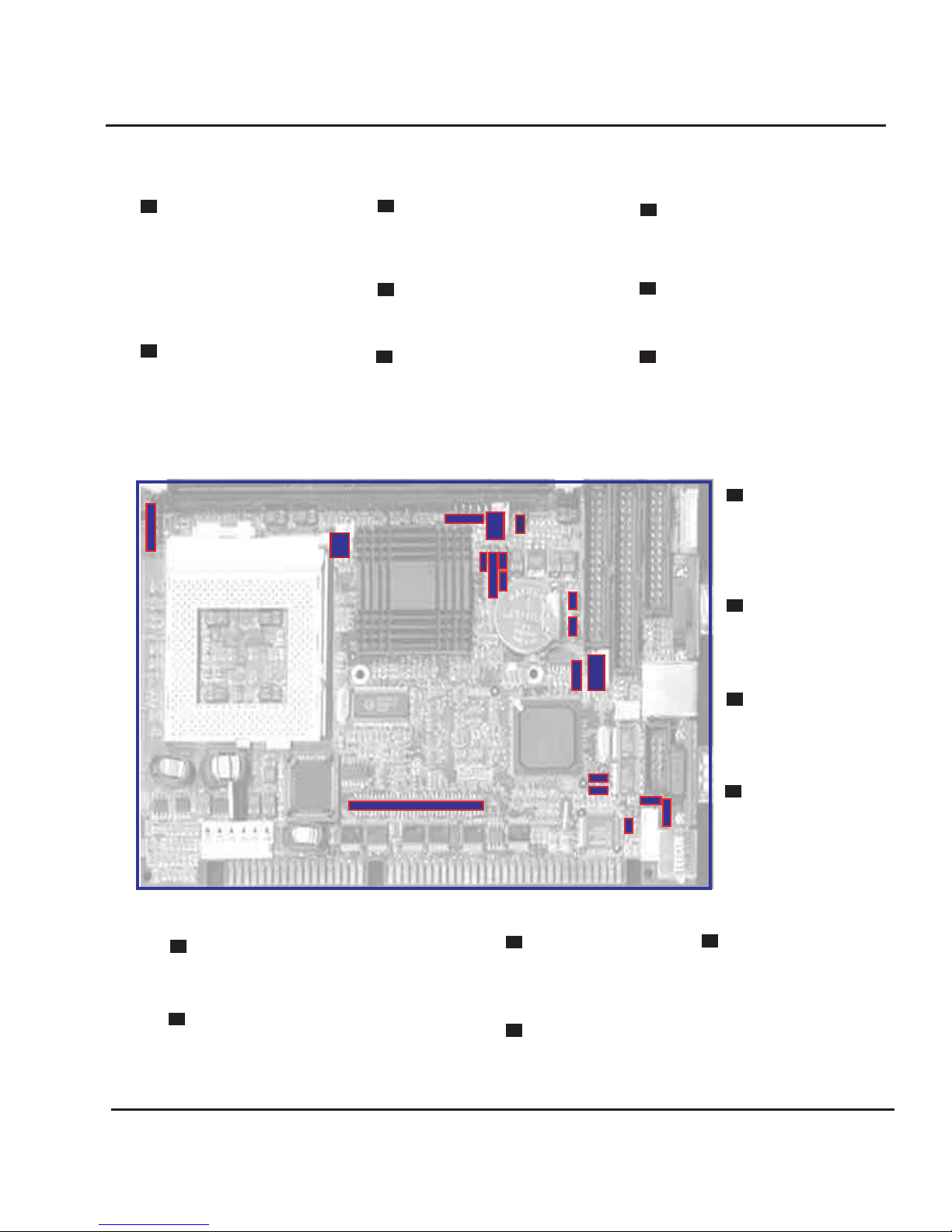

2-1 Main Board Layout
1
(J2)
J3:JST KEYBOARD CONNECTOR
WOL
(J4)
(J5)
(CON2)

Peak 602VL User's Guide Rev. B0 Dec. 2000
Jumpers Switch and Connectors 2-2
2-2 Jumpers / Switches / Connectors
JP1: RTC RESET
1-2 Short NORMAL
2-3 Short RTC RESET
JP2: NEXCOM PCI PERIPHERAL CONNECTOR
PIN No. Description PIN No. Description
1 +5V 2 AD0
3 AD1 4 AD2
5 AD3 6 AD4
7 AD5 8 AD6
9 AD7 10 Ground
11 +5V 12 AD8
13 AD9 14 AD10
15 AD11 16 AD12
17 AD13 18 AD14
19 AD15 20 Ground
21 +5V 22 AD16
23 AD17 24 AD18
25 AD19 26 AD20
27 AD21 28 AD22
29 AD23 30 Ground
31 +5V 32 AD24
33 AD25 34 AD26
35 AD27 36 AD28
37 AD29 38 AD30
39 AD31 40 Ground
41 +5V 42 BE#0
43 BE#1 44 BE#2
45 BE#3 46 PAR
47 Frame# 48 TRDY#
49 IRDY# 50 Ground
51 +5V 52 STOP#
53 DEVSEL# 54 N/C
55 SERR# 56 REQ#2

Peak 602VL User's Guide Rev. B0 Dec. 2000
Jumpers Switch and Connectors 2-3
57 GNT#2 58 N/C
59 N/C 60 Ground
61 PCI Clock 62 PCI Clock
63 PCIRST# 64 Lock#
65 IRQ#A 66 IRQ#B
67 IRQ#C 68 IRQ#D
JP5: KEYBOARD LOCK
PIN 1 VCC
PIN 2 NC
PIN 3 GND
PIN 4 KEYBOARD LOCK
PIN 5 GND
JP6: HDD LED
PIN 1 VCC
PIN 2 IDE ACT
JP7: POWER ON/OFF SWITCH
PIN 1 POWER ON/OFF
PIN 2 GND
JP8: EXTEND SMI CONNECTOR
PIN 1 GND
PIN 2 EXTEND SMI INPUT
JP9: RESET CONNECTOR
PIN 1 GND
PIN 2 HW RESET
JP10: SPEAKER CONNECTOR
PIN 1 VCC
PIN 2 GND
PIN 3 GND
PIN 4 SPEAKER

Peak 602VL User's Guide Rev. B0 Dec. 2000
Jumpers Switch and Connectors 2-4
JP11: SUSPEND LED CONNECTOR
PIN 1 GND
PIN 2 SUSLED
JP12: TEMPERATURE CONNECTOR
PIN 1 RESISTOR INPUT
PIN 2 RESISTOR INPUT
JP15: LAN ISOLATOR
ON LAN ISOLATOR
OFF NORMAL
JP17: LAN SPEED LED CONNECTOR
PIN 1 3.3V Power
PIN 2 LAN Speed Signal
JP18: LAN LINK/ACT LED CONNECTOR
PIN 1 LINK Signal
PIN 2 Active Signal
AT/ATX Power Select Jumper:
1-2 AT POWER
2-3 ATX POWER
JP3: ATX Power Connector: ( 3 Pin signals connect to Backplane )
PIN 1 5VSB
PIN 2 GND
PIN 3 Wake Up Signal
IR:
PIN 1 VCC
PIN 2 CIRR
PIN 3 IRRX
PIN 4 GND
PIN5 IRTX

Peak 602VL User's Guide Rev. B0 Dec. 2000
Jumpers Switch and Connectors 2-5
SMB1: SM-BUS CONNECTOR
PIN 1 SM BUS CLOCK
PIN 2 NC
PIN 3 GND
PIN 4 SM BUS DATA
PIN 5 VCC
S2: CASEOPEN
PIN 1 GND
PIN 2 CASEOPEN
SW3: FSB /SYSTEM MEMORY
1 2 3 4
ON ON OFF OFF CPU DEFAULT
OFF OFF ON ON 66MHZ / PC100
OFF OFF ON OFF 133MHZ / PC133 or PC100
OFF OFF OFF ON 100MHZ / PC100
OFF OFF OFF OFF 133MHZ / PC133
WOL:
WOL WAKE ON LAN CONNECTOR
PIN 1 WAKE UP
PIN 2 GND
PIN 3 5VSB
CPU FAN :
PIN 1 GND
PIN 3 VCC12
PIN 2 FAN SPEED OUTPUT

Peak 602VL User's Guide Rev. B0 Dec. 2000
Jumpers Switch and Connectors 2-6
J2:
J2 RJ45 CONNECTOR
PIN No. Description
1 TXO+
2 TXO-
3 RXI+
4 TERMPLANE
5 TERMPLANE
6 RXI -
7 TERMPLANE
8 TERMPLANE
J3:
J3 JST KEYBOARD CONNECTOR
PIN 1 KEYBOARD CLOCK
PIN 2 KEYBOARD DATA
PIN 3 NC
PIN 4 GND
PIN 5 VCC
J4:
J4 PS2 KEYBOARD/MOUSE CONNECTOR
PIN 1 KEYBOARD DATA
PIN 2 MOUSE DATA
PIN 3 GND
PIN 4 VCC
PIN 5 KEYBOARD CLOCK
PIN 6 MOUSE CLOCK
PIN 7 GND
PIN 8 GND
PIN 9 GND

Peak 602VL User's Guide Rev. B0 Dec. 2000
Jumpers Switch and Connectors 2-7
J5:
J5 USB CONNECTOR
PIN 1 VCC
PIN 2 SD0-
PIN 3 SD0+
PIN 4 SD1-
PIN 5 SD1+
PIN 6 GND
COM PORT 1:
COM PORT 1 D-SUB 9 PIN COM PORT CONNECTOR
PIN No. Description
1 Data Carrier Detect (DCD)
2 Receive Data (RXD)
3 Transmit Data (TXD)
4 Data Terminal Ready (DTR)
5 Ground
6 Data Set Ready (DSR)
7 Request to Send (RTS)
8 Clear to Send (CTS)
9 Ring Indicator (RI)
COM PORT 2:
COM PORT 2 HEADER 5*2 PIN COM PORT CONNECTOR

Peak 602VL User's Guide Rev. B0 Dec. 2000
Jumpers Switch and Connectors 2-8
CON2:
CON2 D-SUB 15 PIN VGA CONNECTOR
PIN No. Description
1 RED
2 GREEN
3 BLUE
4 N/C
5 Ground
6 Ground
7 Ground
8 Ground
9 +5V
10 Ground
11 N/C
12 Display Data Channel data
13 Horizontal Sync
14 Vertical Sync
15 Display Data Channel clock
