Chapter 1
General Information
8.5X11 5Q410000-03AA

新漢電腦股份有限公司
EBC / ICES/ ICEB… NEXCOM International Co., Ltd.
1.1 Product Feature
 Intel Core Solo & Core Duo and Core 2 Duo Processor Family support
 Intel 945GM Chipsets
 Two 240-pin DDR2 DIMM Socket support un-buffered non-ECC DDR2 400/533/667 up to 4GB
 Intel 82573L PCI Express Gigabit LAN X 2
 Support LVDS /VGA Display and one x16 PCI Express slot
 CompactFlash Socket
Product Overview:
EBC 500 is a 5.25” embedded board featuring Intel Core Solo, Core Duo and Core 2 Duo processor with
533/667 MHz FSB; speed up to 2.33 (2.0) GHz.
The EBC 500 offers high performance and various processors and PCI Express; versatile display and I/O port
selections, which is the best solution for advanced embedded applications.
8.5X11 6Q410000-03AA

新漢電腦股份有限公司
EBC / ICES/ ICEB… NEXCOM International Co., Ltd.
Block Diagram:
8.5X11 7Q410000-03AA

EBC 500 User’s Manual 8 Chapter 1
1.2 Specification:
*General
CPU
 Intel® Core Solo and Core Duo family processors
 Core 2 Duo family CPU (optional)
Front Side Bus  533/667 MHz
Chipset  Intel 945GM and ICH7-DHM
Memory  2 x 240-pin DIMM socket, up to 4GB un-buffered non-ECC DDR 533/667
SDRAM
Super I/O  ITE 8712F
BIOS
 Award system BIOS
 Plug & Play support
 Advanced Power Management and Advanced Configuration & Power
Interface support
 4M bits flash ROM
Expansion interface  1 x PCI Slot
 1 x PCI Express x 16 Slot
Dimensions (Lx W) mm/inch  203mm(L) x 143mm(W)
System Management
*Watchdog Timer
 1 minute increments from 1 to 255 minutes
 1 second increments from 1 to 255 seconds
 Tolerance 15% under room temperature 25°C
Monitoring
 Derived from Super IO to support system monitor.
 Monitoring of 5 voltages, 3 temperature and 3 fans Speed.
5 voltage (For +3.3V, +5V, +12V, Vcore and +2.5V)
3 Temperatures (CPU, two external Temperature Sensor)
3 FANs speed (CPU and System FANs)
*Display
Chipset  Intel® 945GM integrated graphics solution w/ Intel® Extreme Graphics 2
technology
Display Memory  Up to 64 MB of dynamic video memory allocation
 CRT- Analog Display Support
 Drive a standard progressive scan analog monitor with pixel resolution
up to 1600x1200 at 85 Hz, 2048x1536 at75Hz
 LVDS - LFP (local flat panel) LVDS interface
 Single- or dual-pixel LVDS panel support up to UXGA panel resolution
(1600x1200)
 Wide Screen Resolution support 848x480 and 1366x768
 TV Out - Support S-Video up to 1024 x 768 NTSC/PAL and 1080p HDTV
Display interface and
Resolution
 CCFL x1 for LCD Panel Backlight Inverter Power
Pin 2,3 support 12VDC power source for inverter:
Max. 12VDC@2A for each
*Ethernet
Controller
 Intel® 82573L PCI Express Gigabit Ethernet Controller x 2 supporting
two GbE LAN ports
 Support Boot From LAN (PXE)
 Support Wake on LAN (When 5Vsb power available). (LAN1 only)
Interface  RJ45 with LED connecter x 2
LED
 Active, Link 100, and 1000 LAN LED
 LAN Status LED defined:
10: LED Off / 100: Green LED / 1000: Orange LED

EBC 500 User’s Manual 9 Chapter 1
 Extra (External) LED: 2 x 4 pin header
*Audio
AC97 Audio CODEC
 Realtek RTL655 CODEC for AC97 v2.1 CODEC
 Line in with pin header
 Microphone in and Speaker out Interface
*I/O Interface
USB 2.0  6 x USB 2.0 port (2 on front, 4 on Board by one 2.0 mm JST
Connectors), bandwidth: 480 Mb/s
Serial ports  SIO×4, support RS-232 with pin headers
 1 x3-pin jumper to switch 5V and 12V power source
Parallel ports  1 x Box header 26-pin connector
PS/2  1 x PS/2 connector for Keyboard and Mouse
GPIO
 8 GPIO lines via header (GPI 0~3 and GPO 0~3); GPO0 and GPO1
could be connected to LED for programmable feature
 TTL Level (0/5V)
FAN  1x 4-pin FAN JST connector (for CPU)
 2x 3-pin FAN connector x 2 (for System)
IrDA On board pin header for IrDA Tx Rx
Others
 On Board buzzer
 Power LED/HDD Power LED
 SMBus 2.0 controller (2 pin header)
 On board 2 pin header for reset (for power on button switch)
On-board RTC
 On-chip RTC with battery back up
 External Lithium battery x 1
 RTC Tolerance less than 2sec (24 hours) under 25˚C environment
*Storage Support
CF  1x Internal CompactFlash socket
 Support One Type I& II Compact Flash Card (Primary Master)
SATA  2 x SATA ports, support Raid 0,1, bandwidth: 150 MB/s
IDE  1 x 44-pin IDE connector
Disk on Module  1 x 2-pin Jst power (+5V,GND ) for DOM
*Power Supply
Type  Support both AT and ATX Mode
 Factory default setting is AT mode
ATX mode
 +5V / -5V / 5Vsb Power In (+12V/-12V for PC 104 plus)
 When Change to ATX Mode, the BIOS default setting is as follow:
POWER -SUPPLY TYPE [ATX]
AUTO PWR-FAILURE RESUME [ON]
AT mode
 +5V Power in
 No Power On push Button, Software Shutdown function and LAN remote
wake up
Power consumption 43.2 W in 12V, 121.2 W in 5V, and 11.5W in 5Vsb
Drivers
Windows 2000/2003, XP, Linux
*Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -20˚C to 85˚C
Relative Humidity  Operating 10%~90%, non-condensing
 Non-operating 5%~95%, non-condensing
* Certifications
CE approval
FCC Class A

EBC 500 User’s Manual 10 Chapter 1
Ordering Information:
EBC 500
(P/N: 1E00050000X0)
5.25” Embedded Board supporting Intel Core Solo, Core Duo and
Core 2 Duo CPU w/VGA/ Dual LVDS/Audio/4 COMs/6 USB2.0 /Dual
Gigabit LAN
1.3 Power Consumption Measurement
Chipset Vcore
Yonah
CPU(1.
2V)
VTT
+1.05
V
+1.8V +0.9V +1.5V +2.5V +3.3V +1.2V +3.3V
SB
+5VS
B
+5V
Total Current
(Unit: A )
36 8 10 1 13.4 0.6 8.12 1.6 0.35 1.7 8.5
Total Watt
(Unit: W )
43.2 8.4 18 0.9 20.1 1.5 26.8 1.92 1.155 8.5 42.5
Transfer Votage
(Unit:V)
+12V +5V +5V +5V +5V +5V +5V 3VSB 5VDUAL
Power supply must consumed watts and currents
Power Type +12V +5V +5VSB
Consumed watts(Item: W ) 43.2 121.2 11.5
Consumed currents (Item A ) 3.6 24.24 2.3
Actually required currents (Item
A/0.8 )
4.5 30.3 2.85

EBC 500 User’s Manual 11 Chapter 1
1.4 Board Layout
Figure 1.2: Overview of EBC 500

EBC 500 User’s Manual 12 Chapter 1
1.5 Board Dimensions
Figure 1.3: Mechanical Drawing of the EBC 500

EBC 500 User’s Manual 13
Chapter 2
Jumper Setting

EBC 500 User’s Manual 14
This chapter of the User’s Manual describes how to set jumpers.
Note: The procedures that follow are generic for all EBC 500 series.
2.1 Before You Begin
Ensure you have a stable, clean working environment. Dust and dirt can get into components
and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal
components. Most of the procedures that follow require only a few simple tools, including the
following:
• A Philips screwdriver • A flat-tipped screwdriver
• A set of jewelers Screwdrivers • A grounding strap
• An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended that you do not
use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic
parts of the connectors.
Before working on internal components, make sure that the power is off. Ground yourself before
touching any internal components, by touching a metal object. Static electricity can damage
many of the electronic components. Humid environment tend to have less static electricity than
dry environments. A grounding strap is warranted whenever danger of static electricity exists.
2.2 Precautions
Computer components and electronic circuit boards can be damaged by discharges of static
electricity.
Working on the computers that are still connected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or yourself:
• Always disconnect the unit from the power outlet whenever you are working inside the case.
• If possible, wear a grounded wrist strap when you are working inside the computer case.
Alternatively, discharge any static electricity by touching the bare metal chassis of the unit
case, or the bare metal body of any other grounded appliance.
• Hold electronic circuit boards (such as the EBC 500 board) by the edges only. Do not touch
the components on the board unless it is necessary to do so. Don’t flex or stress the circuit
board.
• Leave all components inside the static-proof packaging that they shipped with until they are
ready for installation.
• Use correct screws and do not over tighten screws.

EBC 500 User’s Manual 15
2.3 Setting Jumpers
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When
setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper
cap is placed on both pins, the jumper is SHORT. If you remove the jumper cap, or place the
jumper cap on just one pin, the jumper is OPEN. Please see the following illustrations
The illustrations on the right
show a 2-pin jumper. When the
jumper cap is placed on both
pins, the jumper is SHORT. If
you remove the jumper cap, or
place the jumper cap on just
one pin, the jumper is OPEN.
Open (Off) Short (On)
These illustrations show a
3-pin jumper. Pins 1 and 2 are
SHORT.
Table 2-1: Setting Jumpers

EBC 500 User’s Manual 16
2.4 Location of Jumpers
Compact
Flash
L
P
T
J11
J10
CN4 JP13
JP4
JP7 JP14
JP1
JP11
JP21
JP18
JP16
JP15
JP17
JP8JP5
JP20
J1
J5
J2
CON 1 (ATX Power CON.)
Figure 2-1: Jumper Location
V
G
A
COM x 4
CPU
NB
(INTEL,945GM)
SB
(INTEL,ICH7)
JP6 JP12
11
JP9 PCI-e x 16 Slot
LAN1
LAN2
USBx
2
KB/
MS
CON 2 (ATX AUX
Power CON.)
SATA SATA
DIMM
x 2
PCI
1
1
1
11
1
111
1
1
1
111
1
1
1
1
=PIN 1
LVDS LVDS
CCFL TV-out USB USB
MIC
IN
1
11
Speaker
Out
JP2 J4J6
IDE
1
J3
J7
11
1
JP19
JP3
1

EBC 500 User’s Manual 17
2.5 Functions of Jumpers and Connectors
(1) SATA1/SATA0 connector (J8,J9)
A . Connector size : 7 Pin , 1.27mm ,180°, SATA Connector
B . Connector location
C. Connector pin definition
Pin Definition Pin Definition
1 GND 5 SATA_RXN
2 SATA_TXP 6 SATA_RXP
3 SATA_TXN 7 GND
4 GND
(2) PIO Connector (CN1)
A . Connector size : 2 X 13 = 26 Pin ,2.0 mm, 180° ,BOX Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 Line Print Strobe 14 Auto Feed#
2 Parallel Data 0 15 Error#
3 Parallel Data 1 16 Initialize#
4 Parallel Data 2 17 Select Input#
5 Parallel Data 3 18 GND
6 Parallel Data 4 19 GND
7 Parallel Data 5 20 GND
8 Parallel Data 6 21 GND
9 Parallel Data 7 22 GND
10 Acknowledge# 23 GND
11 Busy 24 GND
12 Paper empty 25 GND
13 Select 26 NC

EBC 500 User’s Manual 18
(3) SIO Connector (CN6)
A . Connector size: 2 X 20 = 40 Pin ,2.0 mm, 180° ,BOX Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 DCD1 21 DCD3
2 DSR1 22 DSR3
3 RXD1 23 RXD3
4 RTS1 24 RTS3
5 TXD1 25 TXD3
6 CTS1 26 CTS3
7 DTR1 27 DTR3
8 RI1 28 RI3
9 GND 29 GND
10 NC 30 NC
11 DCD2 31 DCD4
12 DSR2 32 DSR4
13 RXD2 33 RXD4
14 RTS2 34 RTS4
15 TXD2 35 TXD4
16 CTS2 36 CTS4
17 DTR2 37 DTR4
18 RI2 38 RI4
19 GND 39 GND
20 NC 40 NC
(4) CPU FAN Connector(CN4)
A . Connector size : 1 X 4 = 4 Pin , 2.54mm ,180°, FAN Connector
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 GND 3 Sense
2 +12V 4 NC

EBC 500 User’s Manual 19

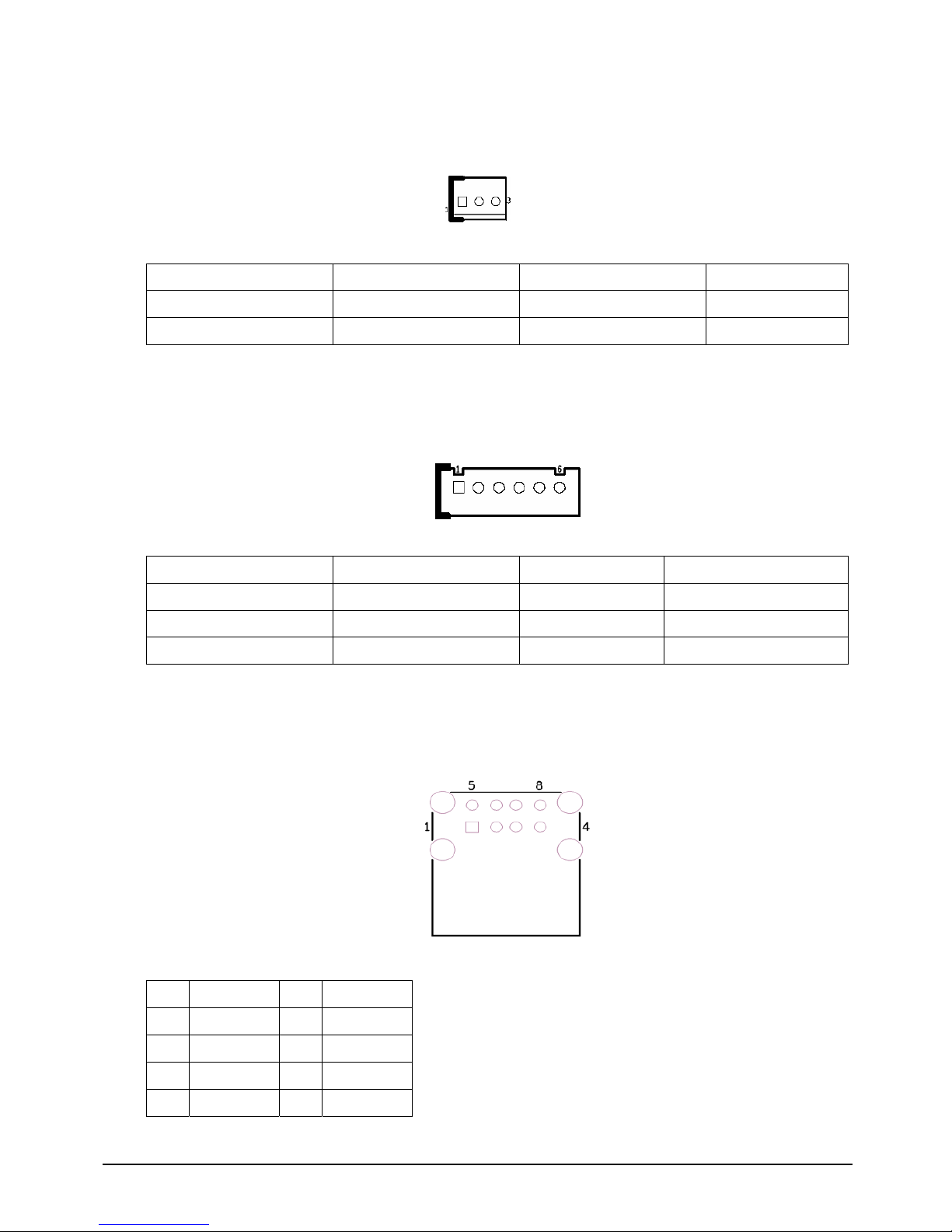

(5) SYSTEM FAN1/FAN2 Connector(J1 , J5)
A . Connector size : 1 X 3 = 3 Pin , 2.54mm ,180°, FAN Connector
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 GND 3 Sense
2 +12V
(6) USB 2.0 , 0/1/4/5 Connector (J4 , J6 )
A . Connector size : 1 X 6 = 6 Pin , 2.0mm ,180°, JST Connector
B . Connector location
C .Connector pin definition
Pin Definition Pin Definition
1 +5VSB 4 Data 1-/Data 5-
2 Data 0-/Data 4- 5 Data 1+/Data 5+
3 Data 0+/Data 4+ 6 GND
(7) USB 2.0 , 2/3 Connector (CN9)
A . Connector size : 1 X 6 = 6 Pin , 15.2x16.8x17mm, 90°, FEMALE
B . Connector location
C .Connector pin definition
Pin Definition Pin Definition
1 +5VSB 5 +5VSB
2 Data 2- 6 Data 3-
3 Data 2+ 7 Data 3+
4 GND 8 GND

EBC 500 User’s Manual 20
(8) IDE Connector Primary (CN8)
A . Connector size : 2 x 22 = 44pins,2.0mm, 180°,BOX Header
B . Connector location
C. Connector pin definition
Pin Definition Pin Definition
1 Reset# 23 IOW#
2 GND 24 GND
3 Data 7 25 IOR#
4 Data 8 26 GND
5 Data 6 27 IOCHRDY
6 Data 9 28 GND
7 Data 5 29 DMA ACK#
8 Data 10 30 GND
9 Data 4 31 Interrupt
10 Data 11 32 NC
11 Data 3 33 DiskAddress 1
12 Data 12 34 DMA66 Detect
13 Data 2 35 DiskAddress 0
14 Data 13 36 DiskAddress 2
15 Data 1 37 HDCCS1#
16 Data 14 38 HDCCS3#
17 Data 0 39 HDD Active #
18 Data 15 40 GND
19 GND 41 +5V
20 NC 42 +5V
21 DMA REQ 43 GND
22 GND 44 GND
