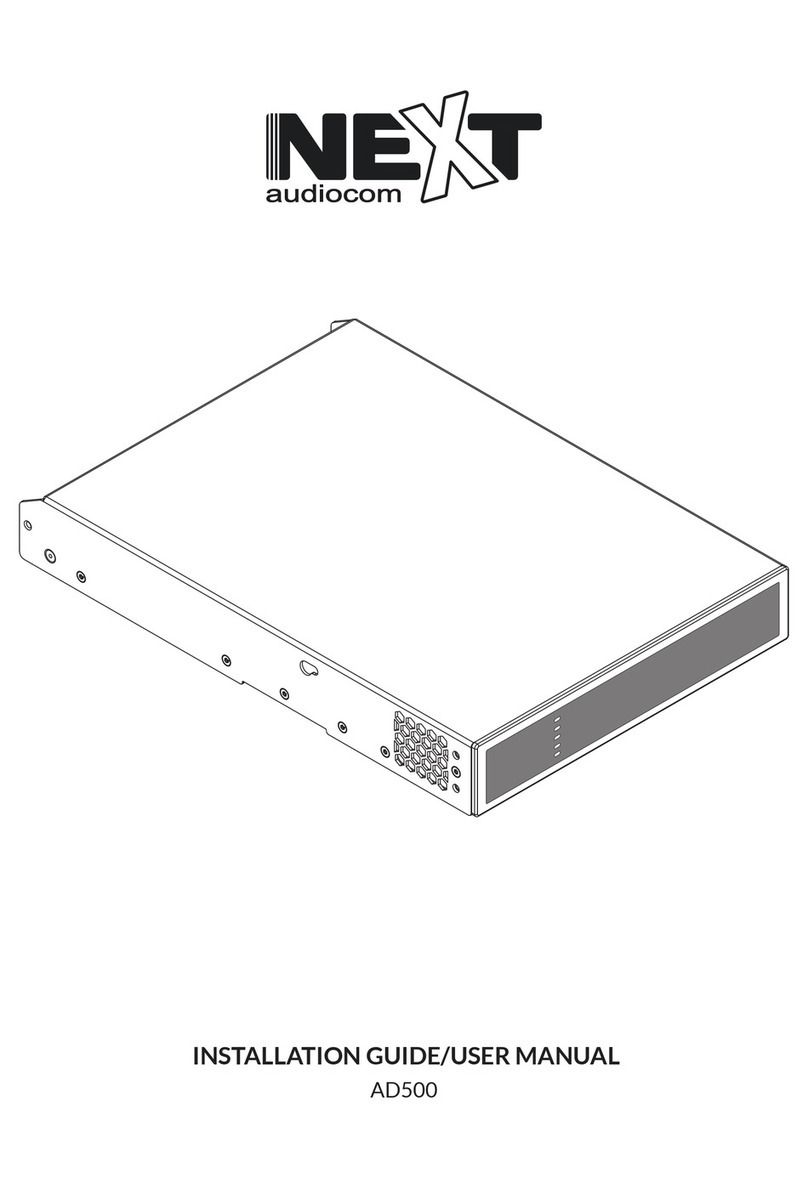

next audiocom AD500 User manual

QUICK START
GUIDE
Carton Contents
• Amplier unit • Output connector x 1 or 2
• Mains power cable • Adhesive rubber feet x 4
• Input connector x 2 • Document pack
• GPIO socket connector
Support
• A full user manual that includes information
on installation, mounting accessories and
amplier operation is available online.
Wireless Network Control Connection
Connection Sockets
Wired Network Control Connection
• High or low impedance speaker connection options can be
selected independently for each output channel via the amplier
conguration web interface.
• Analogue input sensitivity can be adjusted independently for
each channel via the amplier conguration web interface.
• S/PDIF digital audio I/O routing can be congured via the
amplier conguration web interface.
Installation Notes
Network
Control
Congurable
GPIO
Congurable
S/PDIF Audio I/O
Audio Inputs
Balanced: Euroblock, alternative unbalanced: RCA Phono.
Congurable
Speaker Outputs
• GPIO (General Purpose Input/Output) options can be
congured via the amplier conguration web interface.
• Ensure that rack or other conned installation does not
restrict the airow required for safe and reliable operation of
the equipment. It is important to ensure that the 40°C maximum
operating temperature for the equipment is not exceeded.
A mobile, laptop or desktop device with WiFi functionality and a
web browser is required.
Follow the steps below.
1. Connect the AD500 amplier to mains power using the
supplied mains cable and wait for the front panel WiFi indicator
to illuminate green.
2. Use a mobile, laptop or desktop device to search for available
WiFi networks. Connect to, ‘NEXT AD500 (product serial
number)’ using the password, ‘password’. The amplier serial
number can be found on its rear panel.
3. Open a mobile, laptop or desktop device web browser and enter
the following IP address: 192.168.4.1. The amplier conguration
web interface page will open in the browser app to enable
amplier conguration as required.
It is strongly recommended that the AD500 WiFi
password is changed following initial wireless connection.
A laptop or desktop device with Ethernet functionality, a web
browser and a network scanning app is required.
Follow the steps below.
1. Connect the AD500 amplier Network Control socket to
a free socket on a network router or network switch using
an Ethernet cable.
2. Connect the AD500 amplier to mains power using the
supplied mains cable and wait for the front panel Network
indicator to illuminate green to indicate that the amplier
has been assigned an IP address.
3. Use a network scanner app to identify the IP address assigned
by the network router to the AD500 amplier.
4. Open a laptop or desktop device web browser and enter the IP
address identied in the Step 3 above. The amplier conguration
web interface page will open to enable amplier conguration as
required.
Q UICK S
TART G UIDE
AD500
4-CHANNEL AMPLIFIER WITH DSP

This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufcient
magnitude to constitute a risk of electric
shock to persons.
Ce symbole a pour but d’attirer l’attention de
l’utilisateur sur la présence, à l’intérieur du boîtier
de l’appareil, d’une «tension dangereuse» non
isolée, qui pourrait être sufsamment puissante
pour représenter un risque d’électrocution pour
les personnes.
This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the
appliance.
Ce symbole a pour but d’attirer l’attention
de l’utilisateur sur la présence, dans la
documentation qui accompagne l’appareil,
d’instructions importantes relatives à son
utilisation et sa maintenance (entretien).
Consignes de sécurité importantes
1. Veuillez lire ces instructions.
2. Conservez ces instructions.
3. Respectez tous les avertissements.
4. Suivez toutes les instructions.
5. N’utilisez pas cet appareil près de l’eau.
6. Nettoyez uniquement avec un chiffon sec.
7. N’obstruez pas les ouïes de ventilation. Installez l’appareil en respectant
les instructions du fabricant.
8. Éloignez l’appareil des sources de chaleur: radiateurs, bouches de
soufage, fours et autres (y compris les amplicateurs).
9. Pour réduire le risque d’électrocution, le cordon d’alimentation doit être
connecté à une prise de courant avec une mise à la terre de protection.
10. Respectez le dispositif de protection de mise à la terre de la prise secteur.
Une prise polarisée est équipée de deux ches, l’une plus large que l’autre.
Une prise avec borne de terre est équipée de deux ches et d’une borne de
terre. La che large, ou la borne de terre, est garante de votre sécurité. Si
la che secteur fournie avec l’appareil ne correspond pas à la prise secteur
de votre installation, faites remplacer cette dernière par un électricien.
11. Disposez les câbles de sorte qu’ils ne puissent pas être piétinés, coincés ou
pincés; une attention toute particulière doit être accordée au niveau des
prises secteur et de l’embase secteur de l’appareil.
12. Ne débranchez pas l’appareil en tirant sur le cordon. Utilisez la che.
13. Débranchez cet appareil du secteur lors des orages ou des longues
périodes d’inutilisation.
14. Conez toute réparation à un technicien qualié. L’intervention d’un
technicien est nécessaire dans les cas suivants: le cordon d’alimentation
ou la prise secteur sont endommagés, des corps étrangers ou du liquide
se sont introduits dans l’appareil, l’appareil a été exposé à la pluie ou à
l’humidité, l’appareil montre des signes de dysfonctionnement ou est
tombé.
15. Le coupleur de l’appareil, ou la che secteur, est le dispositif de
déconnexion du secteur et doit rester facilement accessible après
l’installation.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation opening. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
9. To reduce the risk of electrical shock, the power cord shall be connected
to a mains socket outlet with a protective earthing connection.
10. Do not defeat the safety purpose of the polarized or grounding type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug
does not t into your outlet, consult an electrician for replacement of the
obsolete outlet.
11. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
12. Do not unplug the unit by pulling on the cord, use the plug.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. The appliance coupler, or the AC Mains plug, is the AC mains disconnect
device and shall remain readily accessible after installation.
WARNING!
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
This equipment must be earthed.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
AVIS
RISQUE DE CHOC
ELECTRIQUE.
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NEXT AUDIOCOM - Av. Dom Miguel 344, 4435-678 Porto, Portugal - [e-mail] - www.nextaudiogroup.com
