Next Maverick MV12 User manual

USER MANUAL
v202007
Thank you for purchasing NEXT-audiocom Speakers and their associated products.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

THIS PAGE INTENTIONALLY LEFT BLANK

www.nextaudiocom.com
CONTENTS
INTRODUCTION
INTRODUCTION 1
UNPACKING 1
MAVERICK SERIES OVERVIEW 1
SAFETY FIRST
SAFETY FIRST 2
GETTING STARTED
PACKAGING CONTENTS 3
MULTI-POSITION FEATURE 3
POWER AMPLIFIER 3
PRESET LIST 4
QUICK START 4
BLUETOOTH CONNECTION 4
APPLICATIONS
MV12 + MIC + GUITAR 5
MV12 + STEREO DJ MIXER 5
MV12 + SUBWOOFER (BLUETOOTH PLAY) 5
SERVICE
TROUBLESHOOTING 6
WARRANTY POLICY 6
END-OF-LIFE 6
TECHNICAL
TECHNICAL SPECIFICATIONS 7
DIMENSIONS 7
REACH US
CONTACTS 8

1www.nextaudiocom.com
INTRODUCTION
INTRODUCTION
Thank you for purchasing a NEXT-audiocom MAVERICK Series speaker. This manual will provide you with
useful and important information about your active portable series element. Please devote some time reading
this manual, and keep it at hand for future reference. NEXT-audiocom is concerned with your safety and
well-being, so please follow all instructions and heed all warnings. Also, a better understanding of some specif-
ic features of the speaker will help you to operate it to its full potential. With a continuous evolution of tech-
niques and standards, NEXT-audiocom, reserves the right to change the specications of its products without
early warning. For the most current data, please visit our website: www.nextaudiocom.com
UNPACKING
NEXT-audiocom’s MAVERICK Series are built under quality supervision of NEXT-audiocom, according to the
highest standards. When unpacking your element, carefully examine it for any signs of possible transit damage
and inform your dealer immediately if any such damage has occurred.
It is suggested that you retain the original packaging so that the cabinet can be repacked in the future if
necessary. Please note that NEXT-audiocom and its authorized distributors cannot accept any responsibility for
damage to any returned product through the use of non-approved packaging.
MAVERICK SERIES OVERVIEW
NEXT-audiocom engineered the MAVERICK series, a portable loudspeaker series oering the best perfor-
mance and reliability in their class. Combining an ultra compact size, user friendly operation and a great design
makes this series a great solution for musicians, DJs, basic installation and portable multi-porpose sound at a
limited budget.
Maverick series aims to enhance usability and versatility combining eciency to a professional sound perfor-
mance, featuring high quality Bluetooth® audio streaming, for background music or musical accompaniment,
impressive SPL and an advanced DSP. A surprisingly simple handling concept lets you plug in and play straight-
away. Congure the system by selecting the appropriate Preset (MV12) or Tone Optimizer (MV6) and let the
system do the rest.
Thanks to the lightweight, and a very compact size, ABS plastic cabinet, it’s easy to carry and take just about
anywhere. This series comprises two dierent models, MV6 (6,5”) and MV12 (12”).
The Maverick MV6 is a all-in-one Battery-Powered Portable PA with Bluetooth connection, USB MP3 Player, AUX
IN, MIC IN and instrument input. It comes with a remote control allowing the user to control it at distance. The
rechargeable lithium-ion battery keeps you going for up to 6 hours. The multi-position feature allows the user
to use it in several diferent ways: oor standing, oor tilted, stage monitor and pole mounted.
The Maverick MV12 is a 2-way active speaker with Bluetooth connection, AUX IN, CD PLAYER IN, MIC IN and
instrument input. The powerful built-in DSP disposes 5 Presets that successfully adapt the speaker for the most
distinct and demanding applications (Live performance, Music Reproduction, Speech or Stage Monitor). It is
also possible to extend the system’s frequency range adding an external subwoofer and changing the preset
accordingly. Thanks to the multi-position feature, this speaker can cover many dierent applications.

SAFETY FIRST
It is important that the speaker systems are used in a safe manner. Please take some time to review the follow-
ing point concerning safe use of your NEXT-audiocom’s MAVERICK speaker.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use your speaker near any sources of water, like swimming pools, lakes, water streams, exposed to rain,
high humidity environments or any other source of water or moisture.
• Use only a soft dry cloth to clean your speaker.
• Never use your speaker too close to any heat source, such as radiators, or any other device that produces heat.
Recommended temperature: 0ºC to +35ºC.
• Never place your speaker in a way that prevents air ow near the amplier. A minimum clearance distance of
20cm should be kept between the amplier and any near surface.
• When pole mounted, always ensure that the oor or structure where the stack will take place is even and can
withstand the weight.
• Do not suspend the speaker by its handles. The handles are intended to only be used for temporary transport
by people.
• Place cables in a way that they do not present a trip hazard.
• Do not place any objects on top of the speaker, they can fall accidentally and cause injuries.
• Do not attempt to move the speaker while connected.
• It is advised to unplug the speaker during storms or when not in use for a long period of time.
• Do not attempt to service the speaker beyond what is described in this manual. All other service or repair of
this product should be carried only by qualied personnel.
• To prevent electric shock, do not use any extension cord, receptacle or other outlets where the blades of the
connectors cannot be fully inserted.
• Do not operate the unit for an extended period of time with the sound distorting.
• Do not operate the unit with the “PEAK” led consistently on.
2
www.nextaudiocom.com
SAFETY FIRST

3
GETTING STARTED
www.nextaudiocom.com
PACKAGING CONTENTS
- 1 x Maverick MV12
- 1 x IEC Power Cable
- 1 x User’s Guide

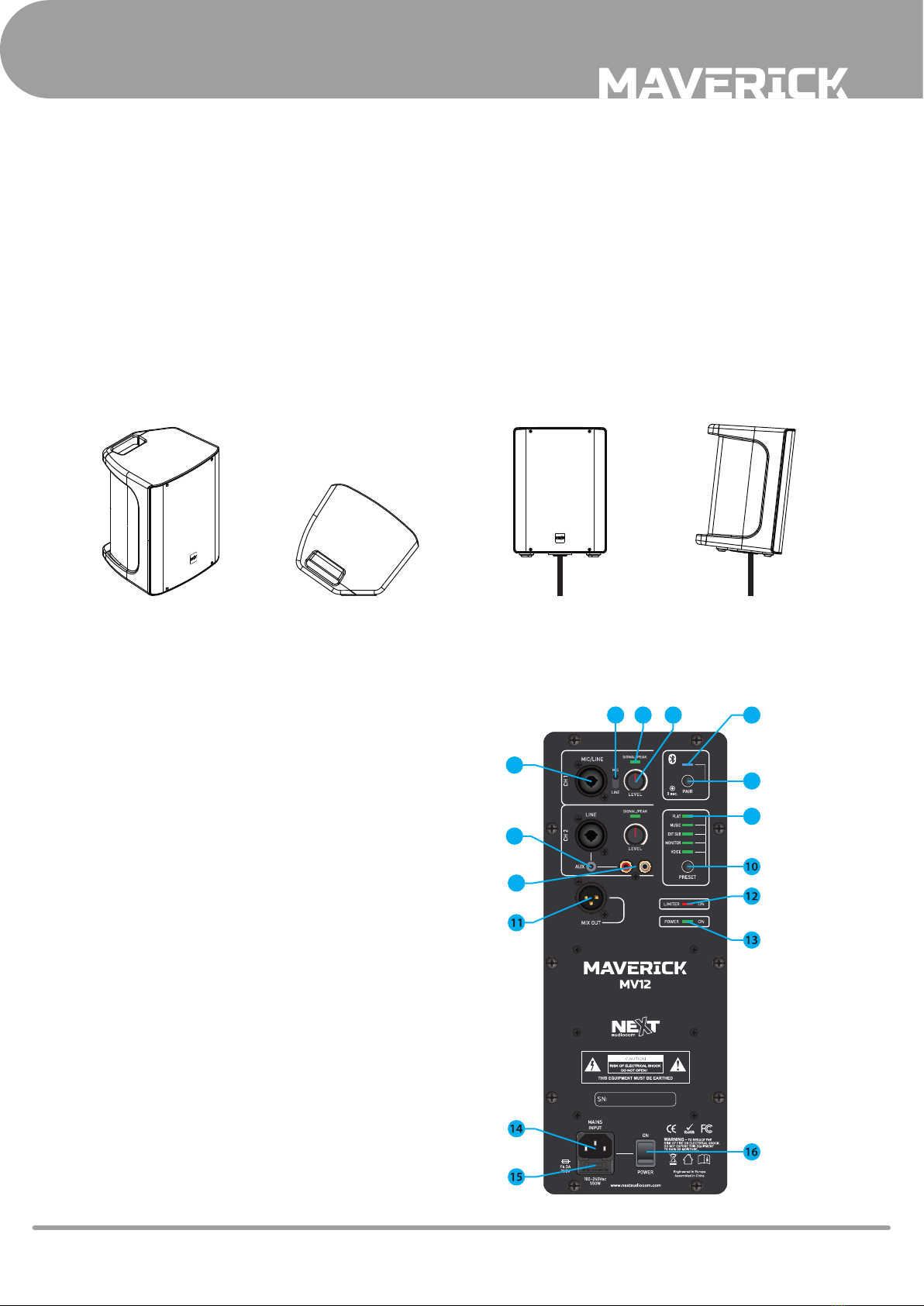

MULTI-POSITION FEATURE
Thanks to the multi-postion feature, the MV12 can be used in several dierent applications.
POWER AMPLIFIER
1 - XLR / TRS 1/4” Combo Inputs
2 - MIC/LINE Selector
Line is used for audio mixing console, audio playback
device or electronic musical instrument
3 - Input Signal / Peak LED
Green - Signal / Red - Peak
4 - Input Level
5 - Bluetooth State LED
Quick Blink - Unpaired / Solid - Paired / Slow Blink - Playing
6 - Bluetooth Pair Button
7 - AUX Input - 3.5mm audio jack
8 - CD Player Input - RCA connector
9 - Active Preset LED
10 - Preset Selector Button
11 - XLR Output
12 - Output Limiter LED
Red - Limiting
13 - Power LED
Blue - ON
14 - Mains Power Input - IEC connector
15 - Protection Fuse - F6.3A 250V
16 - Power On/O Switch
Floor Standing Stage Monitor 8º Tilted
Pole / Tripod Mount
Straight
Pole / Tripod Mount
1
2 3 4 5
6
7
9
8

4
www.nextaudiocom.com
GETTING STARTED
PRESET LIST
FLAT - Speaker’s Flat Response - is intended to be used on live performances.
MUSIC - Speaker’s EQ for Music Reproduction - is used for recorded music playback and electronic
dance music applications.
EXT. SUB - HPF at 80Hz - use this setting when the speaker is playing with an external subwoofer.
MONITOR - Speaker’s EQ for Stage Monitor - must be selected when used as stage monitor facing
towards you.
VOICE - Speaker’s EQ for Voice - use this preset for speech only or spoken word program.
QUICK START
1. ELECTRICAL
1.1 - Conrm the Power Switch is in the OFF position.
1.2 - Connect the supplied power cord to the IEC inlet.
1.3 - Connect the power cord to an available power outlet.
1.4 - Flip on the Power Switch and the Power LED and the Front Grill LED will illuminate.
2. SIGNAL
2.1 - Turn all the Channel Levels counterclockwise before connecting any inputs.
2.2 - Connect XLR or TRS cable from audio source to CH1 and/or CH2 inputs.
2.3 - Select Mic or Line via the Mic/Line switch on CH1.
3. SOUND
3.1 - Using the EQ Selector button, select the appropriate preset to match your application.
3.2 - Slowly turn Channel Level potentiometer clockwise to set the input level. If the SIGNAL/PEAK
LED becomes red, reduce the level.
BLUETOOTH CONNECTION
1. Press and hold the bluetooth pair button for 3 seconds. Now, the speaker is looking for bluetooth
devices and the Bluetooth LED will start blinking quickly.
2. On your mobile device, select NEXT MV12 to initiate the pairing process.
3. Once the device is paired, the Bluetooth LED will turn solid blue.
4. Play the audio from the mobile device. The Bluetooth LED will blink slowly during audio reproduc-
tion.
To unpair the speaker from the mobile device click once on the pair button.
To turn o the bluetooth on the speaker press and hold the pair button for 3 seconds.

5www.nextaudiocom.com

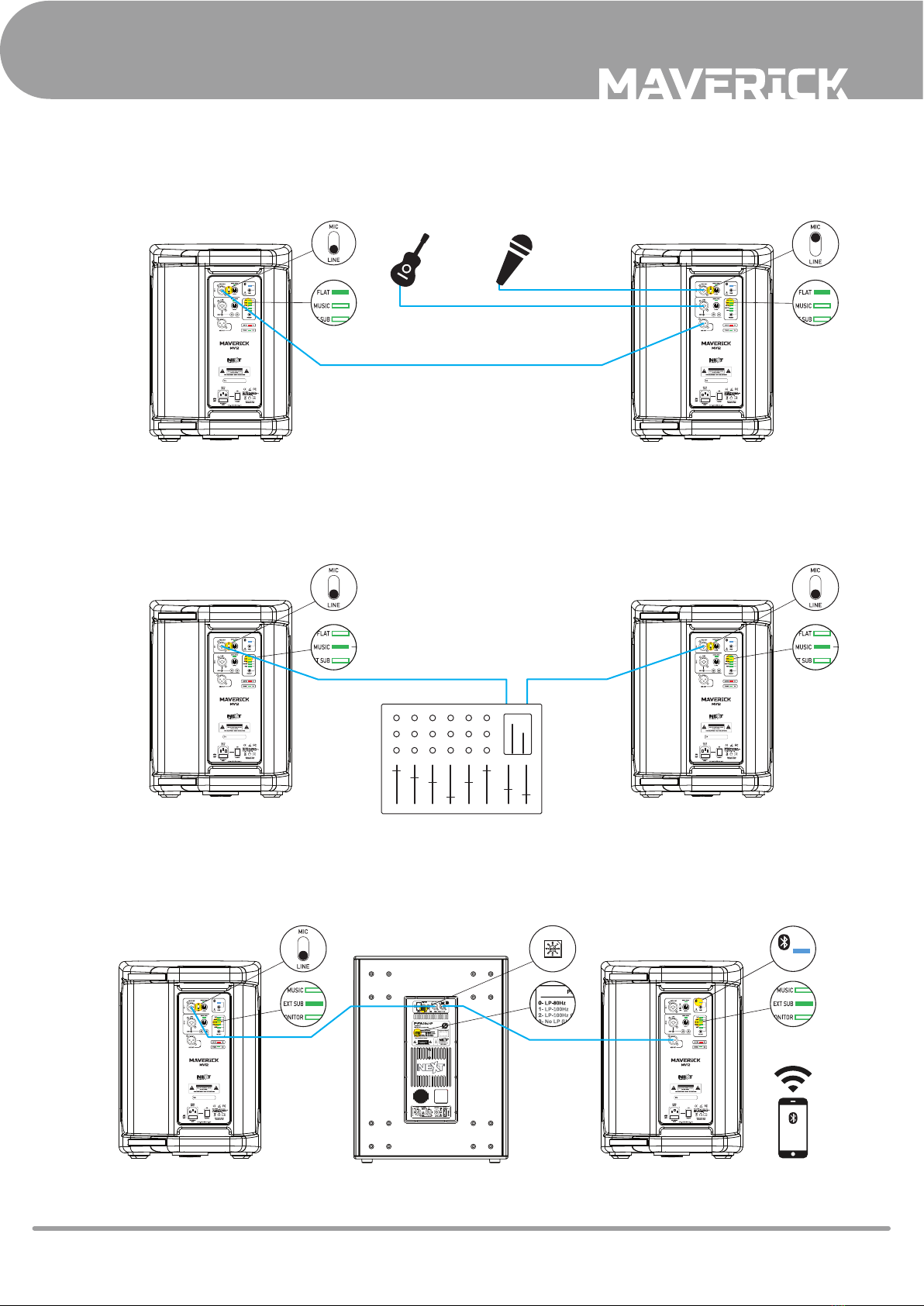

APPLICATIONS
MV12 + MIC + GUITAR
MV12 + STEREO DJ MIXER
MV12 + SUBWOOFER (BLUETOOTH PLAY)
L R
L R
L R
AUDIO
L RSUB

6
www.nextaudiocom.com
SERVICE
TROUBLESHOOTING
WARRANTY POLICY
NEXT-audiocom’s products are warranted, by NEXT-audiocom, against manufacturing defects in materi-
als or craftsmanship over a period of 2 years counting from the date of original purchase. The original receipt
of purchase is mandatory for warranty validation purposes, and the product must have been bought from a
NEXT-audiocom authorized dealer. The warranty can be transferred to a subsequent owner during the warran-
ty period; however, this cannot extend the warranty period beyond the original warranty period of two years
from the original date of purchase stated on the NEXT-audiocom’s invoice.
During the warranty period NEXT-audiocom will, at its own discretion, either repair or replace a product which
prove to be defective provided that the product is returned in its original packaging, shipping prepaid, to an
authorized NEXT-audiocom service agent or distributor.
NEXT-audiocom cannot be held responsible for defects caused by unauthorized modications, improper use,
negligence, exposure to inclement weather conditions, act of God or accident, or any use of this product that
is not in accordance with the instructions provided by this manual and/or NEXT-audiocom. NEXT-audiocom is
not liable for consequential damages. This warranty is exclusive and no other warranty is expressed or implied.
This warranty does not aect your statutory rights.
END-OF-LIFE
When to be denitively put out of operation, take the product to a local recycling plant for a disposal
which is not harmful to the environment.
Devices marked with this symbol must not be disposed of as household waste. Contact your retailer or
local authorities for more information.
Symptom Possible cause Action

7www.nextaudiocom.com
TECHNICAL
TECHNICAL SPECIFICATIONS
DIMENSIONS
Dimensions in milimeters
NEXT MV12 TECHNICAL SPECIFICATIONS
Speaker Type
Acve Portable Speaker
Frequency Response (-6dB)
53Hz – 19.5kHz
Calculated Max. SPL
(Connuous/Peak) 124dB/127dB (Full-space)
Horizontal Coverage Angle (-6dB)
90º
Vercal Coverage Angle (-6dB)
60º
Components
LF - 1 x 12" woofer / 2" Voice Coil
HF – 1 x 1" Titanium Driver / 1.75"
Voice Coil
Program/Peak Power
550W/1100W
Mixer
2 Channels
Presets
Flat, Music, Ext. Sub, Monitor, Voice
Bluetooth
Audio Streaming – 10m range
Amplifier Technology
Class D Amplifier with DSP
Cooling
Convecon
AC Operang Voltage
100V - 240V 50/60Hz
Nominal Power Consumpon
550W (2.3A)
Connectors
Power: 1 x IEC
Signal IN: 2 x XLR/TRS combo,
1 x 3.5mm jack, 1 x Stereo RCA
Signal OUT: 1 x XLR
Fings
2 x 35mm pole mount socket
(Straight + 8º Tilted)
Handles
Two on Back
Construcon Strengthen PP plasc
Dimensions WxHxD (mm) 368 x 513 x 343
Net Weight
15.7kg
Shipping Weight
17.2kg

8
www.nextaudiocom.com
REACH US
CONTACTS
In case of any doubts or any information just:
Write us:
NEXT-audiocom
Rua da Venda Nova, 295
4435-469 Rio Tinto
Portugal
Contact us:
Tel. [phone]
Send an e-mail:
[email protected]
Search our website:
www.nextaudiocom.com
Follow us on:
facebook.com/nextaudiocom
instagram.com/nextaudiocom
