X15 and Xs18 User Guide
7 www.next-proaudio.com
personnel following safe rigging practices. Secure fixings to the building
structure are vital. Seek help from architects, structural engineers or other
specialists if in any doubt.
X-line Series enclosures are designed for portable applications, but can
be suspended singly by means of the threaded inserts provided or by
compatible Next-proaudio wall Brackets. The X15 enclosures are fitted
internally with steel corner reinforcement brackets to ensure that each
cabinet is strong enough to be hung from its top.
The common practice of using commercially available eye bolts for
suspension should only be undertaken with great caution. Eye bolts are
strongest along the thread axis. Angling the enclosure will result in an angle
pull and it is important to use eye bolts that are safe in these
circumstances. Only forged shoulder eye bolts should be considered and it
is important that the thread length is at least 30mm. A flat washer should be
inserted between the eyebolt and the enclosure. Formed eye bolts i.e.
those which are formed from a steel rod bent into an eye should be
avoided.
5. Amplification

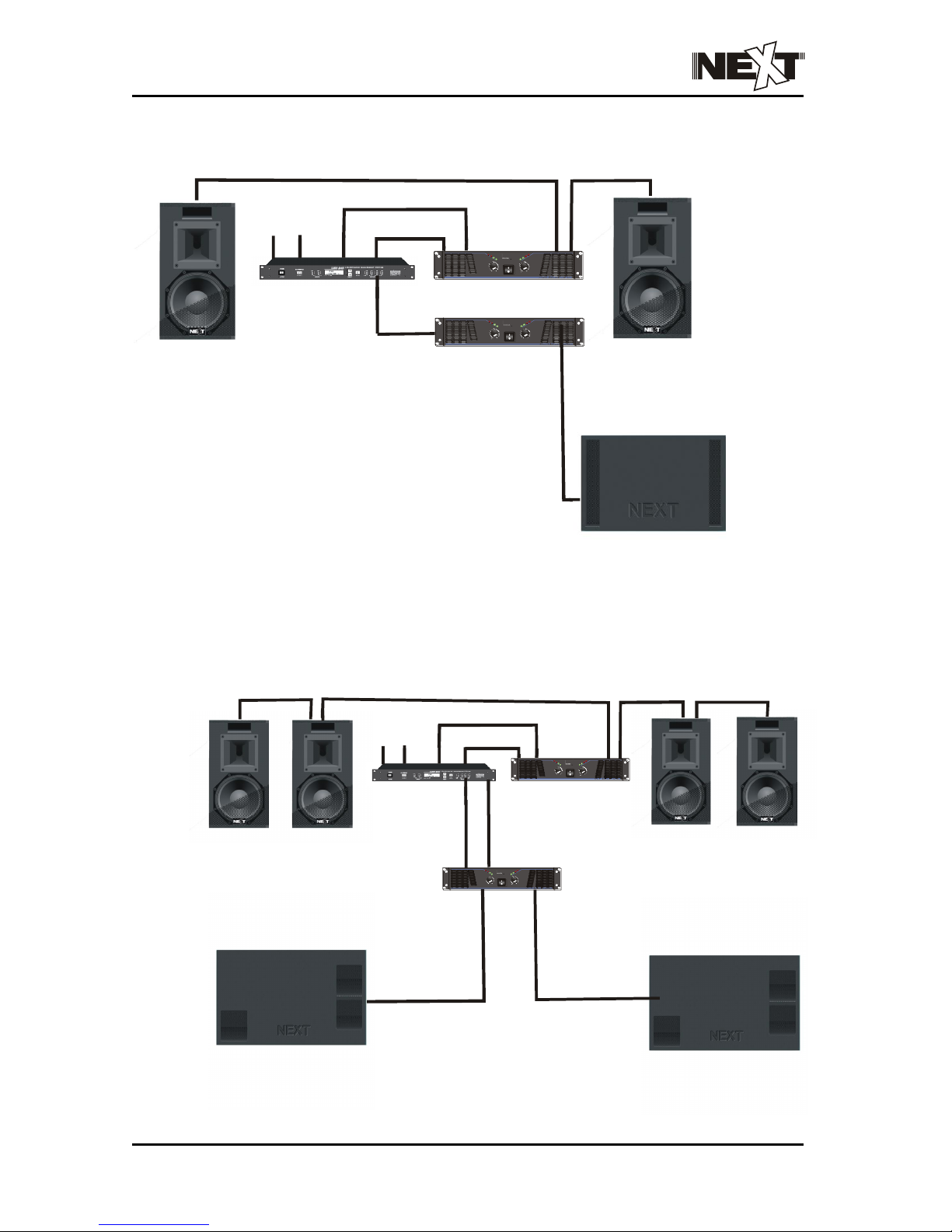

The X15 and Xs18 systems are designed to be used with professional power
amplifiers and Next-proaudio recommends Next Amplifiers.
X15 Next MA3200 ( 800w, stereo at 8 ohm)
Xs18 Next MA1700 ( 1700w, bridge at 4 ohm, when working alone)
Xs18 Next MA3200 ( 1200w, stereo at 4 ohm, one Xs18 on each channel)
Care should be taken to avoid amplifier clipping. It is important to
understand that a low power amplifier driven into clipping is more likely to
damage a loudspeaker than a higher power amplifier used within its ratings.
This is because music signals have a high peak-to-average "crest" factor.
When an amplifier is severely overdriven, its output waveform is clipped (its
peaks are squared off) –reducing the crest factor. In extreme cases, the
waveform can approach that of a square wave. An amplifier is normally
capable of producing far more power under these conditions than its
undistorted rated power output. The use of very high power amplifiers with
outputs greater than those recommended is discouraged.
Care should be taken to avoid switch-on surges, which can result in
momentary power peaks in excess of specified ratings. When powering up
a sound system it is important to switch on the amplifiers after the mixer
