NHR WZB-02485 User manual

Nietzsche Enterprise CO,LTD.
WZB-02485
WZB-02485 ZigBee WIRELESS TRANSMITTER
User Manual

00
*Note: pictures and contents are subject to change without prior notice
Safety notice
Content
Accessories
User Manual
Please read and follow the instructions before use of this product.
To prevent electrical shock or fire, do not attempt to disassemble
this unit and do not expose it to moisture of any kind; ex., rain,
liquid spills.
Only use attachments/accessories specified by the manufacturer
01-02Introduction
01Specification
02Applications
03WZB-02485 ZigBee Transmitter
03WZB-01USBC ZigBee-Dongle
02Network Overview
04-05Install USB dongle driver
06
07
WZB-02485 Address Settings
Make Network Link & LED indication
03Hardware Overview
04-07Getting start
A.
B.
C.

01
Introduction
Introduction
Specification
WZB-02485 ZigBee transceiver is the transceiver
that build in with new generation of TI CC2530
high performance and low power consumption SoC
chip.User can easily build up the IEEE 802.15.4
compatible Mesh type smart ZigBee wireless
network.
According to different applications, we offer
with various options such as RS485/DIO interface
with Modbus RTU or DI/DO protocol, through
Z-setting program to configure the Baudrate
PAN ID, RF channel parameters.
WZB-02485 series feature with auto-repair auto
re-connection, and also accept adding or removing
nod at anytime; it would greatly suits the nimble
wireless applications.
Network protocol
Chip set
RF power
Transmission distance
Transmission Protocol
Transmission rate
Baudrate
Output interface
Receiver sensitivity
Antenna
Auto reconnection
Network supports
Address Setup
Working voltage
Working temperature
Dimension
IEEE 802.15.4. / ZigBee 2007 PRO
TI CC2530F256, 256K Flash SoC
18dBm
500M free space.
ModBus General / DIO protocol
Max. 250kbps
Adjustable (Default : 9600 8N1)
RS485
-92dBm
50Ω 2dBi omni SMA
Auto reconnection when interrupted
Star, Tree, Mesh
5Bit Dip SW or IEEE 64 Bit
DC6V-24V.
-20~70℃,Max. 90%RH
62x42x15mm

Introduction
Applications
Network Overview
● Industrial and Domestic Applications
● Service-based monitoring, security and awareness systems
● Home Area Networks (HAN)
● Home/ Building automation
02
PC
TheHost PC
ZigBee USB dongleZigBee Modbus RouterZigBee Modbus device
ZigBee USB dongleZigBee Modbus RouterZigBee Modbus device
Paperless
Recorder
ZigBee DIO Coordinator Alam BuzzerZigBee DIORouterZigBee DIO device
Flow Meter
USB
DO
DI
RS-485
TheHost PC
USB
RS-485

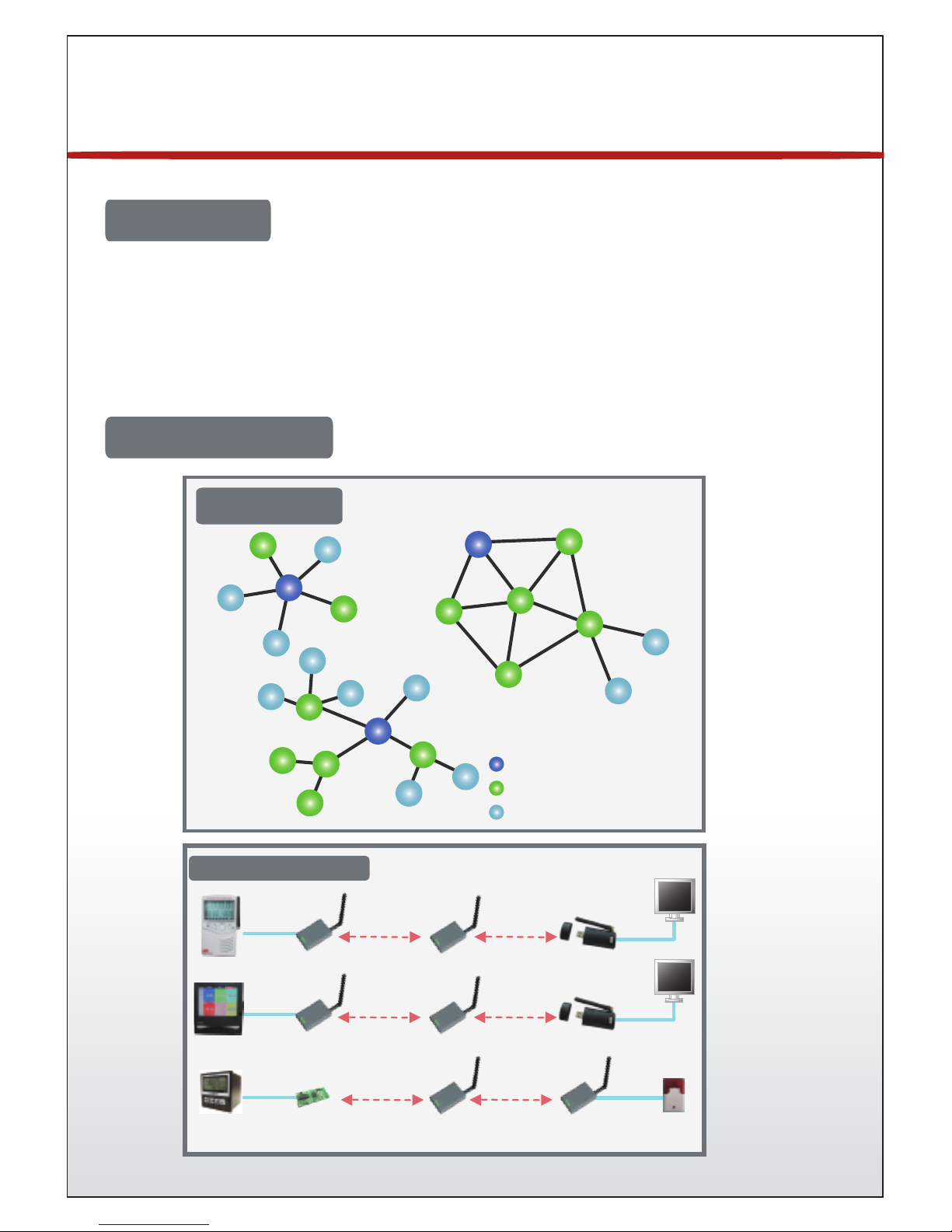

Zigbee wireless network Application
Star
Mesh
ZigBee Network Topology Models
ZigBee coordinator(ZC)
Full Funcation Device(FFD,Router)
Reduced Function Device(RFD)
Network topology
T/H Senson

Hardware Overview
WZB-02485 ZigBee Transmitter
WZB-01USBC ZigBee-Dongle
03
Front
LED indicator
Link button
Set button
To indicate ZigBee
transmitting status
The tack switch
to control Reset
/join/ Remove to
the ZigBee network
To set the
configuration
of Z-setting API
Vcc & RS485 terminal Wall holding lid
Wire connection
for power in & RS485 D+,D-
Antenna
2.4 GHz - 2dBi Omni Directional MMCX antenna
Link button
The tack switch to
control Reset / join / Remove
To display the ZigBee transmitting status
LED Light
USB connector
S1
Rear
ANT
2dBi 2.4 GHz
Omni Directional SMA antenna
Address switch
The DIP SW to set the
sensor ID for ZigBee
network

Getting start

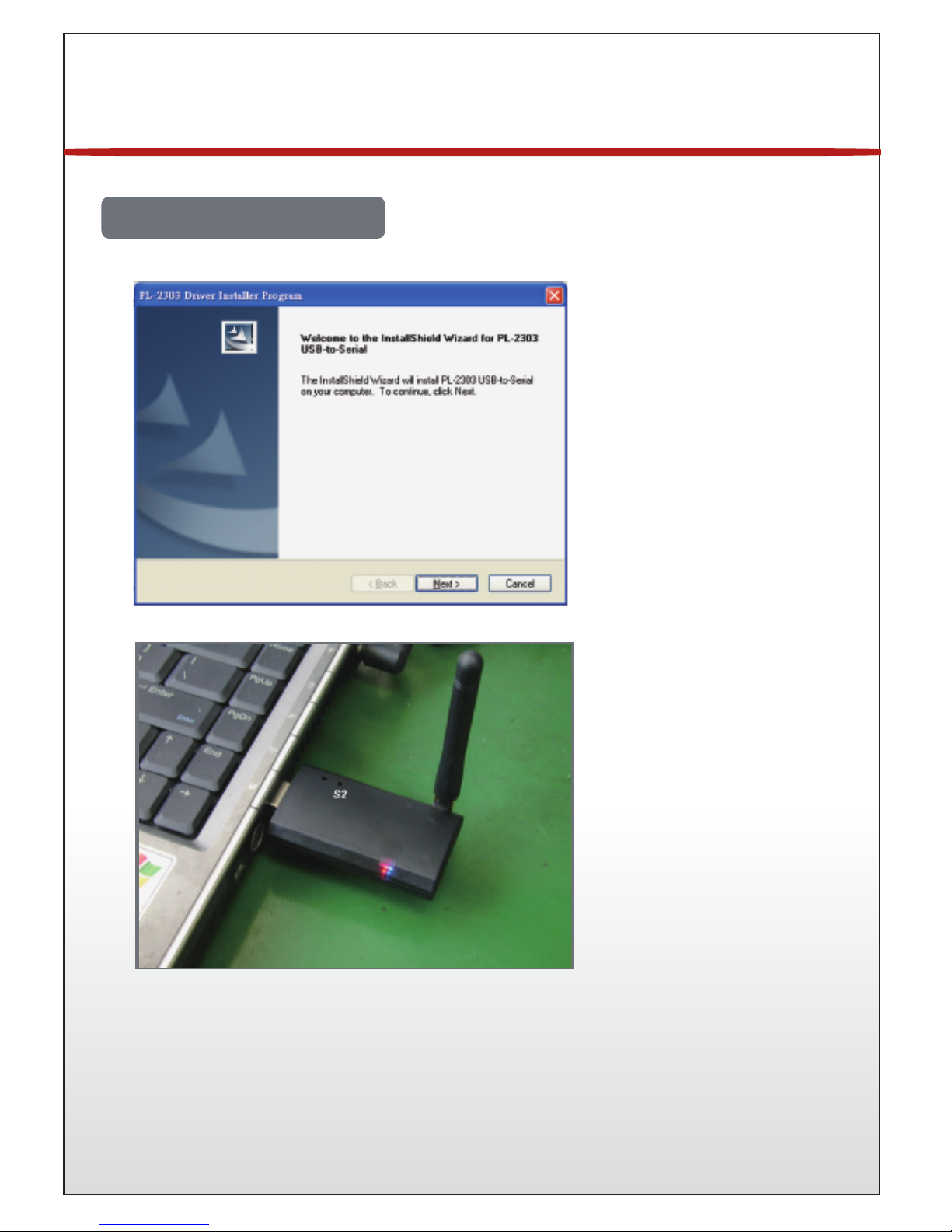

Install USB dongle driver
04
To install the PL-2303 USB Driver from the CD enclosed.

Getting start
05
D- RS 485
COM Port setting
The WZB-01USBC ZigBee dongle must be plugged into the PC.
Go to My Computer, click right button on the
click Device Manager, then set COM port.
(Prolific USB-to-Serial Comm Port) as below.
mouse, select Content, choose Hardware,
COM port setting items Setting
Baud rate
Data bits
Parity
Stop bits
Flow control
9600 bps
8
None
1
None
Wire connection of WZB-02485

COM Port setting
The WZB-01USBC ZigBee dongle must be plugged into the PC.
COM port setting items Setting
Baud rate
Data bits
Parity
Stop bits
Flow control
9600 bps
8
None
1
None
Getting start
06

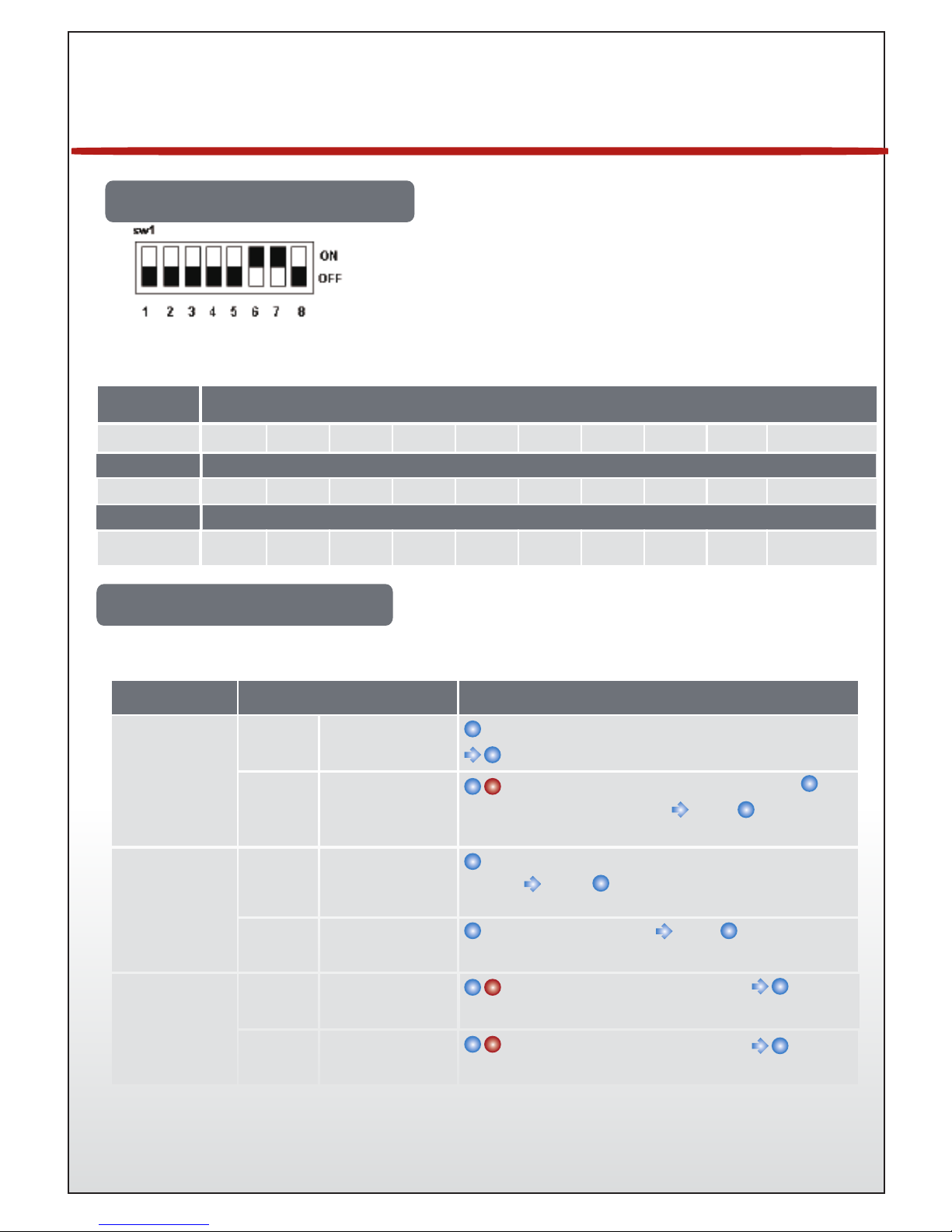

Set from the DIP Switch, ON =” 0 “ OFF =”1 “
Bit 123 were reserved as” 1”, Bit 45678 to set the address.
ZigBee Network Link setting
ID # reference table
** Note: to add any new T/H sensor, please repeat step 1 (Join) process.
To ensure the ZigBee network link and operate successfully, please follow below setting
process.
Join to network
Dongle
Press “S1”
3 seconds( reset)
Press “S1” once Blue LED blinking flash, 30 seconds allowed for join
turn to intermittent flash means well linked
Blue and Red LED ON for 1 second, turn to flash
slowly, means standby for link turn to intermittent
flash means well linked.
Operation LED Indicator
Function
Remove the
joined device
USB
Dongle
Press “S1” 3 times
Press “S1” twice
Blue LED blinking flashes, 30 seconds allowed to
remove turn to intermittent flashlight means
removed.
Blue LED blinking flashes, turn to flash slowly
means removed successfully.
Reset or
Refresh network
Dongle
Press “S1”
3 seconds
Press “S1”
3 seconds
Blue and Red LED On for 1 second turn to
intermittent flash.
Blue and Red LED On for 1 second turn to
flash slowly , standby for link
ID # 21 8 9 1076543
WZB-02485
WZB-02485
WZB-02485
Bit 45678
ID #
Bit 45678
ID #
Bit 45678
00001
11
01011
21
10101
00010
12
01100
22
10110
00011
13
01101
23
10111
00100
14
01110
24
11000
00101
15
01111
25
11001
00110
16
10000
26
11010
00111
17
10001
27
11011
01000
18
10010
28
11100
01001
19
10011
29
11101
01010
20
10100
30
11110
31
11111
WZB-02485 Address Settings

Getting start
07
10
Copyright 2011 Nietzsche Enterprise Co., Ltd. All rights reserved.
Nietzsche Enterprise reserves the right to make changes and improvements to its
product without notice.
E-Mail : [email protected]
Website: www.nhr.com.tw
Copyright
Technical Support
