Emerson Rosemount 3300 Series User manual

Quick Start Guide
00825-0100-4811, Rev JC
May 2019
Rosemount™ 3300 Level Transmitter
Guided Wave Radar

Contents
About this guide...........................................................................................................................3
Mount the transmitter head/probe.............................................................................................. 7
Set jumpers and switches...........................................................................................................17
Connect wiring and power up.....................................................................................................19
Configure...................................................................................................................................25
Environmental conditions.......................................................................................................... 31
Product certifications................................................................................................................. 32
Quick Start Guide May 2019
2 Rosemount 3300 Level Transmitter

1 About this guide
This start guide provides basic guidelines for the Rosemount 3300 Level
Transmitter. Refer to Rosemount 3300 Level Transmitter Reference Manual
for more instructions. The manual and this Quick Start Guide (QSG) are also
available electronically on Emerson.com/Rosemount.
WARNING
Failure to follow safe installation and servicing guidelines could result in
death or serious injury.
•Make sure only qualified personnel perform installation or service.
•Use the equipment only as specified in this Quick Start Guide and the
Reference Manual. Failure to do so may impair the protection provided
by the equipment.
•Do not perform any service other than those contained in this manual
unless you are qualified.
•Flamepath joints are not for repair. Contact the manufacturer.
Explosions could result in death or serious injury.
•Verify that the operating environment of the transmitter is consistent
with the appropriate hazardous locations specifications. See Product
certifications in this Quick Start Guide.
•In an explosion-proof/flameproof installation, do not remove the
transmitter covers when power is applied to the unit.
•Before connecting a handheld communicator in an explosive
atmosphere, ensure the instruments are installed in accordance with
intrinsically safe or non-incendive field wiring practices.
•To avoid process leaks, only use the O-ring designed to seal with the
corresponding flange adapter.
Electrical shock could cause death or serious injury.
•Avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
•Make sure the mains power to the transmitter is off and the lines to any
other external power source are disconnected or not powered while
wiring the transmitter.
Temperature restrictions apply for Explosion-proof versions. For limits, see
certificate-specific information in the Product certifications chapter in this
document.
May 2019 Quick Start Guide
Quick Start Guide 3

WARNING
The electronics enclosures are category 2G or 2D equipment. The probes
not covered with plastic and not made of titanium, are category 1G or 1D.
The plastic covered probes or probes made of titanium, are only category 1G
equipment.
Probes with non-conducting surfaces and light metals:
•Probes covered with plastic and/or with plastic discs may generate an
ignition- capable level of electrostatic charge under certain extreme
conditions. Therefore, when the probe is used in a potentially explosive
atmosphere, appropriate measures must be taken to prevent
electrostatic discharge. These probes are not allowed in dust classified
areas.
The following probes do not contain plastic or PTFE material, and are
allowed to be placed in a Dust classified area:
Table 1-1: Probes Containing no Plastic or PTFE Material
Code Material of construction: Process connection/Probe
1 316L SST (EN 1.4404)
2 Alloy C-276 (UNS N10276) plate design if flanged version
3 Alloy 400 (UNS N04400) plate design if flanged version
5 Titanium Gr-1 and Gr-2
9 Duplex 2205 (EN 1.4462/UNS S31803) (plate design if flanged
version)
L Alloy 625 (UNS N06625)
M Alloy 400 (UNS N04400)
H Alloy C-276 (UNS N10276)
D Duplex 2205 (EN 1.4462/UNS S31803)
The Material of Construction Code can be found in the ninth character
position of the transmitter model code (for example
330xxxxx1xxxxxxxx).
Quick Start Guide May 2019
4 Rosemount 3300 Level Transmitter

Category 2G or 2D
Category 1G or 1D
Applicable marking:
Probes according to Table 1-1
Category 1G
All probes possible
Category 2G or 2D
II 1/2 G Ex db [ia Ga] IIC T6…T1 Ga/Gb
II 2 D Ex tb IIIC T85 °C…T135 °C Db
II 1/2 G Ex db [ia Ga] IIC T6…T1 Ga/Gb
II 1/2 D Ex tb [ia Da] IIIC T85 °C…T450 °C Da/Db
•Probes and flanges containing >7.5 percent magnesium or zirconium are
not allowed in explosive dust atmosphere. Contact your Emerson sales
representative for more information.
Probes and flanges containing light metals:
•When used in category 1/2G installations, probes and flanges containing
titanium or zirconium must be mounted in such a way that sparks from
impact or friction between these parts and steel cannot occur.
WARNING
Any substitution of non-authorized parts or repair, other than exchanging
the complete transmitter head or probe assembly, may jeopardize safety
and is prohibited.
•Unauthorized changes to the product are strictly prohibited as they may
unintentionally and unpredictably alter performance and jeopardize
safety. Unauthorized changes that interfere with the integrity of the
welds or flanges, such as making additional perforations, compromise
product integrity and safety. Equipment ratings and certifications are no
longer valid on any products that have been damaged or modified
without the prior written permission of Emerson. Any continued use of
product that has been damaged or modified without the written
authorization is at the customer’s sole risk and expense.
May 2019 Quick Start Guide
Quick Start Guide 5

WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to
and/or misconfiguration of end users’ equipment. This could be
intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
Quick Start Guide May 2019
6 Rosemount 3300 Level Transmitter

2 Mount the transmitter head/probe

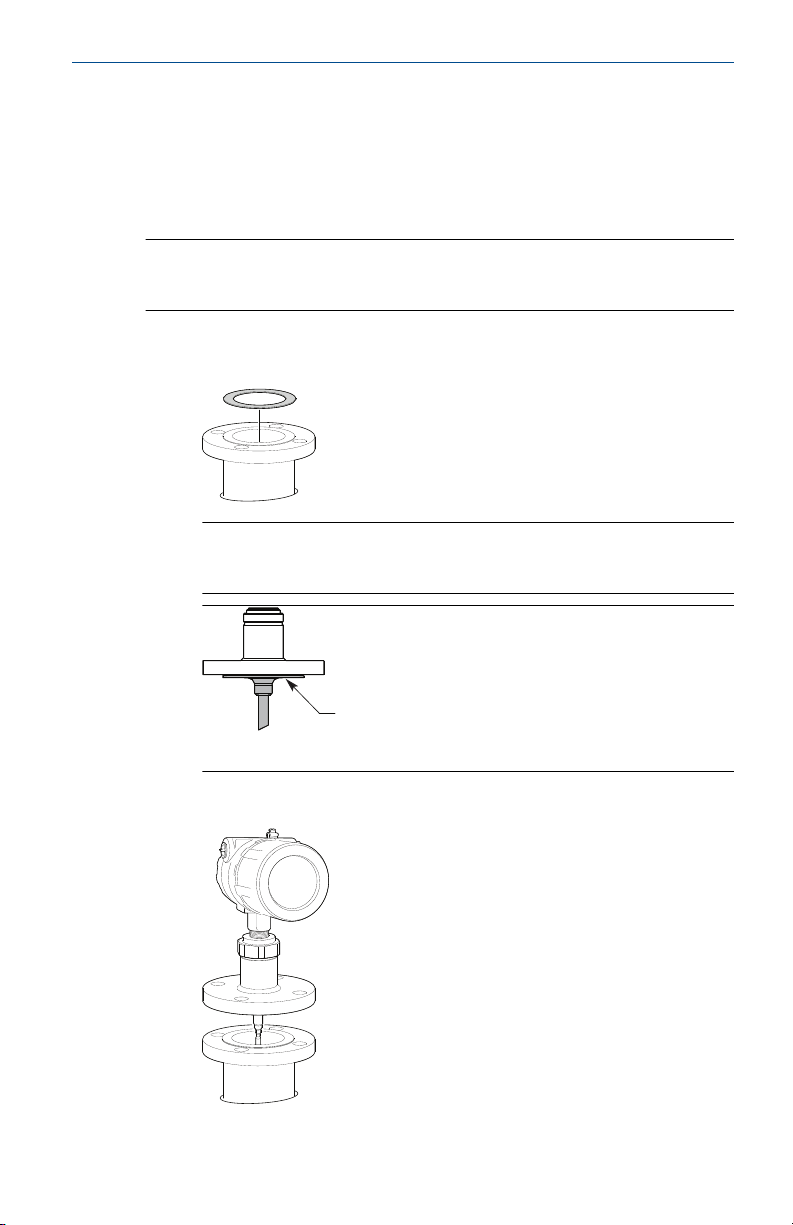

2.1 Tank connection with flange
Prerequisites
Note
PTFE covered probes must be handled carefully to prevent damage to the
coating.
Procedure
1. Place a suitable gasket on top of the tank flange.
Note
Gasket should not be used for PTFE covered probe with protective
plate.
$
A. PTFE covered probe with protective plate
2. Lower the transmitter and probe with flange into the tank.
May 2019 Quick Start Guide
Quick Start Guide 7

3. Tighten bolts and nuts with sufficient torque for the flange and
gasket choice.
4. Loosen the nut that connects the transmitter head to the probe
slightly.
60 mm
5. Rotate the transmitter housing so the cable entries/display face the
desired direction.
Quick Start Guide May 2019
8 Rosemount 3300 Level Transmitter

6. Tighten the nut.
60 mm
Torque 30 Lbft (40 Nm)
2.2 Threaded tank connection
Prerequisites
Note
PTFE covered probes must be handled carefully to prevent damage to the
coating.
Procedure
1. For adapters with BSPP (G) threads, place a suitable gasket on top of
the tank flange.
2. For adapters with NPT threads, use anti-seize paste or PTFE tape
according to your site procedures.
May 2019 Quick Start Guide
Quick Start Guide 9

3. Lower the transmitter and probe into the tank.
4. Loosen the nut that connects the transmitter head to the probe
slightly.
60 mm
5. Screw the adapter into the process connection.
52 mm / 60 mm
Quick Start Guide May 2019
10 Rosemount 3300 Level Transmitter

6. Rotate the transmitter housing so the cable entries/display face the
desired direction.
7. Tighten the nut.
60 mm
Torque 30 Lbft (40 Nm)
May 2019 Quick Start Guide
Quick Start Guide 11

2.3 Tank connection with Tri-Clamp®
Prerequisites
Note
PTFE covered probes must be handled carefully to prevent damage to the
coating.
Procedure
1. Place a suitable gasket on top of the tank flange.
2. Lower the transmitter and probe into the tank.
3. Tighten the clamp to the recommended torque (see the
manufacturer’s instruction manual).
Quick Start Guide May 2019
12 Rosemount 3300 Level Transmitter

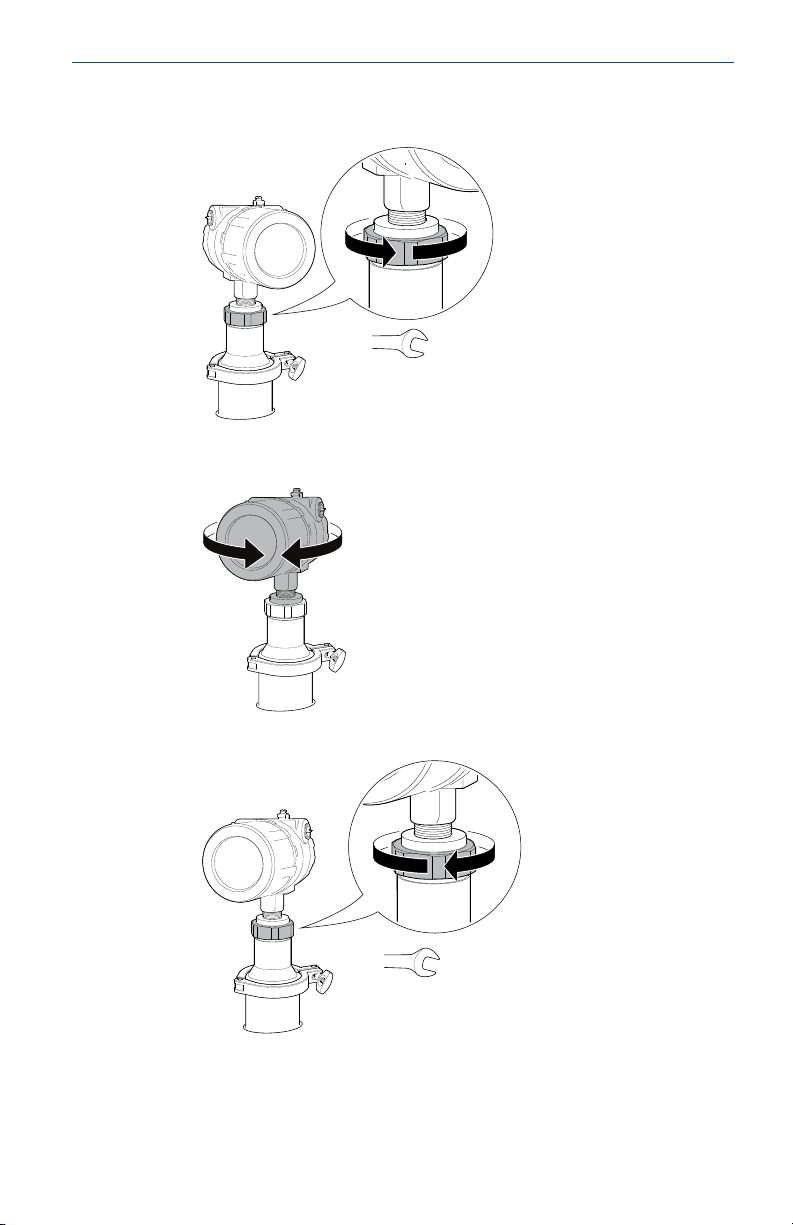

4. Loosen the nut that connects the transmitter head to the probe
slightly.
60 mm
5. Rotate the transmitter housing so the cable entries/display face the
desired direction.
6. Tighten the nut.
60 mm
Torque 30 Lbft (40 Nm)
May 2019 Quick Start Guide
Quick Start Guide 13

2.4 Bracket mounting
Procedure
1. Mount the bracket to the pipe/wall.
On pipe:
4X
$%
A. Horizontal pipe
B. Vertical pipe
On wall:
4X
2. Mount the transmitter with probe to the bracket.
Quick Start Guide May 2019
14 Rosemount 3300 Level Transmitter

2.5 Install remote housing
Procedure
1. Carefully remove the transmitter.
2. Mount the probe on tank.
$
A. Gasket
3. Mount the remote connection on the probe.
Torque 30 ft-lb (40 Nm)
May 2019 Quick Start Guide
Quick Start Guide 15

4. Mount the bracket to the pipe.
4X
$%
A. Horizontal pipe
B. Vertical pipe
5. Fasten the housing support.
3X
6. Mount the transmitter head.
Torque 30 ft-lb (40 Nm)
Quick Start Guide May 2019
16 Rosemount 3300 Level Transmitter

3 Set jumpers and switches
Write Protection must be set after configuration (see Configure).
3.1 Set alarm and write protection on the circuit board
If alarm and security jumpers are not set, the transmitter operates with the
default alarm condition HIGH and Security OFF.
Procedure
1. Remove the cover on the circuit side (see label marked circuit side).
2. To set the 4-20 mA alarm output to LOW, move the alarm switch to
the LOW position.
3. To enable the security write protection feature, move the write
protect switch to the ON position.
4. Replace the cover and tighten securely.
Figure 3-1: Circuit Board
3.2 Set alarm and write protection on the LCD display
Prerequisites
To have the LCD display override the circuit board settings, the write
protection switch on the circuit board needs to be in the OFF position and
the alarm switch on the circuit board needs to be in the HIGH position.
Procedure
1. To set the 4-20 mA alarm output to LOW, place jumper between the
right and center hole position.
2. To enable the security write protection feature, place jumper
between the left and center hole position - ON.
May 2019 Quick Start Guide
Quick Start Guide 17

Figure 3-2: LCD Display
Quick Start Guide May 2019
18 Rosemount 3300 Level Transmitter

4 Connect wiring and power up
4.1 Power supply
For HART®, the input voltage is 11-42 V (11-30 V in IS applications, 16-42 V
in Explosion-proof / Flameproof applications). For Modbus®, the input
voltage is 8-30 V.
4.2 Cable selection
The transmitter requires shielded twisted pair wiring (18-12 AWG) suitable
for the supply voltage and, if applicable, approved for use in hazardous
areas.
4.3 Cable/conduit entries
The electronics housing has two entries for ½-14 NPT. Optional M20×1.5
and PG 13.5 adapters are also available. The connections are made in
accordance with local or plant electrical codes.
Make sure that unused ports are properly sealed to prevent moisture or
other contamination from entering the terminal block compartment of the
electronics housing.
Note
Remove any orange caps that may be attached. Use the enclosed metal plug
to seal the unused port.
Figure 4-1: Electronics Housing
A
B
D
C
E
A. Cable Entry: ½-14 NPT
Optional adapters: M20, PG13.5
B. Radar electronics
C. Dual compartment housing
D. Flanged process connections
E. Threaded process connections
May 2019 Quick Start Guide
Quick Start Guide 19

4.4 Wiring diagram
Figure 4-2: Non-Intrinsically Safe HART® Output and Type n Approvals:
Non-Sparking/ Energy Limited Power Supply
A
B
C
D
G
H
E
F
A. Rosemount 3300 Level Transmitter
B. Handheld communicator
C. Load resistance = 250 Ω
D. Power supply
E. HART modem
F. PC
G. Maximum voltage: Um = 250 V
H. HART: Un = 42.4 V
Note
Rosemount 3300 Level Transmitters with Flameproof/Explosion-proof HART
Output have a built-in barrier; no external barrier needed.
Quick Start Guide May 2019
20 Rosemount 3300 Level Transmitter
