ORIGINAL ASSEMBLY AND
OPERATING INSTRUCTIONS
Rojaflex RHST5-W |RHST15-W
For Rojaflex radio tubular motors and radio receivers
Handheld transmitter
RHST5-W_V4. 2022-11-08

2 www.rojaex.com
CONTENTS
General safety instructions 3 - 5
Function overview 6
LCD-Display /
Changing the battery 7

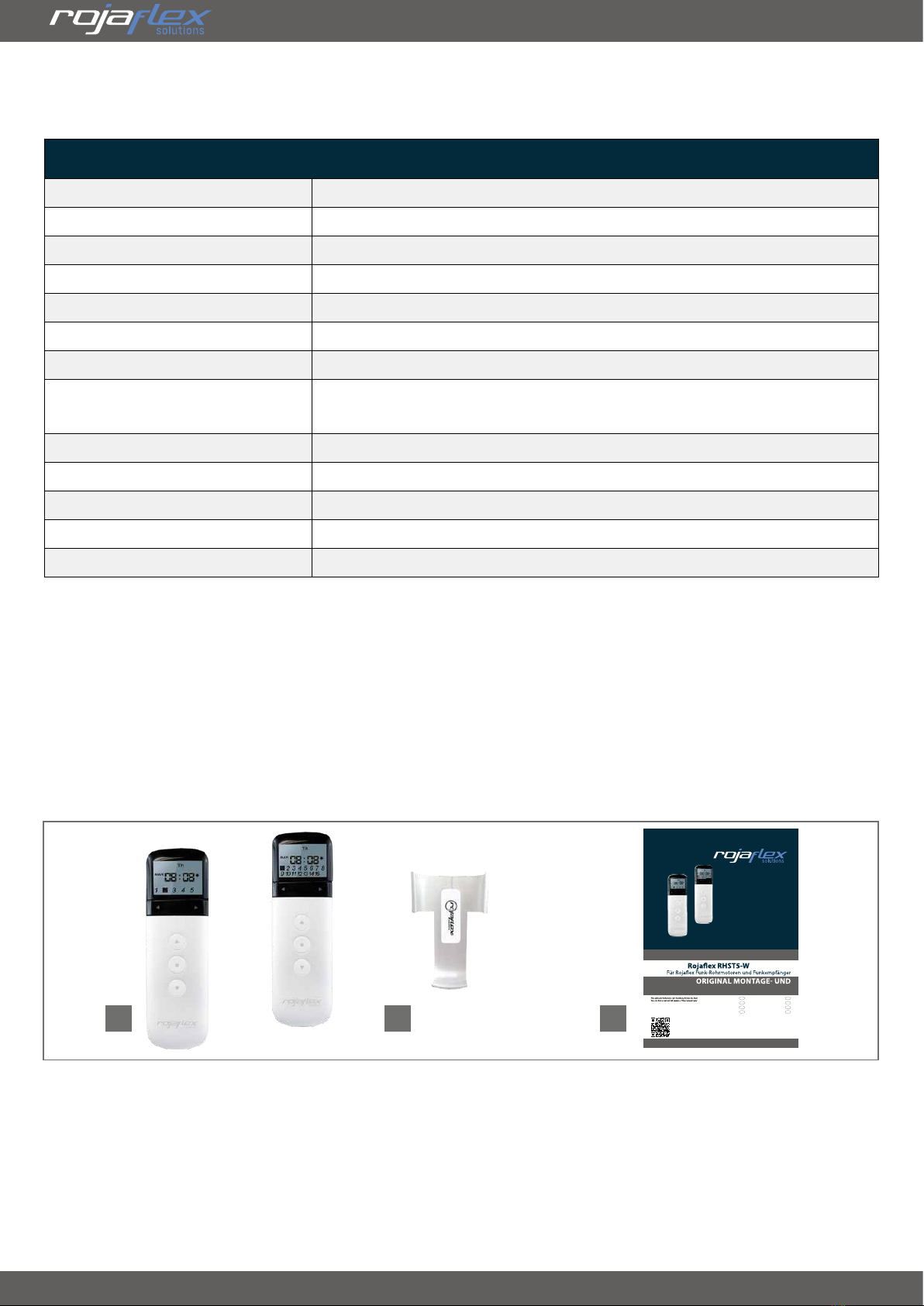

Technical data / scope of delivery 8
Programming and settings 9 - 17
Notes 18 -19
Contact information Back
ATTENTION!
After unpacking, compare the device type with
the corresponding information on the type plate.
Incomplete devices or devices that do not comply
with the specifications must not be put into operation
and a complaint must be lodged with our customer
service department (see contact information) before
commissioning.
EU Declaration of Conformity according to Article 10(9):
Herewith declares Schoenberger Germany Enterprises GmbH & Co. KG, Hohenschäftlarn,
that the radio system type rojaflex handheld transmitter "RHST5-W | RHST15-W" complies with the
directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available at the following Internet address:
www.rojaflex.com/konformitaetserklaerungen.html
Content
Handheld
transmitter
for Rojaflex
Radio tubular motors
and radio receivers
RHST5-W
RHST15-W
Art.-Nr.:
1000017759
RHST15-W n.a.

www.rojaex.com 3
General safety instructions
WARNING!
Important safety instructions!
• For the safety of persons it
is important to follow these
instructions!
• Please keep the manual and hand
it over to the new owner in case of
change of ownership!
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
• Children are not allowed to play
with the device.
• Cleaning and maintenance by the
user must not be carried out by
children without supervision.
WARNING!
The motor controlled by the radio
control (the transmitter) must be
disconnected from its power source
during cleaning, maintenance and
replacement of parts!
WARNING!
There is a danger to life from electric
shock when working on electrical
equipment!
Observe the instructions and safety
instructions of the drive/receiver
controlled by the radio control as well
as the corresponding instructions
of the driven roller shutter or sun
protection system!
ATTENTION!
The following instructions must be
observed!
The range of radio controls is regulated
by the legal requirements for radio
equipment and is influenced by structural
conditions, among other things.
When planning, make sure you have
adequate radio reception.
This is especially true if the radio
transmitter is located in a different room
than the radio receiver, and therefore
the radio signal must penetrate walls or
ceilings.
Do not install the radio control in the
direct vicinity of large metallic surfaces.
Other transmitting devices (e.g. radio
headphones, baby monitors, radio
weather stations), whose transmission
frequency is identical to that of the radio
control, may interfere with reception.
Attention!
It is essential to observe the instructions
for correct use and the operating
conditions!
In case of improper use, there is an
increased risk of damage to the controlled
system!
• Use the radio control (the
transmitter) only for connection
to roller shutter, awning and blind
motors or their receivers.

4 www.rojaex.com
General safety instructions
• Deactivate the automatic functions
of the radio control in case of
snowfall, icing or danger of frost to
avoid damage to the motor or the
driven system.
• Only use original components and
accessories from the manufacturer.
• Instruct all persons in the safe use
of the radio control and the motor
controlled by it.
• During commissioning, observe the
moving equipment (roller shutter,
awning, blind) and keep people
away from it until the movement is
finished.
• Prohibit children from playing with
the radio control.
• Store the handheld transmitter
in such a way that unintentional
operation, e.g. by children playing,
is prevented.
• Secure the controlled system
against unauthorized operation.
• Take safety precautions against
unintentional switch-on.
• Carry out all cleaning work on the
system in a de-energized state.
• Use caution when operating the
open/extended system as parts may
fall if fasteners (e.g. springs) weaken
or are broken.
• Never use defective or damaged
equipment.
• Check the motor controlled by the
radio control and the power cable of
the motor for integrity.
WARNING!
The use of defective devices can
endanger persons and cause damage
to property.
Regularly check the radio control and
the system controlled by it for proper
function and keep people away from it
until the test of faultless function has
been completed!
Please contact our service department
(see contact information page) if you
notice any damage to the device.
ATTENTION!
After unpacking, compare the
device type with the corresponding
information on the type plate.
Incomplete devices or devices that
do not comply with the specifications
must not be put into operation.
IMPORTANT!
Disposal instructions!
(European Directive 2012/19/EU (WEEE)
Our electrical and
electronic products are
marked with a crossed-
out wheeled garbage
can, which indicates
that these products
and any batteries they
may contain must be
collected separately at
the end of their useful
life and must not be disposed of together
with normal household waste.

www.rojaex.com 5
General safety instructions
The substances contained in these
products may have negative effects on
health and the environment, so users of
electrical products and batteries also have
a responsibility in recycling these waste
materials and in this way contribute to the
protection, preservation and improvement
of the environment.
Obligation for separate disposal
Our duty as manufacturers is, among other
things, to inform you of your obligation to
separate disposal.
• When disposing of products with
batteries, remove them from the
product and dispose of them separately.
• When disposing of illuminants, they
must be disposed of separately to the
receptacle.
Return option and
Recycling program EU
We are connected to public-law return
systems throughout Europe and thus
offer our customers access to a Europe-
wide network of local recycling facilities
(recycling centers, take-back points or
similar).
Our products are professionally recycled
via these local facilities. This reduces the
amount of waste - to the benefit of the
environment.
Our registration numbers:
*For registration data of other European
countries, see Contact Information page.
A take-back by us as manufacturer
according to §19 WEEE is not to be asserted.
Information on the degree of fulfillment
of the collection and recycling
requirements
As a manufacturer, it is also our duty to
inform you about the degree of fulfillment
of the collection and recycling requirements.
Since we are connected to a qualified take-
back system, we can refer to the degree of
fulfillment of the recycling companies.
You can find this information on our
website.
Deletion of personal data
Some of our products contain personal data.
This applies in particular to information and
telecommunications technology devices
such as computers and smartphones. In
your own interest, please note that each end
user is responsible for deleting the data on
the old devices to be disposed of!
Reg. no.*
WEEE DE 41060608
Battery DE 88866710
Illuminant
Transport and
Shipping packaging DE5768543732165

The key assignment may differ depending on the model:
K1= K- (minus) / K2 = K+ (plus)

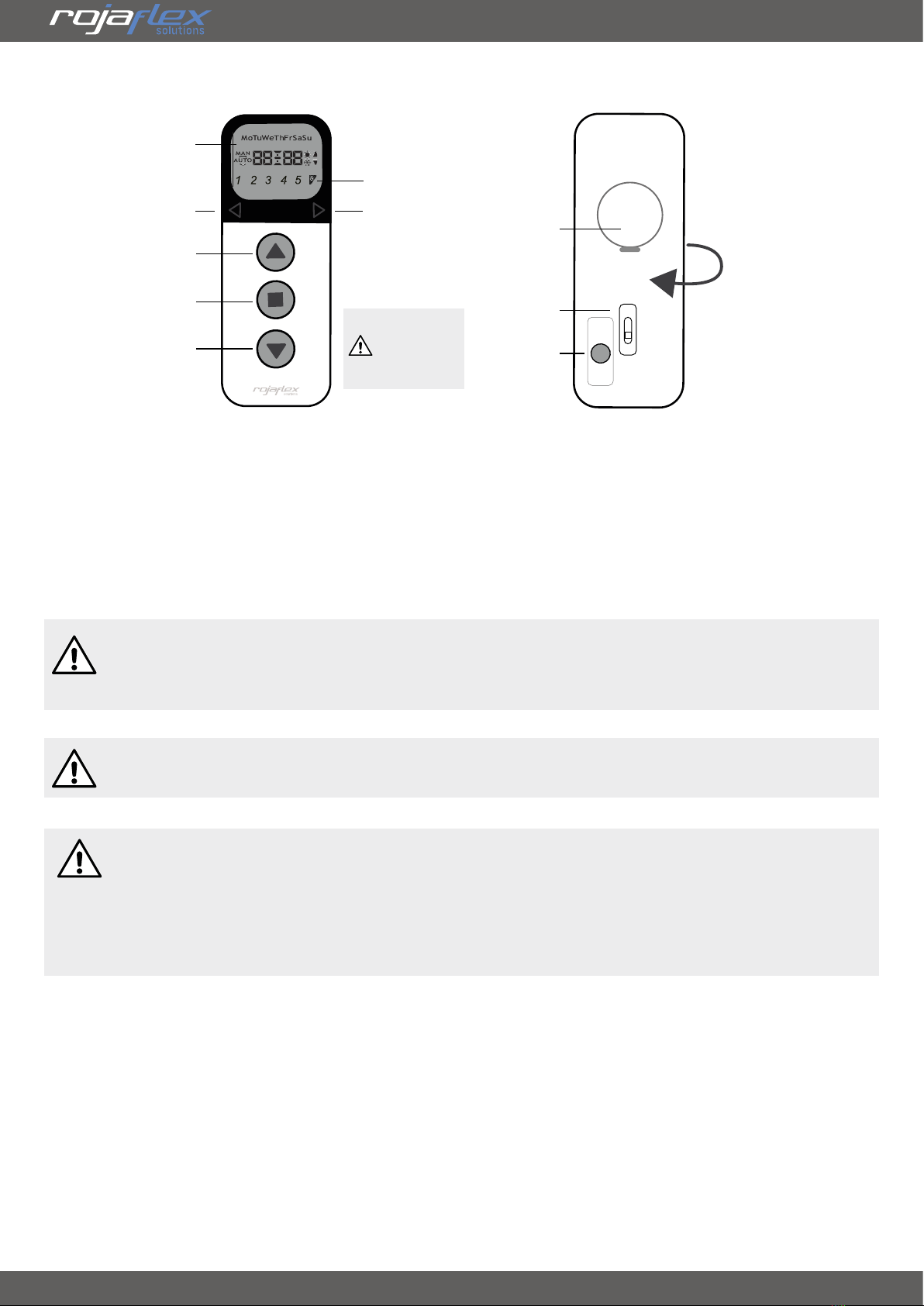

5-channel handheld transmitter RHST5-W (Abb.)
15-channel handheld transmitter RHST15-W
*mit dem ”DIP“-Schalter kann, abhängig
vom Funkempfänger (siehe Anleitung
Empfänger), zwischen ”SI“ (Single = Einwe-
ge-Kommunikation) und ”BI“ (Zweiwege-
Kommunikation) – Funk gewählt werden.
Handheld transmitter - rear
side with lid open
The K1 and K2 keys can be used to switch between the
individual channels (1-5 or 1-15).
The channel highlighted in black is active in each case.
As soon as the ”a“ (after channel display 5 or 15) is high-
lighted, group control is active.
All programmed receivers are receivers are controlled
simultaneously.
For me-programmed (automac) control of your roller shuers, either the desired channel must be highlighted in
black - me control ONLY acve for the selected channel - or the ”a“ is highlighted in black - ALL channels /roller shuers
are automacally opened or closed at the programmed me.
Programming the UP and DOWN - travel mes see page 13.
P2
BI
SI
CR 2450
STOP
DOWN
UP
DIP switch*
Single / Bi -
Direconal
K1 K2
Display
Channel display
Baery com-
partment
Programming
buon
Display
Display Day/
Status/me
The key assignment
may dier depen-
ding on the model:
K1= K- (minus)
K2= K+ (plus)
6 www.rojaex.com
Function overview
This product contains a button cell battery. If swallowed, the button cell battery can cause
severe internal burns and death in as little as 2 hours.
Keep new and used batteries away from children. If the battery compartment cannot
be closed securely, stop using the product and keep it away from children. If you think
batteries may have been swallowed or may have entered any part of your body, seek
medical attention immediately.

The Rojaflex RHST5-W and RHST15-W handheld transmitters have a multi-line display.
In the upper part of the display the days of the week are displayed, in the center of the display the time, the
selected function (MANUAL / AUTO / AUTO with random function) as well as the status (UP/DOWN) and
summer or winter time.
The lower area shows the individual channels (1-5 or 1-15) and ”a“ as a symbol for group control.
The channel highlighted in black indicates the currently selected channel.
If the ”a”is highlighted in black, group control is active - all programmed receivers are controlled simultane-
ously in both manual and automatic mode.

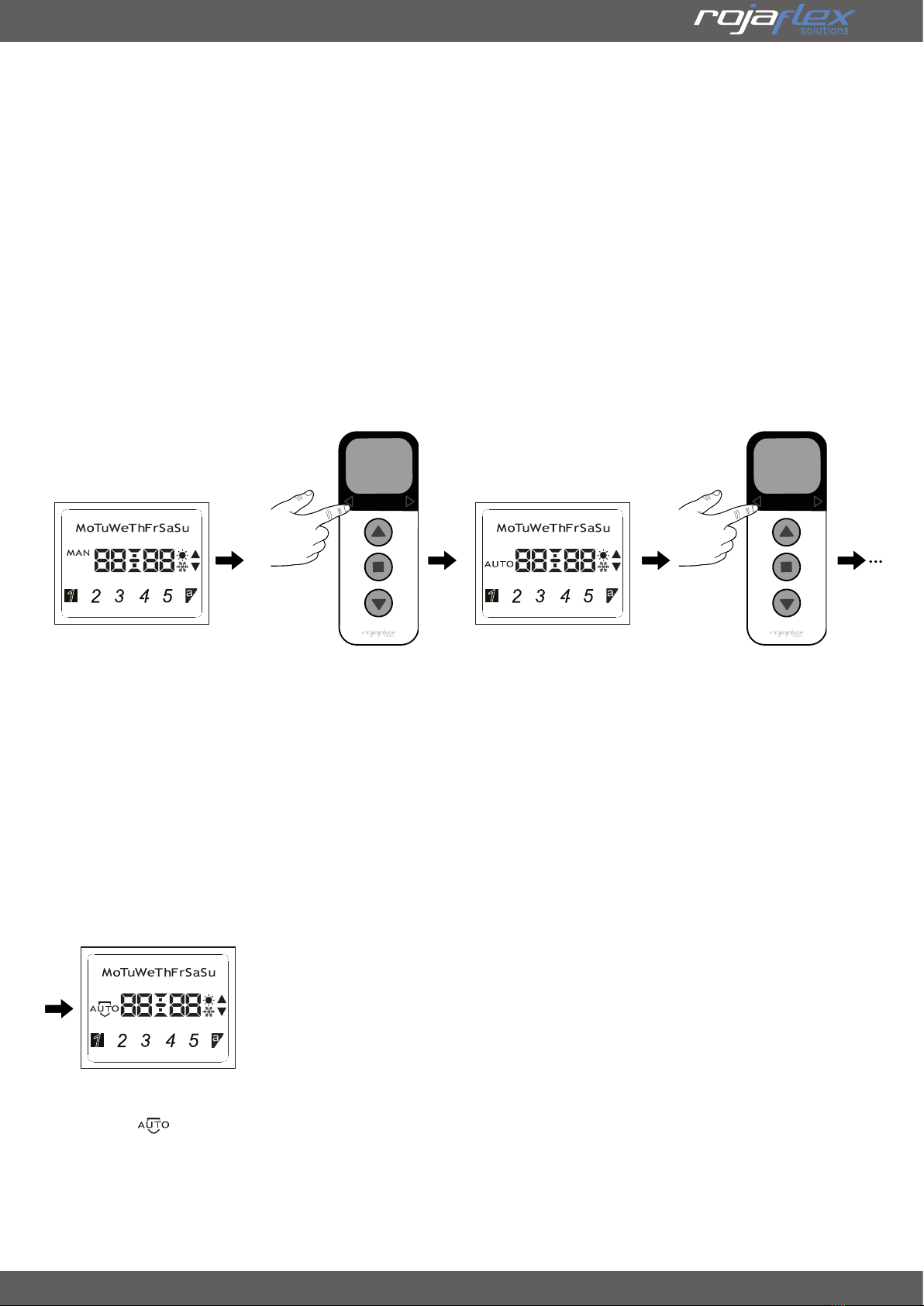

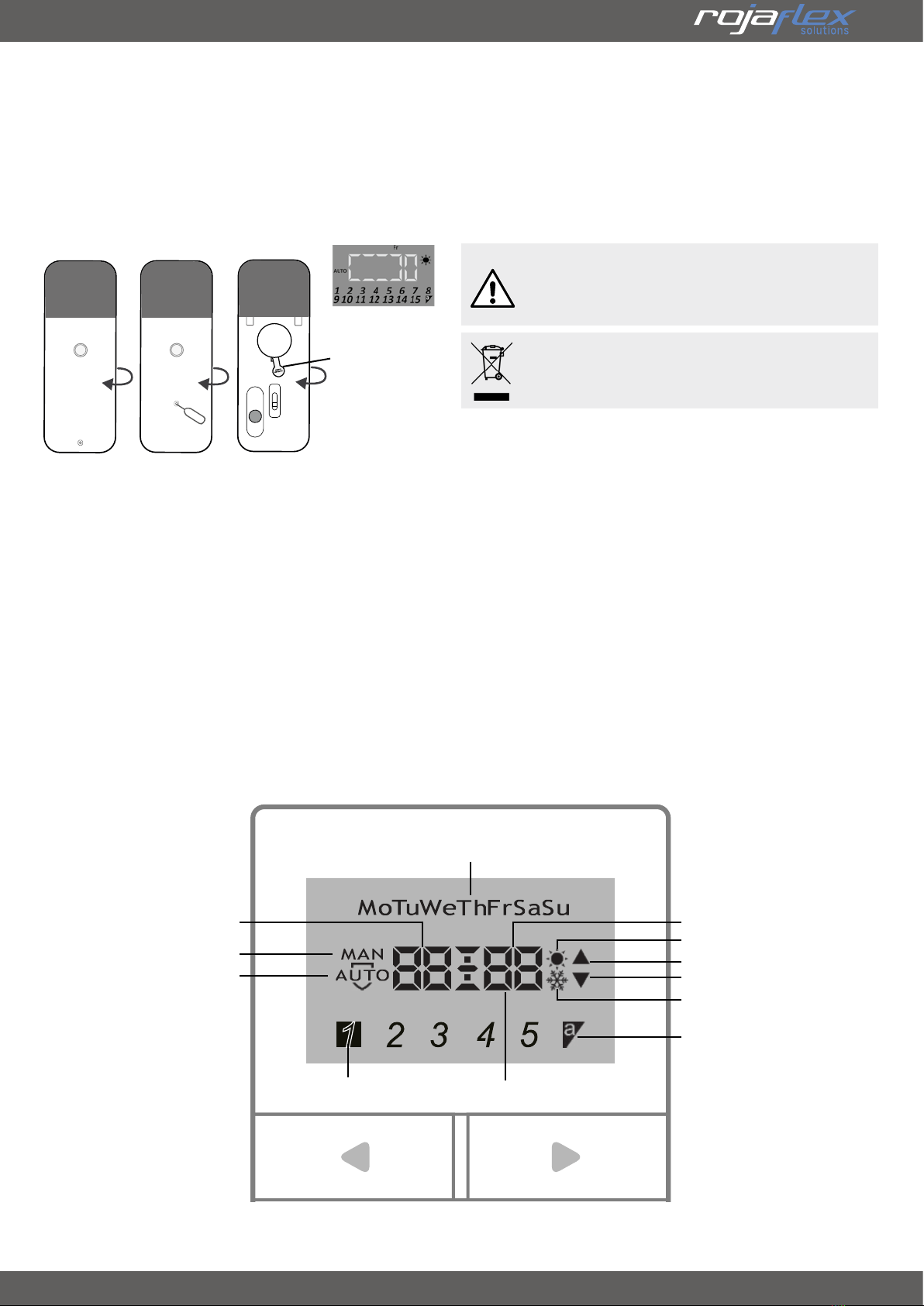

LCD - Display (Bsp. RHST5-W)
Inserting the battery / changing the battery
The battery is (depending on the transmitter model) supplied loose or already installed and secured against
discharge with a protective film. To replace/insert the battery, open the rear cover by pressing lightly down-
wards*, remove the protective film and insert the battery into the battery compartment with the + (plus)
side facing upwards as shown. Then close the rear cover again.
The changeover from summer to winter time takes place automatically according to fixed days.
The current date must be set correctly during initial programming!
Depending on the frequency of switching
operations, we recommend replacing the
battery at least every 2 years.
* Depending on the model, the rear cover is additionally secured with a screw or a pushbutton.
Open the screw with a standard Phillips screwdriver.
A paper clip or a SIM tool can be used to unlock the pushbutton.
Please do not dispose of batteries in
household waste! Take them to an
appropriate disposal station.
P2
BI
SI
CR 2450
REMOVE
BEFOREUSE
Remove protective foil.
Display
Battery status
(depending on model)
Manual
Weekdays
Selected channel
Summertime
Wintertime
Minute
Group control
Zeitprogrammieroponen
Automatic
Hour
DOWN
UP
www.rojaex.com 7
Function overview display / Changing the battery

Technical data
Performance Features:
Input voltage 3V (battery CR2450)
Transmit frequency 433,05 - 434,79 MHz
Operating current ≤ 15mA
Quiescent current ≤ 15 μA
Standby consumption ≤ 5 μW
Transmitting power ≤ 10 mW
Protection class IP 20
Permissible ambient tempe-
rature +10°C to +50°C
Range Open field: approx. 150 m / indoors: approx. 30 m *
Channels 5-channel | 15-channel
Compatibility Rojaflex radio motors and radio receivers
Radio system Rolling Code
Dimensions (approx.) (HxWxD) 130 mm × 40 mm × 18 mm
Scope of delivery
When unpacking, please compare the package contents with the information on the scope of delivery in
these instructions!
1. Hand transmitter incl. battery
2. Wall mount incl. mounting material
3. Instruction manual
* Range data are approximate values and depend on the structural conditions.
1
Original Montageanleitung
Original instructions
Mode d‘emploioriginal
Instruccionesoriginales
Manuale d’uso originale
Originelegebruiksaanwijzing
Oryginalnainstrukcja obsługi
Eredeti összeszerelésiútmutató
IT
NL
PL
HUN
DE
EN
FR
ES
Voustrouverez ici une version complète et actuelle du mode d‘emploi/
Puede encontraruna versión completa actual del manual aquí/
Potetetrovare una versione completa attuale del manuale qui/
Een actuele volledige versie van de handleiding vindt u hier/
Aktualną, pełną wersję podręcznika można znaleźć tutaj/
A kézikönyv aktuális, teljes verzióját itt találja:
BEDIENUNGSANLEITUNG
|RHST15-W
Handsender
RHST5-W_V3. 2022-10-04
32
or
8 www.rojaex.com
Technical data / scope of delivery

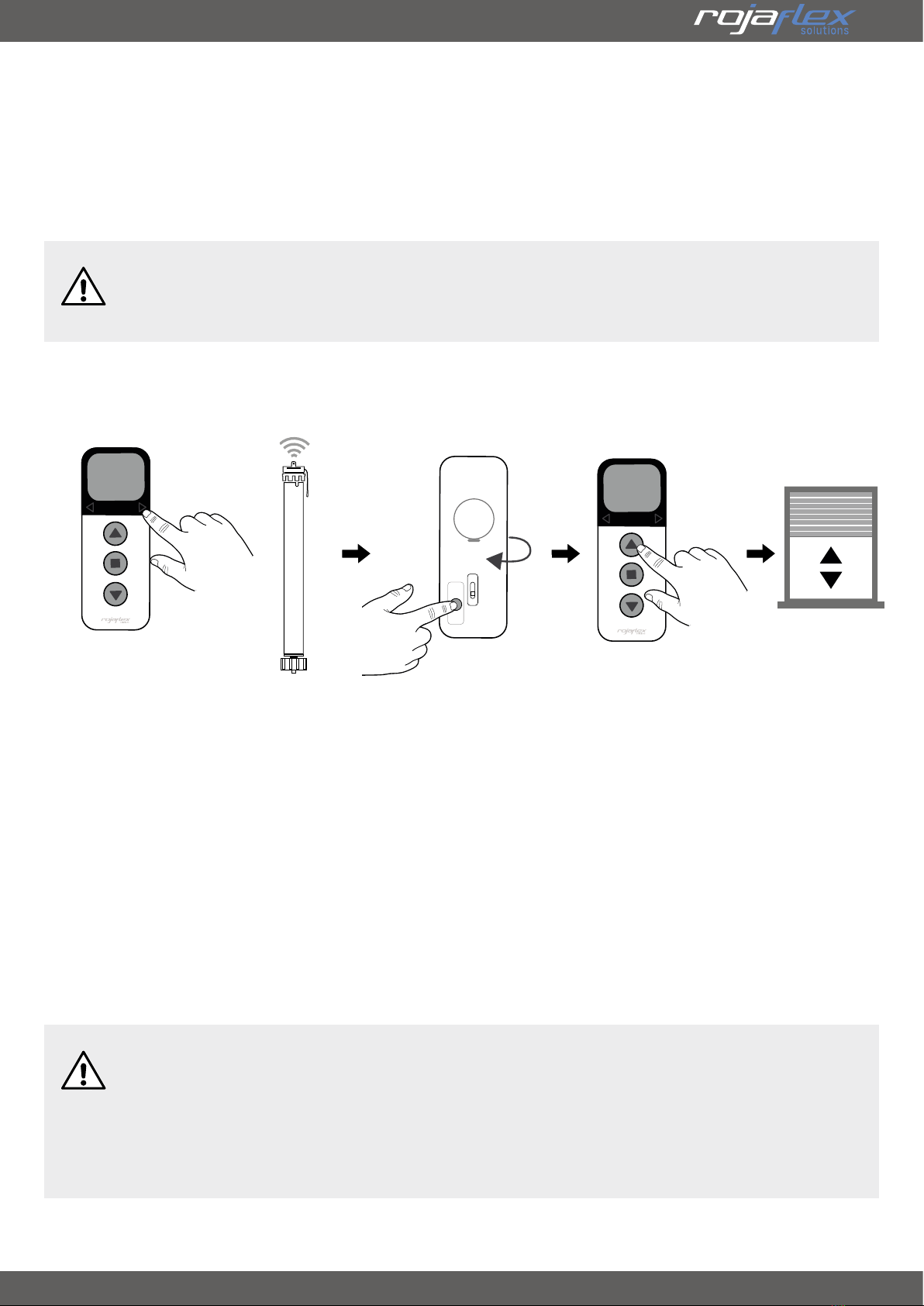

1. Programming mode - radio receiver or radio motor
Set the receiver (external Rojaflex radio receiver or Rojaflex radio motor) on which the handheld transmitter
is to be programmed to programming mode (see receiver instructions).
2. Programming the handheld transmitter - HSTR-5 | HSTR-15
Then check the function(s) with the UP / STOP / DOWN keys!
If the direction of rotation of the motor is reversed (roller shutter / motor moves downwards when
the UP key is pressed), please start from the beginning and press the DOWN key after the P2 key
instead of the UP key!
This changes the direction of rotation of the motor.
Each keystroke must be executed within 4 seconds!
Otherwise, the system automatically exits the programming mode.
The motor (shutter)
briefly moves UP/
DOWN and/or the
receiver beeps.
OK!
First code program-
ming successfully
performed.
Set receiver
(motor/exter-
nal receiver) to
programming
mode according to
instructions.
Press the K1 (or K2) key and
select the desired channel (the
channel highlighted in black is
selected).
The group function (all chan-
nels are selected) can NOT be
programmed separately as a
channel!
Press P2 programming key
(rear side) 2 x
Press UP key 1 x.
P2
BI
SI
CR 2450
www.rojaex.com 9
Programming and settings

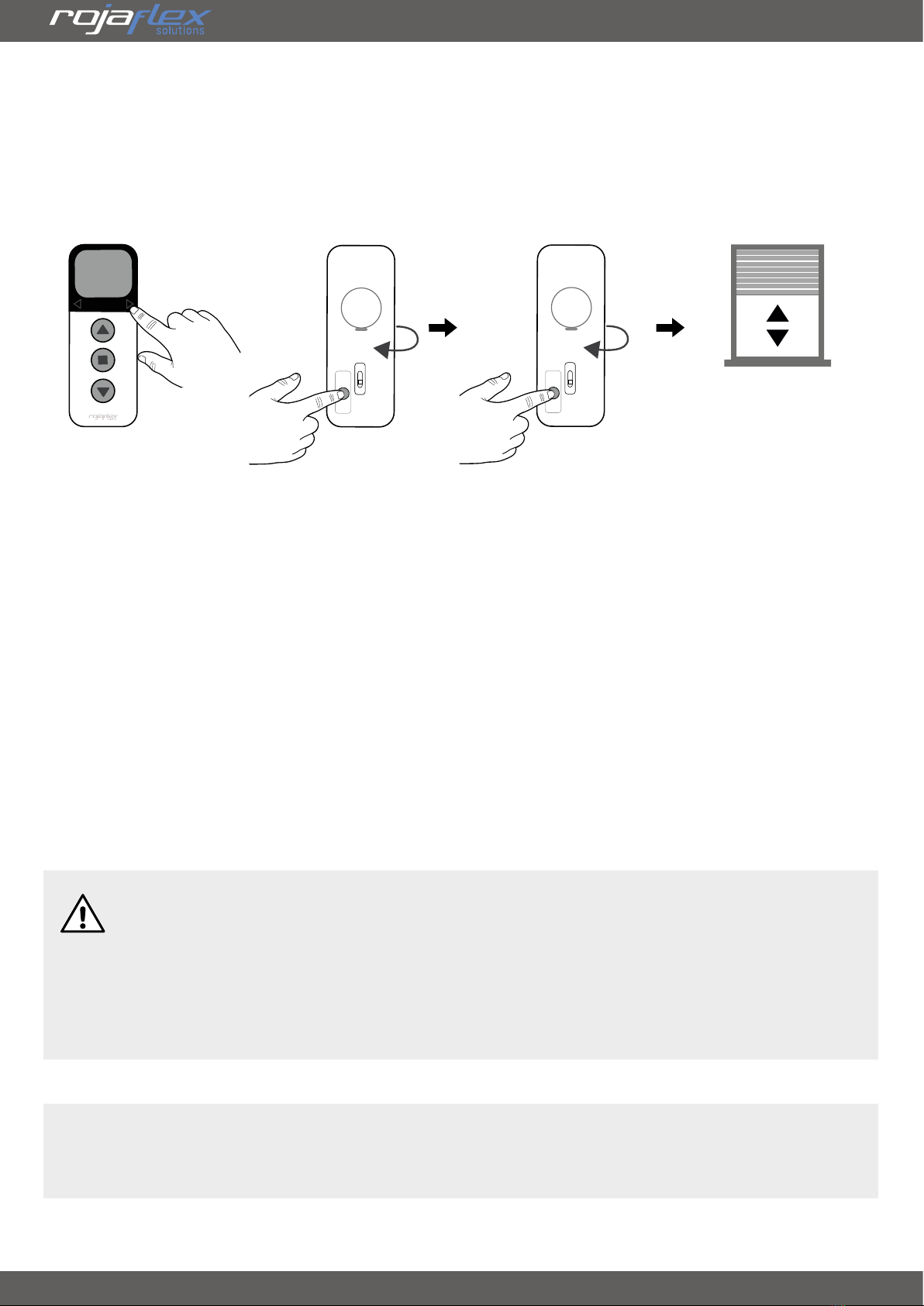

3. Add handheld transmitter
For more informaon, please refer to the instrucons of the Rojaex radio tubular motors or
radio receivers.
At an ALREADY programmed
station, select an already
programmed channel by
pressing the K1 (or K2) key.
Then, at the NEW station to
be learned, select the channel
to be added by pressing the
K2 (or K1) key (the channel
highlighted in black is selec-
ted).
Press the P2 programming
button (back) 3 times on the
already programmed hand-
held transmitter.
Press the P2 programming
button (back) once on the
handheld transmitter to be
reprogrammed.
Please note!
For multi-channel transmitters,
the desired channel must be
selected first!
The motor (shutter) briefly
moves UP/DOWN and/or the
receiver beeps.
OK!
Handheld transmitter is
added.
Important:
For systems with SI (single-direconal system / one-way communicaon) the
P2 buon of the already taught-in handheld transmier is only pressed 2x!
This applies, for example, to the MLSF/MLMF drives and the REHK-1 and RUE-UP external receivers.
Please follow the instrucons of the respecve receiver/motor!
P2
BI
SI
CR 2450
P2
BI
SI
CR 2450
Handheld transmitter 1 Handheld transmitter 2
10 www.rojaex.com
Programming and settings

4. Activating and deactivating the timer function
Manual mode no timer function (automatic OFF)
Automatic mode 1 Timer function in UP and DOWN (shutters open and close automatically
at previously programmed times)
Automatic mode 2 Timer function in UP and DOWN with random function (shutters open
and close automatically at previously programmed times) - but the set
opening and closing times are shifted randomly in the range from 0 to
15 minutes*.
*Time period cannot be influenced - is controlled arbitrarily by the electronics!
Press and hold the K1 key to switch between the individual modes.
MAN
Manual mode
AUTO
Automatic mode
Press and hold the K1 key
again.
After another approx. 5
seconds, the display changes
from “AUTO” to “AUTO with
random function” Release the
key.
Press and hold the K1 key.
After approx. 5 seconds, the
display changes from“MAN”
to “AUTO”.
Release key.
Automatic mode with Ran-
dom function.
www.rojaex.com 11
Programming and settings

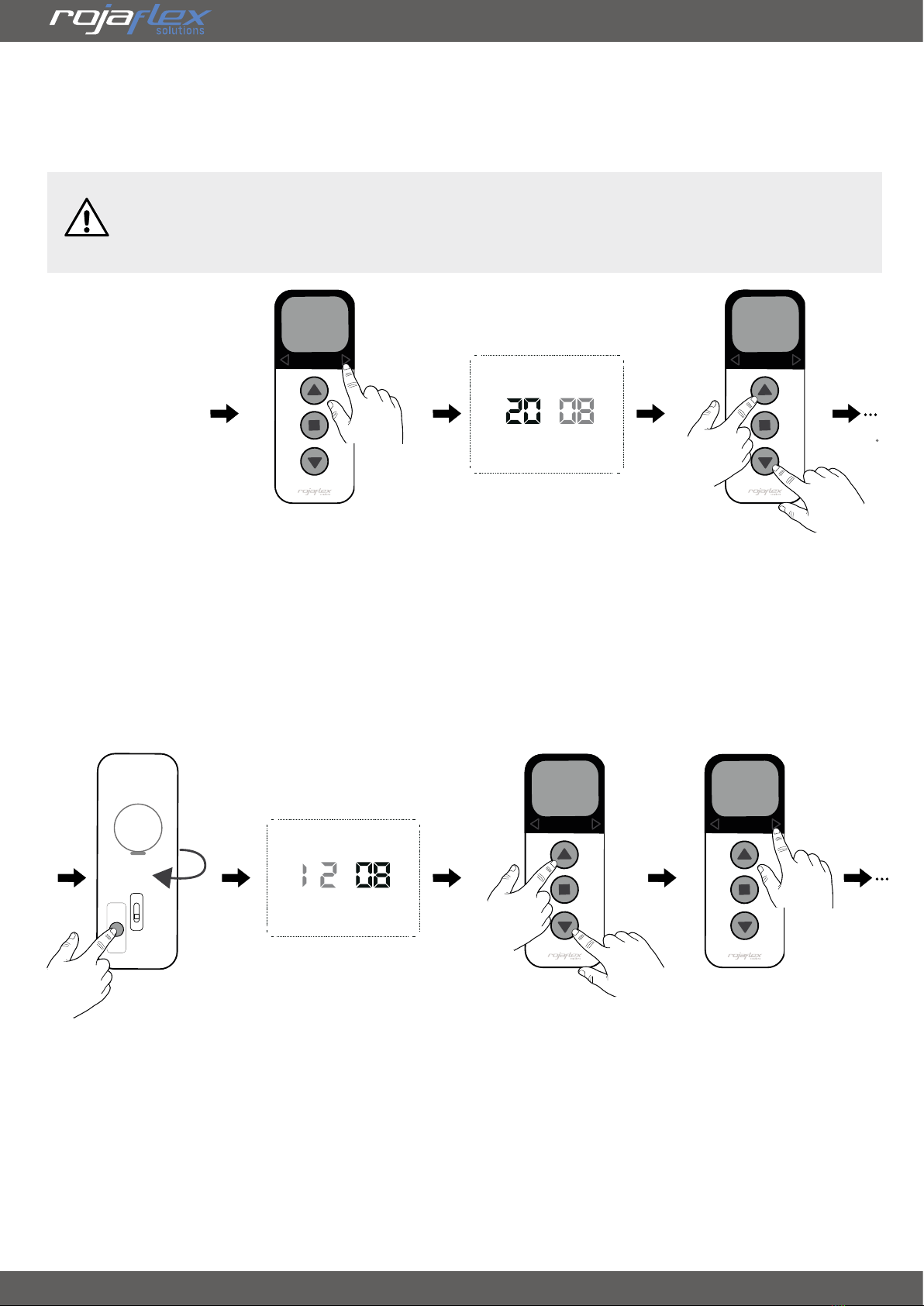

5. Programming the current time and date
Each keystroke must be executed within 4 seconds!
Otherwise, the system automatically exits the programming mode.
The last two digits flash.Press and hold the K2 key.
After approx. 5 seconds, the
currently set year is displayed.
Release key.
Use the UP and DOWN keys
to set the current month.
After setting the
month, press the K2
key.
The date display appears in
the display.
The month display flashes.
Press the P2 programming
key once to confirm the year.
Use the UP and DOWN keys
to set the current year.
Switch to Manual mode
as described in point 4.
P2
BI
SI
CR 2450
12 www.rojaex.com
Programming and settings

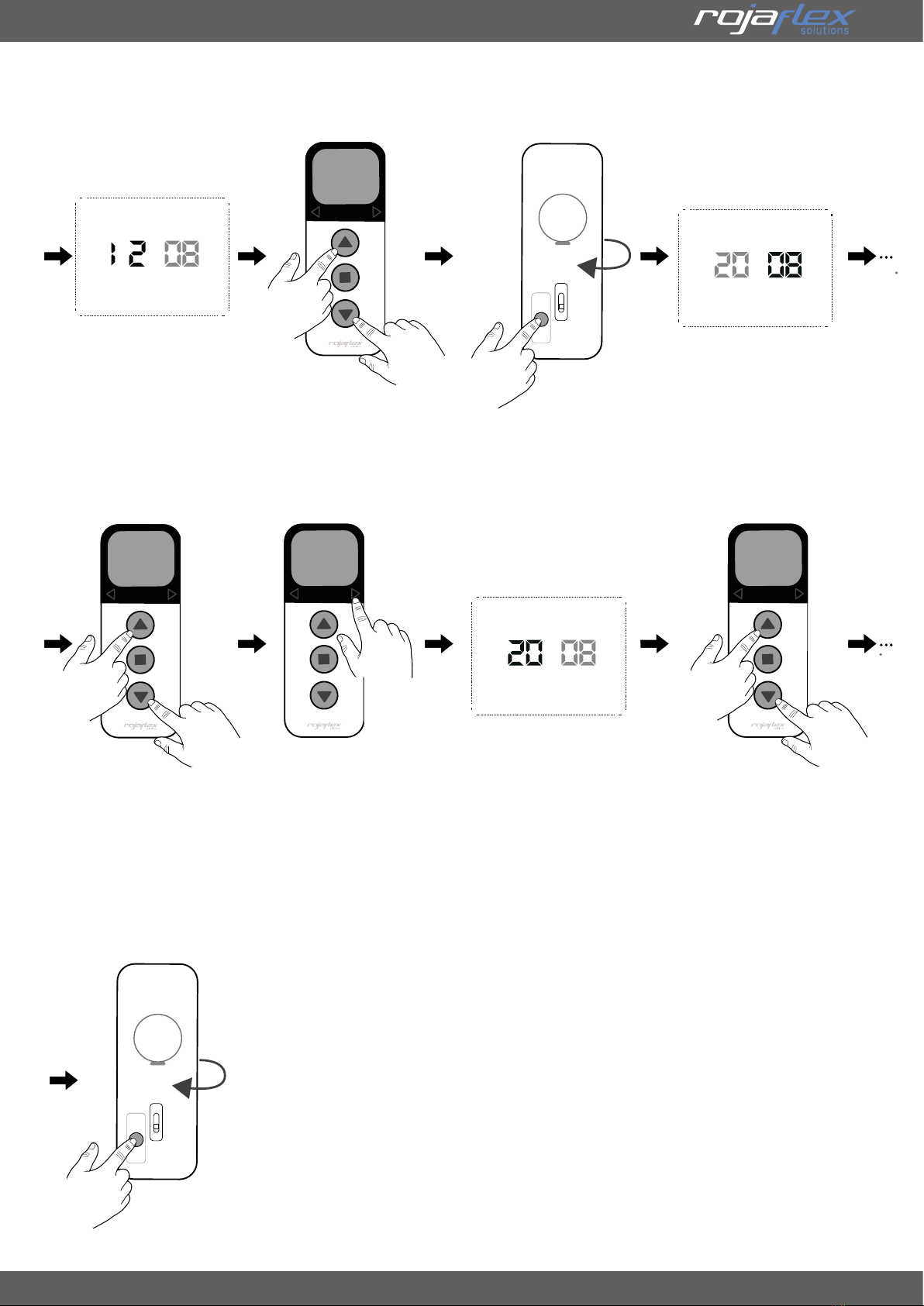

To confirm the set month and
day, press the P2 program-
ming key once.
The time display appears and
the hour display flashes.
Use the UP and DOWN keys to
set the current day.
The day display flashes.
The minute display flashes. With the UP and DOWN keys
you can now set the current
minute.
After setting the hour, press
the K2 key.
Use the UP and DOWN
keys to set the current
hour.
To confirm the set values (year/month/day/time), press the P2 program-
ming key again.
The programming of the time is completed, the settings are saved
P2
BI
SI
CR 2450
P2
BI
SI
CR 2450
www.rojaex.com 13
Programming and settings

6. Programming the automatic UP and DOWN travel times
Automatic mode and automatic mode with random function
Select the channel to be programmed with the K2 and K1 keys.
The group function (all channels are selected) can NOT be taught-in separately as a channel!
Time programming options:
Programme - 01 Mon-Sun (daily program > each day has a different departure and arrival time)
Programme - 02 Mon-Sun (weekly program > every day has the same departure and arrival
times)
Programme - 03 Mon-Fri / Sat+Sun (weekend program > Mon-Fri = same up and down times, >
Sat+Sun = separately programmable)
The same time programming options exist in random program mode.
Programming using the example of Program-01 (daily program):
Time programming options
are displayed.
Use the UP and DOWN keys
to select between the 3
different time programming
options (see above - Time
programming options).
Press and hold the K2 key.
After approx. 5 seconds, the
time programming options
are displayed.
Release key.
Switch to automatic or
automatic with random
function mode as de-
scribed in point 4.
Each keystroke must be executed within 4 seconds!
Otherwise, the system automatically exits the programming mode.
14 www.rojaex.com
Programming and settings

Use the UP and DOWN keys
to set the desired hour.
After setting the hour, press
the K2 key.
The hour display flashes and
the symbol for OPEN appears
in the display.
After the desired time
programming option has
been selected, press the P2
programming key once.
After setting the desired time
for OPEN, press the P2 key.
The set UP time for the dis-
played day is saved.
The display changes to the
programming of the AB time.
The hour display flashes.
Use the UP and DOWN keys to
set the desired minute.
The minute display flashes.
P2
BI
SI
CR 2450
P2
BI
SI
CR 2450
www.rojaex.com 15
Programming and settings

As soon as the hour and the
minute for the DOWN time
have been set, press the
P2 key again.
The set DOWN time for the
displayed day is saved.
The display changes to pro-
gramming the OPEN time for
the next day.
The hour display flashes.
Proceed as for program-
ming the automatic OPEN
time.
Procedure for programming the UP and DOWN times for the other days as described above.
To program the automatic UP and DOWN travel times for further channels,
please start from the beginning.
Please note!
The automatic UP and DOWN travel times must be programmed separately for each channel!
(select channel - switch to automatic mode - select time programming option - program UP time - program
DOWN time - confirm with P2 etc.).
P2
BI
SI
CR 2450
16 www.rojaex.com
Programming and settings

7. Control of the programmed values / date, / up and down times.
The display shows the time
programming option selec-
ted for this channel.
By pressing the K2 (forward)
or K1 (backward) key, all set
values for the selected chan-
nel can be checked.
Press the STOP key to end the
check.
Then press the K1 and K2 keys
simultaneously.
Select the desired channel by
pressing the K2 (or K1) key
(the channel highlighted in
black is selected).
For more information, please refer to the instructions of the Rojaflex radio tubular motors
or radio receivers.
www.rojaex.com 17
Programming and settings

18 www.rojaex.com
Notes

www.rojaex.com 19
Notes

Reprints, including excerpts, only with the permission of the author.
Product changes, which from our point of view serve to improve quality,
can be made at any time, even without prior notice or notification.
Illustrations can be example illustrations, which differ in appearance from
the delivered goods.
Errors excepted. No liability is assumed for printing errors.
Our general terms and conditions apply.
If you have any questions about this product,
please contact us at the following address:
rojaflex
is a registered trademark of
Schoenberger Germany Enterprises GmbH & Co. KG
Zechtraße 1-7
82069 Hohenschäftlarn
Germany
T +49 (0) 8178 / 93 29 93 93
F +49 (0) 8178 / 93 29 93 94
info@rojaflex.com
www.rojaflex.com
EU Waste and recycling / Registrations
Germany for electrical devices:
Stiftung EAR
WEEE-Reg.-no.: DE 41060608
Germany for batteries:
Stiftung EAR
Batt-Reg.-no.: DE 88866710
Germany for packaging:
LUCID Reg.-no.: DE5768543732165
Austria for electrical devices:
Elektro Recycling Austria (ERA) GmbH
ERA Contract no: 40801
Austria for packaging:
Altstoff Recycling Austria (ARA) AG
ARA License number: 23363
Switzerland for electrical devices:
Stiftung SENS
Membership number: VP11544
France for electrical devices:
Ecologic
Membership number / Take-back system: M3670
National registry: UIN FR208795_01SUIN
France for packaging:
Citeo
Membership number / Take-back system: 532886
National registry: UIN FR208795_01SUIN
Spain for electrical devices:
ECOTIC
Reg.-no.: RII-AEE- 7601
Spain for packaging:
Ecoembes
Membership number: 97556
Italy for electrical devices:
Raccolta differenziata. Verifica le disposizioni del tuo Comune!
Reg.-no.: n/a
Italy for packaging:
Raccolta differenziata. Verifica le disposizioni del tuo Comune!
Membership number: n/a
