INSTALLER MANUAL
Air/water heat pump
NIBE F2040 6, 8, 12, 16 – UK 1x230V

41 Important information
4Safety information
4Symbols
4Marking
4Serial number
5Recovery
5Environmental information
6Country specific information
7Inspection of the installation
8
Compatible indoor modules (VVM) and control
modules (SMO)
8Indoor modules
8Control modules
92 Delivery and handling
9Transport and storage
9Assembly
11Supplied components

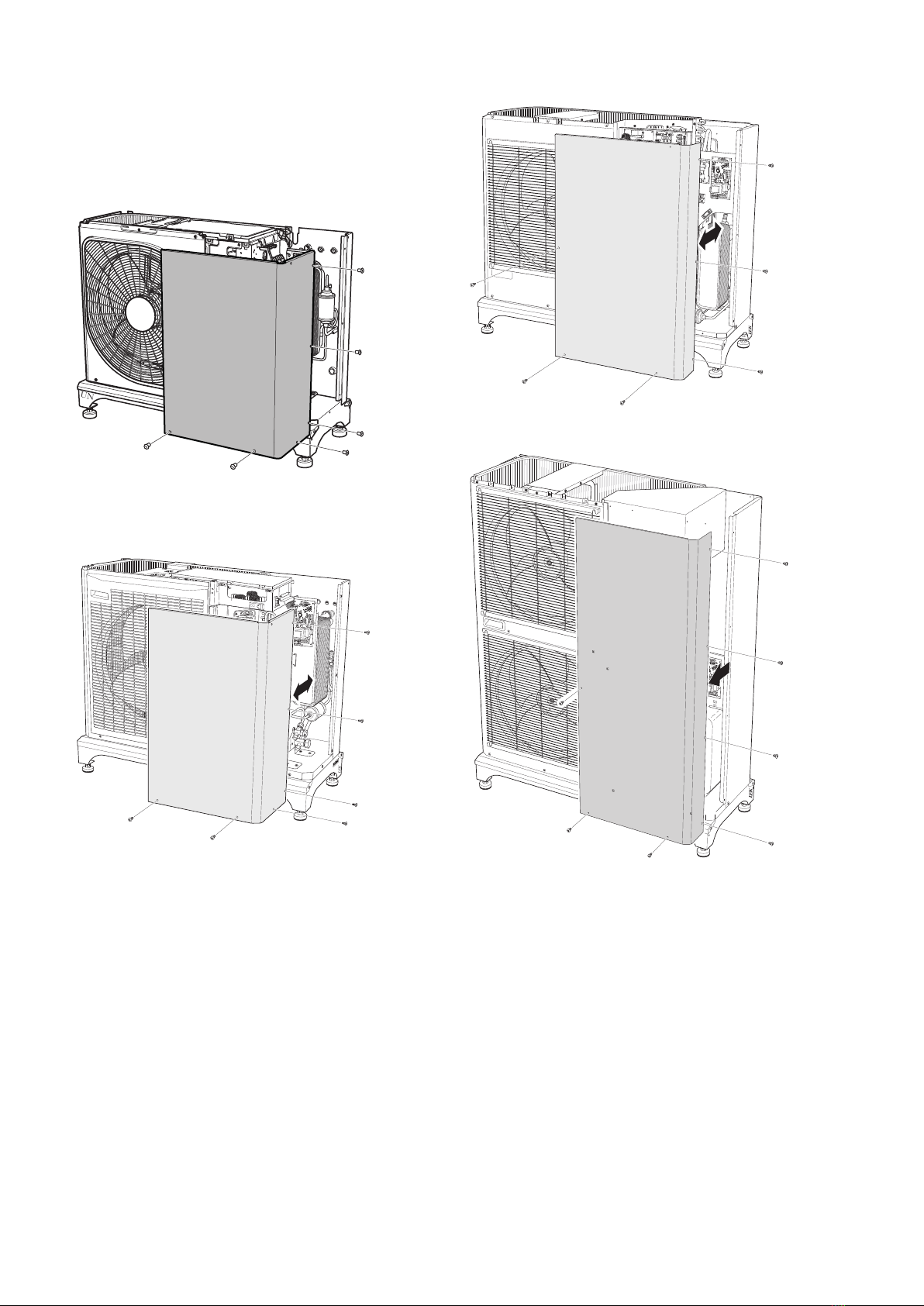

12Removing the covers
13Removing the front panel

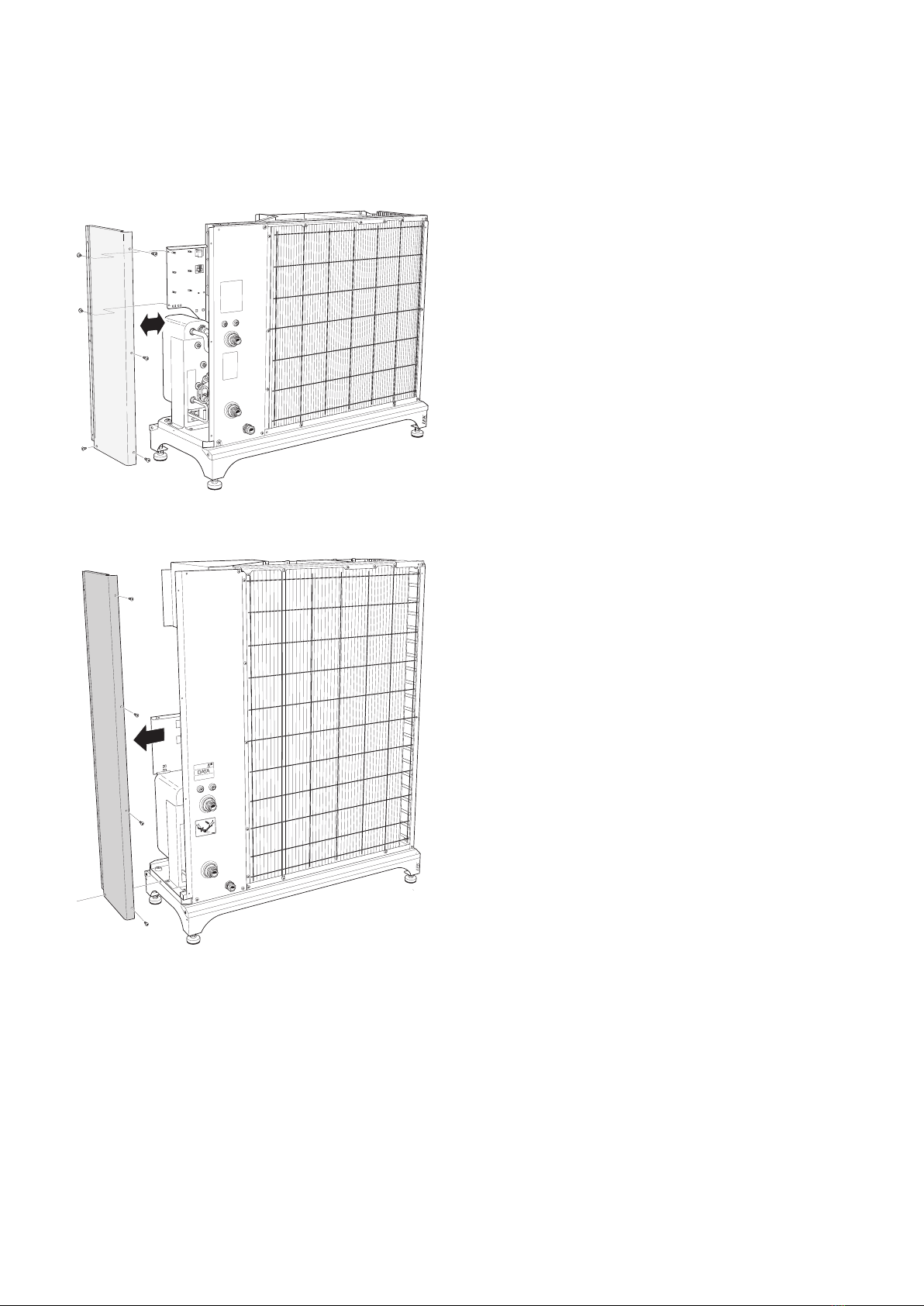

14Removing the side panel

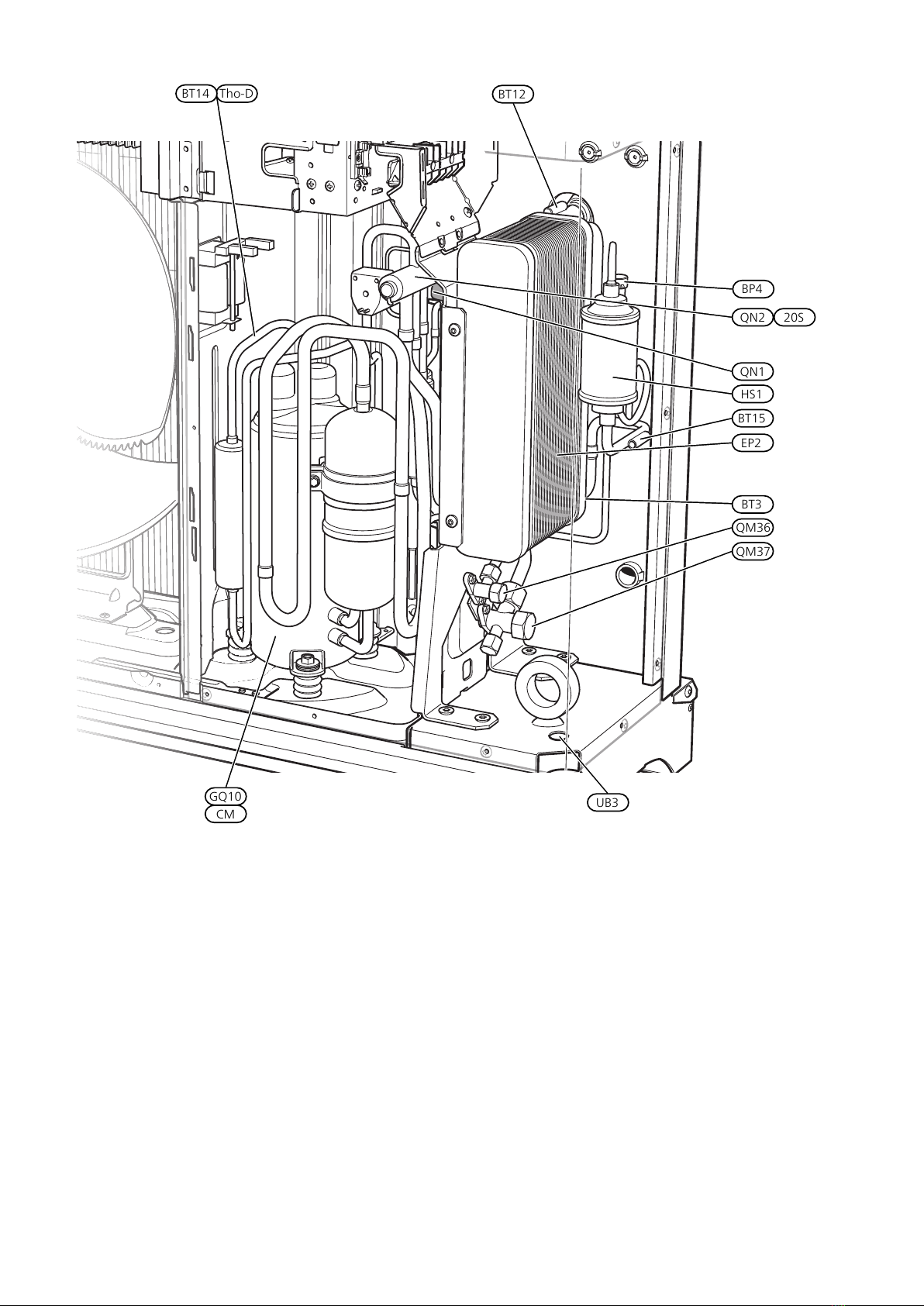

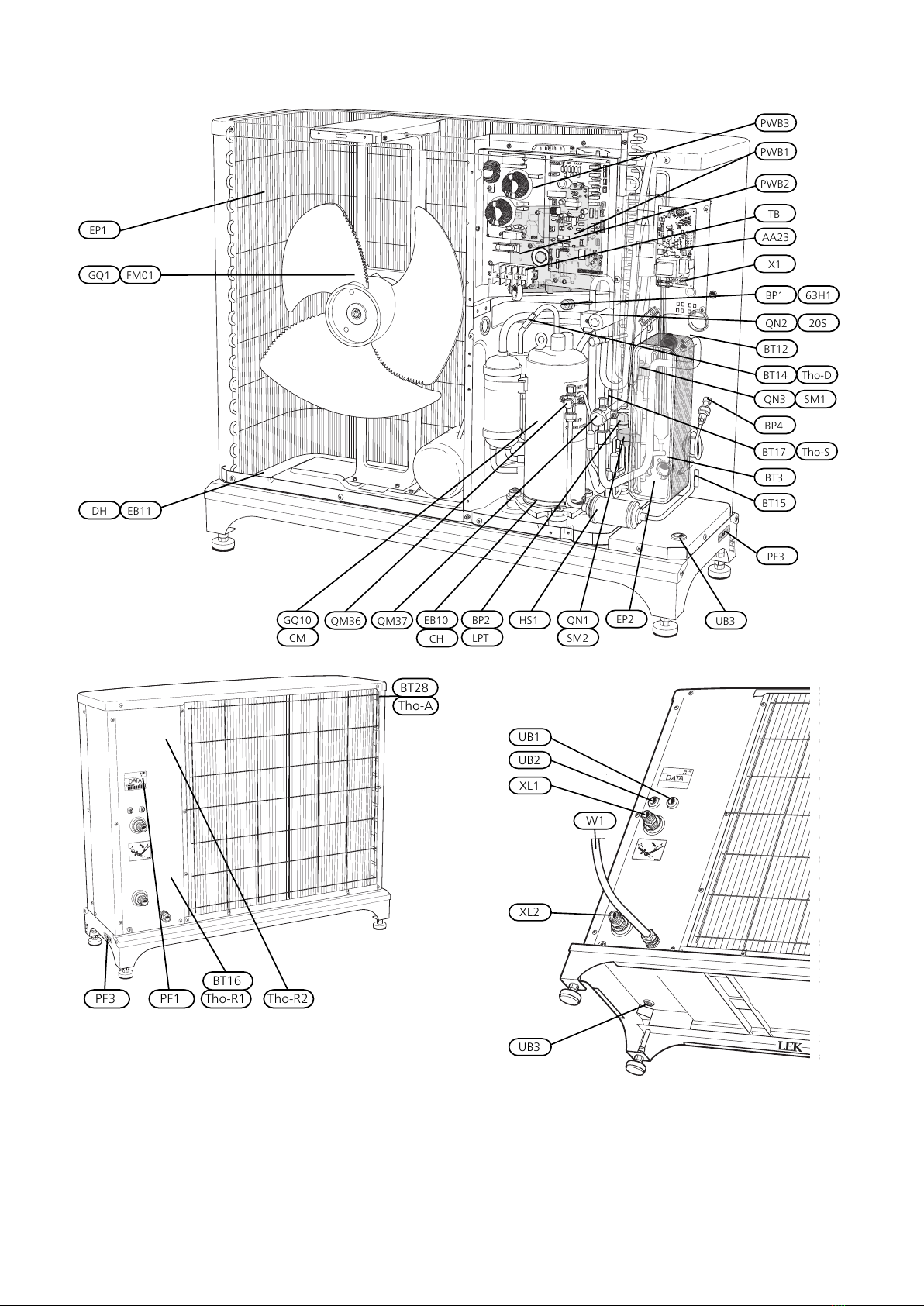

153 The heat pump design
15General
23Electrical connection
274 Pipe connections
27General
27Pipe coupling heating medium circuit
28Pressure drop diagram
28Pipe connections flex hose
29Docking alternatives
305 Electrical connections
30General
31
33Connections
436 Commissioning and adjusting
43Preparations
43Filling and venting
43Compressor heater
44Start-up and inspection
45Readjusting, heating medium side
45Adjustment, charge flow
467 Control
46Menu 5.11.1.1 – Heat pump EB101
478 Servicing and maintenance
47Important
47General inspection
47Heating System
489 Disturbances in comfort
48Troubleshooting
5610 Alarm list
5911 Accessories
6012 Technical data
60Dimensions and setting-out coordinates
64Sound pressure levels
65Technical specifications
67Working area
68Capacity and COP
70
Output with lower fuse rating than recommen-
ded
71Energy labelling
76Electrical circuit diagram
85Item register
3Table of ContentsNIBE F2040
Table of Contents

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
The manual must be left with the customer.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given super-
vision or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2018.
Symbols
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should consider when installing
or servicing the installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
MARKING
The CE mark is obligatory for most products sold in
the EU, regardless of where they are made.
CE
Classification of enclosure of electro-technical equip-
ment.
IP24
Danger to person or machine.
!
Read the User Manual.
Serial number
The serial number for F2040 can be found on the side
of the foot.
LEK
DATA
Serial number
Caution
You need the product's (14 digit) serial number
for servicing and support.
NIBE F2040Chapter 1 | Important information4
1 Important information

Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type
of service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current le-
gislation.
Environmental
information
The equipment contains R410A, a fluorinated green-
house gas with a GWP value (Global Warming Potential)
of 2088. Do not release R410A into the atmosphere.
5Chapter 1 | Important informationNIBE F2040

Country specific
information
UNITED KINGDOM
This installation is subject to building regulation approval,
notify the local Authority of intention to install.
Use only manufacturer’s recommended replacement
parts.
Benchmark places responsibilities on both manufactur-
ers and installers. The purpose is to ensure that custom-
ers are provided with the correct equipment for their
needs, that it is installed, commissioned and serviced
in accordance with the manufacturers instructions by
competent persons and that it meets the requirements
of the appropriate Building Regulations. The Benchmark
Checklist can be used to demonstrate compliance with
Building Regulations and should be provided to the
customer for future reference.
Installers are required to carry out the installation, com-
missioning and servicing work in accordance with the
Benchmark Code of practice which is available from the
Heating and Hotwater Industry Council who manage
and promote the Scheme. Visit www.centralheat-
ing.co.uk for information.
Warranty and insurance information
Thank you for installing a new NIBE heat pump in your
home.
NIBE heat pumps are manufactured in Sweden to the
very highest standard so we are pleased to offer our
customers a comprehensive guarantee.
The product is guaranteed for 24 months for parts and
labour from the date of installation or 33 months from
the date of manufacture, whichever is the shorter.
The NIBE guarantee is based on the unit being installed
and commissioned by a NIBE accredited installer, ser-
viced every year and the Benchmark documents com-
pleted. Where this condition is not met, any chargeable
spare parts or components issued within the applicable
guarantee period still benefit from a 12 month warranty
from the date of issue by the manufacturer.
We recommend the installer completes and returns as
soon as possible, your guarantee registration card or
completes the guarantee form on the NIBE website
www.nibe.co.uk.
Electrical Supply
The heat pump must be permanently connected to a
230V ac 50Hz supply.
All system components shall be of an approved type
and all wiring to current I.E.E wiring regulations.
External wiring must be correctly earthed, polarised and
in accordance with the relevant standards: Currently this
is BS 7671.
Heating System
The installation of the heat pump should follow best
practice as covered in the following:
BS 5449 Forced circulation hot water central heating
systems for domestic premises.
BS 15450 Heating systems in buildings – Design of heat
pump heating systems.
NIBE F2040Chapter 1 | Important information6

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person. Fill in the page for information about installation data in the User
manual.
DateSignatureNotesDescription
✔
Heating medium (page 27)
System flushed
System vented
Particle filter
Shut-off and drain valve
Charge flow set
Electricity (page 30)
Fuses property
Safety breaker
Earth circuit-breaker
Heating cable type/effect
Fuse size, heating cable (F3)
Communication cable connected
F2040 addressed (only when cascade
connection)
Connections
Main voltage
Phase voltage
When installing F2040-6, check that the
software version of the indoor mod-
ule/control module is at least v8320.
Miscellaneous
Warranty
Benchmark checklist
7Chapter 1 | Important informationNIBE F2040

Compatible indoor modules (VVM) and control
modules (SMO)
SMO 40SMO 20VVM 500VVM 325VVM 320VVM 310VVM 225
XXXXXXXF2040-6
XXXXXXXF2040-8
XXXXXXF2040-12
Indoor modules
VVM 320
Stainless steel, 1x230 V
With T&P valve
Part no. 069 112
Control modules
SMO 20
Control module
Part no. 067 224
SMO 40
Control module
Part no. 067 225
NIBE F2040Chapter 1 | Important information8

Transport and storage
F2040 must be transported and stored vertically.
Assembly
• Place F2040 outdoors on a solid level base that can
take the weight, preferably a concrete foundation. If
concrete slabs are used they must rest on asphalt or
shingle.
• The concrete foundation or slabs must be positioned
so that the lower edge of the evaporator is at the level
of the average local snow depth, although a minimum
of 300 mm.
• The F2040 should not be positioned next to sensitive
walls, for example, next to a bedroom.
• Also ensure that the placement does not inconveni-
ence the neighbours.
• F2040 must not be placed so that recirculation of the
outdoor air can occur. This causes lower output and
impaired efficiency.
• The evaporator should be sheltered from direct wind,
which negatively affects the defrosting function. Place
F2040 protected from wind against the evaporator.
•Large amounts of condensation water, as well as melt
water from defrosting, may be produced. Condensa-
tion water must be led off to a drain or similar (see
page 10.
• Care must be exercised so that the heat pump is not
scratched during installation.
LEK
LEK
LEK
Cirka 1 m
LEK
LEK
LEK
Cirka 1 m
min 300 mm
Min. 300 mm

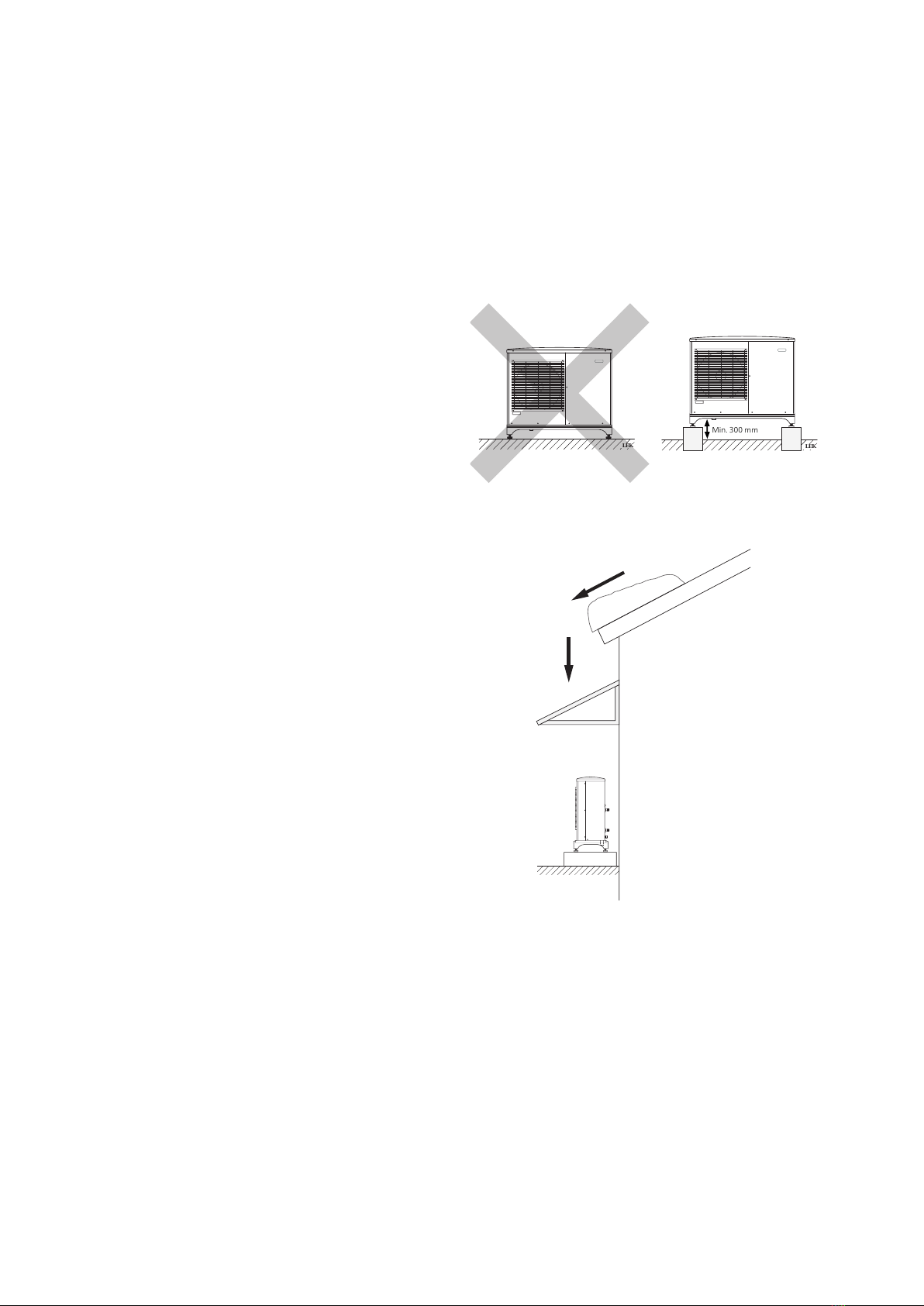

Do not place F2040 directly on the lawn or other non
solid surface.
If there is a risk of snow slip from roof, a protective roof
or cover must be erected to protect the heat pump,
pipes and wiring.
9Chapter 2 | Delivery and handlingNIBE F2040
2 Delivery and handling

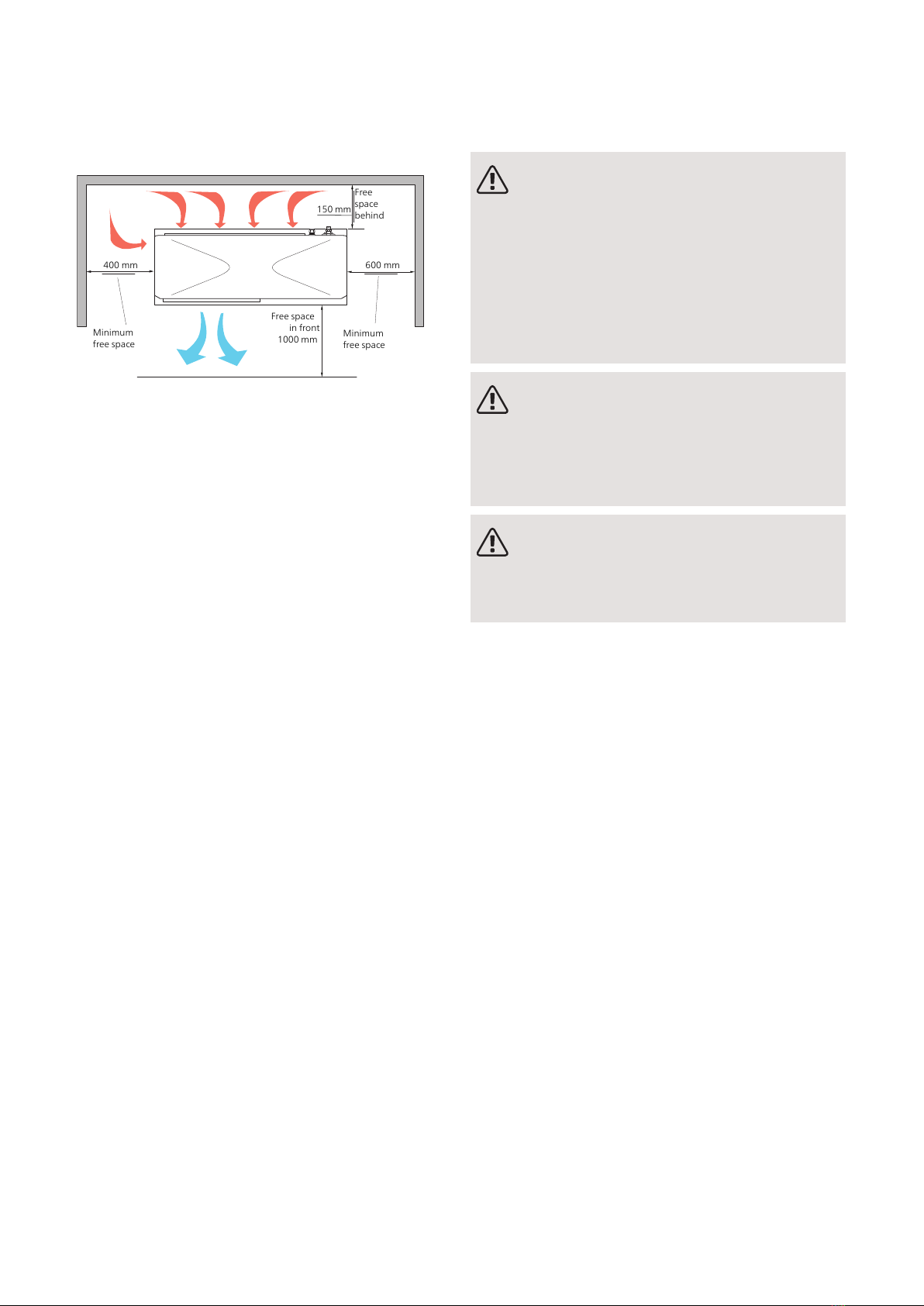

INSTALLATION AREA
The distance between F2040 and the house wall must
be at least 150 mm. Clearance in front of F2040 should
be at least one metre.
50
255
Ställbar 40-50 955
243
512
110
395
265
50
452 1075
1145
108
Ø40*
14
85
3000 mm
400 mm
Minimalt
fritt utrymme
Minimalt
fritt utrymme
Fritt utrymme
framför
150 mm
Fritt
utrymme
bakom
600mm
Minimum
free space
Minimum
free space
Free
space
behind
400 mm 600 mm
150 mm
1000 mm
Free space
in front

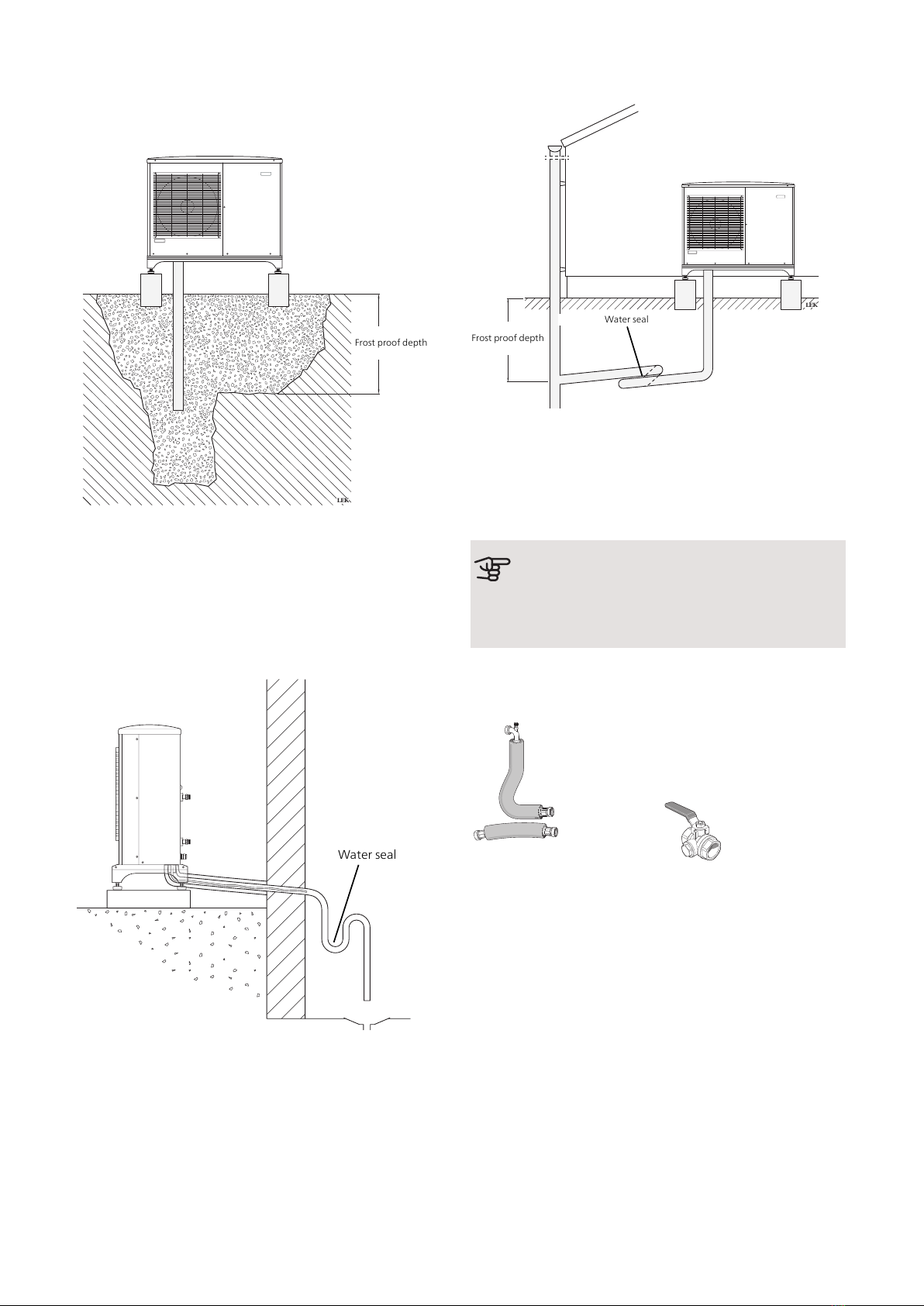

CONDENSATION WATER TROUGH
The condensation water trough collects and leads away
most of the condensation water from the heat pump.
NOTE
It is important to the heat pump function that
condensation water is led away and that the
drain for the condensation water run off is not
positioned so that it can cause damage to the
house.
Condensation runoff should be checked regu-
larly, especially during the autumn. Clean if
necessary.
NOTE
Pipe with heating cable for draining the con-
densation water trough is not included.
To ensure this function the accessory KVR 10
should be used.
NOTE
The electrical installation and wiring must be
carried out under the supervision of an author-
ised electrician.
• The condensation water (up to 50 litres/24 hrs) that
collects in the trough should be routed away by a pipe
to an appropriate drain, it is recommended that the
shortest outdoor stretch possible is used.
• The section of the pipe that can be affected by frost
must be heated by the heating cable to prevent
freezing.
• Route the pipe downward from F2040.
• The outlet of the condensation water pipe must be at
a depth that is frost free or alternatively indoors (with
reservation for local ordinances and regulations).
• Use a water trap for installations where air circulation
may occur in the condensation water pipe.
• The insulation must seal against the bottom of the
condensation water trough.
NIBE F2040Chapter 2 | Delivery and handling10

Recommended alternative for leading off
condensation water
Stone caisson
LEK
Frostfritt djup
Frost proof depth
If the house has a cellar the stone caisson must be po-
sitioned so that condensation water does not affect the
house. Otherwise the stone caisson can be positioned
directly under the heat pump.
The outlet of the condensation water pipe must be at
frost free depth.
Drain indoors
Water seal
The condensation water is lead to an indoor drain (sub-
ject to local rules and regulations).
Route the pipe downward from F2040.
The condensation water pipe must have a water seal to
prevent air circulation in the pipe.
KVR 10 spliced as illustrated. Pipe routing inside house
not included.
Gutter drainage
Frostfritt
djup
LEK
Frost proof depth
Water seal
The outlet of the condensation water pipe must be at
frost free depth.
Route the pipe downward from F2040.
The condensation water pipe must have a water seal to
prevent air circulation in the pipe.
Caution
If none of the recommended alternatives is
used good lead off of condensation water must
be assured.
Supplied components
LEK
LEK
Filterball (G1").
2 x flexible pipes (DN25, G1")
with 4 x gaskets.
11Chapter 2 | Delivery and handlingNIBE F2040

Removing the covers
F2040-6
UN
F2040-8
LEK
F2040-12
LEK
F2040-16
LEK
NIBE F2040Chapter 2 | Delivery and handling12

Removing the front
panel
F2040-6
UN
F2040-8
LEK
F2040-12
LEK
F2040-16
LEK
13Chapter 2 | Delivery and handlingNIBE F2040

Removing the side
panel
F2040-12
LEK
F2040-16
LEK
DATA
NIBE F2040Chapter 2 | Delivery and handling14

General
F2040-6
UN
GQ1
DH
EP1
EB11
CM
20S
63H1
LPT
SM2
SM1
PF3
GQ10
QN1
QM36
QM37
CH
EB10
BT17
FM01
HS1
BT15
QN2
AA23
BT12
BP1
X1
BP2
BP4
BT3
QN3
EP2
UB3
TBFPWB1
RF2
RF3
15Chapter 3 | The heat pump designNIBE F2040
3 The heat pump design

DATA
UB3
W1
UB1
UB2
XL1
XL2
DATA
PF3
BT28
Tho-R1
Tho-R1
PF1
BT16
Tho-A
BT16
NIBE F2040Chapter 3 | The heat pump design16

Tho-A
CM
SM2
QN1
CH
EB10
GQ10
20S
63H1
LPT
SM1
Tho-SBT17
BT15
QN2
BT12
QN1
BP2
BP4
BT3
QN3
BT28
HS1
UB3
EP2
QM36
QM37
Tho-DBT14
17Chapter 3 | The heat pump designNIBE F2040

F2040-8
LEK
GQ1
DH
UB3
EP1
EB11
CM
20S
63H1
LPT
SM2
SM1
FM01
PWB2 PWB3 PWB1
BT12
BT15
BP4
QN2
BT3
PF3
HS1
EP2
GQ10 QN1
BP2
QM36
QM37
BP1
QN3
CH
EB10
AA23
X1
F TBBT14 Tho-D
Tho-SBT17
LEK
DATA
XL2
UB1
UB2
W1
XL1
UB3
LEK
DATA
PF1PF3
Tho-A
BT28
Tho-R1 Tho-R2
BT16
NIBE F2040Chapter 3 | The heat pump design18

F2040-12
LEK
QN1
GQ1
GQ10 QM36
QN3
QM37
TB
BP1
QN2
PWB1
PWB2
PWB3
DH
UB3
BT3
BP4
PF3
BT15
EP1
EP2
HS1
BP2
BT12
X1
EB11
CM
20S
63H1
LPT SM2
SM1
FM01
CH
EB10
AA23
Tho-DBT14
BT17 Tho-S
LEK
DATA
XL2
UB1
UB2
W1
XL1
UB3
LEK
DATA
Tho-A
BT28
PF1PF3 Tho-R1
BT16
Tho-R2
19Chapter 3 | The heat pump designNIBE F2040

F2040-16
LEK
GQ1
DH
X1
CM
63H1
CH
SM2
SM1
FM01
PWB2 PWB3 PWB1
QN2 20S
BT12
TB
BP1
PF3
QN3
BP4
BT3
BT15
UB3
GQ10 HS1
QN1
EP2
QM37
QM36
EB11
GQ2 FM02
EP1
F
LPT
BP2
AA23
Tho-D
BT14 EB10
Tho-SBT17
NIBE F2040Chapter 3 | The heat pump design20
