Nibe F2300 User manual

User manual
LEK
NIBE™ F2300
Air/water heat pump
UHB GB 1508-1
231142

Table of Contents
21 Important information
2Installation data
4Safety information
5Safety precautions
8Serial number
9Contact information
11F2300 - An excellent choice
122 The heat pump – the heart of the house
12Heat pump function
14Contact with F2300
15Maintenance of F2300
193 Disturbances in comfort
19Troubleshooting
214 Technical data
225 Glossary
26Index
1NIBE™ F2300Table of Contents |

1 Important information
Installation data
F2300Product
Serial number
Installation date
Installer
Serial number must always be given
Certification that the installation is carried out according to instructions
in NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE™ F2300Chapter 1 | Important information2

Accessories
✔
SetDefault
set-
tings
NameChan-
nel
1Communications ad-
dress
A1
4 °CConnection diff. re-
turn temp.
A3
20 minStart interval com-
pressor
A4
0 °CBalance temperatureA5
120 minTime delay addition
relay
A6
-20 °CStop temperatureA7
60/55Min. interval
between defrosting
A8
-3 °CStart defrostingA9
+20 °CStop defrostingA10
0Activation collar
heater
A14
0Activation de-icing
fan
A15
1Defrosting typeA16
3NIBE™ F2300Chapter 1 | Important information

Safety information
This appliance is designed for use in a home environ-
ment and not intended to be used by persons (includ-
ing children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person respons-
ible for their safety. This in accordance to applicable
parts of the low-voltage directive 2006/95/EC, LVD.
The appliance is also intended for use by experts or
trained users in shops, hotels, light industry, on farms
and in similar environments. This in accordance to ap-
plicable parts of the machinery directive 2006/42/EC.
Children should be supervised to ensure that they do
not play with the appliance.
This is an original instruction manual. Translation is
not allowed without approval from NIBE.
Rights to make any design or technical modifications
are reserved.
©NIBE 2014.
NOTE
F2300 must be installed via an isolator switch with
a minimum breaking gap of 3 mm.
NOTE
If the supply cable is damaged, only NIBE, its service
representative or similar authorised person may re-
place it to prevent any danger and damage.
NIBE™ F2300Chapter 1 | Important information4

Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should
observe when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
The CE marking means that NIBE ensures that the product meets all regu-
lations that are placed on it based on relevant EU directives. The CE mark
is obligatory for most products sold in the EU, regardless where they are
made.
Safety precautions
Caution
The installation must be carried out by a qualified installer.
If you install the system yourself, serious problems may occur, for example water leaks,
refrigerant leaks, electric shocks, fire and personal injury, as a result of a system malfunc-
tion.
Use original accessories and the stated components for the installation.
If parts other than those stated by us are used, water leaks, electric shocks, fire and
personal injury may occur as the unit may not work properly.
Install the unit in a location with good support.
Unsuitable installation locations can cause the unit to fall and cause material damage
and personal injury. Installation without sufficient support can also cause vibrations and
noise.
Ensure that the unit is stable when installed, so that it can withstand earthquakes
and strong winds.
Unsuitable installation locations can cause the unit to fall and cause material damage
and personal injury.
The electrical installation must be carried out by a qualified electrician and the
system must be connected as a separate circuit.
Power supply with insufficient capacity and incorrect function can cause electric shocks
and fire.
Do not perform any repairs yourself. Consult the dealer if the system requires repair.
Incorrectly performed repairs can cause water leakage, refrigerant leakage, electric
shocks or fire.
Consult the dealer or an expert regarding removal of the heat pump.
Incorrect installation can cause water leakage, refrigerant leaks, electric shocks or fire.
5NIBE™ F2300Chapter 1 | Important information

Switch off the power supply in the event of a service or inspection.
If the power supply is not shut off, there is a risk of electric shocks and damage due to
the rotating fan.
Do not run the unit with removed panels or protection.
Touching rotating equipment, hot surfaces or high voltage parts can cause personal
injury due to entrapment, burns or electric shocks.
Cut the power before starting electrical work.
Failure to cut the power can cause electric shocks, damage and incorrect function of
the equipment.
Care
Do not use the unit where water splashes may occur, for example in laundries.
The indoor section is not waterproof and electric shocks and fire can therefore occur.
Do not use the unit for specialist purposes such as for storing food, cooling precision
instruments, freeze-conservation of animals, plants or art.
This can damage the items.
Do not install the outdoor unit in the locations stated below.
- Locations where leakage of combustible gas can occur.
- Locations where carbon fibre, metal powder or other powder that can enter the air.
- Locations where substances that can affect the unit, for example, sulphide gas, chlorine,
acid or alkaline substances can occur.
- Locations with direct exposure to oil mist or steam.
- Vehicles and ships.
- Locations where machines that generate high frequency harmonics are used.
- Locations where cosmetic or special sprays are often used.
- Locations that can be subjected to direct salty atmospheres. In this case, the outdoor
unit must be protected against direct intakes of salty air.
- Locations where large amounts of snow occur.
- Locations where the system is exposed to chimney smoke.
If the bottom frame of the outdoor section is corroded, or in any other way dam-
aged, due to long periods of operation, it must not be used.
Using an old and damaged frame can cause the unit to fall and cause personal injury.
Do not allow the drainage pipe to exit into channels where poisonous gases,
containing sulphides for example, can occur.
If the pipe exits into such a channel, any poisonous gases will flow into the room and
seriously affect the user's health and safety.
Insulate the unit's connection pipes so that the ambient air moisture does not
condense on them.
Insufficient insulation can cause condensation, which can lead to moisture damage on
the roof, floor, furniture and valuable personal property.
Do not install the outdoor unit in a location where insects and small animals can
inhabit.
Insects and small animals can enter the electronic parts and cause damage and fire. In-
struct the user to keep the surrounding equipment clean.
Dispose of any packaging material correctly.
Any remaining packaging material can cause personal injury as it may contain nails and
wood.
Do not touch any buttons with wet hands.
This can cause electric shocks.
Do not shut off the power supply immediately after operation has start.
Wait at least 5 minutes, otherwise there is a risk of water leakage or breakdown.
NIBE™ F2300Chapter 1 | Important information6

Do not control the system with the main switch.
This can cause fire or water leakage. In addition, the fan can start unexpectedly, which
can cause personal injury.
7NIBE™ F2300Chapter 1 | Important information

Serial number
The serial number can be found at the top left of the rear cover and on
the foot of the product.
530
645
30
50
560
1325
205 475 520
280
134550
175
650
620
1455
85
140
40-60
175
55
400 mm
Fritt utrymme bakom
Fritt utrymme framför
Min. avstånd
vid användning
av flera F2300
600 mm
3000 mm
400 mm
Minimalt
fritt utrymme
600mm
Minimalt
fritt utrymme
Ø40
Serial number
Caution
Always give the product's serial number when reporting a fault.
NIBE™ F2300Chapter 1 | Important information8

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail]
www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Tel: [phone] Fax: [phone] E-mail: [email protected]
www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad
Jizerou
CZ
Tel: [phone] Fax: [phone] E-mail: [email protected]
www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: [email protected]
www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7,
6920 Videbæk
DK
Tel: [phone] Fax: [phone] E-mail: [email protected]
www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: [email protected] www.nibe.fi
NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou
du Ciel, 01600 Reyrieux
FR
Tel : [phone] Fax : [phone] E-mail: [email protected]
www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way,
Chesterfield S41 9QG
GB
Tel: [phone] Fax: [phone] E-mail: [email protected].uk
www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: [email protected]
www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vol-
lebekk, 0516 Oslo
NO
Tel. sentralbord: [phone] E-mail: [email protected] www.ni-
beenergysystems.no
9NIBE™ F2300Chapter 1 | Important information

NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail]
www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: [email protected]
www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu
for more information.
NIBE™ F2300Chapter 1 | Important information10

F2300 - An excellent choice
F2300 is an air/water heat pump specially developed for the Nordic climate,
which utilises the outside air so there is no need for bore holes or coils in
the ground.
The heat pump is intended for connection to water borne heating systems
and can both heat hot water effectively at high outdoor temperatures
and give a high output to the heating system at low outdoor temperatures.
If the outdoor temperature drops to a level below the stop temperature
all heating must then occur with external additional heat.
Excellent properties for F2300:
■Efficient scroll compressor
New efficient scroll compressor that operates at temperatures down to
-25°C.
■Intelligent control
Integrated intelligent control for optimum control of the heat pump. At
a start signal from an NIBE indoor module or thermostat F2300 is started.
■Fan
F2300 has an automatic 2-step capacity regulator for the fan.
■Long service life
The material has been chosen for a long service life and is designed to
withstand the Nordic outdoor conditions.
■Many possibilities
F2300 can also be used together with most electric boilers, oil boilers
or similar.
■Draining
F2300 has been prepared to lead off the condensation water.
11NIBE™ F2300Chapter 1 | Important information

2 The heat pump – the heart of
the house

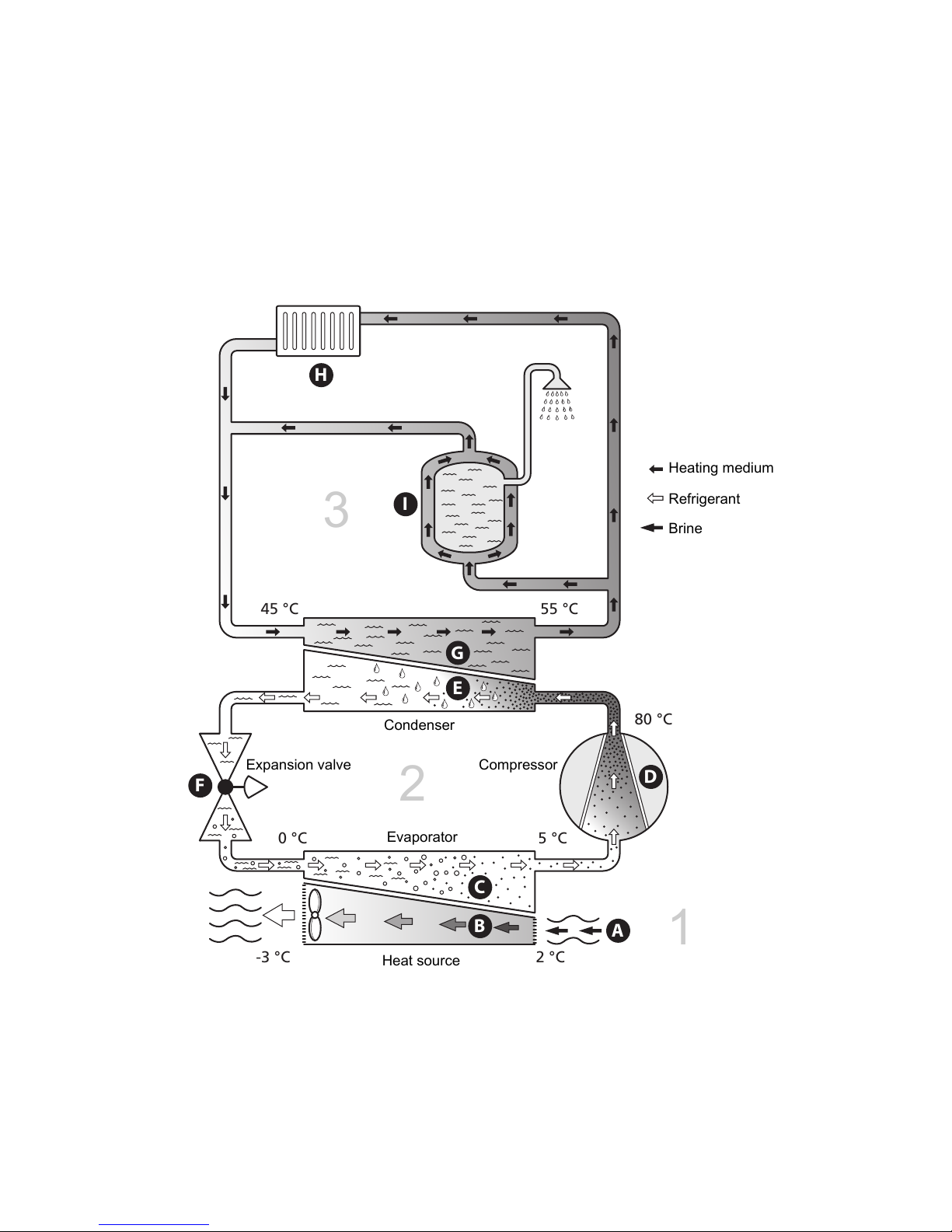

Heat pump function
Värmebärare
Köldmedium
Uteluft
Förångare
Kondensor 80 °C
2 °C-3 °C
5 °C0 °C
55 °C45 °C
Expansionsventil Kompressor
A
D
F
H
I
B
C
E
G
Heating medium
Värmebärare
Köldmedium
Köldbärare
Värmekälla
Förångare
Kondensor 100 °C
0 °C-3 °C
-2 °C
50 °C40 °C
Expansionsventil Kompressor
A
D
F
H
B
C
E
G
Brine
Refrigerant
Evaporator
Condenser
Expansion valve Compressor
Heat source 1
2
3
The temperatures are only examples and may vary between different installations and
time of year.
NIBE™ F2300Chapter 2 | The heat pump – the heart of the house12

An air/water heat pump can use the outdoor air to heat a property. The
conversion of the outdoor air's energy to property heating occurs in three
different circuits. In the brine circuit, (1) , free heat energy is retrieved from
the surroundings and transported to the heat pump. In the refrigerant
circuit, (2) , the heat pump increases the retrieved heat's low temperature
to a high temperature. In the heating medium circuit, (3) , the heat is dis-
tributed around the house.
Outdoor air
The outdoor air is sucked into the heat pump.
A
The fan then routes the air to the heat pump’s evaporator. Here, the air
releases the heating energy to the refrigerant and the air's temperature
drops. The cold air is then blown out of the heat pump.
B
Refrigerant circuit
A gas circulates in a closed system in the heat pump, a refrigerant, which
also passes the evaporator. The refrigerant has a very low boiling point.
In the evaporator the refrigerant receives the heat energy from the outdoor
air and starts to boil.
C
The gas that is produced during boiling is routed into an electrically
powered compressor. When the gas is compressed, the pressure increases
and the gas's temperature increases considerably, from 5 °C to approx.
80°C.
D
From the compressor, gas is forced into a heat exchanger, condenser,
where it releases heat energy to the heating system in the house,
whereupon the gas is cooled and condenses to a liquid form again.
E
As the pressure is still high, the refrigerant can pass an expansion valve,
where the pressure drops so that the refrigerant returns to its original
temperature. The refrigerant has now completed a full cycle. It is routed
to the evaporator again and the process is repeated.
F
Heat medium circuit
The heat energy that the refrigerant produces in the condenser is retrieved
by the climate system's water, heating medium, which is heated to 55 °C
(supply temperature).
G
The heating medium circulates in a closed system and transports the heated
water's heating energy to the house water heater and radiators/heating
coils.
H
The temperatures are only examples and may vary between different installations and
time of year.
13NIBE™ F2300Chapter 2 | The heat pump – the heart of the house

Contact with F2300
F2300 has an integrated control system that checks and monitors the heat
pump operation. At installation the installer makes the necessary settings
of the control system so that the heat pump will work optimally in your
system.
The heat pump is controlled in different ways depending on what your
system looks like. If you have a NIBE indoor module heat pump operation
can be controlled from there. Refer to the relevant manual for further in-
formation.
NIBE™ F2300Chapter 2 | The heat pump – the heart of the house14

Maintenance of F2300
Regular checks
When your heat pump is located outdoors some external maintenance is
required.
NOTE
Insufficient oversight can cause serious damage to F2300 which is not
covered by the guarantee.
Checking grilles
Check that the inlet grille is not clogged by leaves, snow or anything else
regularly throughout the year.
Pay extra attention in event of high winds or snowfall that may cause the
grille to be blocked.
LEK
LEK
LEK
LEK
Prevent snow building up and covering the grille on F2300.
LEK
LEK
LEK
LEK
Keep free of snow and/or ice.
15NIBE™ F2300Chapter 2 | The heat pump – the heart of the house

Cleaning the outer casing
If necessary the outer casing can be cleaned using a damp cloth.
Care must be exercised so that the heat pump is not scratched when
cleaning. Avoid spraying water into the grilles or the sides so that water
penetrates into F2300. Prevent F2300 coming into contact with alkaline
cleaning agents.
Condensation drain pan and condensation water pipe
The trough and drain pipe may require cleaning from leaves or similar
during the year.
Cleaning
1. Use the safety switch to cut the incoming electrical supply.
2. Release the trough using the quick release catches on the left and
right front edges. Keep in position at the rear edge without stretching
the power cable.
3. Clean drain pans and condensation water pipe/drains.
4. Reinstall the trough using the removal method in reverse order (see
point 2).
5. Switch on the safety switch again.
In event of long power cuts
In the event of prolonged power failures it is recommended that the part
of the heating system located outdoors is drained. Your installer has in-
stalled a shut off and drain valve to facilitate this. Call and ask your installer
if you are unsure.
Saving tips
Your heat pump installation produces heat and/or hot water. This occurs
via the control settings you made.
Factors that affect the energy consumption are, for example, indoor tem-
perature, hot water consumption, the insulation level of the house and
whether the house has many large window surfaces. The position of the
house, e.g. wind exposure is also an affecting factor.
Also remember:
■Open the thermostat valves completely (except those thermostats in
the rooms that are to be kept cooler for various reasons, e.g. bedrooms).
The thermostats slow the flow in the heating system, which the heat
pump wants to compensate with increased temperatures. It then works
harder and consumes more electrical energy.
■Reduce or adjust the settings for heating in any external control systems.
NIBE™ F2300Chapter 2 | The heat pump – the heart of the house16

Power consumption
Energiförbrukning fördelat över året
jan feb mars april maj juni juli aug sep okt nov dec
Månad
% av årsförbrukningen
0%
5%
10%
15%
20%
25%
The air/water heat pump's energy distribution spread across the year
Month
Jan Feb Mar April May June July Aug Sep Oct Nov Dec
% of annual
consumption
Increasing the indoor temperature one degree increases power consump-
tion by approx. 5%.
Domestic electricity
In the past it has been calculated that an average Swedish household has
an approximate annual consumption of 5000 kWh domestic electri-
city/year. In today's society it is usually between 6000-12.000 kWh/year.
Approx-
imate
annual
con-
sump-
tion
(kWh)
Normal Output
(W)
Equipment
StandbyOpera-
tion
3802200Flat-screen (Operation: 5 h/day, Standby:
19 h/day)
901011Digital box (Operation: 5 h/day, Standby:
19 h/day)
45515DVD (Operation: 2 h/week)
672160TV games console (Operation: 6 h/week)
50140Radio/stereo (Operation: 3 h/day)
1202100Computer incl. screen (Operation: 3 h/day,
standby 21 h/day)
175-60Bulb (Operation 8 h/day)
17NIBE™ F2300Chapter 2 | The heat pump – the heart of the house

Approx-
imate
annual
con-
sump-
tion
(kWh)
Normal Output
(W)
Equipment
55-20Spot light, Halogen (Operation 8 h/day)
165-100Cooler (Operation: 24 h/day)
380-120Freezer (Operation: 24 h/day)
365-1500Oven, hob (Operation: 40 min/day)
310-3000Oven (Operation: 2 h/week)
730-2000Dishwasher, cold water connection (Opera-
tion 1 time/day)
730-2000Washing machine (Operation: 1 time/day)
730-2000Tumble drier (Operation: 1 time/day)
100-1000Vacuum cleaner (Operation: 2 h/week)
50-400Engine block heater (Operation: 1 h/day, 4
months a year)
100-800Passenger compartment heater (Operation:
1 h/day, 4 months a year)
These values are approximate example values.
Example: A family with 2 children live in a house with 1 flat-screen TV, 1
digital box, 1 DVD player, 1 TV games console, 2 computers, 3 stereos, 2
bulbs in the WC, 2 bulbs in the bathroom, 4 bulbs in the kitchen, 3 bulbs
outside, a washing machine, tumble drier, fridge, freezer, oven, vacuum
cleaner, engine block heater = 6240 kWh domestic electricity/year.
Energy meter
Check the accommodation's energy meter regularly, preferably once a
month. This will indicate any changes in power consumption.
Newly built houses usually have twin energy meters, use the difference to
calculate your domestic electricity.
New builds
Newly built houses undergo a drying out process for a year. The house
can then consume significantly more energy than it would thereafter.
After 1-2 years the heating curve should be adjusted again, as well as the
heating curve offset and the building's thermostat valves, because the
heating system, as a rule, requires a lower temperature once the drying
process is complete.
NIBE™ F2300Chapter 2 | The heat pump – the heart of the house18
