Nibe F130 User guide

Installer manual
LEK
NIBE™ F130
Hot water heat pump
IHB GB 1447-2
231984

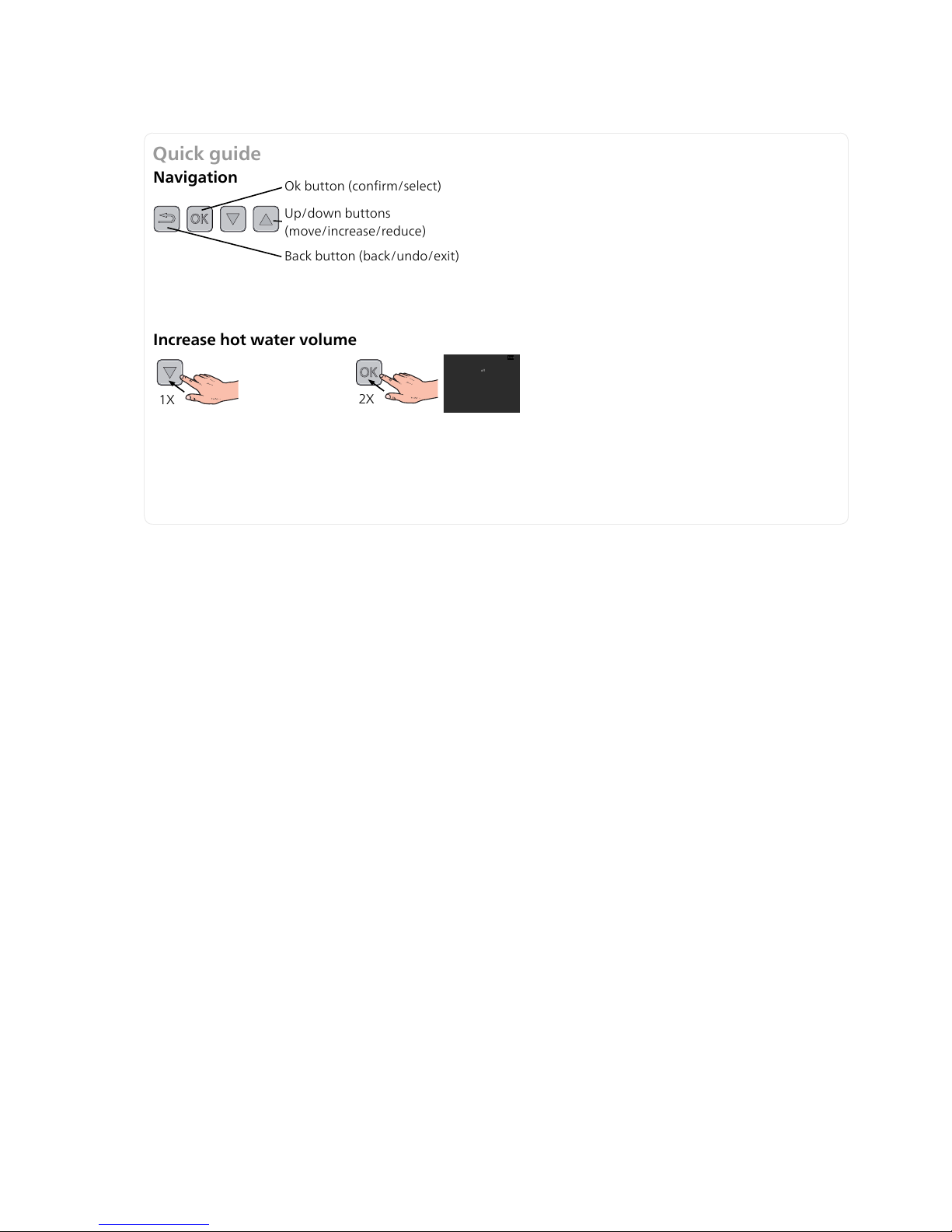

Quick guide
Navigation Ok button (confirm/select)
Back button (back/undo/exit)
Up/down buttons
(move/increase/reduce)
A detailed explanation of the button functions can be found on page 21.
How to scroll through menus and make different settings is described on page 22.
Increase hot water volume
true
off
2X
1X
To temporarily increase the amount of hot water, first press the down button to mark menu 2 (water droplet)
and then press the OK button twice. Read more about the settings on page 24.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures that can be taken before you need to
contact your installer. See page 31 for instructions.

Table of Contents
21 Important information
2Safety information
52 Delivery and handling
5Transport
5Assembly
6Supplied components
7Removing the covers
83 The heat pump design
104 Pipe and air connections
10General pipe connections
11Dimensions and pipe connections
12Mounting
13Connecting cold and hot water
13Installation alternative
15General air connections
15Exhaust air duct /kitchen fan
15Ventilation flow (exhaust air)
15Adjusting ventilation (exhaust air)
165 Electrical connections
16General
16Connections
18Optional connections
196 Commissioning and adjusting
19Preparations
19Filling and venting
19Start-up and inspection
217 Control - Introduction
21Display unit
21Menu system
238 Control - Menus
23Menu 1 - ventilation
24Menu 2 - HOT WATER
26Menu 3 - INFO
27Menu 4 - MY SYSTEM
28Menu 5 - SERVICE
309 Service
30Service actions
3110 Disturbances in comfort
31Info-menu
31Manage alarm
31Troubleshooting
3311 Accessories
3412 Technical data
34Dimensions and setting-out coordinates
35Technical specifications
37Electrical circuit diagram
38Index
1Table of Contents |NIBE™ F130

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Chil-
dren shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children without super-
vision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2014.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
F130 is CE marked and fulfils IP21.
The CE marking means that NIBE ensures that the
product meets all regulations that are placed on it
based on relevant EU directives. The CE mark is obligat-
ory for most products sold in the EU, regardless where
they are made.
IP21 means that the product can be touched by hand,
that objects with a diameter larger than or equivalent
to 12.5 mm cannot penetrate and cause damage and
that the product is protected against vertically falling
drops.

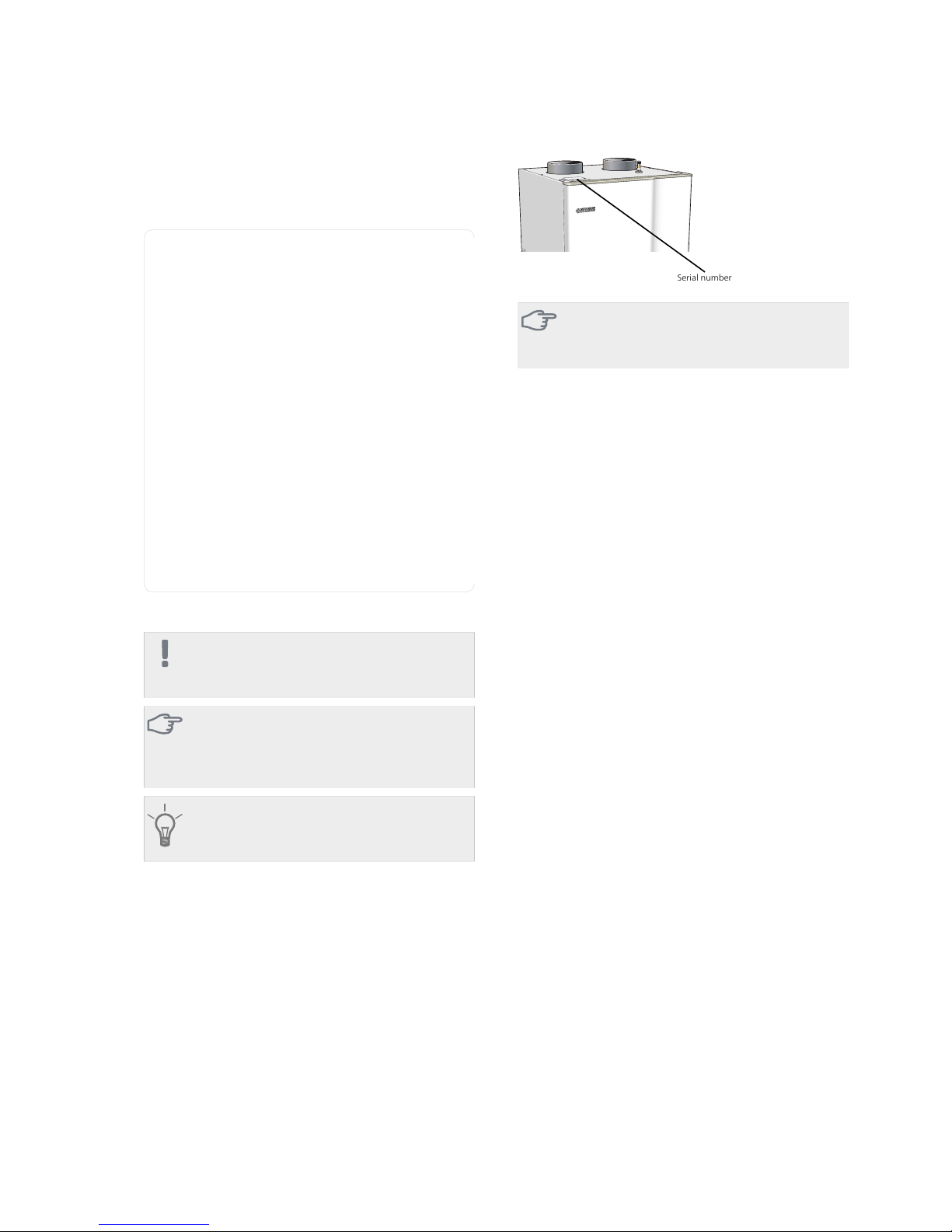

Serial number
The serial number can be found to the left on top of
the air module.
LEK
Serial number
Caution
Always give the product's serial number (14
digits) when reporting a fault.
Country specific information
Installer manual
This installer manual must be left with the customer.
NIBE™ F130Chapter 1 | Important information2
1 Important information

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person.
DateSignatureNotesDescription
✔
Ventilation, exhaust air (page 13)
Setting the ventilation flow
Exhaust air filter
Ventilation, surrounding air (page 14)
Pressure drop in the system
Hot water
System vented
Electricity (page 16)
Supply connected 230 V
Circuit fuses
Earth circuit-breaker
Miscellaneous
Type of installation
3Chapter 1 | Important informationNIBE™ F130

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR
Tel : [phone] Fax : [phone] E-mail: inf[email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
NIBE™ F130Chapter 1 | Important information4

Transport
Transport
F130 should be transported and stored vertically in a
dry place. The F130 may, however, be carefully laid on
its back when being moved into a building. The centre
of gravity is in the upper part.

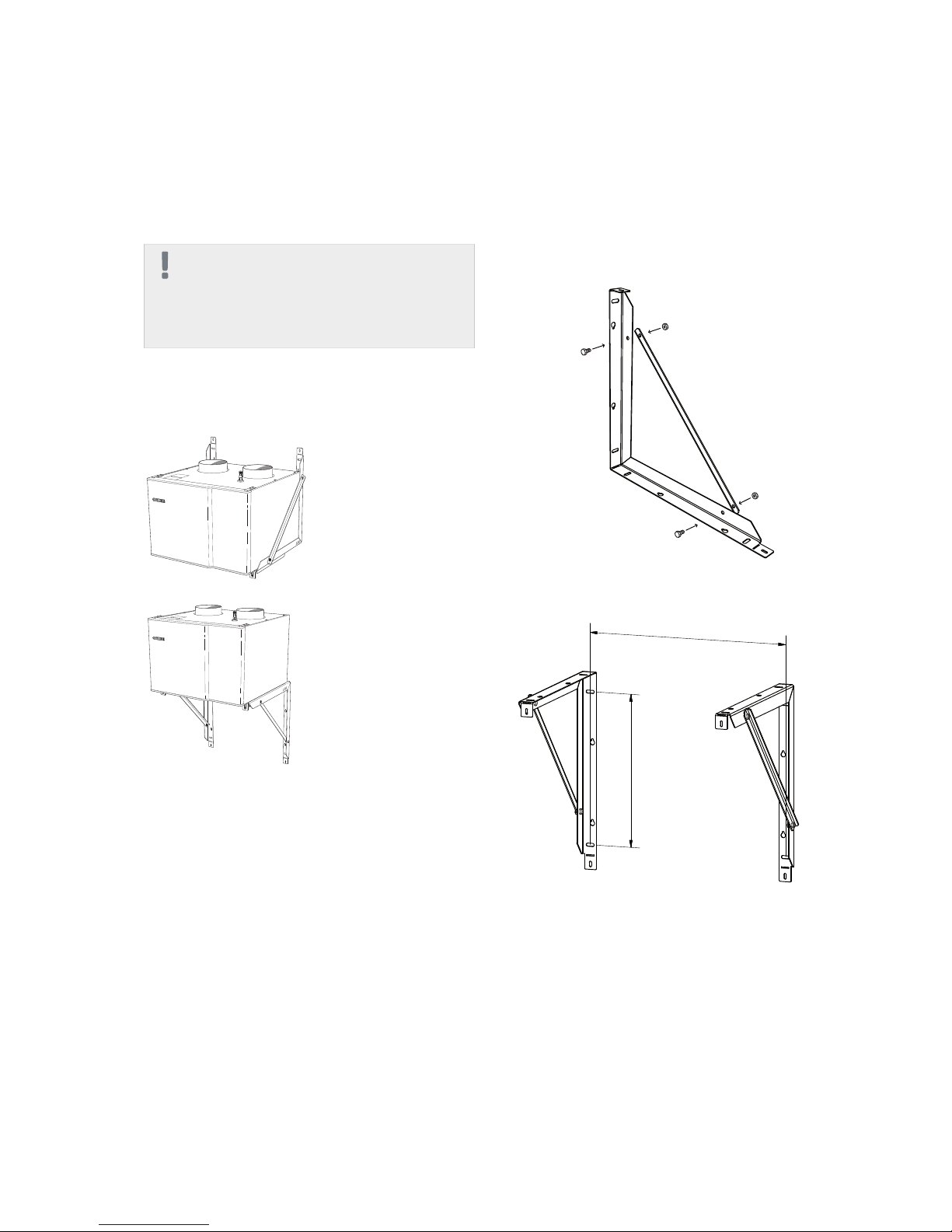

Assembly
■F130 is installed freestanding on brackets or above
the water heater or a suitable flat surface. Noise from
the fan can be transferred to the brackets or the
surface that F130 is placed on.
If F130 is positioned above a water heater or on a
flat surface you must adjust the feet so that the heat
pump is horizontal.
30 - 50 mm
30 - 50 mm
15 - 40 mm
■The area where F130 is located must be equipped
with floor drainage.
■F130 must be positioned with the back towards a
wall. Install the brackets or position F130 against an
outside wall, ideally in a room where noise does not
matter, in order to eliminate noise problems. If this
is not possible, avoid placing it against a wall behind
a bedroom or other room where noise may be a
problem.
■Wherever the unit is located, walls to sound sensitive
rooms should be fitted with sound insulation.
■Route pipes so they are not fixed to an internal wall
that backs on to a bedroom or living room.
Installation area
Leave a space of 700 mm in front of the heat pump.
Approx 50 mm free space is required in order to open
the side hatches.
50 50
700
300
10-25
NOTE
Ensure that there is sufficient space (300 mm)
above the heat pump for installing air hoses.
50 50
700
300
10-25
5Chapter 2 | Delivery and handlingNIBE™ F130
2 Delivery and handling

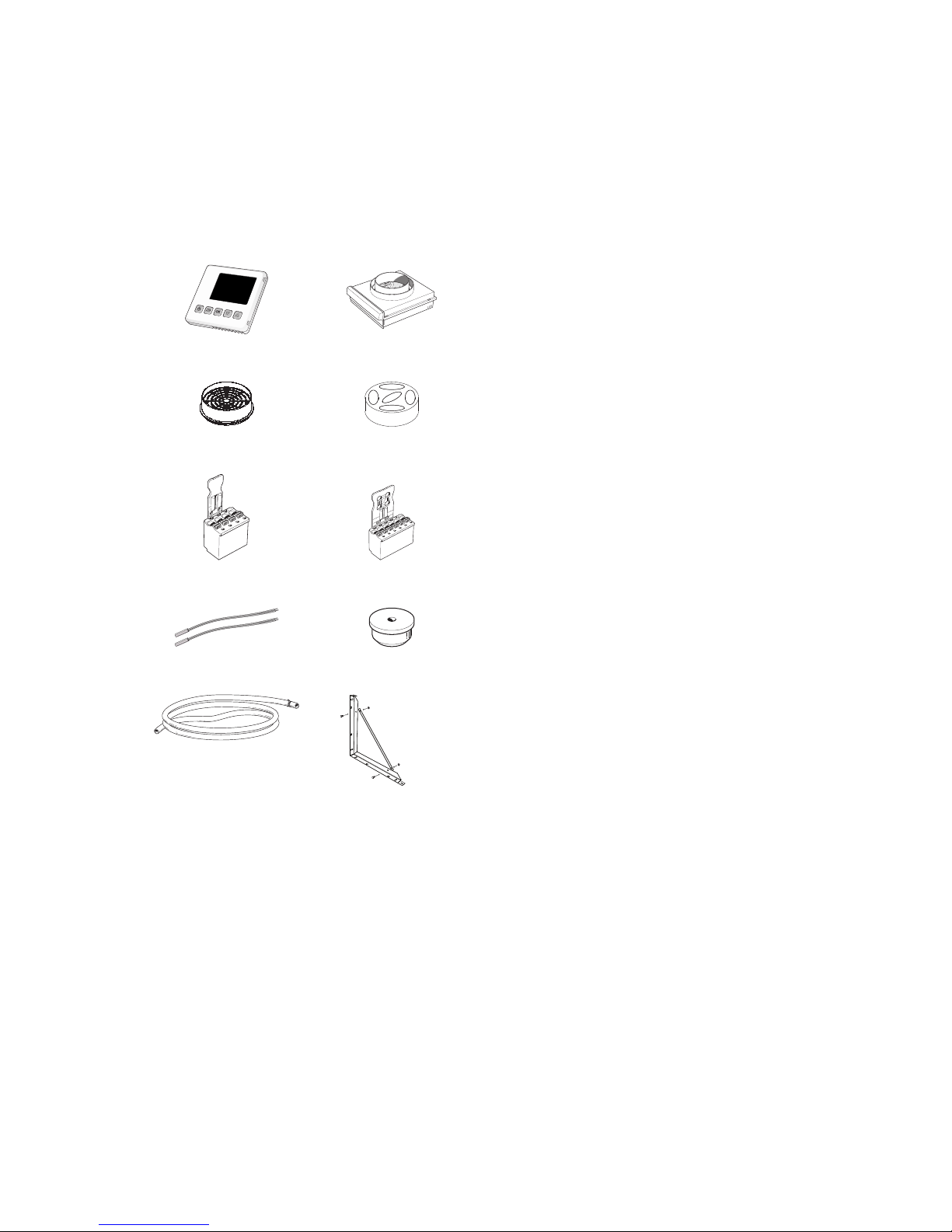

Supplied components
Location
The kit of supplied items is placed on top of the
product.
Mora kniv
LEK
LEK
LEK
LEK
LEK
Filter cartridgeDisplay
SilencerAir connection
LEK
LEK
6-pin sensor connector4-pin display connector
Choke washer Ø22 mm2 x sensors
567
425
LEK
2 x bracketDrainage hose Ø 20 mm
6 x screws
6 x nuts
4 x washers
NIBE™ F130Chapter 2 | Delivery and handling6

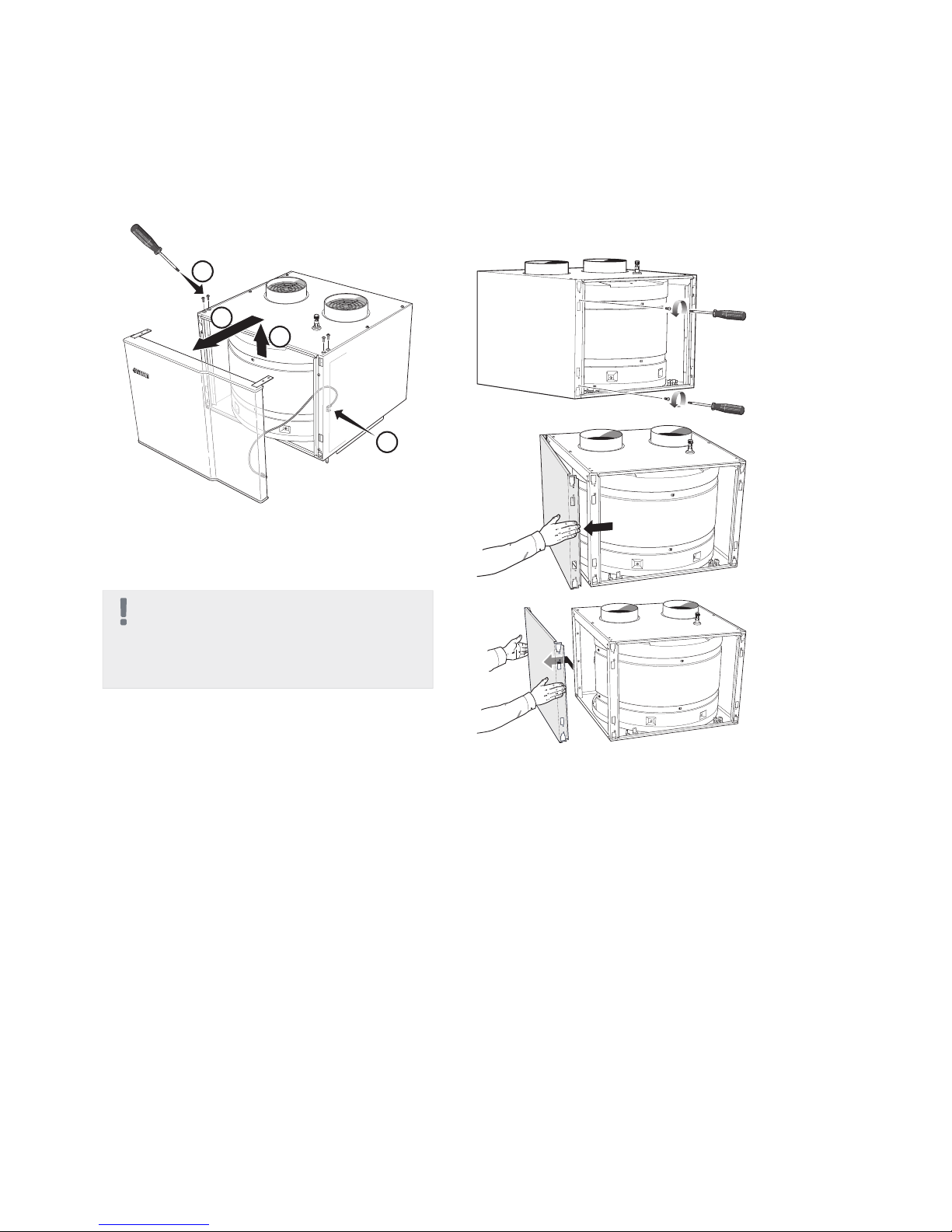

Removing the covers
Front hatch
LEK
1
2
3
4
1. Slacken off the screws for the securing plate above
F130.
2. Slide the hatch upwards and pull it towards you.
3. Pull the hatch towards yourself.
NOTE
A ground cable is installed in the hatch, it can
therefore only be lifted out 0.5 m. If the hatch
needs to be removed completely, the cable
must be detached.
Side covers
1. Undo the screws at the edge.
2. Twist the cover slightly outward.
3. Move the side cover outwards and backwards.
4. Assembly takes place in the reverse order.
LEK
LEK
LEK
7Chapter 2 | Delivery and handlingNIBE™ F130

LEK
LEK
LEK
QN1
BT76 GP12 PF1EB10
X11
X10
GQ10
AA2
QM25
XL44
XL43
BT77
BT16
QN20
HZ2
EP2
BP1
BT13
XL42
EP1
GQ1
XL41
BT12
CA1
PF3
NIBE™ F130Chapter 3 | The heat pump design8

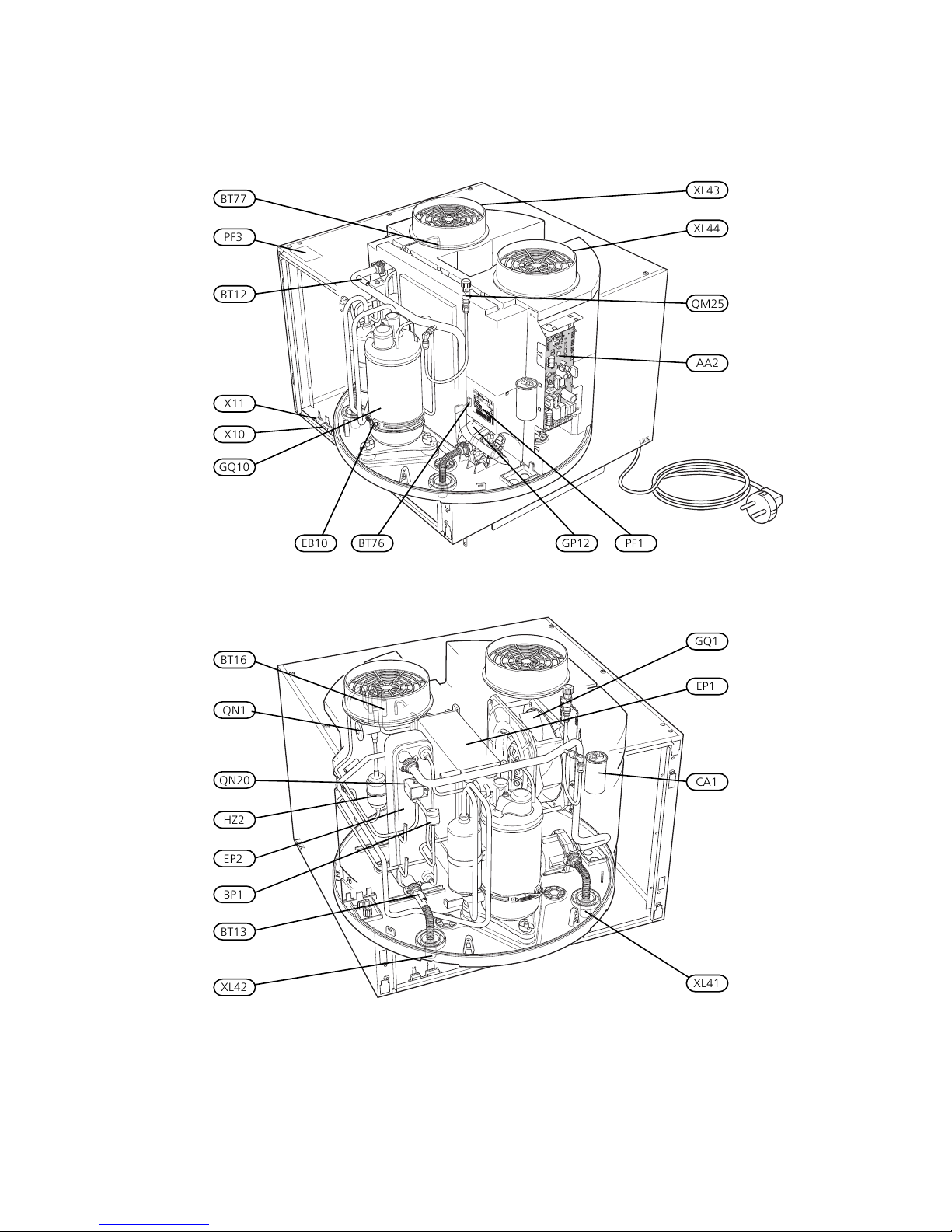

3 The heat pump design

Pipe connections
Connection, hot water outgoingXL 41
Connection, hot water incomingXL 42
Connecting incoming airXL 43
Connecting outgoing airXL 44
HVAC components
Circulation pump, chargingGP 12
Venting, hot waterQM 25
Sensors etc.
High pressure pressostatBP 1
Temperature sensor, hot water, controlBT 6
Temperature sensor, hot water, displayBT 7
Temperature sensor, condenser outBT 12
Temperature sensor, heating medium return
before condenser
BT 13
Temperature sensor, evaporatorBT 16
Temperature sensor, defrostingBT 76
Temperature sensor, incoming airBT 77
Electrical components
Base cardAA 2
CapacitorCA 1
Compressor heaterEB 10
Sensor switchX 10
Display switchX 11
Cooling components
EvaporatorEP 1
CondenserEP 2
CompressorGQ 10
Drying filterHZ 2
Expansion valveQN 1
Solenoid valve, defrostingQN 20
Ventilation
FanGQ1
Air filter1 HQ12
Miscellaneous
Rating platePF1
Serial number platePF3
1Not visible in the image
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
9Chapter 3 | The heat pump designNIBE™ F130

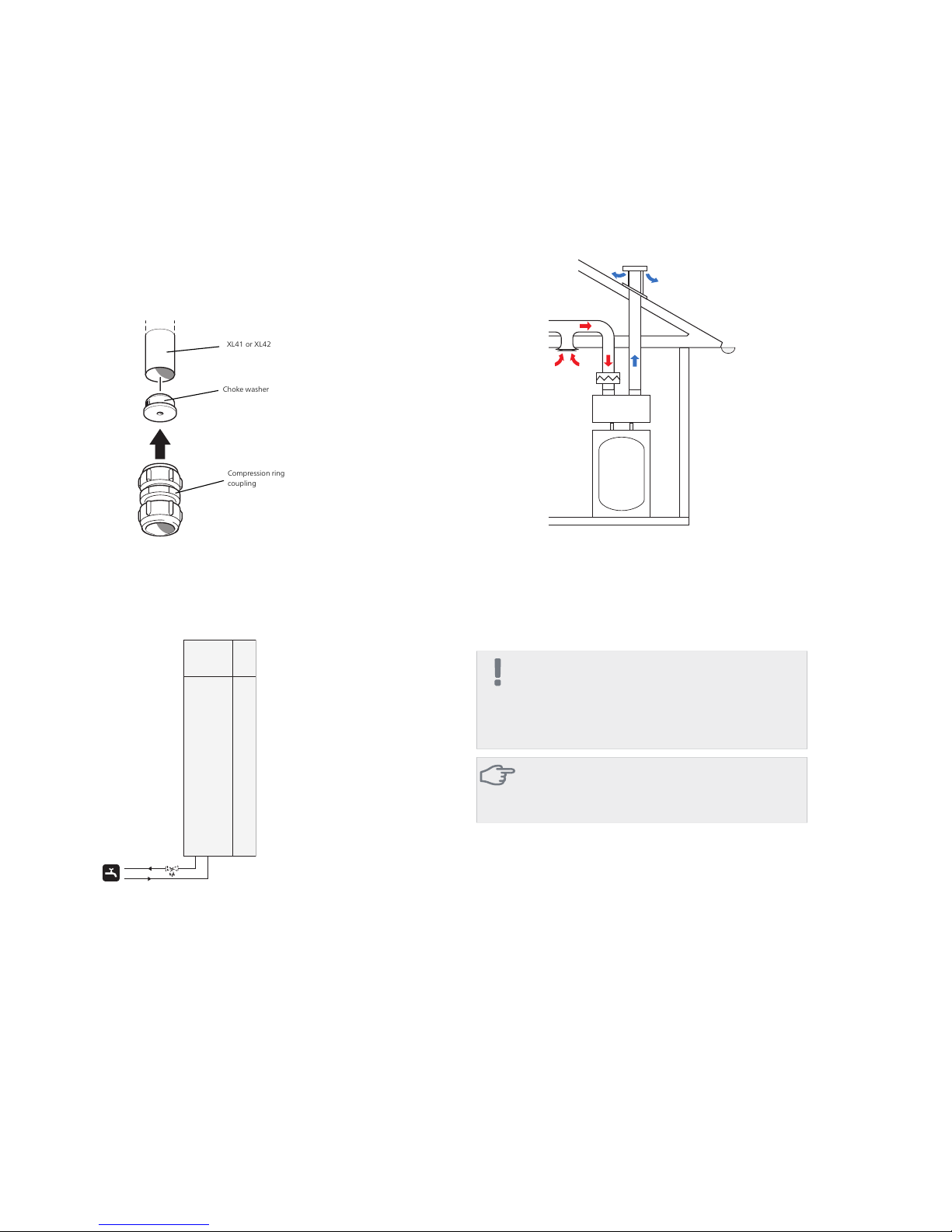

General pipe connections
Pipe installation must be carried out in accordance with
current norms and directives.
F130 is only designed for upright installation. All con-
nections are equipped with smooth pipe for compres-
sion ring couplings.
Overflow water from the evaporator's
collecting trough is routed via the sup-
plied plastic hose to a drain. Shape the
hose into a water seal (see image).
The entire length of the overflow water
pipe must be inclined to prevent water
pockets and must also be frost-proof.
To make the installation economical, NIBE recommends
that all pipes between F130 and the water heater are
insulated. The insulation should be at least 12 mm thick.
NOTE
The pipe systems need to be flushed out be-
fore F130 is connected so that any debris can-
not damage component parts.
Symbol key
MeaningSymbol
Shut-off valve
Circulation pump
Fan
Compressor
Heat exchanger
System diagram
F130 consists of heat pump module and control system.
When the air passes through the evaporator, the refri-
gerant evaporates because of its low boiling point. In
this way the energy in the air is transferred to the refri-
gerant.
The refrigerant is then compressed in a compressor,
causing the temperature to rise considerably.
The warm refrigerant is led to the condenser. Here the
refrigerant gives off its energy to the hot water,
whereupon the refrigerant changes state from gas to
liquid.
The refrigerant then goes via filters to the expansion
valve, where the pressure and temperature are reduced.
The refrigerant has now completed its circulation and
returns to the evaporator.
NIBE™ F130Chapter 4 | Pipe and air connections10
4 Pipe and air connections

Dimensions and pipe connec-
tions
460
135
115
300
45
475
Setting out dimensions
AConnection
25 - 50(mm)Min. - Max. height below F130.
Pipe dimensions
Connection
22(mm)XL41 Outgoing hot water ext Ø
22(mm)XL42 Incoming hot water ext Ø
20(mm)WM2 Overflow water discharge int Ø
11Chapter 4 | Pipe and air connectionsNIBE™ F130

Mounting
The heat pump is wall-mounted using the brackets
supplied. The heat pump can also be positioned on a
suitable flat surface close to the water heater.
NOTE
Check that the mountings are located in their
applicable grooves on the heat pump.
Ensure that the heat pump is installed horizont-
ally.
Installing on brackets
1. Install F130 on brackets.
2. Connect water and ventilation pipes.
LEK
LEK
LEK
LEK
Installing brackets
1. Install the brackets together using the M6 screws
and nuts supplied.
2. Drill holes in the wall as illustrated.
3. Fit the brackets on the wall.
4. Screw F130 into place in the brackets using the M5
screws and nuts supplied.
567
425
NIBE™ F130Chapter 4 | Pipe and air connections12

Connecting cold and hot water
For optimal hot water operation, install the supplied
choke washer.
The washer is installed in the connection for outgoing
hot water (XL41) or connection for incoming hot water
(XL42) before the compression connection is installed.
For more information about connection to water
heater, see its manual.
XL41 or XL42
Choke washer
Compression ring
coupling
The mixer valve must be installed if the factory setting
is changed so that the temperature can exceed 60 °C.
If the factory setting is changed, national regulations
must be observed. The setting is made in menu 5.1.1
(page 28).
Installation alternative
Installation must be carried out in accordance with
current standards and directives.
Exhaust air
Connecting the exhaust air
With an exhaust air connection the heat in the build-
ing's ventilation air is used to heat the hot water while
the house is ventilated.
The hot air is transferred from the rooms to the heat
pump via the house ventilation system.
NOTE
An air filter (HQ12) (supplied), minimum clas-
sification G2, is required on the exhaust air
duct of this connection. The filter must be
cleaned regularly.
Caution
Noise from the fan can be transferred via the
ventilation ducts.
13Chapter 4 | Pipe and air connectionsNIBE™ F130

Surrounding air
Connecting surrounding air
With surrounding air connection the heat in the room air
is used to heat up the hot water. The outgoing air can be
used to cool a room.
■If the incoming air is taken from the same room where
the outgoing air is released it is important that the pipe
for incoming air is not located so that the outgoing air
is sucked into the heat pump. This can be prevented by
the putting a bend in one of the air pipes.
■Have sufficient ceiling height so that recirculation of the
air is avoided.
■If incoming air to F130 contains a lot of particles and
there is a high hot water demand the heat pump must
be equipped with an air filter (HQ12) (supplied), minim-
um class G2.
■Noise from the fan can be transferred to the room via
the air pipes.
■In installations where air is taken from one room and
released into another, there can be over pressure if the
room is not ventilated correctly. This can lead to damp
in the building.
Caution
Outgoing air from F130 is cold and can therefore
cool the room when it is released.
Take incoming air from one room and release the
outgoing air to the same room.
Take incoming air from one room and release the outgoing air to another room or outdoors.
NIBE™ F130Chapter 4 | Pipe and air connections14

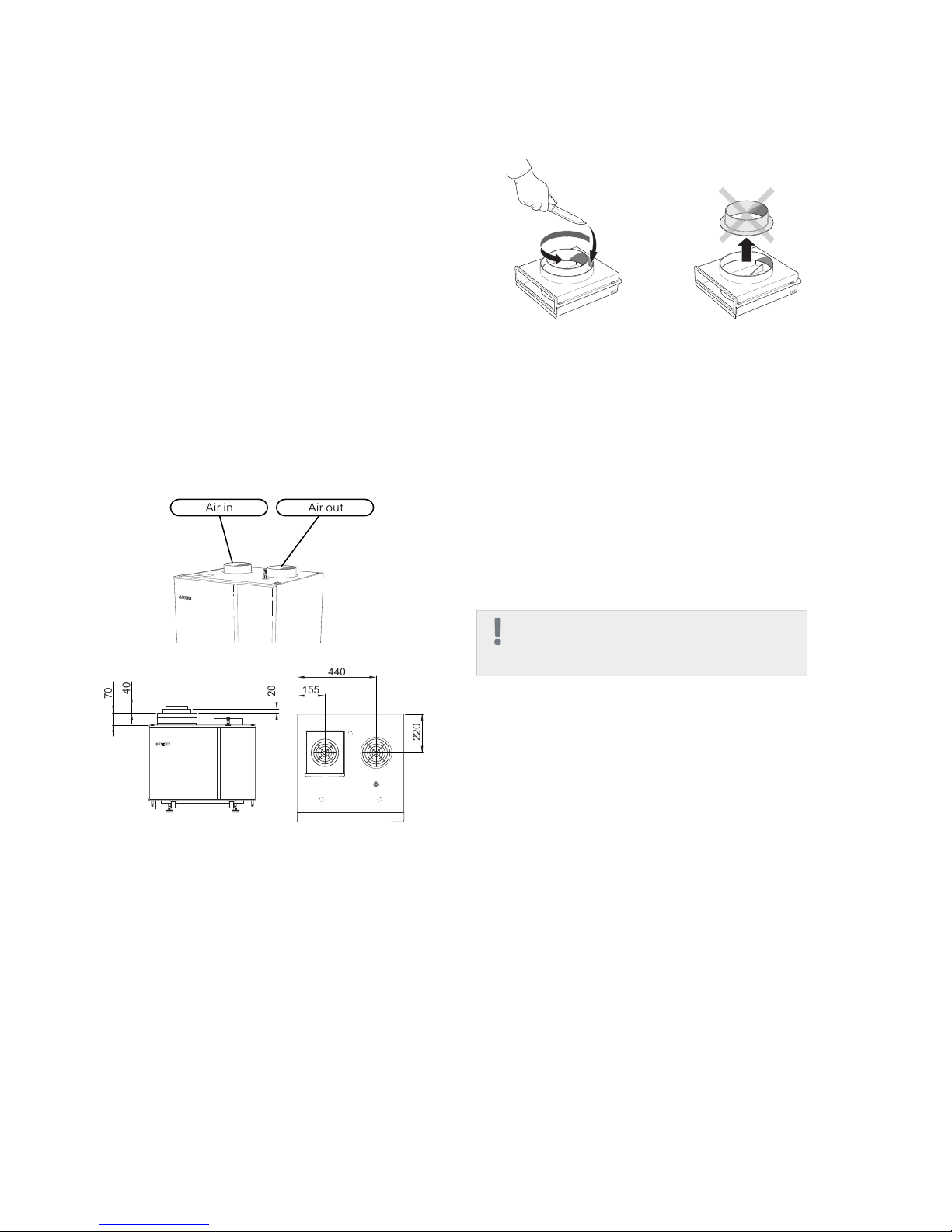

General air connections
Air installation must be carried out in accordance with
applicable directives.
To prevent fan noise being transferred via the air ducts,
it may be a good idea to install a silencer in the ducts.
Connections must be made via flexible hoses, which
must be installed so that they are easy to replace. Ducts
must be provided with diffusion-tight insulation (PE30)
over its entire length. With any joints and/or lead-in
nipple, silencer, roof cowl or similar, ensure that the
condensation insulation is properly sealed. Provision
must be made for inspection and cleaning of the duct.
Make sure that there are no reductions of cross-section-
al area in the form of creases, tight bends etc, since this
will reduce the ventilation capacity. The air duct system
must be a minimum of air tightness class B.
If there is a high hot water demand and incoming air
to F130 contains a lot of particles the heat pump
module must be equipped with an air filter (HQ12)
(supplied).
LEK
LEK
Air in Air out
220
155
70
40
20
440
220
155
70
40
20
440
Install the filter cartridge
The filter cartridge has two sizes of connector, 125 mm
or 160 mm.
1. Check the diameter of the air channel for inlet air.
2. When the air duct has a large diameter (Ø 160 mm)
the inner ring must be cut out of the upper section
of the filter cartridge.
3. Cut just inside the inner edge of the outer ring us-
ing a sharp knife. The plastic is prepared for easy
cutting.
4. Press the filter cartridge into place in the connec-
tion for incoming air (XL43).
Mora kniv
LEK
LEK
LEK
LEK
Install the connector
If the filter cartridge is not installed the supplied con-
nector is installed in the connection for incoming air
(XL43).
Exhaust air duct /kitchen fan
Exhaust air duct (kitchen fan) must not be connected
to F130.
To prevent food vapour being transferred to F130 the
distance between the kitchen fan and the exhaust air
device must be considered. The distance should not be
less than 1.5 m, but this can vary between different
installations.
Always use a kitchen fan when cooking.
NOTE
A duct in a masonry chimney stack must not
be used for extract air.
Ventilation flow (exhaust air)
Connect F130 so that all exhaust air except exhaust air
duct air (kitchen fan) passes the evaporator (EP1) in
the heat pump. For optimum heat pump performance
the ventilation flow should not be less than 25 l/s (90
m³/h). On occasions when the exhaust air temperatures
are lower than 20 °C (for example on start up and when
there is no one in the accommodation) the minimum
value is 31 l/s (110 m³/h).
Ensure that the ventilation openings are not blocked.
Set the ventilation capacity in the heat pump's menu
system (menu 5.1.5).
Adjusting ventilation (exhaust
air)
To obtain the necessary air exchange in every room of
the house, the exhaust air devices must be correctly
positioned and adjusted and the fan in the heat pump
adjusted.
Immediately after installation adjust the ventilation so
that it is set according to the projected value of the
house.
A defective ventilation installation may lead to reduced
installation efficiency and thus poorer operating eco-
nomy, and may result in moisture damage to the house.
15Chapter 4 | Pipe and air connectionsNIBE™ F130

General
Installation must be carried out in accordance with
current standards and directives.
When working behind screwed covers, the circuit fuse
must be removed or the connection plug pulled out.
Work behind screwed covers may only be carried out
under the supervision of a qualified electrician.
■Disconnect F130 before insulation testing the house
wiring.
■For the heat pump wiring diagram, see page 37.
■Signal cables to external connections must not be
laid close to high current cables.
■Signal cables to external connections are four core,
at least 0.35 mm2.
■If the supply cable is damaged, it must be replaced
by qualified persons.
NOTE
The supply cable must not be connected until
the boiler has been filled. Internal components
can be damaged.
NOTE
Electrical installation and service must be car-
ried out under the supervision of a qualified
electrician. Electrical installation and wiring
must be carried out in accordance with the
stipulations in force.
Connections
Power connection
NOTE
To prevent interference, unscreened commu-
nication and/or sensor to external connections
cables must not be laid closer than 20 cm to
high voltage cable when cable routing.
The heat pump is connected to an earthed socket with
the factory installed power cord that is supplied with
connection plug.
Installing the display
The display (AA4) cannot be installed directly against
a wall because the connection terminal protrudes from
the back.
Install the display either in a spare apparatus box or on
the plastic spacer supplied.
1.
LEK
Open the display by inserting a screwdriver in one
of the 4 mm wide gaps in the edge. Press the
screwdriver straight in to open the clip. Repeat for
the other three clips.
2.
LEK
Without plastic spacer: Place the rear panel in front
of the apparatus box and screw to the wall.
With plastic spacer: Screw the plastic spacer into
the wall. Then screw the the rear panel into the
plastic spacer with the two screws supplied.
3.
LEK
Connect according to section "Display".
4.
LEK
Angle the front panel approx. 30° and secure the
two clips on one side. Then close the unit and se-
cure the two clips on the other side.
NIBE™ F130Chapter 5 | Electrical connections16
5 Electrical connections

Display
Connect the display (AA4) to the four pin display con-
nector X11:1 (A), X11:2 (B), X11:3 (GND) and X11:4
(+12V).
Use a 4 core cable of at least 0.5 mm² cable area.
NOTE
The cable to the display must be a maximum
of 15 m.
+12V GND B A
+12V GND B A
AA4
LEK
X11
LEK
4 3 2 1A
B GND +12V
X11
AA4
External
F130
LEK
2 3 41
X11
Temperature sensor, hot water charging
The temperature sensor, hot water charging (BT6) is
placed in the submerged tube on the water heater.
Connect the sensor to terminal block X10:1 and X10:2.
Use a 2 core cable of at least 0.5 mm² cable area.
6
5
4
3
2
1
X10
External F130
BT6
LEK
X10
LEK
Temperature sensor, hot water top
A temperature sensor for hot water top (BT7 ) can be
connected to F130 for showing the water temperature
at the top of the tank.
Connect the sensor to terminal block X10:5 and X10:6.
Use a 2 core cable of at least 0.5 mm² cable area.
6
5
4
3
2
1
X10
External F130
BT7
LEK
X10
LEK
LEK
21
X10
5 6
17Chapter 5 | Electrical connectionsNIBE™ F130

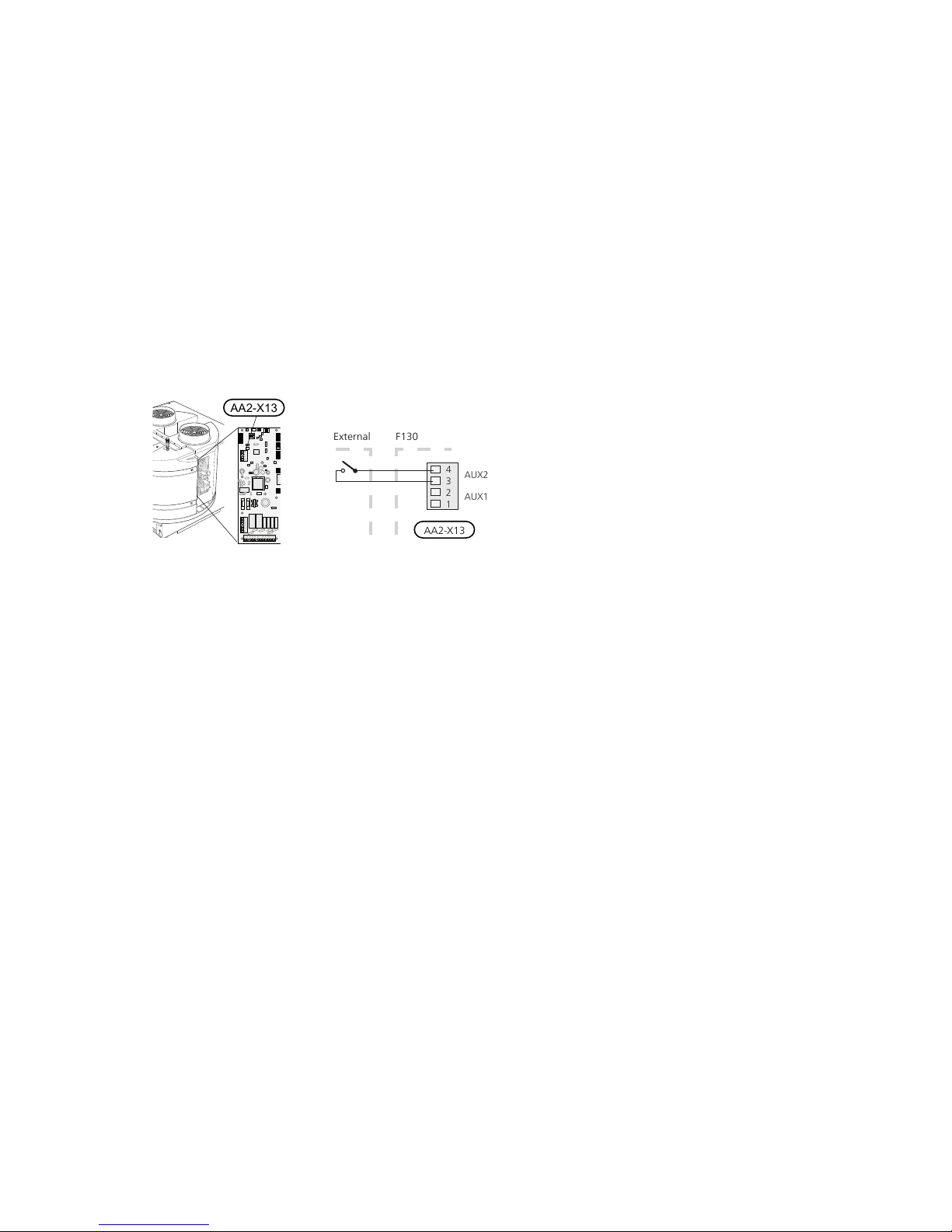

Optional connections
AUX inputs
Switch for external blocking of compressor
If external blocking of the compressor is required it can
be connected to terminal block X13 on the base card
(AA2).
The compressor is disconnected by connecting a poten-
tial-free switch function to AUX2 (X13:3 och X13:4)
(compressor).
A closed contact results in the electrical output being
disconnected.
4AUX2
AUX1
3
2
1
External F130
AA2-X13
LEK
1
2
3
4
1
2
3
4
5
6
123456789101112
AA2-X13
NIBE™ F130Chapter 5 | Electrical connections18
