Nibe F730 User manual

UHB EN 1835-1
431832
USER MANUAL
Exhaust air heat pump
NIBE F730 1x230 V

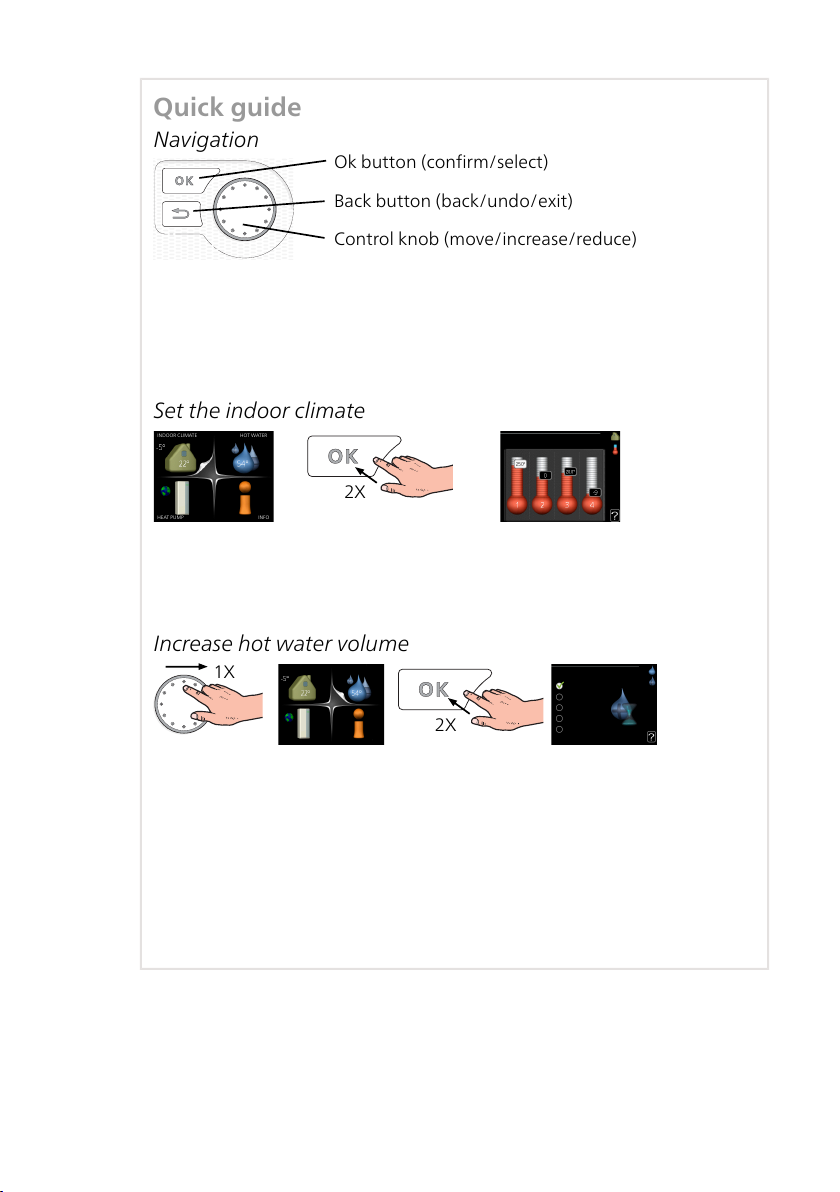

Quick guide
Navigation
Ok button (confirm/select)
Back button (back/undo/exit)
Control knob (move/increase/reduce)
A detailed explanation of the button functions can be found on page
12.

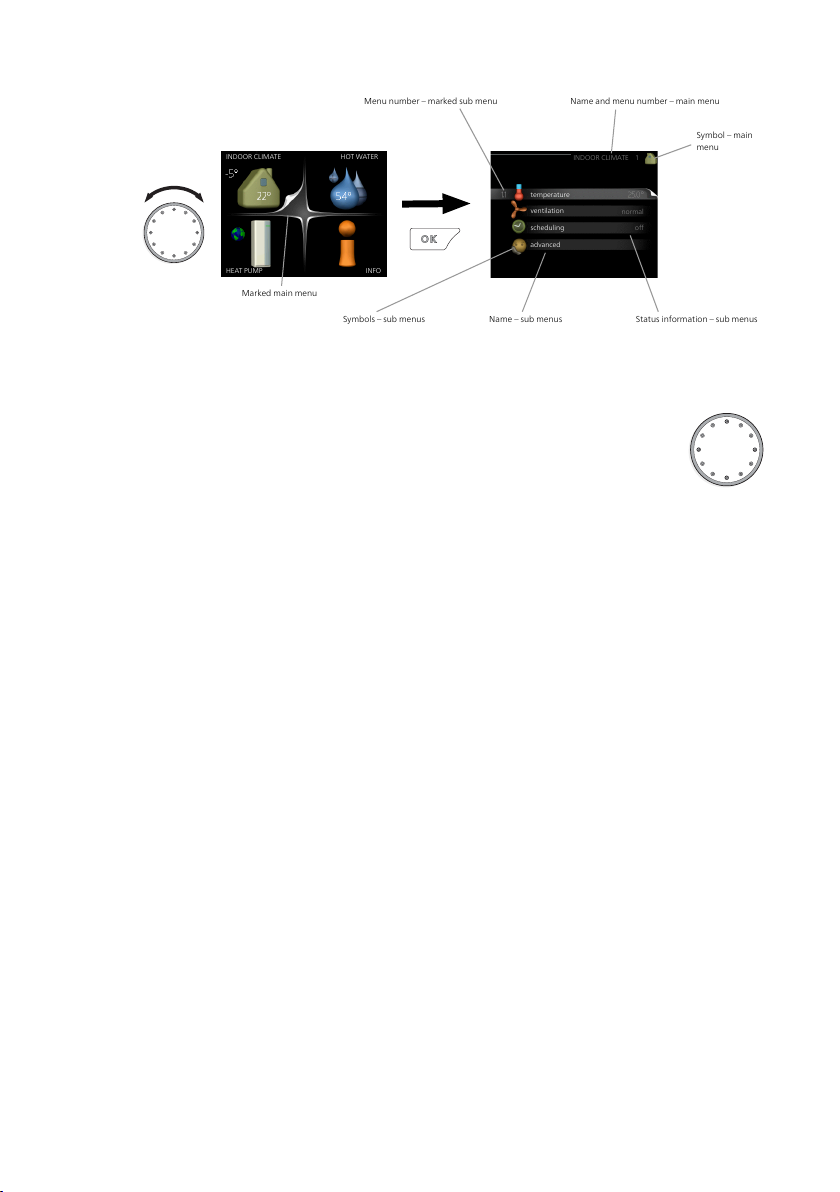

How to scroll through menus and make different settings is described
on page 17.
Set the indoor climate
2X
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
The mode for setting the indoor temperature is accessed by pressing
the OK button twice, when in the start mode in the main menu. Read
more about the settings on page 32.
Increase hot water volume
2X
1X
To temporarily increase the amount of hot water, first turn the control
knob to mark menu 2 (water droplet) and then press the OK button
twice. Read more about the settings on page 48.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some meas-
ures that can be taken before you need to contact your installer. See
page 73 for instructions.

41 Important information
4Installation data
5Safety information
6Symbols
7Serial number
7Country specific information
9F730 – An excellent choice
102 The heat pump – the heart of the house
11Heat pump function
12Contact with F730
22Maintenance of F730
313 F730 – at your service
31Set the indoor climate
48Set the hot water capacity
53Get information
56Adjust the heat pump
724 Disturbances in comfort
72Info-menu
72Manage alarm
73Troubleshooting
775 Technical data
786 Glossary
83Item register
3Table of ContentsNIBE F730
Table of Contents

Installation data
F730Product
Serial number
Installation date
Installer
Accessories
✔
Extra shunt ECS
40/41
SetFact.
sett.
NameNo.
0temperature (curve offset)1.1
9heating curve (curve slope)1.9.1
20min. flow line temp.1.9.3
75%fan sp. exhaust air (normal)5.1.5
100%fan speed outdoor air5.3.17
MaxInstalled electrical output
Serial number must always be given
Certification that the installation is carried out according to instructions
in the accompanying installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE F730Chapter 1 | Important information4
1 Important information

Safety information
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or in-
struction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Rights to make any design or technical modifications
are reserved.
©NIBE 2018.
Do not start F730 if there is a risk that the water in the
system has frozen.
Water may drip from the safety valve’s overflow pipe, so
the overflow pipe’s opening must be open. The safety
valves must be actuated regularly to remove dirt and to
check that they are not blocked.
If the supply cable is damaged, only NIBE, its service
representative or similar authorised person may replace
it to prevent any danger and damage.
5Chapter 1 | Important informationNIBE F730

Symbols
NOTE
This symbol indicates danger to person or machine .
Caution
This symbol indicates important information about what you
should observe when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
NIBE F730Chapter 1 | Important information6

Serial number
The serial number can be found at the bottom right of the front cover
and in the info menu (menu 3.1).
Serial number
Caution
You need the product's (14 digit) serial number for servicing
and support.
Country specific information
GREAT BRITAIN
This installation is subject to building regulation approval, notify the local
Authority of intention to install.
Use only manufacturer’s recommended replacement parts.
Nibe is a licensed member of the Benchmark Scheme which aims to
improve the standards of installation and commissioning of domestic
heating and hot water systems in the UK and to encourage regular ser-
vicing to optimise safety, efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater In-
dustry Council. For more information visit www.centralheating.co.uk
Warranty and insurance information
Thank you for installing a new NIBE heat pump in your home.
7Chapter 1 | Important informationNIBE F730

NIBE heat pumps are manufactured in Sweden to the very highest
standard so we are pleased to offer our customers a comprehensive
guarantee.
The product is guaranteed for 24 months for parts and labour from the
date of installation or 33 months from the date of manufacture, whichever
is the shorter.
The NIBE guarantee is based on the unit being installed and commis-
sioned by a NIBE accredited installer, serviced every year and the
Benchmark documents completed. Where this condition is not met, any
chargeable spare parts or components issued within the applicable
guarantee period still benefit from a 12 month warranty from the date
of issue by the manufacturer.
We recommend the installer completes and returns as soon as possible,
your guarantee registration card or completes the guarantee form on the
NIBE website www.nibe.co.uk.
Please ensure that the installer has fully completed the Benchmark
Checklist in the end of the Installation Instructions supplied with the
product and that you have signed to say that you have received a full
and clear explanation of its operation. The installer is legally required to
complete a commissioning checklist as a means of complying with the
appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either
directly or through a Competent Persons Scheme. A Building Regulations
Compliance Certificate will then be issued to the customer who should,
on receipt, write the Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency
and performance. The service engineer should complete the relevant
Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist may be required in the event of any warranty
work and as supporting documentation relating to home improvements
in the optional documents section of the Home Information Pack.
NIBE F730Chapter 1 | Important information8

F730 – An excellent choice
F730 is part of a new generation of heat pumps, which have been intro-
duced to supply your home with inexpensive and environmentally friendly
heating. Heat production is safe and economical with integrated hot
water heater, immersion heater, circulation pump and control system.
The heat pump can be connected to an optional low temperature heat
distribution system. e.g. radiators, convectors or underfloor heating. It
is also prepared for connection to several different accessories, for ex-
ample climate systems with different temperatures.
F730 is equipped with a control computer for good comfort, good eco-
nomy and safe operation. Clear information about status, operation time
and all temperatures in the heat pump are shown on the large and easy
to read display. This means, for example, that external unit thermometers
are not necessary.
EXCELLENT PROPERTIES FOR F730:
•Inverter controlled compressor
The heat pump has an inverter-controlled compressor that automatically
adapts itself optimally and economically to your house and supplies
your installation with heating and hot water.
•Scheduling the indoor comfort and hot water
Heating and hot water as well as ventilation, can be scheduled for each
day of the week or for longer periods (vacation).
•Display with user instructions
The heat pump has a large display with easy-to-understand menus that
facilitate setting a comfortable climate.
•Simple troubleshooting
In the event of a fault, the heat pump display shows what happened
and the actions to be taken.
9Chapter 1 | Important informationNIBE F730

A
DF
B
C
E
H
G
80 °C
22 °C 0 °C
5 °C 0 °C
55 °C 45 °C
Värmebärare
Köldmedium
Rumsluft
Uteluft
Heating medium
Ventilation air
Refrigerant
Evaporator
Condenser
Compressor
1
2
3
Expansion valve
Outdoor air
The temperatures are only examples and may vary between different installations and
time of year.
NIBE F730Chapter 2 | The heat pump – the heart of the house10
2 The heat pump – the heart of
the house

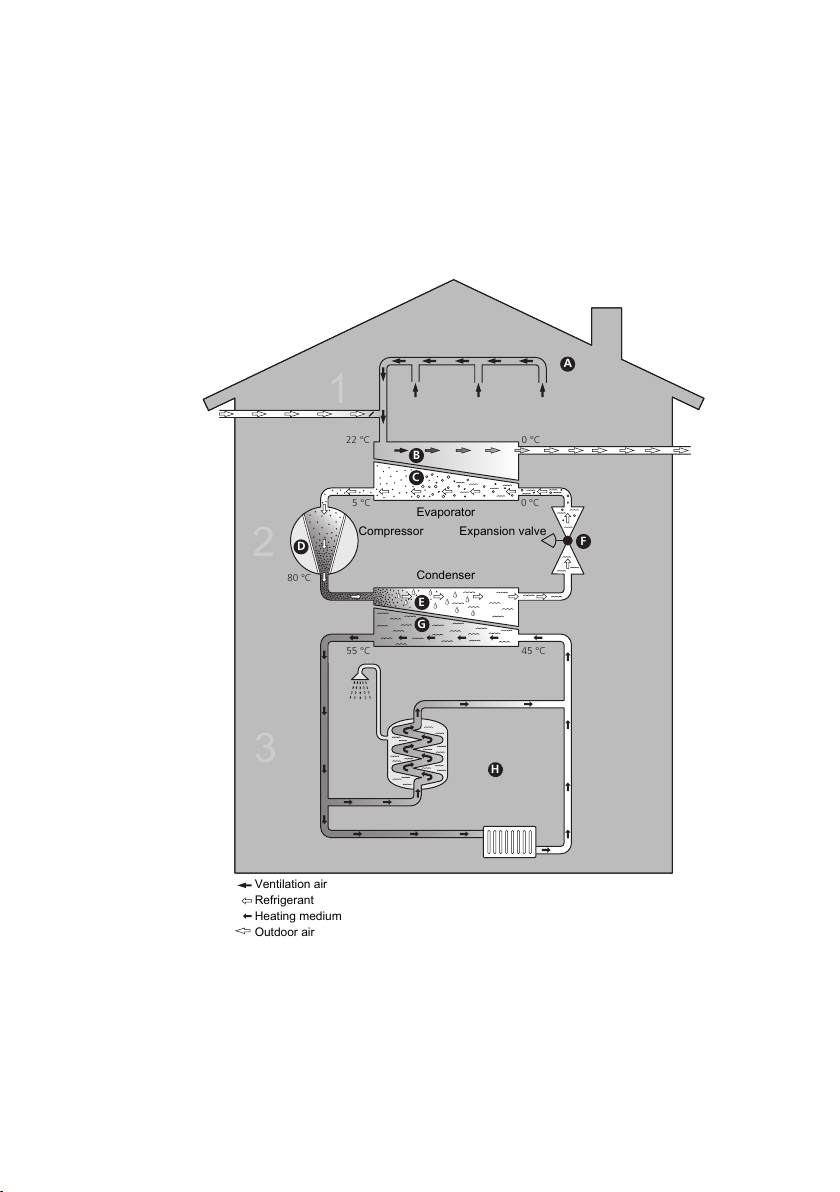

Heat pump function
This exhaust air heat pump uses the heat that is in the building's ventil-
ation air to heat up the accommodation. The conversion of the air's en-
ergy to heating occurs in three different circuits. Free heating energy is
retrieved from the outgoing air (1) from the accommodation and trans-
ported to the heat pump. The heat pump increases the retrieved heat's
low temperature to a high temperature in the refrigerant circuit, (2). The
heat is distributed around the house in the heating medium circuit (3).
Ventilation air
The hot air is transferred from the rooms to the heat pump via the house
ventilation system. Outdoor air is only used if necessary.
A
The fan then routes the air to the heat pump’s evaporator. Here, the air re-
leases the heating energy and the air's temperature drops significantly. The
cold air is then blown out of the house.
B
Refrigerant circuit
A liquid, a refrigerant, circulates in a closed system in the heat pump which
also passes the evaporator. The refrigerant has a very low boiling point. In
the evaporator the refrigerant receives the heat energy from the ventilation
air and starts to boil.
C
The gas that is produced during boiling is routed into an electrically powered
compressor. When the gas is compressed, the pressure increases and the
gas’s temperature increases considerably, from approx. -5°C to approx.
100°C.
D
From the compressor, the gas is forced into a heat exchanger, condenser,
where it releases heat energy to the heat pump’s heating section, whereupon
the gas is cooled and condenses to liquid form again.
E
As the pressure is still high, the refrigerant can pass an expansion valve,
where the pressure drops so that the refrigerant returns to its original tem-
perature. The refrigerant has now completed a full cycle. It is routed to the
evaporator again and the process is repeated.
F
Heat medium circuit
The heat energy that the refrigerant produces in the condenser is retrieved
by the climate system's water, heating medium, which is heated to 55 °C
(supply temperature).
G
The heating medium circulates in a closed system and transports the heated
water's heat energy to the heat pump's integrated hot water heater and the
radiators/heating coils of the house.
H
The heat pump’s integrated water heater is in the heating section. The
heating medium heats the hot water.
I
The temperatures are only examples and may vary between different installations and
time of year.
11Chapter 2 | The heat pump – the heart of the houseNIBE F730

Contact with F730

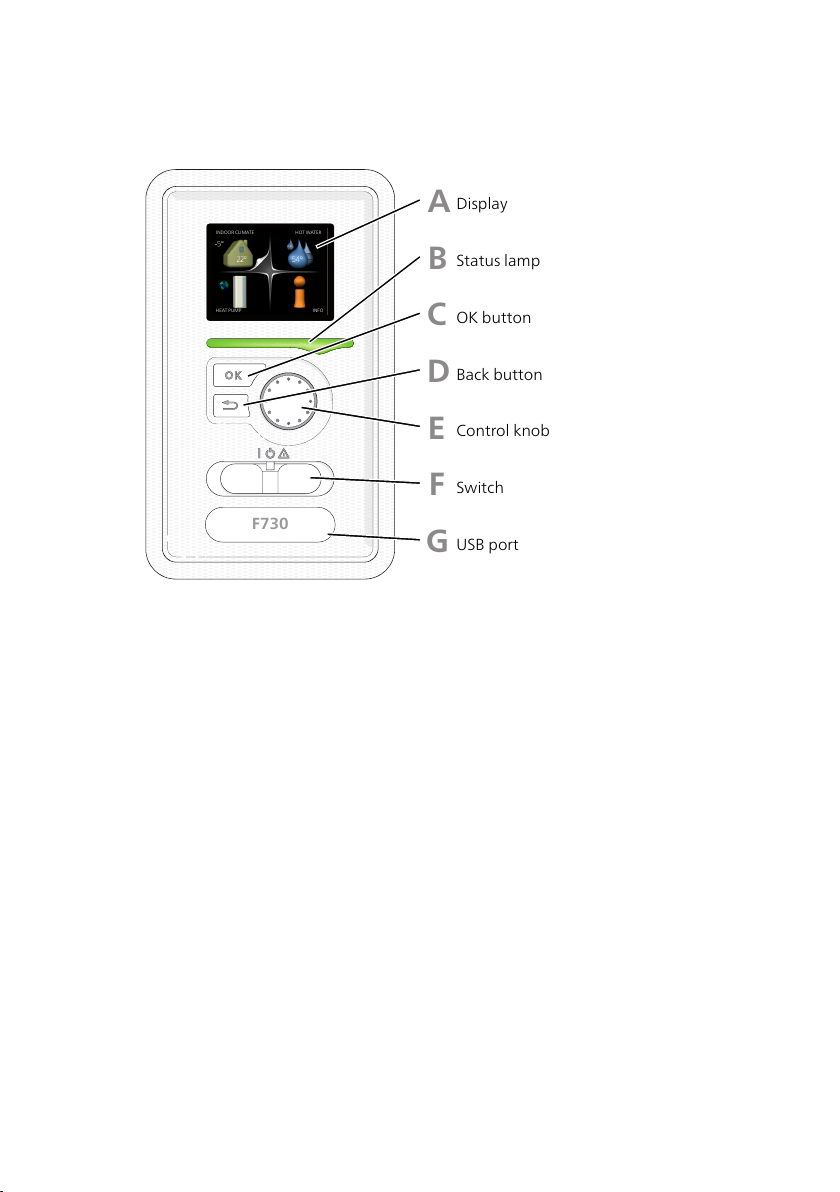

DISPLAY UNIT
A
B
C
D
E
F
Display
Status lamp
OK button
Back button
Control knob
Switch
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
F730 GUSB port
There is a display unit on the front of the heat pump, which is used to
communicate with F730.. Here you:
• switch on, switch off or set the heat pump in emergency mode.
• sets the indoor climate and hot water as well as adjusts the heat pump
to your needs.
• receive information about settings, status and events.
• see different types of alarms and receive instructions about how they
are to be rectified.
Display
Instructions, settings and operational information are shown on the
display. You can easily navigate between the different menus and
options to set the comfort or obtain the information you require.
A
NIBE F730Chapter 2 | The heat pump – the heart of the house12

Status lamp
The status lamp indicates the status of the heat pump. It:
• lights green during normal operation.
• lights yellow in emergency mode.
• lights red in the event of a deployed alarm.
B
OK button
The OK button is used to:
•confirm selections of sub menus/options/set values/page in the start
guide.
C
Back button
The back button is used to:
• go back to the previous menu.
• change a setting that has not been confirmed.
D
Control knob
The control knob can be turned to the right or left. You can:
• scroll in menus and between options.
• increase and decrease the values.
• change page in multiple page instructions (for example help text
and service info).
E
Switch
The switch assumes three positions:
•On ()
•Standby ( )
•Emergency mode ( )
Emergency mode must only be used in the event of a fault on the
heat pump. In this mode, the compressor switches off and the immer-
sion heater engages. The heat pump display is not illuminated and the
status lamp illuminates yellow.
F
13Chapter 2 | The heat pump – the heart of the houseNIBE F730

USB port
The USB port is hidden beneath the plastic badge with the product
name on it.
The USB port is used to update the software.
Visit nibeuplink.com and click the "Software" tab to download the latest
software for your installation.
G
NIBE F730Chapter 2 | The heat pump – the heart of the house14

MENU SYSTEM
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
Indoor temperature - (if room sensors are installed)
Hot water temp.
Temporary lux (if activated)
Outdoor
temperature
Estimated amount of hot water
Information about
operation
INDOOR CLIMATE
Setting and scheduling the indoor climate. See page 31.
Menu 1
HOT WATER
Setting and scheduling hot water production. See page 48.
Menu 2
INFO
Display of temperature and other operating information and access to the alarm
log. See page 53.
Menu 3
HEAT PUMP
Setting time, date, language, display, operating mode etc. See page 56.
Menu 4
15Chapter 2 | The heat pump – the heart of the houseNIBE F730

Symbols in the display
The following symbols can appear in the display during operation.
DescriptionSymbol
This symbol appears by the information sign if there is informa-
tion in menu 3.1 that you should note.
These two symbols indicate whether the compressor or addition
is blocked in F730.
These can, for example, be blocked depending on which oper-
ating mode is selected in menu 4.2, if blocking is scheduled in
menu 4.9.5 or if an alarm has occurred that blocks one of them.
Blocking the compressor.
Blocking additional heat.
This symbol appears if periodic increase or lux mode for the hot
water is activated.
This symbol indicates whether "holiday setting" is active in 4.7.
This symbol indicates whether F730 has contact with NIBE
Uplink.
This symbol indicates the actual speed of the fan if the speed
has changed from the normal setting.
NIBE F730Chapter 2 | The heat pump – the heart of the house16

INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
temperature
INDOOR CLIMATE 1
ventilation
scheduling
advanced
off
normal
Marked main menu
Menu number – marked sub menu Name and menu number – main menu
Symbol – main
menu
Status information – sub menus
Name – sub menusSymbols – sub menus
Operation
To move the cursor, turn the control knob to the left or the
right. The marked position is white and/or has a turned up tab.
Selecting menu
To advance in the menu system select a main menu by
marking it and then pressing the OK button. A new window then opens
with sub menus.
Select one of the sub menus by marking it and then pressing the OK
button.
17Chapter 2 | The heat pump – the heart of the houseNIBE F730

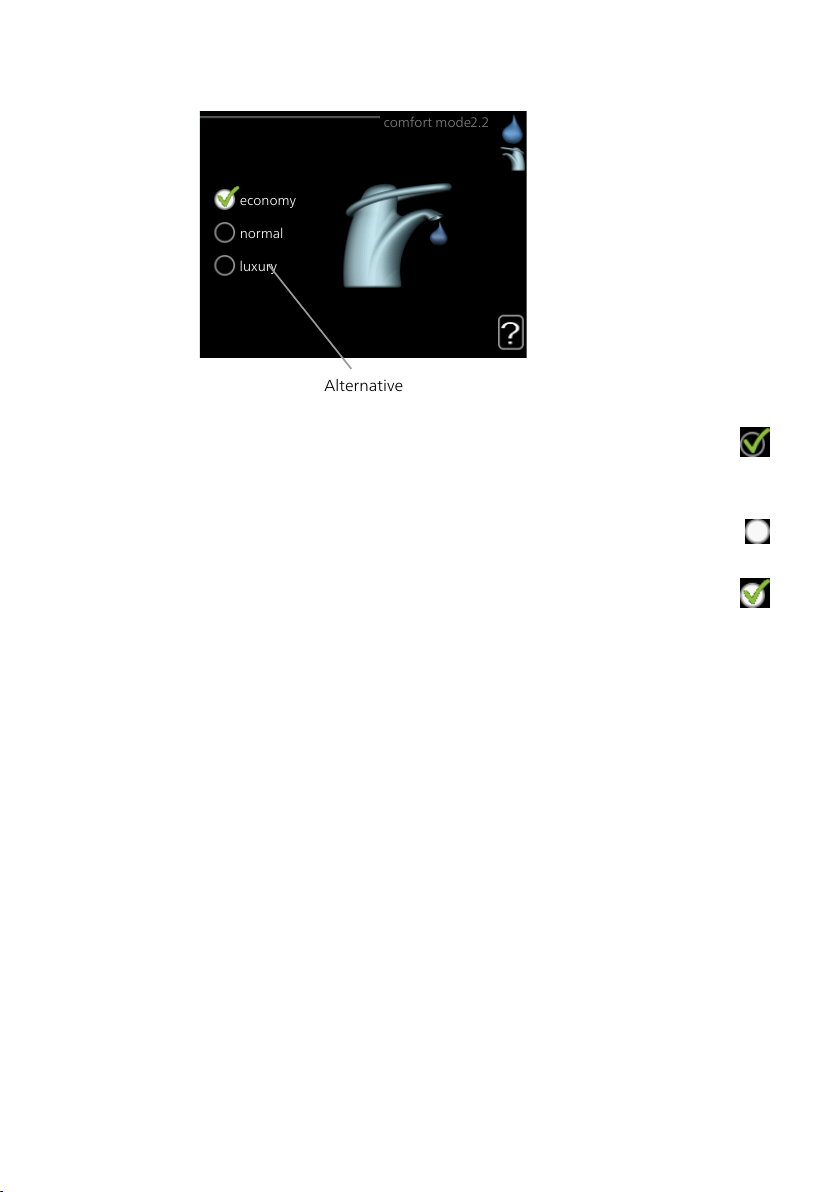

Selecting options
economy
comfort mode2.2
normal
luxury
Alternative
In an options menu the current selected option is indicated by a
green tick.
To select another option:
1. Mark the applicable option. One of the options is pre-selected
(white).
2. Press the OK button to confirm the selected option. The selected
option has a green tick.
NIBE F730Chapter 2 | The heat pump – the heart of the house18

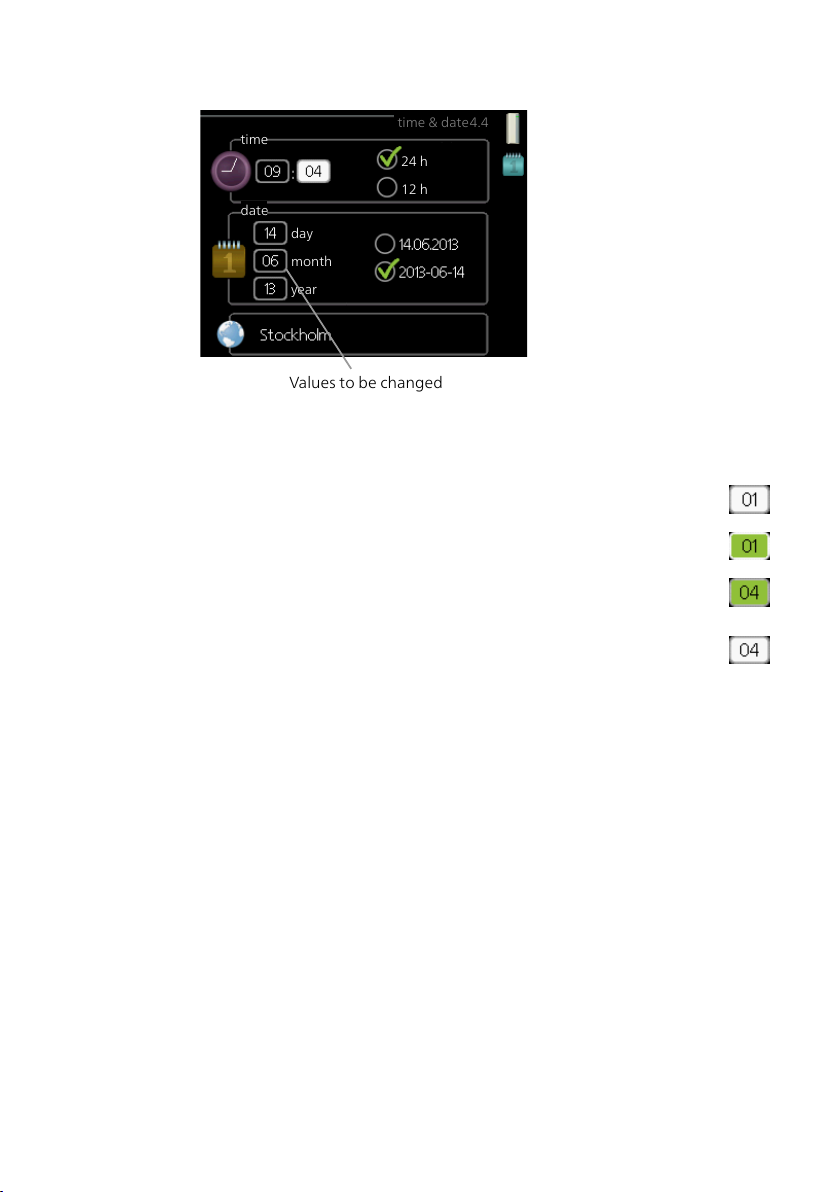

Setting a value
time & date4.4
time
day
year
month
24 h
12 h
date
Values to be changed
To set a value:
1. Mark the value you want to set using the control knob.
2. Press the OK button. The background of the value becomes
green, which means that you have accessed the setting mode.
3. Turn the control knob to the right to increase the value and to
the left to reduce the value.
4. Press the OK button to confirm the value you have set. To
change and return to the original value, press the Back button.
19Chapter 2 | The heat pump – the heart of the houseNIBE F730

Use the virtual keyboard
Different keyboards
In some menus where text may require entering, a virtual keyboard is
available.
Depending on the menu, you can gain access to different character sets
which you can select using the control knob. To change character table,
press the Back button. If a menu only has one character set the keyboard
is displayed directly.
When you have finished writing, mark "OK" and press the OK button.
NIBE F730Chapter 2 | The heat pump – the heart of the house20
